Hans Grohe Metris C 15934831 Instruction Manual

Metris C
15934xx1
E
04354xx0
EN Installation / User Instructions / Warranty
FR Instructions de montage / Mode d'emploi / Garantie
ES Instrucciones de montaje / Manejo / Garantía

2
English
Tools Required / Outiles Utiles
/ Herramientas Útiles
Installation Considerations
• For best results, Hansgrohe recommends that
this unit be installed by a licensed, profes-
sional plumber.
• Please read over these instructions thoroughly
before beginning installation. Make sure that
you have all tools and supplies needed to
complete the installation.
• This trim kit is for use with Quattro Diverter
rough 15930181 or Trio Diverter 15984181.
• The rough valve must be installed, and the
finished wall completed and made watertight
before installation of this trim kit.
• To prevent scald injury, the maximum output
temperature of the shower valve must be no
higher than 120°F. In Massachusetts, the
maximum output temperature of the shower
valve can be no higher than 112° F.
• Keep this booklet and the receipt (or other
proof of date and place of purchase) for
this product in a safe place. The receipt is
required should it be necessary to request
warranty parts.
15934xx1
4⅝"
⅝"
2⅝"
3⅛"
4⅜"
04354xx0
3⅜"
4⅜"
⁹⁄₁₆"
2¼"
This unit meets or exceeds the
following:
• ASME A112.18.1
• CSA B125.1
• ICC/ANSI A117-1
• Listed by IAPMO for use in the
US and Canada

3
Français Español
À prendre en considération
pour l’installation
• Pour de meilleurs résultats, Hansgrohe re-
commande que ce produit soit installé par un
plombier professionnel licencié.
• Ce dispositif requiert une pièce intérieure
Quattro 15930181 ou Trio 15984181.
• La pièce intérieure doit être installée et la
surface murale doit être complètement finie et
étanche avant l’installation de ce dispositif.
• Veuillez lire attentivement ces instructions
avant de procéder à l’installation. Assurez-
vous de disposer de tous les outils et du
matériel nécessaires pour l’installation.
• Pour empêcher des blessures par ébouillan-
tement, la température de sortie maximale
du robinet de douche ne doit pas excéder
120°F. Au Massachusetts, la température de
sortie maximale du robinet de douche ne doit
pas excéder 112°F.
• Conservez ce livret et le reçu (ou une autre
preuve sur laquelle figurent la date et l’endroit
de l’achat) pour ce produit dans un endroit
sûr. Le reçu est requis si vous commandez des
pièces sous garantie.
Consideraciones para la
instalación
• Para obtener mejores resultados, Hansgrohe
recomienda que la instalación de esta unidad
esté a cargo de un plomero profesional
matriculado.
• Antes de comenzar la instalación, lea estas
instrucciones detenidamente. Asegúrese de
tener las herramientas y los insumos necesa-
rios para completar la instalación.
• Utilice este dispositivo con pieza interior
Quattro 15930181 o Trio 15984181.
• La pieza interior debe estar instalada y la
superficie mural debe estar completamente
acabada y estanco antes de la instalaciуn de
este dispositivo.
• Al prevnent escalda herida, la temperatura de
salida máxima de la válvula de chaparrón no
debe ser más alto que 120°F. En Massachu-
setts: la temperatura de salida máxima de la
válvula no puede ser más alto que 112°F.
• Mantenga este folleto y el recibo (u otra
prueba de la fecha y el lugar de compra)
para este producto en un lugar seguro. El re-
cibo es requerido lo debe es necesario para
solicitar partes de garantía.

4
English
Seal the wall around the
plaster shield with water-
proof sealant.
Failure to seal the wall can
lead to possible water dam-
age.
Install the slip coupling.
Installation
Cut the plaster shield so that it extends ¹⁄₁₆"
outside the surface of the finished wall.
Cut the slip coupling so that it extends ⅝"
outside the surface of the finished wall.
Install the extension spindle.
1
2
3
1
2
1
2

5
Français Español
Selle la pared alrededor del
protector de yeso con un sella-
dor impermeable.
Si no se sella la pared, pueden
producirse daños por acción
del agua.
Instale el acoplamiento deslizante.
Scellez le mur autour du
protecteur à l’aide d’un agent
d’étanchéité.
Si le mur n’est pas scellé, l’eau
pourrait éventuellement causer
des dommages.
Installez le raccord à glissement.
Installation
Coupez le protecteur de façon à ce qu’une partie
de ¹⁄₁₆ po soit à l’extérieur de la surface du mur
fini.
Instalación
Corte el protector de yeso de modo que sobre-
salga ¹⁄₁₆" de la superficie de la pared terminada.
Coupez le raccord à glissement de façon à ce
qu’une partie de ⅝ po soit à l’extérieur de la
surface du mur fini.
Installez la tige d’extension.
Corte el acoplamiento deslizante de modo que
sobresalga ⅝" de la superficie de la pared
terminada.
Instale el husillo de extensión.

6
English

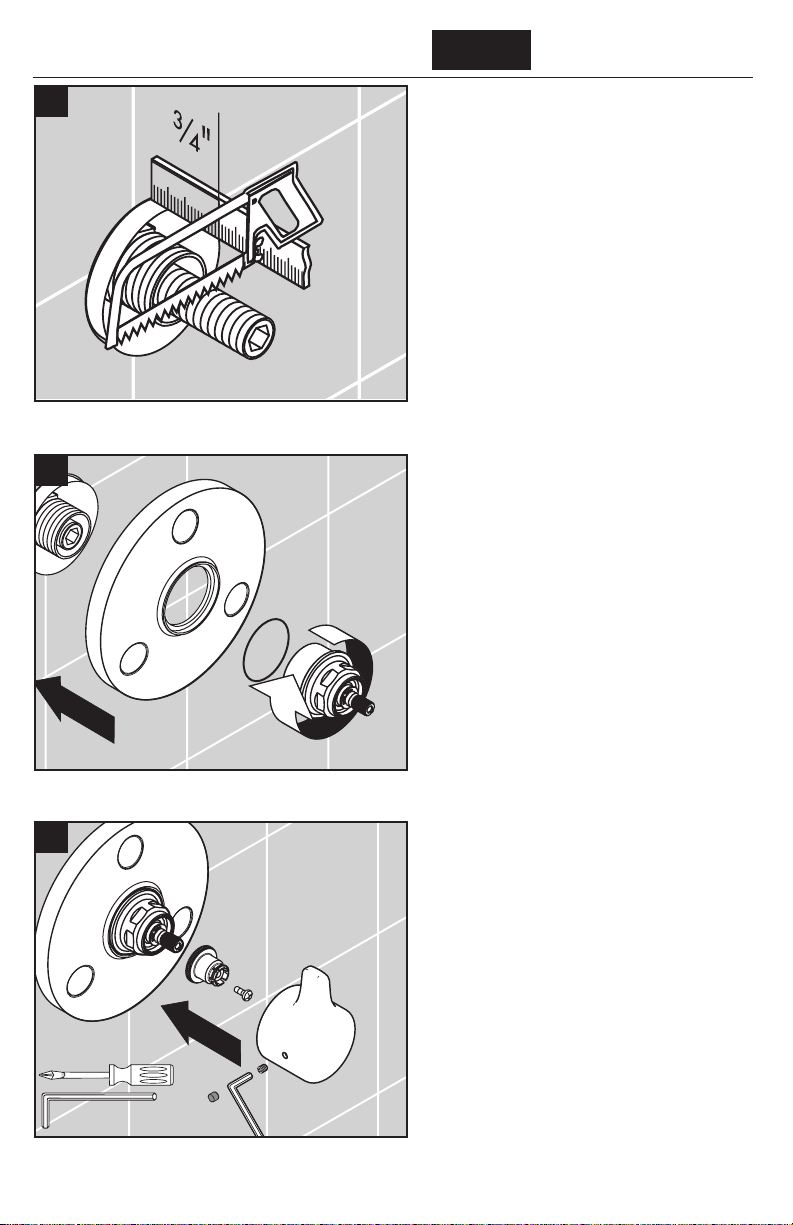

Cut the extension spindle so that it extends ¾"
outside the surface of the finished wall.
Install the escutcheon.
Install the nut and o-ring.
Install the snap connector.
Tighten the screw.
Install the handle.
Tighten the screw using a 2.5 mm Allen
wrench.
Install the screw cover.
4
5
6
2.5 mm

7
Français Español
Coupez la tige d’extension de façon à ce qu’une
partie de ¾ po soit à l’extérieur de la surface du
mur fini.
Installez l’écusson.
Installez l’écrou et le joint.
Installez le connecteur à encliqueter.
Serrez la vis.
Installez la poignée.
Serrez la vis à l’aide d’une clé hexagonale de
2.5 mm.
Installez la cache-vis.
Corte el husillo de extensión de modo que sobre-
salga ¾" de la superficie de la pared terminada.
Instale el escudo.
Instale la tuerca y la junta.
Instale el conector a presión.
Apriete el tornillo.
Instale el mando.
Apriete el tornillo con una llave Allen de 2.5 mm.
Instale la tapa del tornillo.

8
English

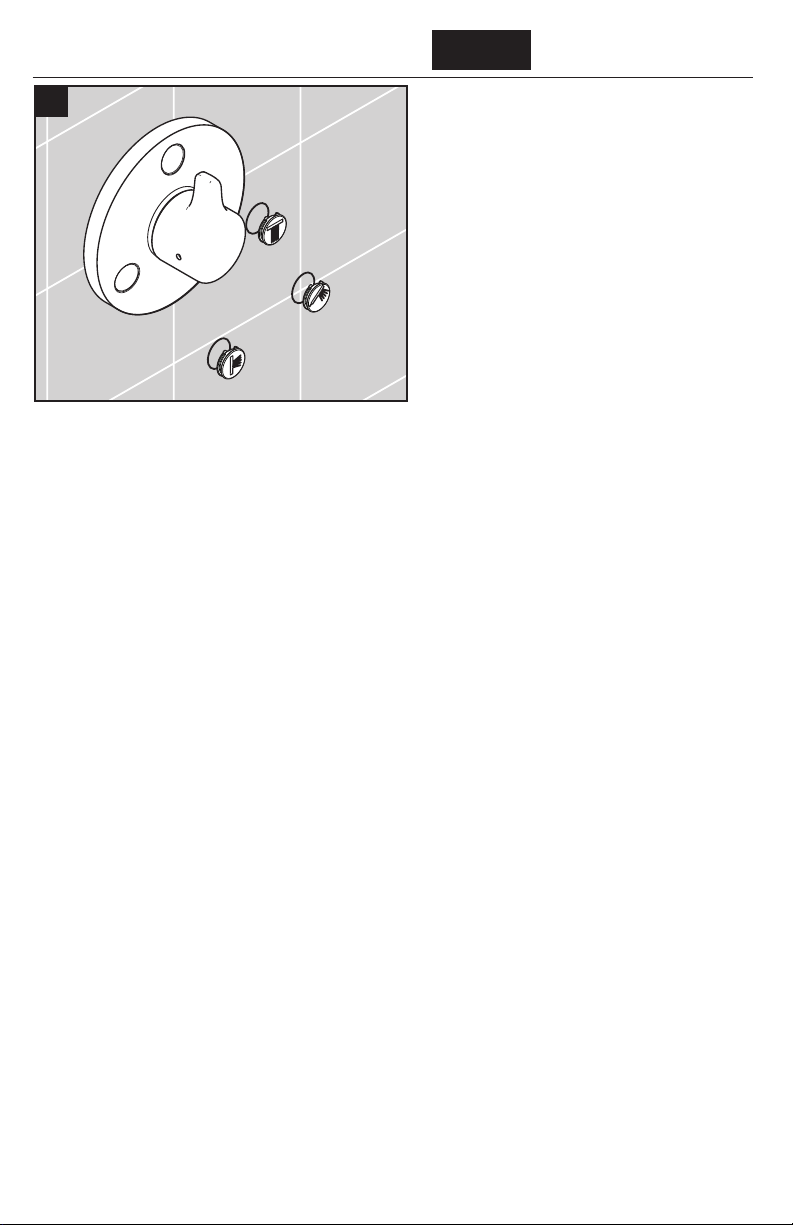

Press the icons into the escutcheon.
7

9
Français Español
Installez les icônes sur l’écusson. Instale los iconos en el escudo.

10
Replacement Parts / Pièces détachées / Repuestos
xx = Colors / Couleurs / Acabados
00 = Chrome
82 = Brushed Nickel
83 = Polished Nickel
92 = Rubbed Bronze
95649xx0
95238xx0
98128000
96392000
96364000
98677000
94184000
96392000
98128000
96364000
94184000
98677000
95238xx0
95563xx0
95181000
95181000
96370000
not included
pas d'inclus
no incluidos

11
Cleaning Recommendation for Hansgrohe Products
Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the
needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take
proper care of it.
For best results:
• Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when
needed.
• Select a cleaning agent specifically intended for the type of product.
• Do not use these types of cleaners as they will cause damage to your Hansgrohe product:
 Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid.
 Abrasive cleaning powders, pads, or brushes.
 Steam cleaners.
 “No rinse” cleaning agents.
• Always follow the instructions provided by the manufacturer of the cleaning agent.
• Do not mix cleaning agents, unless directed by the manufacturer.
• Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage.
When using spray cleaners, spray the cleaner onto a soft cloth or sponge.
• Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after
cleaning.
Important
• Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use.
• Residue from basin/tub/tile cleaner can cause damage to faucets and fittings. Immediately rinse any
overspray from the Hansgrohe product.
• Damage to the product caused by improper care or the use of improper cleaning agents is
not covered by the warranty.
• If a component of the product is damaged, replace it, as there is risk of injury.
Conseil de nettoyage pour les produits Hansgrohe
Les robinets pour les salles de bains et les cuisines modernes ainsi que les produits récents pour les douches
se composent de matériaux différents afin de satisfaire aux besoins du marché en termes de conception et de
fonctionnalité. Afin d'éviter d'endommager le produit, il est nécessaire d'en prendre soin.
Pour de meilleurs résultats :
• Empêchez l'accumulation de tarte et/ou de résidu de savon en nettoyant votre produit Hansgrohe lorsque c'est
nécessaire.
• Sélectionnez un produit de nettoyage spécifiquement prévu pour ce type de produit.
• N'utilisez pas ces types de nettoyants car ils peuvent endommager votre produit Hansgrohe :
 Tout produit de nettoyage contenant de l’acide chlorhydrique, de l’acide formique, de la potasse ou de
l’acide acétique.
 Les poudres de nettoyage, les tampons ou les brosses abrasives.
 Les nettoyeurs à vapeur.
 Les produits de nettoyage « sans rinçage ».
• Ne mélangez pas les produits de nettoyage, à moins que cela soit indiqué par le fabricant.

12
Recomendación de limpieza para los productos de Hansgrohe
Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos
para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones
hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza.
Para obtener mejores resultados:
• Evite la acumulación de restos de jabón o sarro limpiando el producto Hansgrohe cuando sea necesario.
• Seleccione un agente de limpieza diseñado específicamente para el tipo de producto.
• No use estos tipos de limpiadores, ya que causarán daño a su producto Hansgrohe:
 Agentes limpiadores que contengan ácido clorhídrico, fórmico, acético o lejía.
 Polvos, paños o cepillos de limpieza abrasivos.
 Limpiadores a vapor
 Agentes de limpieza "sin enjuague”.
• Siempre siga las instrucciones provistas por el fabricante del agente de limpieza.
• No mezcle los agentes de limpieza, a menos que esté indicado por el fabricante.
• No rocíe limpiadores directamente sobre el producto, ya que podrían caer gotas sobre las aberturas y
espacios y causar daños. Cuando use limpiadores en spray, rocíe el limpiador sobre un paño suave o esponja.
• Siempre enjuague su producto Hansgrohe con agua limpia y séquelo y lústrelo con un paño suave después
de la limpieza.
Importante
• Los residuos de jabón y champú pueden causar daños. Enjuague el producto con agua limpia después de cada
uso.
• Los residuos de limpiadores para lavatorios, bañeras o azulejos pueden causar daño a los grifos y accesorios.
Enjuague inmediatamente cualquier derrame que haya sobre el producto de Hansgrohe.
• Los daños que resulten de un cuidado inadecuado o uso de agentes de limpieza
inadecuados no están cubiertos por la garantía
• Si se daña un componente del producto, reemplácelo, ya que existe riesgo de lesión.
• Ne pulvérisez pas les nettoyants directement sur le produit car des gouttes pourraient entrer dans les
ouvertures et les fentes et causer des dommages. Lorsque vous utilisez des nettoyants par pulvérisation,
pulvérisez le nettoyant sur un chiffon ou une éponge douce.
Important
• Le résidu provenant des savons et des shampoings peut causer des dommages. Rincez le produit avec de l'eau
propre après chaque utilisation.
• Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les
raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe.
• Les dommages au produit causés par un mauvais entretien ou par l'utilisation de produits de
nettoyage inadéquats ne sont pas couverts par la garantie.
• Si un composant du produit est endommagé, remplacez-le, car il existe un risque de
blessure.

13
Limited Consumer Warranty
This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”).
This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada
after March 1, 1996, and installed in either in the United States or in Canada.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original purchaser only. This warranty is non-transferable.
WHAT IS COVERED BY THE WARRANTY
The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in
material or workmanship as follows:
Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that
proves defective because of improper workmanship and/or material, under normal installation, use, service and
maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in
timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following
two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household
purposes, this warranty extends for as long as you own the product and the home in which the product is originally
installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a
commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products,
and (ii) for 5 years, with respect to Axor products.
THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper
maintenance, misuse, abuse, negligence, accident or alteration; the use of abrasive or caustic cleaning agents
or “no-rinse” cleaning products, or the use of the product in any manner contrary to the product instructions; or
conditions in the home such as excessive water pressure or corrosion.
C.Labor and other expenses for disconnection, deinstallation, or return of the product for warranty service
(including but not limited to proper packaging and shipping costs), or for installation or reinstallation of the
product.
D. Accessories, connected materials and products, or related products not manufactured by Hansgrohe.
E. Any Hansgrohe or Axor product sold for display purposes.
F. Rubbed Bronze finish is subject to a 3-year limited warranty. Chrome and all PVD finishes are covered by the
limited lifetime warranty.
G. Hansgrohe Water Filtration System is subject to a 1-year limited warranty. Warranty does not include
replacement filters.
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your Hansgrohe retailer, or contact Technical Service at:
Hansgrohe, Inc.
1492 Bluegrass Lakes Parkway
Alpharetta, GA 30004
Toll-free 800-334-0455
In requesting warranty service, you will need to provide:
1. The sales receipt or other evidence of the date and place of purchase.
2. A description of the problem.
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to:
Hansgrohe, Inc.
1492 Bluegrass Lakes Parkway
Alpharetta, GA 30004
Toll-free 800-334-0455
When warranty service is completed, any repaired or replacement product or part will be returned to you postage
prepaid.

14
EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE
PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER.
HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY
OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT. HANSGROHE SHALL
NOT BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED
WARRANTY (INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY).
Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
that vary from state to state.
TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY.
Some states do not allow limitations on how long an implied warranty may last, so the above limitations may not
apply to you. You may be required by law to give us a reasonable opportunity to correct or cure any failure to
comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible
defect. Prior to installing, always carefully study the enclosed instructions on the proper installation and the care and
maintenance of this product. If you have questions at any time about the use, installation or performance of your
Hansgrohe product, or this warranty, please write us or call us toll-free at 800-334-0455.

15

Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004
Tel. [phone] • Fax [phone]
www.hansgrohe-usa.com
US - Installation Instructions • Part No. 90162001 • Revised 11/2013
