HYDRA CEILING FAN
MODEL #41371
Español p. 20

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................15
Care and Maintenance ............................................................16
Troubleshooting..................................................................16
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19

3
PACKAGE CONTENTS
2hr 4hr 8hr
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
GMotor Assembly 1
H Fitter Plate (preassembled to Motor Assembly [G]) 1
I Fitter Plate Screw (preassembled to the Fitter Plate [H]) 3
J Blade Arm (preassembled to Motor Assembly [G]) 8
K Light Kit 1
L Glass Bowl 1
M Remote Pack 1
N Blade Balancing Kit 1
O Yoke Cover 1
P Blade 8
Q Set Screw (preassembled to Motor Assembly [G]) 2
R Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
A
B
C
M
P
Q
R
ON
D
E
F
G
HI
K
J
L

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 24
+ 1 extra
Blade Washer
Qty. 24
+ 1 extra
AA BB CC

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Beforeyoubegininstallingthefan,disconnectthepowerbyremovingfusesorturningo󰀨thecircuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 12.58 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoutlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
Read all instructions and safety information before installing your new fan. Review the accompanying
assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
byturningtheequipmento󰀨andon,theuserisencouragedtotrytocorrecttheinterferencebyone
or more of the following measures:
--Reorient or relocate the receiving antenna. Increase the separation between the equipment and
receiver.
--Connecttheequipmentintoanoutletonacircuitdi󰀨erentfromthattowhichthereceiveris
connected.
--Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Anychangesormodications
not expressly approved by the grantee of this device could void the user’s authority to operate the
equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7

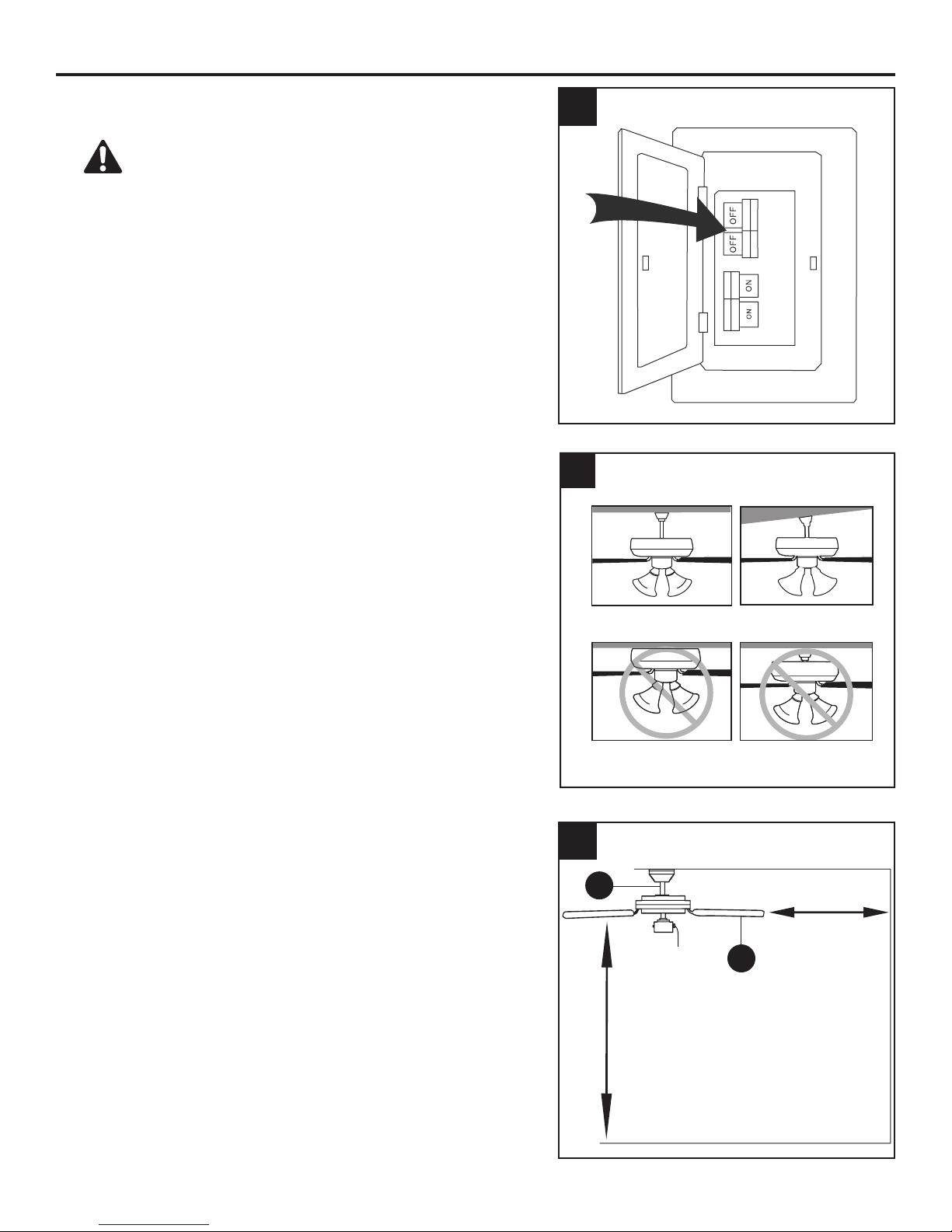

INITIAL INSTALLATION
1. Turno󰀨thecircuitbreakersandthewallswitchtothe
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard mounting is best suited for ceilings 9 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle-style mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance. Note:
If using the angle mount, check to ensure the ceiling
angle is not steeper than 45°.
Closemount-style mounting is not available for this
item.
Flushmount installation is not available for this item.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (P) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (P) will be at least 7 ft. above the
oor.
A
7 ft.
Minimum
30 in.
Minimum
3
1
A
P

8
INITIAL INSTALLATION
4. Loosen all four preassembled mounting bracket
screws (R), then completely remove the two
mounting bracket screws (R) from the round holes
of canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
Note: If using this item on an angled ceiling, snap
out the perforated section of the canopy cover (F).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
Important: If using the angle mount, ensure the
open end of the mounting bracket (D) is installed
facingtheoor.
6.Removethethreetterplatescrews(I)andthe
packing material from the motor assembly (G).
Discard the orange packing material from the top
and bottom of the motor assembly (G) but save the
threetterplatescrews(I)forlater.
5
4
E
F
D
R
D
I
Perforated Tab
6
Standard and
Closemount
Mounting
Angle
Mounting
D
D
Packing
Material
Packing
Material

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C) from
the downrod (A). Then, partially loosen the set screws
(Q) in the yoke at the top of the motor assembly (G).
2. Insert the downrod (A) through the canopy (E) and yoke
cover (O). Feed the wires from the motor assembly (G)
through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (Q).
A
G
B
C
Q
2
E
A
O
G
3
A
CQ
B
G
Yoke
1
Yoke

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Depending on the length of downrod you use, you may
need to cut the lead wires back to simplify the wiring.
If you decide to cut back the lead wires, take the lead
wires and make sure you have pulled them all the way
through the top of the downrod. Measure at least 8
inchesofleadwire,thencuttheexcesswireo󰀨with
wire cutters (not included).
8 in.
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
black, blue and green wires.
Note: If you did not cut back the lead wires in Step 4, Step
5 is not necessary and you may proceed to Step 6.
6. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in
the ball with the tab in the mounting bracket (D). Note:
The downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
4
5
6
A
D
Slot Tab

11
WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Secure all wiring connections with wire connectors (AA)
according to the diagram and these steps:
•ConnecttheBare/Green(ground)supplytoGreenwires
from the fan and the mounting bracket.
•ConnecttheBlack(hot)supplywiretotheBlackfanwire.
•ConnecttheWhite(neutral)supplywiretotheWhitefan
wire.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The Blue
wire is hot power for light. The Green wire is the ground
wire.Ifhouseholdsupplywiresaredi󰀨erentcolorsthan
referred to above, it is recommended a professional
electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black wire connections.
1
3
AA
D
2

12
FINAL INSTALLATION

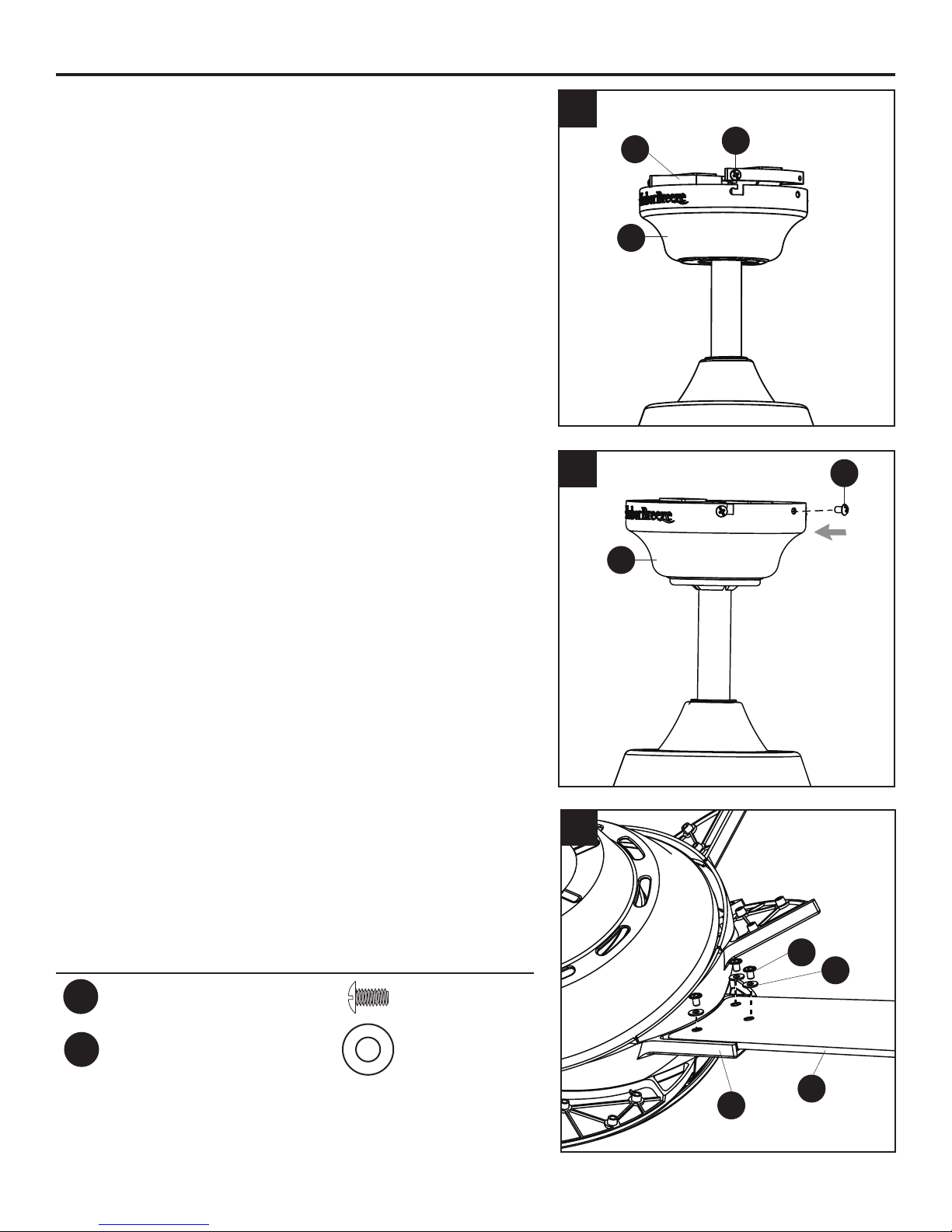

1. Align the canopy (E) over the loosened mounting
bracket screws (R) preassembled on mounting bracket
(D). Place the keyholes of the canopy (E) onto the
mounting bracket screws (R) and rotate the canopy (E)
clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (R) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (R) securely.
3. Partially insert the blade screws (BB) along with blade
washers (CC) through the blade (P) and into the blade
arm (J). Tighten each blade screw (BB) with a Phillips
screwdriver (not included), starting with the one in the
middle. Repeat this step for the remaining blades (P)
and blade arms (J).
Hardware Used
BB Blade Screw x 24
Blade Washer x 24
1
2
E
E
R
DR
3
CC
CC
P
J
BB

13
FINAL INSTALLATION

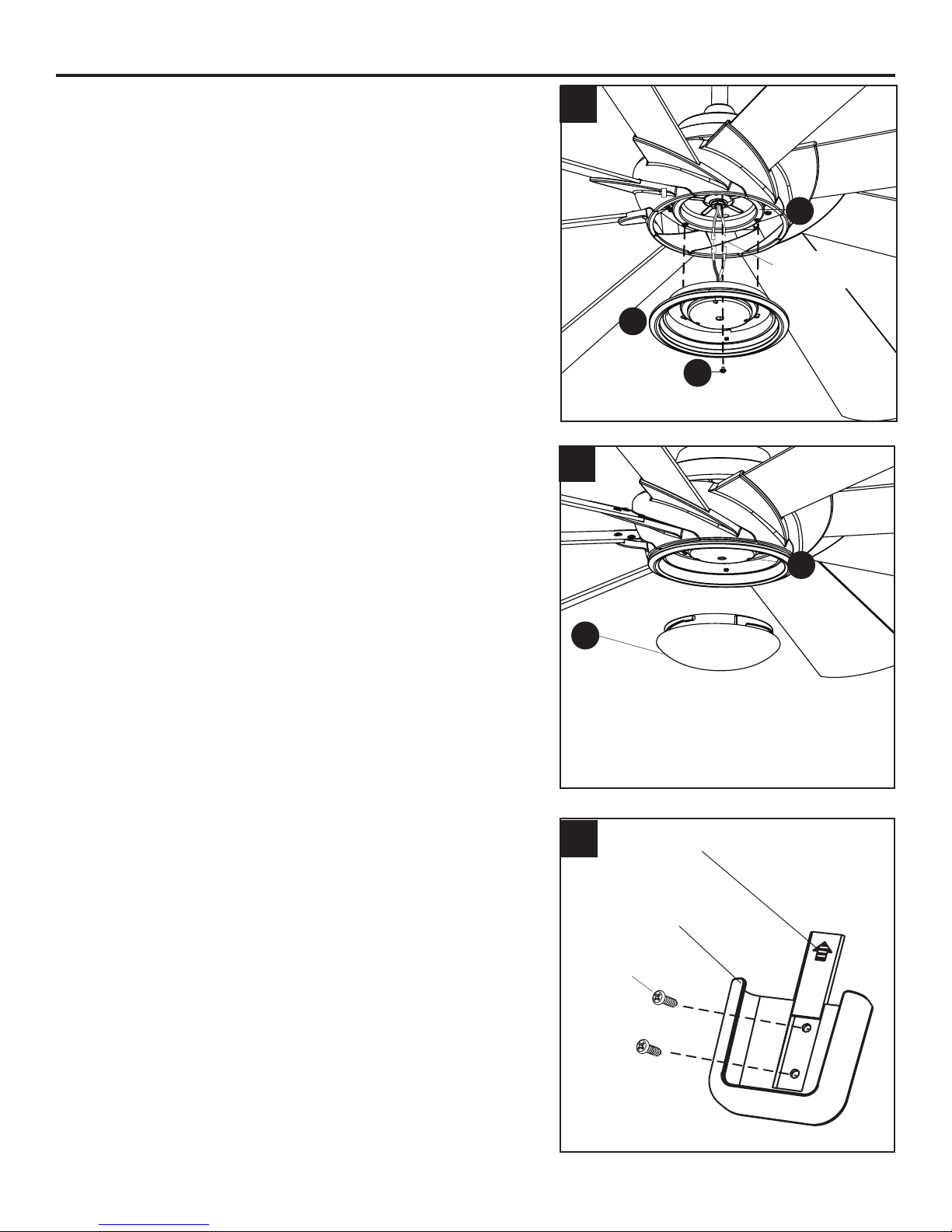

4. To install the light kit (K), connect the single-pin connector
from the motor assembly (G) to the single-pin connector
from the light kit (K) -- Blue to Black and White to White.
Reinserttwopreviouslyremovedtterplatescrews(I)
(step6,page8)intothetterplate(H),butdonottighten.
Placethekeyholesofthelightkit(K)overthetterplate
screws (I) and turn clockwise. Secure the light kit (K)
withtheremainingpreviouslyremovedtterplatescrew
(I).Tightenallthreetterplatescrews(I).
5. Lift the glass bowl (L) over the light kit (K) and turn in a
clockwise direction until it is secure.
6. If desired, the mounting bracket in remote pack (M)
can be installed to a wall using the provided mounting
screws. The remote from remote pack (M) can be
stored in the mounting bracket for easy access.
4
5
H
K
I
6
L
K
Single-pin
Connector
Wall Bracket
Screws
Wall Bracket
Small Plate

14
FINAL INSTALLATION

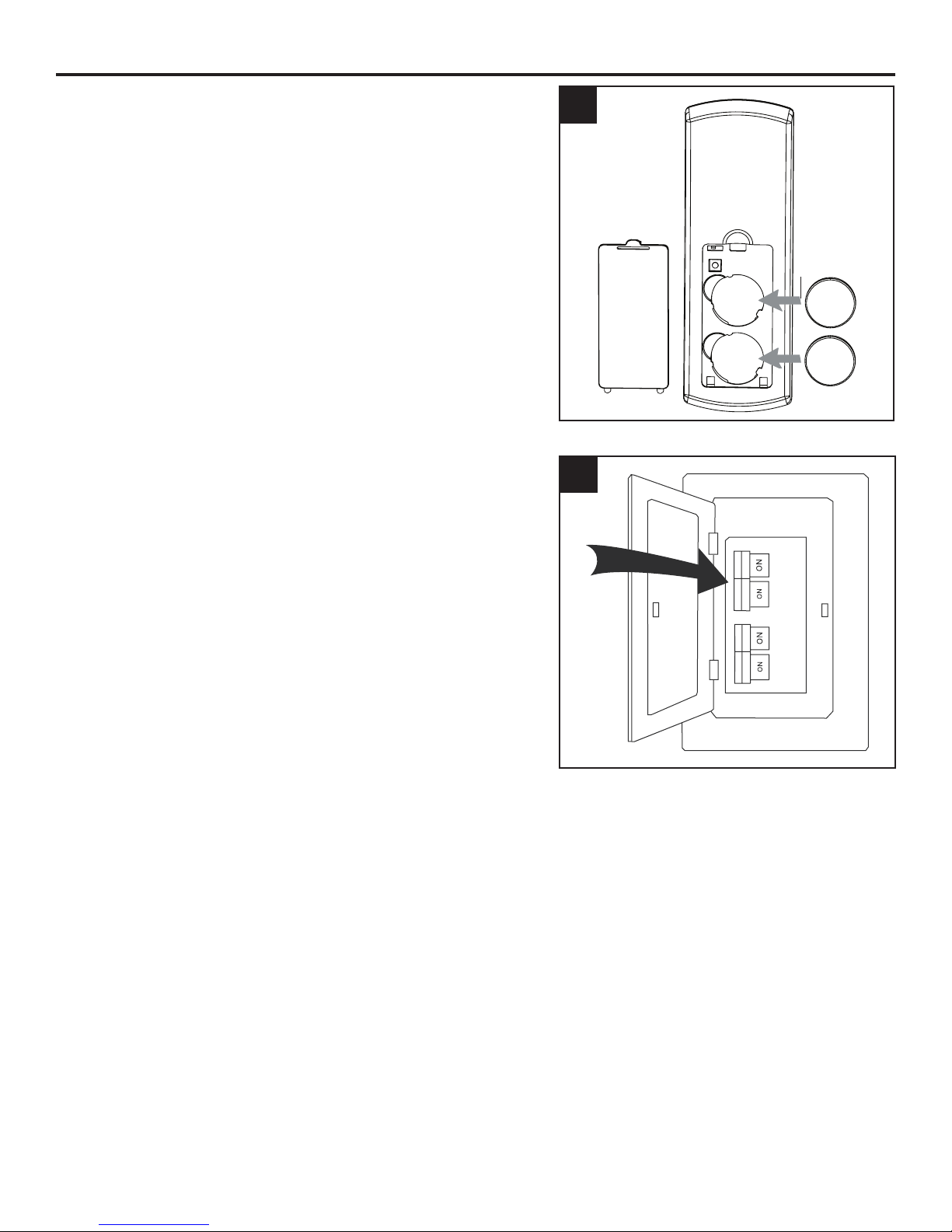

8. Remove the battery cover from the back of the remote
from remote pack (M) and insert the CR2032 batteries.
Replace the battery cover. If battery is installed
correctly, the LED indicator on the front of the remote
transmitter should illuminate when any button is
pushed.
9. Turn on power supply to the fan.
Assembly is complete.
8
7
Battery
Battery Cover

15
OPERATING INSTRUCTIONS
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
settinginwinterwithoutfeelingadi󰀨erenceinyour
comfort. Note: Wait for the fan to stop before moving the
reverse switch.
In warmer weather, push the reverse switch left, which
willresultindownwardairowcreatingawindchille󰀨ect.
In cooler weather, push the reverse switch right, which
willresultinupwardairowthatcanhelpmovestagnant,
hotairo󰀨theceilingarea.
IMPORTANT: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. To operate the fan using remote control, press and
release the following buttons:
( ) - Increase fan speed
( ) - Lower fan speed
()-Turnsthefano󰀨.
Sleep Timers:Turno󰀨fanafter2hours(2hr),4hours
(4hr), or 8 hours (8hr).
Light Delay-Delaysturningo󰀨lightforoneminutewhich
allows safe exit from room.
Security Light - Lights cycle on for 5-20 minutes and
o󰀨for60minutessimulatingoccupancy.Cyclerepeats
continuously until disabled.
Variable Breeze - Simulates a natural breeze, as if you
were outside.
Light Control-Presslightcontroltoturnlightso󰀨andon.
Press and hold light control to dim or brighten the lights.
Learn - For any reason, should it become necessary to
reprogram the remote, follow these syncing instructions:
turno󰀨thepoweratthebreakerboxforatleast10
seconds and then turn the power back on. Within 30
seconds, press and hold the “LEARN” button on the back
oftheremoteuntiltheLEDindicatorashes3times,
signaling a successful synchronization. Once complete, the
fan will start on low speed.
1
2
Reverse Switch
Learn
Light Control
Security Light
Reverse
Variable Breeze
Light Delay
Sleep Timer
Fan
Control

16
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, then tighten all screws
on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid scratching the
nish.Cleanthebladeswithalint-freecloth.
Battery Replacement: Use CR2032 alkaline batteries.
Totalxturewattageis18.5watts;donotattempttoreplaceLED.
Shuto󰀨themainpowersupplybeforeyoubeginanymaintenancetask.Donotusewateroradamp
cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. Thewallswitchisturnedo󰀨.
3. Thepoweriso󰀨orthefuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch
completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turnthepowero󰀨andcheckall
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side, or balance the fan using
the blade balancing kit (N).
3. Turno󰀨thepower.Loosenthecanopy
and verify that the mounting bracket
is secure to the electrical outlet box.
Thebracketmustbeushwithout
movement against the outlet box.
Verify the outlet box is secure.
4. Use a longer downrod (sold
separately) or move the fan to another
location.
5. Lift up the yoke cover and tighten the
set screws on the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire connection.
1. Ensure the single-pin connectors are
properly secured.
2. Turnthepowero󰀨andcheckall
connections at the ceiling outlet box.
Remote control
does not work.
1. Power surge may have cleared
memory and remote needs to be
re-synced to the receiver.
2. Battery in remote control needs
to be replaced.
3. Interference from another
remote.
1. Turno󰀨themainpower,thenturnit
back on. Within 30 seconds, press and
hold the high and low speed buttons
on the remote at the same time for
5 seconds. The LED indicator will
ash3times,signalingasuccessful
synchronization. Once complete, the
fan will start on low speed with the light
(ifapplicable)o󰀨.
2. Insert new CR2032 batteries in battery
compartment of the remote control
(see page 14).
3. If there are several fans in close
proximity,turnpowero󰀨tootherfans
and re-sync the remote (see Corrective
Action 1 above).

18
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbya󰀩xinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

19
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
2hr 4hr 8hr
PART DESCRIPTION PART #
A Downrod 4L000008960
D Mounting Bracket 4L000008970
E Canopy 4L000008980
F Canopy Cover 4L000008990
K Light Kit 4L000009000
L Glass Bowl 4L166780000
M Remote Pack 4L000009010
O Yoke Cover 4L000000230
P Blade 4L084830001
HW Hardware Kit 4L000009020
9283-PB•110117
D
E
A
F
L
K
P
O
M
HW
