Harbor Breeze SOUTHLAKE LP8055LAZ User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and
8 a.m. - 5 p.m., EST, Friday.
Español p. 22
ITEM #0331104
MODEL #LP8055LAZ
SOUTHLAKE CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

PRODUCT SPECIFICATIONS
TABLE OF CONTENTS
Safety Information ........................................................................................................................
Package Contents ........................................................................................................................
Hardware Contents .......................................................................................................................
Assembly Instructions ...................................................................................................................
Hanging Instructions .....................................................................................................................
Wiring Instructions ........................................................................................................................
Canopy Housing Installation .........................................................................................................
Blade Installation ..........................................................................................................................
Light Fitter Assembly Installation ..................................................................................................

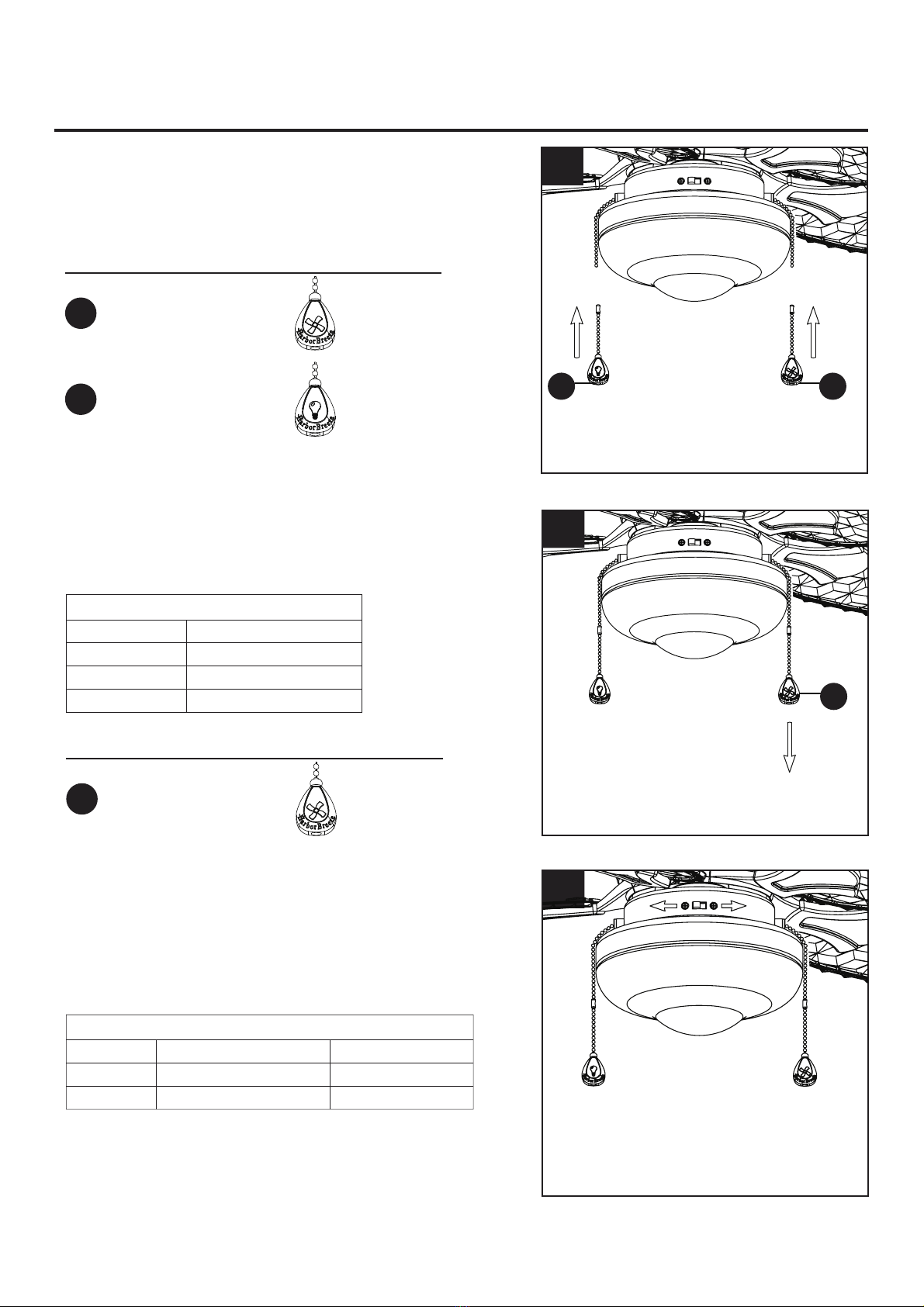

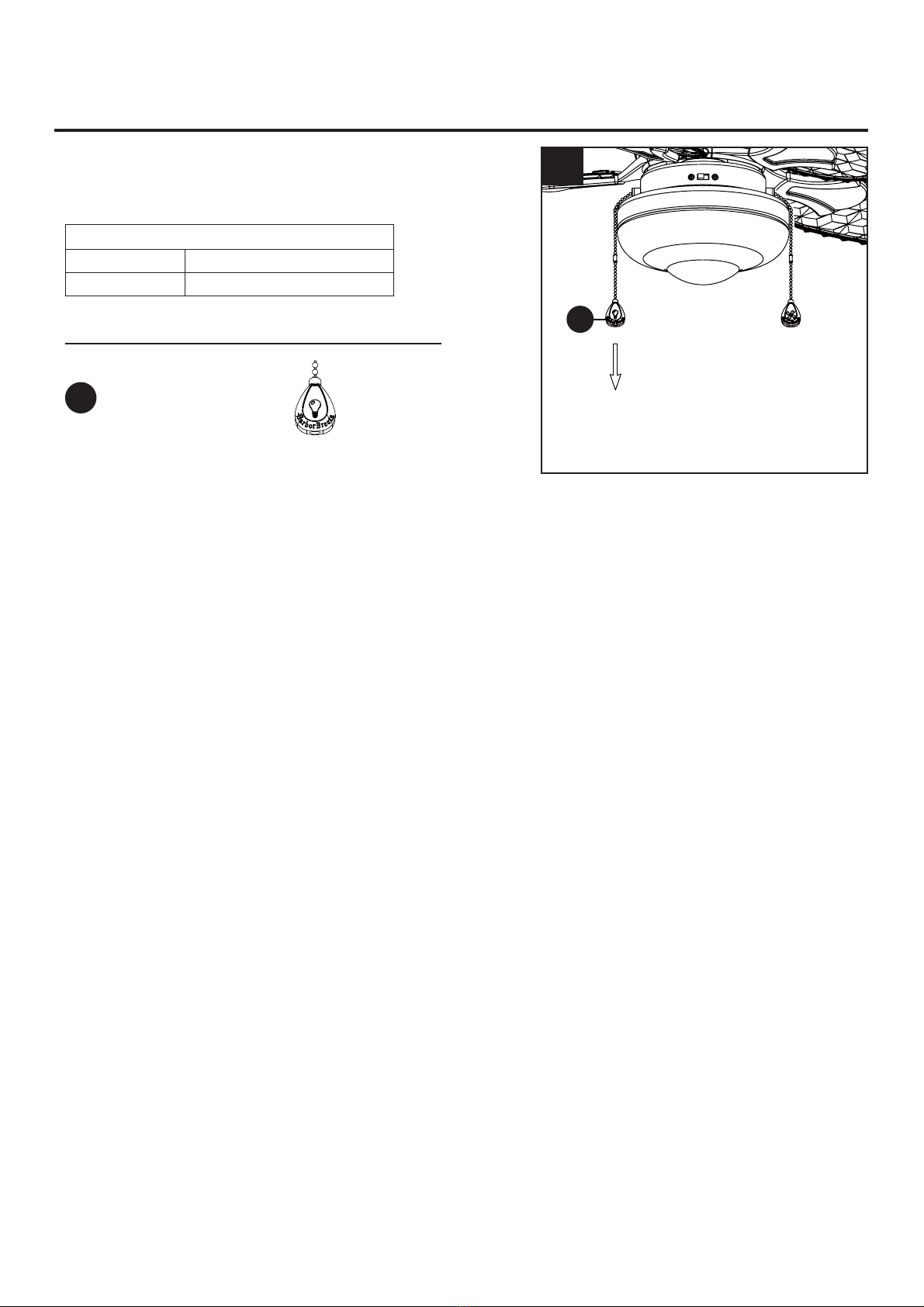

Pull Chain Operating Instructions .................................................................................................
Blade Balancing Installation Instructions .....................................................................................
Care And Maintenance .................................................................................................................
Troubleshooting ............................................................................................................................
Warranty .......................................................................................................................................
Replacement Parts List ................................................................................................................
2
COMPONENTE
ESPECIFICACIONES
A
B
C
D
E
F
G
H
I
J
K
Motor Assembly
Blade
Bulb
Socket Plate Assembly
Blade Holder Arm
Motor Coupling Cover
Ceiling Canopy
Downrod/Hanger Ball Assembly
Hanger Bracket
Light Fitter Assembly
Canopy Screw Cover
COMPONENTE
ESPECIFICACIONES
L
Glass
3
5
6
7
9
10
11
11
12
14
17
18
18
20
21

3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. If you have any questions regarding the product, please call customer service at
1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and 8 a.m. - 5 p.m., EST, Friday.
Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit
breakers.
Make sure that all electrical connections comply with local codes, ordinances, or the National
Electrical code. Hire a qualified electrician or consult a do-it-yourself wiring hand-book if you are
unfamiliar with installing electrical wiring.
 Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades
to the floor and at least 30 in. from the ends of the blades to any obstruction.
 If you are mounting the fan to a ceiling outlet box, use a METAL octagonal outlet box.
Secure the box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.) Do NOT use a plastic outlet box.
After you install the fan, make sure that all connections are secure to prevent the fan from falling.
Instructions for supply connections: conductor of a fan identified as grounded conductor to be
connected to a grounded conductor of power supply; conductor of a fan identified for equipment
grounding to be connected to an equipment-grounding conductor.
Do not install or use fan if any part is damaged or missing.
WARNING
Read all instructions and safety information before installing your new fan.
Review accompanying assembly diagrams.
CAUTION
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided
with this fan are designed to accept only one 12 gauge house wire and two lead wires
from the fan. If your house wire is larger than 12 gauge or there is more than one house
wire to connect to the two fan lead wires, consult an electrician for the proper size wire
connectors to use.
WARNING
To reduce the risk of fire, electric shock, or personal injury, do not bend the blade arms
when installing them, balancing the blades, or cleaning the fan. Do not insert foreign
objects between the rotating fan blades. Mount to outlet box marked “ACCEPTABLE
FOR FAN SUPPORT” and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan sup-
port and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING

4
SAFETY INFORMATION (Continued)
The net weight of this fan is: 22.24 lbs. (10.09 kg).
This fan is to be used in dry or damp locations only.
WARNING

5

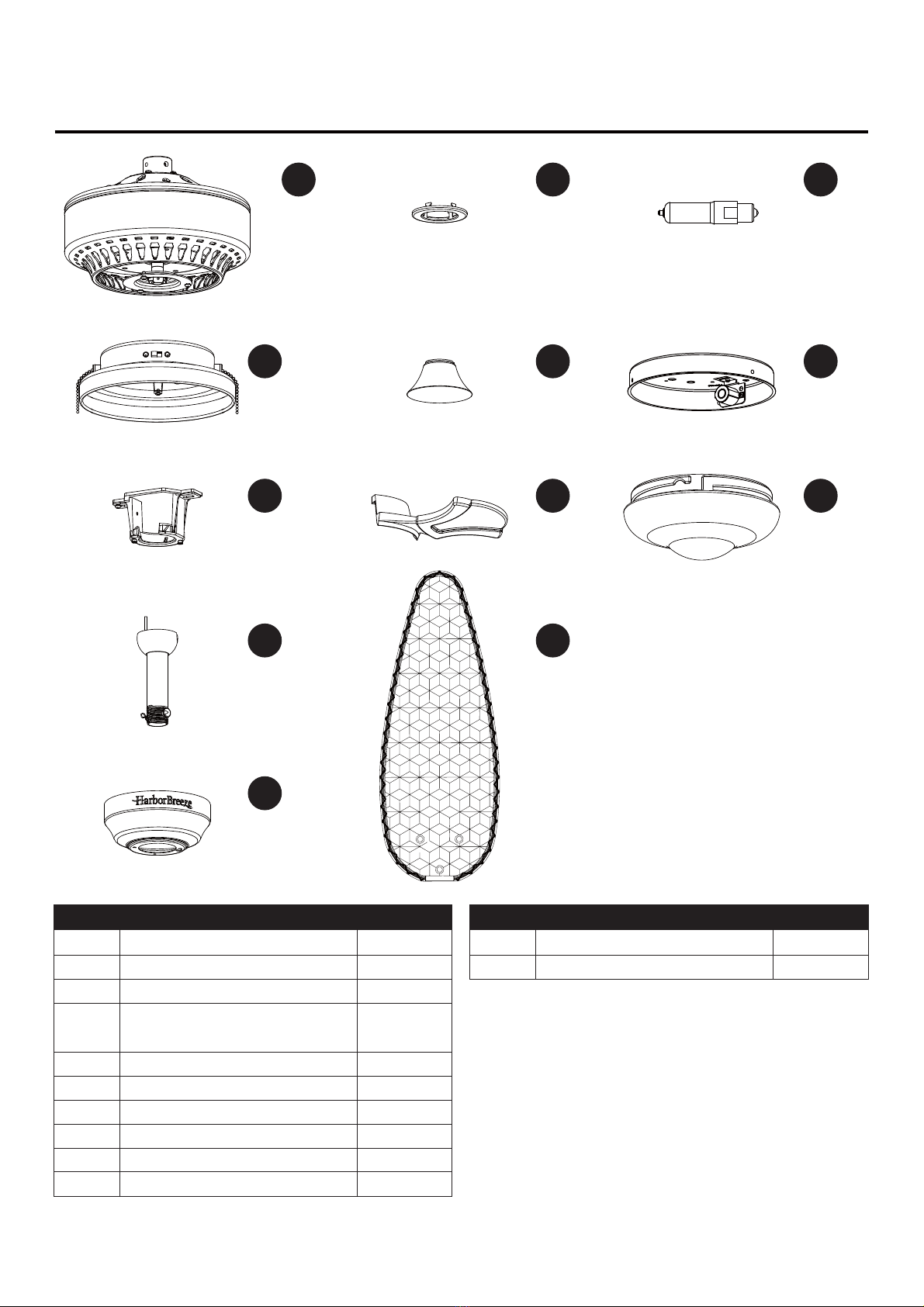

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Motor Assembly 1
B
Light Fitter Assembly 1
C
Hanger Bracket 1
D
Downrod/Hanger Ball
Assembly
1
E
Ceiling Canopy 1
F
Canopy Screw Cover 1
G
Motor Coupling Cover 1
H
Blade Holder Arm 5
I
Blade 5
J
Bulb 1
PART DESCRIPTION QUANTITY
K Socket Plate Assembly 1
L Glass 1
A F
K
L
B G
H
C
D
E
I
J

6

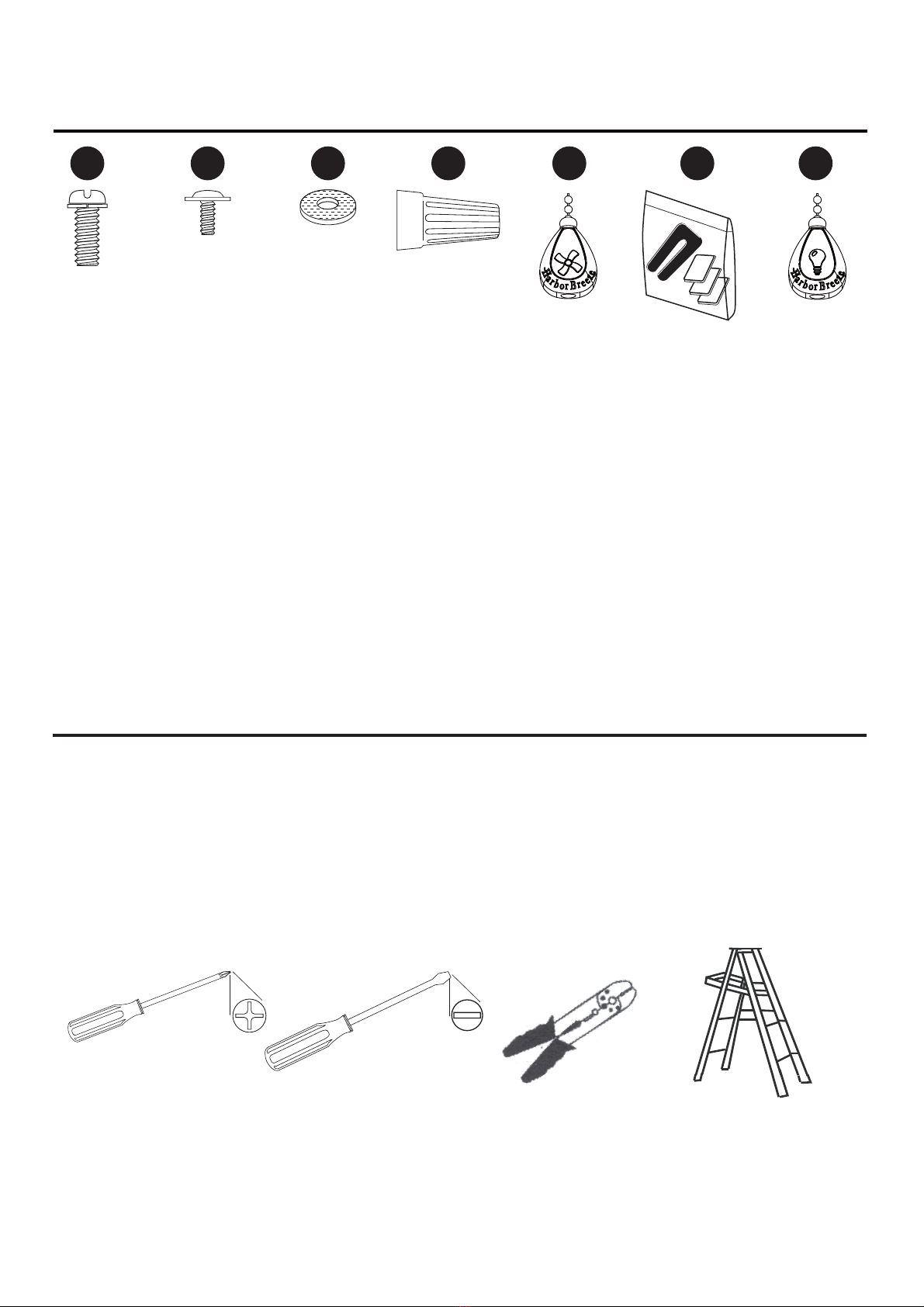

HARDWARE CONTENTS (shown actual size)
Fiber
Washers
Qty. 16
CC
Screws
Qty. 11
AA FF
Balance
Kit
(not shown
to size)
Qty. 1
Wire
Connectors
Qty. 4
DD
BB
Washer-Head
Screws
Qty. 16
Before beginning assembly of product, make sure all parts are present. Compare parts with.
package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, 1/4 in. flathead screwdriver,
wire stripper and step ladder.
Helpful Tools (not included): AC tester light, do-it-yourself wiring handbook and wire cutters.
PREPARATION
EE
Fan Chain
Coupler
Qty. 1
GG
Light Kit Chain
Coupler
Qty. 1

D
D
A
7

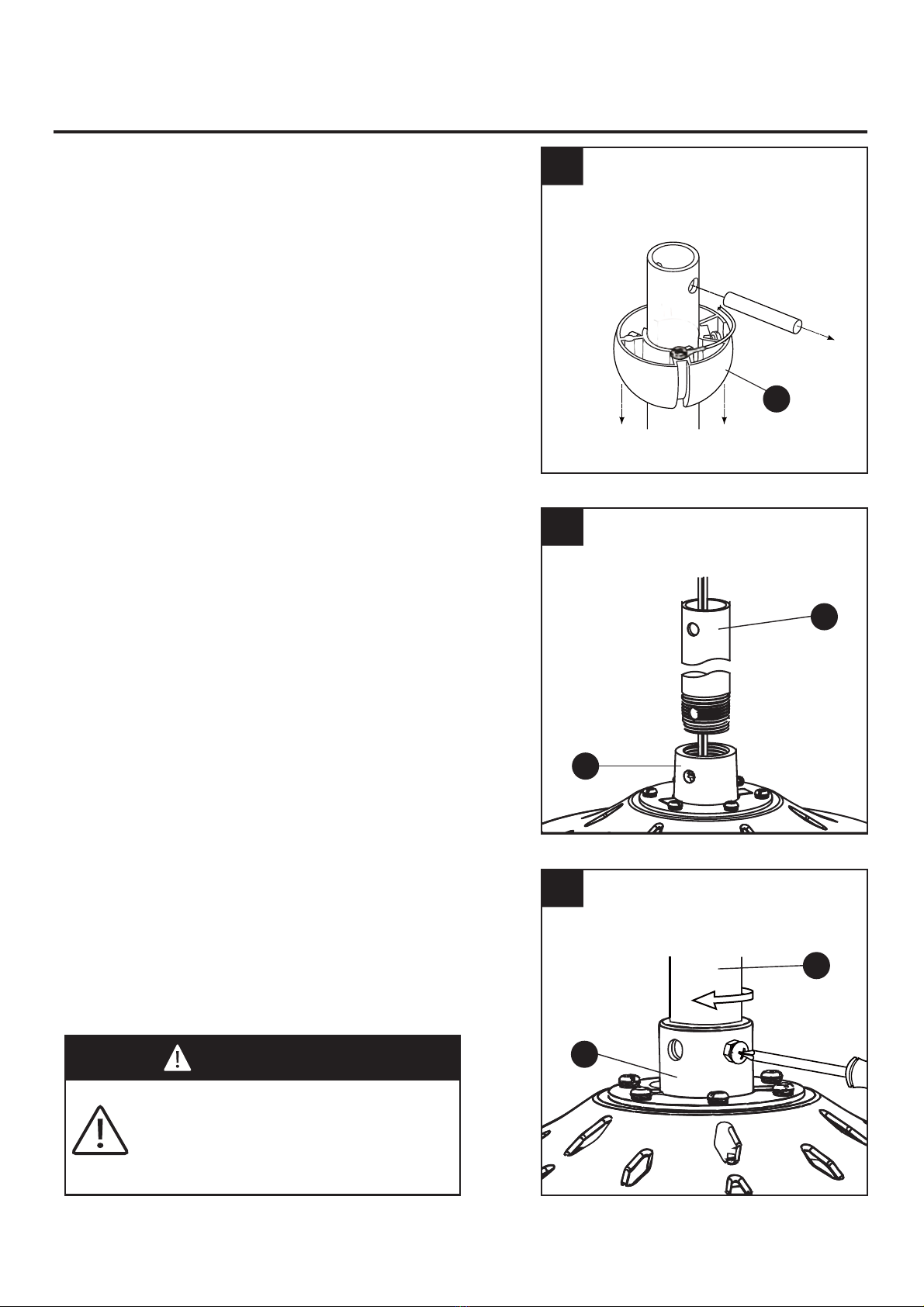

ASSEMBLY INSTRUCTIONS
1. Remove the hanger ball portion from the
downrod/hanger ball assembly (D) by loosen-
ing the set screw in the hanger ball until the
ball falls freely down the downrod. Remove the
pin from the downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in Step 5. (Fig. 1)
2. Loosen the two set screws in the downrod
support of the motor assembly (A). Route the
black, white and blue wires through the
downrod of the downrod/hanger ball assembly
(D). (Fig. 2)
1
2
WARNING
It is critical that the clevis pin in the
downrod support is properly installed and
the set screws is securely tightened.
Failure to do so could result in the fan
falling.
3
D
A
3. Thread the downrod of the downrod/hanger
ball assembly (D) into the downrod support
on top of the motor assembly (A). Install the
clevis pin from the downrod/hanger ball
assembly (D) by aligning the holes in the
downrod support of the motor assembly (A)
with the holes in the downrod of the
downrod/hanger ball assembly (D). Secure
clevis pin with hairpin clip from the
downrod/hanger ball assembly (D). Tighten
the two set screws in the downrod support
of the motor assembly (A). (Fig. 3)

8
ASSEMBLY INSTRUCTIONS (Continued)
4. Route wires through motor coupling cover
(G), canopy screw cover (F) and ceiling
canopy (E). (Fig. 4)
5. Reinstall the hanger ball on the
downrod/hanger ball assembly (D) by routing
the three 54 in. wires through the hanger ball.
Position the pin from the downrod/hanger
ball assembly (D) through the two holes in
the downrod and align the hanger ball so
the pin is captured in the groove in the top of
the hanger ball. Pull the hanger ball up tight
against the pin. Securely tighten the set screw
in the hanger ball. (Fig. 5)
6. Cut off excess lead wire approximately 6 to 9
in. above top of the top of the downrod/hanger
ball assembly (D). Strip insulation off 1/2 in.
from the end of each lead wire. (Fig. 6)
4
F
E
D
D
G
5
6
6 to 9 in
.
CAUTION
A loose set screw could result in a wobbly
fan.

WARNING
To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box
before hanging.
WARNING
The fan must be hung with at least 7 ft. of
clearance from the floor to blades.

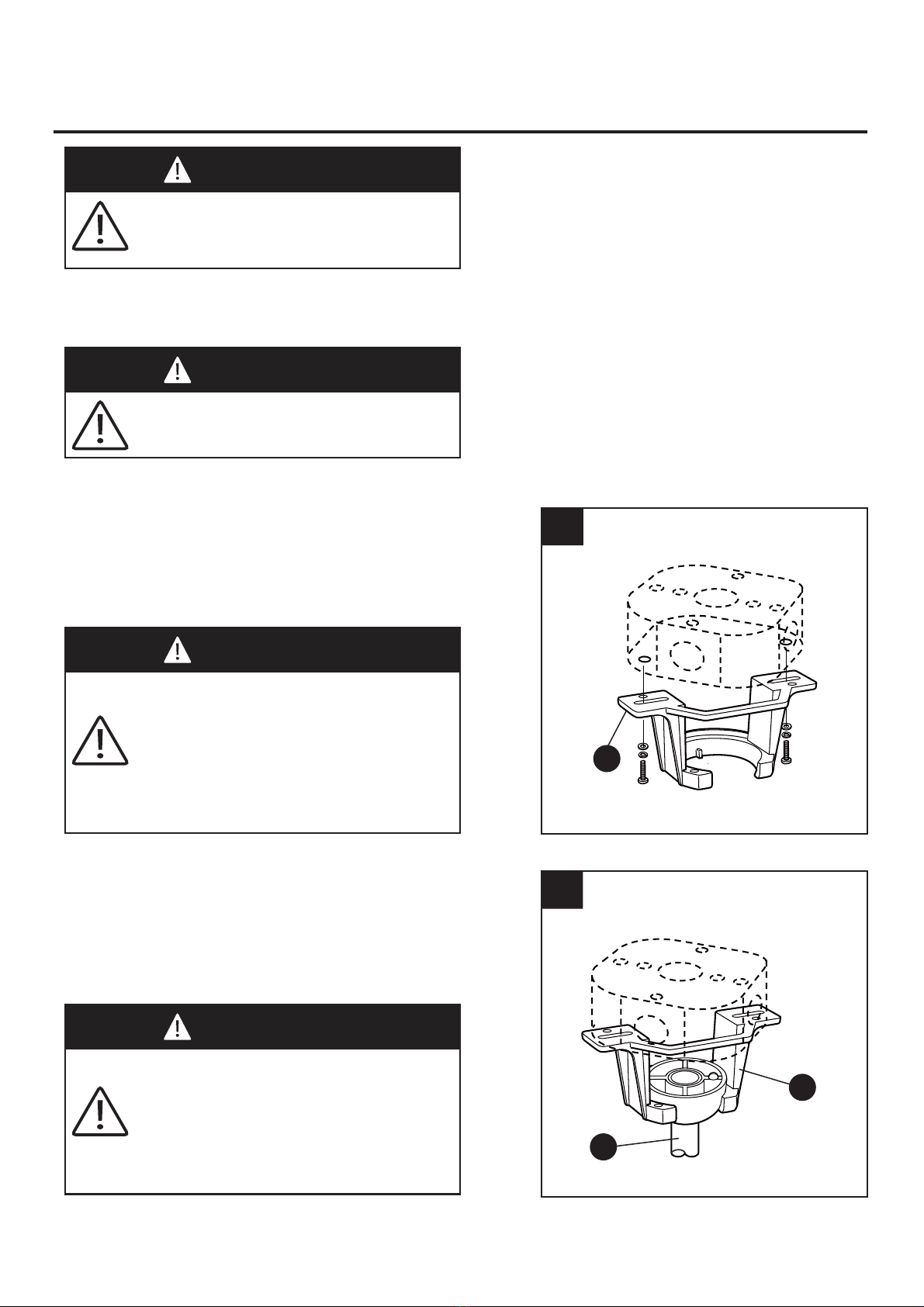

HANGING INSTRUCTIONS
9
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advice, as it must be grounded for safe opertion.
WARNING
Failure to seat tab in groove could cause
damage to electrical wires and possible
shock or fire hazard.
To avoid possible shock, do not pinch
wires between the hanger ball assembly
and the hanger bracket.
C
D
2. Carefully lift the fan and seat the
downrod/hanger ball assembly (D) on the
hanger bracket (C) that was just attached to
the outlet box. Be sure the groove in the ball
is lined up with tab on the hanger bracket (C).
(Fig. 2)
2
WARNING
The outlet box must be securely
anchored. Hanger bracket must seat
firmly against outlet box. If the outlet
box is recessed, remove wallboard until
bracket contacts box. If bracket and/or
outlet box are not securely attached,
the fan could wobble or fall.
1. Securely attach the hanger bracket (C) to the
outlet box using outlet box screws and
washers supplied with the outlet box (not
included). (Fig. 1)
1
C

10
WIRING INSTRUCTIONS
WARNING
To avoid possible electrical shock, be
sure electricity is turned off at the main fuse
box before hanging.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for
advice, as it must be grounded for safe opertion.
WARNING
Check to see that all connections are
tight, including ground, and that no bare
wire is visible at the wire connectors
except for the ground wire. Do not
operate fan until the blades are in place.
Noise and motor damage could result.
2. After connections have been made, turn leads
upward and carefully push leads into the outlet
box, with the white and green leads to one side
of the box and the black leads toward the
other side. The wires should be spread apart
with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and the ungrounded conductor
on the other side of the outlet box. (Fig. 2)
1. Connect the green grounding lead from the
downrod/hanger ball assembly (D) and the green
grounding lead from the hanger bracket (C) to the
supply grounding conductor (this may be a bare
wire or wire with green colored insulation).
Securely connect wires with wire connectors
(DD). Securely connect the white fan motor wire
to the white supply (neutral) wire using wire
connector (DD). Securely connect the black
fan motor wire and blue wire to the black
supply wire using wire connector (DD). (Fig. 1)
DD
DD
DC
1
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Fan
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Listed
Outlet Box
Household
Supply
Black Wire
from Supply
Blue Wire
from Fan
Black Wire
from Fan
Hardware Used
DD x 3
Wire
Connectors
2
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Fan
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Listed
Outlet Box
Household
Supply
Black Wire
from Supply
Blue Wire
from Fan
Black Wire
from Fan

11

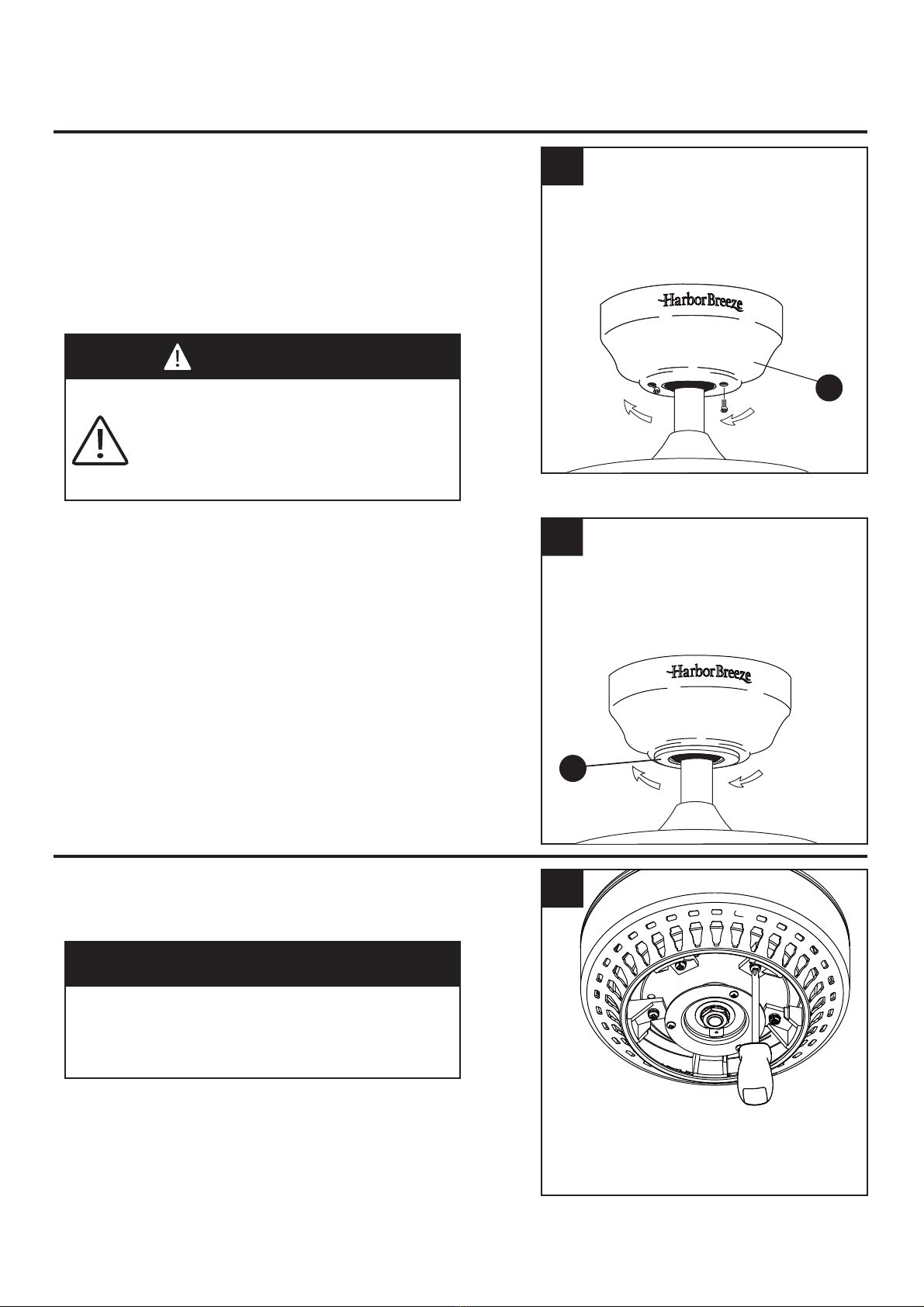

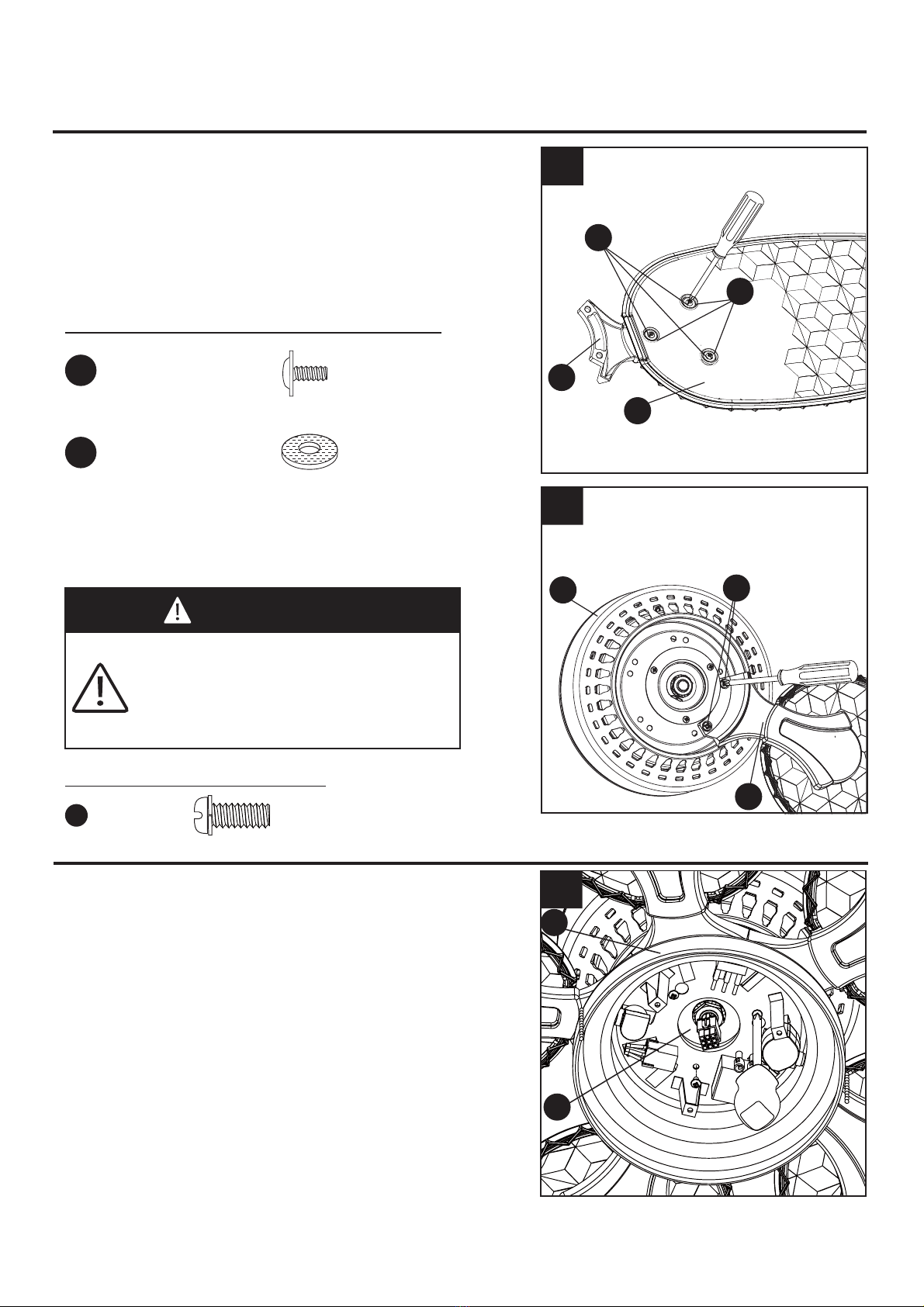

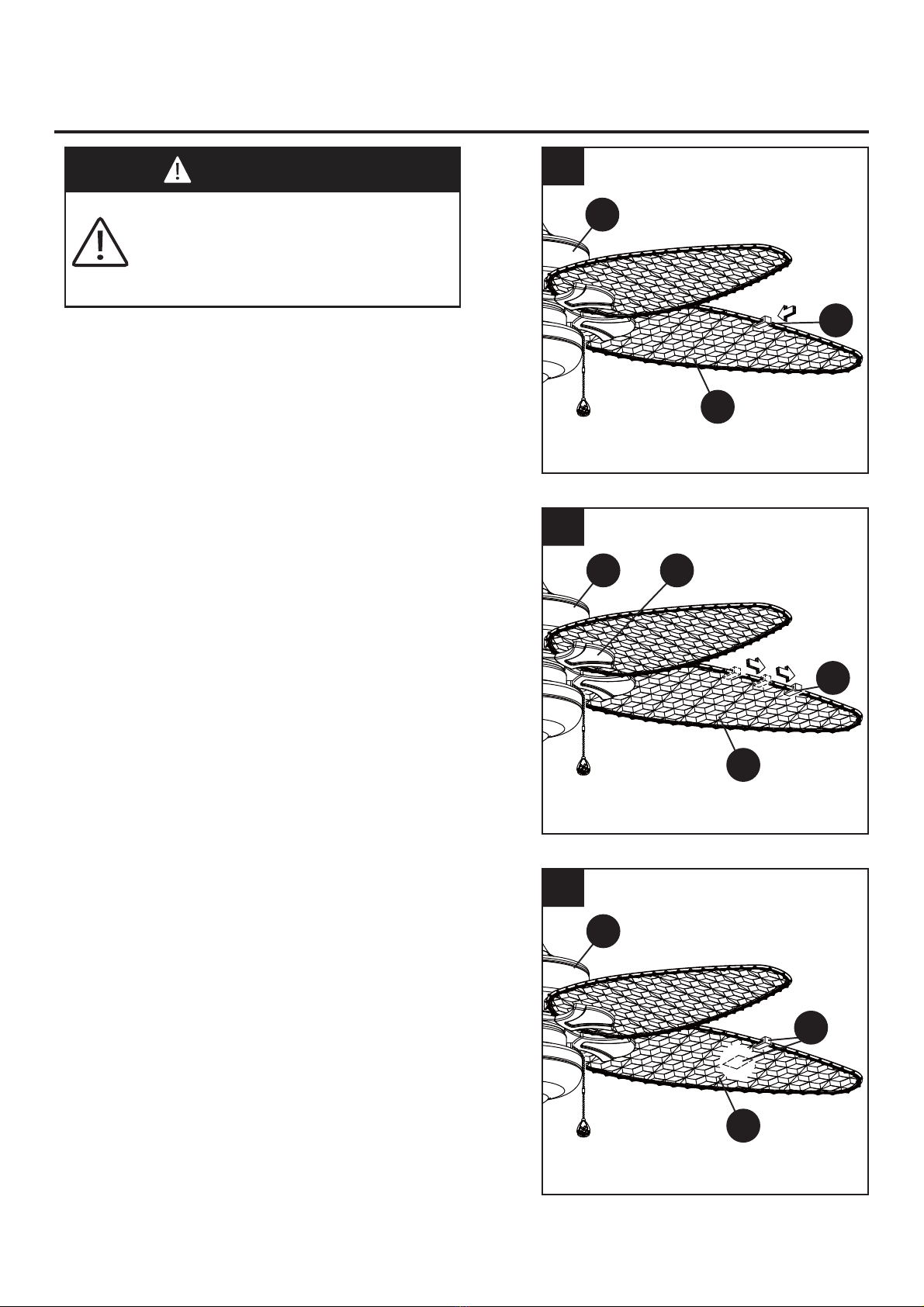

BLADE INSTALLATION
CANOPY HOUSING INSTALLATION
WARNING
To avoid possible fire or shock, make
sure that the electrical wires are com-
pletely inside the canopy housing and
not pinched between the housing and
the ceiling.
1. Remove one of the two shoulder screws in the
hanger bracket (C). Loosen the second
shoulder screw without fully removing it.
Assemble ceiling canopy (E) by rotating key
slot over shoulder screw in hanger bracket (C).
Tighten shoulder screw. Fully assemble and
tighten second shoulder screw that was
previously removed. (Fig. 1)
1
E
2. Securely attach and tighten the canopy
screw cover (F) over the shoulder screws in
the hanger bracket (C), utilizing the keyslot
twistlock feature. (Fig. 2)
2
F
1. Remove and discard the five rubber motor
stops from the motor assembly (A) by remov-
ing the screws. (Fig. 1)
CAUTION
Do not connect fan blades until the fan is
completely installed. Installing the fan with
blades assembled may result in damage to
the fan blades.
1

12
BLADE INSTALLATION (Continued)
2. Position the blade (I) over the blade holder arm
(H) with threaded posts showing. Make sure
the bottom edge of the blade (I) is fully seated
against the blade holder arm (H). Tighten
washer-head screws (BB) with fiber washers
(CC) to secure the blade (I) to the blade holder
arm (H). (Fig. 2)
2
Hardware Used
BB Washer-Head
Screws
CC Fiber
Washers
BB
CC
H
I
x 15
x 15
NOTE: Periodically check blade holder hardware
and resecure if necessary.
WARNING
To reduce the risk of personal injury, do
not bend the blade holders when install-
ing, balancing the blades or cleaning the
fan. Do not insert foreign objects in
between the rotating blades.
3. Attach blade holder arms (H) to the hub of
motor assembly (A) using screws (AA). (Fig. 3)
3
AA
A
H
Hardware Used
x 10
AA Screws
1. Remove one of the three screws in the support
bracket of the motor assembly (A). Slightly
loosen the remaining two screws. Assemble
the light fitter assembly (B) to the housing
support bracket of motor assembly (A) using
the two key slots in the light fitter assembly
(B). Replace the third screw and secure all
three screws. (Fig. 1)
LIGHT FITTER ASSEMBLY INSTALLATION
A
B
1

13
LIGHT FITTER ASSEMBLY INSTALLATION (Continued)
2. Securely attach the 9-pin connector from the
motor assembly (A) to the wire harness socket
within the light fitter assembly (B). (Fig. 2)
2
A
B
3. Securely attach the two single-pin down light
connector from the light fitter assembly (B)
to the socket plate assembly (K). (Fig. 3)
4. Remove one of the three screws in the light
fitter assembly (B). Slightly loosen the
remaining two screws. Assemble the socket
plate assembly (K) to the light fitter assembly
(B) using the two key slots in the socket plate
assembly (K). Replace the third screw and
secure all three screws. (Fig. 4)
4
3
B
B
K
K

LIGHT FITTER ASSEMBLY INSTALLATION (Continued)
14

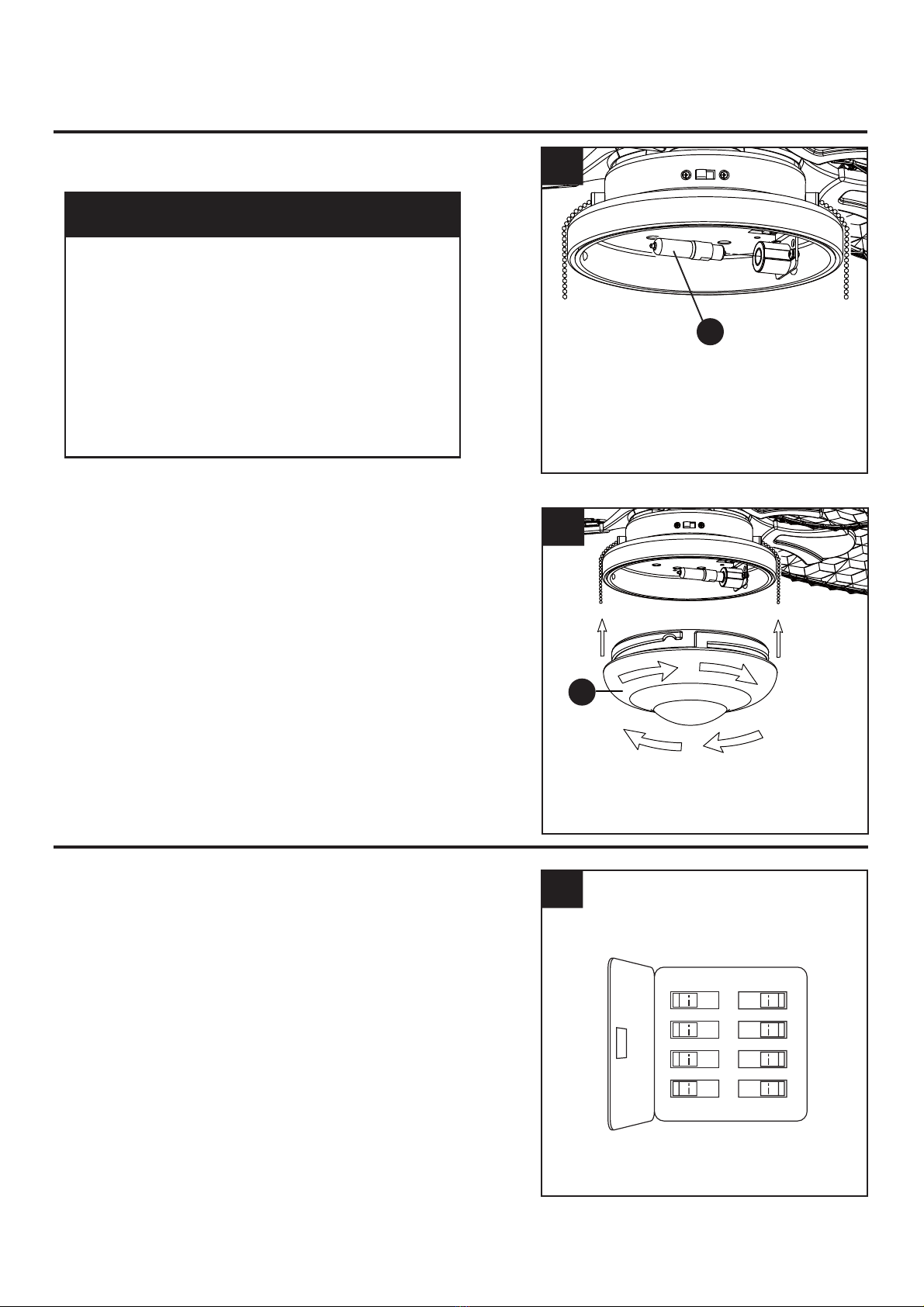

PULL CHAIN OPERATING INSTRUCTIONS
1. Restore electrical power to the outlet box by
turning the electricity on at the main fuse box.
(Fig. 1)
1
ON
ON
ON
ON
ON
ON
ON
ON
6. Securely attach glass (L) by twisting clockwise
onto the socket plate assembly (K). Don’t
overtighten or force it. (Fig. 6)
6
L
5. Install bulb (J). (Fig. 5)
5
J
CAUTION
Bulb is pressurized and may shatter. DO
NOT TOUCH BULB WITH BARE HANDS.
Fingerprints may result in shorter bulb life.
Remove fingerprints with alcohol prior to
use.
To reduce the risk of fire, use 100-watt max.
type T4-minican JD E11 tungsten halogen
bulb. Turn off the wall switch and allow the
bulb to cool for 10 minutes before
relamping.

15
3. Check the operation of the fan by gently
pulling on the fan chain coupler (EE). (Fig. 3)
Hardware Used
EE Fan Chain
Coupler x 1
1st Pull
2nd Pull
3rd Pull
4th Pull
High
Off
Low
Medium
Fan Pull Chain Operating Sequence
Season
Summer
Winter
Rotation Direction Switch Position
Clockwise
Counterclockwise Left
Right
Reverse Switch Information
PULL CHAIN OPERATING INSTRUCTIONS (Continued)
EE
Hardware Used
EE Fan Chain
Coupler
GG Light Kit Chain
Coupler
x 1
x 1
2. Install the fan chain coupler (EE) and light
kit chain coupler (GG). (Fig. 2) 2
GG EE
3
4
4. If airflow is desired in the opposite direction, turn
the fan off and wait for the blades to stop
turning. Slide the reverse switch to the opposite
position and turn fan on again. (Fig. 4)

PULL CHAIN OPERATING INSTRUCTIONS (Continued)
16
Hardware Used
GG Light Kit Chain
Coupler x 1
5. Check the operation of the light by gently
pulling on the light kit chain coupler (GG).
(Fig. 5)
1st Pull
2nd Pull
On
Off
Light Kit Pull Chain Operating Sequence
GG
5

WARNING
7KHEDODQFLQJFOLSPXVWDOZD\VEH¿UPO\
pushed onto the blade till it touches the
edge of the blade. Failure to do so could
DOORZFOLSWRÀ\RIIDQGFDXVHSHUVRQDO
injury.
BLADE BALANCING INSTALLATION INSTRUCTIONS
17
1. Interchanging positions of adjacent blades (I)
can redistribute the weight and result in a
smoother operation. If wobble decreases,
leave blades (I) as they are. If wobble
increases, switch back to original position.
Attach the balancing clip in the balance kit (FF)
to the mid-point on the top edge of one blade
(I). (Fig. 1)
2. 5XQWKHIDQDWKLJKVSHHGDLUGRZQÀRZDQG
observe wobble. Repeat steps 1 and 2 for
each blade (I). Note which blade (I) has the
least wobble. On that blade (I), install the
balancing clip in the balance kit (FF) to the top
edge of the blade (I) near the blade holder arm
(H). (Fig. 2)
Start the fan and notice wobble. Stop the fan
and move the balancing clip in the balance kit
(FF) in small steps toward the end of the blade
(I). At each incremental step, turn on the fan
and observe the wobble. Determine the
location of the balancing clip in the balance kit
(FF) that gives the least amount of wobble.
3. Peel the backing paper from one of the
weighted squares in the balance kit (FF).
Secure the weighted square in the balance kit
))¿UPO\WRWKHWRSRIWKHEODGH,FHQWHUHG
at the balancing clip in the balance kit (FF)
location and centered between the edges of
the blade (I). (Fig. 3)
Remove the balancing clip in the balance kit
(FF), start the fan and observe. If the wobble
still persists, repeat steps 1 through 3
until the wobble disappears.
GG
1
2
3
FF
A
A H
I
I
A
I
FF
FF

18
If you have any questions regarding the product, please call customer service at 1-800-643-0067,
8 a.m. - 6 p.m., EST, Monday - Thursday and 8 a.m. - 5 p.m., EST, Friday.
TROUBLESHOOTING
Do not use water when cleaning your ceiling fan. It could damage the motor or the finish
and create the possibility of electrical shock.
WARNING
When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
$EUDVLYHFOHDQLQJDJHQWVDUHQRWUHTXLUHGDQGVKRXOGEHDYRLGHGWRSUHYHQWGDPDJHWRILQLVK
RECOMMENDED: Periodically check that the fan motor unit screws, blade screws, support
housing and light kit screws are tight and secure.
3HULRGLFOLJKWGXVWLQJRIWKHEODGHVLVUHFRPPHQGHG$IHDWKHUGXVWHUZLOOZRUNEHVW
$YRLGXVLQJZDWHUFOHDQVHUVRUKDUVKUDJZKLFKFDQZDUSDQGUXLQWKHILQLVK
CARE AND MAINTENANCE
Fan will not start 1. Fuse or circuit breaker blown.
2. Loose power line connections
to the fan, or loose switch wire
connections in the switch
housing.
3. Reversing switch in neutral
position.
1.
C
heck main and branch circuit fuses or
ci
r
cui
t
b
r
eake
r
s
.
2.
C
heck line wire connections to fan and
s
w
i
t
ch
w
i
r
e
co
nn
ec
t
io
n
s
i
n t
he
s
w
i
t
ch
h
ousin
g
s
.
3.
M
ake sure reversin
g
switch position is
a
ll
t
h
e wa
y
to one s
id
e
.
Fan sounds
noisy
1. Blades not attached to fan
2. Loose screws in motor
housing.
3.
S
crews securin
g
f
an blade
holde
r
s
t
o
m
o
t
o
r
hub
a
r
e
loose.
1. Attach blades to
f
an be
f
ore operatin
g.
2. Check to make sure all screws in motor
housing are snug (do not overtighten).
sc
r
e
w
s
whi
c
h3.
C
h
ec
k t
o
m
a
k
e
su
r
e
th
e
a
tt
ac
h th
e
f
a
n
b
l
ade
h
o
l
de
r
s
t
o
th
e
m
o
t
or
hub are ti
g
ht
.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Do not install or use fan if any part is damaged or missing.
WARNING
WARNING
Make sure main power is turned off!

Fan sounds
noisy
TROUBLESHOOTING (Continued)
19
4
.
Wi
r
e
co
nn
ec
t
o
r
s
i
n
side
h
ous
i
n
g
ratt
li
n
g
.
4.
C
heck to make sure wire connectors in
s
witch housin
g
are not rattlin
g
a
g
ainst
e
ach other or a
g
ainst the interior wall o
f
the switch housin
g.
Fan wobbles
excessively
6
. Fan blades are out of
ba
l
a
n
ce
.
Not enough air
movement
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
1. Set screw and nut in downrod
s
upport is loose.
2. Set screw in downrod/hanger
b
a
ll
assem
bly
i
s
l
oose.
3
. Screws securin
g
fan blade
h
o
l
de
r
s
t
o
m
o
t
o
r h
ub
a
r
e
l
oose.
4. Bl
ade
h
o
l
de
r
s
a
r
e
n
o
t
sea
t
ed
properly.
5
.
H
an
g
er bracket and
/
or ceilin
g
outlet box is not securely
f
astened
.
5
.
M
otor no
i
se cause
d
by
so
lid
s
tate var
i
a
bl
e spee
d
contro
l
.
6
.
S
crews holdin
g
blades to
blade
holde
r
s
a
r
e
loose
.
6
. Interchan
g
in
g
position of fan blades
c
an redistribute the wei
g
ht and result in a
s
moother operation. For example,
e
xchan
g
e blades in positions 1 and 3 or 1
and 4. If this does not improve wobble,
e
xchan
g
e 2 and 4 or 2 and 5
.
1. If possible, consider usin
g
a lon
g
e
r
downrod. For example, use a 12 in. downrod
instead of a 4.
5
in. downrod that comes with
y
our fan
.
Tighten both set screws and nuts
s
ecurel
y
in downrod support.
2. Tighten the set screw in the
downrod
/
han
g
er ball assembl
y.
3
.
C
heck to be sure screws which attach the
f
an blade holders to the motor hub are ti
g
ht
.
4.
C
heck to be sure the fan blade holders
s
eat
f
irmly and uni
f
ormly to the sur
f
ace o
f
the motor housin
g
. I
f
holders are seated
incorrectly, loosen the screws and
ret
igh
ten
.
5
. Ti
g
hten the han
g
er bracket screws to
the outlet box, and secure outlet box.
1.
5
.
S
ome
f
an motors are sensitive to
s
i
g
nals
f
rom solid-state variable speed
c
ontrols.
S
olid-state controls are not
recommen
d
e
d
, c
h
oose an a
l
ternat
i
ve
co
ntr
ol
m
e
t
hod
.
6
. Ti
g
hten screws securel
y
.
WARNING
Make sure main power is turned off!
1.Too short of downrod.

WARRANTY
20
The manufacturer warrants this fan to be free from defects in workmanship and material present at
time of shipment from the factory for life (with limitations) from the date of purchase. This warranty
applies only to the original purchaser. The manufacturer agrees to correct such defect at no change
or at our option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by affixing accessories not produced by
this warranty, are at the purchaser’s own responsibility. The manufacturer assumes no responsibility
whatsoever for fan installation during the lifetime limited warranty. Any service performed by an
unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department at
1-800-643-0067 for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is the sole responsibility of the purchaser.
There is no further expressed warranty. The manufacturer disclaims any and all implied warranties.
The duration of any implied warranty which can not be disclaimed is limited to the lifetime limited
period as specified in our warranty. The manufacturer shall not be liable for incidental, consequential
or special damages arising at or in connection with product use or performance except as may
otherwise be accorded by law. This warranty gives you specific legal rights and you also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
