Harbor Breeze WCK52NWZ5D User manual

CANE BAY CEILING FAN
For
Damp Location
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0883805
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Purchase Date
PH18453 1
Español p. 19
MODEL #WCK52NWZ5D

READ AND SAVE THESE INSTRUCTIONS
Safety Information .........................................................................................................
. . . ... 2
Package Contents ...........................................................................................................
. ... 4
Hardware Contents
............................................................................................................... . .......... 5
Preparation ..................................................................................................................... . .... . 5
Initial Installation .................................................................................................................
. . 5
Downrod-Style Fan Mounting ......................................................................................
. ..... . . 7
Closemount-Style Fan Mounting ..................................................................................
. ..... 9
Wiring ...........................................................................................................................
. . . . .. . . 11
Final Installation ..............................................................................................................
. .. . 13
Operating Instructions ...................................................................................................
. . ... 15
Care and Maintenance ..............................................................................................
. ........ 16
Troubleshooting................................................................................................................... 17
Warranty ......................................................................................................................
. ...... 18

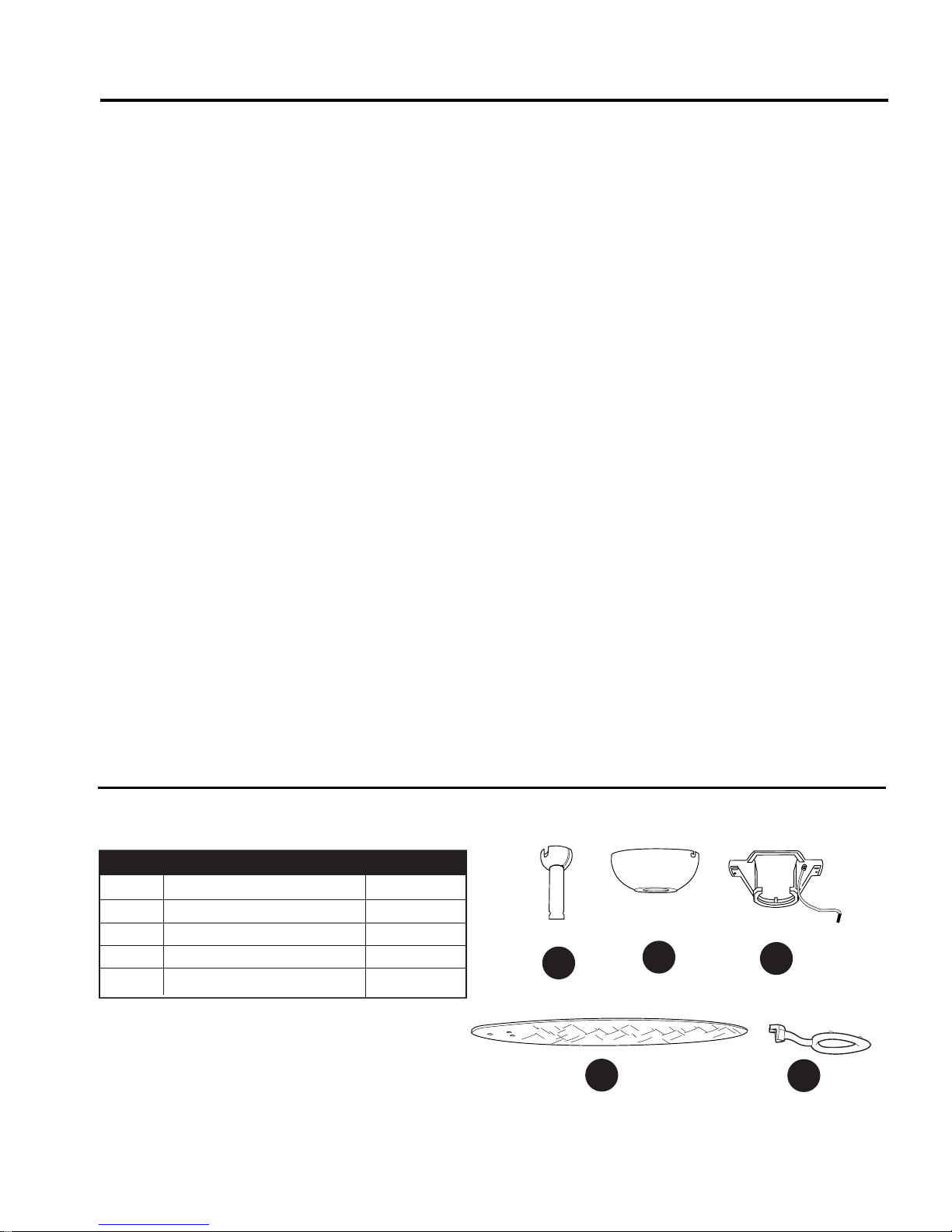

Replacement Parts List ......................................................................................................
. 18
TABLE OF CONTENTS
2
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 18.51 lbs.

SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
CAUTION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.

IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

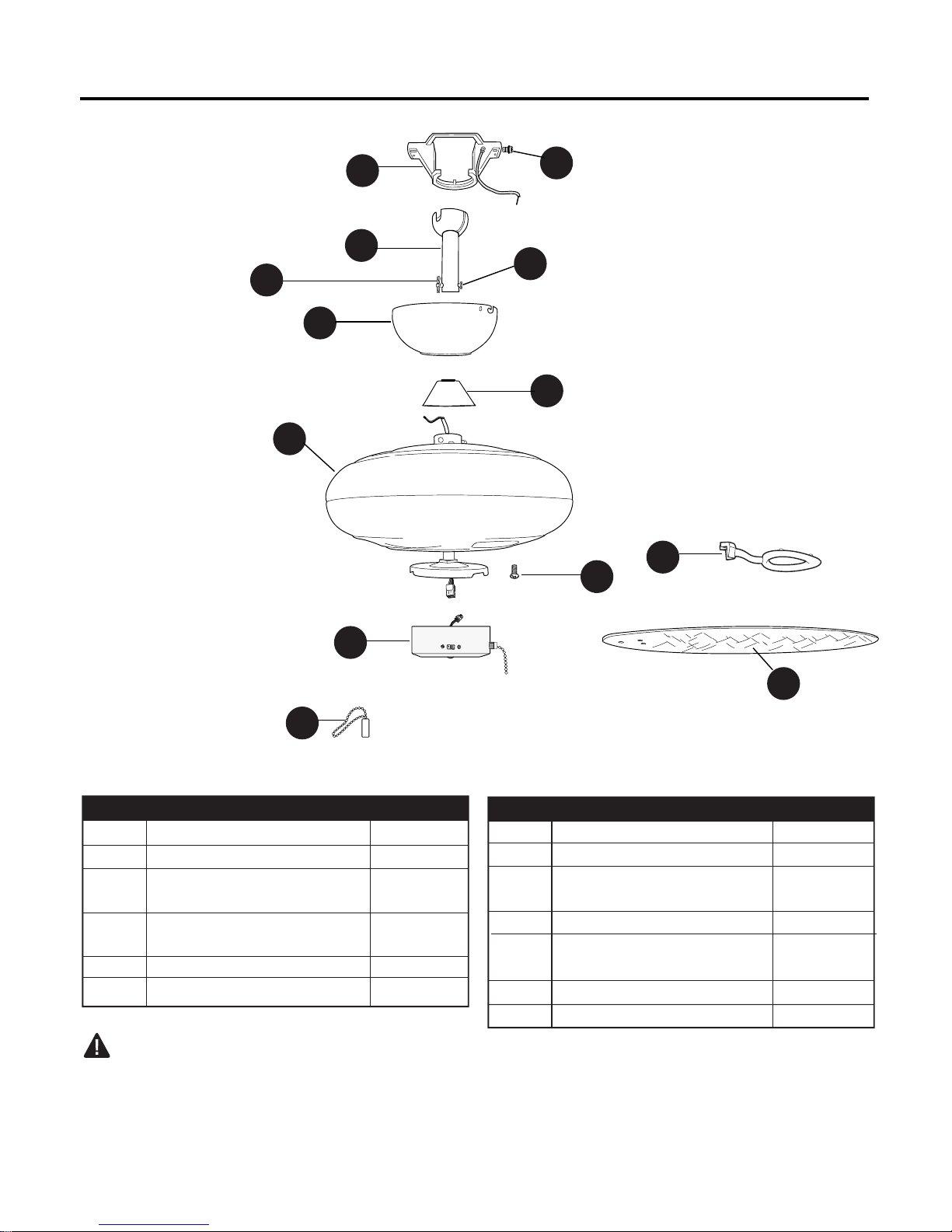

A Downrod 1
B Canopy 1
C Mounting Bracket 1
(preassembled)
D Motor Housing 1
(preassembled)
E Yoke Cover 1
F Switch Housing 1
DESCRIPTIONPART QUANTITY
G Blade 5
H Blade Arm 5
I Motor Screw 10
(preassembled)
J Pull Chain Extension 1
K Canopy Mounting Screw 4
(preassembled)
L Pin (preassembled) 1
M Clip (preassembled) 1
DESCRIPTIONPART QUANTITY
PACKAGE CONTENTS
4
A
E
D
B
F
C
H
G
K
ML
J
I

5
PREPARATION
Wire
Connector
Qty. 4
AA BB
HARDWARE CONTENTS (shown actual size)
Blade
Screw
Qty. 15
+ 1 extra
CC
Rubber
Blade
Washer
Qty. 15
+ 1 extra
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1

6
Check to make sure blades (G) will be at least 30
inches from any obstruction and at least 7 ft. above
the floor.
3.
INITIAL INSTALLATION
7 ft.
min.
30 in.
min.
3
G
2. Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT:If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. B
A
2

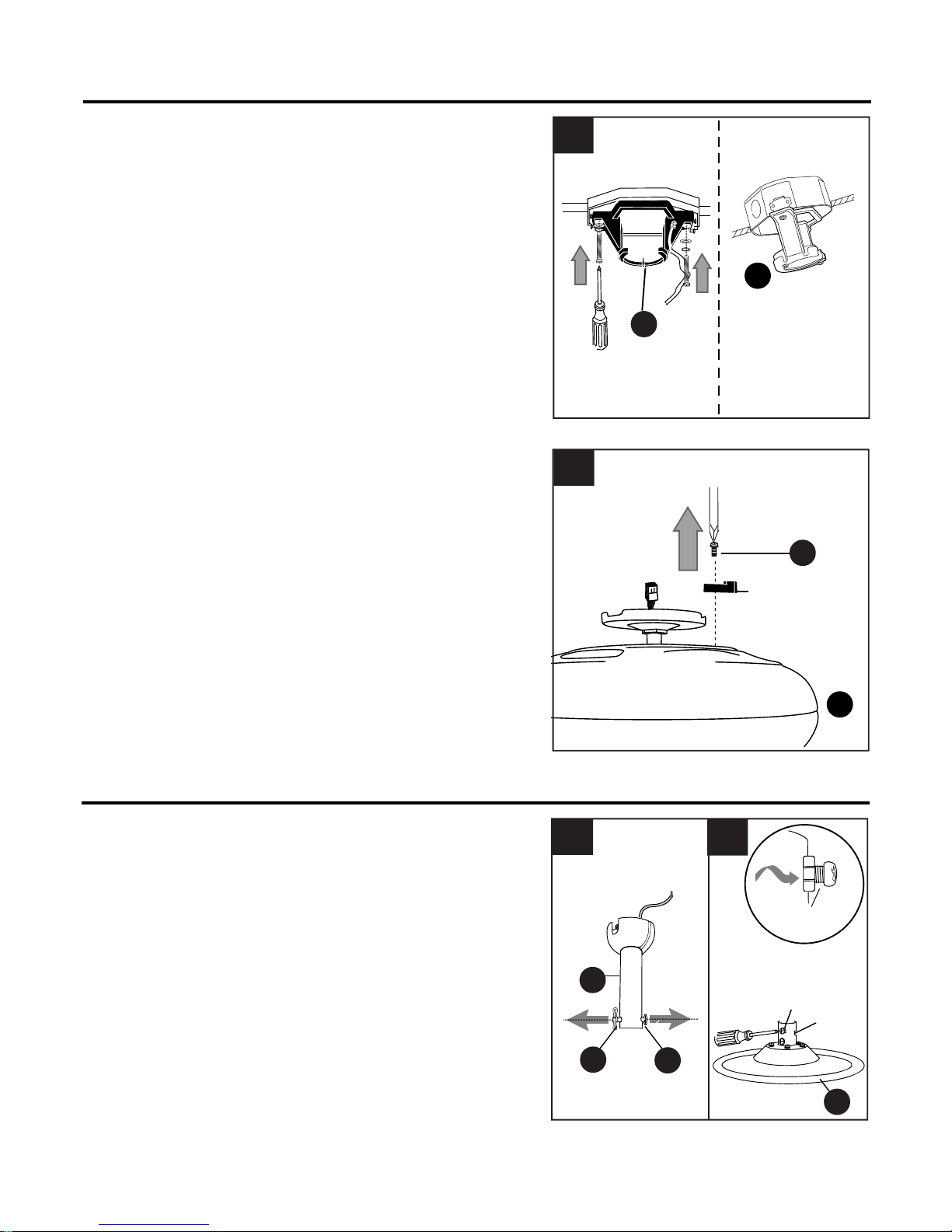

4a.Loosen canopy mounting screws (K) in slotted
holes in canopy (B) and remove the other two
canopy mounting screws (K) -- save canopy
mounting screws (K) for later use. Remove
mounting bracket (C) from canopy (B).
C
K
B
4a
K

INITIAL INSTALLATION
7
5. Remove motor screws (I) from underside of
motor and save for blade arm (H) attachment
later on. If there are plastic motor blocks
installed with the motor screws (J), discard the
plastic motor blocks.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 on the next page.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE:It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using angle mount, make sure
open end of mounting bracket (C) is installed
facing the higher point of the ceiling.
4b.
5
I
C
C
4b ANGLE
MOUNT
STANDARD
MOUNT
D
Plastic Motor
Block
DOWNROD-STYLE FAN MOUNTING
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
Set
Screws
and Nuts
1a. 1a
L
D
M
1b
A
1b.
Yoke
Sideview
Set Screw
& Nut

DOWNROD-STYLE FAN MOUNTING
8
3.

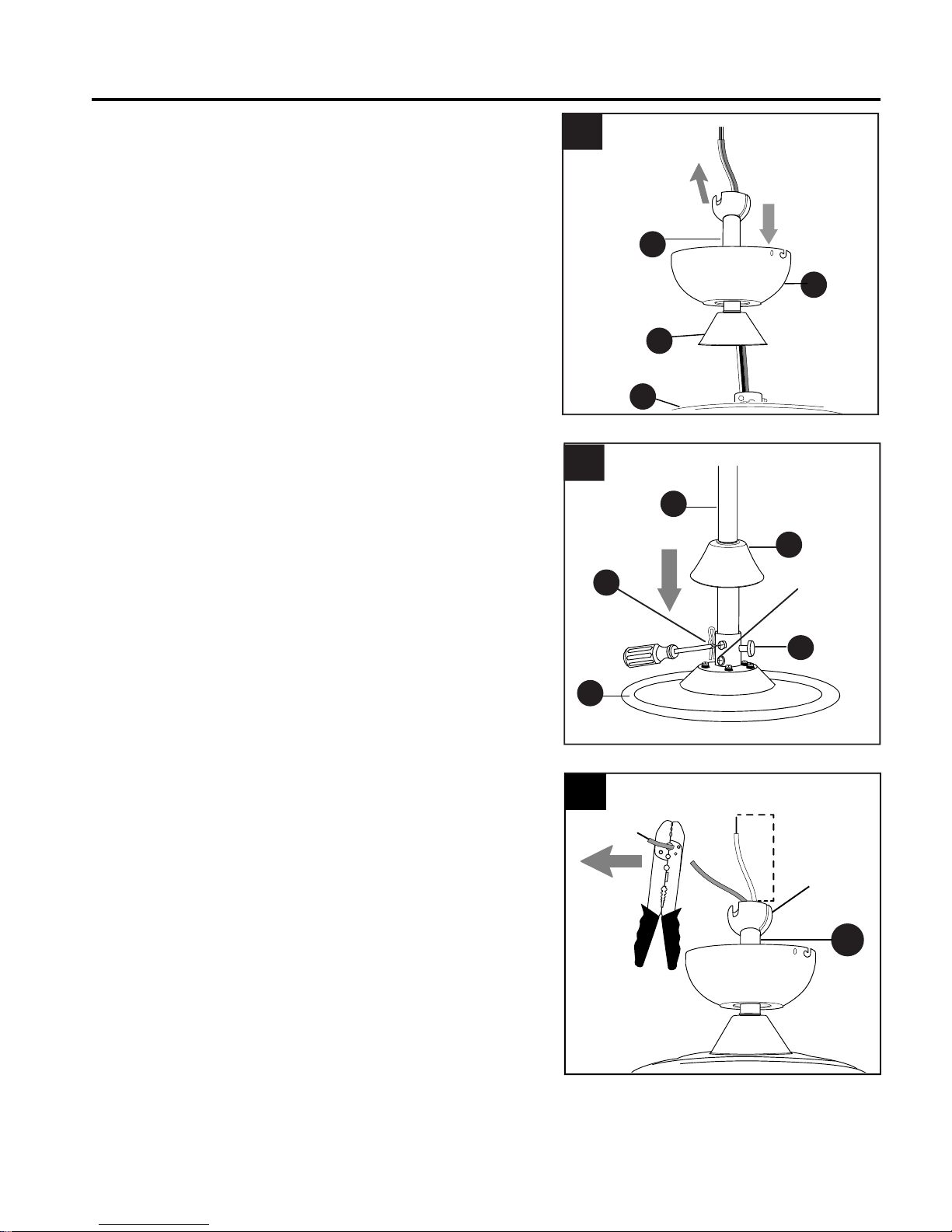

2. Insert downrod (A) through canopy (B) and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A). 2
A
B
E
3
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten set screws
and then tighten nuts on the set screws. Slide yoke
cover (E) down until it rests on top of motor
housing (D).
Set
Screws
and Nuts
A
E
N
M
D
D
L
M
4. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the hanging ball
on the downrod (A) and measure 8 in. of lead wire,
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
Hanging
Ball
A
4
8 in.

DOWNROD-STYLE FAN MOUNTING
9
5. 5
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
6. Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Continue to WIRING on page 11.
C
A
6
Slot
Tab
Hanging
Ball
CLOSEMOUNT-STYLE FAN MOUNTING
Remove canopy cover from bottom of canopy (B).
NOTE: It may be necessary to use the handle end of
a screwdriver (not included) to remove the canopy
cover by tapping on the canopy cover from the
inside of the canopy (B).
NOTE: Downrod (A), yoke cover (E) and canopy
cover are not used in this type of installation.
1. 1
Canopy
Cover
B

CLOSEMOUNT-STYLE FAN MOUNTING
10
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
Tab
C
D
B
4
3. Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three screws previously
removed.
3
Remove every other preassembled screw from top
of motor housing (D).
2. 2
D
D
D
B

11

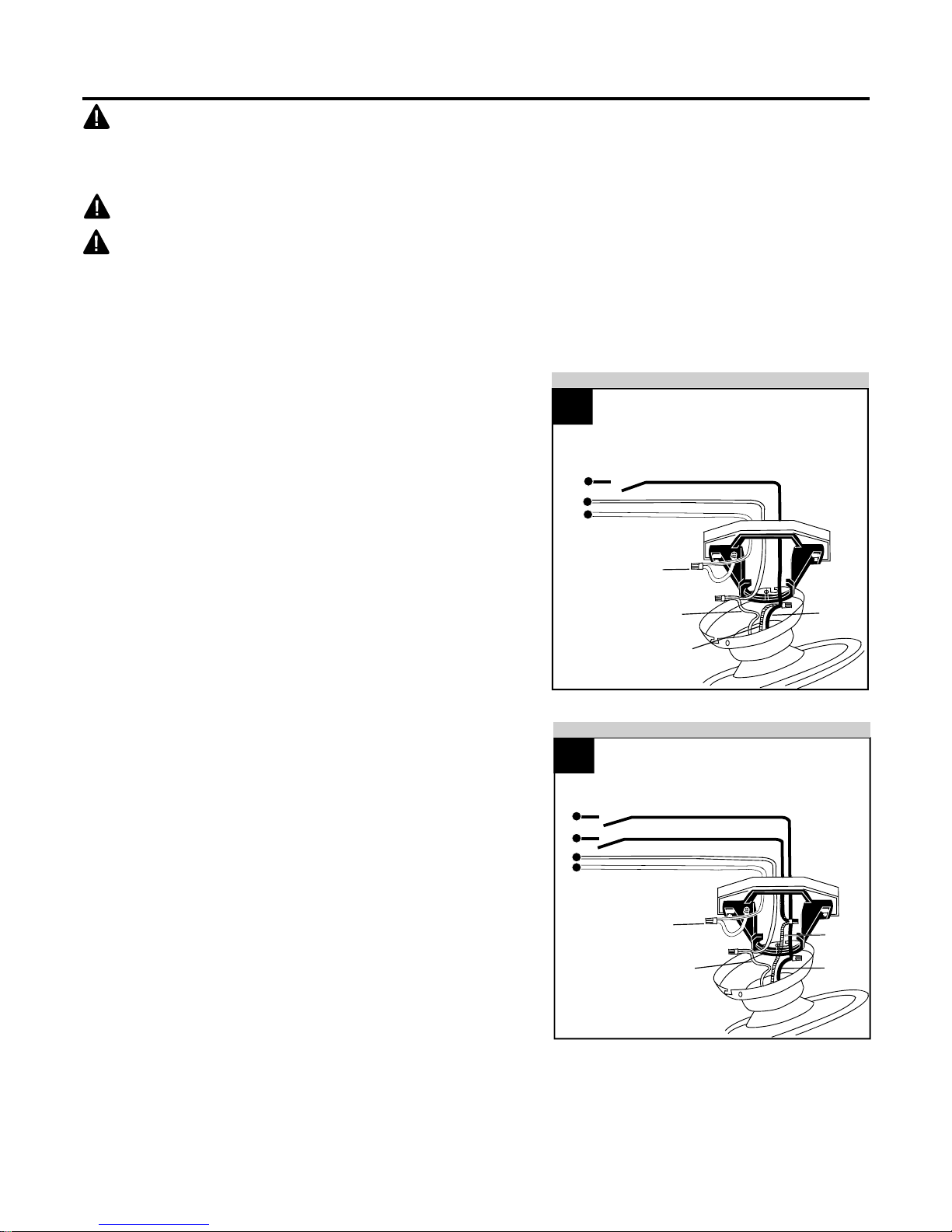

NOTE: This fan is remote control adaptable (remote control sold separately). Any remote control
used with this fan MUST be UL-approved for DAMP LOCATIONS.
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WIRING
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that
fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each wire
connection below, use one of the wire connectors (BB)
provided, making sure to screw wire connector (BB) on
in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE BLACK
BLUE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: If you intend to control the fan
light with a separate wall switch, connect BLACK
wire from fan to BLACK wire from ceiling. Connect
BLUE wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (C))
to BARE/GREEN wire from ceiling. GREEN
WHITE BLACK
BLUE
120V POWER
FROM CEILING
BLACK(POWER)
BLACK (WALL SWITCH)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1b

WIRING
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect BLUE
wire from fan to the BLACK wire from the other
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (C))
to BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
12
Wire Connector x 4
Hardware Used
BB
Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (BB) into outlet box.
2.
BB
BB BB
2
GREEN
WHITE BLACK
BLUE
120V POWER
FROM CEILING
BLACK(POWER)
BLACK (WALL SWITCH)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c

3.
13
3
2.
Blade Screw x 15
Hardware Used
AA
H
I
Lift canopy (B) to mounting bracket (C) and align
slotted holes in canopy (B) with canopy mounting
screws (K) loosened in Step 4a, page 6. Twist
canopy (B) clockwise to lock. Re-insert the two
canopy mounting screws (K) previously removed
(Step 4a, page 6), then tighten all securely.
1.
FINAL INSTALLATION
B
D
K
BK
1Downrod
Option Closemount Option
D
D
Align posts in blade arm (H) with holes on ridged
side of blade (G) and then push up on blade arm
(H) until posts go through the holes in blade (G).
Insert three blade screws (AA), along with three
rubber blade washers (CC), to attach blade arm
(H) to blade (G). Then, tighten each blade screw
(AA) starting with the one in the middle.
Repeat with remaining blades (G).
Rubber Blade
Washer x 15
CC
H
CC
AA G
2
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws (I) previously
removed (Step 5, page 7). Tighten motor screws (I)
securely.
Note: Make sure to completely secure each blade
arm (H) before proceeding to the next.

4. Remove three preassembled screws from switch
housing plate on the underside of motor housing (D).
Connect male plug from motor housing (D) to female
plug from switch housing (F), matching up the colors
on the male plug with the colors on the female plug for
correct fit. Make sure plugs are connected completely.
Align holes in switch housing (F) with holes in switch
housing plate. Re-insert screws just removed. Tighten
all screws securely.
FINAL INSTALLATION
14
5. Attach pull chain extension (J) or custom pull chain
extension (sold separately) to fan pull chain. 5
J
Switch
Housing
Plate
4D
F

Use the fan reverse switch, located on the switch
housing (F), to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2.
The pull chain located on the switch housing
(F) has four positions to control fan speed. One
pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
1.
OPERATING INSTRUCTIONS
15
1
F
J
2
F

At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
16
3a 3b
3c
3c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
3b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.

WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in switch housing are
connected properly according to
instructions on page 14.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
17

The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
Printed in China
18
PWLI1806
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
ABC
H
G
A Downrod
B Canopy
C Mounting Bracket
G Blade
H Blade Arm
DESCRIPTIONPART PART #
0883805-A
0883805-B
0883805-C
0883805-G
0883805-H
