GRACE BAY CEILING FAN
Español p. 20
1
MODEL #BDB52BNK5L
BDB52OSB5L
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
PH18432

Safety Information ...............................................................................................................2
Package Contents ...............................................................................................................4
Hardware Contents
.......................................................................................................................... 5
Preparation ..........................................................................................................................5
Initial Installation ..................................................................................................................6
Downrod-Style Fan Mounting ..............................................................................................8
Closemount-Style Fan Mounting .......................................................................................10
Wiring ................................................................................................................................
. 11
Final Installation ................................................................................................................
. 13
Operating Instructions .......................................................................................................16
Care and Maintenance ......................................................................................................17
Troubleshooting..................................................................................................................18
Limited Lifetime Warranty ..................................................................................................19
Replacement Parts List .....................................................................................................19
TABLE OF CONTENTS
2
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 20.72 lbs.
SAFETY INFORMATION

SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.

L Canopy Mounting Screw 4
(preassembled)
M Pin (preassembled) 1
N Clip (preassembled) 1
O Star Washer 4
(preassembled)
P Light Kit Fitter Screw 3
(preassembled)
Q Light Kit Fitter 1
R Socket Ring 4
(preassembled)
IMPORTANT REMINDER: You must use
the parts provided with this fan for proper
installation and safety.
PACKAGE CONTENTS
4
A Downrod 1
B Canopy 1
C Mounting Bracket 1
(preassembled)
D Motor Housing 1
E Glass Shade 4
F Blade 5
G Blade Arm 5
H Balancing Kit 1
I Motor Screw 10
(preassembled) + 1 extra
J Bulb 4
K Lock Washer 10
(preassembled) + 1 extra
DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY
J
E
D
K
L
H
I
AM
Q
P
R
B
N
O
G
F
C

5
HARDWARE CONTENTS (shown actual size)
Fiber
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
AA BB CC
PREPARATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required forAssembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
DD
Pull Chain
Extension
Qty. 2

6

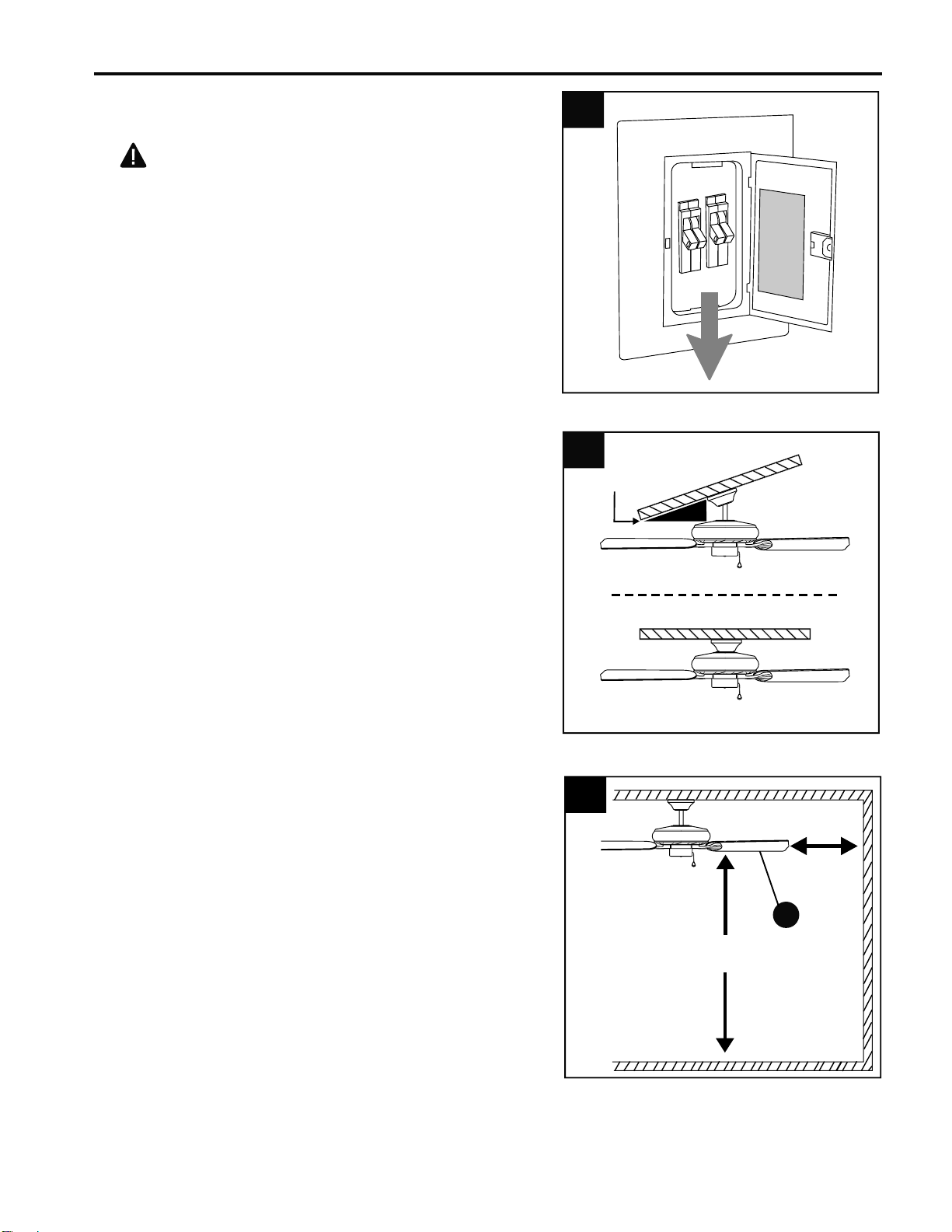

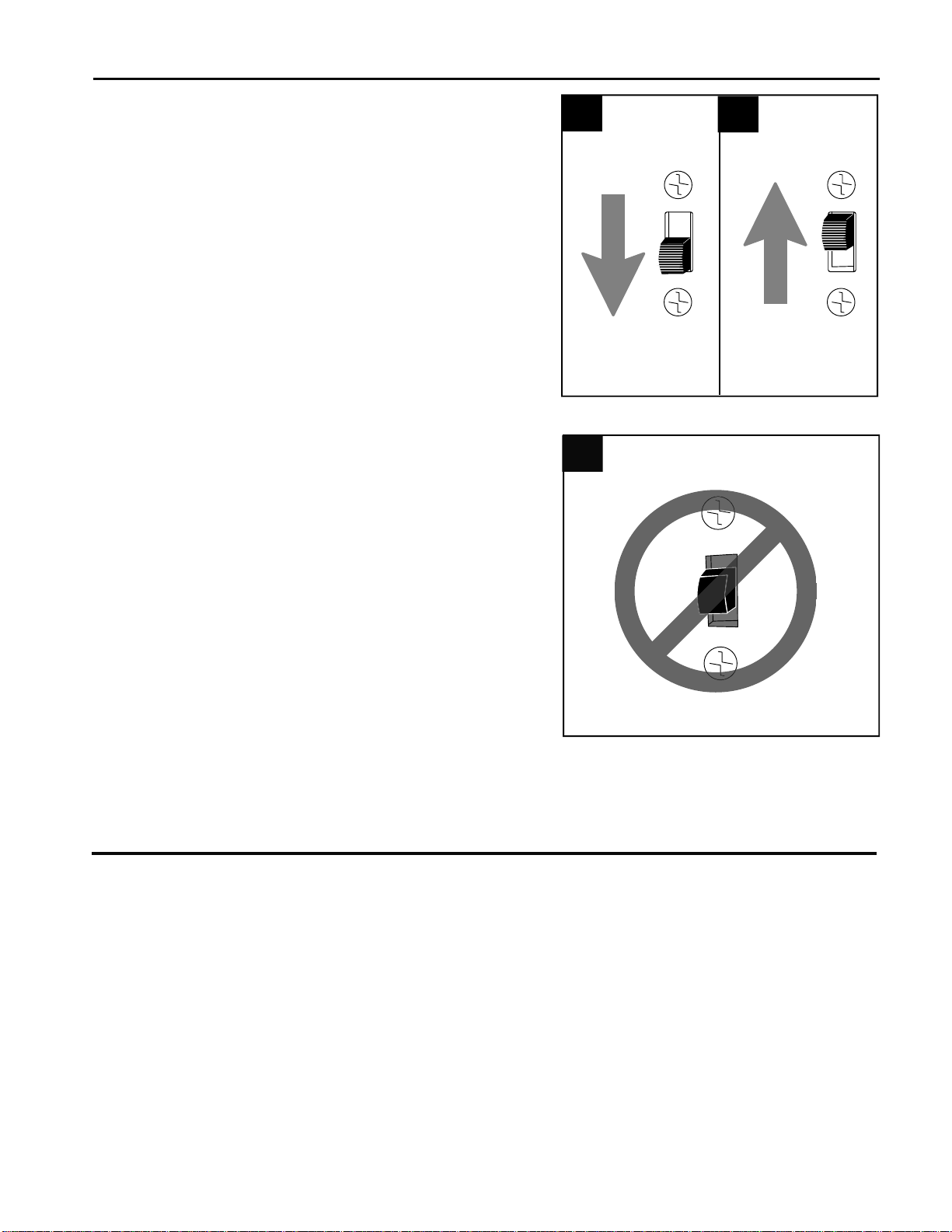

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
3.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
F
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
A
B
2
19° max.
Check to make sure blades (F) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
7 ft.
min.
30 in.
min.
3

Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4b.
INITIAL INSTALLATION
7
5. Remove motor screws (I) and lock washers (K)
from underside of motor housing (D). [If there are
plastic motor blocks installed with the motor
screws (I) and lock washers (K), discard the
plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 on the following page. For
CLOSEMOUNT-STYLE FAN MOUNTING, skip to
page 10.
K
I
5
D
Plastic Motor Block
4a. Loosen canopy mounting screws (L) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (L) and star washers
(O). Save for later use.
Remove mounting bracket (C) from canopy (B).
B
L
O
4a C
Open End
4
C
C
ANGLE MOUNTSTANDARD
MOUNT
4b

2. Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through downrod
(A).
3.
A
N
M
DOWNROD-STYLE FAN MOUNTING
8
3

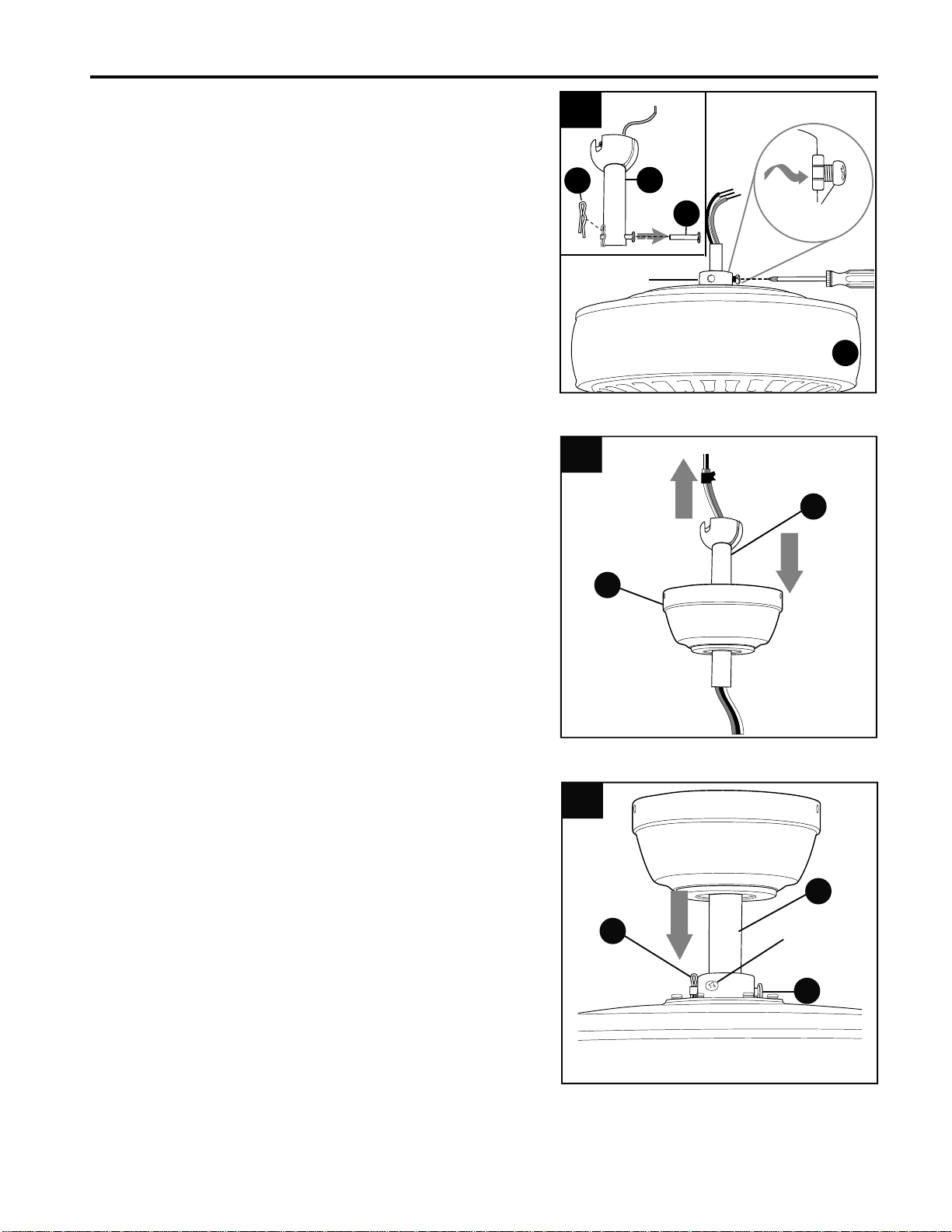

1.
Slip downrod (A) into yoke, align holes and
re-install pin (M) and clip (N). Tighten set screws in
yoke and then tighten nut and set screws.
Set Screw
and Nut
B
A
2
Remove pin (M) and clip (N) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (D).
1
N
M
A
Yoke
Set Screw
and Nut
Sideview
D

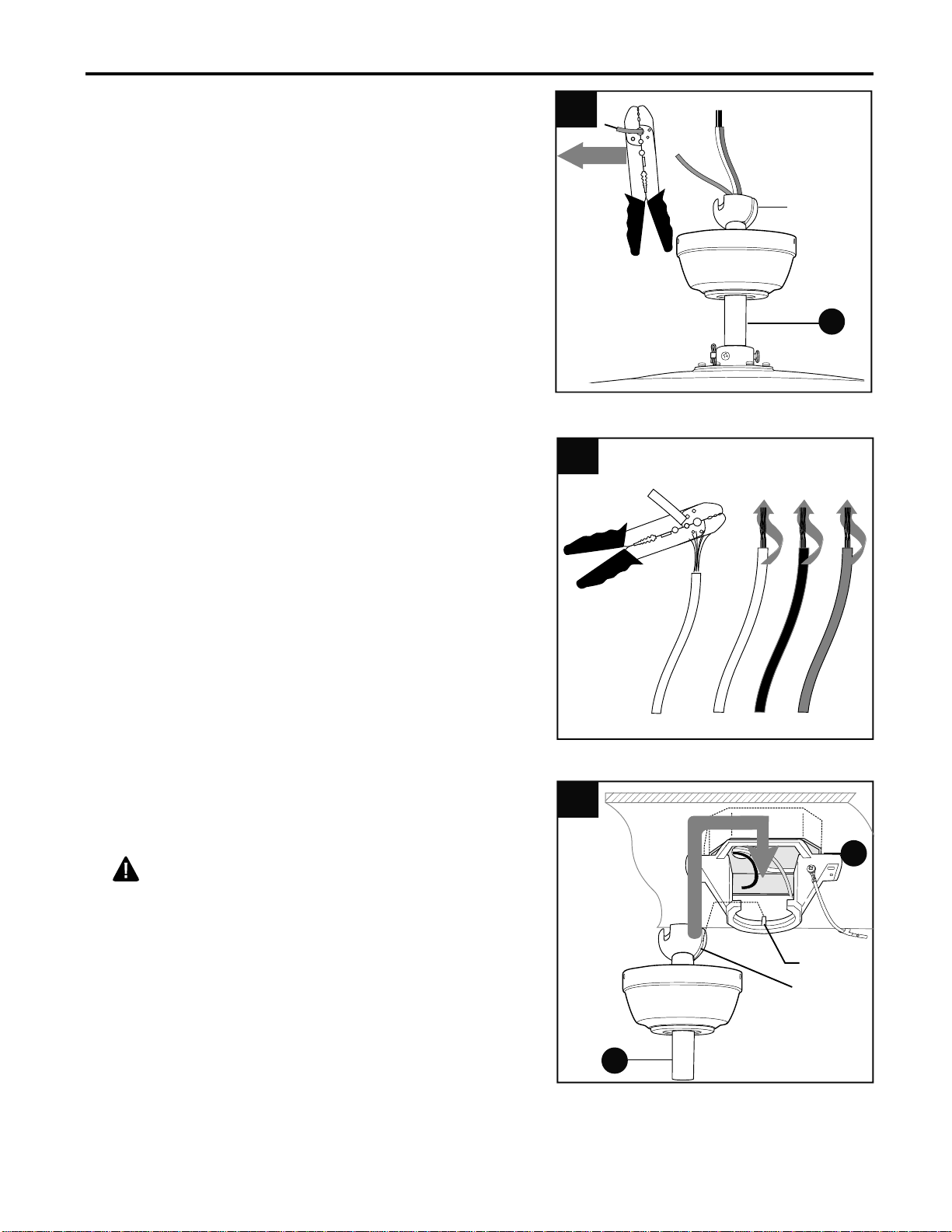

Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the ball on the
downrod (A) and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Ball
5.
Install ball end of downrod (A) into opening of
mounting bracket (C). Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may cause the fan to wobble or fall, which could
result in serious injury or death.
6.
Continue to WIRING on page 11.
C
DOWNROD-STYLE FAN MOUNTING
4
9
5
6
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat
Step 5 for black, blue (if applicable) and green
wires.
Slot
A
A
Tab

Remove preassembled canopy cover from bottom
of canopy (B). NOTE: It may be necessary to use
a screwdriver (not included) to remove the canopy
cover by tapping on the canopy cover from the
inside of the canopy (B).
NOTE: The downrod (A) and canopy cover are
not used in this type of installation.
1.
Remove every other preassembled screw and lock
washer from top of motor housing (D).
2.
3.
CLOSEMOUNT-STYLE FAN MOUNTNG
10
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
1
Canopy
Cover
B
2
D
Screw
Lock Washer
3
B
D
Screw
Lock
Washer

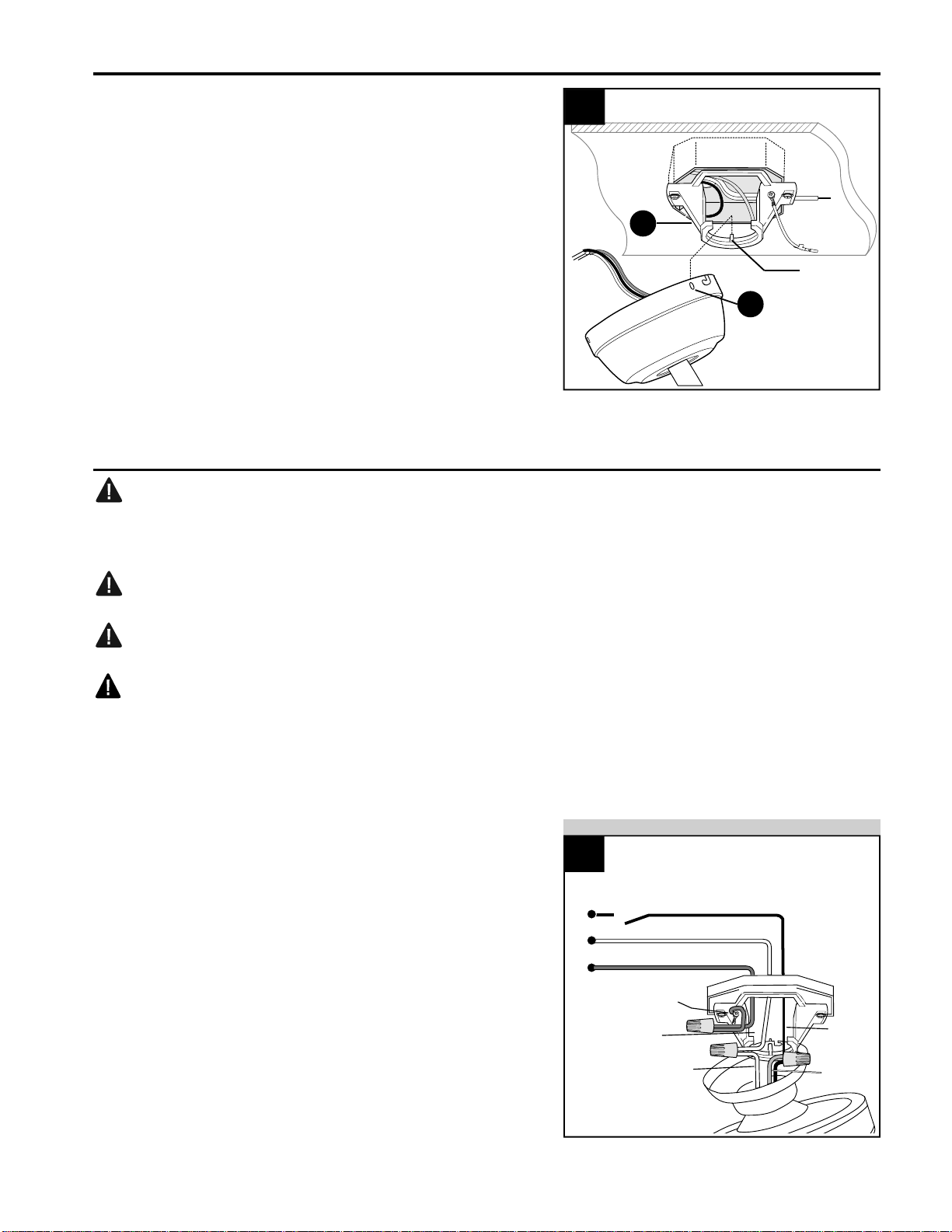

Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
CLOSEMOUNT-STYLE FAN MOUNTING
11
WIRING

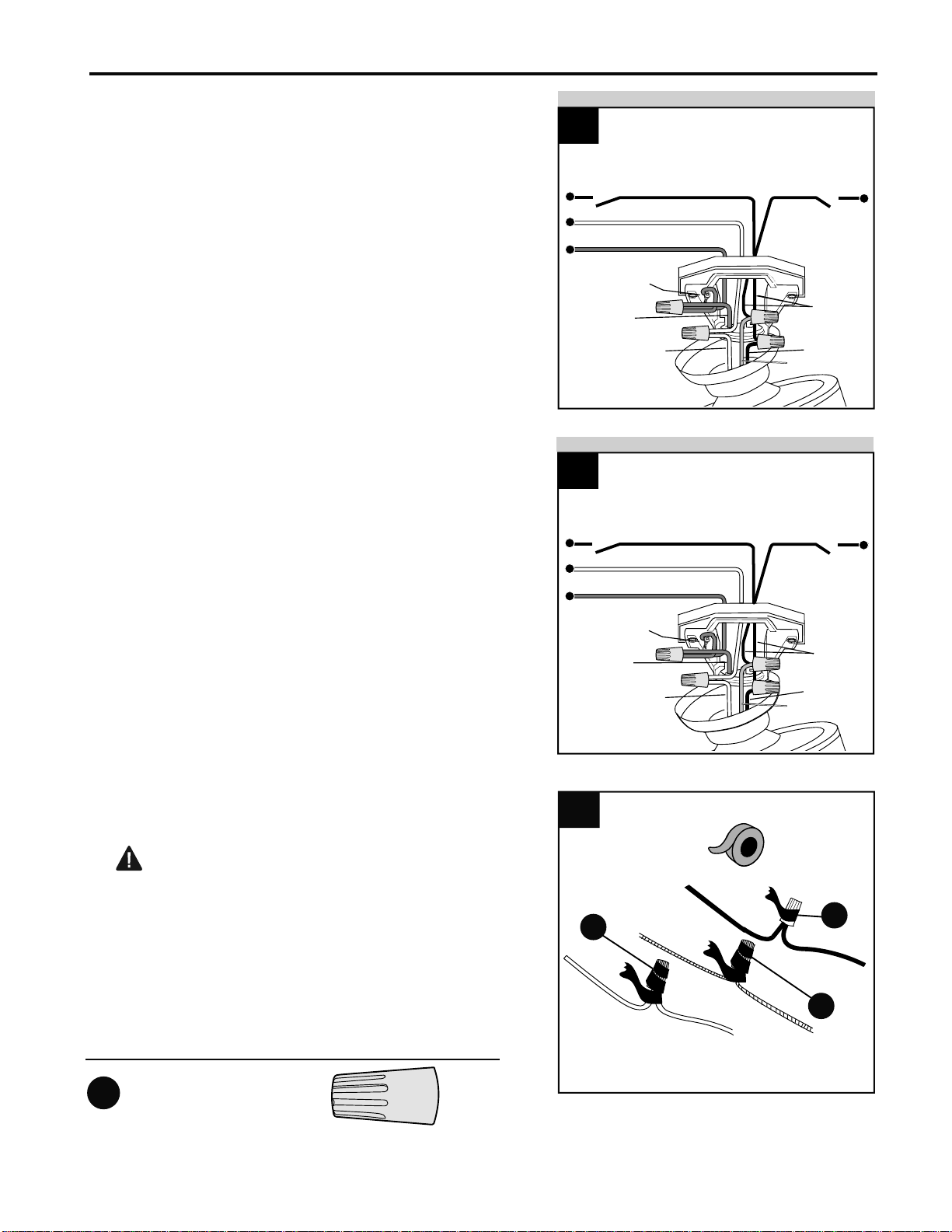

Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)
that fits your situation and make appropriate wiring
connections as follows: [NOTE: Use one of the
wire connectors (CC) provided to make each wire
connection, making sure to screw wire connector
(CC) on in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket
(C)) to BARE/GREEN wire from ceiling.
1.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to
instructions provided with the remote control before proceeding with these wiring instructions.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK(POWER)
WHITE(NEUTRAL)
120V POWER
FROM CEILING
C
4
B
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a
loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full
range dimmer switch to control fan speed.
Tab
BLACK
GROUND/GREEN (BARE)
WHITE BLUE &
BLACK
GREEN
GREEN

Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of box from the BLACK and BLUE (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
12
WIRING
Wire Connector x 4
Hardware Used
CC
CC
2
CC
CC
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
1b. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire
from ceiling. Connect BLUE wire from fan to the
BLACK (or RED) wire from the independent wall
switch for the light. Connect WHITE wire from fan
to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the
fan and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK (or RED) wire
from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND (GREEN)
wires together from fan (on downrod (A) and
mounting bracket (C)) to BARE/GREEN wire from
ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
BLACK
BLACK
(WALL
SWITCH)
1b
WHITE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
BLACK
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
BLACK
BLACK
(WALL SWITCH
FOR LIGHT)
BLUE
1c
WHITE
BLACK (WALL SWITCH)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
BLACK
120V POWER
FROM CEILING
120V POWER
FROM CEILING
GREEN
GREEN
GREEN
GREEN
BLUE

2.
13

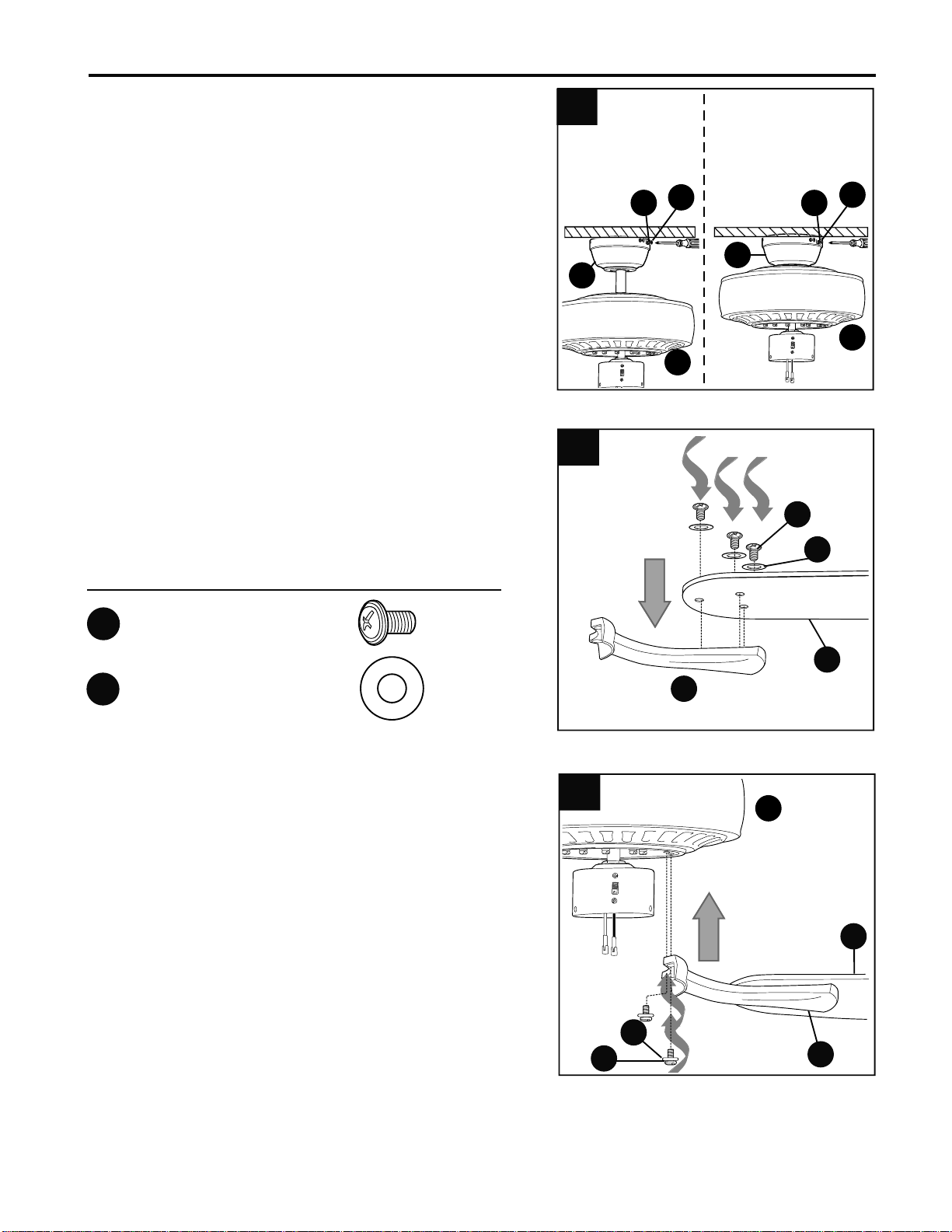

Partially insert three blade screws (AA) along
with three fiber blade washers (BB) to attach
one blade arm (G) to a blade (F). Then, tighten
each blade screw (AA), starting with the one in
the middle. Repeat with remaining blades (F).
Blade Screw x 15
Fiber Blade Washer x 15
2
AA
BB
F
G
Hardware Used
AA
BB
1.
FINAL INSTALLATION
1
B
D
L
D
B
Downrod
Option Closemount
Option
Lift canopy (B) to mounting bracket (C) and
align slotted holes in canopy (B) with loosened
canopy mounting screws (L) in mounting
bracket (C). Twist canopy (B) to lock, then
insert the two canopy mounting screws (L) and
star washers (O) previously removed (Step 4a,
page 7). Tighten all canopy mounting screws
(L) securely.
UL
U
Locate motor screws (I) and lock washers (K)
that were previously removed (Step 5, page 7).
Insert two motor screws (I) along with lock
washers (K) through one blade arm (G) to
attach blade arm (G) to motor housing (D).
Tighten motor screws (I) securely. Repeat with
remaining blade arms (G), making sure to
completely secure each blade arm (G) before
proceeding with the next.
3.
F
G
3D
I
K

FINAL INSTALLATION
Connect WHITE wire from switch housing to
WHITE wire from light kit fitter (Q). Connect BLUE
(or BLACK) wire from switch housing to BLACK
wire from light kit fitter (Q). Make sure molex
connections are secure.
Align holes in light kit fitter (Q) with holes in switch
housing. Note: Make sure to align gap on top edge
of the light kit fitter (Q) with the reverse switch on
switch housing for the correct fit.
5.
14

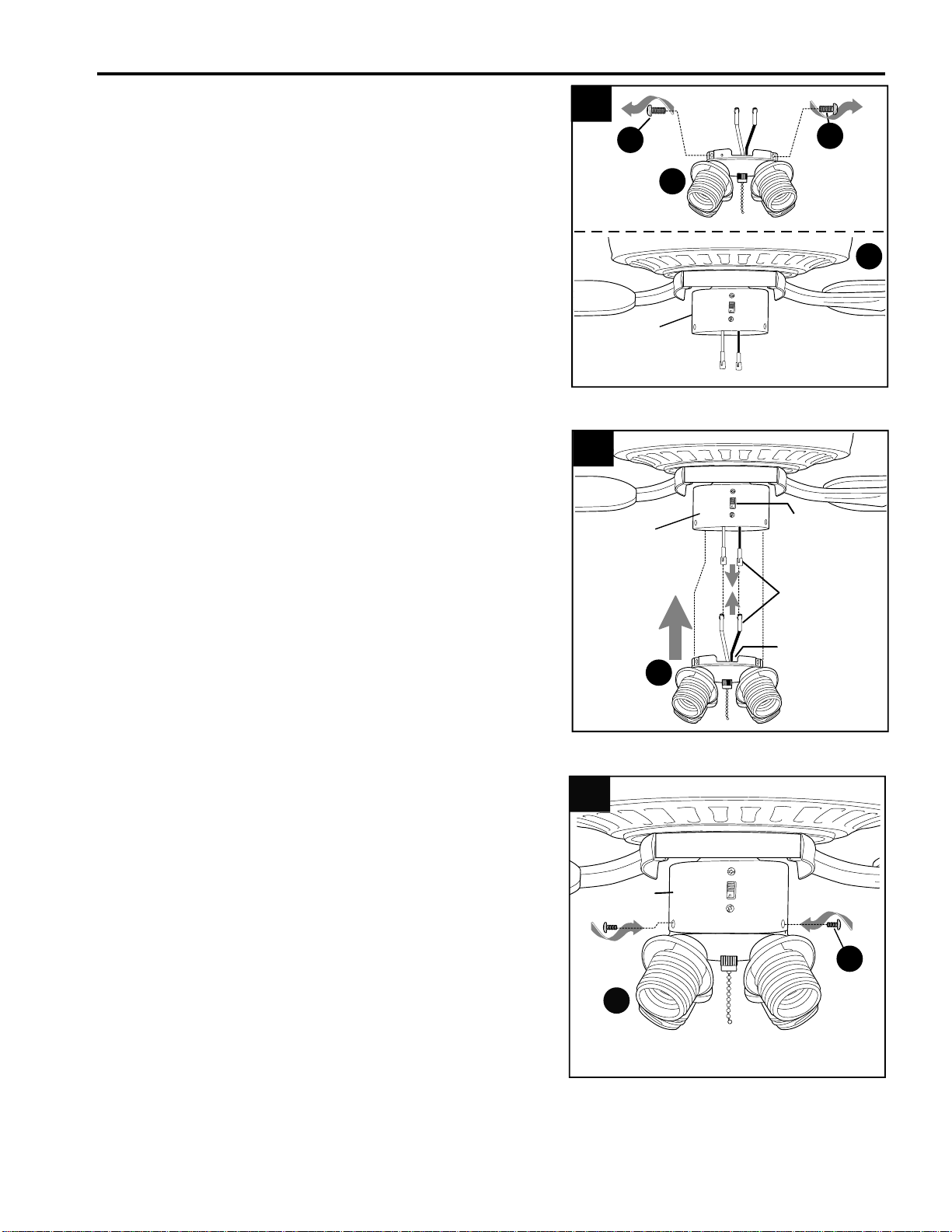

4. Remove three preassembled light kit fitter screws
(P) from light kit fitter (Q).
Locate BLUE (or BLACK) and WHITE wires in
switch housing preassembled on motor housing
(D) labeled FOR LIGHT KIT CONNECTION and
remove plastic that holds these two wires together.
4
D
Switch
Housing
P
Q
P
WHITE BLUE (or BLACK)
Molex
Connections
Q
Switch
Housing
P
Gap
Re-insert the light kit fitter screws (P) previously
removed (Step 4, this page) and use a Phillips
screwdriver (not included) to secure all light kit
fitter screws (P).
6.
Switch
Housing
6
Q
Reverse
Switch
5

15
FINAL INSTALLATION
8. Install bulbs (J).
WARNING: When replacing bulbs, allow bulb(s)
and glass shade(s) to cool down before touching
them.
Remove socket rings (R) from sockets on light kit
fitter (Q). Attach glass shades (E) to sockets,
securing with socket rings (R).
WARNING: Do not overtighten socket rings (R)
as glass may crack or break.
7. 7
Q
E
R
J
9. Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
9
DD
Pull Chain x 2
Extension
Hardware Used
DD
Socket
8

16
OPERATING INSTRUCTIONS

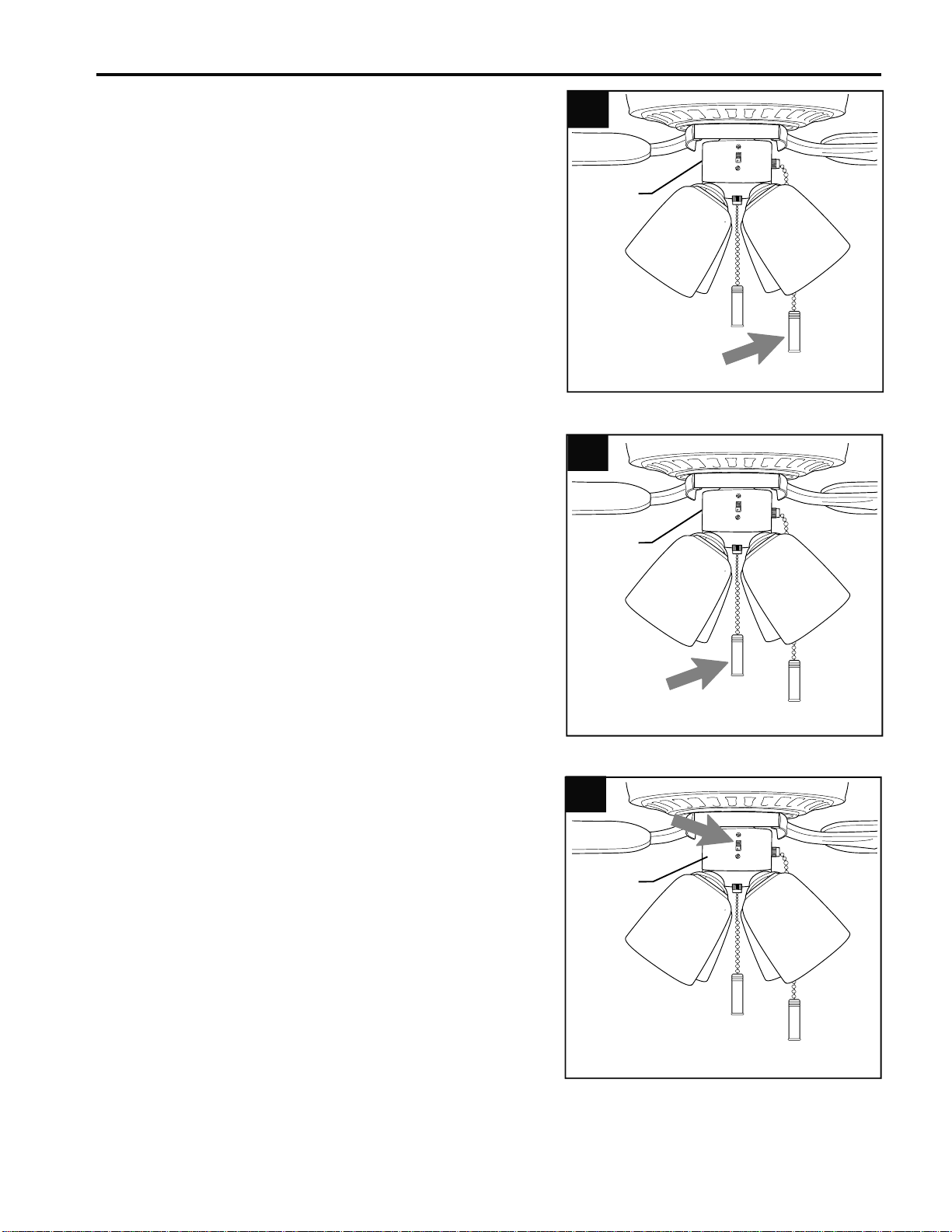

2. The pull chain located in the middle (labeled
LIGHT) is used to turn the lights ON or OFF.
The pull chain located on the switch housing
(labeled FAN) has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF.
1.
Switch
Housing
1
2
3. Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
Switch
Housing
Switch
Housing

17
OPERATING INSTRUCTIONS
3C
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid
scratching the finish. Clean blades (F) with a lint-free cloth. You may occasionally apply a light coat
of furniture polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 6.5-watt LED bulbs or 13-watt CFLs or 40-watt max.
incandescent bulbs.
CARE AND MAINTENANCE
3A. In warmer weather, setting the reverse
switch in the DOWN position will result in
downward airflow creating a wind chill effect.
3B. In cooler weather, setting the reverse
switch in the UP position will result in upward
airflow that can help move stagnant, hot air off
the ceiling area.
3A 3B
3C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN
for fan to function. If the reverse switch is set
in the middle position, fan will not operate.

18
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1.Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side or use
balancing kit (H).
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
lights fail (if
applicable).
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired properly.
3. Wall switch to fan is off.
4. Wires in switch housing not wired
correctly.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure that wall switch to
fan is on.
4. Check wires in switch housing
and, if necessary, re-wire
according to instructions on
page 14.
TROUBLESHOOTING

19
Printed in China
KHLI1806
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer of
this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace the
ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
FG
C
PART DESCRIPTION #0883808 #0883807
PART # PART #
A Downrod
B Canopy
C Mounting Bracket
F Blade
G Blade Arm
0883808-A
0883808-B
0883808-C
0883808-F
0883808-G
0883807-A
0883807-B
0883807-C
0883807-F
0883807-G
B
A
