Harbor Breeze TIEMPO E-TM52BNK5CS User manual

E192641
ITEM #0125453
0125500
TIEMPO CEILING FAN
Español p. 19
MODEL #E-TM52BNK5CS
E-TM52BNKB5CS
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
1
Lowes.com/harborbreeze
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
EB14350
Federal regulations require ceiling fans with light kits manufactured or imported after
January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,
this fan is equipped with a wattage limiting device.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

2
Lowes.com/harborbreeze
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 24.45 lbs.
Safety Information ................................................................................................................2
Package Contents ................................................................................................................4
Hardware Contents
........................................................................................................................... 5
Preparation ...........................................................................................................................5
Initial Installation ...................................................................................................................6
Fan Mounting ...................................................................................................................... 7
Wiring .................................................................................................................................10
Final Installation .................................................................................................................12
Operating Instructions ........................................................................................................14
Care and Maintenance .......................................................................................................16
Troubleshooting...................................................................................................................16
Limited Lifetime Warranty ...................................................................................................17
Replacement Parts List ......................................................................................................18
TABLE OF CONTENTS

SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNING
CAUTION
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
3Lowes.com/harborbreeze

PACKAGE CONTENTS
4
Lowes.com/harborbreeze

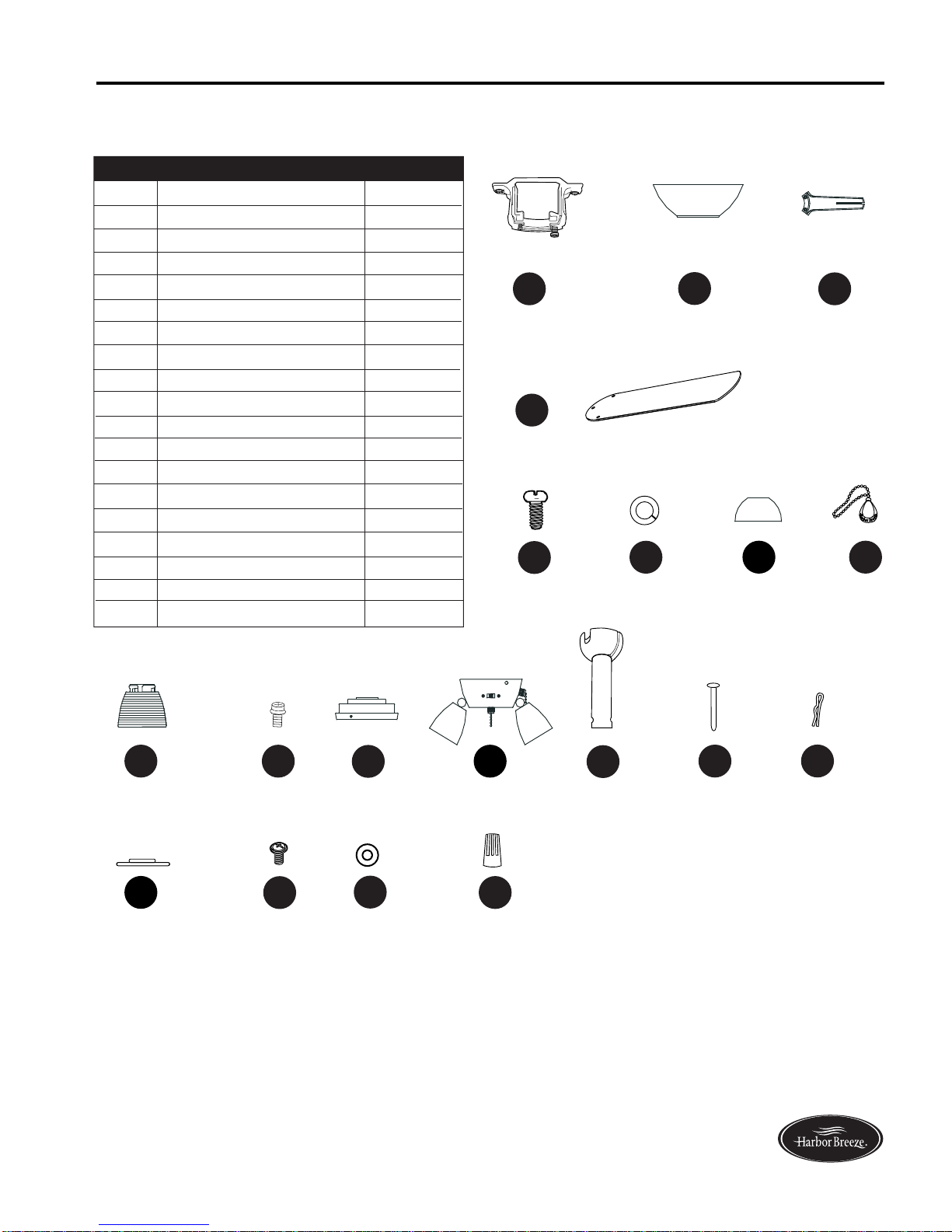

DESCRIPTIONPART QUANTITY
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
D
C
B
A
A Mounting Bracket 1
B Canopy 1
C Blade Arm 5
D Blade 5
E Motor Screw 10
(preassembled) + 1 extra
F Lock Washer 10
(preassembled) + 1 extra
G Yoke Cover 1
H Pull Chain Extension 2
H
K
J
I
E
F
G
L
M
N
O
QP
DESCRIPTIONPART
I Glass Shade 4
J Motor Housing 1
K Canopy Mounting Screw 4
(preassembled)
L Bulb 4
M Switch Housing Plate 1
N Light Kit Fitter 1
O Downrod 1
P Pin (preassembled) 1
Q Clip (preassembled) 1
R Canopy Cover 1
R
QUANTITY

5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware cantents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure they are
secured.
PREPARATION
Lowes.com/harborbreeze
CC
E3 Wire
Connector
Qty. 4
AA BB CC
HARDWARE CONTENTS (shown actual size)
Blade
Screw
Qty. 15
+ 1 extra
Blade
Washer
Qty. 15
+ 1 extra

6
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
3. Check to make sure blades (D) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
INITIAL INSTALLATION
ON
OFF
ON
OFF
3
1
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
2.
A
2
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT:If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. B
D

Remove motor screws (E) and lock washers (F)
from underside of motor housing (J). Save motor
screws (E) and lock washers (F) for blade arm (C)
attachment later on.
Remove pin (P) and clip (Q) from motor housing
yoke at top of motor housing (J) and partially loosen
preassembled set screws.
5.
1.
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers, and flat
washers provided with the outlet box.
*NOTE: It is very important that you use the
proper hardware when installing the mounting
bracket (A) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (A) is installed
facing the higher point of the ceiling.
4. 4
INITIAL INSTALLATION
FAN MOUNTING
7
Lowes.com/harborbreeze
5
Set
Screw
1
J
Q
P
E
F
J
A

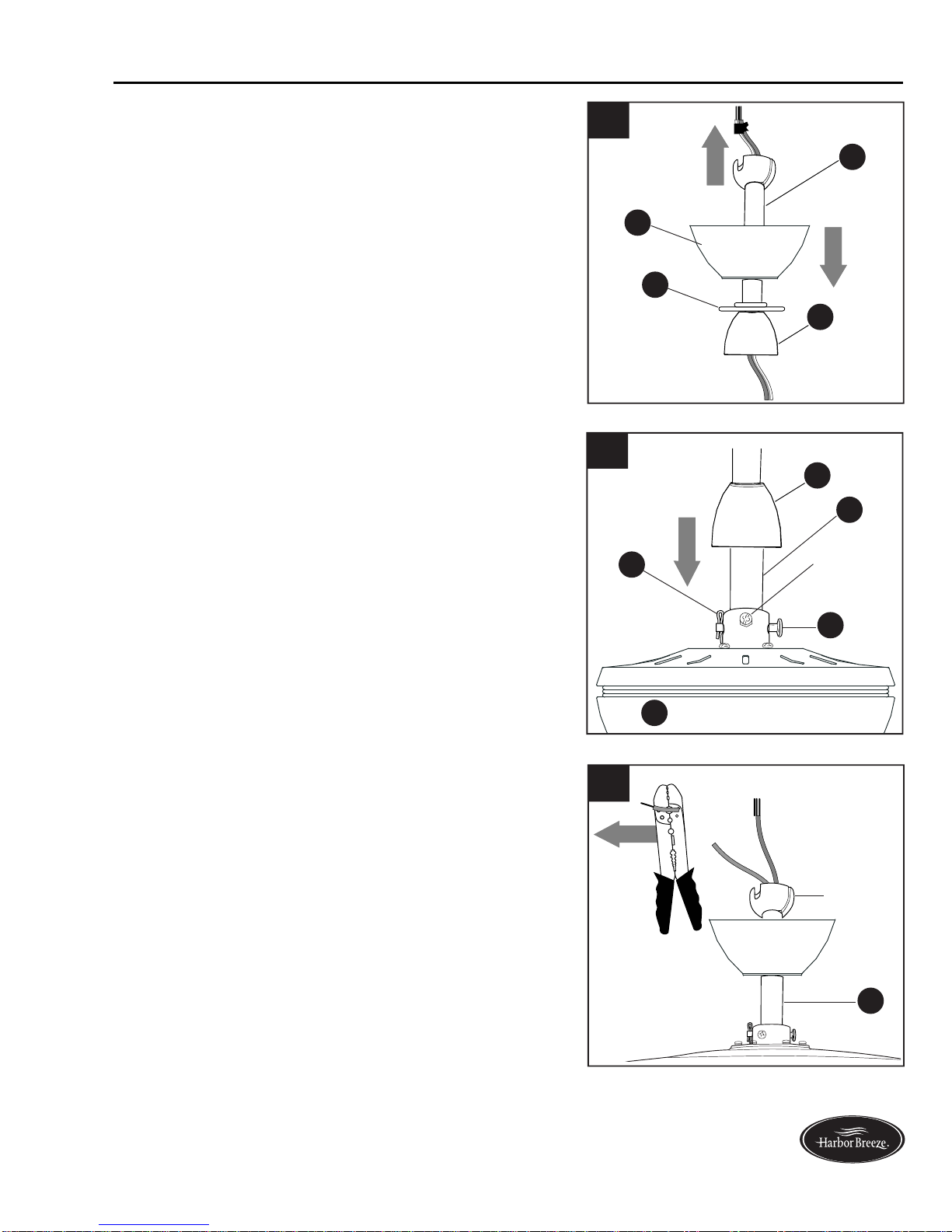

Slip downrod (O) into motor housing yoke, align
holes and re-install pin (P) and clip (Q).Tighten
set screws in motor housing yoke and then
tighten pre-assembled nuts on the set screws.
Slide yoke cover (G) down until it rests on top
of motor housing (J).
Ball
FAN MOUNTING
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the ball on the
downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2. Insert downrod (O) through canopy (B), canopy
cover (R) and yoke cover (G). [NOTE: Canopy
cover (R) must be turned with the shiny side
toward the motor housing (J).] Thread wires
from motor housing (J) through downrod (O).
3.
4
2
8
Lowes.com/harborbreeze
Set
Screw
3
B
G
O
R
O
P
Q
J
G
B
O

9Lowes.com/harborbreeze
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat
Step 5 for black, blue (if applicable) and green
wires.
5. 5
FAN MOUNTING
Install ball end of downrod (O) into opening of
mounting bracket (A). Align slot in ball with tab in
mounting bracket (A).
DANGER: Failure to align slot in ball with tab
may result in serious injury or death.
6.
Hanging
Ball Slot
Tab
6
A
O

10 Lowes.com/harborbreeze
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)
that fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each
wire connection below, use one of the wire
connectors (CC) provided, making sure to screw
wire connector (CC) on in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling.
Connect GREEN wire from fan (on mounting
bracket (A) and downrod (O)) to BARE/GREEN
wire from ceiling.
1.
WIRING
1b. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire
from ceiling. Connect BLUE wire from fan to the
BLACK (or RED) wire from the independent
wall switch for the light. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GREEN wire from fan (on mounting bracket (A)
and downrod (O)) to BARE/GREEN wire from
ceiling.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead
wires from the fan. If your house wire is larger than 12-gauge or there is more than one house
wire to connect to the two fan lead wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
1a
WHITE
BLACK
GROUND/GREEN (BARE)
BLACK
WHITE
WHITE
GREEN
GREEN
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER FROM CEILING
BLUE
1b
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
WHITE
GREEN
GREEN
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
120V POWER FROM CEILING
NOTE: This fan is remote control adaptable (remote control not included).

11 Lowes.com/harborbreeze
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of
box from the black and blue (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2. 2
Hardware Used
E3 Wire Connector x 4
CC
IMPORTANT: Using a full range dimmer switch
(not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire
or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
3. 3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
1
2
3
WIRING
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light kit. WHITE wire is
common for fan and light kit. GREEN or BARE wire
is ground.
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK (or RED) wire
from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect GREEN wire together
from fan (on mounting bracked (A) and downrod
(O)) to BARE/GREEN wire from ceiling.
CC CC
CC
1c
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
WHITE
GREEN
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
GREEN
120V POWER FROM CEILING

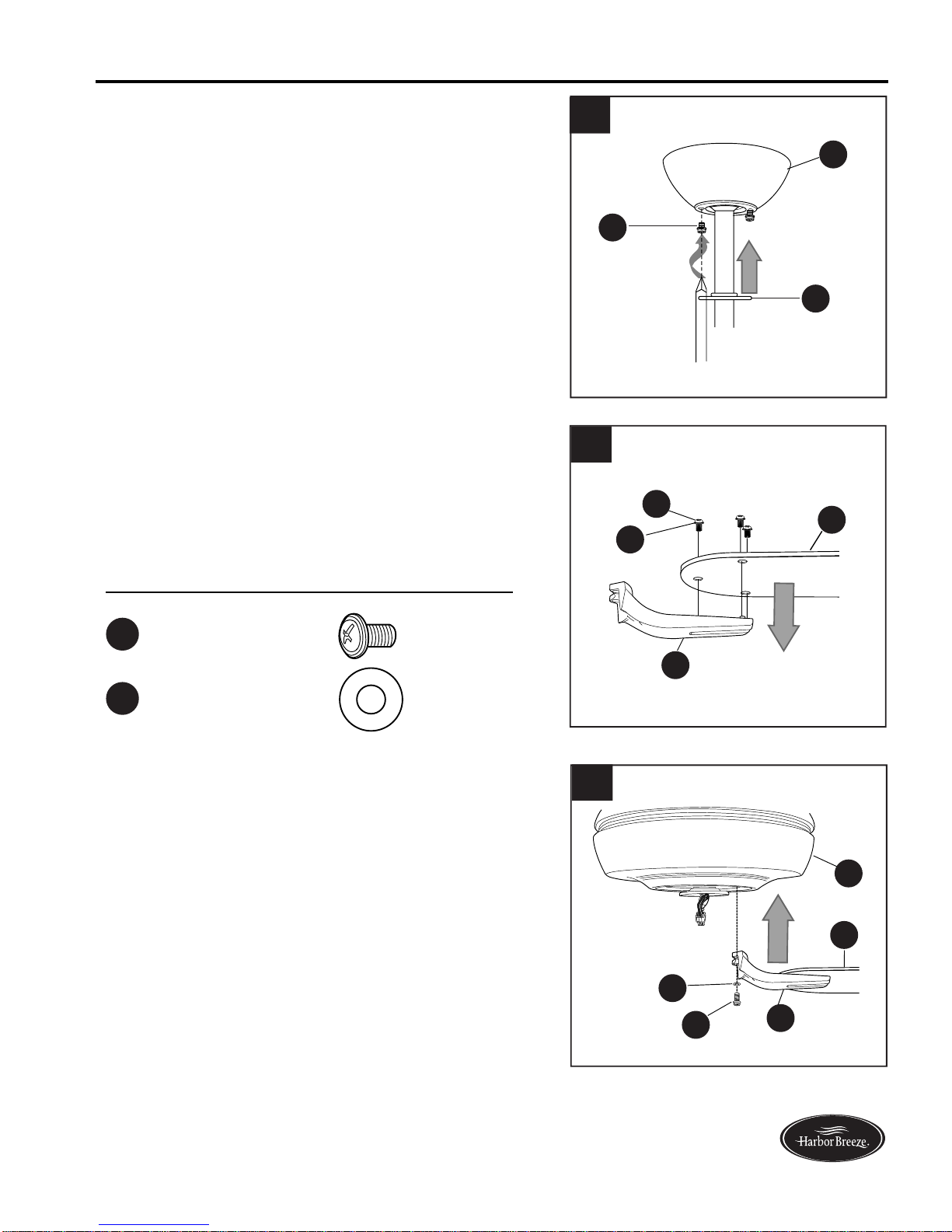

FINAL INSTALLATION
2.
Locate motor screws (E) and lock washers (F)
removed in Step 5 on page 7.
Insert two motor screws (E) along with lock washers
(F) through one blade arm (C) to attach blade arm (C)
to motor. Tighten motor screws (E) securely. Repeat
with remaining blade arms (C), making sure to
completely secure each blade arm (C) before
proceeding with the next.
3.
Partially insert three blade screws (AA) along with
three fiber blade washers (BB) to attach one blade
arm (C) to a blade (D). Then, tighten each blade
screw (AA) starting with the one in the middle.
Repeat with remaining blades (D).
AA Blade Screw x15
Hardware Used
BB Fiber Blade Washer x15
1. Locate two canopy mounting screws (K) on
underside of mounting bracket (A) and remove
canopy mounting screw (K) closest to the open end
of the mounting bracket (A). Partially loosen the
other canopy mounting screw (K). Lift canopy (B) to
mounting bracket (A). Place rounded part of slotted
hole in canopy (B) over loosened canopy mounting
screw (K) in mounting bracket (A) and push up.
Twist canopy (B) to lock. Re-insert canopy mounting
screw (K) that was removed, and then tighten both
canopy mounting screws (K). Slide canopy cover
(R) up to canopy (B), aligning rounded part of
slotted holes in canopy cover (R) with screwheads
in bottom of canopy (B). Turn canopy cover (R) to
the right (clockwise) until it stops.
1
2
3
12
Lowes.com/harborbreeze
B
K
R
C
AA D
BB
J
F
EC
D

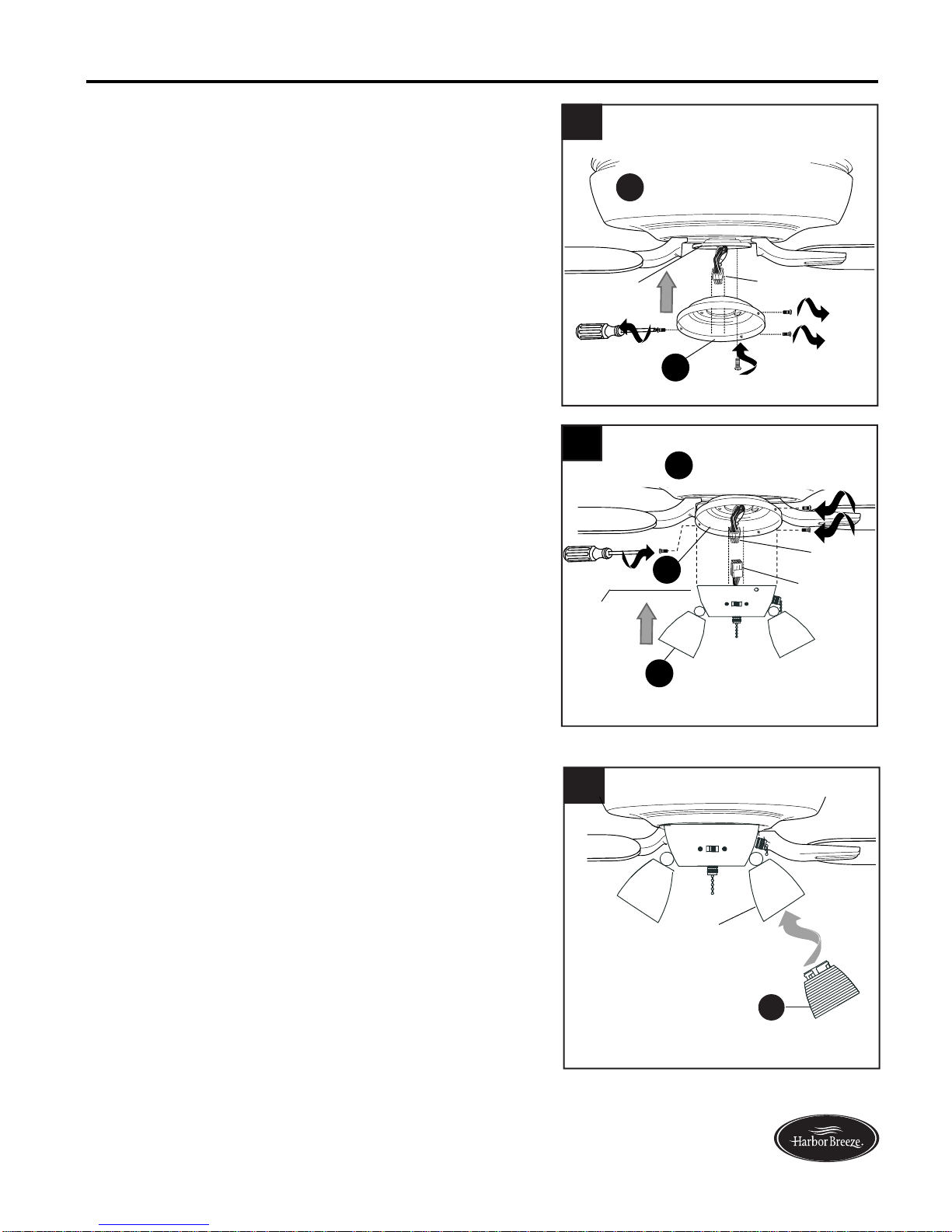

FINAL INSTALLATION
6.
Connect male plug from motor housing (J) to
female plug from light kit fitter (N), matching up
the colors on the male plug with the colors on the
female plug for correct fit. Make sure plugs are
connected completely. Align holes in switch
housing at top of light kit fitter (N) with holes in
switch housing plate (M). Secure light kit fitter (N)
with three screws previously removed. Tighten all
screws securely.
5.
4. Remove three screws from outer edge of switch
housing plate (M).
Partially loosen two screws in fitter plate on
underside of motor housing (J) and remove the
other screw. Align slotted holes in switch housing
plate (M) with loosened screws on fitter plate,
allowing male plug from motor housing (J) to come
through hole in switch housing plate (M). Twist
switch housing plate (M) to lock. Re-insert the
screw that was removed and securely tighten all
three screws.
Align dimples on socket cover with grooves in glass
shade (I). Turn glass shade (I) clockwise to secure.
Repeat with the other glass shades (I).
4
13
Lowes.com/harborbreeze
5
Female
Plug
Male
Plug
Switch
Housing
J
M
N
Fitter
Plate
J
Male
Plug
M
Socket
Cover
6
I

Install bulbs (L).
Important: When replacing bulbs, allow bulb(s)
and light kit to cool before touching them.
Attach applicable pull chain extensions (H) or
custom pull chain extensions (not included) to
the fan and light pull chains.
OPERATING INSTRUCTIONS
The pull chain labeled SPEED has four
positions to control fan speed. One pull is
HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF.
The pull chain labeled LIGHT is used to turn
the lights ON or OFF.
7
FINAL INSTALLATION
7.
2
1
1.
2.
14
Lowes.com/harborbreeze
L
H

OPERATING INSTRUCTIONS
3A 3B
3C
3C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3A. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
3B. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
3. Use the fan reverse switch, located on the light
kit fitter (N), to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling
a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
15
Lowes.com/harborbreeze
N

At least twice each year, lower canopy (B) to check mounting bracket (A), and then tighten all screws
on fan. Clean fan with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
(D) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for
added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use 40-watt max. candelabra-base bulbs or 11-watt CFL bulbs.
CARE AND MAINTENANCE
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive
wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan
to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
TROUBLESHOOTING
Fan operates but
lights fails. 1. Bulb(s) not installed correctly. 2. Wires in outlet box not wired
properly.
3. Wall switch to fan is off.
1. Re-install bulb(s).
2. Check wires in outlet box and, if
necessary, re-wire according to
instructions on pages 10 and 11.
3. Make sure that wall switch to fan
is on.
16
Lowes.com/harborbreeze

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
4. Light kit is lamped with more than the
allowable 190W, causing the wattage
limiting device to interupt the flow of
electricity to the light kit.
4. Lamp light kit with bulbs that total
no more than 190W.
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
17
Lowes.com/harborbreeze

REPLACEMENT PARTS LIST
18
Printed in China
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PWLI1408
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Lowes.com/harborbreeze
A
BB CC
AA
D
A Mounting Bracket
B Canopy
C Blade Arm
D Blade
E Motor Screw
F Lock Washer
G Yoke Cover
H Pull Chain Extension
I Glass Shade
K Canopy Mounting Screw
M Switch Housing Plate
N Light Kit Fitter
O Downrod
P Pin
Q Clip
R Canopy Cover
AA Blade Screw
BB Blade Washer
CC E3 Wire Connector
PART DESCRIPTION PARTS #
C
H
I
G
B
K
EF
MNOQ
P
125453-A
125453-B
125453-C
125453-D
125453-E
125453-F
125453-G
125453-H
125453-I
125453-K
125453-M
125453-N
125453-O
125453-P
125453-Q
125453-R
125453
-AA
125453-BB
125453-CC
R

E192641
ARTÍCULO # 0125453
0125500
VENTILADOR DE
TECHO TIEMPO
MODELO # E-TM52BNK5CS
E-TM52BNKB5CS
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
19
Lowes.com/harborbreeze
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.,
y los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
Los reglamentos federales requieren que los ventiladores de techo con kit de
iluminación fabricados o importados después del 1.° de enero de 2009, tengan un límite
de vataje total consumido por el kit de iluminación de 190 W. Por lo tanto, este
ventilador está equipado con un dispositivo de control de vataje.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

20
Lowes.com/harborbreeze
INFORMACIÓN DE SEGURIDAD
LEA Y GUARDE ESTAS INSTRUCCIONES
Lea y comprenda completamente este manual antes de intentar ensamblar, instalar o usar el producto.
• No deseche la caja del ventilador ni los accesorios de espuma. En caso de que deba devolverse
este ventilador a la fábrica para realizarle reparaciones, debe ser enviado en su empaque original
para asegurar una protección adecuada contra daños que puedan aumentar la causa inicial de la
devolución.
• Asegúrese de que todas las conexiones eléctricas cumplan con los códigos y ordenanzas locales,
el Código Eléctrico Nacional la norma ANSI/NFPA 70-1999. Si no está familiarizado con la
instalación del cableado eléctrico, contrate a un electricista calificado o consulte un manual de
cableado para hacerlo usted mismo.
• Asegúrese de que el sitio de instalación que elija permita establecer una distancia mínima
de 2,13 m (7 pies) desde las aspas hasta el piso y que los extremos de las aspas estén, como
mínimo, a 76,2 cm (30 pulg) de cualquier obstáculo.
• Una vez instalado el ventilador, asegúrese de que todas las conexiones sean seguras a fin
de evitar que se caiga.
• El peso neto de este ventilador, incluido el kit de iluminación, es: 11,09 kg (24.45 lb).
Información de seguridad ..................................................................................................20
Contenido del paquete ......................................................................................................22
Aditamentos ......................................................................................................................23
Preparación .......................................................................................................................23
Instalación inicial ...............................................................................................................24
Montaje del ventilador .......................................................................................................25
Cableado .................................……………………........................................………….......28
Instalación final ….…………….……………………….…………….……...................…........30
Instrucciones de funcionamiento .......................................................................................32
Cuidado y mantenimiento ..................................................................................................34
Solución de problemas.......................................................................................................34
Garantía limitada de por vida ............................................................................................35
Lista de piezas de repuesto ..............................................................................................36
ÍNDICE
