Harbor Breeze Casual-3-2011 User manual

11 8010 · 06/29/11
ITEM #0184428
KINGSBURY CEILING FAN
MODEL #Casual-3-2011
Español p. 19
Harbor Breeze®is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5
p.m., EST, Friday.

2
TABLE OF CONTENTS
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wiring......................................................................... 10
Final Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3
PACKAGE CONTENTS
A
E
I
M
B
F
J
C
G
K
D
H
L
PART
A
B
C
D
E
F
G
H
I
J
PART
K
L
M
QUANTITY
1
1
1
1
1
1
5
5
1
2
QUANTITY
1
1
1
DESCRIPTION
Downrod
Canopy
Mounting Bracket
Light Kit Fitter
Motor Assembly
Yoke Cover
Blade Arm
Blade
Glass Shade
Bulb
DESCRIPTION
Canopy Cover
Light Kit Plate
Remote Control

4
HARDWARE CONTENTS (shown actual size)
AA BB CC DD
Motor
Screw
Qty. 10
and 1 extra
Blade
Screw
Qty. 15
and 1 extra
Blade
Washer
Qty. 15
and 1 extra
Wire
Connector
Qty. 4

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
1. Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit
Breakers.
2. CAUTION: Read all instructions and safety information before installing your new fan. Review
the accompanying assembly diagrams.
3. WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
4. Make sure that all electrical connections comply with local codes, ordinances, the National
(OHFWULFDO&RGHDQG$16,1)3$+LUHDTXDOL¿HGHOHFWULFLDQRUFRQVXOWDGRLW\RXUVHOIZLULQJhandbook, available at Lowe’s, if you are unfamiliar with installing electrical wiring.
5. Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to
WKHÀRRUDQGDWOHDVWLQIURPWKHHQGRIWKHEODGHVWRDQ\REVWUXFWLRQ6. The net weight of this fan including the light kit is: 14.11 lbs. (6.4kg).
7. WARNING: Using a full range dimmer switch to control fan speed will cause aloud humming
QRLVHIURPIDQ7RUHGXFHWKHULVNRI¿UHRUHOHFWULFVKRFNGR127XVHDIXOOUDQJHGLPPHUVZLWFKto control.
DANGER: When using an existing outlet box, make sure the outlet box is securely
attached to the building structure and can support the full weight of the fan. Failure to do
this can result serious injury or death. The stability of the outlet box is essential in
minimizing wobble and noise in the fan after installation is complete.
1. WARNING7RUHGXFHWKHULVNRI¿UHHOHFWULFVKRFNRUSHUVRQDOLQMXU\PRXQWIDQWRRXWOHWbox marked: “ACCEPTABLE FOR FAN SUPPORT” and use mounting screws provided with
WKHRXWOHWER[0RVWRXWOHWER[HVFRPPRQO\XVHGIRUWKHVXSSRUWRIOLJKWLQJ¿[WXUHVDUHQRWDFFHSWDEOHIRUIDQVXSSRUWDQGPD\QHHGWREHUHSODFHG&RQVXOWDTXDOL¿HGHOHFWULFLDQLILQdoubt. Secure the outlet box directly to the building structure. The outlet box and its support
must be able to support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic
outlet box.
2. WARNING7RUHGXFHWKHULVNRI¿UHHOHFWULFDOVKRFNRUSHUVRQDOLQMXU\ZLUHFRQQHFWRUVprovided with this fan are designed to accept only one 12 guages house wire and two lead wires
from the fan. If your house wire is larger than 12 guages or there is more than one house wire
to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to
use.
DANGER
WARNING

6
3. WARNING7RUHGXFHWKHULVNRI¿UHRUHOHFWULFVKRFNGRQRWXVHWKHIDQZLWKDQ\VROLGVWDWHspeed control device or control fan speed with a full range dimmer switch.
4. WARNING7RUHGXFHWKHULVNRI¿UHHOHFWULFVKRFNRUSHUVRQDOLQMXU\GRQRWEHQGWKHblade arms when installing them, balancing the blades, or cleaning the fan. Do not insert
objects between the rotating fan blades.
5. WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The
use of parts OTHER than those provided with this fan will void the warranty.
1. CAUTION: Be sure outlet box is properly grounded or that a ground (green or bare) wire is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove
PRWRUIURPSDFNLQJDQGSODFHRQFDUSHWRURQIRDPWRDYRLGGDPDJHWR¿QLVK2. CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that
they are secured.
WARNING
CAUTION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to
assembly the product. Contact customer service for replacement parts.
Estimated Assembly Time: 120 minutes
Tools required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder and Wire Strippers
Helpful tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

7
ASSEMBLY INSTRUCTIONS

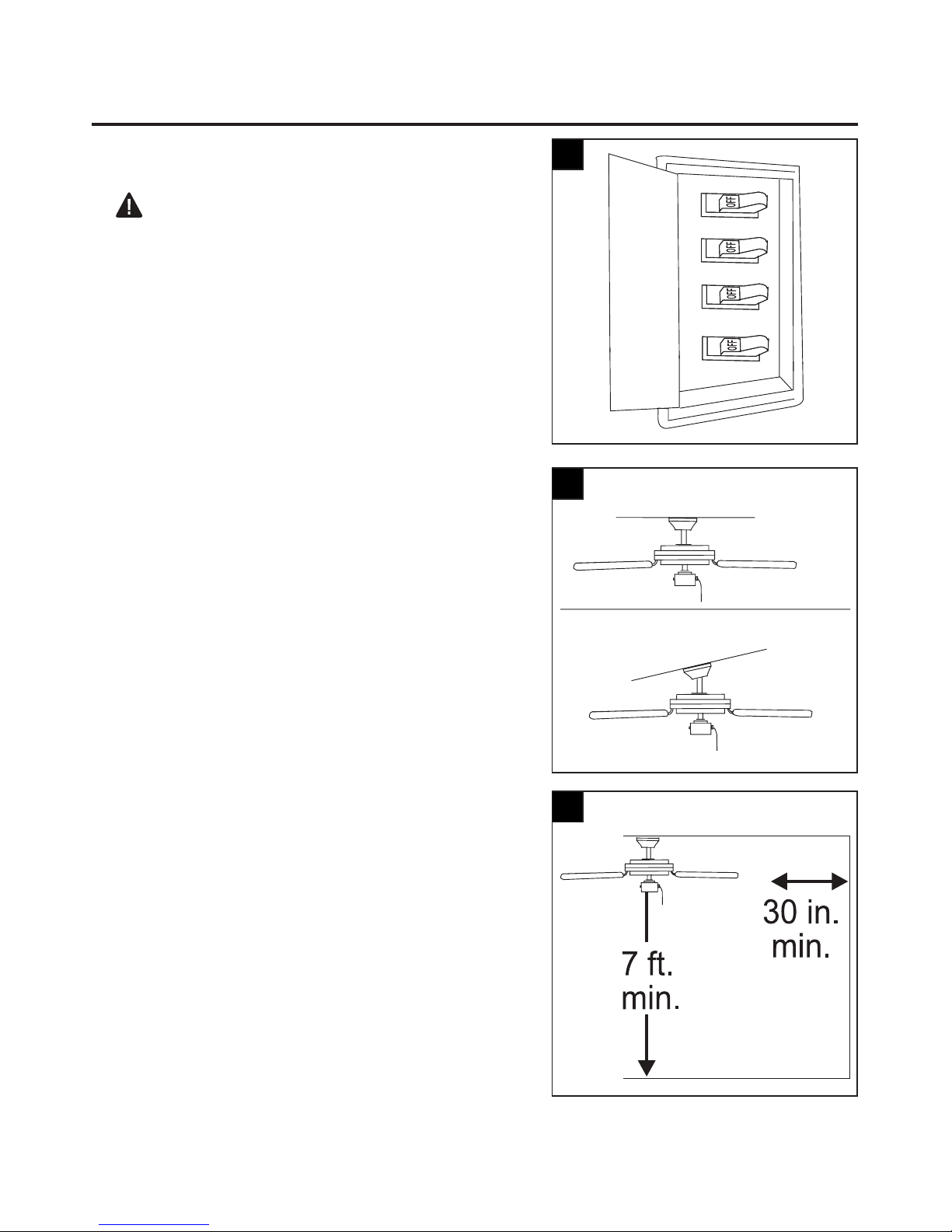

1. Turn off circuit breakers and wall switch to the fan supply
line leads. [Fig. 1]
2. Determine mounting methods to use. [Fig. 2]
3. Check to make sure blades (H) will be at least 30 in.
from any obstructions. Check downrod (A) length to
HQVXUHEODGHV+DUHDWOHDVWIWDERYHWKHÀRRU[Fig. 3]
Important: If using the angle mount, check to make sure
the ceiling angle in not steeper than 25°
DANGER: Failure to disconnect power supply prior
to installation may result in serious injury or death.
1
2
3

C
Clip Pin
Set
Screw
E
A
A
F
B
A
8
ASSEMBLY INSTRUCTIONS

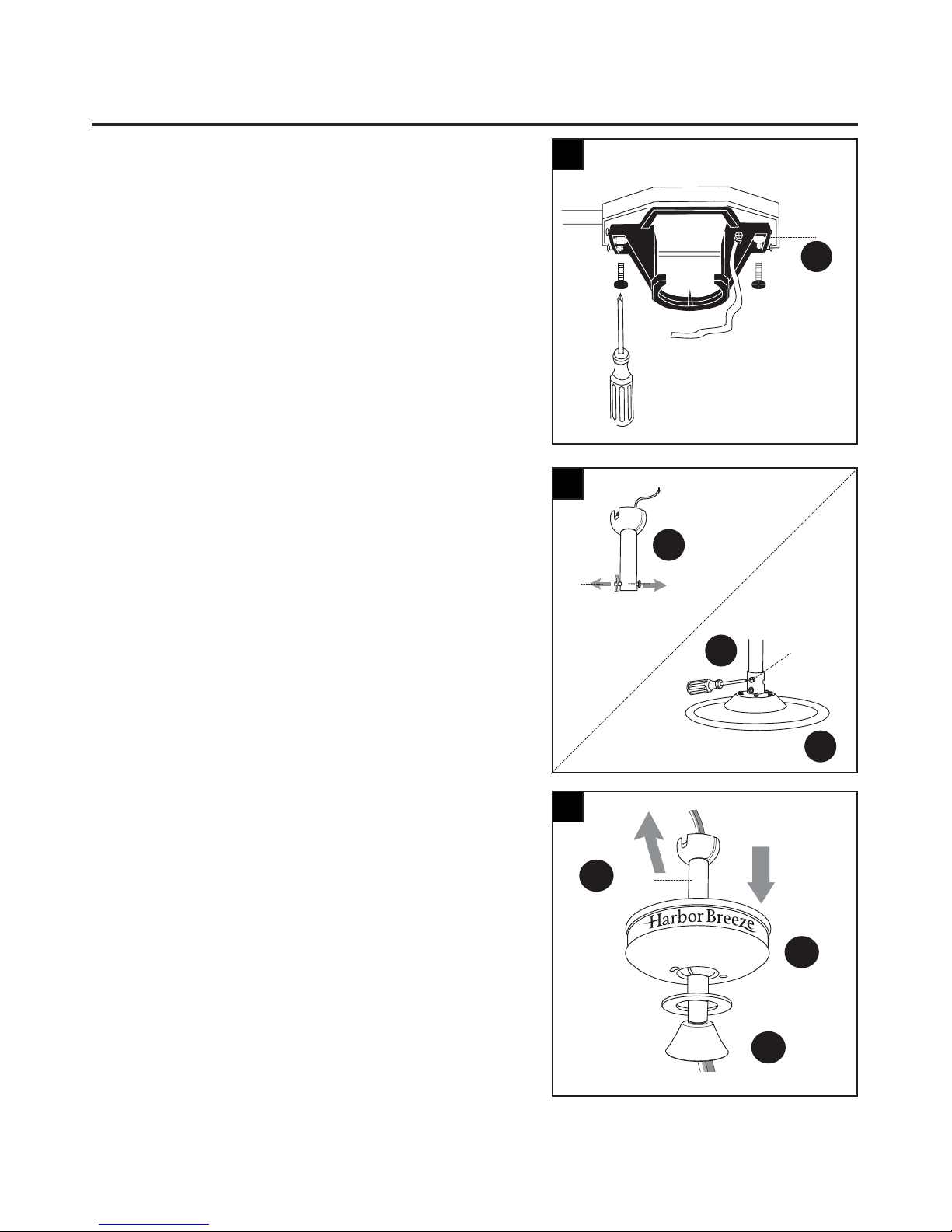

4. Secure mounting bracket (C) to outlet box using screws,
VSULQJZDVKHUVDQGÀDWZDVKHUVSURYLGHGZLWKWKHRXWOHWbox (not included). [Fig. 4]
Note:It is very important that you use the proper
hardware when installing the mounting bracket (C) as
this will support the fan.
Important: If using the angle mount, make sure open
end of mounting bracket (C) is installed facing the higher
point of ceiling.

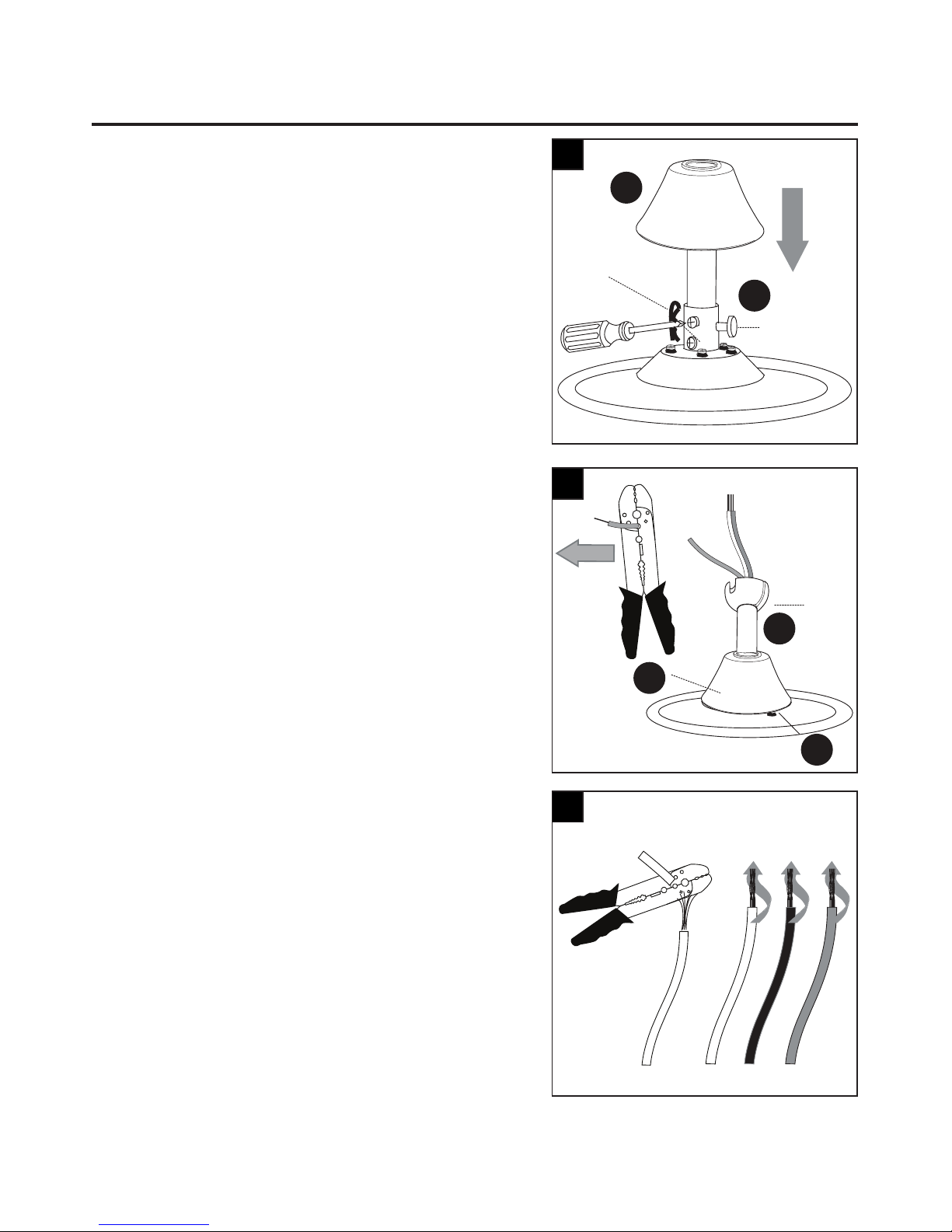

5. Remove pin and clip from downrod (A). Partially loosen
set screws in motor housing yoke at top of motor
housing (E). [Fig. 5]
Help Hint: Downrod style mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may want
to use a longer downrod (not included). Angle style
mounting is best suited for angled or vaulted ceilings.
A longer downrod is sometimes necessary to ensure
proper blade clearance.
6. Insert downrod (A) through canopy (B) and yoke cover
(F). Thread wires from motor housing (E) through
downrod (A). [Fig. 6]
4
5
6

Clip
Pin
F
A
E
F
A
Ball
9
ASSEMBLY INSTRUCTIONS
7. Slip downrod (A) into motor housing yoke, align holes
and re-install pin and clip. Re-tighten set screws in
motor housing yoke and then tighten nuts. Slide yoke
cover (F) down until it rests on top of motor housing (E).
[Fig. 7]
8. Depending on the length of downrod (A) you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested that you do so in the following manner: Take
the lead wires and make sure that you have pulled
them all the way through the top of the downrod (A) and
measure 8 in. of lead wire, and then cut the excess wire
off with wire cutters. [Fig. 8]
9. If you decided to cut back the lead wire in Step 9,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within the
insulation with pliers. [Fig. 10] Repeat Step 10 for
black, blue (if applicable) and green wires.
Note: If you did not cut back the lead wires, Step 10
is not necessary and you may proceed to Step 11
instead.
7
8
9

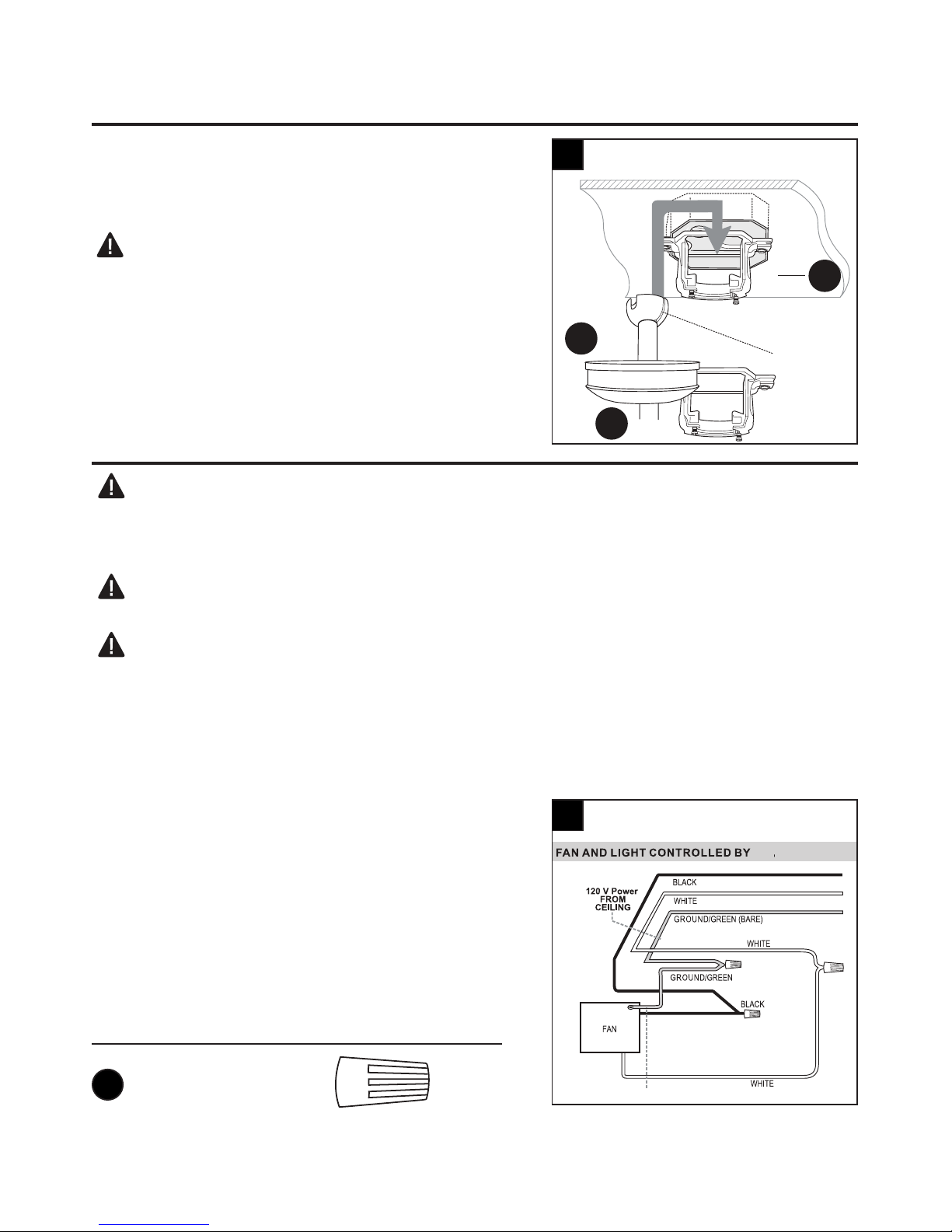

FAN AND LIGHT CONTROLLED BY REMOTE CONTROL
1. Connect BLACK wire from fan to BLACK wire from
ceiling. Connect WHITE wire from fan to WHITE wire
from ceiling. Connect all GROUND (GREEN) wires
together from fan to BARE/GREEN wire from ceiling.
[Fig. 1]
Hardware Used
Ball
C
B
A
REMOTE CONTROL
10
ASSEMBLY INSTRUCTIONS
10. Install ball end of downrod (A) into mounting bracket
(C) opening. Align slot in ball with tab in mounting
bracket (C). [Fig. 10]
DANGER: Failure to align slot in ball with tab may
result in serious injury or death.
10
1
WIRING
WARNING7RUHGXFHWKHULVNRI¿UHHOHFWULFDOVKRFNRUSHUVRQDOLQMXU\ZLUHFRQQHFWRUVprovided with this fan are designed to accept only one 12-guage house wire and two lead wires from
the fan. If your house wire is larger then 12 guages there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded or that a ground (green or base) wire is
present.
WARNING: if house wires are different colors than refereed to in the following step, stop
immediately. A professional electrician is recommended to determine wiring.
Note: Please refer to installation and operating instructions for remote control.
DD Wire connector x 4

DD
DD
DD
B
A
K
BB
H
G
CC
H
11
WIRING
2. Wrap electrical tape around each individual wire
connector (DD) down to the wire as shown in Fig. 3.
WARNING: Make sure no bare wire or wire strands
are visible after making connections. Place green and
white connections on opposite side of box from the black
and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push wires
and wire connector (DD) into outlet box.
2
FINAL INSTALLATION
1. Tuck connections neatly into ceiling outlet box. Remove
one screw from the mounting bracket (C) and loosen the
other screw around 1/4 in.
Align the canopy (B) up to ceiling and over the loose
screw. Place the canopy (B) into key hole and rotate
clockwise.
Secure the canopy (B) with previously removed screw.
Place the canopy cover (K) over the canopy (B) and
rotate clockwise until it is locked into right position.
[Fig. 1]
1

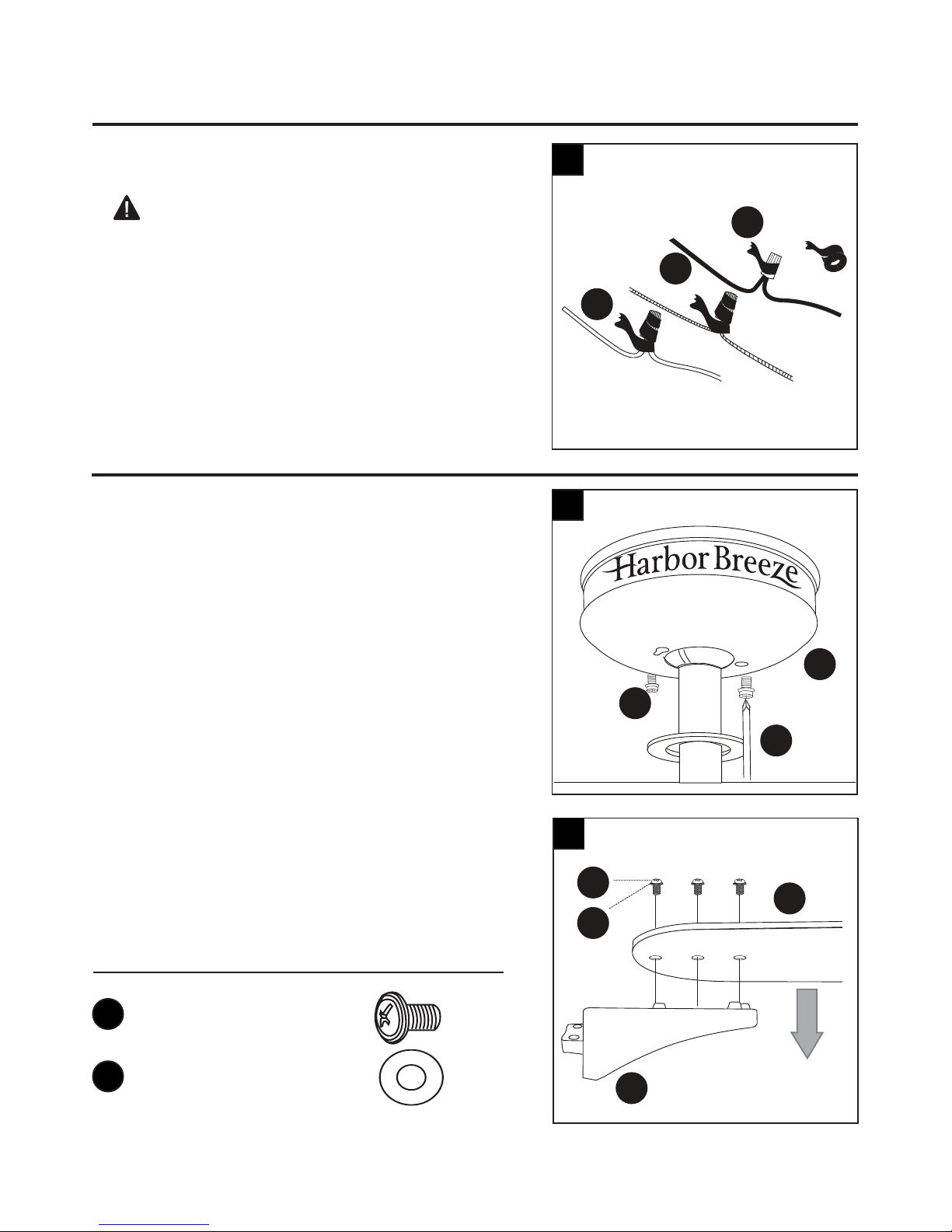

2. Partially insert three blade screws (BB), along with
three blade washers (CC) to attach one blade arm (G)
to a blade (H). Then, tighten each blade screw (BB)
starting with the one in the middle. [Fig. 2] Repeat with
remaining blades (H).
2
BB
CC
Blade Screw x 15
Blade Washers x 15
Hardware Used

H
G
AA
L
E
Screw
D
E
12
FINAL INSTALLATION
3. Insert two motor screws (AA), along with lock washers,
through one blade arm, (G) to attach blade arm, (G)
to motor. Tighten motor screws (AA) securely. [Fig.
3] Repeat with remaining blade arms (G), making
sure to completely secure each blade arm (G) before
proceeding with the next step.
4. Remove one of the four screws from the motor
assembly (E) and loosen the other three. Align the
screw holes of the light kit plate (L) with the loosened
screws and replace and tighten all screws.
3
4
AA Motor Screw x 10
Hardware Used
5. Remove one of the three screws from the light kit plate
(L) and loosen other two. Connect the connectors from
WKHOLJKWNLW¿WWHU'DQGIDQ$OLJQWKHVFUHZKROHVRIWKHOLJKWNLW¿WWHU'ZLWKWKHORRVHQHGVFUHZVDQGreplace and tighten all screws.
5

J
I
D
13
FINAL INSTALLATION

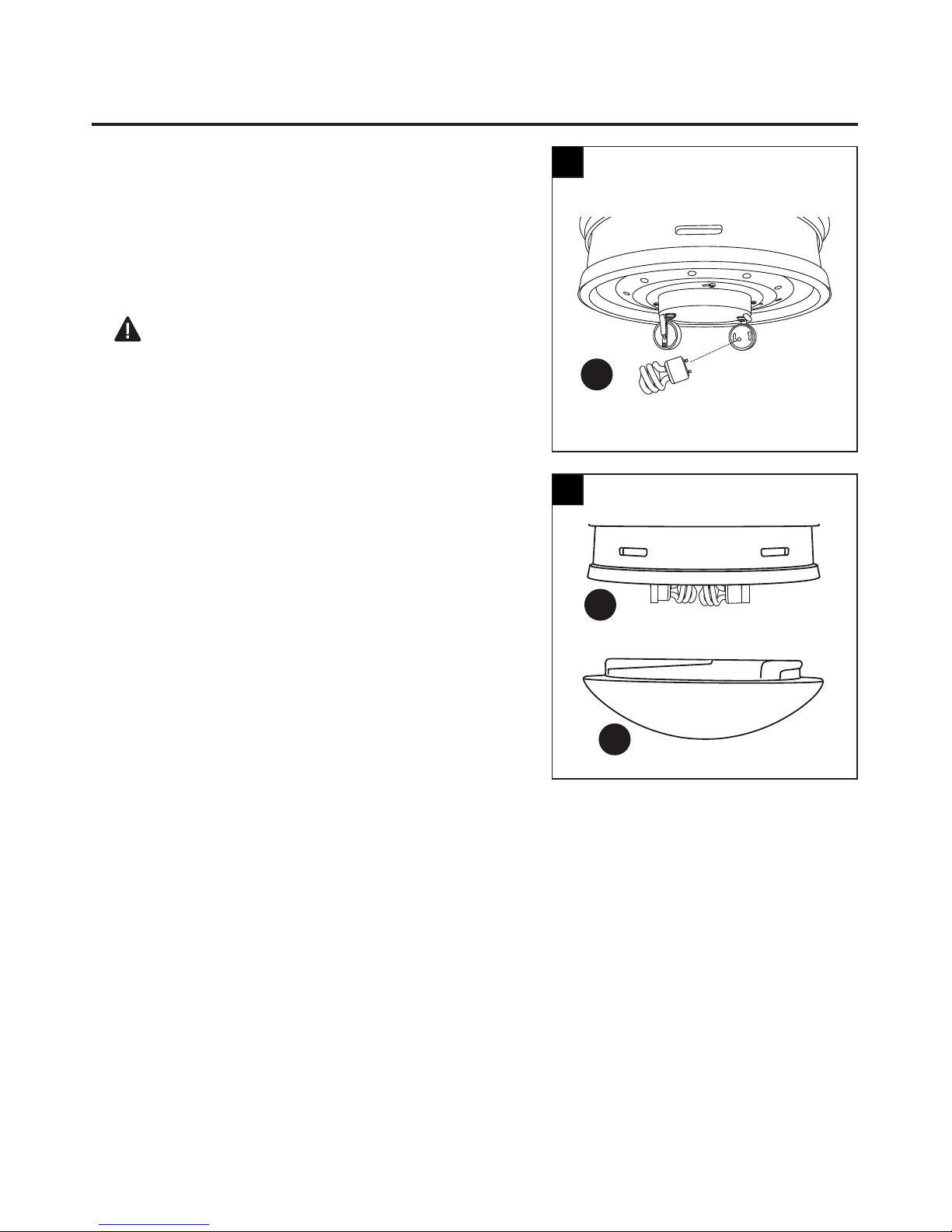

6. Install bulbs (J). [Fig. 6]
Important: When you need to replace bulbs, please
allow bulb (J) and light kit to cool down before touching
the bulb (J) or the light kit.
Note: fan uses two 13-watt max. GU24 bi-pin base CFL
bulbs
WARNING: The CFL bulbs contain mercury, discard
then according to the local law.
$WWDFKWKHJODVVVKDGH,WRWKHOLJKWNLW¿WWHU'E\twisting tightly.
6
7

M
Front
4
3
1
2
M
5
Back
14
OPERATING INSTRUCTIONS
Remote control (M) functions:
1. Fan speed control button: To control the ceiling fan
speed 1-6
2. Fan off button: To turn the fan off.
3. Reverse function button: To control fan direction.
4. Lighting control button: To control light on and off.
5. CODE setting button: With fan power off, arrange code
switched to desired code setting. Turn fan power on.
Note: Install the 12-volt battery (not included) to the
remote control.
Note:The receiver (inside the motor) provides the function of multiplicative protection.
1. Lock position: The DC motor has a built-in safety feature against obstruction during operation. If
this occurs, the motor will discontinue operation within 3 seconds of interruption. To reset, simply
disable power supply to the fan motor and re-start.
2. Over 80W protection: When the receiver detects power consumption is greater the 80W, the
receiver power will be stopped and operation will immediately discontinue. To reset, simply disable
power supply to the fan motor and re-start.
3. Blade setup of motor is arranged according to loading condition; please only install approved
EODGHVIURPDFHUWL¿HGGHDOHURUWKLVPD\YRLGWKHIDFWRU\ZDUUDQW\1
2

15
OPERATING INSTRUCTIONS
WARNING&KDQJHVRUPRGL¿FDWLRQVWRWKLVXQLWQRWH[SUHVVO\DSSURYHGE\WKHSDUW\responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.

16
CARE AND MAINTENANCE
TROUBLESHOOTING
At least twice each year, lower canopy to check down rod assembly, and then tighten all screws on
IDQ&OHDQPRWRUKRXVLQJZLWKRQO\DVRIWEUXVKRUOLQWIUHHFORWKWRDYRLGVFUDWFKLQJWKH¿QLVK&OHDQblades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades
for ass protection. Important: Shut off main power supply before beginning and maintenance. Do not
use water or a damp cloth to clean the ceiling fan.
If you have any questions regarding the product, please call customer service at 1-800-643-0067,
8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PROBLEM
Fan does
not move.
Noisy
operation
Excessive
wobbling
QUANTITY
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and check
all connections.
3. Check that the connectors from the light kit
¿WWHUDQGIDQDUHFRQQHFWHGDFFRUGLQJWRinstructions on page 13.
4. Disable power supply to the fan motor and
re-start.
5. The blade is overweight. Don’t install the
unapproved blades.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed control
device.
4. Allow fan a “break in” period of a few days,
especially when running the fan at Medium
and High speeds.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade from the
opposite side.
4. Turn power off. Carefully loosen canopy and
verify that mounting bracket is secure.
5. Use a longer down rod or move fan to
another location.
6. Tighten yoke set screw securely.
7. Carefully loosen and lower canopy and
verify that set screw on hanging ball is
tightened securely.
DESCRIPTION
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Plugs not connected properly.
4. DC motor is obstructed during
operation.
5. The power of motor over 80W.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw on motor housing
yoke is(are) not tightened
properly.
7. Set screw on hanging ball is not
tightened properly.

17
PROBLEM
Fan
operated
but lights
fail (if
applicable).
QUANTITY
1. Re-install bulb(s).
2. Check wires in canopy and, if necessary,
re-wire according to wiring instructions on
pages 9 and page 10.
3. Check that the connectors from the light
NLW¿WWHUDQGIDQDUHFRQQHFWHGSURSHUO\according to instructions on page 13.
4. Lamp light kit with bulbs that total no more
than 190W.
DESCRIPTION
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired
properly.
3. Plugs not connected properly.
4. Light kit is lamped with more
than the allowable 190W,
causing the wattage limiting
GHYLFHWRLQWHUUXSWWKHÀRZRIelectricity to the light kit.
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglass blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. A written warranty shall be included with
light kit packaging at the time of shipment, which covers repair or replacement of defective parts of
the light kit housing and electronics (excluding the lamp) for a minimum of three years from the date
of purchase. The manufacturer agrees to correct such defects without charge or at our option replace
the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
PLVXVHRULPSURSHULQVWDOODWLRQRUE\DI¿[LQJDQ\DFFHVVRULHVLVQRWFRYHUHGE\WKLVZDUUDQW\7KHmanufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
'XHWRYDU\LQJFOLPDWLFFRQGLWLRQVWKLVZDUUDQW\GRHVQRWFRYHUDQ\FKDQJHVLQEUDVV¿QLVKLQFOXGLQJUXVWLQJSLWWLQJFRUURGLQJWDUQLVKLQJRUSHHOLQJ%UDVV¿QLVKHVRIWKLVW\SHJLYHWKHLUORQJHVWuseful life when protected from varying weather conditions. Any glass provided with this fan is not
covered by the warranty.
$Q\UHSODFHPHQWRIGHIHFWLYHSDUWVIRUWKHFHLOLQJIDQPXVWEHUHSRUWHGZLWKLQWKH¿UVW\HDUIURPWKHdate of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
ZKLFKFDQQRWEHGLVFODLPHGLVOLPLWHGWRWKHWLPHSHULRGDVVSHFL¿HGLQWKHH[SUHVVHGZDUUDQW\7KHmanufacturer shall not be liable for incidental, consequential, or special damages arising out of or in
connection with product use or performance except as may otherwise be accorded by law. This
ZDUUDQW\JLYHVVSHFL¿FOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWRVWDWHThis warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.

HI
F
G
D
C
DD
BB CC
A B
AA
K L
18
PART
A
B
C
D
F
G
H
I
K
L
AA
BB
CC
DD
PART #.
13500104704200
13500104702100
13500104701200
13500104723200
13500104734200
13500104707200
13500104708100
13500104710100
13500104753100
13500104725100
13500104719200
DESCRIPTION
Downrod
Canopy
Mounting Bracket
Light Kit Fitter
Yoke Cover
Blade Arm
Blade
Glass Shade
Canopy Cover
Light Kit Plate
Motor Screw
Blade Screw
Blade Washer
Wire Connector
REPLACEMENT PARTS LIST
For replacement parts, call customer service department at 1-800-643-0067,
8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Printed in China
