Harbor Breeze 40101 User manual

Lowes.com/harborbreeze
1
ITEM #0451809
PACIFIC GROVE
CEILING FAN
MODEL #40101
ATTACH YOUR RECEIPT HERELISTED FOR WET LOCATION
Serial Number _________________________ Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5
p.m., EST, Friday.
EB13354
Español p.
23
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

Lowes.com/harborbreeze
2
TABLE OF CONTENTS
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Hardware Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Closemount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22

Lowes.com/harborbreeze
3

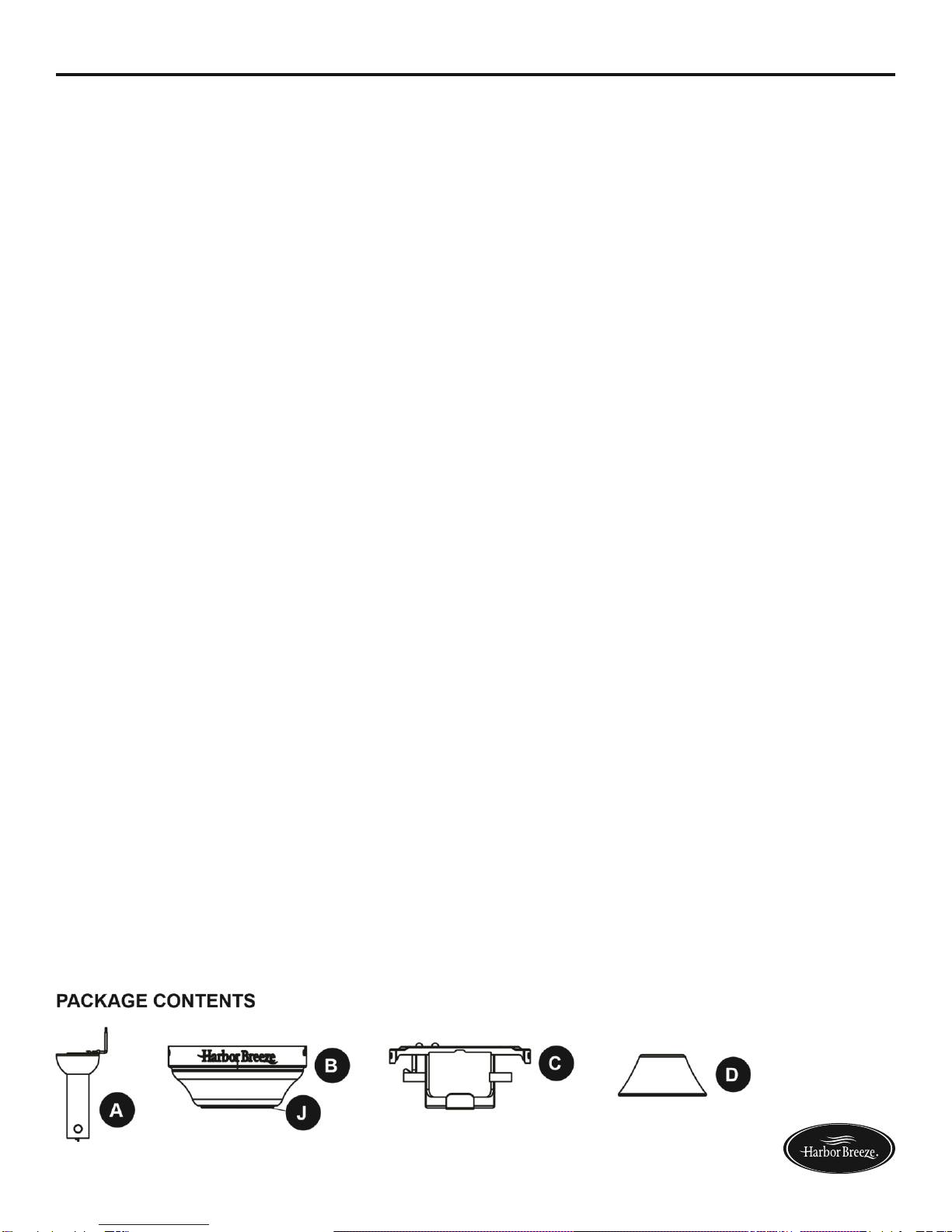

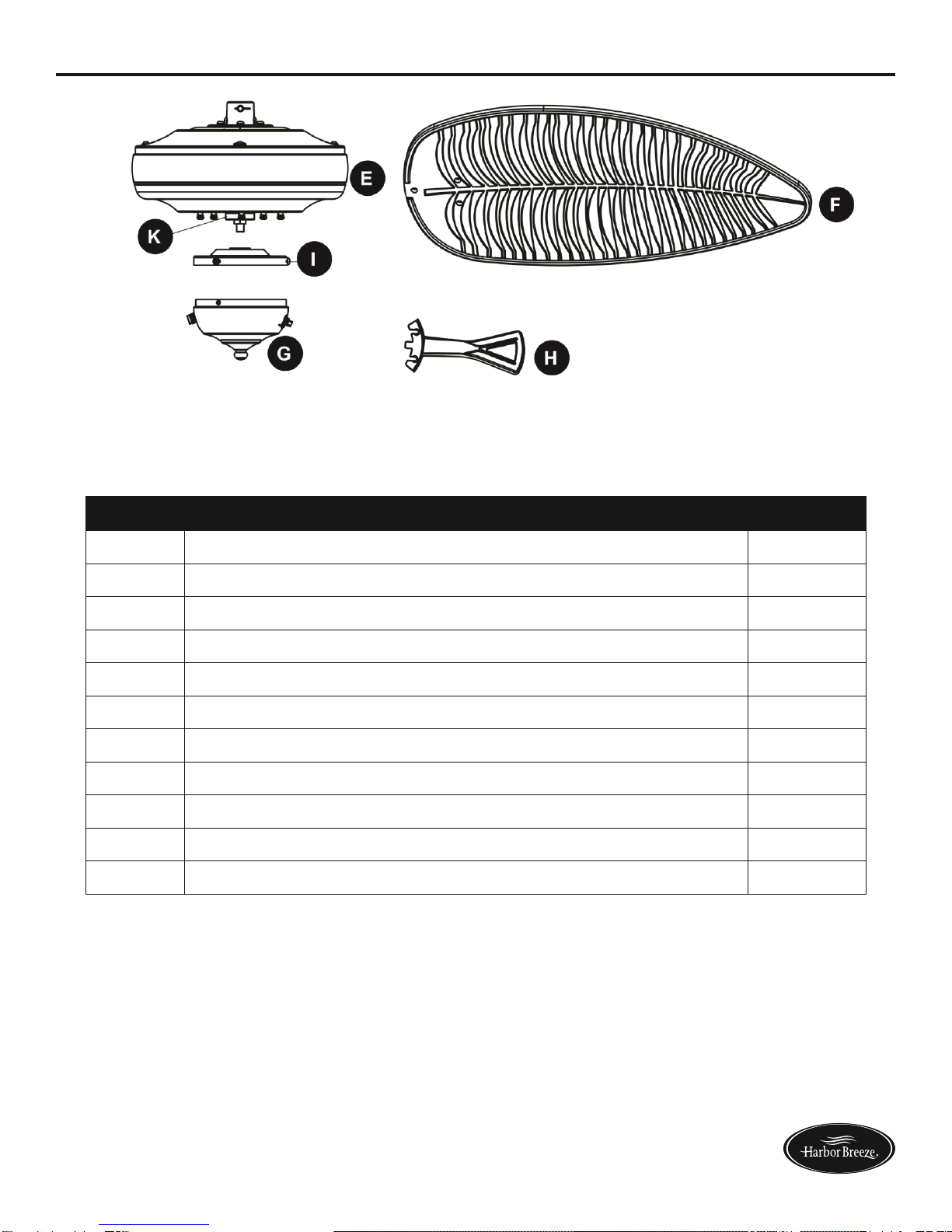

PART
DESCRIPTION
QUANTITY
A
Downrod
1
B
Canopy (preassembled to Mounting Bracket (C))
1
C
Mounting Bracket
1
D
Yoke Cover
1
E
Motor Assembly
1
F
Blade
5
G
Switch Housing
1
H
Blade Arm
5
I
Fitter Plate
1
J
Canopy Cover (preassembled to Canopy (B))
1
K
Switch Housing Plate (preassembled to the Motor Assembly (E))
1

Lowes.com/harborbreeze
4

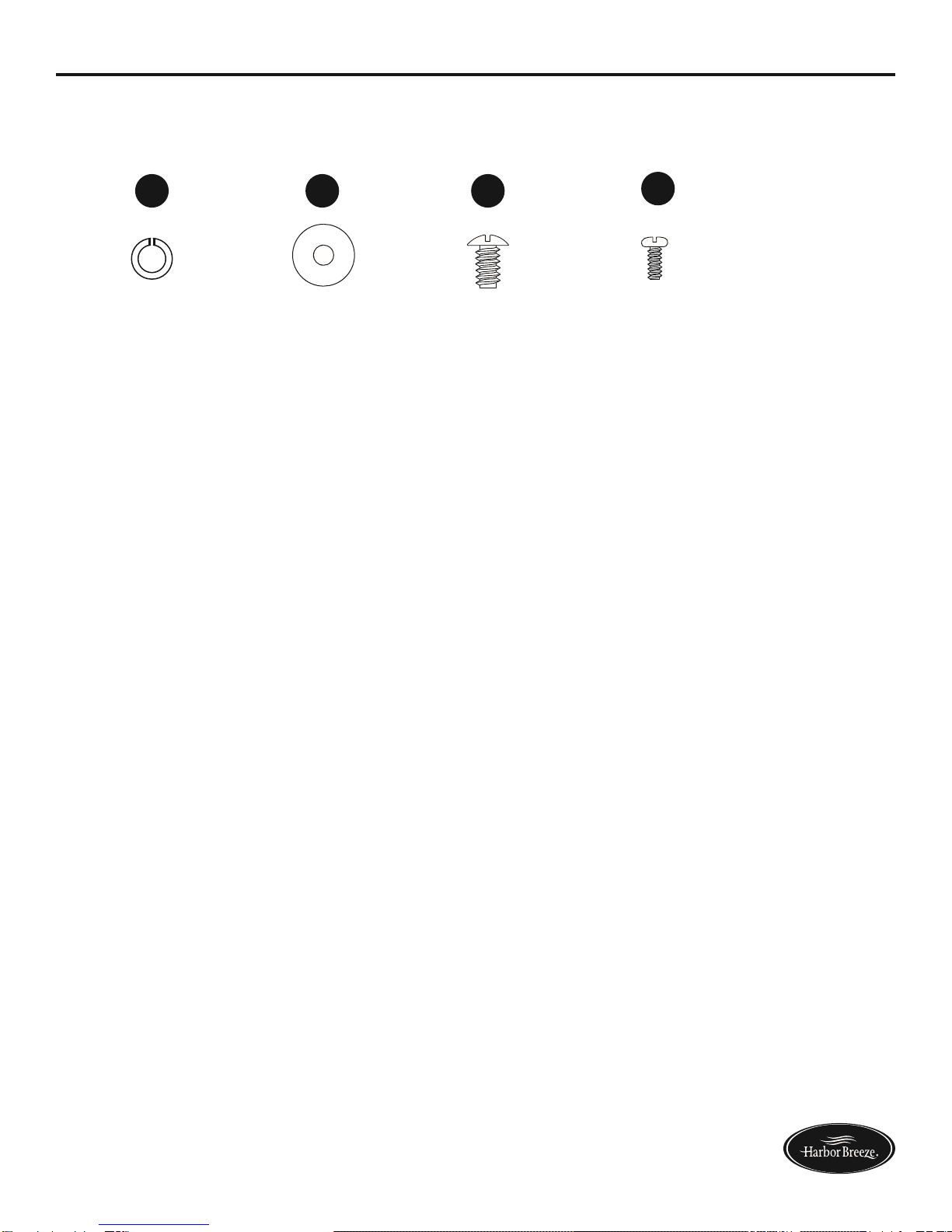

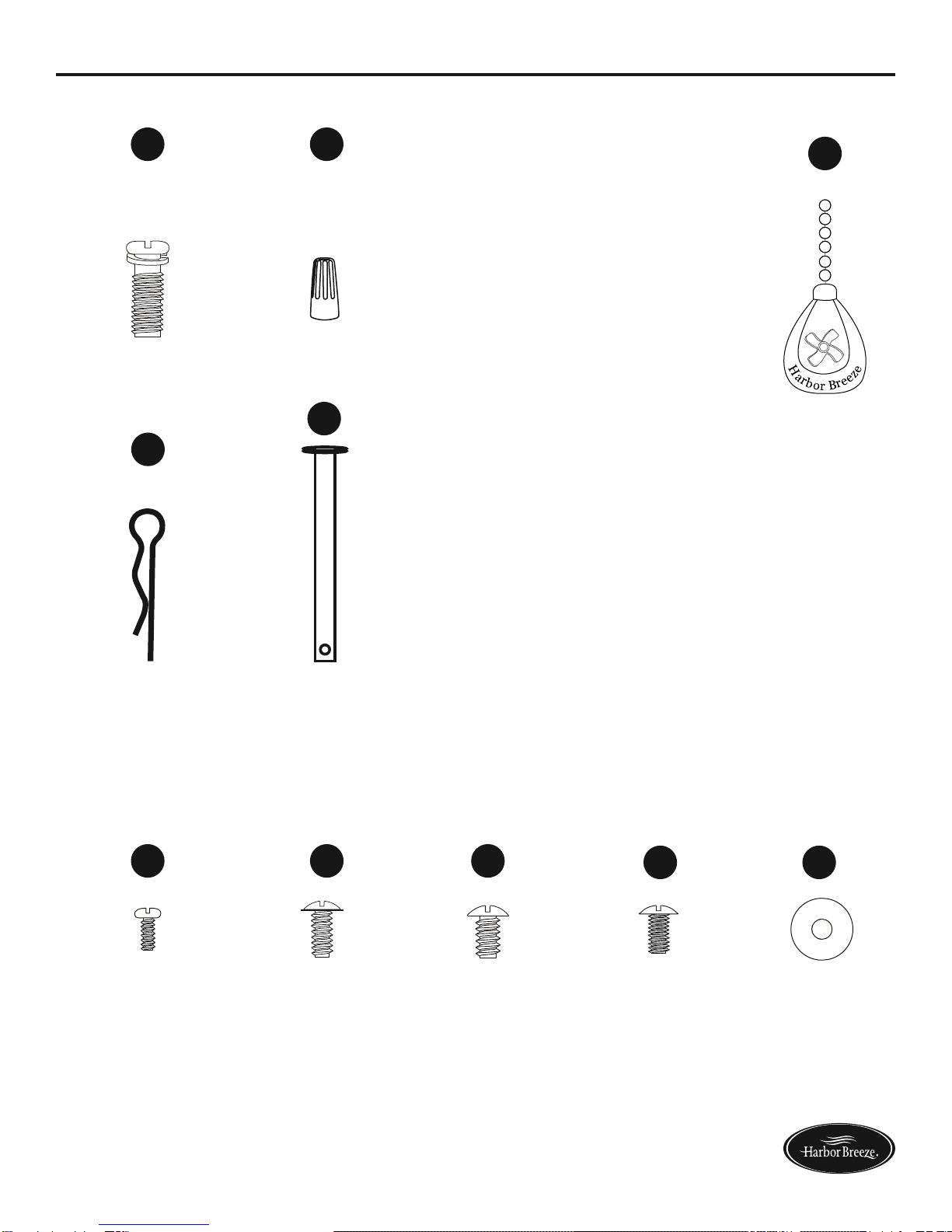

HARDWARE CONTENTS
AA BB
Motor Screw Wire Pull Chain Downrod Clip Downrod Pin
Qty. 10 Connector Extension Qty. 1 Qty. 1
(preassembled to Qty. 3 + 1 extra Qty. 1 (preassembled to (preassembled to
Motor Assembly (E)) Downrod (A)) Downrod (A))
+ 1 extra
Motor Housing Set Closemount Mounting Bracket Blade Screw Blade Washer
Screw Screw Screw Qty. 15 + 1 extra Qty. 15 + 1 extra
Qty. 2 Qty. 3 Qty. 4
(preassembled to (preassembled to (preassembled to
CC
DD
EE
GG
FF
HH
II
JJ

Lowes.com/harborbreeze
5
Motor Motor Mounting Bracket
Assembly (E)) Assembly (E)) (C))
Spring Washer
Qty. 10
(preassembled to
Motor Screw (AA))
+ 1 extra
Rubber Washer
Qty. 15 + 1 extra
Switch Housing
Plate Screw
Qty. 3
(preassembled to
Switch Housing
Plate (K))
Switch Housing
Screw
Qty. 3
(preassembled to
the Fitter Plate (I))
KK
LL
MM
NN

Lowes.com/harborbreeze
6
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
•Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
•Make sure that all electrical connections comply with local codes, ordinances, the National
Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or
consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical
wiring.
•Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the bladesto any
obstruction.
•The net weight of this fan is: 16.23 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
DANGER: If using the fan in a wet location, the fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical
shock or death.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: To reduce the risk of fire, electric shock,or
personal injury, mount the fan to an outlet box marked “ACCEPTABLE FOR
FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of lighting fixtures are not
acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: To reduce the risk of fire, electrical shock,or
personal injury, wire connectors provided with this fan are designed to accept only one
12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12 gauges or
there is more than one house wire to connect to the two fan lead wires, consult an electrician for the
proper size wire connectors to use.
SAFETY INFORMATION

Lowes.com/harborbreeze
7
WARNING: To reduce the risk of fire or electric shock,do
not use the fan with any solid-state speed-control device or control the fan
speed with a full-range dimmer switch.
WARNING: To reduce the risk of fire, electric shock,or
personal injury, do not bend the blade arms when installing them, balancing
the blades, or cleaning the fan. Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is
present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they
are secured.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damage to the finish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters
INITIAL INSTALLATION
SAFETY INFORMATION

Lowes.com/harborbreeze
8
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the
mounting method to use.
Note: Flushmount installation is not
available for this item.
Important: If using the angle mount, check to
ensure the ceiling angle is not
steeper than 23°.
1
2
3
Downrod Mounting
Flushmount
Closemount
Angle Mounting

Lowes.com/harborbreeze
9
3. Ensure the blades (F) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (F) will be at least 7 ft. above the
floor.
F
A

Lowes.com/harborbreeze
10
INITIAL INSTALLATION

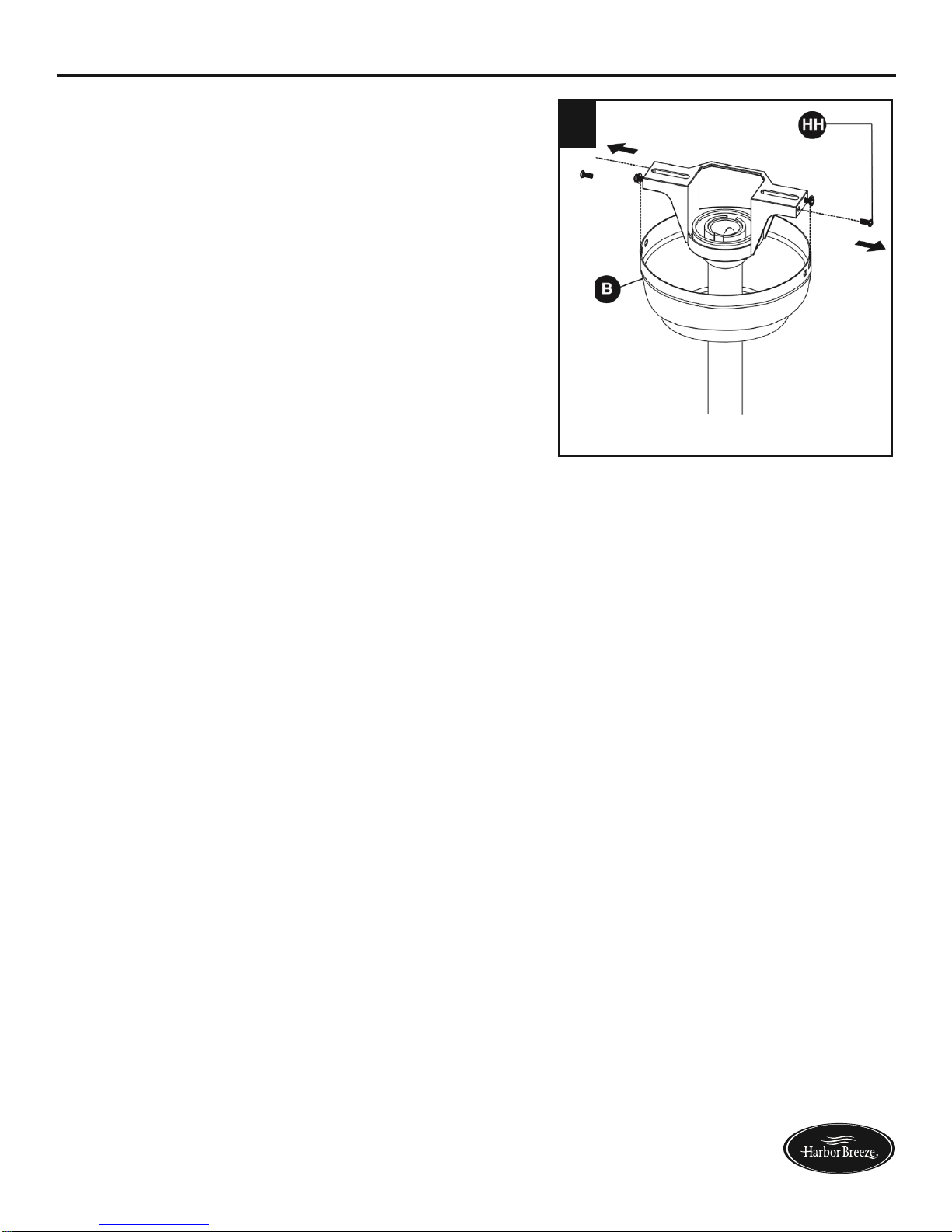

4. Remove the two mounting bracket screws (HH) from the
round holes of canopy (B). Set aside for later use.
Detach mounting bracket (C) from canopy (B).
Hardware Used
5. Feed black,
blue and white wires from the plug on the
mounting bracket (C) up through the hole in the
top.
6. Remove and discard the three rubber stoppers and
the five plasticspacers from the
underside of the motor assembly
(E).
For Standard or Angle Mounting Instructions, continue to page 9. For Closemount
Instructions, proceed to page 12.
WARNING: To reduce the risk of fire, electrical shock,or
personal injury, wire connectors provided with this fan are designed to accept only
one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12
4
HH
Mounting
Bracket Screw
x 2

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Lowes.com/harborbreeze
11
gauges and there is more than one house wire to connect to the two fan lead wires, consult an
electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or
bare) wire is present.
1. Connect supply and mounting bracket (C) wires
according to the diagram and these steps:
•Connect the Green wire from the
mounting bracket (C) to the Green supply
wire.
•Connect the White wire from the
mounting bracket (C) to the White supply
wire.
•Connect the Black and Blue wires from
the mounting bracket (C) to the Black supply
wire.
•Secure all wiring connections together with
wire connectors (BB).
2
3
A
BB
BB
BB
1
Mounting
Bracket
Black
White
Bare/Green

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Lowes.com/harborbreeze
12
Note: The Black wire is hot power for the fan. The White
wire is common. The Blue wire is hot power
for light (sold separately; wiring instructions will differ
if optional light kit is purchased. Refer to light kit
manufacturer’s instructions). Wiring instructions will
differ if optional light kit is purchased. Refer to light kit
manufacturer’s instructions. The Green wire is the
ground wire. If house wires are different colors than
referred to above, stop immediately. It is
recommended a professional electrician determines
the proper wiring.
Hardware Used

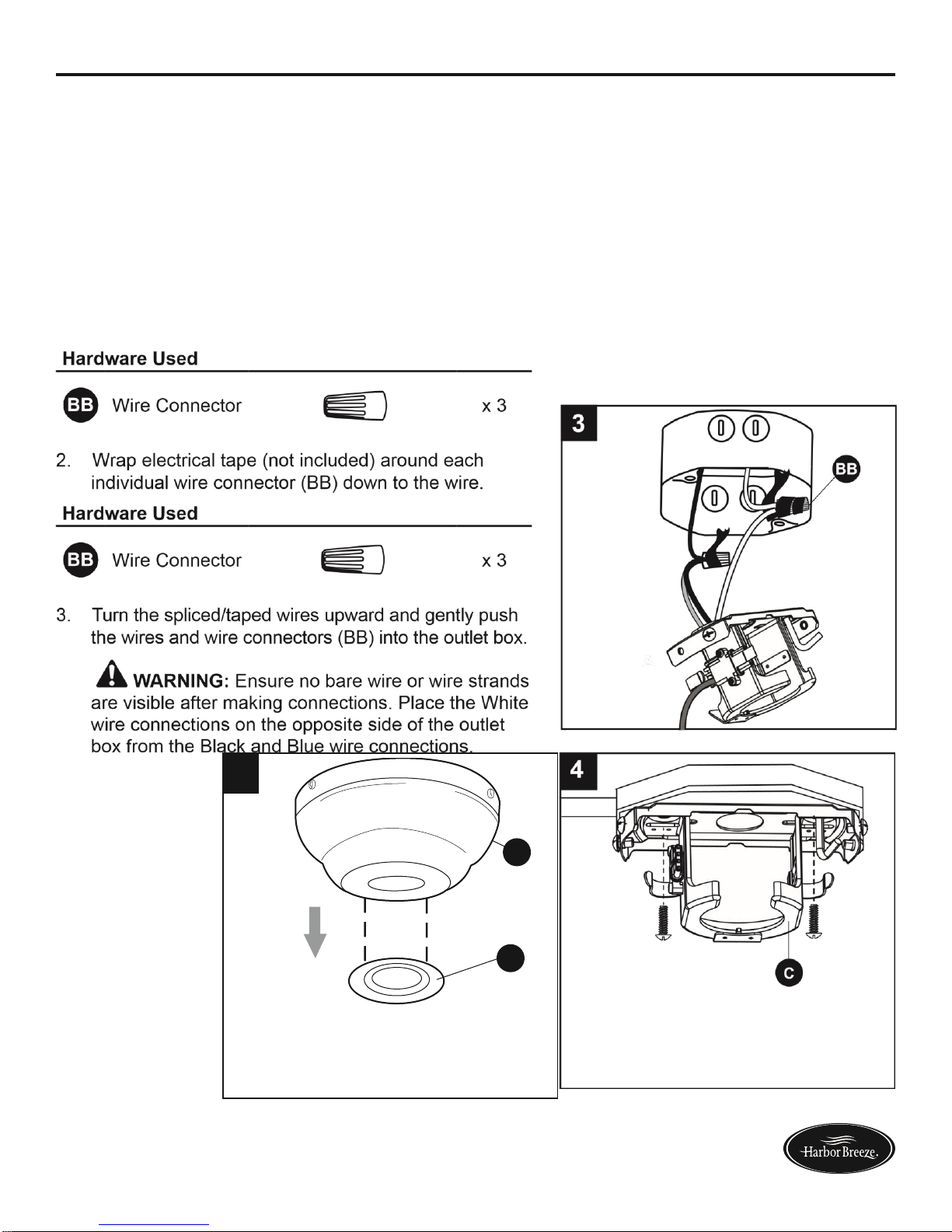

2. Wrap electrical tape (not
included) around each individual wire
connector (BB) down to the wire.
Hardware Used
3. Turn the spliced/taped wires
upward and gently push the wires and
wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands are visible after making connections.
Place the White wire connections on the opposite side of the outlet box from the Black and
Blue wire connections.
BB
Wire Connector
x 3
BB
Wire Connector
x 3

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Lowes.com/harborbreeze
13

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Lowes.com/harborbreeze
14
7. Insert the downrod (A) into the yoke of the motor
assembly (E), align the holes, and re-install the downrod
clip (DD) and downrod pin (EE). Secure the motor
housing set screws (FF) and slide the yoke cover (D)
down until it rests on top of the motor assembly (E).
8. Carefully lift the downrod (A) onto the mounting bracket
(C). Rotate the downrod (A) until the slot on the
downrod (A) engages the tab on the mounting bracket
(C).
DANGER: Be careful when aligning the tab to the
slot. If not fully engaged, the fan may fall, which may
result in serious
injury or death.
9. Connect the
green wires
from the
downrod (A)
and the
mounting
bracket (C) to
the bare/green
(ground) supply
wire using a
wire connector (BB). Then, wrap
electrical tape around the wire
connector (BB) down to the wire.
7
8
A
9
DD
D
FF
A
E
EE
Hardware Used
DD
Downrod Clip
x 1
EE
Downrod Pin
x 1
FF
Motor Housing
Set Screw
x 2
BB
Wire Connector
x 1

CLOSEMOUNT INSTRUCTIONS
Lowes.com/harborbreeze
15
Turn the spliced/taped wires upward and gently push the wires and wire connector (BB) into the
outlet box.
Proceed to FINAL INSTALLATION on page 15.
Hardware Used
WARNING: To reduce the risk of fire, electrical shock,or
personal injury, wire connectors provided with this fan are designed to accept only
one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12
gauges and there is more than one house wire to connect to the two fan lead wires, consult an
electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or
bare) wire is present.
1. Connect supply and fan wires according to the diagram
and these steps:
•Connect the Green wire from the fan
to the Bare/Green supply wire.
•Connect the White wire from the fan
to the White supply wire.
•Connect the Black and Blue wires from
the fan to the supply Black wire.
•Secure all wiring connections together with
wire connectors (BB).
2
BB
BB
BB
1
Mounting Bracket
Black
White
Bare/Green

CLOSEMOUNT INSTRUCTIONS
Lowes.com/harborbreeze
16
Note: The Black wire is hot power for the fan. The White wire is common. The Blue wire is hot
power for light (sold separately; wiring instructions will differ if optional light kit is purchased.
Refer to light kit manufacturer’s instructions). Wiring instructions will differ if optional light kit is
purchased. Refer to light kit manufacturer’s instructions. The Green wires are the ground wires.
If house wires are different colors than referred to above, stop immediately. It is recommended
a professional electrician determines the proper wiring.
4. Secure the mounting bracket (C) to the outlet box using screws and washers provided with the
outlet box.
5. Remove the
canopy cover
(J) from the
bottom of the
canopy (B).
Helpful Hint:
Closemount-
style mounting
is more
suitable for
ceilings lower
than 8 ft. high.
The downrod
5
J
B

CLOSEMOUNT INSTRUCTIONS
Lowes.com/harborbreeze
17
(A) and canopy cover (J) are not used in this type of installation.
7. Raise the fan and place the canopy (B) on the hook on
the mounting bracket (C).

FINAL INSTALLATION
Lowes.com/harborbreeze
18
Note: Downrod (A) is shown/referenced, but instructions are applicable to both standard
and closemount-style installations.

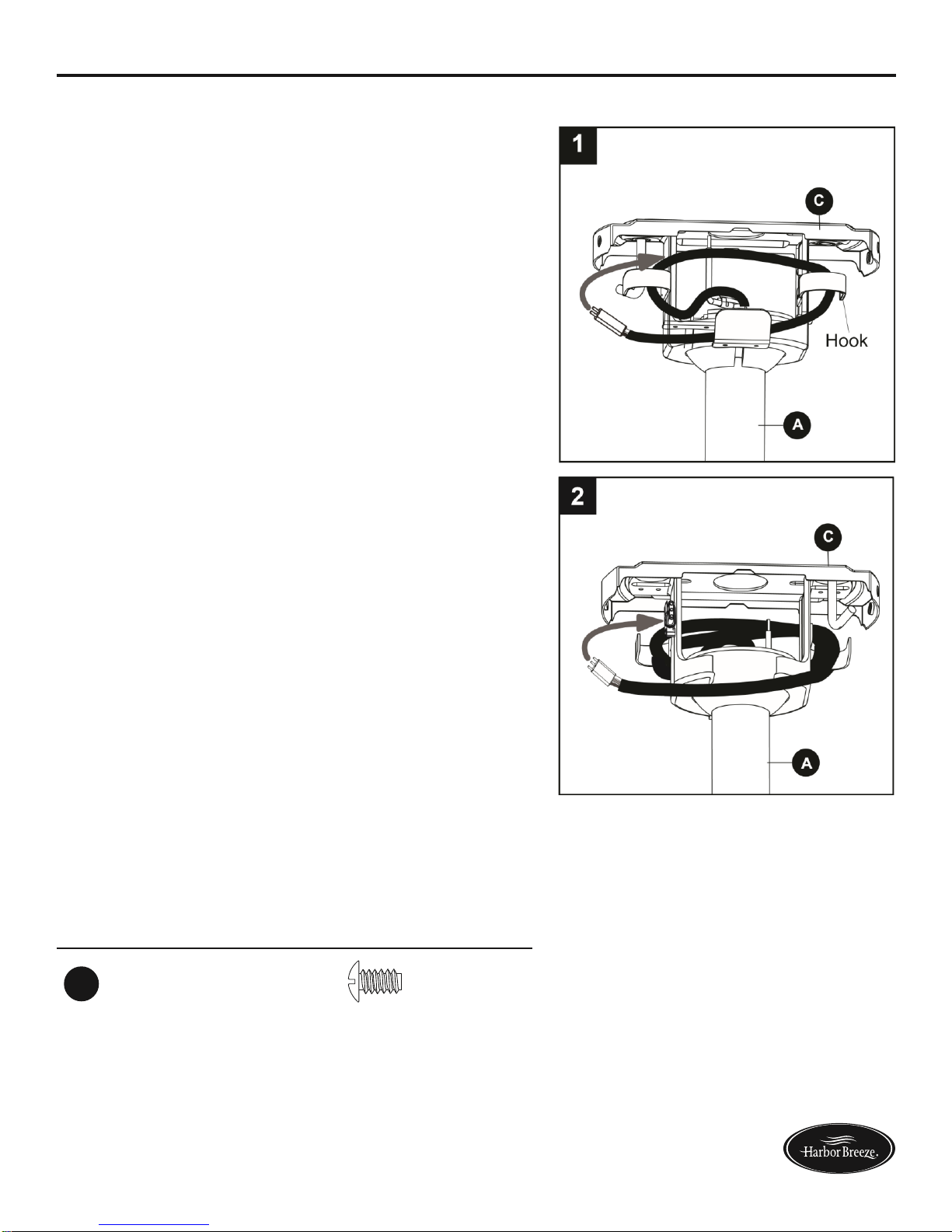

1. Wrap the wire harness coming from the downrod (A)
around the hooks on the back of the mounting bracket
(C).
Note: Extra wire harness length accommodates longer
downrods (sold separately).
2. Connect the pin connector from the mounting bracket
(C) to the pin connector at the end of the wire harness.
HH
Mounting Bracket
Screw
x 2

FINAL INSTALLATION
Lowes.com/harborbreeze
19
3. Align the key slots on the canopy (B) with the heads of
the mounting bracket screws (HH) preassembled on
mounting bracket (C). Lift the canopy (B) up and rotate
it clockwise until the mounting bracket screws (HH)
engage the key slots.
3

FINAL INSTALLATION
Lowes.com/harborbreeze
20
Hardware Used
