Harbor Breeze MAYFIELD BTH44AB5CS User manual

ITEM #18036
E124404
MAYFIELD CEILING FAN
MODEL #BTH44AB5CS
Questions, problems, missing parts? Before returning to your retailer, call or contact our
customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.
Harbor Breeze® is a registered trademark of
LF, LLC. All Rights Reserved.
español p. 19
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
1
harborbreezeoutlet.com
harborbreezeoutlet.com

2
TABLE OF CONTENTS
Safety Information .....................................………………………………………………...… ….. 2 - 3
Package Contents .....……………………………………………………………..….
…. ......... ... 4
Hardware Contents ...................................................................................................................
... 5
Preparation ...............….…………………..……………………….…………….………………....5
Initial Installation ............….……………..……………………….……….
…..…. ..........................6 - 7
Wiring .................................……………………........................................…………............8 - 9
Final Installation ….…………….……………………….…………….……...............
.... . 10 - 13
Installing Fan Without Included Light Kit (Optional) .........................................................
.... 13 - 14
Operation Instructions ............................................................……………………
…… …. ........ 14 - 15
Care and Maintenance …
….… …………………………………………………..…....... ..... .. .... 16
Troubleshooting .............………...………………………….……………..………....
….... .. 16 - 17
Warranty ……………………………….…………………………………………..… …. ......... ..... 17
Replacement Parts List ...........................................................................................
......... ...... . ........ 18
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product. If you have any questions regarding the product, please call customer service at
1-800-527-1292, 8:30 a.m.- 5:00 p.m., CST, Monday - Friday.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook,
available at Lowe's, if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 13.01 lbs. (5.9 kg).
harborbreezeoutlet.com
harborbreezeoutlet.com

3
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
RISK OF SHOCK, The molex safety caps should not be removed unless a light kit will be
immediately installed and that power should be turned off prior to molex safety cap removal and
light kit installation.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the two fan
lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNINGS
harborbreezeoutlet.com
harborbreezeoutlet.com

4

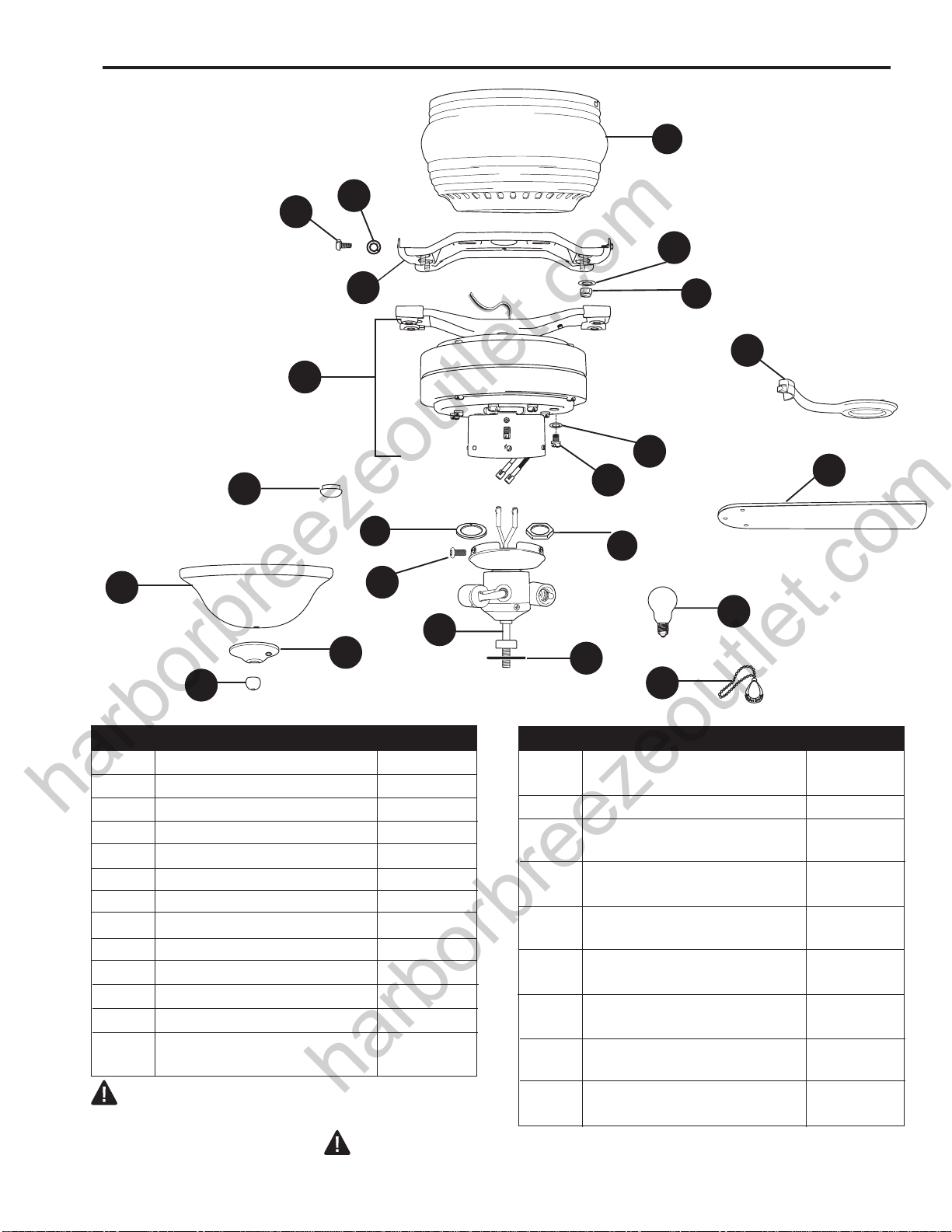

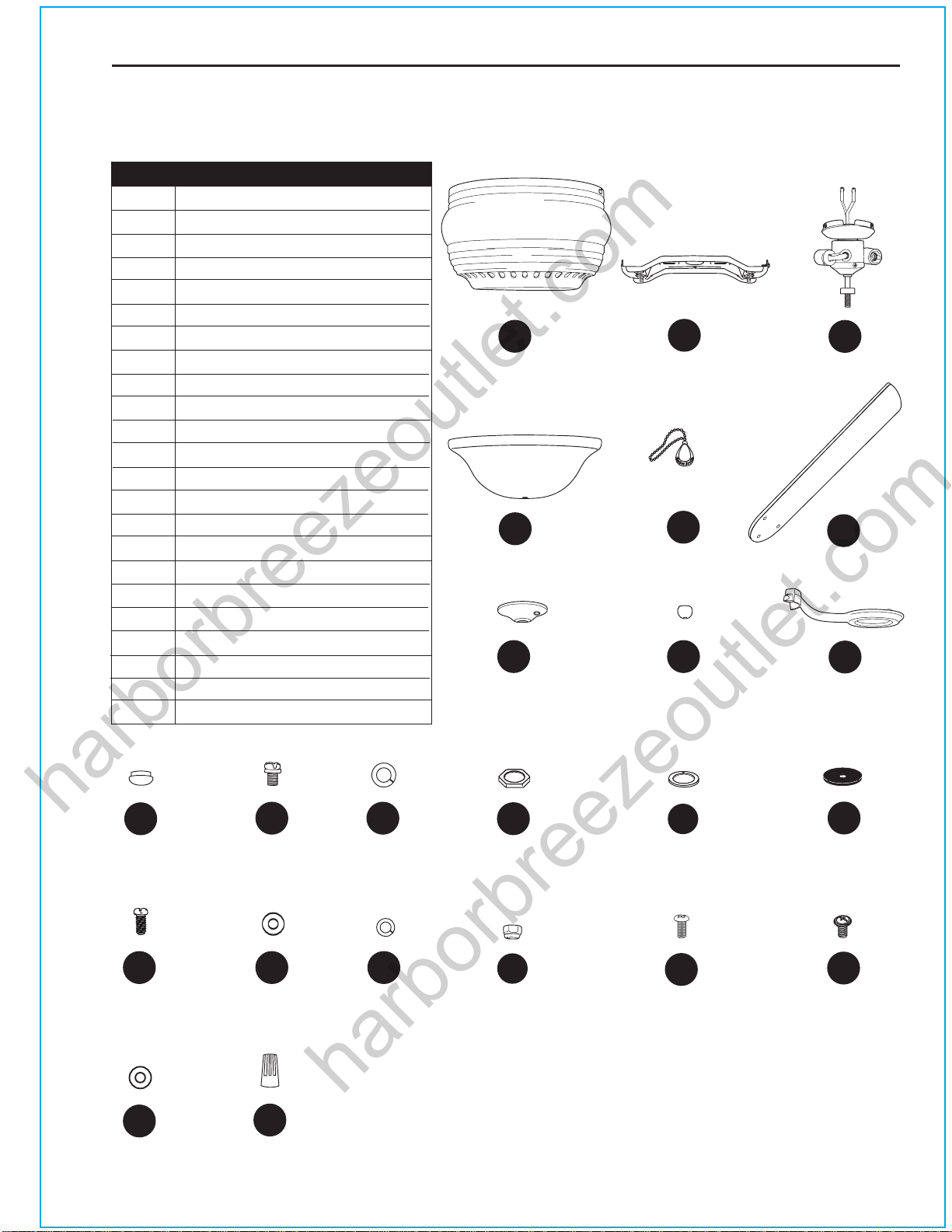

PACKAGE CONTENTS
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Mounting Bracket 1
C Motor Assembly 1
D Light Kit Fitter 1
E Glass Shade 1
F Pull Chain Extension 2
G Blade 5
H Finial Plate 1
I Finial 1
J Blade Arm 5
K Cap 1
L Candelabra Base Bulb 3
M Motor Screw 10
(preassembled) + 1 extra
PART DESCRIPTION QUANTITY
N 5.4 M/M Lock Washer 10
(preassembled) + 1 extra
O Hex Nut (preassembled) 1
P Lock Washer 1
(preassembled)
Q Rubber Washer 1
(preassembled)
R Motor Housing Mounting 4
Screw (preassembled)
S Mounting Bracket Flat 4
Washer (preassembled)
T Motor Housing Lock 4
Washer (preassembled)
U Mounting Bracket Nut 4
(preassembled)
V Switch Housing Cap Screw 3
(preassembled)
D
G
J
K
L
O
P
Q
N
M
C
B
S
RT
U
A
V
E
F
H
I
harborbreezeoutlet.com
harborbreezeoutlet.com

HARDWARE CONTENTS (shown actual size)
Fiber
Blade
Washer
Qty. 15
+ 1 extra
BB CC
AA
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 4
5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged do not attempt to
assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook
(available at Lowe’s), and Wire Cutters
Bulbs Required (included): 3 candelabra base 40-watt max. bulbs
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured. All set screws must be checked and retightened where necessary, before installation.
PREPARATION
harborbreezeoutlet.com
harborbreezeoutlet.com

6

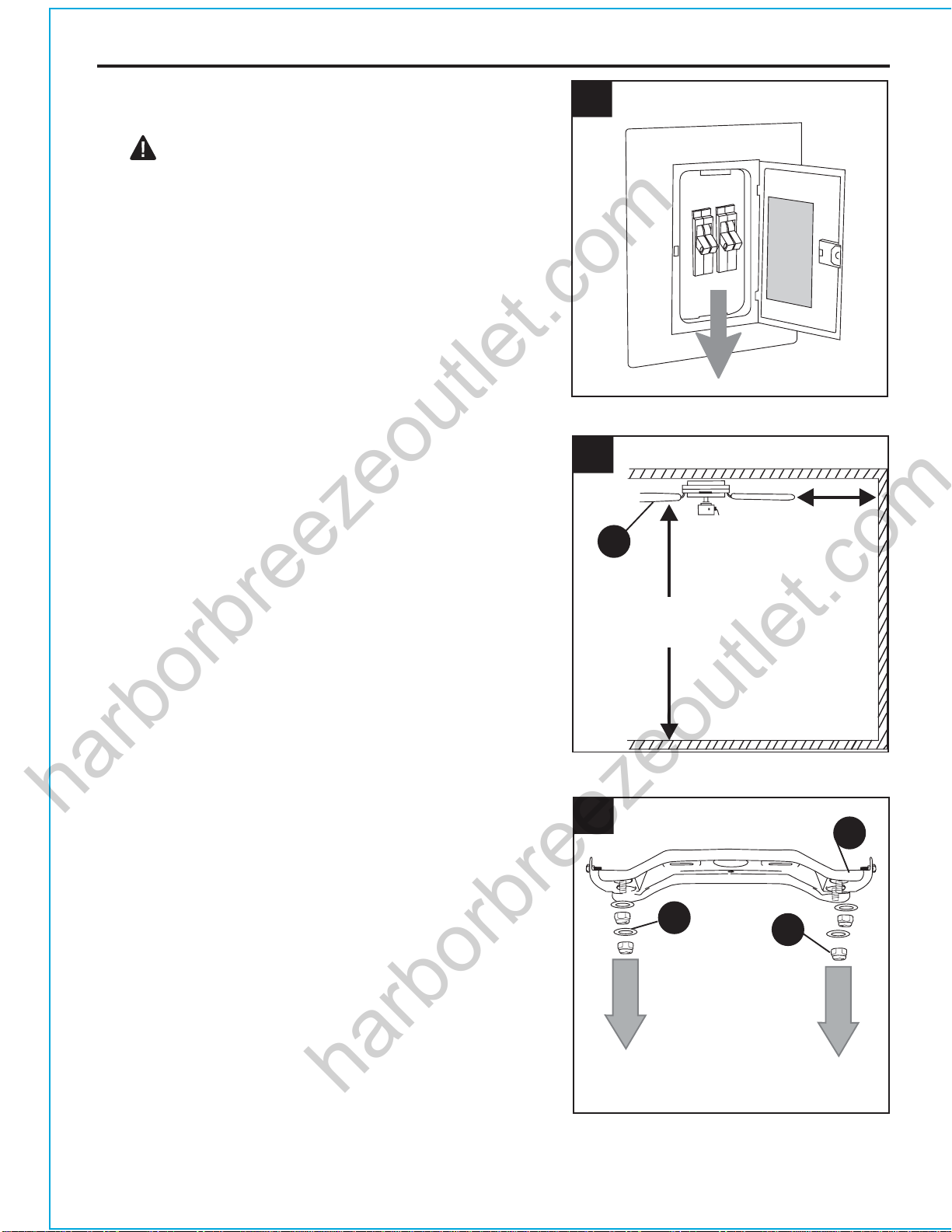

INITIAL INSTALLATION
G
Turn off circuit breakers and wall switch to the fan
supply line leads. (Fig. 1)
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
ON
OFF
ON
OFF
1
7 ft.
min.
30 in.
min.
2
3. Remove all mounting bracket nuts (U) and
mounting bracket flat washers (S) from mounting
bracket (B). (Fig. 3)
B
U
S
3
Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor. (Fig. 2)
harborbreezeoutlet.com
harborbreezeoutlet.com

7
INITIAL INSTALLATION
4. 4
5.
6.
Secure mounting bracket (B) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box. (Fig. 4)
*Note: It is very important that you use the
proper hardware when installing the mounting
bracket (B) as this will support the fan.
B
5
C
6
6
"J" Hook
Bar
N
M
B
Slide the slot in the bar at the top of the motor
assembly (C) onto the "J" hook on the mounting
bracket (B) to support the fan during wiring. (Fig. 6)
Important: Do not use the end of the bar on the
motor assembly (C) with the small round hole to
hang the motor assembly (C) on the mounting
bracket (B).
Remove motor screws (M) and 5.4 M/M lock
washers (N) from underside of motor and save for
blade arm (J) attachment later on. [If there are plastic
motor blocks installed with the motor screws (M) and
5.4 M/M lock washers (N), discard the plastic motor
blocks.] (Fig. 5)
harborbreezeoutlet.com
harborbreezeoutlet.com

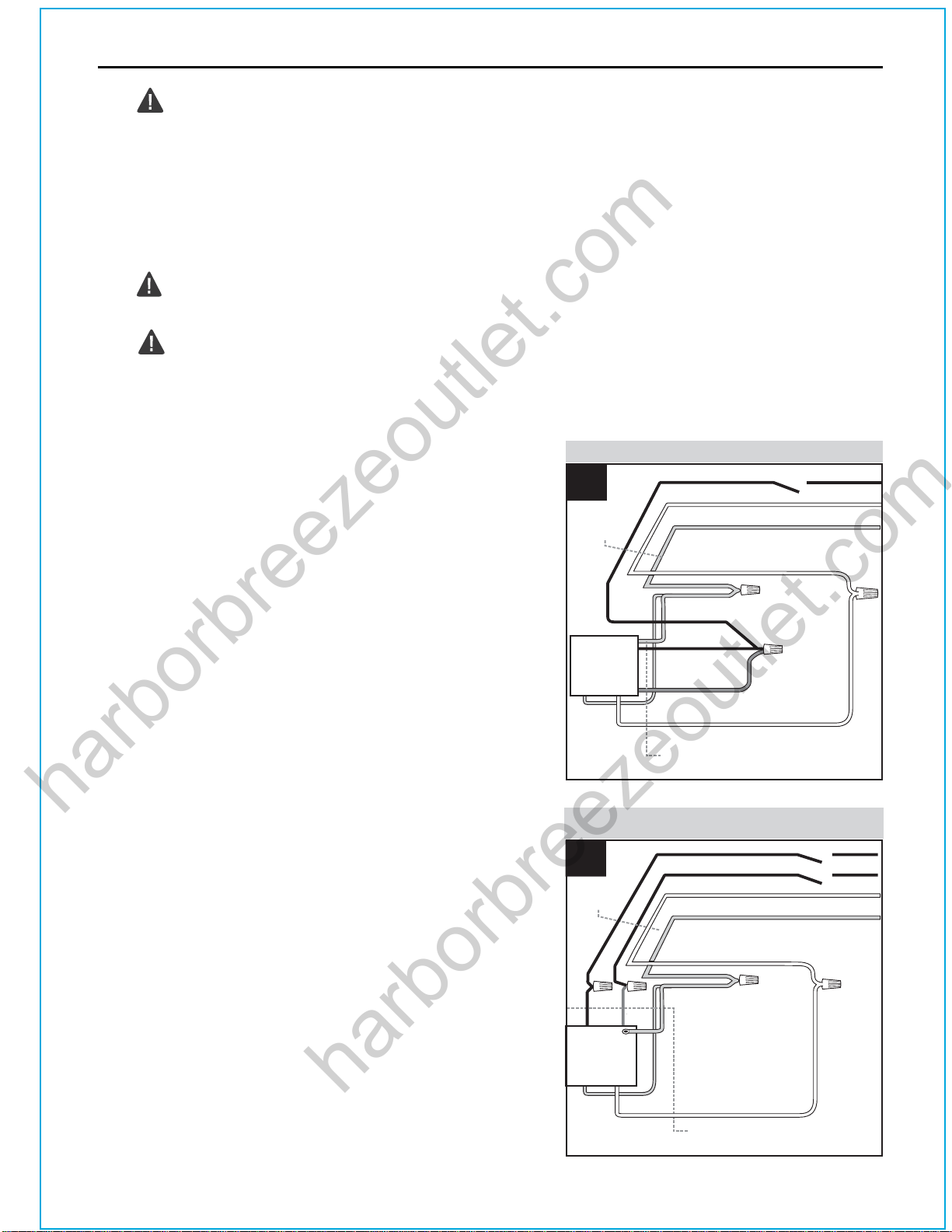

WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one
12-gauge house wire and two lead wires from the
fan. If your house wire is larger than 12-gauge or
there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the
proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded
and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors
than referred to in the following steps, stop
immediately. A professional electrician is
recommended to determine wiring.
1A
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
FAN
GREEN
BLACK
GREEN
Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)
that fits your situation and make appropriate wiring
connections as follows: [NOTE: For each wire
connection below, use one of the wire connectors
(CC) provided, making sure to screw wire
connector (CC) on in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on motor assembly (C) and mounting
bracket (B)) to BARE/GREEN wire from ceiling.
(Fig. 1A)
1.
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
1B
FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH
1B. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire
from ceiling. Connect BLUE wire from fan to the
BLACK wire from the independent wall switch
for the light. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on motor
assembly (C) and mounting bracket (B)) to
BARE/GREEN wire from ceiling. (Fig. 1B)
WIRING
8
harborbreezeoutlet.com
harborbreezeoutlet.com

WIRING
NOTE: Black wire is hot power for fan. Blue wire
is hot power for light kit. White wire is common
for fan and light kit. Green or bare wire is ground.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire as
shown in Fig. 2.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
CC
E3 Wire Connector x4
2.
Hardware Used
1
2
3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
IMPORTANT: Using a full range dimmer switch
(not included) to control fan speed will cause a
loud humming noise from fan. To reduce the risk
of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed. (Fig. 3)
3.
2
3
1C
FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES
WHITE
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
GREEN
WHITE
GREEN
1C. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the
fan and light with separate wall switches,
connect BLACK wire from fan to BLACK wire
from the independent wall switch for the fan.
Connect BLUE wire from fan to the BLACK
wire from the other independent wall switch for
the light. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on motor
assembly (C) and mounting bracket (B)) to
BARE/GREEN wire from ceiling. (Fig. 1C)
CC
CC CC
CC
9
harborbreezeoutlet.com
harborbreezeoutlet.com

FINAL INSTALLATION
1. Remove motor assembly (C) from "J" hook. Align
holes in motor assembly (C) with holes in
mounting bracket (B). Secure motor assembly (C)
with mounting bracket flat washers (S) and
mounting bracket nuts (U) that were previously
removed (Step 3, page 6). (Fig. 1)
Temporarily lift motor housing (A) to mounting
bracket (B) to determine which two motor housing
mounting screws (R) in sides of mounting bracket
(B) align with the slotted holes in the top edge of
the motor housing (A) and partially loosen these
two motor housing mounting screws (R). Remove
the other two motor housing mounting screws (R)
and motor housing lock washers (T). Slide motor
housing (A) over motor assembly (C), aligning
slotted holes in motor housing (A) with loosened
motor housing mounting screws (R) in mounting
bracket (B). Twist motor housing (A) to lock.
Re-insert the other two motor housing mounting
screws (R), along with motor housing lock
washers (T), that were previously removed.
Tighten all motor housing mounting screws (R)
securely. (Fig. 2)
T
A
B
C
2.
R
2
C
U
S
B
1
Partially insert three blade screws (AA), along with
three fiber blade washers (BB), to attach one
blade arm (J) to a blade (G). Then, tighten each
blade screw (AA), starting with the one in the
middle. (Fig. 3) Repeat with remaining blades (G).
J
AA
BB G
BB
AA
Blade Screw x 15
Fiber Blade Washer x 15
Hardware Used
3
3.
10
harborbreezeoutlet.com
harborbreezeoutlet.com

Locate motor screws (M) and 5.4 M/M lock
washers (N) that were removed in Step 5 on
page 7.
Insert two motor screws (M), along with 5.4
M/M lock washers (N), through one blade arm
(J) to attach blade arm (J) to motor. Tighten
motor screws (M) securely. (Fig. 4) Repeat
with remaining blade arms (J), making sure to
completely secure each blade arm (J) before
proceeding with the next.
Remove three switch housing cap screws
(V) from top of light kit fitter (D).
If you wish to use the light kit, remove
finial (I), finial plate (H), and rubber
washer (Q) from bottom of light kit fitter
(D). (Fig. 5) Save finial (I), finial plate (H),
and rubber washer (Q) for later use.
Continue to Step 6.
If you do NOT wish to use the light kit,
please go to section entitled “Installing
Fan Without Included Light Kit (Optional)”
on page 13.
5.
J
Threaded
Rod Q
H I
D
MN
FINAL INSTALLATION
4. 4
V
5
11
Locate BLUE (or BLACK) and WHITE wires in
switch housing labeled FOR LIGHT and remove
plastic that holds these two wires together. Also,
remove molex safety caps from bottom of BLUE
(or BLACK) and WHITE wires. It may be
necessary to pull firmly in order to remove molex
safety caps. (Fig. 6)
Connect WHITE wire from switch housing to
WHITE wire from light kit fitter (D). Connect BLUE
(or BLACK) wire from switch housing to BLACK
wire from light kit fitter (D). Make sure that molex
connections are secure. (Fig. 6)
6.
Molex
Connections
Switch
Housing
D
Molex
Safety
Caps
6
harborbreezeoutlet.com
harborbreezeoutlet.com

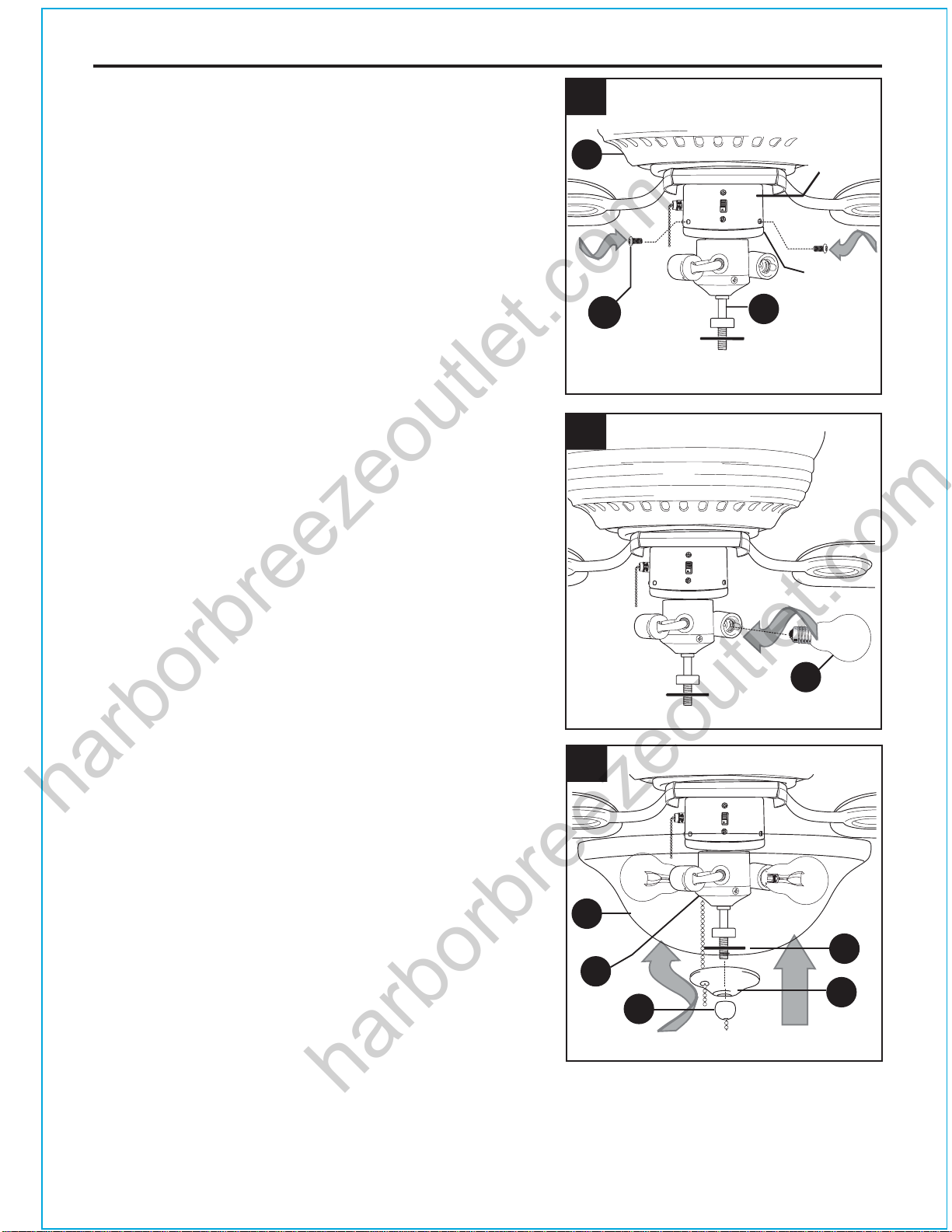

To attach light kit fitter (D) to motor assembly (C),
align holes in switch housing cap with holes in
switch housing. (Make sure to align gap on top edge
of the switch housing cap with the reverse switch on
switch housing for the correct fit.) Re-insert switch
housing cap screws (V) that were removed in Step 5
on the previous page and use a Phillips screwdriver
(not included) to secure all switch housing cap
screws (V). (Fig. 7)
C
Switch
Housing
Cap
FINAL INSTALLATION
7. 7
Install three candelabra base 40-watt max. bulbs
(L) included. (Fig.8)
Important: When you need to replace bulbs,
please allow bulbs and light kit to cool down before
touching the bulbs or the light kit.
8.
D
L
8
Locate rubber washer (Q), finial plate (H), and finial
(I) that were previously removed in Step 5. Place
rubber washer (Q) inside glass shade (E) over
center hole. Raise glass shade (E) in order to guide
pull chains through corresponding holes at the
bottom of the glass shade (E). Align hole in center
of glass shade (E) with threaded rod on light kit
fitter (D) and push up gently until threaded rod
comes through hole. (Be sure pull chain for fan
operation does not rub against bulbs during
operation.) (Fig. 9)
Align hole in center of finial plate (H) with threaded
rod, allowing the pull chains to come through
appropriate holes in finial plate (H) and push up.
Thread center pull chain through hole in finial (I)
and secure glass shade (E) by tightening finial (I).
(Fig. 9)
Note: Do not overtighten finial (I) as glass may
crack or break.
9.
D
I
E
9
Q
H
12
V
Switch
Housing
harborbreezeoutlet.com
harborbreezeoutlet.com

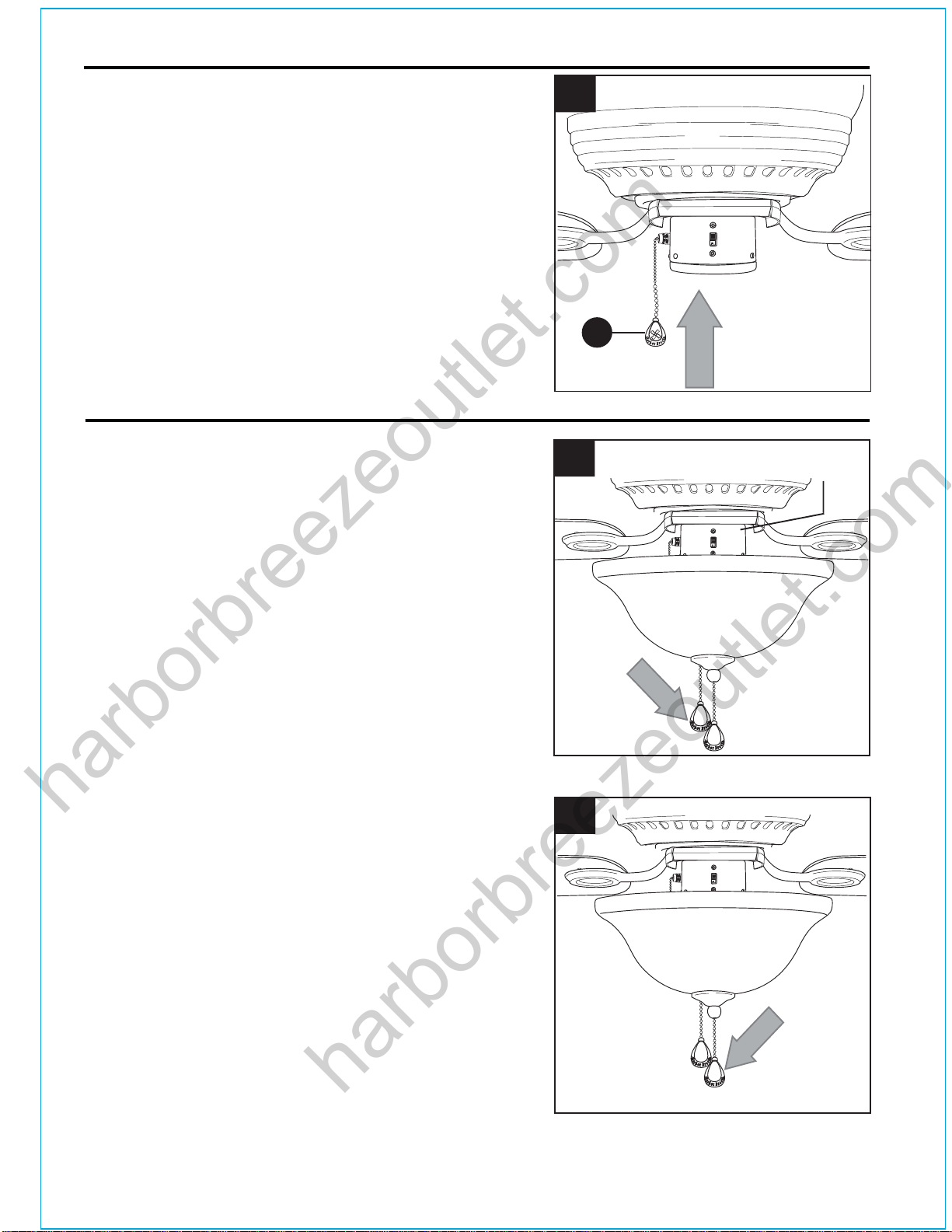

10.
FINAL INSTALLATION
10
Attach pull chain extensions (F) supplied in one of
the hardware packs or custom pull chain
extensions (not included) to fan and light pull
chains. (Fig. 10)
F
INSTALLING FAN WITHOUT INCLUDED LIGHT KIT (OPTIONAL)
If you do NOT wish to use the light kit,
remove the hex nut (O) and lock washer (P)
from the threaded rod at the top of the light kit
fitter (D). Unscrew the switch housing cap to
remove it from the light kit fitter (D), and then
gently feed the BLACK and WHITE wires from
the light kit fitter (D) through the hole in the
middle of the switch housing cap. (Fig. 1)
1.
Switch
Housing
Cap
WHITE BLACK
D
P
O
1
Locate cap (K) in one of the hardware packs and
place cap (K) firmly in hole in middle of switch
housing cap. Align holes in switch housing cap
with holes in switch housing. (Make sure to align
gap on top edge of the switch housing cap with
the reverse switch on switch housing for the
correct fit.) Secure switch housing cap with three
switch housing cap screws (V) that were
removed in Step 5 of “Final Installation” section
(page 11). Tighten all three switch housing cap
screws (V) securely. (Fig. 2)
2.
Switch
Housing
Cap
K
2
V
13
Switch
Housing
harborbreezeoutlet.com
harborbreezeoutlet.com

14
INSTALLING FAN WITHOUT INCLUDED LIGHT KIT (OPTIONAL)
The pull chain extension (F) supplied in one of
the hardware packs or a custom pull chain
extension (not included) may be attached to fan
pull chain. (Fig. 3)
3.
F
3
The pull chain located on the switch housing
has four positions to control fan speed. One
pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. (Fig. 1)
The pull chain in the middle is used to turn the
light ON or OFF. (Fig. 2)
OPERATION INSTRUCTIONS
1.
2.
Switch
Housing
1
2
harborbreezeoutlet.com
harborbreezeoutlet.com

15

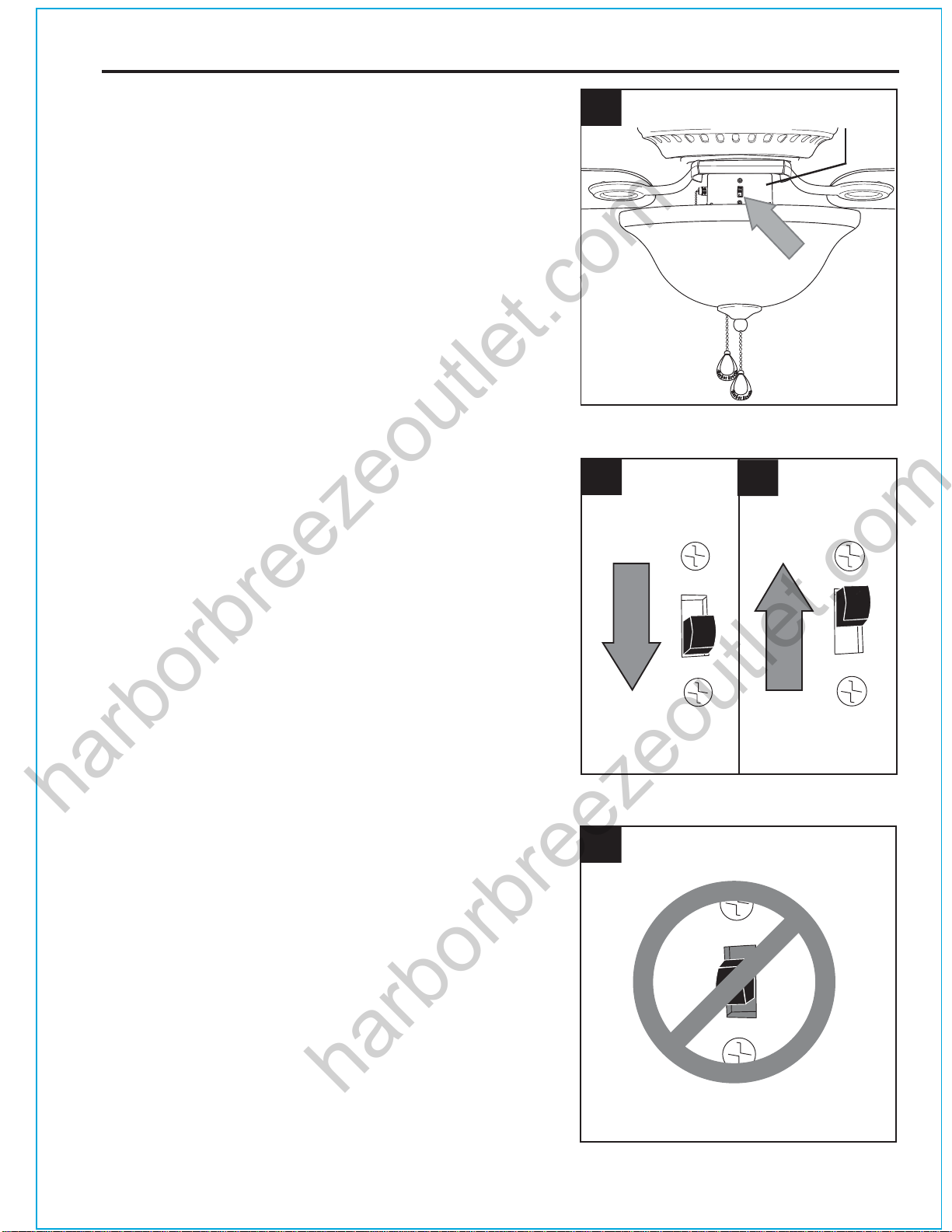

Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. (Fig. 3) A ceiling fan will allow you to
raise your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3.
OPERATION INSTRUCTIONS
Switch
Housing
3
3A. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect. (Fig. 3A)
3B. In cooler weather, setting the reverse switch in
the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area. (Fig. 3B)
3C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position (Fig. 3C), fan will not operate.
2
3A 3B
3C
harborbreezeoutlet.com
harborbreezeoutlet.com

16
CARE AND MAINTENANCE
At least twice each year, lower motor housing (A) to check motor assembly (C), and then tighten all
screws on fan. Clean motor housing (A) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish
to wood blades for added protection.
Important: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
TROUBLESHOOTING
If you have any questions regarding the product please call customer service at 1-800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
Warning: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either to the
up or to the down.
2. Turn power on or check fuse.
3. Turn power off. Loosen motor
housing (A) and check all
connections.
Noisy operation. 1. Blades (G) are loose.
2. Cracked blade (G).
3. Full range dimmer switch.
4. Fan is new.
5. Motor housing (A) is loose.
1. Tighten all blade screws (AA).
2. Replace blade (G).
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
5. Turn power off. Carefully loosen
motor housing (A) and verify
that mounting bracket (B) is
secure according to instructions
on page 10.
Excessive wobbling. 1. Blades (G) are loose.
2. Blade arms (J) incorrectly attached.
3. Unbalanced blades (G).
4. Fan not securely mounted.
1. Tighten all blade screws (AA).
2. Re-install blade arms (J).
3. Switch one blade (G) with a
blade (G) from the opposite
side.
4. Turn power off. Carefully loosen
motor housing (A) and verify
that mounting bracket (B) is
secure.
Fan operates but
light fails. 1. Bulb(s) not installed correctly.
2. Wires in outlet box not wired properly.
3. Wall switch to fan is off.
1. Re-install bulb(s).
2. Check wires in outlet box, and if
necessary, re-wire according to
instructions on pages 8 and 9.
3. Make sure that wall switch to fan
is on.
harborbreezeoutlet.com
harborbreezeoutlet.com

17
Note: A small amount of "wobble" is normal and should not be considered a defect.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
4. Wires not connected properly. 4. Check that molex connections
in light kit fitter (D) are
connected properly according
to instructions on page 11.
TROUBLESHOOTING
WARRANTY
LIMITED LIFETIME WARRANTY: Litex Industries warrants this fan to be free from defects in
workmanship and materials present at time of shipment from the factory for Lifetime limited from the
date of purchase. This warranty applies only to the original purchaser. Litex Industries agrees to
correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior
model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer of
this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. Litex Industries assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292)for return authorization and shipping instructions so that we may repair or replace the
ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. Litex Industries disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. Litex Industries shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
harborbreezeoutlet.com
harborbreezeoutlet.com

REPLACEMENT PARTS LIST
18 Printed in China
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5:00
p.m., CST, Monday - Friday. When ordering parts, please have the Model # or Item # of the fan
available, which can be found on page 1.
A
E
B
F
R
H
O
S
MN
BB CC
AA
D
I
G
J
KQ
T
PART DESCRIPTION
A Motor Housing
B Mounting Bracket
D Light Kit Fitter
E Glass Shade
F Pull Chain Extension
G Blade
H Finial Plate
I Finial
J Blade Arm
K Cap
M Motor Screw
N 5.4 M/M Lock Washer
O Hex Nut
P Lock Washer
Q Rubber Washer
R Motor Housing Mounting Screw
S Mounting Bracket Flat Washer
T Motor Housing Lock Washer
U Mounting Bracket Nut
V Switch Housing Cap Screw
AA Blade Screw
BB Fiber Blade Washer
CC E3 Wire Connector
P
U V
harborbreezeoutlet.com
harborbreezeoutlet.com

E124404
VENTILADOR DE TECHO
MAYFIELD
ARTICULO #18036
MODELO #BTH44AB5CS
Harbor Breeze® es marca registrada de
LF, LLC. Reservados todos los derechos.
19
¿Preguntas, problemas, faltan piezas? Antes de regresar a la tienda, llame o póngase en
contacto con nuestro departamento de servicio al cliente al 1-800-527-1292, de 8:30 a.m. a
5:00 p.m., hora central, de lunes a viernes.
ADJUNTE SU RECIBO AQUI
Número de serie Fecha de compra
harborbreezeoutlet.com
harborbreezeoutlet.com

20
INDICE DE MATERIAS
Información de seguridad ......…………………………………………….....................20 - 21
Contenido del paquete ...................……………………………………………………….....22
Contenido de artículos de ferretería ..........................................................................................23
Preparación .............................................….…………………..……………….................23
Instalación inicial ............................................…………………………………….........24 - 25
Conexión de los cables .........................................…………………………………….26 - 28
Instalación final ............……………….…………….…….………………….…...............29 - 32
El instalar el ventilador sin el juego de luz incluido (opcional) ..................................................33
Instrucciones de funcionamiento ............…...................................................................34 - 35
Cuidado y mantenimiento ........................…....……………………………………………....35
Localización de fallas .........................................…….......………………………….....36 - 37
Garantía ........................…………………………………….………………………..........…....37
Lista de piezas de repuestos …........................................................................................38
POR FAVOR LEA Y GUARDE ESTAS INSTRUCCIONES
Por favor lea el instructivo entero antes de tratar de ensamblar, instalar o hacer funcionar el producto.
Si tiene alguna pregunta acerca del producto, por favor llame al servicio al cliente al 1-800-527-1292,
de 8:30 a.m. a 5:00 p.m., hora central, de lunes a viernes.
• No deseche la caja del ventilador ni la goma espuma incluida. Si hay que mandar el ventilador a la
fábrica por alguna reparación, se debe enviar en su paquete original para asegurar la protección
apropiada contra daños que podrían exceder la causa inicial por la cual se devolvió.
• Asegúrese de que todas las conexiones eléctricas cumplen con los códigos y las ordenanzas
locales, con el Código Nacional Eléctrico (NEC, por sus siglas en inglés), y ANSI/NFPA 70-1999.
Contrate un electricista calificado o consulte una guía de instalación eléctrica de hágalo usted mismo,
disponible en Lowe's, si no está familiarizado con la instalación eléctrica.
• Asegúrese de que el lugar de instalación que usted escogió tiene un mínimo de 2,13 m de desde las
paletas hasta el piso y que la punta de las paletas quede a por lo menos 76,2 cm de cualquier
obstrucción.
• Después de instalar el ventilador, verifique que todas las conexiones estén seguras para que no se
caiga el ventilador.
• El peso neto del ventilador con el juego de luz es de: 5,9 kg (13,01 lb).
INFORMACION DE SEGURIDAD
harborbreezeoutlet.com
harborbreezeoutlet.com
