Harbor Breeze CHESHIRE II User manual

ITEM #0317058
0317060
MODEL #CE-CSD42AB5C3
CE-CSD42LW5C3
CHESHIRE II CEILING FAN
Français p. 18
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
E124404
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday-Friday.
Federal regulations require ceiling fans with light kits manufactured or imported after
January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,
this fan is equipped with a wattage limiting device.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

2
TABLE OF CONTENTS
Safety Information ........................……………………………………………………….....2 - 3
Package Contents .............................…………………………………………………………..4
Hardware Contents .............................…………………………………………………...........5
Preparation .......................................….…………………..……………………….…..........5
Initial Installation ............................................……………………...………..................6 - 8
Wiring ...............................................................................................……....................8 - 10
Final Installation ............………………….…………...................................................10 - 12
Installing Fan Without Included Light Kit (Optional) ….…............................................
........... 13
Operation Instructions ..............................................……………………….................13 - 14
Care and Maintenance .......................………………………......………...….....…..............15
Troubleshooting ...........................................………...……………………..….........….15 - 16
Warranty ........................…………………………………….………………..............…......….16
Replacement Parts List .......................………………………......………...….....….............17
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product. If you have any questions regarding the product, please call customer service at
1-800-527-1292, 8:30 a.m.- 5:00 p.m., CST, Monday - Friday.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook,
available at Lowe's, if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 12.13 lbs. (5.5 kg).

3
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are
not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in
doubt. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12 gauge house wire and two lead wires from the fan. If your
house wire is larger than 12 gauge or there is more than one house wire to connect to the two fan
lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
This fan MUST be installed with the saftey cable provided with the fan. Failure to use the safety
cable provided may result in personal injury, damage to the fan or damage to other property.
WARNINGS

4

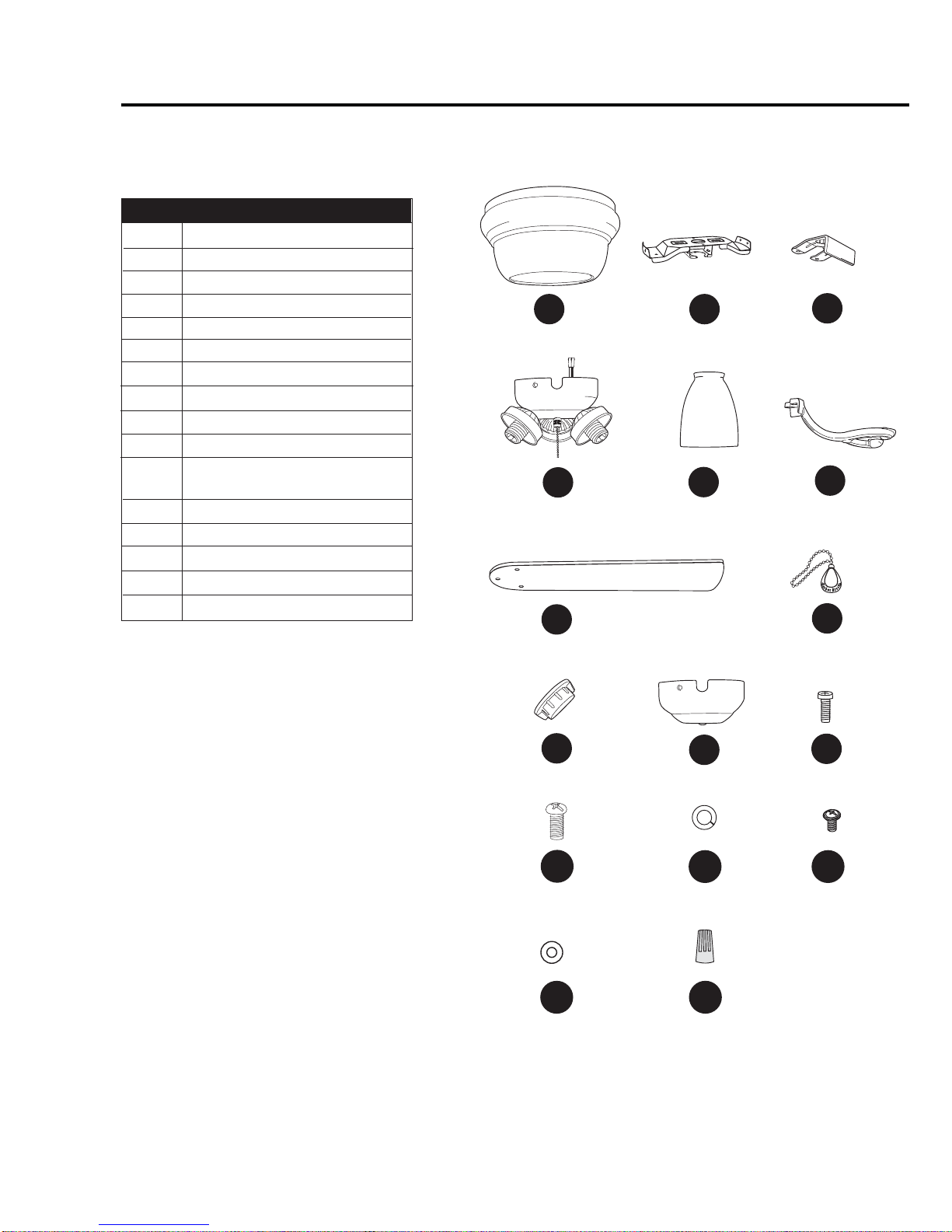

PACKAGE CONTENTS
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
PART DESCRIPTION QUANTITY
L Extra Switch Housing 1
M Safety Cable
1
(preassembled)
N Motor Housing Mounting 4
Screw (preassembled)
O Motor Screw 10
(preassembled)
P
5.4 M/M Lock Washer 10
(preassembled)
Q
Vice (preassembled) 1
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Mounting Bracket 1
C Plastic Lock Tab 1
D Motor Assembly 1
E Light Kit Fitter
1
F Glass Shade 3
G Blade Arm
5
H Blade 5
I Candelabra Base Bulb 3
J Pull Chain Extension 2
K Socket Ring
3
A
L
H
F
G
E
C
I
J
D
B
P
O
N
K
M
Q

5
HARDWARE CONTENTS (shown actual size)
Fiber
Blade
Washer
Qty. 15
BB CC
AA
Blade
Screw
Qty. 15 E3 Wire
Connector
Qty. 4
Before beginning assembly and installation of product, make sure all parts are present. Compare
parts with package contents list and hardware contents above. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included):AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook
(available at Lowe’s) and Wire Cutters
Bulbs Required (included): 3 candelabra base 60-watt max. bulbs
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.
PREPARATION

6

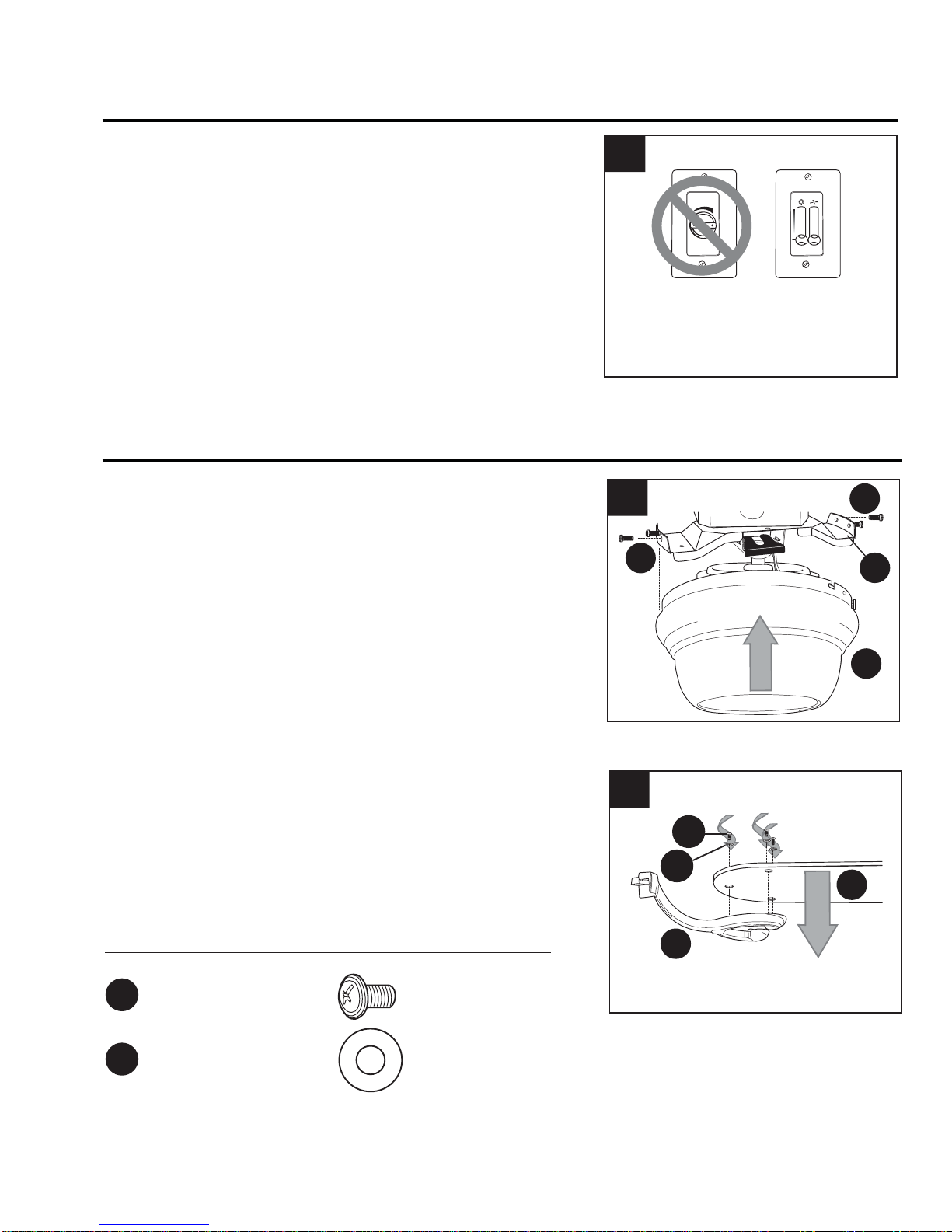

INITIAL INSTALLATION
1
ON
OFF
ON
OFF
Turn off circuit breakers and wall switch to the fan
supply line leads. (Fig. 1)
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Check to make sure blades (H) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor. (Fig. 2)
7 ft.
min.
30 in.
min.
2H
2.
3
4
Secure mounting bracket (B) to outlet box using
screws, spring washers, and flat washers provided
with the outlet box. (Fig. 3) Pull wires from outlet
box through center hole in mounting bracket (B).
*Note: It is very important that you use the proper
hardware when installing the mounting bracket (B)
as this will support the fan.
3.
B
D
P
O

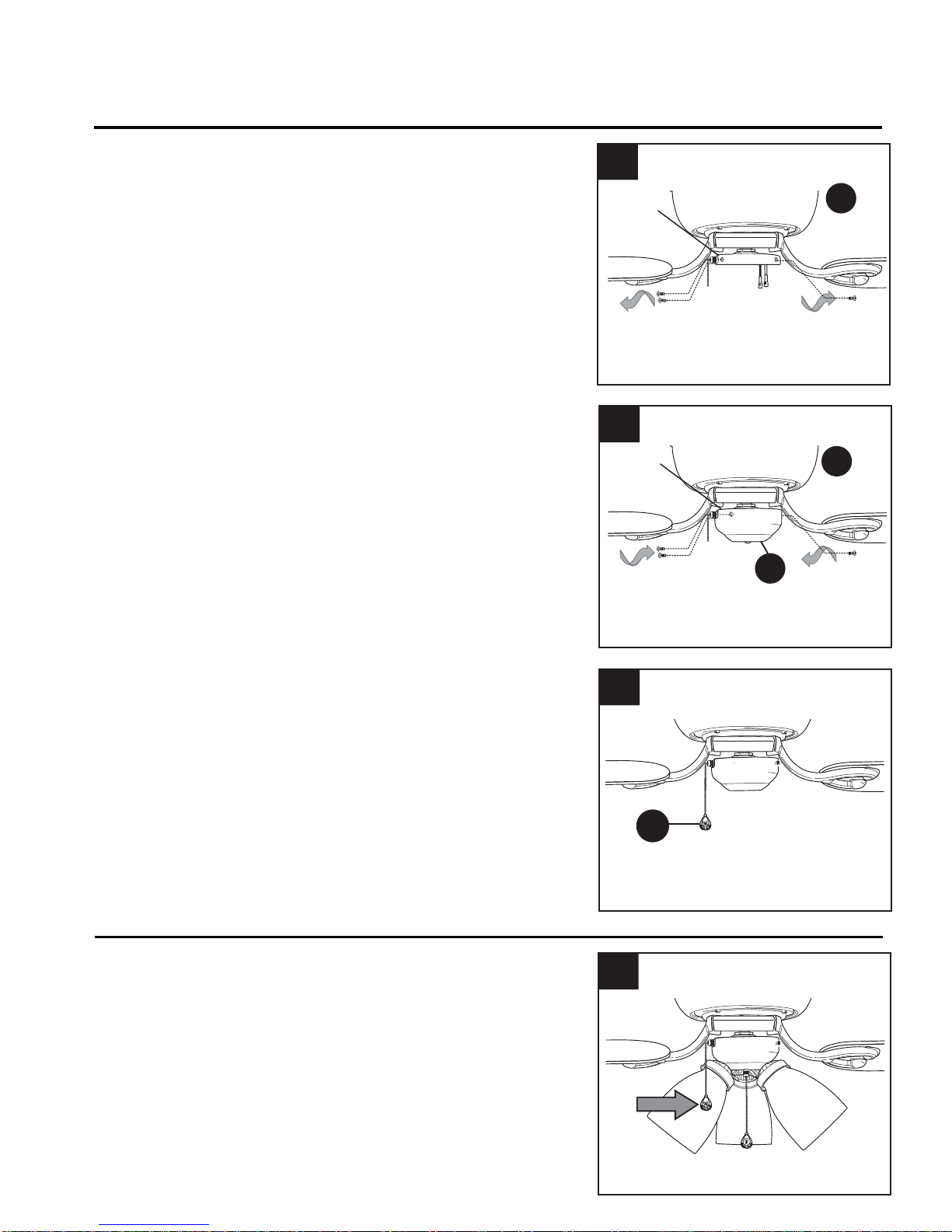

Remove motor screws (O) and 5.4 M/M lock
washers (P) from underside of motor and save for
blade arm (G) attachment later on. [If there are
plastic motor blocks installed with motor screws (O)
and 5.4 M/M lock washers (P), discard the plastic
motor blocks.] (Fig. 4)
4.

7
INITIAL INSTALLATION

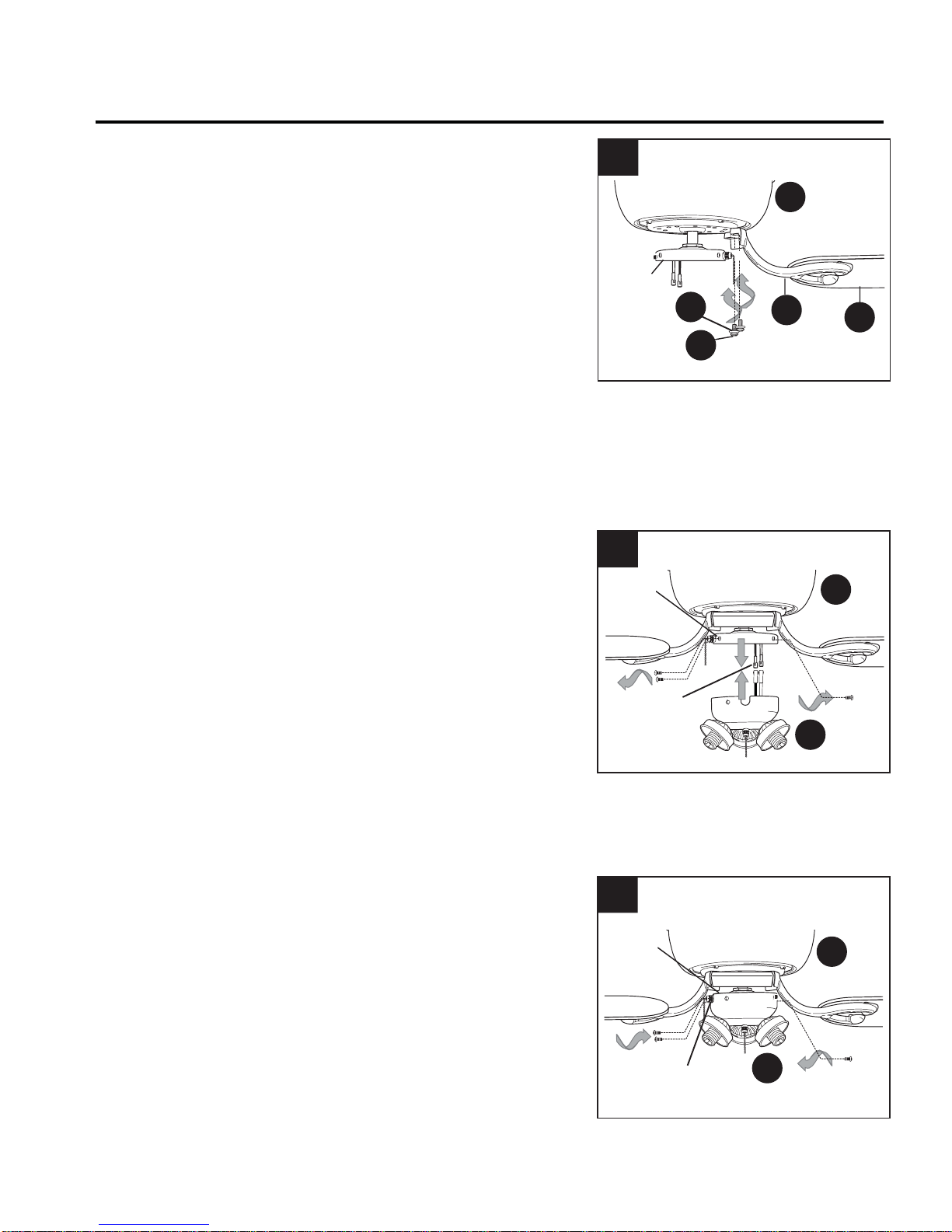

Install ball end of motor assembly (D) into
mounting bracket (B) opening. Align slot in ball
with tab in mounting bracket (A). (Fig. 5)
DANGER: Failure to align slot in ball with tab
in mounting bracket (B) may result in serious
injury or death. (Fig. 5)
Q
M
5
5.
To ensure the safety of the installation and to
prevent the motor assembly (D) from becoming or
coming loose, use the plastic lock tab (C). Slide
plastic lock tab (C) under bracket tabs so that it will
snap into place. (Fig. 6)
IMPORTANT: Keep in mind that it will require
some force to fully insert the plastic lock tab (C)
so that it does not move or come out once in
the correct position.
NOTE: Make sure that motor assembly (D) does
not swing from side to side too easily--if it does,
check to be sure that the plastic lock tab (C) is
FULLY INSERTED under the bracket tabs and all
the way to the back of the mounting bracket (B).
6
6.
Wood
Screw
Screw
Loop
Nut
7
B
Adjust safety cable (M) length by loosening screw
and nut on the safety cable vice (Q) and pulling on
the safety cable (M). Adjust slack in cable to a hands
length and tighten screw and nut on vice (Q)
securely. The loop at the end of the safety cable (M)
should just fit over the threads on the wood screw.
(Fig. 7) Test safety cable (M) by pulling on loose end
with pliers. If the safety cable (M) slips, then vice (Q)
screw and nut must be set tighter.
7.
Hanging
Tab
Ball
Slot
B
D
Bracket
Tab
C
B
D

8
Loop
Wood
Joist
Wood Screw
and Washer
8Q
M

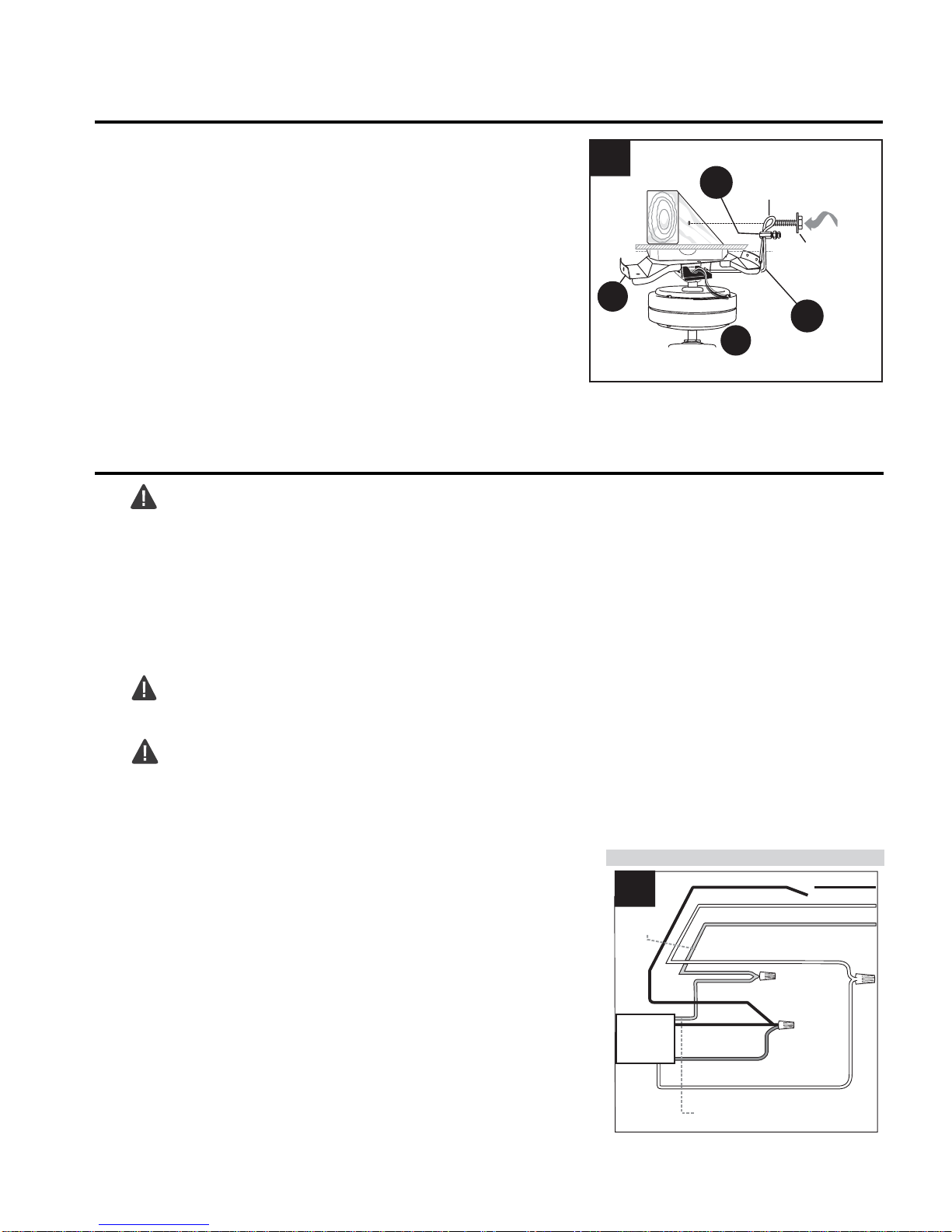

Find a secure attachment point (wood ceiling joist
highly recommended) and secure safety cable
(M). It will be necessary to use a heavy duty
wood screw, washer and lock washer (sold
separately) with the safety cable (M) loop. (Fig. 8)
8.
B

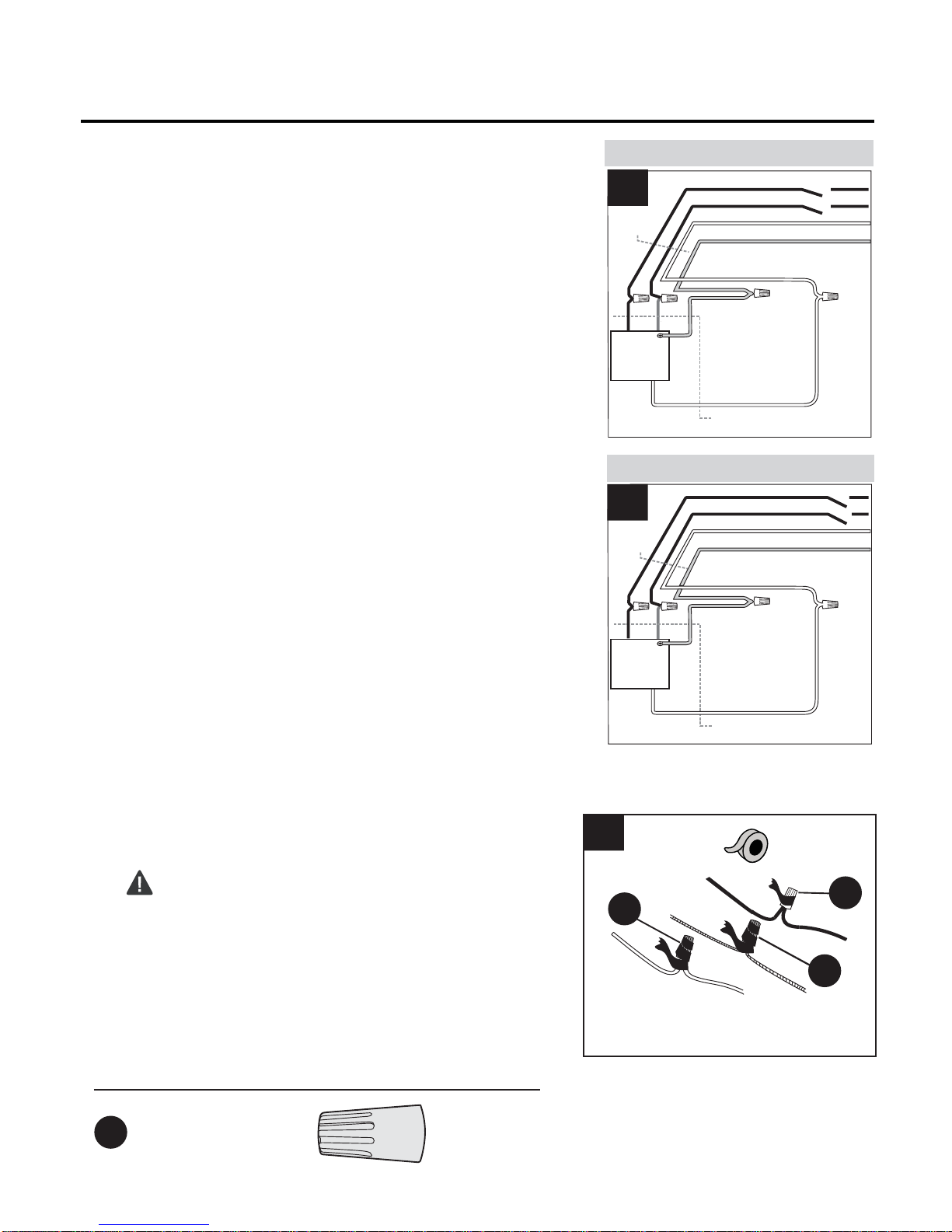

WIRING
Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)
that fits your situation and make appropriate wiring
connections as follows: [NOTE: For each wire
connection below, and on the following page, use one
of the wire connectors (CC) provided, making sure to
screw wire connector (CC) on in a clockwise
direction.]
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wire from mounting bracket to
BARE/GREEN wire from ceiling. (Fig. 1A)
1.
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
BLUE
WHITE
FROM FAN
120 V Power
FROM
CEILING
FAN
BLACK
1A
GREEN
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one 12 gauge
house wire and two lead wires from the fan. If your
house wire is larger than 12 gauge or there is more
than one house wire to connect to the two fan lead
wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded
and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors
than referred to in the following steps, stop
immediately. A professional electrician is
recommended to determine wiring.
INITIAL INSTALLATION
D

9
WIRING
1B. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: If you intend to control the fan
light with a separate wall switch, connect BLACK
wire from fan to BLACK wire from ceiling. Connect
BLUE wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wire from mounting
bracket to BARE/GREEN wire from ceiling. (Fig. 1B)
FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH
WHITE
BLACK
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
WHITE
1B
GREEN
Wrap electrical tape around each individual wire
connector (CC) down to the wire as shown in Fig. 2.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
CC
CC
2
CC
CC E3 Wire Connector x4
2.
Hardware Used
1C. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect BLUE
wire from fan to the BLACK wire from the other
independent wall switch for the light. Connect WHITE
wire from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wire from mounting bracket to
BARE/GREEN wire from ceiling. (Fig. 1C)
Note: Black wire is hot power for fan. Blue wire is hot
power for light kit. White wire is common for fan and
light kit. Green or bare wire is ground.
WHITE
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
GROUND/GREEN (BARE)
BLACK
BLUE
WHITE
FROM FAN
FAN
120 V Power
FROM
CEILING
FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES
WHITE
1C
GREEN

10
WIRING
IMPORTANT: Using a full range dimmer switch to
control fan speed will cause a loud humming noise
from fan. To reduce the risk of fire or electrical
shock, do NOT use a full range dimmer switch to
control fan speed. (Fig. 3)
3
1
2
3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
3.
G
H
FINAL INSTALLATION
Temporarily raise motor housing (A) to mounting
bracket (B) to determine which two motor housing
mounting screws (N) align with slotted holes in motor
housing (A) and partially loosen these two motor
housing mounting screws (N). Remove the other two
motor housing mounting screws (N). Now, lift motor
housing (A) to mounting bracket (B) again, aligning
slotted holes in motor housing (A) with loosened
motor housing mounting screws (N) in mounting
bracket (B). Twist motor housing (A) to lock. Re-insert
motor housing mounting screws (N) that were
previously removed. Tighten all four motor housing
mounting screws (N) securely. (Fig. 1)
1
1.
2
2.
A
B
N
N
BB
AA
Partially insert three blade screws (AA), along with
three fiber blade washers (BB), to attach one blade
arm (G) to a blade (H). Then, tighten each blade
screw (AA), starting with the one in the middle (Fig. 2)
Repeat with remaining blades (H).
AA Blade Screw x15
Hardware Used
BB Fiber Blade Washer x15

11
FINAL INSTALLATION
Fan Pull Chain Slot
and Pull Chain
Locate motor screws (O) and 5.4 M/M lock washers
(P) that were removed in Step 4 on page 6.
Insert two motor screws (O), along with 5.4 M/M lock
washers (P), through one blade arm (G) to attach
blade arm (G) to motor. Tighten motor screws (O)
securely. (Fig. 3) Repeat with remaining blade arms
(G), making sure to completely secure each blade
arm (G) before proceeding with the next.
Note: For easy access to motor screws (O), turn
switch housing plate so that the flat part of the switch
housing plate aligns with the two motor screws (O)
on blade arm (G).
Repeat Step 3 with remaining blade arms (G),
making sure to completely secure each blade arm
(G) before proceeding with the next.
3
3.
A
GH
O
P
Switch
Housing
Plate
If you wish to USE the light kit, remove three
screws from switch housing plate on underside of
motor. Locate BLUE (or BLACK) and WHITE wires
in switch housing plate labeled FOR LIGHT and
remove plastic from these two wires.
Connect WHITE wire from light kit fitter (E) to
WHITE wire from switch housing plate. Connect
BLACK wire from light kit fitter (E) to BLUE (or
BLACK) wire from switch housing plate. Make sure
that molex connections are secure. (Fig. 4)
Continue with Step 5.
If you do NOT wish to use the light kit, please go
to section entitled “Installing Fan Without Included
Light Kit” on page 13.
4
4.
Switch
Housing
Plate
Molex
Connections
A
E
Arrange wires and molex connections in switch
housing plate. Align fan pull chain slot with fan pull
chain and attach light kit fitter (E) to fan with screws
that were removed in the previous step. Use a Phillips
screwdriver to secure all three screws. (Fig. 5)
5
5.
A
E
Switch
Housing
Plate

12
FINAL INSTALLATION

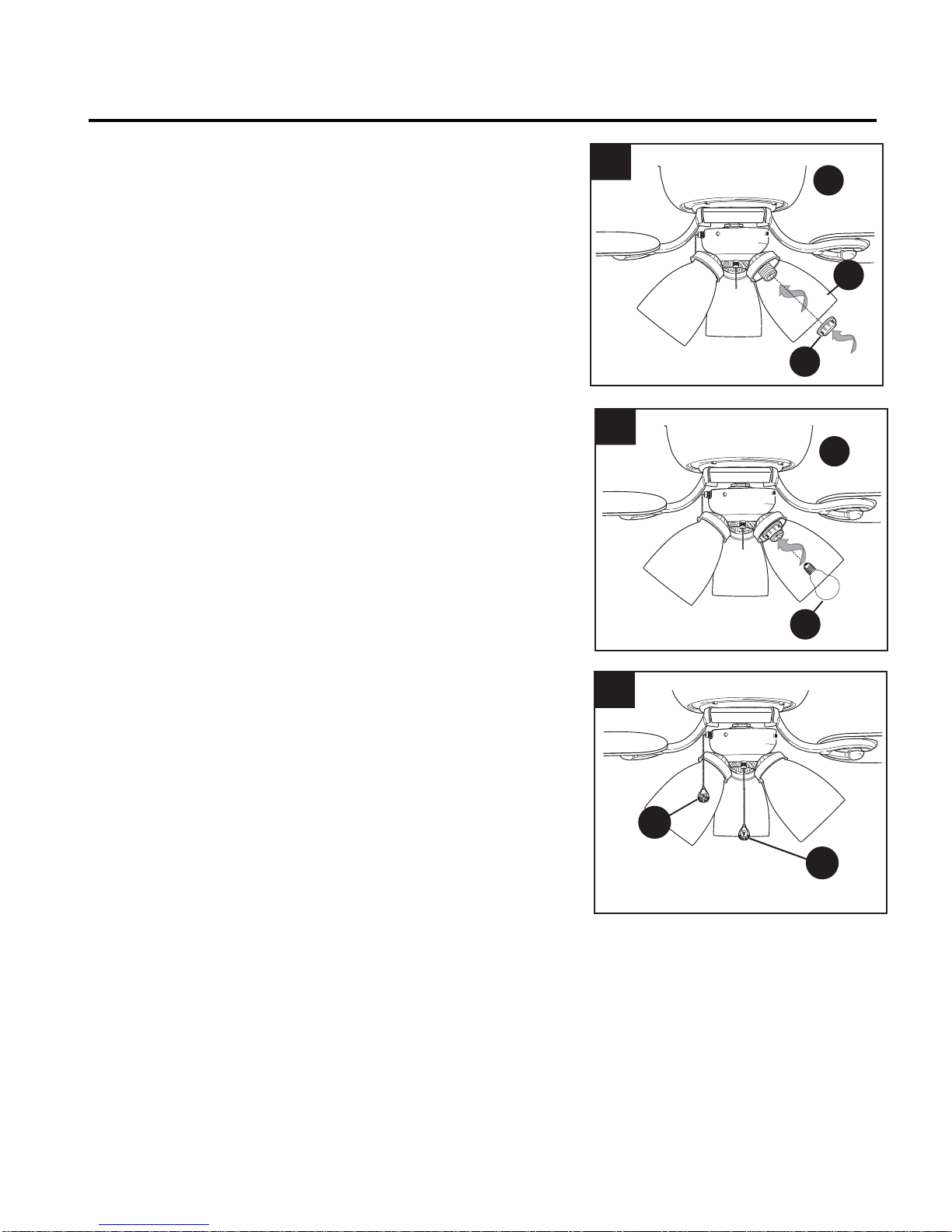

Remove socket ring (K) from each socket. Use one
socket ring (K) to attach each glass shade (F). (Fig. 6)
Note: Do not overtighten socket rings (K) as glass may
crack or break.
6
6.
The pull chain extensions (J) supplied in one of the
hardware packs or custom pull chain extensions
(sold separately) may be attached to fan and light
pull chains. (Fig. 8)
Install three candelabra base 60-watt max. bulbs (I)
included. (Fig. 7)
Important: When you need to replace bulbs, please
allow bulbs and glass shades (F) to cool down before
handling them.
7.
8.
7
8
K
F
A
I
A
J
(For Fan)
(For Light)
J

13
INSTALLING FAN WITHOUT INCLUDED LIGHT KIT (OPTIONAL)
If you do NOT wish to use the light kit, remove
three screws from switch housing plate. (Fig. 1) 1
1.
2
2.
A
Align holes in extra switch housing (L) with holes in
switch housing plate. (Note: The wide gap in the top
edge of the extra switch housing (L) should align with
the reverse switch on the switch housing plate for the
proper fit.) Re-insert screws that were previously
removed. Use a Phillips screwdriver to secure all
screws. (Fig. 2)
Switch
Housing
Plate
L
Switch
Housing
Plate
A
3
3. The pull chain extension (J) supplied in one of the
hardware packs or custom pull chain extension (sold
separately) may be attached to fan. (Fig. 3)
J
The pull chain on the switch housing plate has four
positions to control fan speed. One pull is HIGH, two
is MEDIUM, three is LOW and four turns the fan OFF.
(Fig. 1)
1
1.
OPERATION INSTRUCTIONS

14
The pull chain in the center is used to turn the lights
ON or OFF. (Fig. 2) 2
2.
OPERATION INSTRUCTIONS
E
3
Use the fan reverse switch, located on the light kit
fitter (E), to optimize your fan for seasonal
performance. (Fig. 3) A ceiling fan will allow you to
raise your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
Note: Wait for fan to stop before moving the
reverse switch.
3.
E
3A. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect. (Fig. 3A)
3B. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area. (Fig. 3B)
3A 3B
3C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position (Fig. 3C), fan will not operate.
3C
3C

15
At least twice each year, lower motor housing (A) to check motor assembly (D), and then
tighten all screws on fan. Clean motor housing (A) with only a soft brush or lint-free cloth to
avoid scratching the finish. Clean blades (H) with a lint-free cloth. You may occasionally apply a
light coat of furniture polish to wood blades for added protection.
Important: Shut off main power supply before beginning any maintenance. Do not use water or
a damp cloth to clean the ceiling fan.
CARE AND MAINTENANCE
TROUBLESHOOTING
If you have any questions regarding the product please call customer service at 1-800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
Warning: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged. 1. Push switch firmly either to the
right or to the left.
2. Power is off or fuse is blown. 2. Turn power on or check fuse.
3. Faulty wire connection. 3. Turn power off. Loosen motor
housing (A) and check all
connections.
Noisy operation. 1. Blades (H) are loose. 1. Tighten all blade screws (AA).
2. Cracked blade (H). 2. Replace blade (H).
3. Full range dimmer switch 3. Replace with an approved
speed control device.
4. Fan is new. 4.Allow fan a "break in" period of a
few days, especially when running
the fan at Medium and High
speeds.
5. Motor housing (A) is loose. 5. Turn power off. Carefully loosen
motor housing (A) and verify that
mounting bracket (B) is secure
according to instructions on
page 10.
Excessive wobbling. 1. Blades (H) are loose. 1. Tighten all blade screws (AA).
2. Blade arms (G) incorrectly 2. Re-install blade arms (G).
attached.
3. Unbalanced blades (H). 3. Switch one blade (H) with a
blade (H) from the opposite side.
4. Fan not securely mounted. 4. Turn power off. Carefully loosen
motor housing (A) and verify that
mounting bracket (B) is secure.
Fan operates but lights 1. Bulb(s) not installed correctly. 1. Re-install bulb(s).
fail (if applicable). 2. Wires in outlet box not wired 2. Check wires in outlet box and, if
properly. necessary, re-wire according to
instructions on pages 8 and 9.
3. Wall switch to fan is off. 3. Make sure that wall switch to fan
is on.

16
LIMITED LIFETIME WARRANTY: Litex Industries warrants this fan to be free from defects in
workmanship and materials present at time of shipment from the factory for Lifetime limited from the
date of purchase. This warranty applies only to the original purchaser. Litex Industries agrees to
correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior
model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. Litex Industries assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. Litex Industries disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. Litex Industries shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
4. Wires in light kit fitter (E) not 4. Check wires in light kit fitter (E)
wired correctly. and, if necessary, re-wire
according to instructions on
page 11.
5. Light kit is lamped with more 5. Lamp light kit with bulbs that
than the allowable 190W, causing total no more than 190W.
the wattage limiting device to in-
terrupt the flow of electricity to the
light kit.
WARRANTY

17 Printed in China
REPLACEMENT PARTS LIST
PART DESCRIPTION
A Motor Housing
B Mounting Bracket
C Plastic Lock Tab
E Light Kit Fitter
F Glass Shade
G Blade Arm
H Blade
J Pull Chain Extension
K Socket Ring
L Extra Switch Housing
N
Motor Housing Mounting
Screw
O Motor Screw
P
5.4M/M Lock Washer
AA
Blade Screw
BB Fiber Blade Washer
CC
E3 Wire Connector
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m.,
CST, Monday - Friday. When ordering parts, please have the Model # or Item # of the fan available,
which can be found on page 1.
A
H
FG
E
C
B
L
J
K N
P
O
BB CC
AA
