TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................11
Wiring .........................................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions .............................................................16
Care and Maintenance ............................................................17
Troubleshooting..................................................................17
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19

3Lowes.com/harborbreeze
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Yoke Cover 1
HMotor Assembly 1
I Adapter Plate (preassembled to the Motor Assembly [H]) 1
J Fitter Plate 1
K Switch Housing 1
LBlade Arm 5
M Blade 5
N Motor Screw (preassembled to the Motor Assembly [H]) 10 + 1 extra
O Mounting Bracket Screw (preassembled to the Mounting Bracket [D]) 4
P Fitter Plate Screw (preassembled to the Adapter Plate [I]) 3
Q Set Screw (preassembled to the Motor Assembly [H]) 2
R Phillips-head Closemount Screw (preassembled to Motor Assembly [H]) 3
S Switch Housing Screw (preassembled to Switch Housing [K]) 3
T Blade Balancing Kit 1
A
I
K
E
F
G
H
M
N O P
L
Q R S T
B
J
C
D

4
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Pull Chain
Extension
Qty. 1
Blade Screw
Qty. 15
+ 1 extra
Rubber Washer
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
AA BB CC DD EE
H
a
r
b
o
r
B
r
e
e
z
e

5
Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 16.23 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
DANGER: If using the fan in a wet location, the fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical
shock or death.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoutlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range, dimmer switch.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure they are
secured.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Strippers and Wire Cutters
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook

7Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (sold separately).
Angle mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance. Important: If using
the angle mount, check to ensure the ceiling angle is
not steeper than 16°.
Closemount installation is more suitable for ceilings
lower than 8 ft. high.
Flushmount installation is not available for this item.
2
Downrod Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (M) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (M) will be at least 7 ft. above
theoor.
7 ft. min.
30 in. min.
1
3
A
M

8
Lowes.com/harborbreeze
INITIAL INSTALLATION

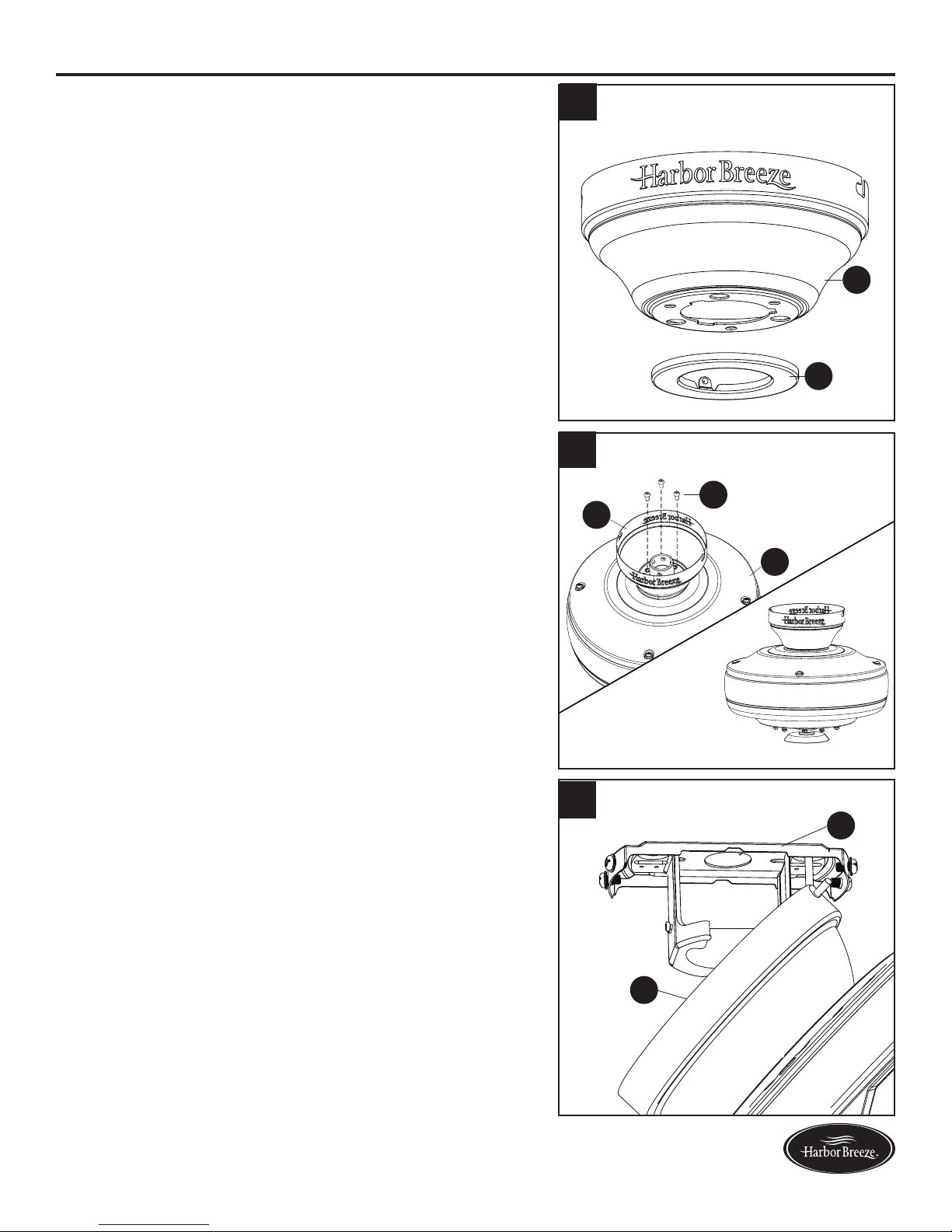

4. Loosen all four preassembled mounting bracket
screws (O), then completely remove the two mounting
bracket screws (O) from the round holes of canopy
(E). Set aside for later use. Detach mounting bracket
(D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
Important:If using the angle mount, ensure the open
end of the mounting bracket (D) is installed facing the
higher point of the ceiling.
6. Remove all 10 preassembled motor screws (N) and
vepreassembledplasticmotorblocksfromthe
underside of the motor assembly (H). Discard the
motor blocks, but keep the motor screws (N) for later.
For Standard or Angle Mounting Instructions,
continue to page 9. For Closemount Instructions,
proceed to page 11.
4
D
O
D
H
N
E
5
6
Motor
Block
Standard or
Closemount
Angle Mount

9Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

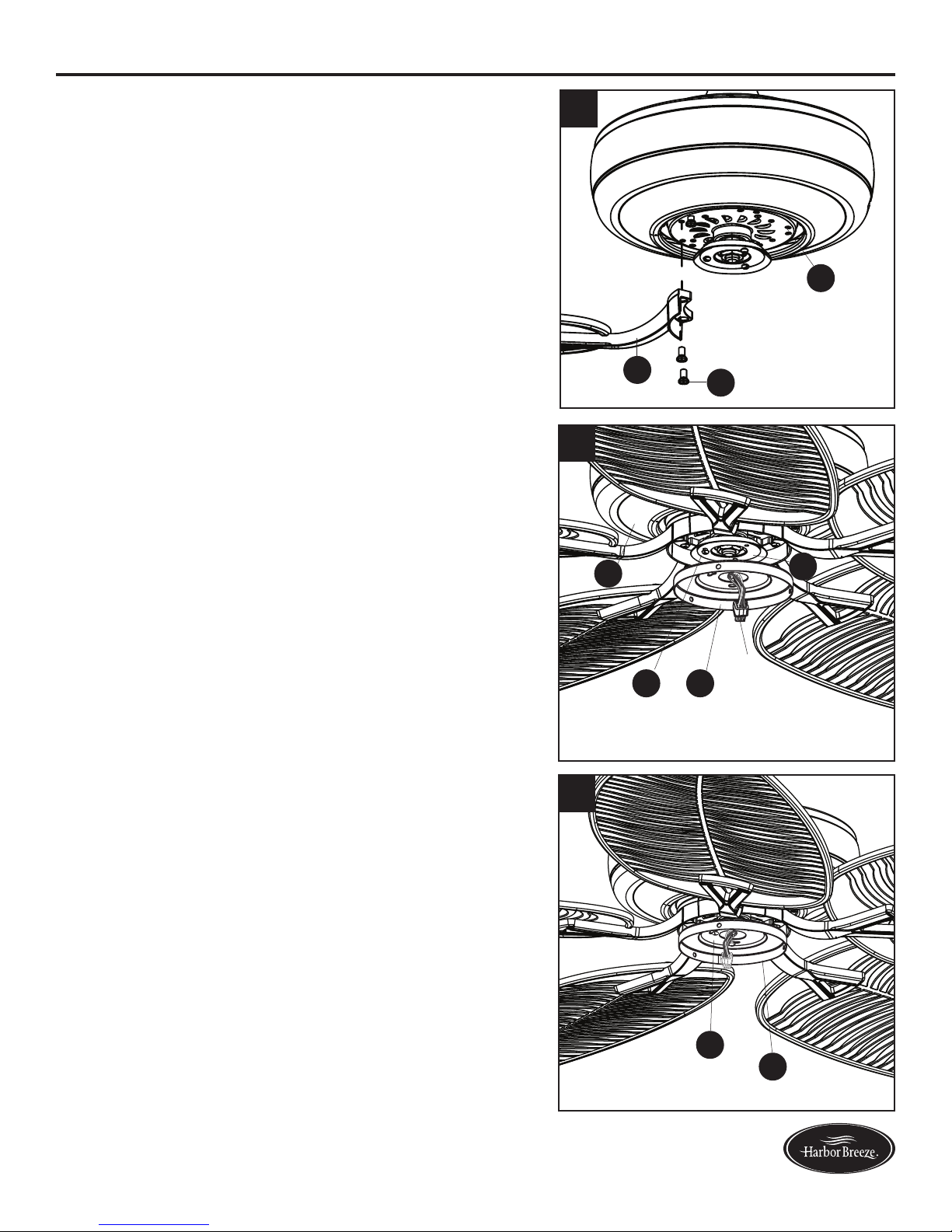

1. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (Q) in the yoke at the top of the motor
assembly (H).
2. Insert the downrod (A) through the canopy (E) and
yoke cover (G). Feed the wires from the motor
assembly (H) through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (H), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (Q).
1
2
A
G
E
H
3
A
B
CH
Q
G
H
Q
A
B
C
Yoke
Yoke
Yoke

10 Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner: Take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
8 inches of lead wire, then cut the excess wire off with
wire cutters (not included).
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat this
step for black, blue and green wires.
Note: If you did not cut back the lead wires in Step 4,
Step 5 is not necessary and you may proceed to Step 6.
6. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in
the ball with the tab in the mounting bracket (D).
Note:The downrod (A) should not rotate if installed
correctly.
DANGER: Failure to align the slot in the
downrod (A) with the tab of the mounting bracket (D)
could cause the fan to fall, resulting in serious injury
or death.
Proceed to the Wiring on page 12.
4
5
6
A
A
D
D
Tab
Slot
8 in.

11
Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS
1. Remove the canopy cover (F) from the bottom of the
canopy (E).
Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. high. The downrod
(A), yoke cover (G) and canopy cover (F) are not used
in this type of installation.
2. Remove three Phillips-head closemount screws (R)
from the top of the motor assembly (H). Align the
canopy (E) with the holes in the top of the motor
assembly (H), then re-install the Phillips-head
closemount screws (R) to secure the canopy (E) to the
top of the motor assembly (H).
3. Raise the fan and place the canopy (E) on the hook on
the mounting bracket (D), temporarily leaving hands
free for the wiring process.
1
2
E
F
R
H
E
3
D
E

12
Lowes.com/harborbreeze

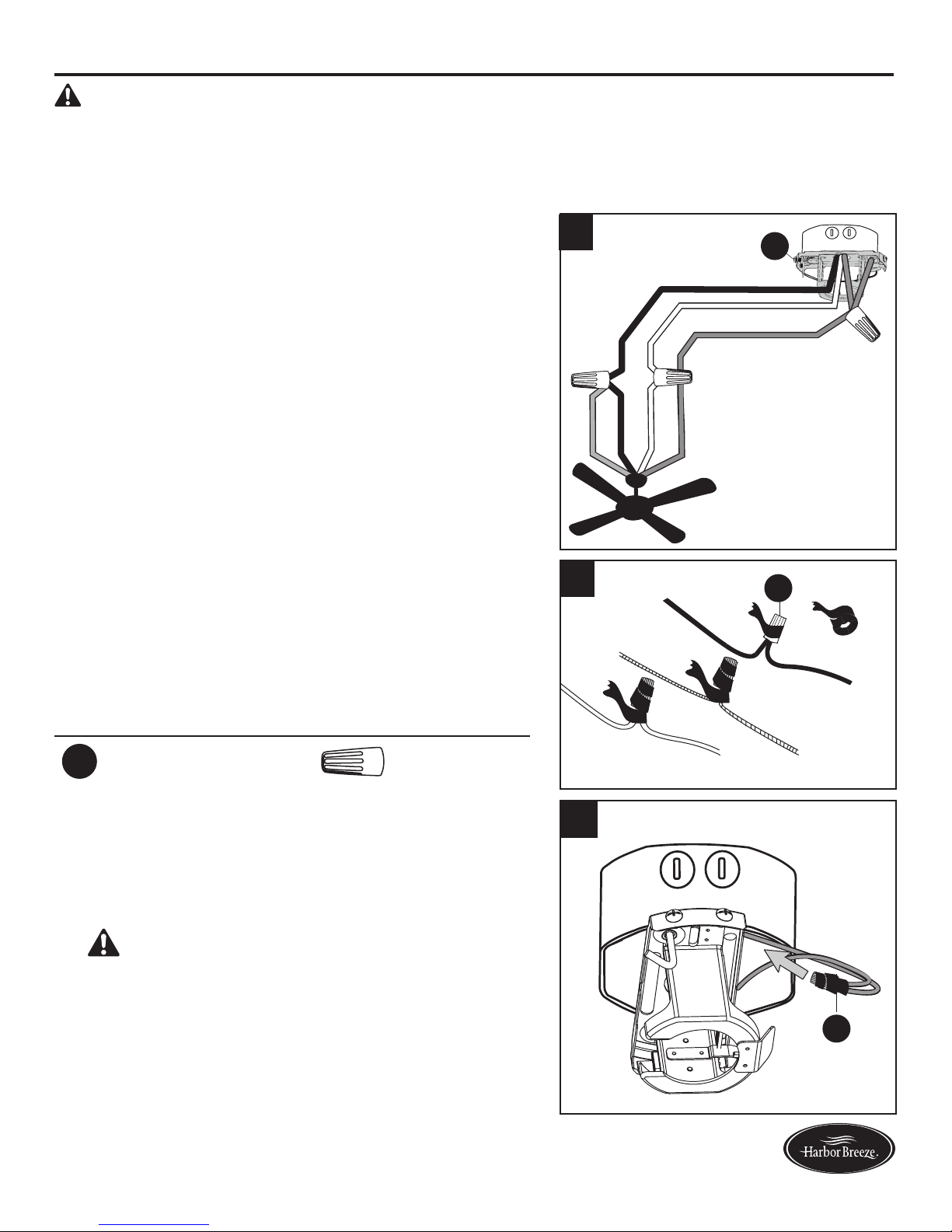

Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White
Green
WIRING
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.
1. Connect supply and mounting bracket (D) wires
according to the diagram and these steps:
•ConnecttheGreenwirefromthedownrod(A)and
mounting bracket (D) to the Bare/Green supply wire.
Note: Closemount installation does not use downrod
(A), so there will only be two Green wires to connect.
•ConnecttheWhitewirefromthefantotheWhite
supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (AA).
Note: The Black wire is hot power for the fan. The
White wire is common. The Blue wire is hot power
for light (sold separately; wiring instructions will differ
if optional light kit is purchased. Refer to light kit
manufacturer’s instructions). The Green wire is the
ground wire. If house wires are different colors than
referred to above, it is recommended a professional
electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the White
wire connections on the opposite side of the outlet box
from the Black and Blue wire connections.
1
BB
2
3
D
AA
3
AA

13
Lowes.com/harborbreeze
FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (O) preassembled on mounting bracket
(D). Place the keyholes of the canopy (E) onto the
mounting bracket screws (O) and rotate the canopy (E)
clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (O) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (O) securely.
3. Partially insert the blade screws (CC) along with the
rubber washers (DD) and blade washers (EE) through
the blade (M) and into the blade arm (L). Tighten
each blade screw (CC) with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat this
step for the remaining blades (M) and blade arms (L).
Hardware Used
CC Blade Screw x 15
Rubber Washer x 15
Blade Washer x 15
Note: Closemount installation will not have the downrod (A), yoke cover (G) or canopy cover (F).
3
O
L
M
DD
CC
EE
1
2
E
E
O
D
DD
EE

14
Lowes.com/harborbreeze
4. Install the blade arm (L) to the underside of the
motor assembly (H) with motor screws (N) previously
removed (Step 6, page 8). Tighten with Phillips
screwdriver.
Repeat for each blade arm (L).
5.Removeoneofthetterplatescrews(P)fromthe
adapter plate (I) preassembled on the motor assembly
(H) loosen (do not remove) the other two screws.
Insert the 9-pin connector from the motor assembly
(H)throughtheholeinthetterplate(J).
6.Attachthetterplate(J)totheadapterplateby
twistingthetterplate(J)untiltheloosenedtter
platescrews(P)engagethekeyslotsonthetter
plate(J).Re-installthethirdtterplatescrew(P)into
theclosedholeinthetterplate(J)andsecurely
tightenallthreetterplatescrews(P).
4
FINAL INSTALLATION
N
H
L
5
6
P J
I
H
J
P
Plug
Wires

15
Lowes.com/harborbreeze
FINAL INSTALLATION
7. Remove the switch housing screws (S) preassembled
to the switch housing (K). Then, connect the 9-pin
connector from the motor assembly (H) to the 9-pin
connector from the switch housing (K), and ensure the
connections are secure.
8.Securetheswitchhousing(K)tothetterplate(J)using
the previously removed switch housing screws (S).
9. Attach the pull chain extension (BB) or custom pull
chain extension (not included) to the fan pull chain.
Hardware Used
BB Pull Chain
Extension x 1
7
HK
I
8
J
BB
K
S
9
H
a
r
b
o
r
B
r
e
e
z
e

16
Lowes.com/harborbreeze

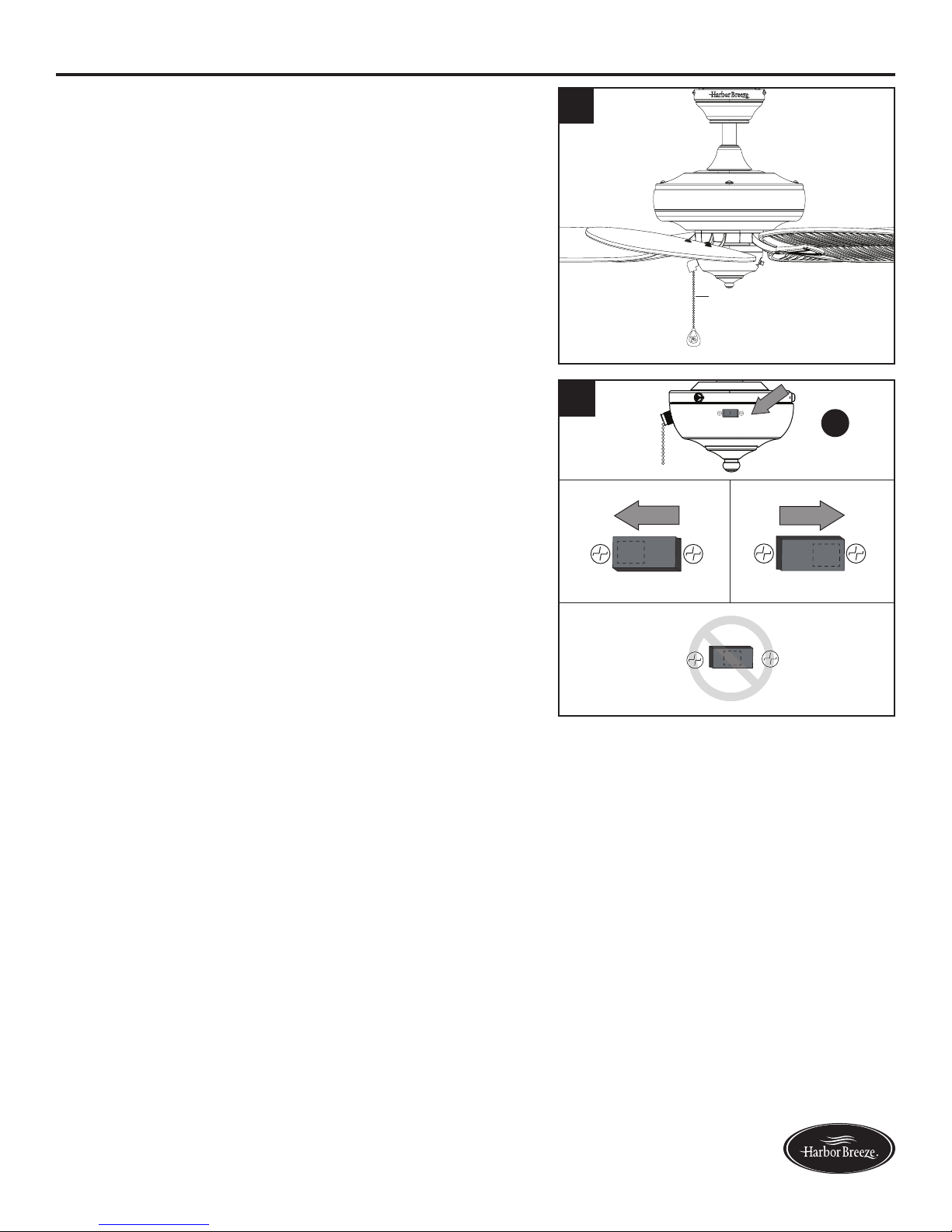

OPERATING INSTRUCTIONS
1. The pull chain labeled FAN has four positions to control
fan speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF.
2. Use the fan reverse switch, located on the switch
housing (K) to optimize your fan for seasonal
performance.
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a difference
in your comfort.
Note:Wait for the fan to stop before moving the
reverse switch.
2a. In warmer weather, push the reverse switch left,
whichwillresultindownwardairowcreatingawindchill
effect.
2b. In cooler weather, push the reverse switch right,
whichwillresultinupwardairowthatcanhelpmove
stagnant, hot air off the ceiling area.
Important:The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate Fig. 2c.
1
Fan Pull Chain
H
a
r
b
o
r
B
r
e
e
z
e
2
Fig. 2a Fig. 2b
Fig. 2c
G
K

17
Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.
Shut off the main power supply before you begin any maintenance task. Do not use water or a damp
cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to either the
left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold the
fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to
control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured to
the outlet box and that the screws are tight.
There is
excessive
wobbling.
1. The blades and/or blade
arms are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold the
fan blades to the blade arms and the blade
arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using a
blade balancing kit (T).
3. Turn off the power. Loosen the canopy and
verify that the mounting bracket is secure to
the electrical outlet box. The bracket must
beushwithoutmovementagainstthe
outlet box.
4. Use a longer downrod or move the fan to
another location.
5. Lift up the yoke cover and tighten the set
screw to the yoke until secure.

18
Lowes.com/harborbreeze
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyafxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

19
Lowes.com/harborbreeze
Printed in China
Harbor Breeze®is a registered trademark of LF, LLC.
All Rights Reserved
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART #
A Downrod 0451809-A
D Mounting Bracket 0451809-D
E Canopy 0451809-E
LBlade Arm 0451809-L
M Blade 0451809-M
HW Hardware Bag 0451809-HW
A D E
LMHW
9031•101915
