Harbor Breeze TILGHMAN WCK52LMW5N User manual

TILGHMAN CEILING FAN
E206035
LISTED
For
Damp Location
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0294980
0294981
MODEL #WCK52LMW5N
WCK52NWZ5N
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
EB14491
1
Español p. 20
Lowes.com/harborbreeze

READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 17.2 lbs.
Safety Information ............................................................................................................... 2
Package Contents ............................................................................................................... 4
Hardware Contents
.......................................................................................................................... 5
Preparation .......................................................................................................................... 5
Initial Installation .................................................................................................................. 6
Downrod-Style Fan Mounting .............................................................................................. 8
Closemount-Style Fan Mounting ........................................................................................ 10
Wiring .................................................................................................................................. 11
Final Installation .................................................................................................................. 13
Operating Instructions ........................................................................................................ 15
Care and Maintenance ....................................................................................................... 16
Troubleshooting................................................................................................................... 17
Warranty ............................................................................................................................. 18
Replacement Parts List ...................................................................................................... 19
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION

SAFETY INFORMATION
CAUTION
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
3Lowes.com/harborbreeze
DANGER
If using this fan in a DAMP location, this fan must be connected to a supply circuit that is protected
by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical shock
or death.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNING

IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
(preassembled)
D Motor Housing 1
(preassembled)
E Yoke Cover 1
F Switch Housing 1
G Blade 5
H Blade Arm 5
DESCRIPTIONPART QUANTITY
I Blade Plate 5
J Motor Screw 10
(preassembled)
K Pull Chain Extension 1
L Canopy Mounting Screw 4
(preassembled)
M Pin (preassembled) 1
N Clip (preassembled) 1
DESCRIPTIONPART QUANTITY
PACKAGE CONTENTS
4Lowes.com/harborbreeze
A
E
D
B
F
C
H
G
N
K
M
L
J
I

5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure they are
secured.
PREPARATION
Lowes.com/harborbreeze
Wire
Connector
Qty. 4
AA BB
HARDWARE CONTENTS (shown actual size)
Blade
Screw
Qty. 15
+ 1 extra
CC DD
Screw
Qty. 3
Lock
Washer
Qty. 3

6
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Check to make sure blades (G) will be at least 30
inches from any obstruction and at least 7 ft. above
the floor.
3.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
3
G
2. Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT:If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. B
A
2

5. Remove motor screws (J) from underside of
motor and save for blade arm (H) attachment
later on. If there are plastic motor blocks
installed with the motor screws (J), discard the
plastic motor blocks.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 on the next page. For
CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 10.
4a.Loosen canopy mounting screws (L) in slotted
holes in canopy (B) and remove the other two
canopy mounting screws (L) -- save canopy
mounting screws (L) for later use. Remove
mounting bracket (C) from canopy (B).
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE:It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using angle mount, make sure
open end of mounting bracket (C) is installed
facing the higher point of the ceiling.
4b.
L
C
L
B
INITIAL INSTALLATION
5
J
7
Lowes.com/harborbreeze
4a
C
C
4b ANGLE
MOUNT
STANDARD
MOUNT

3.

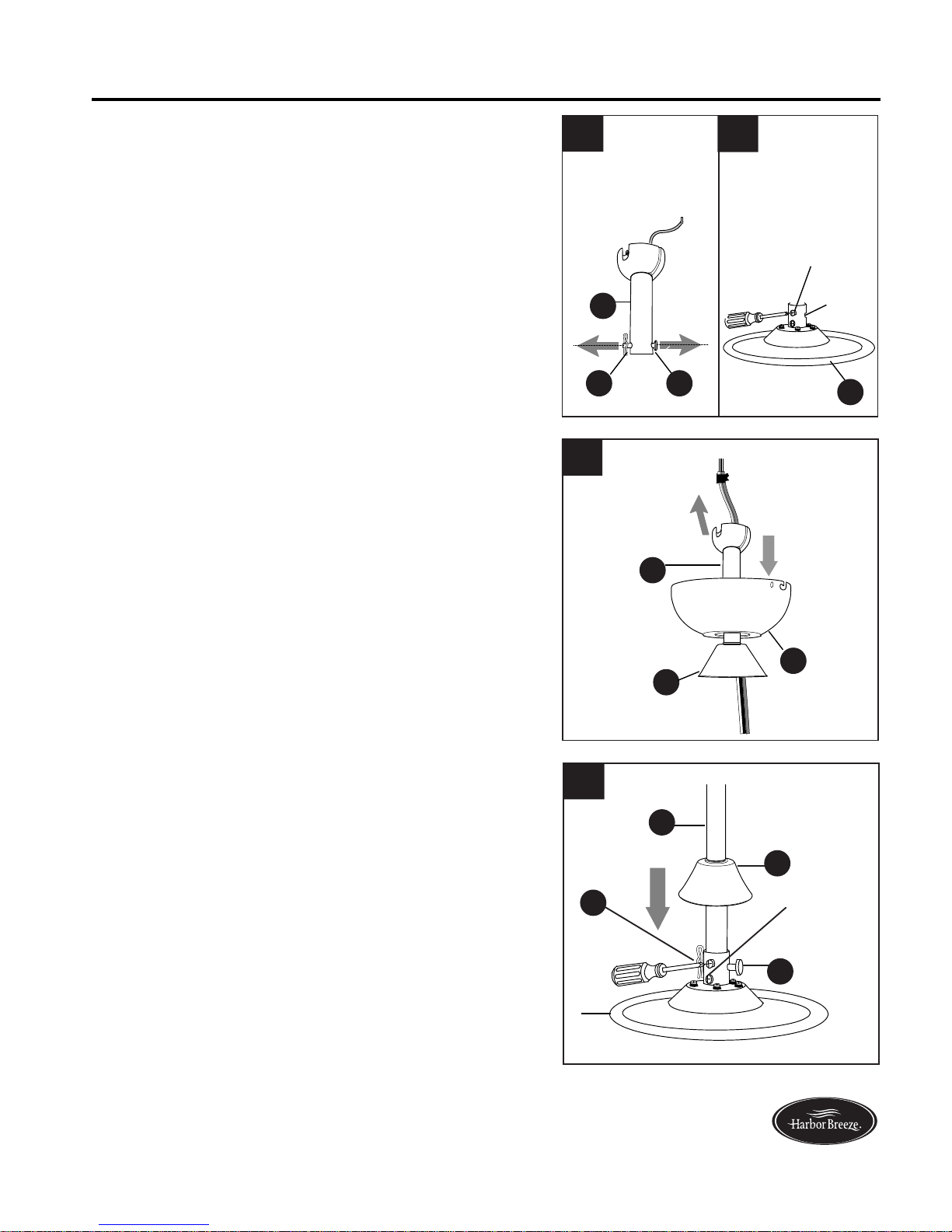

DOWNROD-STYLE FAN MOUNTING
Remove pin (M) and clip (N) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D). Set
Screws
and Nuts
1a. 1a
ND
M
1b
A
2. Insert downrod (A) through canopy (B) and yoke cover
(E). Thread wires from motor housing (D) up through
downrod (A). 2
A
B
E
3
Slip downrod (A) into yoke, align holes and
re-install pin (M) and clip (N). Tighten set screws
and then tighten nuts on the set screws. Slide yoke
cover (E) down until it rests on top of motor
housing (D).
8
Lowes.com/harborbreeze
1b.
Set
Screws
and Nuts
A
E
N
M
Yoke

DOWNROD-STYLE FAN MOUNTING
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure that you have
pulled them all the way through the top of the
downrod. Start at the TOP of the ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps 4
and 5 are not necessary and you may proceed to
Step 6 instead.
4.
Ball
4
A
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat Step 5
for black, blue (if applicable) and green wires.
5. 5
Install ball end of downrod (A) into mounting bracket
(C) opening. Align slot in ball with tab in mounting
bracket (C).
DANGER: Failure to align slot in ball with tab may
cause the fan to wobble or fall, which could result in
serious injury or death.
6.
Continue to WIRING on page 11.
Slot
Tab
C
A
6
9
Lowes.com/harborbreeze

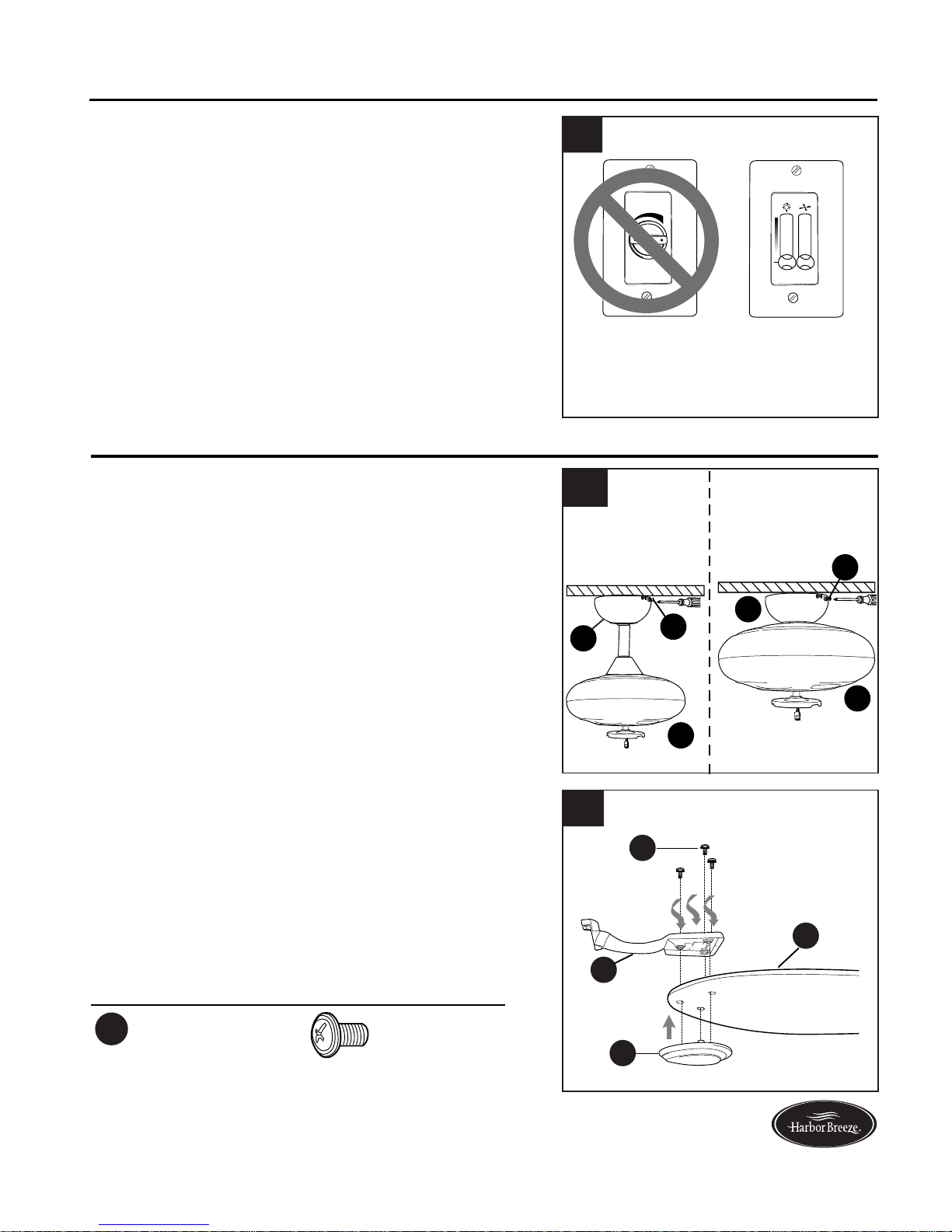

CLOSEMOUNT-STYLE FAN MOUNTING
Remove canopy cover from bottom of canopy (B).
NOTE: It may be necessary to use the handle end of
a screwdriver (not included) to remove the canopy
cover by tapping on the canopy cover from the
inside of the canopy (B).
*Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. The downrod (A),
yoke cover (E) and canopy cover are not used in this
type of installation.
1. 1
2. Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using three screws (CC) and three
lock washers (DD). DD
10
Lowes.com/harborbreeze
Canopy
Cover
B
2
Screw x 3
Hardware Used
CC
Lock Washer x 3
DD
CC

DANGER: If using this fan in a DAMP location, this fan must be connected to a supply circuit
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical
shock or death.
NOTE: This fan is remote control adaptable (remote control sold separately). Any remote control
used with this fan MUST be UL-approved for DAMP LOCATIONS.
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
3.
Tab
C
D
B
3
CLOSEMOUNT-STYLE FAN MOUNTING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WIRING
11
Lowes.com/harborbreeze
Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)
that fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each wire
connection below, use one of the wire connectors (BB)
provided, making sure to screw wire connector (BB) on
in a clockwise direction.]
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1A
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK(POWER)
WHITE(NEUTRAL)
BLACK
GROUND/GREEN (BARE)
WHITE
120V POWER
FROM CEILING
BLUE &
BLACK
GREEN

WIRING
1C. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect BLUE
wire from fan to the BLACK wire from the other
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (C))
to BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
1B. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: If you intend to control the fan
light with a separate wall switch, connect BLACK
wire from fan to BLACK wire from ceiling. Connect
BLUE wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (C))
to BARE/GREEN wire from ceiling.
12
Lowes.com/harborbreeze
Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (BB) into outlet box.
2.
BB
Wire Connector x 4
Hardware Used
BB
BB BB
2
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
BLACK
BLACK
(WALL
SWITCH)
BLUE
1B
WHITE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
GREEN
120V POWER
FROM CEILING
BLACK
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
BLACK
BLACK
(WALL
SWITCH)
BLUE
1C
WHITE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
GREEN
120V POWER
FROM CEILING
BLACK

Lift canopy (B) to mounting bracket (C) and align
slotted holes in canopy (B) with canopy mounting
screws (L) loosened in Step 4, page 7. Twist canopy
(B) clockwise to lock. Re-insert the two canopy
mounting screws (L) previously removed (Step 4,
page 7), then tighten all securely.
1.
WIRING
IMPORTANT: Using a full range dimmer switch (not
included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire
or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
3.
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
3
1
2
3
FINAL INSTALLATION
13
Lowes.com/harborbreeze
2. Align posts in blade plate (I) with holes on one side of
blade (G). Align holes in blade arm (H) with holes on
opposite side of blade (G) and then push up on blade
plate (I) until posts go through the holes in blade arm
(H). Partially insert three blade screws (AA) to attach
the blade plate (I) and blade arm (H) to the blade
(G). Then, tighten each blade screw (AA) starting
with the one in the middle. Repeat for remaining
blade assemblies.
2
Blade Screw x 15
Hardware Used
AA
AA
G
H
I
B
D
L
BL
1Downrod
Option Closemount Option
D

4. Remove three screws from switch housing plate
preassembled on the underside of motor housing (D).
Connect male plug from motor housing (D) to female
plug from switch housing (F). Make sure plugs
connect tightly.
Align holes in switch housing (F) with holes in switch
housing plate, then re-insert previously removed
screws.
3. Locate motor screws (J) removed in Step 5, page 7.
Insert two motor screws (J) through one blade arm
(H) to attach blade arm (H) to motor housing (D).
Tighten motor screws (J) securely. Repeat with
remaining blade arms (H), making sure to completely
secure each blade arm (H) before proceeding with
the next.
FINAL INSTALLATION
3
14
Lowes.com/harborbreeze
5. Attach pull chain extension (K) or custom pull chain
extension (sold separately) to fan pull chain. 5
K
H
J
D
Switch
Housing
Plate
4D
F

Use the fan reverse switch, located on the switch
housing (F), to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2.
The pull chain located on the switch housing
(F) has four positions to control fan speed. One
pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
1.
OPERATING INSTRUCTIONS
1
F
2
F
15
Lowes.com/harborbreeze

At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
OPERATING INSTRUCTIONS
2A. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect.
2B. In cooler weather, setting the reverse switch in
the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area.
2C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
2A 2B
2C
CARE AND MAINTENANCE
16
Lowes.com/harborbreeze

WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in switch housing are
connected properly according to
instructions on page 14.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
17
Lowes.com/harborbreeze

The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
18
Lowes.com/harborbreeze

PART DESCRIPTION PART#
A Downrod
B Canopy
C Mounting Bracket
E Yoke Cover
F Switch Housing
G Blade
H Blade Arm
I Blade Plate
J Motor Screw
L Canopy Mounting Screw
M Pin
N Clip
AA Blade Screw
CC Screw
DD Lock Washer
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
19 Lowes.com/harborbreeze
PWLI1408
294981-A
294981-B
294981-C
294981-E
294981-F
294981-G
294981-H
294981-I
294981-J
294981-L
294981-M
294981-N
294981-AA
294981-CC
294981-DD
A
E
B
F
C
H
G
IJ
AA
N
M
L
CC DD

VENTILADOR DE TECHO
TILGHMAN
Harbor Breeze®es una marca registrada de LF, LLC.
Todos los derechos reservados.
ARTÍCULO #0294981
MODELO #WCK52ABZ5NB
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m.
a 6 p.m., y los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
20 Lowes.com/harborbreeze
E206035
LISTED
For
Damp Location
REGISTRADO PAR A
LUGAR MOJADO
