Harbor Breeze ANIVA BAY User manual

Español p. 19
ITEM #0593755
MODEL #LP8321LAZ
ANIVA BAY CEILING FAN
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Lowes.com/harborbreeze
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB14225
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and
8 a.m. - 5 p.m., EST, Friday.
1

TABLE OF CONTENTS
3DFNDJH&RQWHQWV
Hardware Contents .......................................................................................................................
Safety Information .........................................................................................................................
3UHSDUDWLRQ
Assembly Instructions ...................................................................................................................
Wiring Instructions ........................................................................................................................
Final Assembly Instructions ..........................................................................................................
Operating Instructions ..................................................................................................................
Care and Maintenance .................................................................................................................
Troubleshooting ............................................................................................................................
Warranty .......................................................................................................................................
5HSODFHPHQW3DUWV/LVW
3
4
4
5
6
10
11
14
16
16
17
18
/RZHVFRPKDUERUEUHH]H
2

PACKAGE CONTENTS
J
B
A
L
F
G
C
D
H
I
K
Lowes.com/harborbreeze
E
YTITNAUQNOITPIRCSEDTRAPA
B
C
D
E
F
G
H
1
1
1
1
1
1
1
1
Motor Assembly
Hanger Bracket
Downrod Assembly
Ceiling Canopy
Canopy Screw Cover
Motor Coupling Cover
Blade Plate Assembly
End Cap
YTITNAUQNOITPIRCSEDTRAP I
J
K
L
3
3
1
1
Blade Cover
(preassembled to Motor
Assembly (A))
Blade
Remote Pack
Receiver Unit
(preassembled to Motor
Assembly (A))
2
H
3

HARDWARE CONTENTS (shown actual size)
Wire
Connector
Qty.
3 + 1 extra
CC
Lowes.com/harborbreeze
Fiber
Washer
Qty.
9 + 1 extra
BB
SAFETY INFORMATION
Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit
breakers.
'RQRWLQVWDOORUXVHIDQLIDQ\SDUWLVGDPDJHGRUPLVVLQJ
Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades
to the floor and at least 30 in. from the ends of the blades to any obstruction.
If you are mounting the fan to a ceiling outlet box, use a METAL octagonal outlet box, not plastic.
Secure the outlet box directly to the building structure. The outlet box and its support must be able
to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use. Before
cutting, drilling or hammering, verify their location. If needed, contact your electrician, plumber
or service person.
To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when
LQVWDOOLQJWKHPEDODQFLQJWKHEODGHVRUFOHDQLQJWKHIDQ'RQRWLQVHUWIRUHLJQREMHFWVEHWZHHQ
the rotating fan blades. Mount to outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and
use mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
7KLVIDQLVWREHXVHGLQGU\RUGDPSORFDWLRQV
'RQRWRSHUDWHWKLVIDQZLWKDYDULDEOH5KHRVWDWZDOOFRQWUROOHURUGLPPHUVZLWFK'RLQJVR
could result in damage to the ceiling fan's remote control unit.
WARNING
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
AA
Screw
Qty.
9 + 1 extra
4

SAFETY INFORMATION
Note: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
The net weight of this fan is: 19.02 lbs.
Make sure all electrical connections comply with local codes, ordinances or the National
Electrical code. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are
unfamiliar with installing electrical wiring.
After you install the fan, make sure all connections are secure to prevent the fan from falling.
For supply connections, if the conductor of a fan is identified as a grounded conductor, then it
should be connected to a grounded conductor power supply. If the conductor of a fan is identified
as an ungrounded conductor, then it should be connected to an ungrounded conductor power
supply. If the conductor of a fan is identified for equipment grounding, then it should be connected
to an equipment-grounding conductor.
CAUTION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
stripper and step ladder.
Helpful Tools (not included): AC tester light, do-it-yourself wiring handbook and wire cutters.
This fan is intended for standard and angled mounting options only. Closemount and flushmount
options are not available. For angled ceilings, note the angle can be no more than 19°.
PREPARATION
5

ASSEMBLY INSTRUCTIONS
/RZHVFRPKDUERUEUHH]H
2
3
C
A

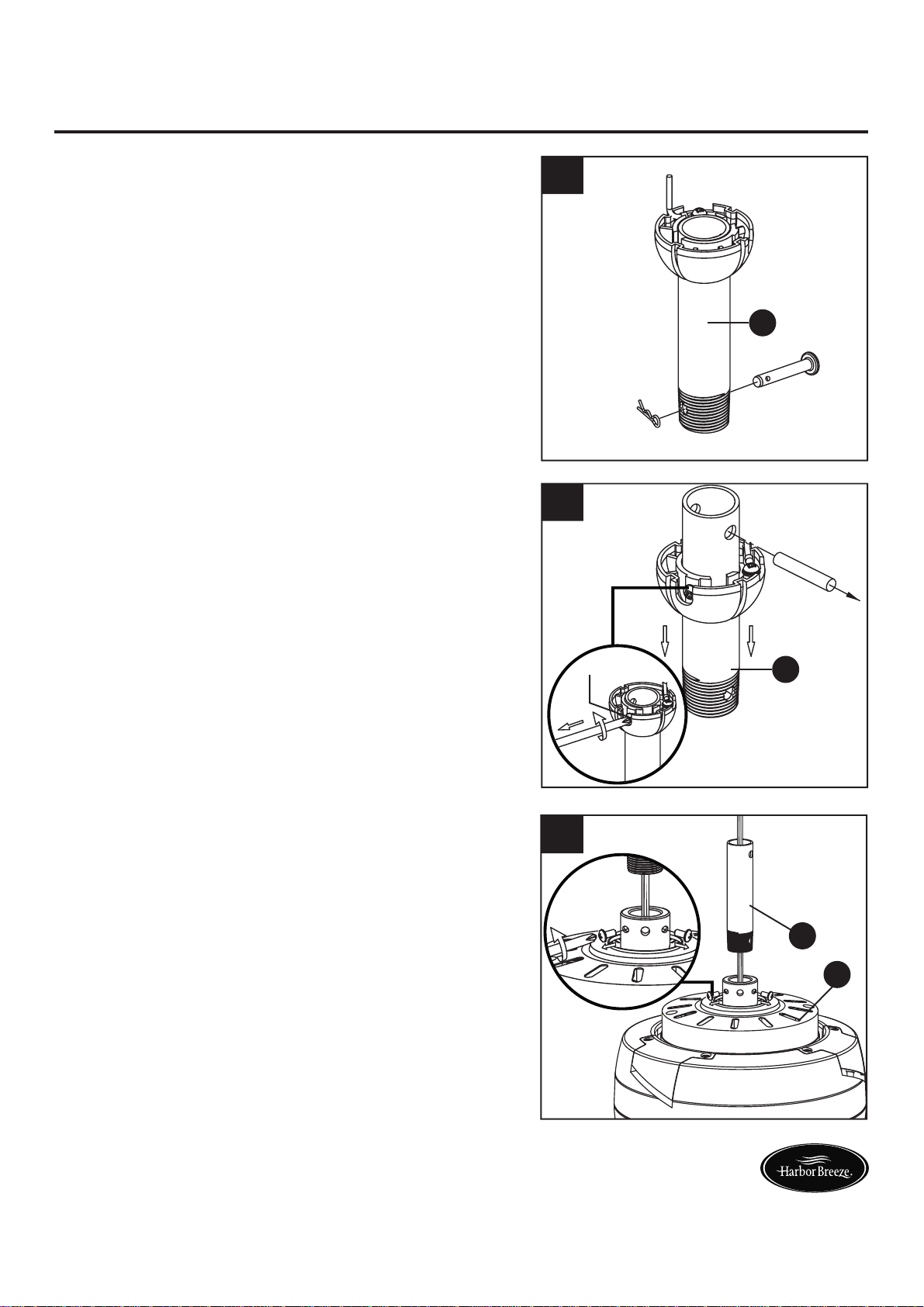

2. Remove the hanger ball portion from the
downrod assembly (C) by loosening the
preassembled set screw in the hanger ball until
the ball falls freely down the downrod. Remove
the preassembled pin from the downrod, then
remove the hanger ball. Retain the pin and
hanger ball for later use.
1
1. Remove the preassembled hairpin clip and
clevis pin from the bottom of downrod assembly
(C). Retain pin and clip for later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
C
C
/RRVHQWKHWZRSUHDVVHPEOHGVHWVFUHZVLQ
the downrod support of the motor assembly
(A). Retain the set screws for later use. Then,
route the black, white and blue wires from the
motor assembly (A) through the downrod.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
Set screw
6

ASSEMBLY INSTRUCTIONS
/RZHVFRPKDUERUEUHH]H
C
4. Thread the downrod into the downrod support
of the motor assembly (A). Align the holes in
the downrod support with the holes in the
downrod and re-install the previously removed
clevis pin (Step 1, page 6). Secure clevis pin
with previously removed hairpin clip (Step 1,
page 6). Then, re-install the previously
removed set screws (step 3, page 6) into the
downrod support.
5. Route motor coupling cover (F), canopy screw
cover (E) and ceiling canopy (D) over fixture
wires from motor assembly (A).
WARNING
It is critical the clevis pin in the downrod support
is properly installed and the set screws are
securely tightened. Failure to do so could result
in the fan falling and causing injury.
4
5
D
E
F
6. Re-attach the pin previously removed (Step 2,
page 6) into the downrod, then align the
hanger ball so the pin is captured in the
JURRYHDWWKHWRS3XOOWKHKDQJHUEDOOWLJKW
against the pin, then tighten the preassembled
set screw in hanger ball.
A loose set screw could result in a wobbly fan.
CAUTION
A
A
6
C
Set screw
7

WARNING
To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before
hanging.
WARNING
The fan must hang with at least 7 ft. of clearance from the floor to blades.
B
8. Securely attach the hanger bracket (B) to the
outlet box (not included) using the outlet box
screws and washers supplied with the outlet
box.
8
ASSEMBLY INSTRUCTIONS
/RZHVFRPKDUERUEUHH]H
7. Measure approximately 6 to 9 in. of lead wire
from the top of the downrod assembly (C),
WKHQFXWRIIWKHH[FHVV6WULSLQVXODWLRQRII
in. from the end of each lead wire.
7
C
Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice.
WARNING
The outlet box must be securely anchored.
Hanger bracket (B) must seat firmly against
outlet box. If the outlet box is recessed, remove
wallboard until hanger bracket (B) contacts box.
,IKDQJHUEUDFNHW%DQGRURXWOHWER[DUHQRW
securely attached, the fan could wobble or fall.
8

ASSEMBLY INSTRUCTIONS
/RZHVFRPKDUERUEUHH]H
9. Carefully lift the fan assembly, resting the
hanger ball of the downrod assembly (C) on
the hanger bracket (B).
Note: Be sure the groove in the hanger ball
is lined up with tab on the hanger bracket (B).
WARNING
Failure to seat tab in groove could cause damage
to electrical wires and possible shock or fire
hazard.
To avoid possible shock, do not pinch wires
between the downrod assembly (C) and hanger
bracket (B).
B
C
9
9

/RZHVFRPKDUERUEUHH]H
WIRING INSTRUCTIONS
1. Connect the green grounding wire from the
downrod assembly (C) and the green grounding
wire from the hanger bracket (B) to the supply
grounding conductor (this may be a bare wire or
wire with green colored insulation). Securely
connect wires with wire connector (CC).
Securely connect the white fan motor wire to the
white supply (neutral) wire using wire connector
(CC). Securely connect the black fan motor wire
to the black supply wire using wire connector
(CC).
Hardware Used
CC x 3
Wire
Connector
1
CC
CC
CC
CC
CB
Green Wire
from Supply
(Ground)
White Wire
from Supply
White Wire
from Fan
Green Wire
from Downrod
Assembly
(Ground)
Green
Wire
White
Wire
Green Wire
from Hanger
Ball (Ground)
/LVWHG
Outlet Box
Household
Supply
Black Wire
from Supply
Black Wire
from Fan
Black Wire
2. After connections have been made, turn wires
upward and carefully push wires into the outlet
box, with the white and green wires to one side
of the box and the black wires toward the
other side.
2
To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring
this fan.
WARNING
Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice.
WARNING
Check to see all connections are tight and no
bare wire is visible at the wire connectors
except for the ground wire.
10

1
D
2
FINAL ASSEMBLY INSTRUCTIONS
2. Securely attach and tighten the canopy
screw cover (E) over the shoulder screws in
the hanger bracket (B), utilizing the keyslot
twist-lock feature.
WARNING
To avoid possible fire or shock, make sure the
electrical wires are completely inside the canopy
housing and not pinched between the housing
and the ceiling.
/RZHVFRPKDUERUEUHH]H
E
A
I
1. Remove one of the two preassembled
shoulder screws in the hanger bracket (B).
/RRVHQWKHVHFRQGVKRXOGHUVFUHZZLWKRXW
fully removing it. Then, rotate ceiling canopy
(D) so second shoulder screw moves into the
small opening of the keyslot. Tighten shoulder
screw and re-install the previously removed
shoulder screw to secure ceiling canopy (D) to
hanger bracket (B).
3
3. Remove the preassembled screw from the
blade cover (I) on motor assembly (A). Repeat
for remaining blade covers (I). Retain the
screws for next step.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
11

FINAL ASSEMBLY INSTRUCTIONS
/RZHVFRPKDUERUEUHH]H
5
3ODFHWKHEODGHFRYHU,RYHUWKHEODGH-
making sure blade cover (I) is fully seated.
Secure with previously removed screws (Step
3, page 11).
Repeat Steps 4 and 5 for remaining blades (J).
IA
J
4
3RVLWLRQWKHEODGH-LQWRWKHVORWRIPRWRU
assembly (A).
A
J
6. Securely tighten the blades (J) at the bottom of
the motor assembly (A) using the screws (AA)
with the fiber washers (BB).
Hardware Used
AA Screw x 6
BB Fiber
Washer x 6 A
AA
BB
6
J
12

Hardware Used
AA 3xwercS
BB Fiber
Washer x 3
FINAL ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze

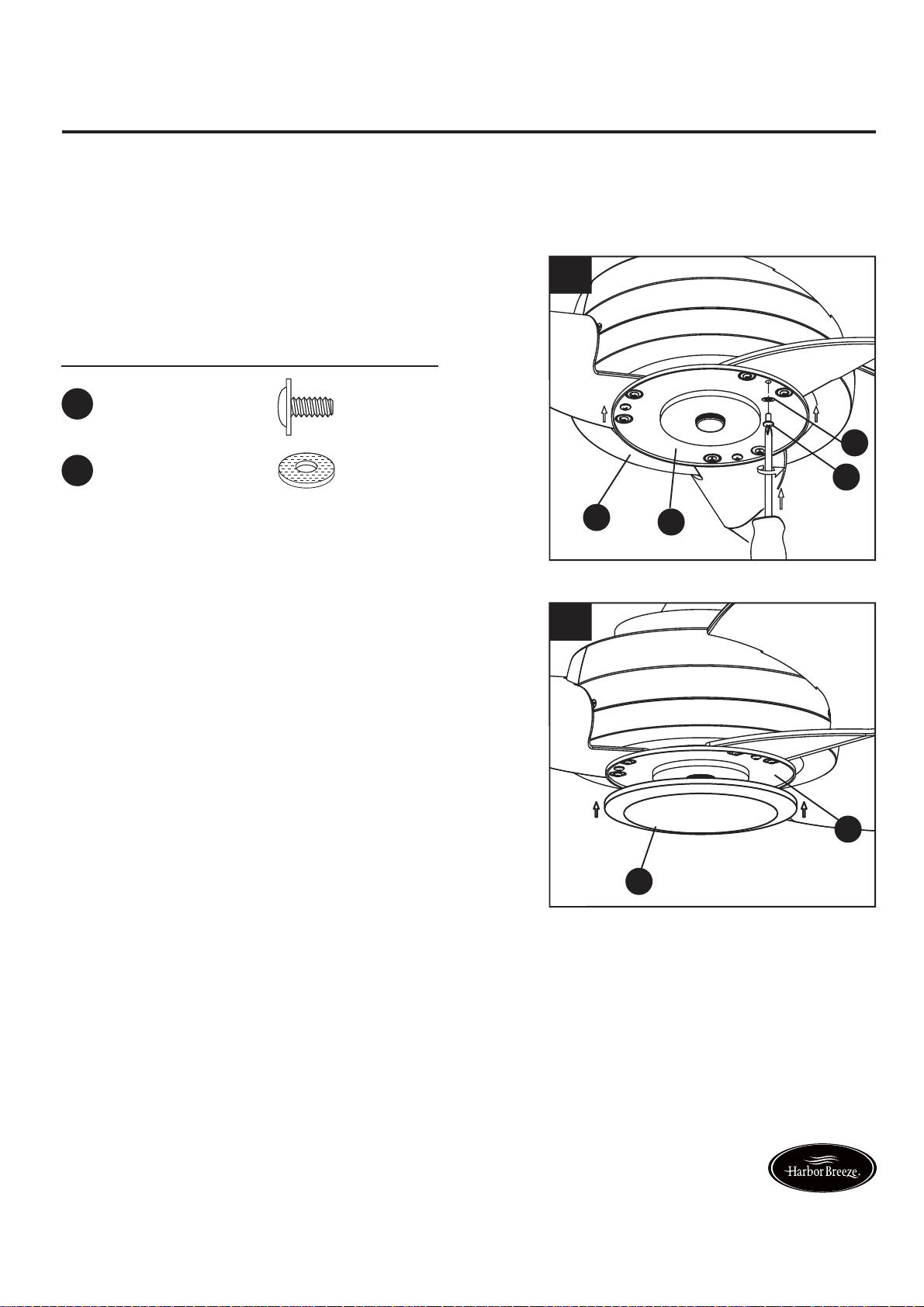

7. Assemble the blade plate assembly (G)
to the support bracket of motor assembly (A)
using screws (AA) with the fiber washers (BB).
AA
7
AG
8
8. Assemble end cap (H) to the blade plate
assembly (G).
H
G
Note: If you are installing the fan along with the Aniva Bay Light Kit (Item #0618000, sold separately),
disregard Step 7 and Step 8 and refer to the light kit's instruction manual for how to complete
assembly.
13
BB

OPERATING INSTRUCTIONS
1. Restore electrical power to the outlet box by
turning the electricity on at the main fuse box.
2.
1
ON
ON
ON
ON
ON
ON
ON
ON
22
14
WARNING
Do not operate this fan with a variable (Rheostat)
wall controller or dimmer switch. Doing so could
result in damage to the ceiling fan's remote control
unit.
3. Remove the battery cover from the remote in
remote pack (K) and install the battery from
remote pack (K). Ensure the polarity of the
battery matches the polarity in the battery
compartment.
Note:
IMPORTANT: Using a full range dimmer switch
(not included) to control fan speed will damage
the fan. To reduce the risk of fire or electrical shock,
do not use a full range dimmer switch to control the
fan speed.
When it is time to replace battery, use a
12-volt alkaline battery.
23
12V
CAUTION: If you are not expecting to use the
remote for a long period of time, remove it to
prevent damage. Be sure to store the remote
away from excess heat or humidity.
Remote
For illustrative purposes only-not
intended to cover all types of controls

4. The remote from the remote pack (K) has been
programed from the factory to work with your fan.
If you are installing more than one fan and do not want
the fans to interfere with each other, you will need to
follow these steps for this fan:
a) Inside the battery compartment, slide dip switch to “1”
and turn fan power OFF. Restore power to the fan.
two musical sounds, indicating the power supply is
normal.
b) Within 30 seconds of hearing the musical sounds,
of remote to synchronize it with the fan.
To verify successful synchronization, the ceiling fan light
will blink 3 times and remain ON, and the fan will rotate
on HIGH speed.
12V
ab
24
Remote
OPERATING INSTRUCTIONS
Sleep Timer:
2H: The fan will turn off after 2 hours.
4H: The fan will turn off after 4 hours.
8H: The fan will turn off after 8 hours.
During sleep timer mode, tap the power
button to cancel the function.
5
2
H
Remote
15
5. Remote functions:
The fan speed from 1-6, with 1 being the lowest and
6 being the highest
Fan speed:
= Natural breeze
:.p
indicator.
:
Turns the fan and light off after 1 minute.
During light delay mode, press any other key
to cancel the function.
Home Shield:
The fan is turned off with the light in the A-B-A cycle.
.
.
During home shield mode, press any other key
to cancel the function.
Reverse button:
Summer- Slide switch to the left and fan runs
counterclockwise. The airflow with normal
rotation cirulates cool air.
Winter- Slide switch to the right and fan rotates
clockwise. The airflow with reverse rotation
forces warm air downward.
dimming.

CARE AND MAINTENANCE
When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
$EUDVLYHFOHDQLQJDJHQWVDUHQRWUHTXLUHGDQGVKRXOGEHDYRLGHGWRSUHYHQWGDPDJHWRILQLVK
3HULRGLFOLJKWGXVWLQJRIWKHEODGHVLVUHFRPPHQGHG$IHDWKHUGXVWHUZLOOZRUNEHVW
$YRLGXVLQJZDWHUFOHDQVHUVRUKDUVKUDJVZKLFKFDQZDUSDQGUXLQWKHILQLVK
WARNING
Do not use water when cleaning the ceiling fan. It could damage the motor or the finish and
create the possibility of electrical shock.
3HULRGLFDOO\FKHFNWKDWWKHIDQPRWRUXQLWVFUHZVEODGHVFUHZVVXSSRUWKRXVLQJVFUHZVDUHWLJKW
and secure.
'RQRWLQVWDOORUXVHIDQLIDQ\SDUWLVGDPDJHGRUPLVVLQJ
/RZHVFRPKDUERUEUHH]H
TROUBLESHOOTING
4. Motor noise caused by solid state
variable speed control.
3. Wire connectors inside housing are
rattling.
1. Blades not attached to fan.
/RRVHVFUHZVLQPRWRUKRXVLQJ
1. Check main and branch circuit
fuses or circuit breakers.
2. Check line wire connections to
fan.
4. Some fan motors are sensitive
to signals from solid-state
variable speed controls.
Solid-state controls are not
recommended; choose an
alternative control method.
3. Check to make sure wire
connectors are secured tightly
inside housing.
1. Attach blades to fan before
operating.
2. Check to make sure all screws
in motor housing are snug
(do not overtighten).
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan will not start. 1. Fuse or circuit breaker blown.
2. /RRVHSRZHUOLQHFRQQHFWLRQV
3. Dead battery in remote control. 3. Replace with new battery.
to the fan.
Fan sounds noisy.
Fan wobbles
excessively. 1. Set screw in downrod support is
loose. 1. Tighten set screws securely in
downrod support.
WARNING
 Turn off main power before attempting any troubleshooting.
16

WARRANTY
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by affixing accessories not produced by
this warranty, are at the purchaser’s own responsibility. The manufacturer assumes no responsibility
whatsoever for fan installation during the lifetime limited warranty. Any service performed by an
unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover changes in finish, rusting, pitting,
tarnishing, corroding or peeling. Fan finishes maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department at
1-800-643-0067 for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is the sole responsibility of the purchaser.
There is no further expressed warranty. The manufacturer disclaims any and all implied warranties.
The duration of any implied warranty which can not be disclaimed is limited to the lifetime limited
period as specified in our warranty. The manufacturer shall not be liable for incidental, consequential
or special damages arising at or in connection with product use or performance except as may
otherwise be accorded by law. This warranty gives you specific legal rights and you also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
The manufacturer warrants this fan to be free from defects in workmanship and material present at
time of shipment from the factory. The warranty terms from the date of purchase. The motor has a
lifetime warranty, and a 2 year warranty for the light kit and all remaining components. This warranty
applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge
or, at our option, replace the ceiling fan with a comparable or superior model.
/RZHVFRPKDUERUEUHH]H
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Not enough air
movement.
Fan wobbles
excessively. 2. Set screw in downrod assembly is
loose.
4. Fan blades are out of balance.
3. Hanger bracket andRURXtlet box is
not securely fastened.
Too short of downrod.
2. Tighten the set screw in the
downrod assembly.
3. Tighten the hanger bracket
screws to the outlet box, and
secure outlet box.
4. Interchanging position of fan
blades can redistribute the
weight and result in a smoother
operation. For example,
exchange blades in positions 1
and 3 or 1 and 2.
If possible, consider using a
longer downrod (sold separately).
17

REPLACEMENT PARTS LIST
Printed in China
Lowes.com/harborbreeze
Harbor Breeze® is a registered
trademark of LF, LLC. All Rights
Reserved.
PART DESCRIPTION PART #
AMA8321LAZ
APGAC110RBL
ADRAC4GT1-45LAZ
P832101LAZ
APPAC1101LAZ
AP1115LAZ
AP832109BL
P832110LAZ
AP832105LAZ
AP832103N-HT8681
TR17
RECDC8321
HDWBM8321SSBL
HDWBM8321SSBL
HDWWNUTS4
Motor Assembly
Hanger Bracket
Downrod Assembly
Ceiling Canopy
Canopy Screw Cover
Motor Coupling Cover
Blade Plate Assembly
End Cap
Blade Cover
Blade
Remote Pack
Receiver Unit
Screw
Fiber Washer
Wire Connector
A
B
C
D
E
F
G
H
I
J
K
L
AA
BB
CC
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m.,
EST, Monday - Thursday and 8 a.m. - 5 p.m., EST, Friday.
A
L
I
H
C
E
F
D
K
GJ
B
CC
2
H
AA
AA
BB
BB
18

Harbor Breeze® es una marca registrada
de LF, LLC. Todos los derechos reservados.
VENTILADOR DE TECHO ANIVA BAY
ARTÍCULO #0593755
MODELO #LP8321LAZ
Lowes.com/harborbreeze
ADJUNTAR SU RECIBO AQUÍ
Número de serie Fecha de compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.
y los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
19

22
22
31
...................................................................................................................
...................................................................................................................................
..............................................................................................................
Preparación ...................................................................................................................................
iniciales ...........................................................................................
.............................................................................................................
..............................................................................................
...................................................................................................
..............................................................................................................
Solución de problemas ..................................................................................................................
.........................................................................................................................................
............................................................................................................

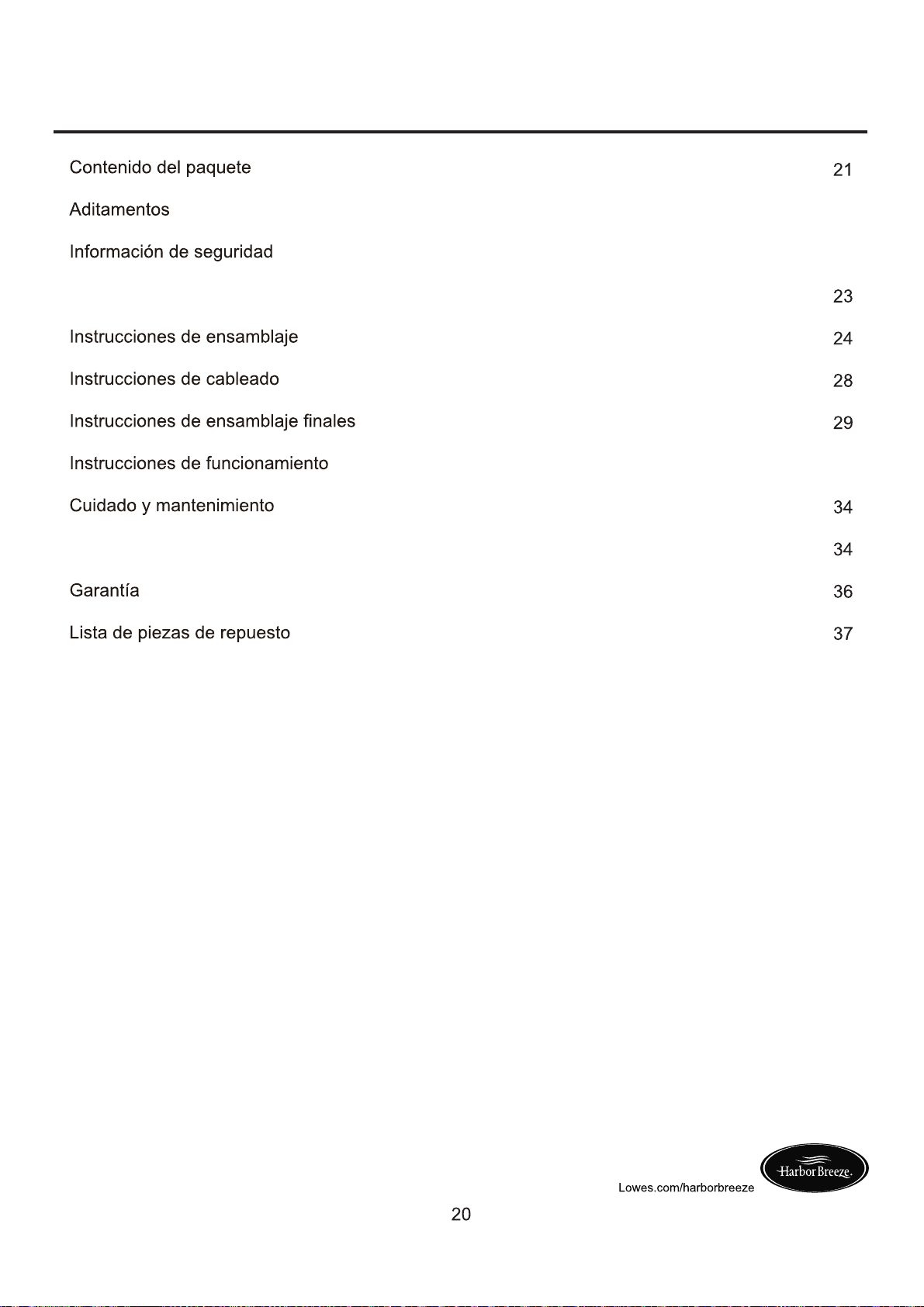

ÍNDICE
