Harbor Breeze MARINA COVE II User manual

1
4009218
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0275422
2889554
MODEL #JP18BZ3
JP18TI3
ATTACH YOUR RECEIPT HERE
Purchase Date
RR20391
Español p. 14
MARINA COVE II
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected] or visit www.lowespartsplus.com.

READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
2
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 21 lbs.
Safety Information ...............................................................................................................
Package Contents ...............................................................................................................4
Hardware Contents .............................................................................................................
Preparation ..........................................................................................................................
Assembly Instructions .........................................................................................................6
Operating Instructions ......................................................................................................
Care and Maintenance ......................................................................................................12
Troubleshooting .................................................................................................................12
Limited Lifetime Warranty ..................................................................................................13
2
5
5
11

SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, use the metal wall
mounting bracket provided with the fan. Secure the wall mounting bracket directly to the
building structure on a wood stud or wood post or beam. Do not install directly to drywall.
The wood stud or wood post and its support must be able to support the moving weight of the fan
(at least 50 lbs.). The stud or wood beam must be supported directly by the building structure. Do
NOT use any other wall mounting bracket other than the one provided.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of personal injury or electrical shock, the fan should be installed where it will be
out of reach of children. The fan is NOT a toy -- DO NOT play with the fan or allow anyone else to
play with the fan.
To reduce the risk of personal injury or electrical shock, do not operate the fan if the cord or plug
has been damaged.
To reduce the risk of fire, avoid the use of an extension cord. If an extension cord is used, it must
be UL- or ETL-listed; NEVER use more than one extension cord to operate the fan.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNING
CAUTION
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Due to the bulkiness of the fan assembly, it is advisable to seek the help of another person in order
to install the fan asembly in the safest, most efficient manner.

PACKAGE CONTENTS
A
E
D
B
C
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
4
F
G
H
I
J
A Fan Assembly 1
B Wall Mounting Bracket 1
C Front Cage 1
D Blade Assembly 1
E Back Cage 1
F Blade Assembly Nut 1
(preassembled)
G Back Cage Screw 3
(preassembled)
DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY
H Front Cage Screw 6
(preassembled)
I Pull Chain 1
(preassembled)
J Power Cord 1
(preassembled)
K Decorative Nut 1
(preassembled)
L Fuse (Included) 1
L
K

5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 90 minutes
Tools Required for Assembly (not included): Phillips Screwdriver, Drill, Drill Bit, Stud Finder, Flathead
Screwdriver, Pliers, Wrench, Safety Glasses, Tape Measure and Stepladder
Helpful Tools (not included): Level, Pencil, Do-It-Yourself and Wiring Handbook
DANGER: Make sure the wall mounting bracket is securely attached to the building structure and
can support the full weight of the fan. Failure to do this can result in serious injury or death.
After opening top of carton, remove mounting hardware package from foam inserts. Remove fan
assembly from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan assembly to ensure that they are
secured.
PREPARATION
Wood
Screw
Qty. 4
+ 1 extra
AA
HARDWARE CONTENTS (shown actual size)

3.
6

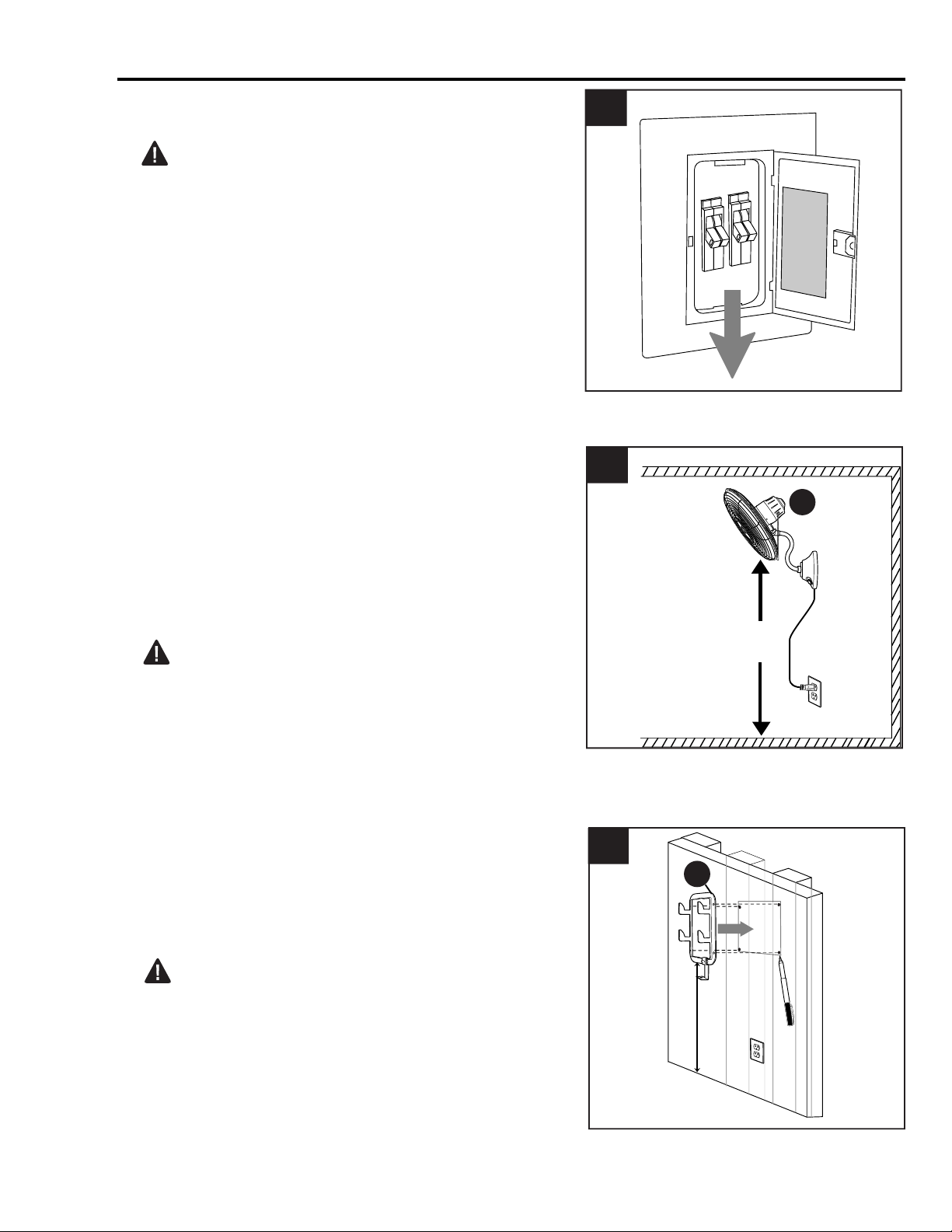

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
ASSEMBLY INSTRUCTIONS
ON
OFF
ON
OFF
2
1
7 ft
min.
This fan assembly (A) can only be mounted on an
indoor wall or on an enclosed porch or enclosed
patio wall.
To prevent personal injury and damage, ensure
that the hanging location allows the fan assembly
(A) a clearance of 7 ft. from the floor to prevent
accidental contact with the blade.
CAUTION: If you are going to attach the fan
assembly (A) to a wood stud or wood post, the
stud or wood post must be wide enough and thick
enough to sustain the wall mounting bracket (B)
and the weight of the fan assembly (A).
Determine the approximate position of where you
want the fan to be located on the wall. Then,
locate the stud in the wall. Position wall mounting
bracket (B) on wood stud or wood post and mark
the location of the four holes using a pencil or a
marker (not included).
WARNING: To reduce the risk of fire,
electrical shock or personal injury, use all four
mounting holes (two at the top and two at the
bottom) in wall mounting bracket (B) when
installing wall mounting bracket (B).
A
Stud
7 Ft.
3
B

7
Wood Screw x 4
Hardware Used
AA
Stud
4
AA
AA
B

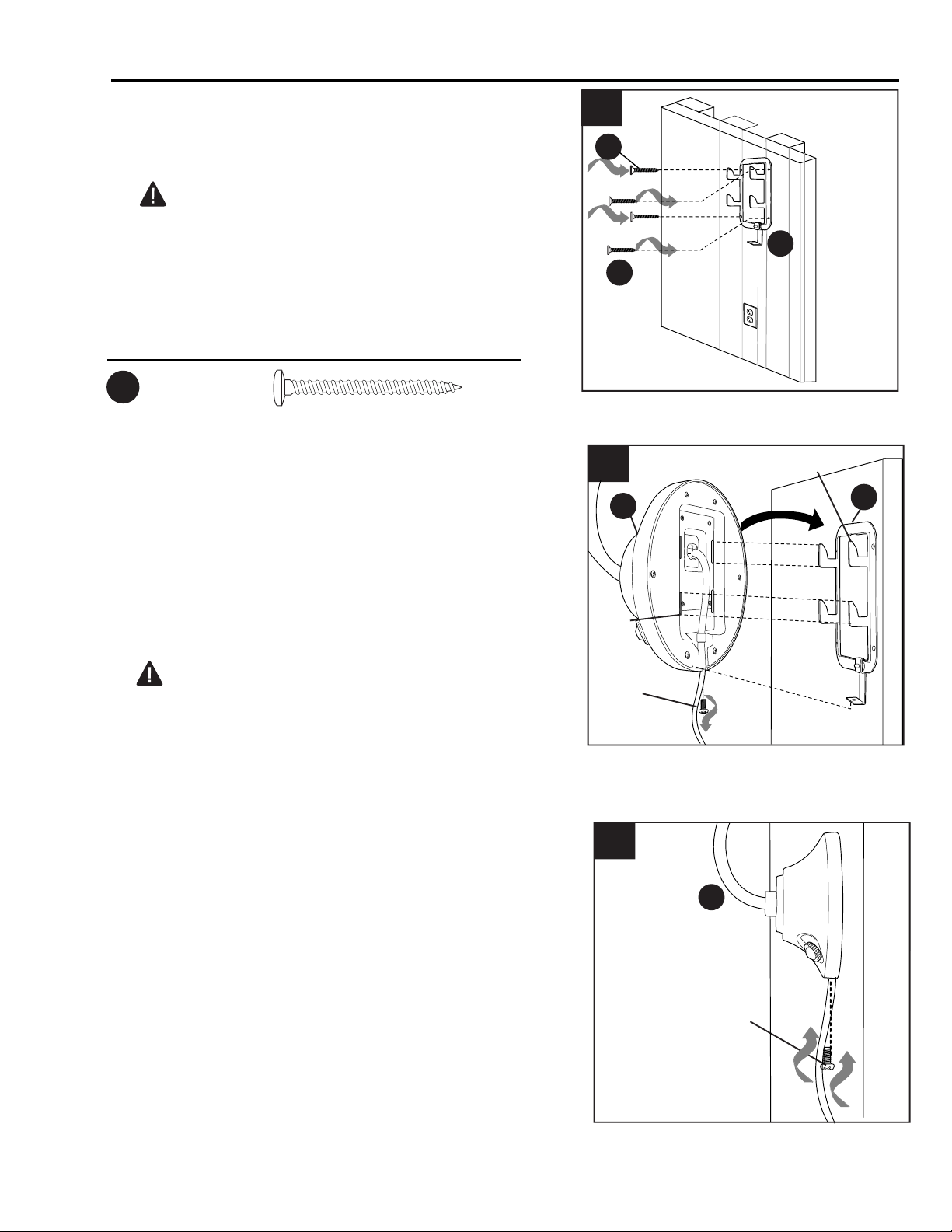

4. Use 3/32-in. drill bit (not included) to drill pilot
holes at marked locations. Then, install wall
mounting bracket (B) to mounting surface with
wood screws (AA).
WARNING: It is very important that you use
the proper hardware when installing the wall
mounting bracket (B) as this will support the fan
assembly (A).
5. Remove set screw at bottom of fan assembly (A).
With the wall mounting bracket (B) secured to the
wall and able to support the fan assembly (A), you
are now ready to hang the fan assembly (A).
Grab the fan assembly (A) firmly with two hands.
Align the four slots in the middle of the back of the
fan assembly (A) with the four hooks on the wall
mounting bracket (B) and then pull down firmly on
fan assembly (A).
WARNING: Failure to make sure all four
hooks on the wall mounting bracket (B) have
engaged completely with the four slots in the fan
assembly (A), and that the fan assembly (A) is
stable may result in injury or death.
ASSEMBLY INSTRUCTIONS
5
A
Slots
Hooks
B
Set
Screw
Replace set screw at bottom of fan assembly (A).
Tighten securely.
6. 6
A
Set
Screw

8
2
A
E

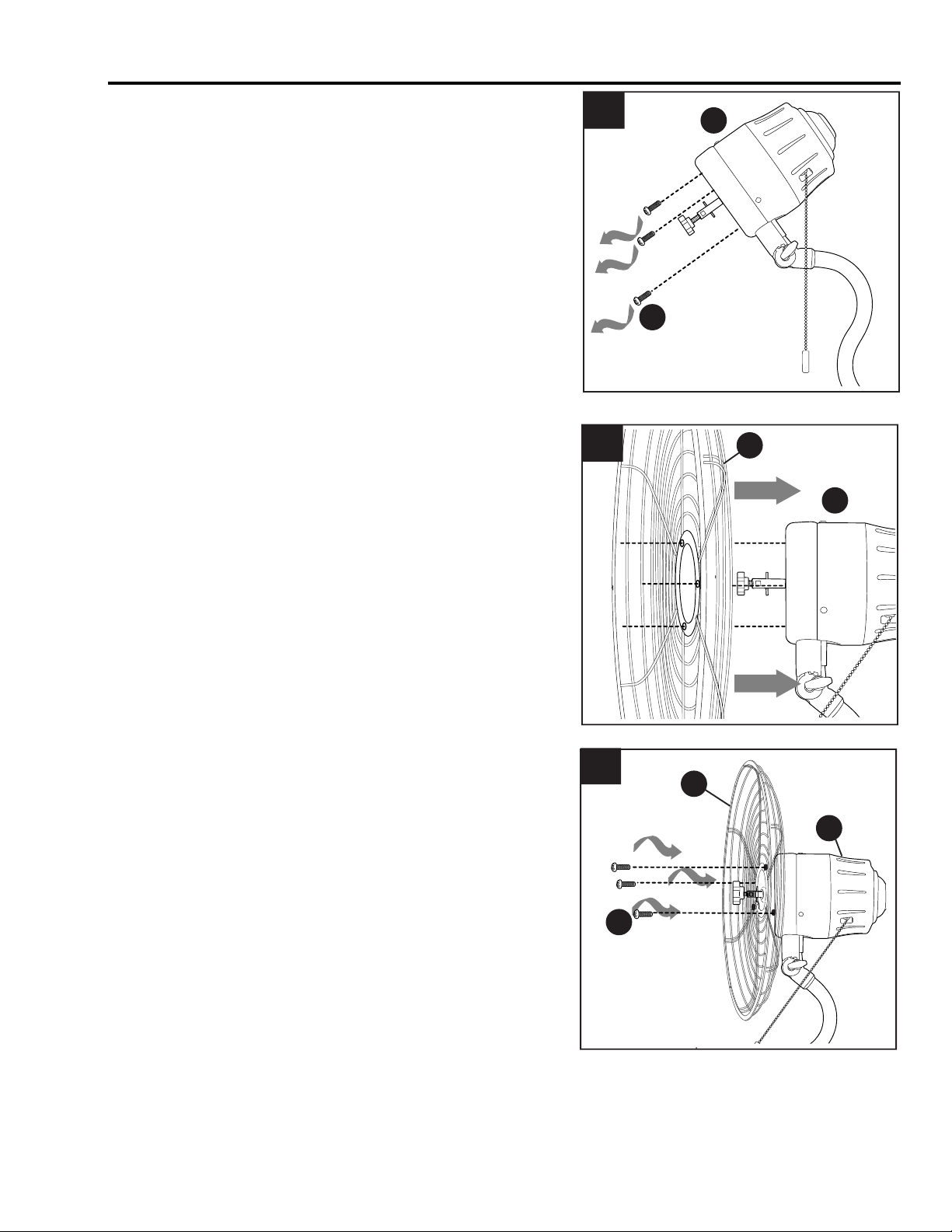

Install the three back cage screws (G)
previously removed into each of the three
holes in the center of the back cage (E) to
secure back cage (E) to motor on fan
assembly (A).
9. 9
7. 7
G
ASSEMBLY INSTRUCTIONS
Align the three holes on the outer edge of the
motor on fan assembly (A) with the three holes
in the center of the back cage (E).
8. 8
A
A
G
E
Remove the three back cage screws (G)
from the outer edge of the motor on fan
assembly (A)

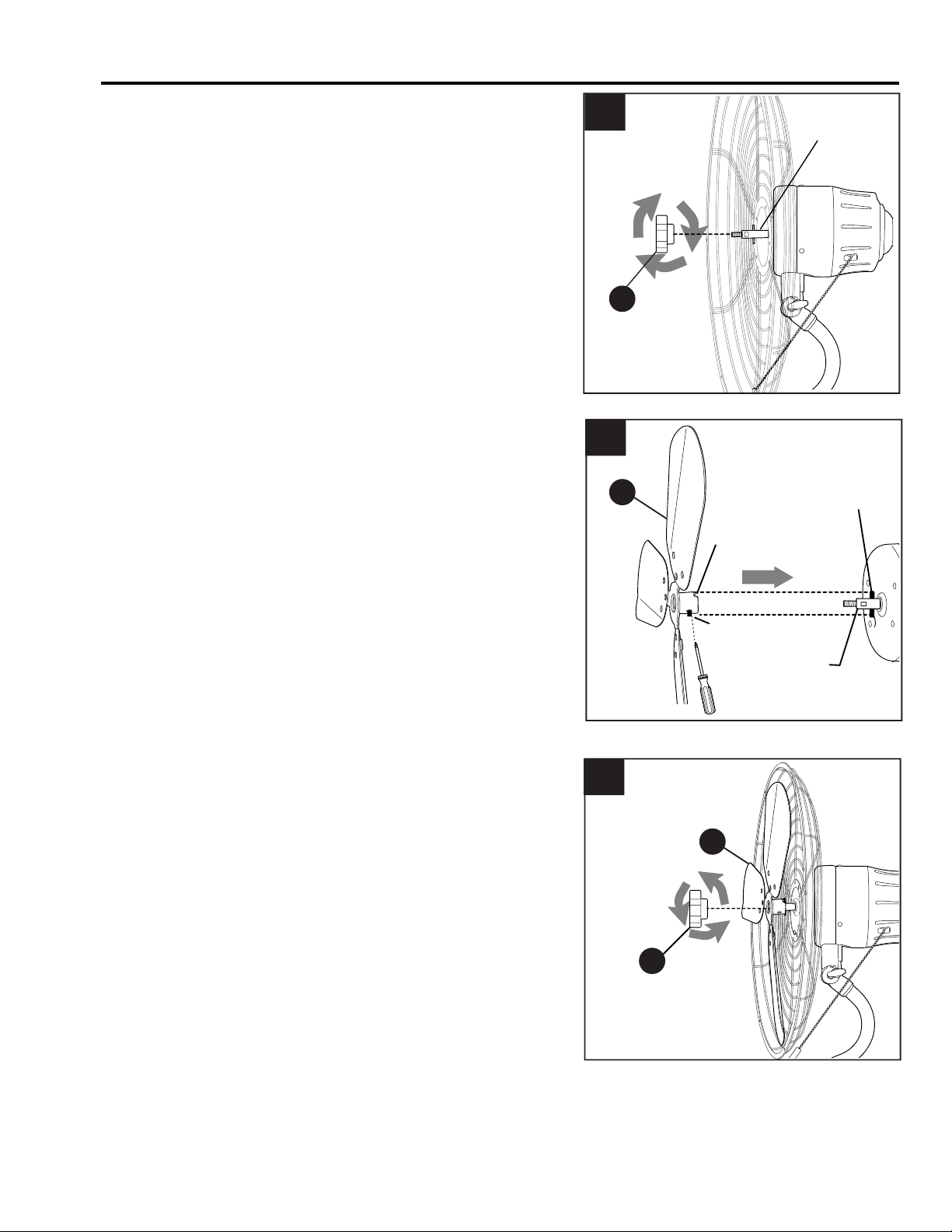

Turn blade assembly nut (F) clockwise to remove
from shaft on fan motor. 10
F
10.
CC
Re-attach blade assembly nut (F) into center of
blade assembly (D) and turn counterclockwise to
secure.
12.
9
D
F
12
Motor
ASSEMBLY INSTRUCTIONS
Partially loosen preassembled set screw on blade
assembly (D). Place blade assembly (D) over motor
shaft and lock pin, making sure to align gap on the
blade assembly (D) with lock pin on motor. Turn set
screw located on the blade assembly (D) clockwise
to secure blade assembly (D) to fan motor.
11.
D
Set
screw
11
Gap
Shaft
Lock
Pin
Shaft

Plug
Insert power cord (J) preassembled on fan
assembly (A) into proper wall outlet.
WARNING: The power cord is equipped
with a three-prong grounded plug that must
be inserted into a matching receptacle. Under
no circumstances must the grounding prong
be cut off the plug. Where a two-prong wall
receptacle is encountered, it must be
replaced with a properly grounded
three-prong receptacle installed in
accordance with the National Electrical Code
and all applicable local codes and
ordinances.This work must be done only by a
qualified electrician, using copper wire only.
C
13
Hook
H
E

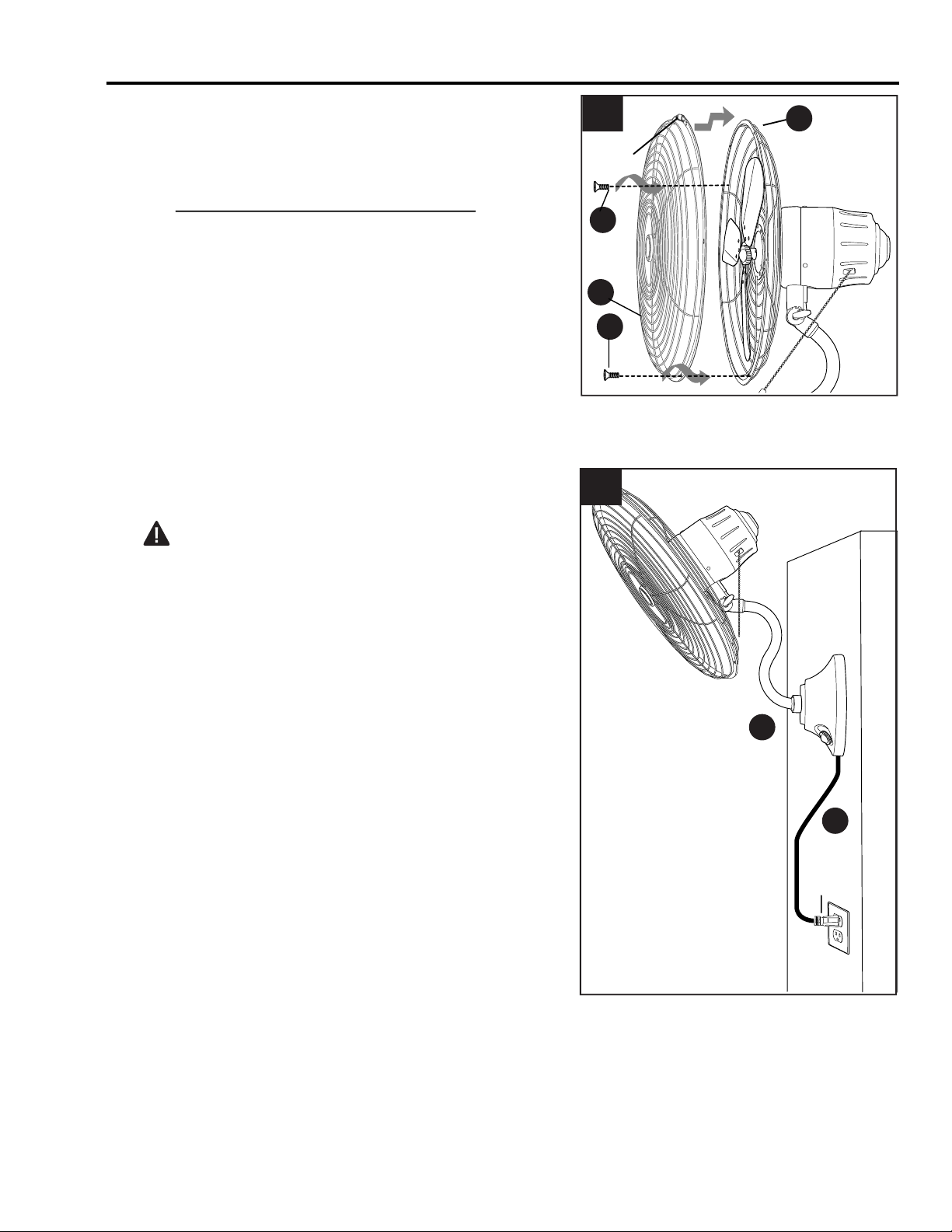

Remove all six front cage screws (H) from edge of
back cage (E).
Place hook at top of front cage (C) over edge at top
of back cage (E). NOTE: Make sure hook engages
and all front and back cage holes match up; this will
allow the front cage (C) and the back cage (E) to
hang together while you re-insert the front cage
screws (H) into the the front and back cage holes.
Insert front cage screws (H) into both holes at top of
front cage (C), then tighten. Insert remaining front
cage screws (H). Tighten front cage screws (H),
alternating from one side of front cage (C) to the
other until all front cage screws (H) are completely
secured.
13.
A
10
H
ASSEMBLY INSTRUCTIONS
14. 14
J

I
11
It is recommended you test the fan before finalizing
installation. Restore power from circuit box. Test
fan speeds with preassembled wall control. Start at
the Off position (no blade movement). One turn of
the dial will set the fan to HIGH (H). Two turns will
set the fan to MEDIUM (M). Three turns will set the
fan to LOW (L).
OPERATING INSTRUCTIONS
1.
2. 2
2
2
1
A
Test the oscillation function with the preassembled
pull chain (I). Pull the chain (I) to start and stop.
If fan does not function properly, please refer to
“Troubleshooting” section.
3. Use decorative nut (K) to adjust fan to the
desired position. The fan can be angled up or
down.
CAUTION: To avoid personal injury or damage to
the fan, the fan MUST BE TURNED OFF before
adjusting.
K
2
3

L
12

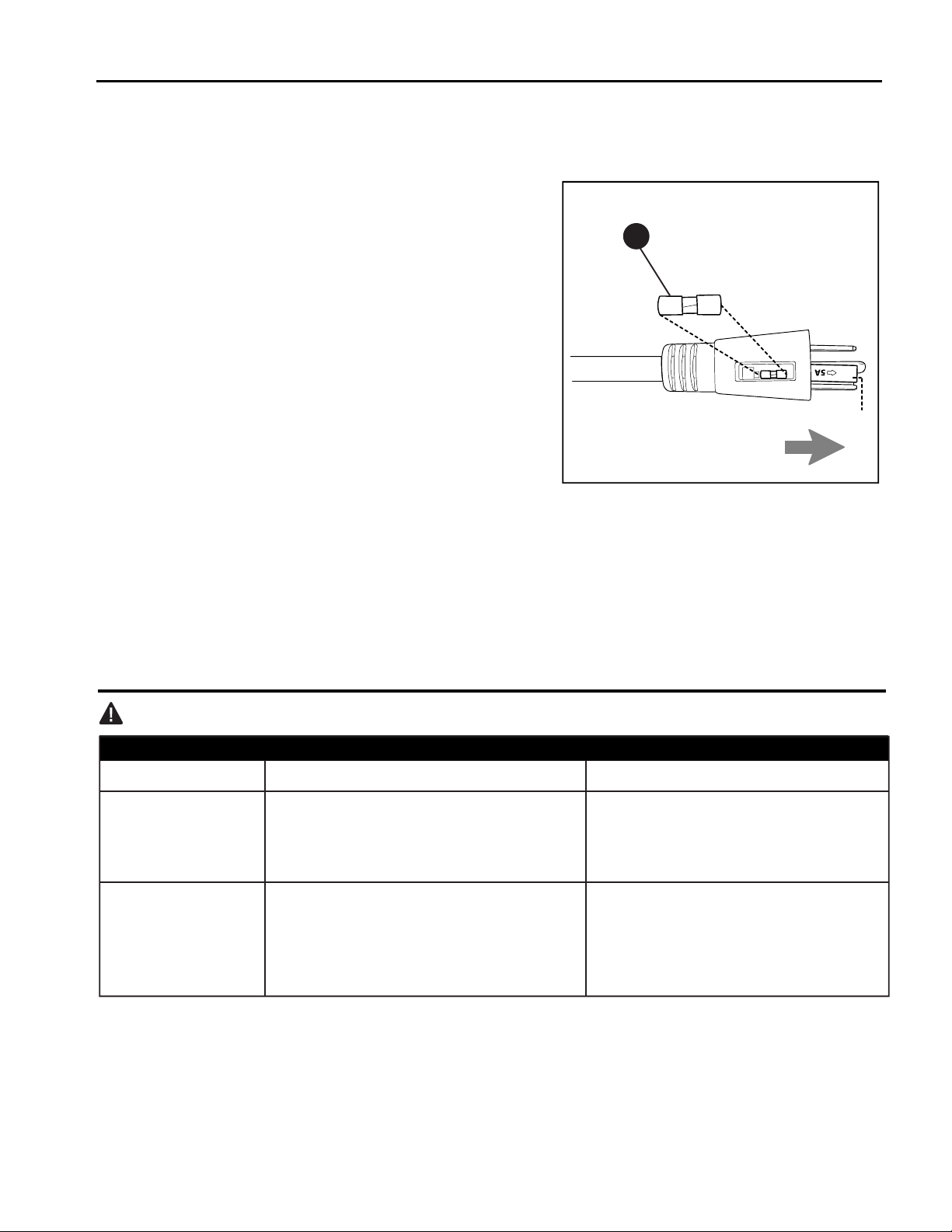

At least twice each year tighten all screws on fan assembly and front cage. Clean fan assembly with
only a soft brush or lint-free cloth to avoid scratching the finish.
IMPORTANT: Shut off main power supply before beginning any maintenance.
CARE AND MAINTENANCE
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. Power is off or fuse is blown. Turn power on or check fuse.
Noisy operation. Fan is new. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive
wobbling.
1. Fan not securely mounted.
2. Set screw on blade assembly is not
tightened properly.
1. Turn power off. Verify wall
mounting bracket is secure.
2. Remove front cage screws and
tighten blade assembly set screw
securely.
Plug
Fuse Cover
The three-prong plug is installed with a fuse (L)
that is a vital safety device. A filament inside the
fuse (L) is designed to melt and cut the circuit if
the current gets too high. This prevents damage
to your fan and the person using it and stops the
power cord from overheating to the point where it
could catch fire.
If you should need to replace the fuse (L), unplug
fan. Locate the fuse cover at end of the plug on
the power cord. Slide fuse cover open to expose
fuse. Using needle-nose pliers (not included),
remove fuse. Inspect fuse -- the small, glass tube
with metal on each end -- to determine whether it
will need to be replaced. [If the fuse (L) is blown,
it will look dark and smudged or the visible wire
inside will be broken.] Use a replacement fuse
with a rating of 5 amps,125 volts only, and insert
fuse in between the metal brackets inside the
fuse housing. Slide fuse cover shut.

13
LIMITED LIFETIME WARRANTY
Printed in China
JMLI2011
The distributor warrants this fan to be free from defects in workmanship and materials present at time of
shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to
the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace
the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling fan
by accident, misuse or improper installation, or by using parts not produced by the manufacturer of this
fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the limited
lifetime warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the date
of purchase. For the balance of the warranty, call our customer service department (at 1-888-251-1003)
for return authorization and shipping instructions so that we may repair or replace the ceiling fan. Any
fan or parts returned improperly packaged is/are the sole responsibility of the purchaser. There is no
further express warranty. The distributor disclaims any and all implied warranties. The duration of any
implied warranty which cannot be disclaimed is limited to the limited lifetime period as specified in our
warranty. The distributor shall not be liable for incidental, consequential or special damages arising at or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives you specific legal rights and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties.
