Harbor Breeze BATTLER E-LUK52HBB5LEDR User manual

ITEM #0206739
BATTLER CEILING FAN
MODEL #E-LUK52HBB5LEDR
1
Español p. 20
3170356
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday -
Thursday, 8 a.m. - 5 p.m., EST, Friday.
Lowes.com/harborbreeze
EB12185
Harbor Breeze® is a registered trademark of
LF, LLC. All Rights Reserved.

2
Safety Information ....................................................................................................................... 2
Package Contents ....................................................................................................................... 4
Hardware Contents ..................................................................................................................... 5
Preparation ................................................................................................................................. 5
Initial Installation ......................................................................................................................... 6
Fan Mounting .............................................................................................................................. 7
Wiring ......................................................................................................................................... 9
Final Installation ..........................................................................................................................11
Automated Learning Process/Activating Code ...........................................................................14
Operating Instructions for Remote Control and Fan ...................................................................15
Care and Maintenance ...............................................................................................................17
Troubleshooting ..........................................................................................................................17
Warranty .....................................................................................................................................18
Replacement Parts List ..............................................................................................................19
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook, available at Lowe's, if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 22 lbs. (10 kg).
TABLE OF CONTENTS
Lowes.com/harborbreeze

SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 15.9 KG (35 LBS.) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
WARNINGS
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION - Risk of Fire and Electric Shock: Do Not Repair or Service This Light Kit. The light
source is designed for this specific application and can overheat if serviced by untrained personnel.
If any servicing is required, call 1-800-527-1292 for return authorization and shipping instructions.
Lowes.com/harborbreeze

IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
L Canopy Mounting Screw 2
(preassembled)
M Glass Shade 1
N Shade Fitter 1
O Remote Control 1
Transmitter
P 12-volt Battery
1
Q Fitter Plate Screw 3
(preassembled)
R Shade Fitter Screw 3
(preassembled)
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Yoke Cover 1
E Motor Housing 1
F Blade Arm 5
G Blade 5
H Light Kit 1
I Canopy Cover 1
J Pin (preassembled) 1
K Clip (preassembled) 1
A
E
D
B
F
I
J
G
P
K
12V Size A23
C
O
Q
L
4Lowes.com/harborbreeze
H
N
R
M

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook and
Wire Cutters
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.
PREPARATION
Fiber
Blade
Washer
Qty. 15
+ 1 extra
BB CC
AA
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 4
DD EE
Motor
Screw
Qty. 10
+ 1 extra
Lock
Washer
Qty. 10
+ 1 extra
5Lowes.com/harborbreeze

INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Determine mounting method to use.
A. Normal mount
B. Angle mount
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
2.
Check to make sure blades (G) are at least 30 in.
from any obstruction. Check downrod (A) length to
ensure blades (G) are at least 7 ft. above the floor.
3.
ON
OFF
ON
OFF
1
6Lowes.com/harborbreeze
A
2
B
3
G
3
7 ft.
min.
30 in.
min.

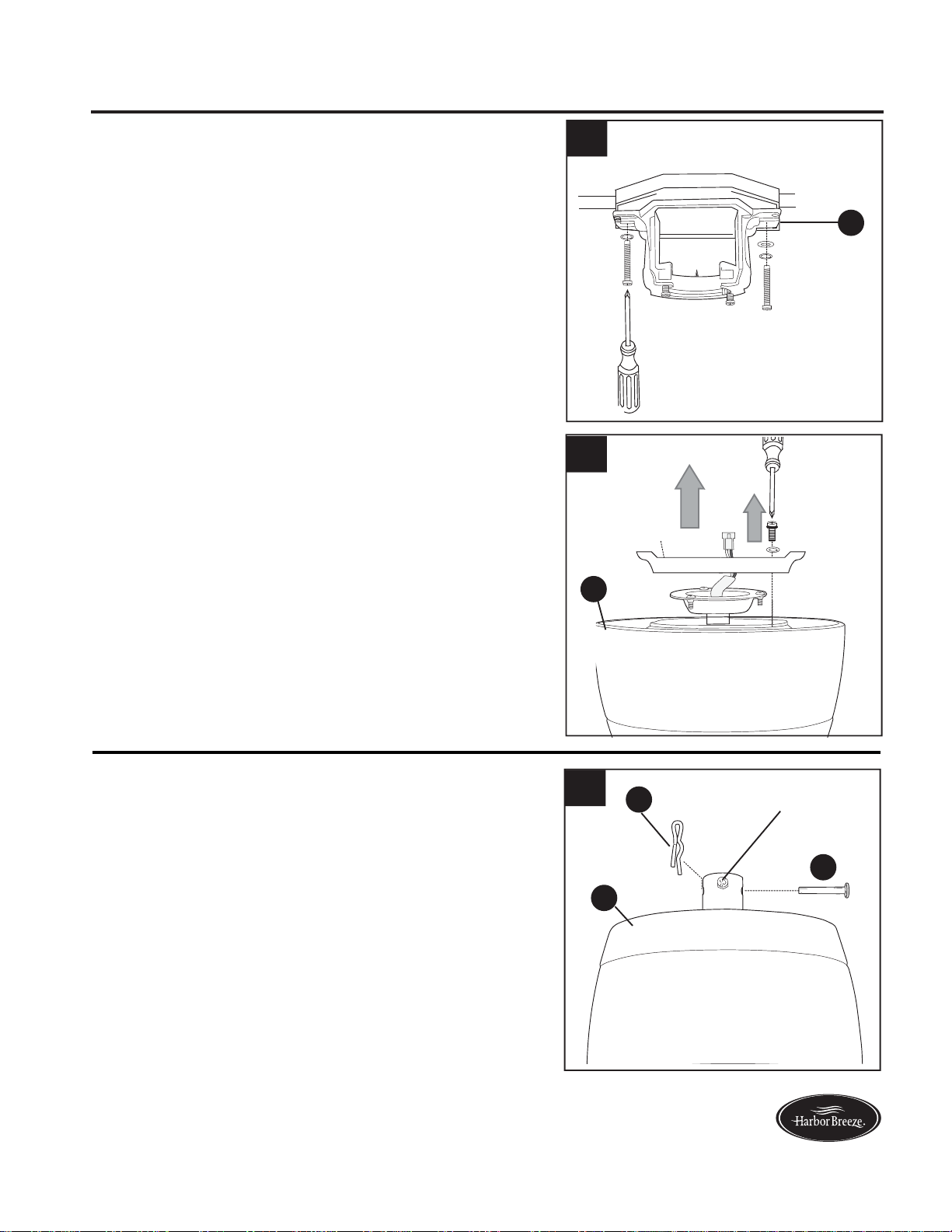

Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers, and flat
washers provided with the outlet box.
*NOTE: It is very important that you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (C) is installed
facing the higher point of the ceiling.
4.
5. Remove five screws and lock washers from
underside of motor in order to remove motor
stabilization plate. Motor stabilization plate may be
discarded.
FAN MOUNTING
1.
INITIAL INSTALLATION
4
2
Remove pin (J) and clip (K) from motor housing
yoke at top of motor housing (E) and partially
loosen preassembled set screws.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. (2.44 m) high or higher. For
taller ceilings you may want to use a longer
downrod (not included) than the one provided.
Angle style mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance.
2
5
Set
Screw
1
motor
stabilization
plate
7Lowes.com/harborbreeze
C
E
K
E
J

FAN MOUNTING

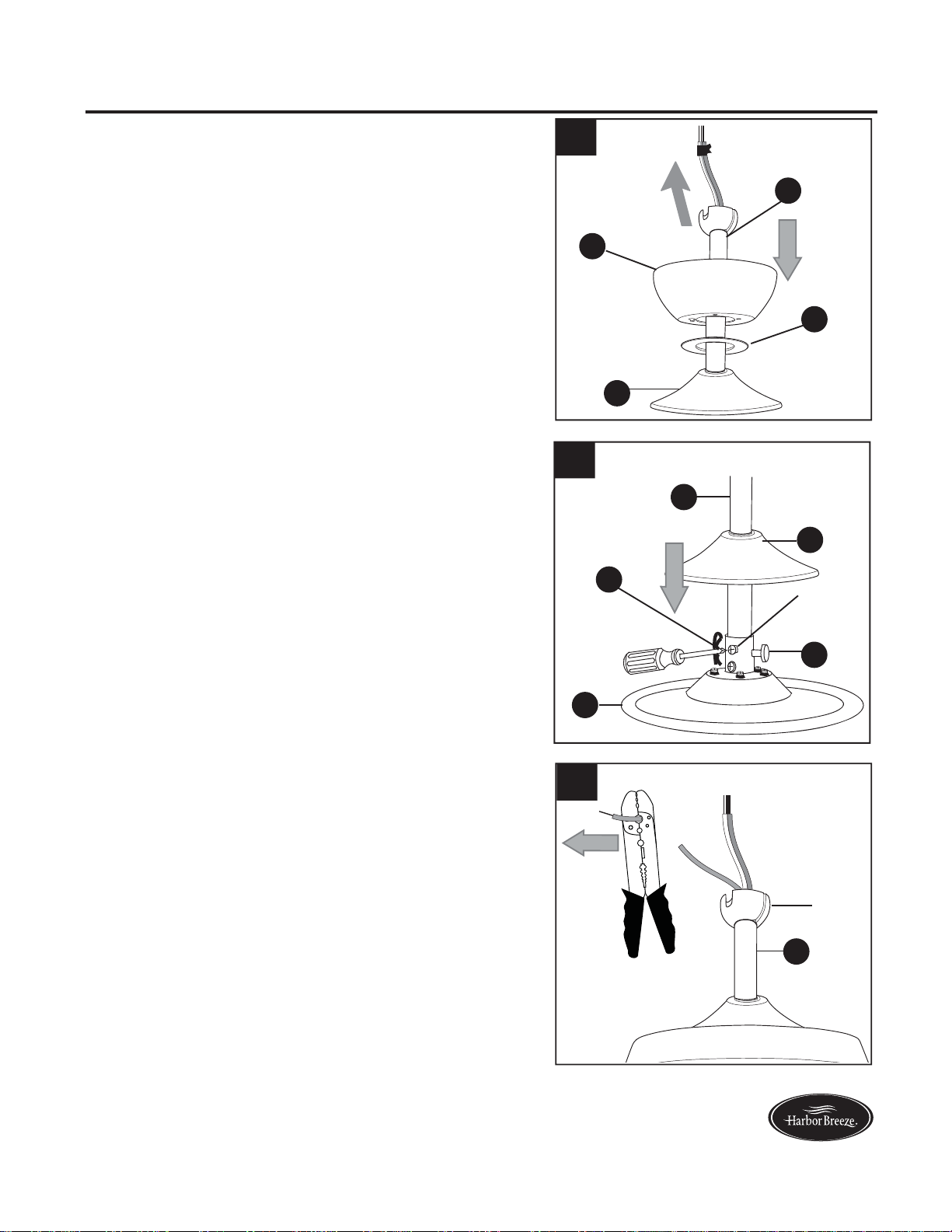

Depending on the length of downrod (A) you
use, you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested that you do so in the
following manner:
Take the lead wires and make sure that you
have pulled them all the way through the top of
the downrod (A). Start at the TOP of the ball on
the downrod (A) and measure 8 in. of lead wire,
and then cut the excess wire off with wire
cutters.
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2. Insert downrod (A) through canopy (B), canopy
cover (I) and yoke cover (D). [NOTE: Canopy
cover (I) must be turned with the shiny side
toward the motor housing (E).] Thread wires
from motor housing (E) through downrod (A).
3. Slip downrod (A) into housing yoke, align holes
and re-install pin (J) and clip (K). Tighten
downrod (A) set screws and then tighten nuts.
Slide yoke cover (D) down until it rests on top of
motor housing (E).
Set
Screw
3
2
Ball
A
4
8Lowes.com/harborbreeze
B
A
D
D
A
I
K
A
J
E

If you decided to cut back the lead wires in Step 4,
strip a 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers. Repeat Step 5 for black,
blue (if applicable) and green wires.
5
5.
FAN MOUNTING
Install ball end of downrod (A) into mounting
bracket (C) opening. Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may result in serious injury or death.
6.
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided with
this fan are designed to accept only one 12-gauge
house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more
than one house wire to connect to the corresponding
fan lead wires, consult an electrician for the proper size
wire connectors to use.
CAUTION: Be sure outlet box is properly grounded
and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than
referred to in the following steps, stop immediately. A
professional electrician is recommended to determine
wiring.
WIRING
6
Hanging
Ball Slot
Tab
9Lowes.com/harborbreeze
B
C
A

NOTE: Black wire is hot power for fan. White
wire is common for fan and light kit. Green or
bare wire is ground.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of
box from the black connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
CC
2.
1
2
3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
IMPORTANT: Using a full range dimmer switch to
control fan speed will cause a loud humming noise
from fan. To reduce the risk of fire or electrical shock,
do NOT use a full range dimmer switch to control fan
speed.
3.
2
3
1.
WIRING
[NOTE: For each wire connection below, and use
one of the wire connectors (CC), making sure to
screw wire connector (CC) on in a clockwise
direction.]
Connect BLACK wire from fan to BLACK wire
from ceiling. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on downrod and
mounting bracket) to BARE/GREEN wire from
ceiling.
CC CC
1
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
WHITE
FROM FAN
120 V Power
FROM
CEILING
FAN
GREEN
BLACK
GREEN
10 Lowes.com/harborbreeze
CC CC
CC
Hardware Used
E3 Wire Connector x4
CC

FINAL INSTALLATION
1.
Partially insert three blade screws (AA), along with
three fiber blade washers (BB), to attach one
blade arm (F) to a blade (G). Then, tighten each
blade screw (AA) starting with the one in the
middle. Repeat with remaining blades (G).
2.
Locate two canopy mounting screws (L) on
underside of mounting bracket (C) and remove
canopy mounting screw (L) closest to the open end
of the mounting bracket (C). Partially loosen the
other canopy mounting screw (L). Lift canopy (B) to
mounting bracket (C). Place rounded part of slotted
hole in canopy (B) over loosened canopy mounting
screw (L) in mounting bracket (C) and push up. Twist
canopy (B) to lock. Re-insert canopy mounting screw
(L) that was removed, and then tighten both canopy
mounting screws (L). Slide canopy cover (I) up to
canopy (B), aligning rounded part of slotted holes in
canopy cover (I) with screwheads in bottom of
canopy (B). Turn canopy cover (I) to the right
(clockwise) until it stops.
Locate motor screws (DD) and lock washers (EE) in
one of the hardware packs.
Insert two motor screws (DD), along with lock
washers (EE), through one blade arm (F) to attach
blade arm (F) to motor. Tighten motor screws (DD)
securely. Repeat with remaining blade arms (F),
making sure to completely secure each blade arm
(F) before proceeding with the next.
3. 3
1
2
11 Lowes.com/harborbreeze
AA
BB
B
L
AI
G
F
F
G
EE
DD
Hardware Used
Blade Screw x15
AA
Fiber Blade
Washer x15
BB
Hardware Used
Motor Screw x10
Lock Washer x10
DD
EE

5. Remove three shade fitter screws (R) from outer
ring of shade fitter (N).
FINAL INSTALLATION

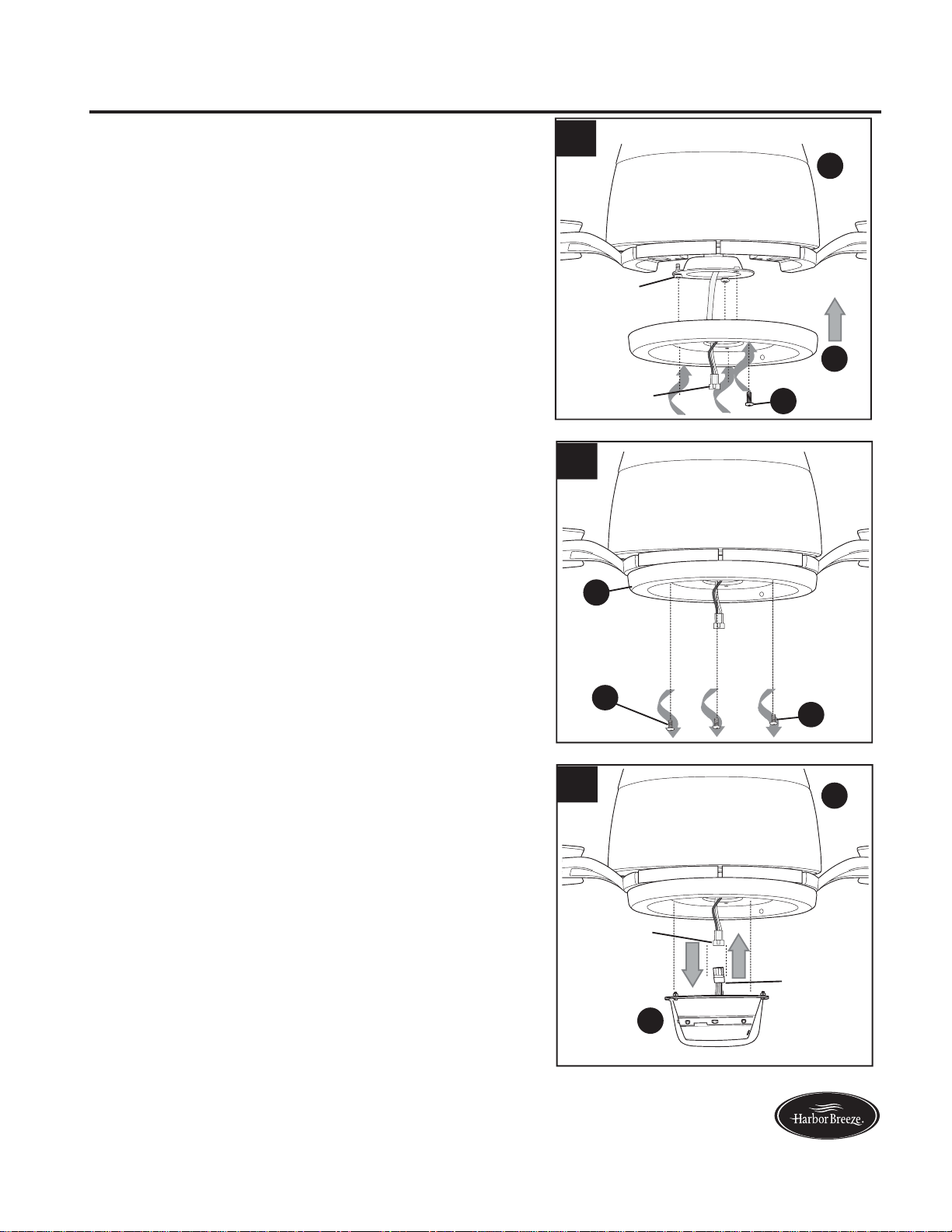

4. Remove one fitter plate screw (Q) from fitter plate
(on underside of motor) and loosen the other two
fitter plate screws (Q). Align slotted holes in middle
of shade fitter (N) with loosened fitter plate screws
(Q), allowing male plug from motor housing (E) to
come through hole in middle of shade fitter (N).
Twist shade fitter (N) to lock. Re-insert fitter plate
screw (Q) that was just removed, and then tighten
all three fitter plate screws (Q) securely.
6. Connect male plug from motor housing (E) to
female plug from light kit fitter (H), matching up the
colors on the male plug with the colors on the
female plug for correct fit. Make sure plugs
connect tightly.
5
Fitter
Plate
4
6
Male
Plug
Male
Plug
Female
Plug
12 Lowes.com/harborbreeze
E
N
Q
N
RR
E
H

FINAL INSTALLATION

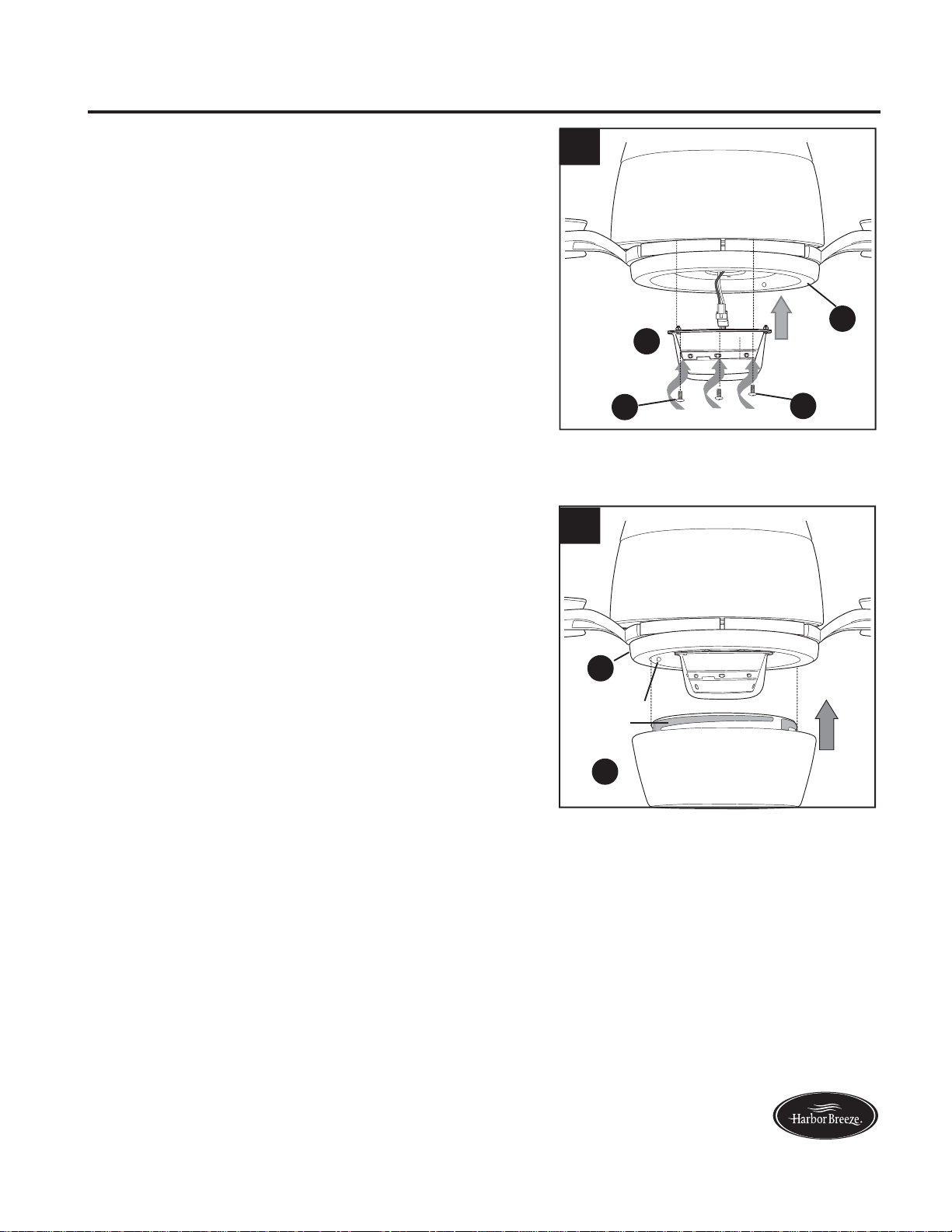

Align holes in light kit (H) with holes in shade
fitter (N). Re-insert shade fitter screws (R) that
were previously removed. Securely tighten all
three shade fitter screws (R) but do NOT
overtighten shade fitter screws (R) as
protective cover on light kit (H) may crack or
break.
7.
Align openings in grooves of glass shade (M)
with small protrusions on the inside of the shade
fitter (N) and turn glass shade (M) to the right
(clockwise) until it no longer turns.
Pull down very gently on the glass shade (M) to
make sure that it is securely attached.
8. 8
grooves
protrusion
7
13 Lowes.com/harborbreeze
M
R
N
H
R
N

AUTOMATED LEARNING PROCESS/ACTIVATING CODE
2. Restore electrical power. Within 30 seconds of
restoring electrical power, press the “ ” button on
the front of the remote control transmitter (O) for 5
seconds or until light on the fan blinks twice.Use the
remote control to test the light and fan functions (see
operating instructions on pages 15 and 16) to
confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter (O), remove the battery (P) if not used for
long periods. Store the remote control transmitter
(O) away from excess heat or humidity.

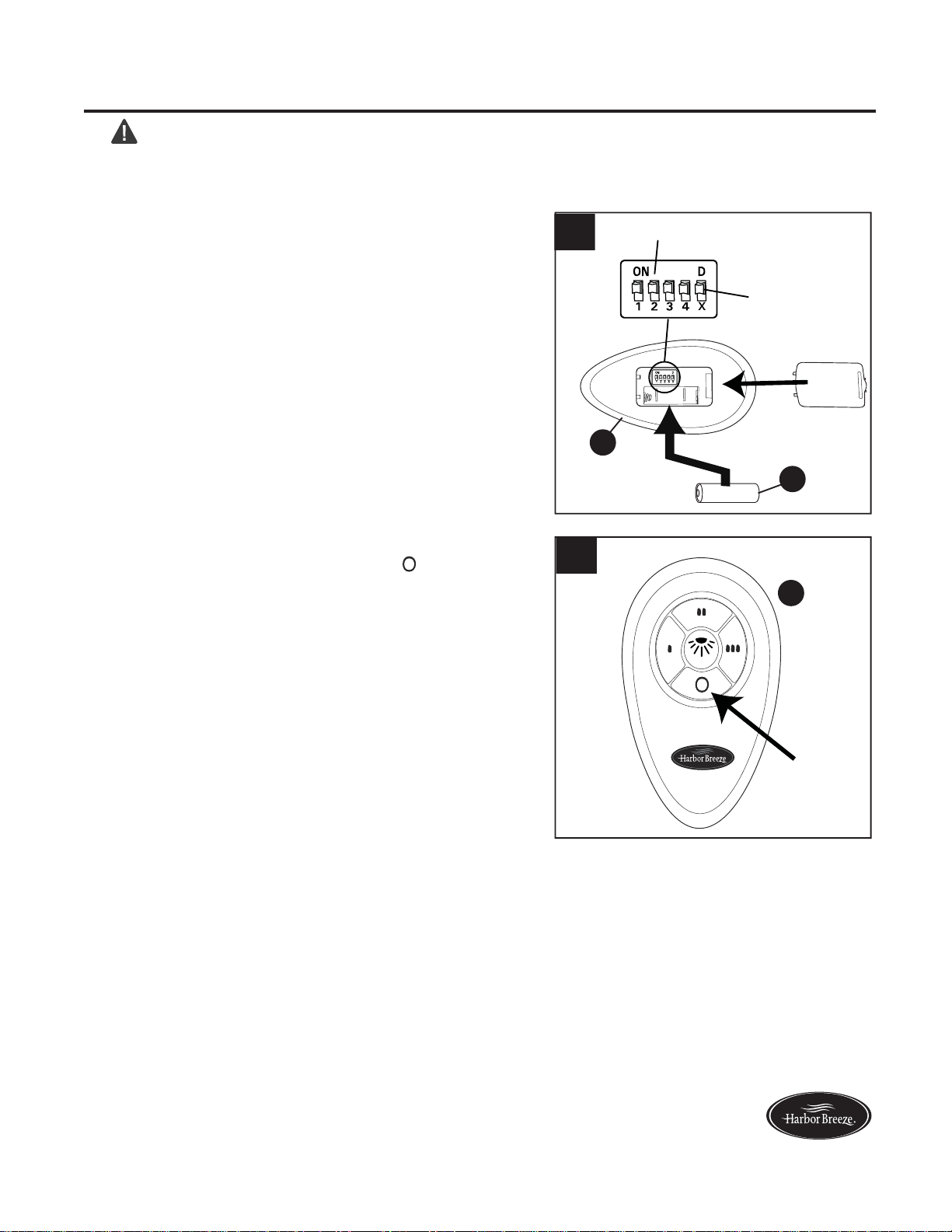

Remove battery cover from back side of remote
control transmitter (O).
Locate dimmer switch located to the right of the code
switches--dimmer switch is labeled with a “D” and an
“X”. Dimmer switch is pre-set to the “OFF” [X]
position. Most LED bulbs, including the LED bulbs
provided with this fan, are not compatible for use
with dimmer controls; therefore, the dimmer switch
must remain in the “OFF” [X] position.
Install the 12-volt battery (P) and then replace
battery cover on remote control transmitter (O).
1.
(back side)
CAUTION: The remote control transmitter (O)
can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other
programmable receiver or fan.
Dimmer
Switch
1
2
Code Switches
Battery
Cover
(front)
14 Lowes.com/harborbreeze
O
P
O

1.
15 Lowes.com/harborbreeze
AUTOMATED LEARNING PROCESS/ACTIVATING CODE
OPERATING INSTRUCTIONS FOR REMOTE CONTROL AND FAN
1
O
Operation buttons on the panel of the remote
control transmitter (O):
button for fan HIGH speed
button for fan MEDIUM speed
button for fan LOW speed
button for turning fan OFF
button to turn light ON or OFF
IMPORTANT: Turn fan off at wall switch and let
blades (G) come to a complete stop before
manually activating the reverse switch.
Modifications not approved by the party responsible
for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment
and receiver.
* Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.

2C
OPERATING INSTRUCTIONS FOR REMOTE CONTROL AND FAN

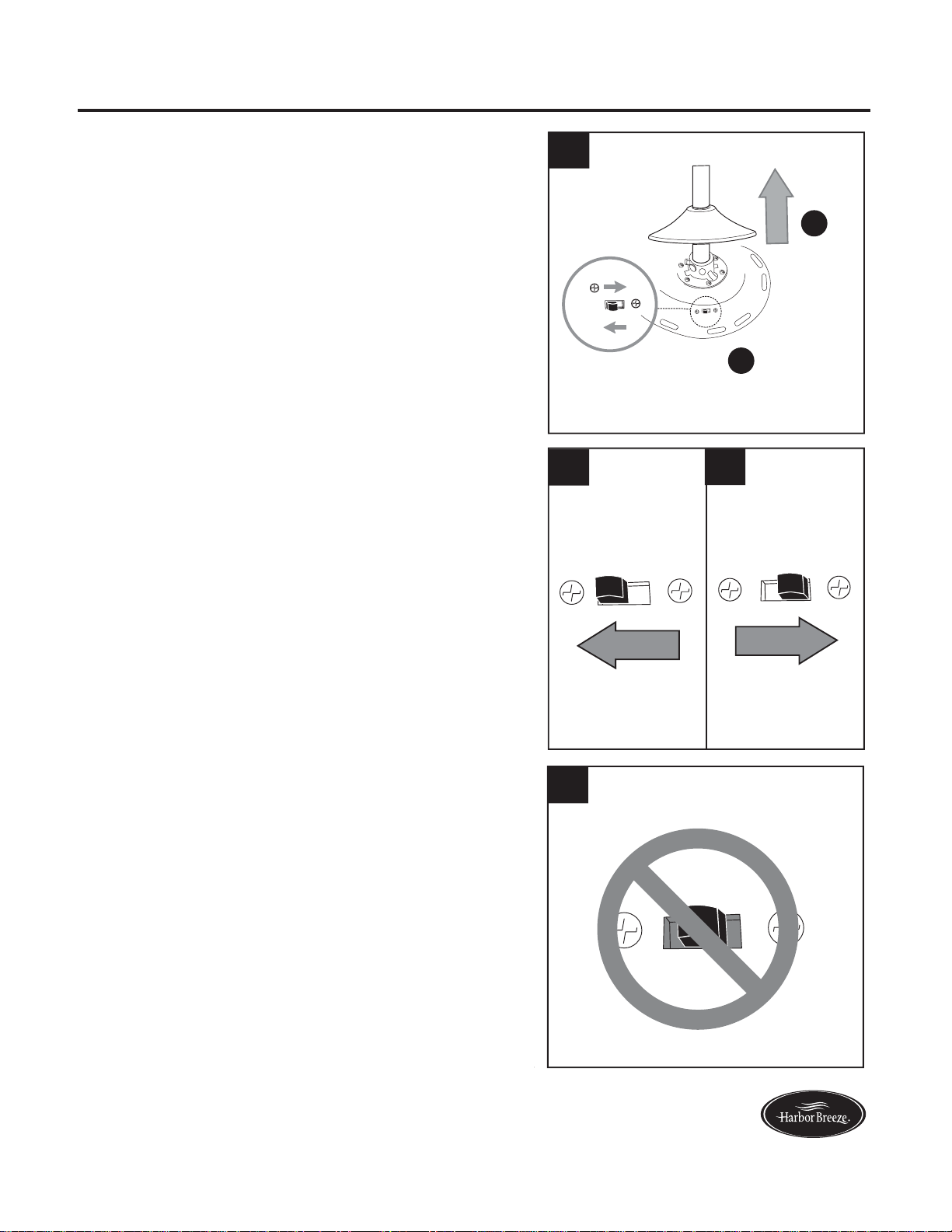

2C. IMPORTANT: Reverse switch must be set
either completely LEFT or completely
RIGHT for fan to function. If the reverse switch
is set in the middle position (Fig. 2C), fan will
not operate.
16 Lowes.com/harborbreeze
2A 2B
2A. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
2B. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant, hot
air off the ceiling area.
2. Lift the yoke cover (D) in order to use the fan
reverse switch, located on top of the motor
housing (E), to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2
reverse
switch (top view)
D
E

17 Lowes.com/harborbreeze
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
CARE AND MAINTENANCE
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
5. Learning code process between fan
and remote control transmitter (O)
may not have been successful and
learning code was not activated.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
(B) and check all connections.
4. Check that male and female
plugs in light kit (H) are
connected properly according to
instructions on page 12.
5. Turn off power and repeat
instructions in Step 2 on page
14.
Noisy operation. 1. Blades (G) are loose.
2. Cracked blade (G).
3. Fan is new.
1. Tighten all blade screws (AA).
2. Replace blade (G).
3. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades (G) are loose.
2. Blade arms (F) incorrectly attached.
3. Unbalanced blades (G).
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
1. Tighten all blade screws (AA).
2. Re-install blade arms (F).
3. Switch one blade (G) with a
blade (G) from the opposite
side.
4. Turn power off. Carefully loosen
canopy (B) and verify that
mounting bracket (C) is secure.
5. Use a longer downrod (A) or
move fan to another location.
6. Tighten yoke set screw(s)
securely.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.

WARRANTY
LIMITED LIFETIME WARRANTY: The distributor warrants this fan to be free from defects in
workmanship and materials present at time of shipment from the factory for Lifetime limited from the
date of purchase. This warranty applies only to the original purchaser. The distributor agrees to
correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior
model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer of
this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
18 Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but
light fails. 1. Wires in canopy (B) not wired
properly.
2. Wall switch to fan is off.
3. Plugs not connected properly.
1. Check wires in canopy (B) and,
if necessary, re-wire according
to instructions on page 10.
2. Make sure that wall switch to fan
is on.
3. Check that male and female
plugs in light kit (H) are
connected properly according to
instructions on page 12.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
7. Set screw on hanging ball is not
tightened properly. 7. Carefully loosen and lower
canopy (B) and verify that set
screw on hanging ball is
tightened securely.
1. Dimmer switch in remote control
transmitter (O) is not in the correct
position.
1. Set dimmer switch to the “OFF”
[X] position.
Light flickers.

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m.,
EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
A
D
B
F
C
K
G
J
PART DESCRIPTION
A Downrod
B Canopy
C Mounting Bracket
D Yoke Cover
F Blade Arm
G Blade
I Canopy Cover
J Pin
K Clip
L Canopy Mounting Screw
M Glass Shade
N
Shade Fitter
Q Fitter Plate Screw
R Shade Fitter Screw
AA Blade Screw
BB Fiber Blade Washer
CC E3 Wire Connector
DD Motor Screw
EE Lock Washer
N
I
CC DD EEBB
AA
ML QR
Printed in China
LI1208
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
19 Lowes.com/harborbreeze

ARTÍCULO #0206739
VENTILADOR DE
TECHO BATTLER
MODELO #E-LUK52HBB5LEDR
20
3170356
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067 de lunes a jueves de 8 a. m.
a 6 p. m., y los viernes de 8 a. m. a 5 p. m., hora estándar del Este.
Lowes.com/harborbreeze
Harbor Breeze®es una marca registrada de LF, LLC.
Todos los derechos reservados.
