Harbor Breeze WAVEPORT STYLE E-WK52NWZ5C1 User manual

ITEM #0648635
WAVEPORT STYLE CEILING
FAN
Español p. 22
MODEL #E-WK52NWZ5C1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
Lowes.com/harborbreeze
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB1550
For
Damp Location

2Lowes.com/harborbreeze
Safety Information ............................................................................................................... . . 2
Package Contents ..............................................................................................................
. . 4
Hardware Contents
........................................................................................................................... 5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 5
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
. .. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 13
Installing Fan Without Light Kit ........................................................................................... 16
Operating Instructions ......................................................................................................... 17
Care and Maintenance ...................................................................................................
. .... 18
Troubleshooting .................................................................................................................. 19
Limited Lifetime Warranty ................................................................................................... 20
Replacement Parts List ....................................................................................................... 21
TABLE OF CONTENTS
DANGER
If using this fan in a DAMP location, this fan must be connected to a supply circuit that is protected
by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical shock
or death.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 18.48 lbs.

SAFETY INFORMATION
3Lowes.com/harborbreeze
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
CAUTION
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Make sure the outlet box is securely attached to the building structure and can
support the full weight of the fan. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.

K
PACKAGE CONTENTS
4Lowes.com/harborbreeze
A
D
B
F
C
ML
J
I
4
E
O
P
Q
R
U
H
G
S
N
T
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
(preassembled)
D Motor Housing 1
E
Yoke Cover 1
F Light Kit Fitter 1
G Blade 5
H Blade Arm 5
I Glass Shade 1
J Motor Screw 10
(preassembled)
K Canopy Mounting Screw 4
(preassembled)
DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY
L Pin (preassembled) 1
M Clip (preassembled) 1
N Cap (preassembled) 1
O Hex Nut (preassembled) 1
P Lock Washer (preassembled) 1
Q Bulb 2
R Motor Washer 10
(preassembled)
S Light Kit Fitter Screw 3
(preassembled)
T Switch Housing 1
U Switch Housing Screw 3
(preassembled)

5
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
Rubber
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
E3 Wire
Connector
Qty. 4
AA BB CC DD
Pull Chain
Extension
Qty. 2
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.

INITIAL INSTALLATION
Lowes.com/harborbreeze
6
A
B
2
19° max.
7 ft.
min.
30 in.
min.
G
3
2. Determine mounting method to use.
A. Downrod-style mount (standard or angled
ceiling)
B. Closemount-style (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount-style mounting is more
suitable for ceilings lower than 8 ft. high.
Check to make sure blades (G) will be at least 30
in. from any obstruction and at least 7 ft. above the
floor.
3.
4a. Loosen canopy mounting screws (K) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (K); save for later use.
Remove mounting bracket (C) from canopy (B).
4a C
B
K

INITIAL INSTALLATION
7
Lowes.com/harborbreeze
DOWNROD-STYLE FAN MOUNTING
4b
Open End
C
C
ANGLE MOUNTSTANDARD MOUNT
R
J
5
D
Plastic Motor Block

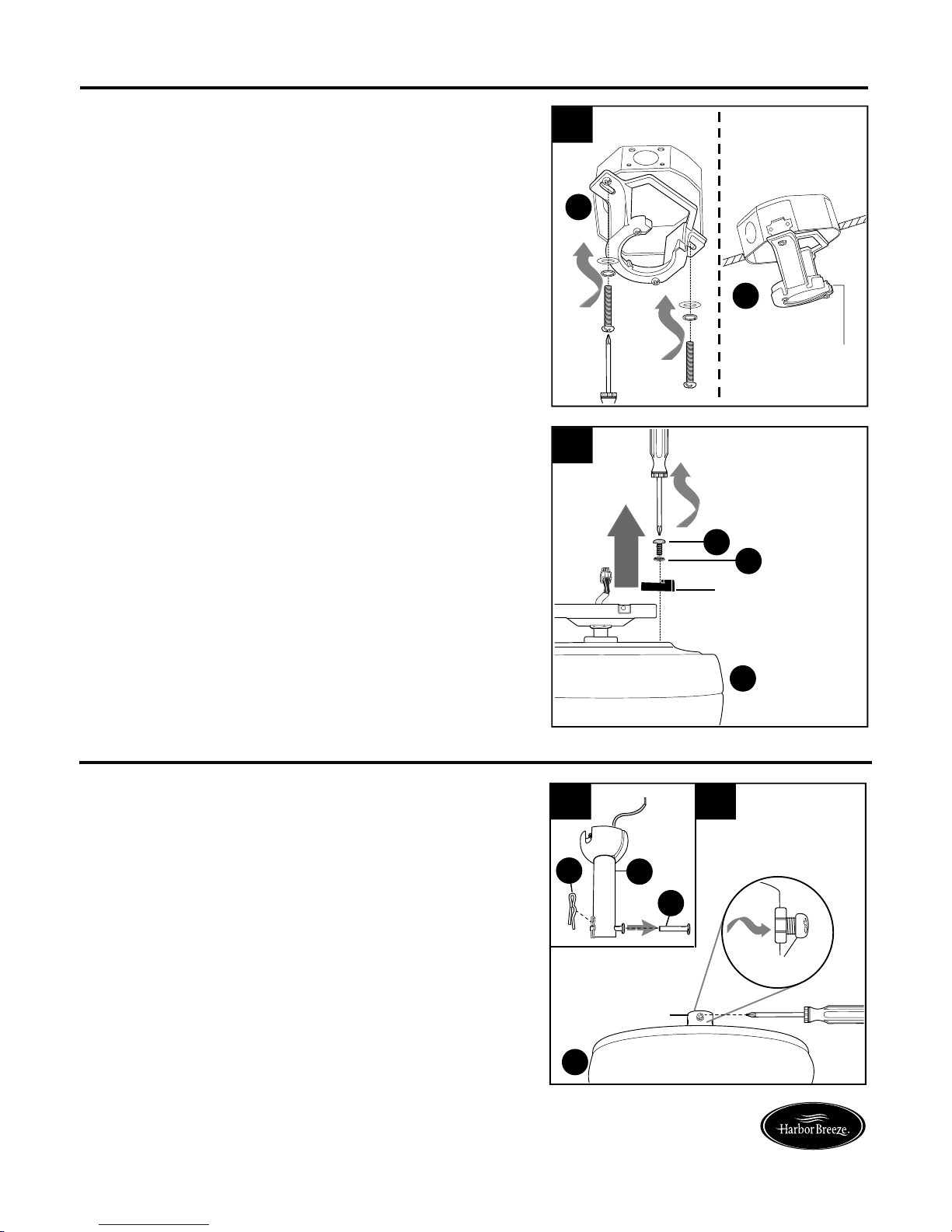

Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4b.
5. Remove motor screws (J) and motor washers
(R) from underside of motor housing (D). [If there
are plastic motor blocks installed with the motor
screws (J) and motor washers (R), discard the
plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
1a.
1b.
1a
M
D
L
1b
A
Yoke
Set Screw
& Nut
Sideview

A
DOWNROD-STYLE FAN MOUNTING
8
Lowes.com/harborbreeze
4.
2.
3. 3
A
M
L
Set Screw
and Nut
2
B

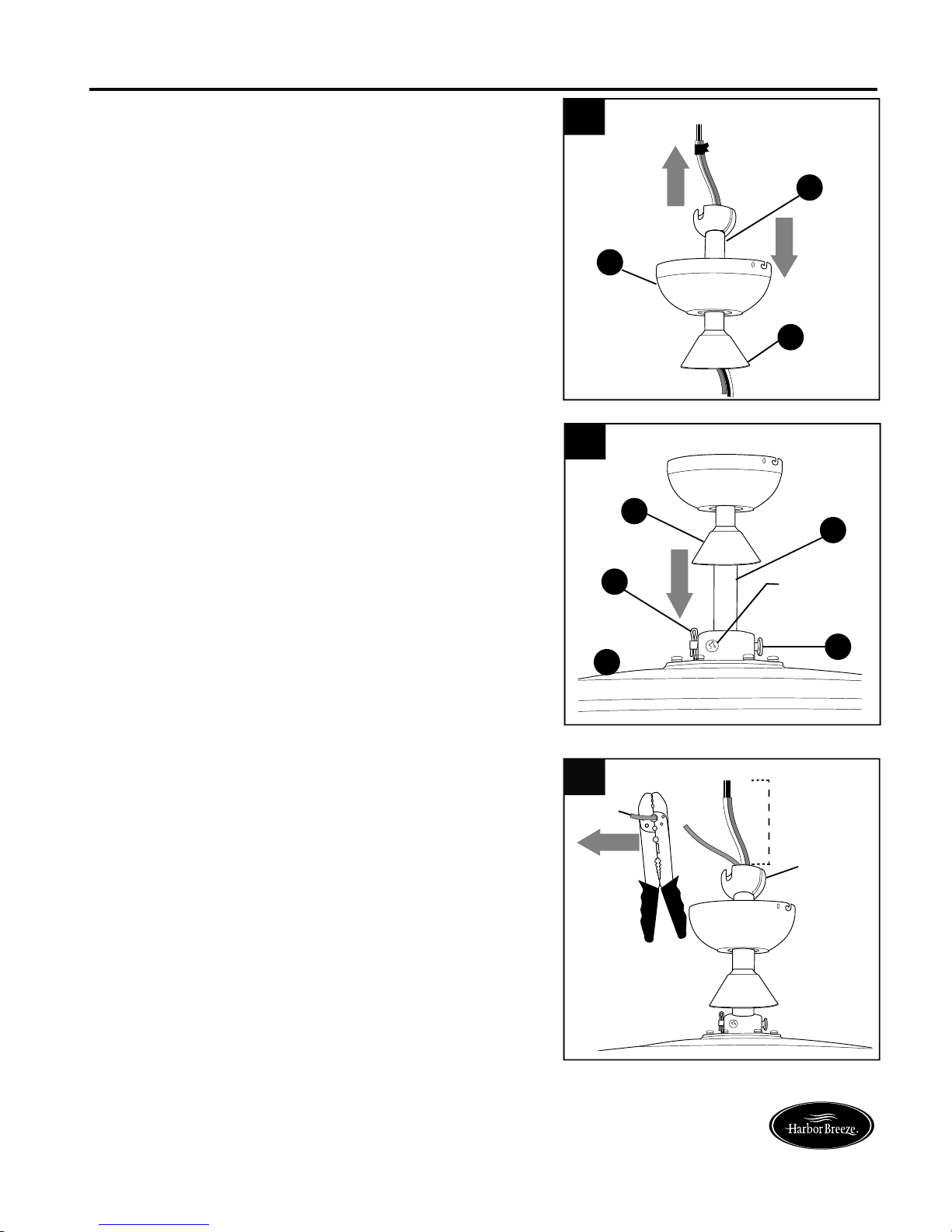

Insert downrod (A) through canopy (B), and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
E
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten downrod (A)
set screws and then tighten nuts. Slide yoke cover
(E) down until it rests on top of motor housing (D).
D
4
Hanging
Ball
8 in.
E

9
Lowes.com/harborbreeze
DOWNROD-STYLE FAN MOUNTING
5
5.
6.
Remove preassembled canopy cover from bottom
of canopy (B). [NOTE: It may be necessary to use
the handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy (B).]
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
C
Slot
Tab
6
A
Canopy
Cover
B
1
B
If you cut back the lead wires in Step 4, strip 1/2 in.
of insulation from end of of each wire -- white,
black, green and blue (if applicable). Twist stripped
ends of each strand of wire within the insulation
with pliers (not included).
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align the slot in hanging ball
with the tab in mounting bracket (C).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (C) may result in
serious injury or death.
Continue to WIRING on page 11.

CLOSEMOUNT-STYLE FAN MOUNTING
10
Lowes.com/harborbreeze

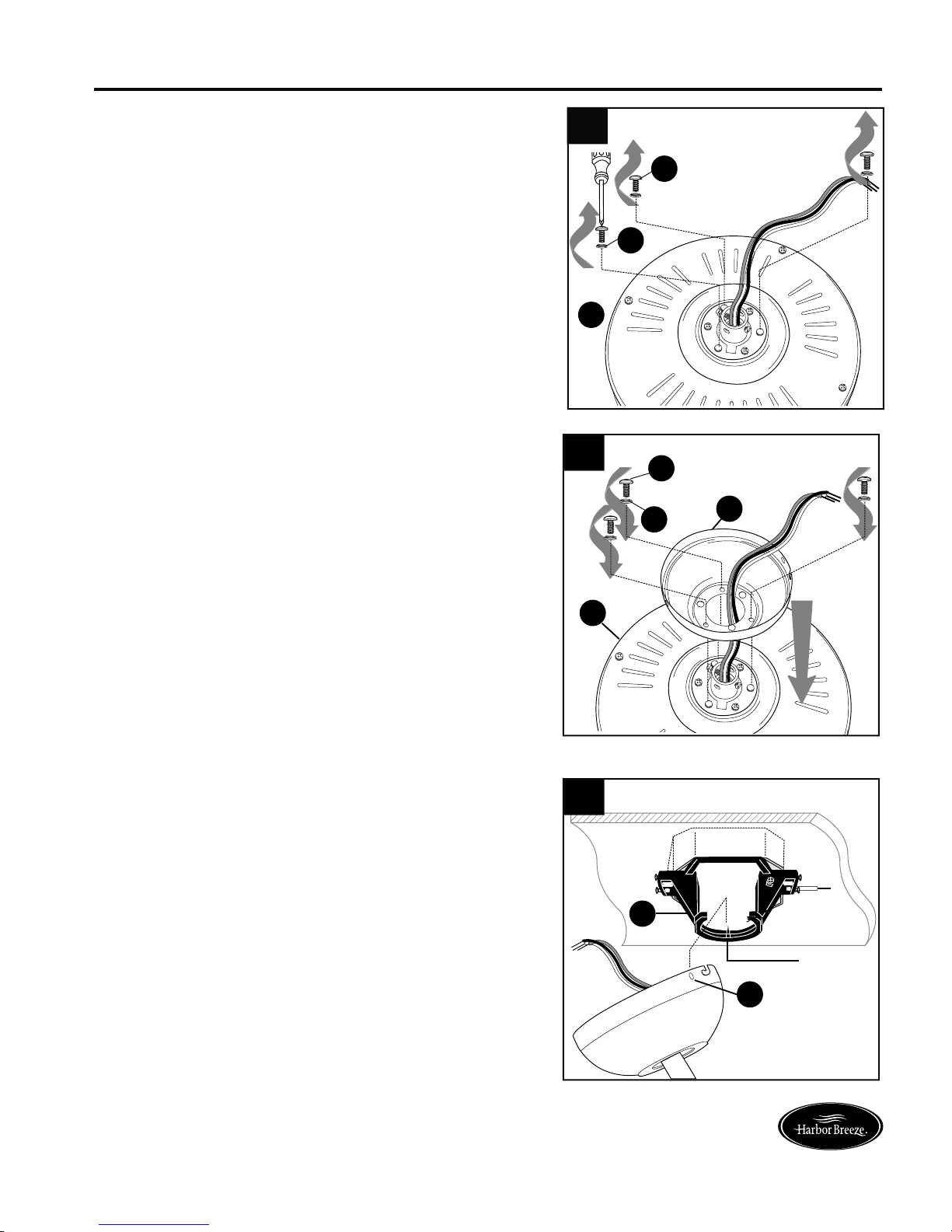

Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
D
3
B
D
Remove every other motor screw (J) and motor
washer (R) from top of motor housing (D).
Tab
C
4
2.
B
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three motor screws (J) and
motor washers (R) previously removed.
J
R
2
D
B
D
J
R

11
Lowes.com/harborbreeze
DANGER: If using this fan in a DAMP location, this fan must be connected to a supply circuit
that is protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal
injury, electrical shock or death.
NOTE: This fan is remote control adaptable (remote control sold separately). Any remote control
used with this fan MUST be UL-approved for DAMP LOCATIONS.
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to
connect to the corresponding fan lead wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that
fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: Use one of the
wire connectors (CC) to make each wire connection,
making sure to screw wire connector (CC) on in a
clockwise direction.]

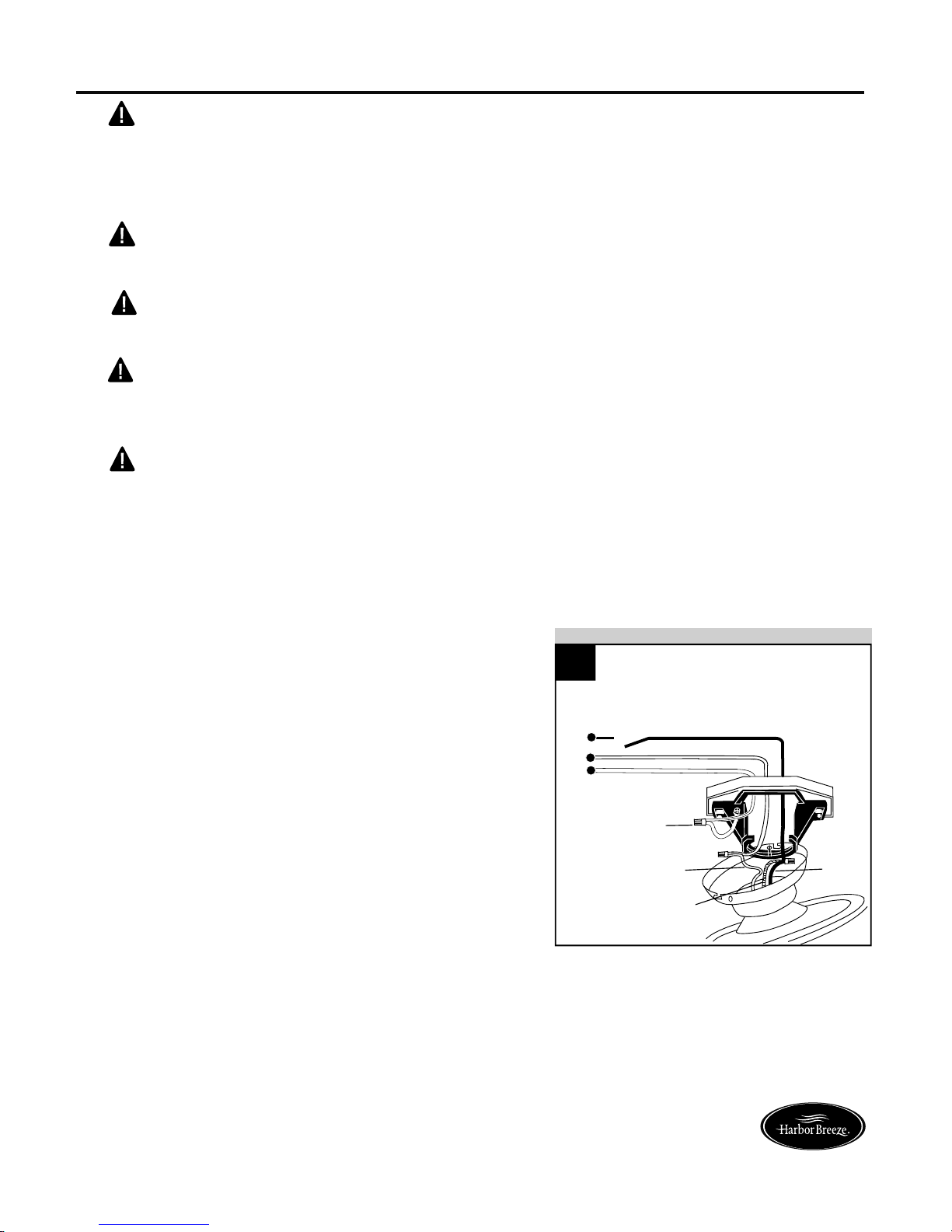

1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wires from fan (on downrod (A),
if applicable, and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
1a.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a
loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full
range dimmer switch to control fan speed.
WIRING
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE BLACK
BLUE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)

WIRING
12
Lowes.com/harborbreeze

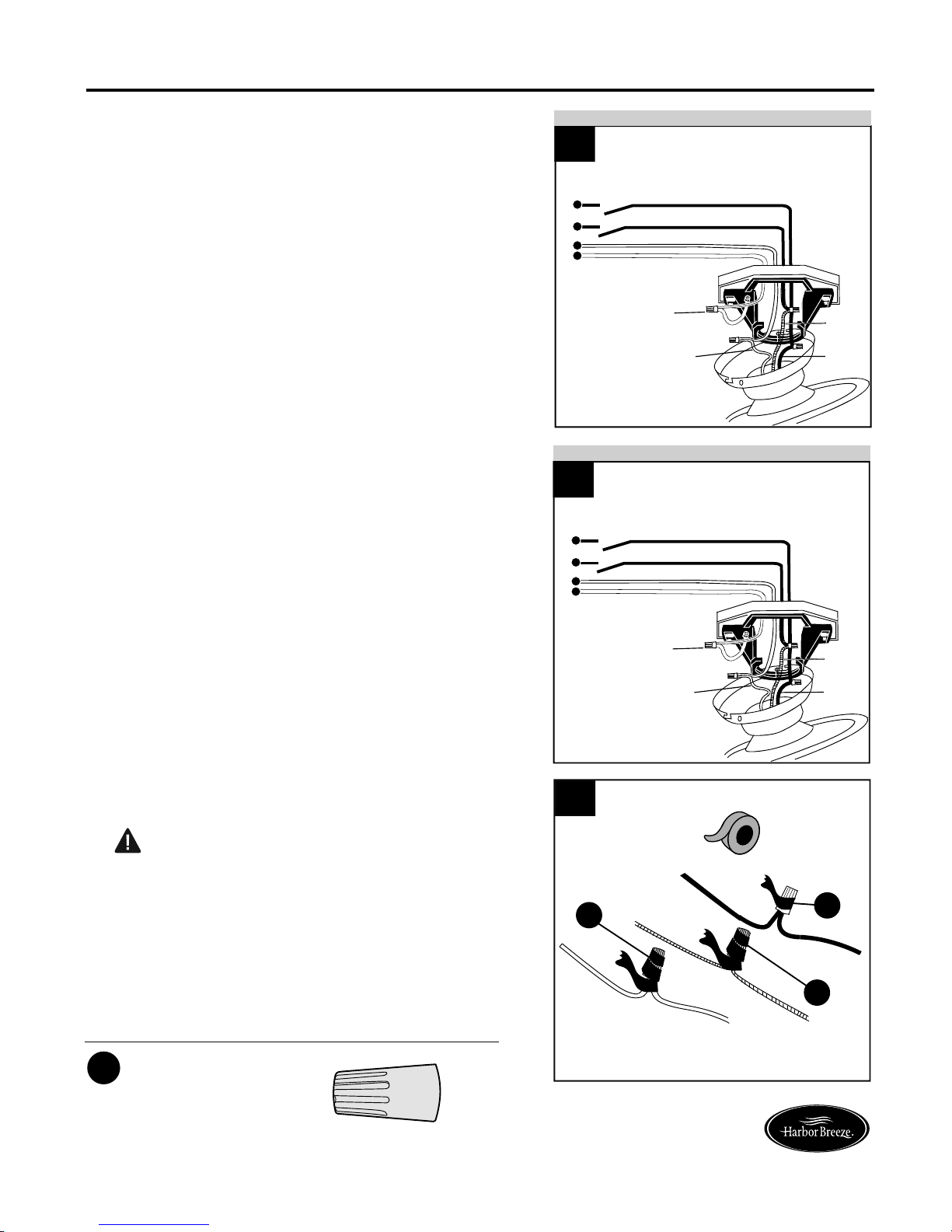

1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Connect BLACK wire from fan
to BLACK wire from the independent wall switch for
the fan. Connect BLUE wire from fan to the BLACK
wire from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE wire
from ceiling. Connect GROUND (GREEN) wires
from fan (on downrod (A), if applicable, and
mounting bracket (C)) to BARE/GREEN wire from
ceiling.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the opposite
side of the outlet box from the BLACK and BLUE wire
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
E3 Wire Connector x 4
Hardware Used
CC
CC
2
CC
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Connect BLACK wire from fan
to BLACK wire from ceiling. Connect BLUE wire
from fan to the BLACK wire from the independent
wall switch for the light. Connect WHITE wire from
fan to WHITE wire from ceiling. Connect GROUND
(GREEN) wires from fan (on downrod (A), if
applicable, and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
GREEN
WHITE BLACK
BLUE
120V POWER
FROM CEILING
BLACK(POWER)
BLACK (WALL SWITCH)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1b
GREEN
WHITE BLACK
BLUE
120V POWER
FROM CEILING
BLACK(POWER)
BLACK (WALL SWITCH)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. GREEN or BARE wire is ground.

3.
13
Lowes.com/harborbreeze
H
J
1. Lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (K) in mounting bracket
(C). Twist canopy (B) clockwise to lock. Re-insert
the two canopy mounting screws (K) previously
removed (Step 4a, page 6) and tighten all canopy
mounting screws (K) securely.
FINAL INSTALLATION
1
B
D
K
D
B
Downrod
Option Closemount
Option
2. Partially insert three blade screws (AA) along with
three rubber blade washers (BB) into holes in blade
(G). NOTE: Make sure to attach blade (G) with the flat
side of the blade (G) facing up -- note label indicating
THIS SIDE UP. Align pegs on blade arm (H) with
blade screws (AA), securing blade arm (H) to blade
(G) by tightening blade screws (AA) starting with the
one in the middle.
Repeat for remaining blades (G) and blade arms (H).
Hardware Used
Blade Screw x 15
AA
Rubber Blade Washer x 15
BB
BB
AA
G
H
2
G
3D
R
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws (J) and motor
washers (R) previously removed (Step 5, page 7).
Tighten motor screws (J) securely.
Note: Make sure to completely secure each blade
arm (H) before proceeding to the next.
If you do NOT wish to use the light kit, skip to
INSTALLING FAN WITHOUT LIGHT KIT on page
16.
If you DO wish to use the light kit, proceed to
Step 4.
K

FINAL INSTALLATION
14
Lowes.com/harborbreeze
4.
6.
N
T
O
P
Threaded
Rod
Molex
Connections
4
Pull Chain
Guide F
Remove the three preassembled switch housing
screws (U) from preassembled switch housing plate
on motor housing (D). Connect male plug from motor
housing (D) to female plug from switch housing (T),
matching up the colors on the male plug with the
colors on the female plug for correct fit. Make sure
plugs are connected completely. Align holes in switch
housing (T) with holes in switch housing plate, and
secure switch housing (T) with three switch housing
screws (U) previously removed. Tighten all screws
securely.
To install the fan with the light kit, remove
preassembled hex nut (O) and lock washer (P) from
threaded rod at top of light kit fitter (F). Punch center
cap (N) out of switch housing (T) with a screwdriver
(not included). Gently feed molex wires (one at a
time) from light kit fitter (F) through hole in middle of
switch housing (T), and then screw switch housing
(T) onto threaded rod on light kit fitter (F) -- ensure
to align holes on pull chain guides with pull chains
on switch housing (T). Tighten hex nut (O) over lock
washer (P) for a secure fit.
6
F
T
U
D
Switch
Housing
Plate
U
Male
Plug
Female
Plug
T
Molex Wire
Connections
5
Pull Chain
Guide F
Connect WHITE molex wire from light kit fitter (F) to
WHITE molex wire from switch housing (T). Connect
BLACK molex wire from light kit fitter (F) to BLUE (or
BLACK) molex wire from switch housing (T). Make
sure molex wire connections snap together securely.
5.
White
Molex
Wire Black
Molex
Wire

15
Lowes.com/harborbreeze
FINAL INSTALLATION
Q
Q
Install bulbs (Q).
CAUTION: When replacing bulb(s), allow
bulb(s) and glass shade to cool down before
touching.
7.
Thread preassembled fan and light pull chains
through corresponding pull chain guides on the outer
rim of the light kit fitter (F).
Remove three light kit fitter screws (S) from light kit
fitter (F). Lift glass shade (I) up to light kit fitter (F),
securing with light kit fitter screws (S).
CAUTION: Do NOT use screwdriver or power
tools to tighten light kit fitter screws (S). Glass
WILL break. HAND TIGHTEN ONLY.
Note: Do NOT remove the rubber ring on lip of glass
shade (I) as this along with the light kit fitter screws
(S) will help hold the glass shade (I) in place.
8.
Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
pull chains labeled with “LIGHT” and “FAN”.
9. 9
DD
Hardware Used
DD Pull Chain x 2
Extension
8
Pull
Chain
Guide
I
F
Rubber
Ring
S
7

16
Lowes.com/harborbreeze
INSTALLING FAN WITHOUT LIGHT KIT
1. If you do NOT wish to use the light kit, remove
the three preassembled switch housing screws (U)
from preassembled switch housing plate on motor
housing (D). Connect male plug from motor housing
(D) to female plug from switch housing (T), matching
up the colors on the male plug with the colors on the
female plug for correct fit. Make sure plugs are
connected completely. Align holes in switch housing
(T) with holes in switch housing plate. Re-insert
switch housing plate screws (U) just removed and
use a Phillips screwdriver to secure switch housing
(T) to switch housing plate. Tighten all screws
securely.
Attach necessary pull chain extension (DD) or
custom pull chain extension (not included) to
corresponding pull chain labeled FAN.
2.
Pull Chain x 1
Extension
Hardware Used
DD
1
U
T
D
Switch
Housing
Plate
U
Male
Plug
Female
Plug
2
DD
D

If applicable, the light pull chain labled LIGHT is used
to turn the light ON or OFF.
OPERATING INSTRUCTIONS
The fan pull chain labled FAN has four positions
to control fan speed. One pull is HIGH, two is
MEDIUM, three is LOW and four turns the fan
OFF.
1.
2.
Use the fan reverse switch on the switch housing
(T) to optimize your fan for seasonal performance.
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat
setting in winter without feeling a difference in your
comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
WARNING: Do NOT remove weatherproof
cover on the reverse switch.
3.
17
Lowes.com/harborbreeze
Reverse Switch
T
3
2
1

OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
18
Lowes.com/harborbreeze
3a 3b
3c

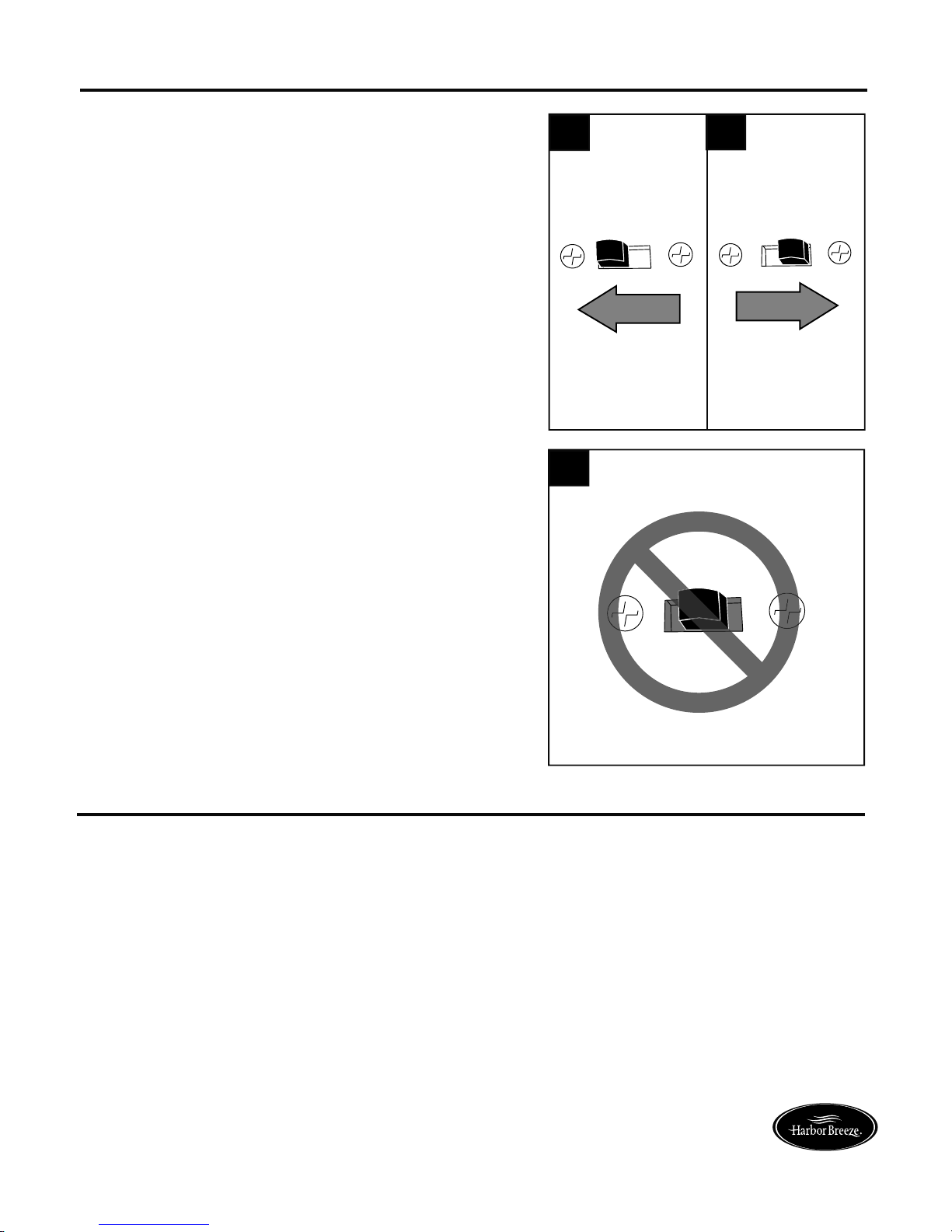

3c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
3b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use 60-watt max. candelabra-base CA10 incandescent bulbs only; CFLs are not
recommended for this item.

WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in switch housing are
connected properly according to
instructions on page 14.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
TROUBLESHOOTING
19
Lowes.com/harborbreeze
Fan operates but
light fails (if
applicable).
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired
properly.
3. Wall switch to fan is off.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure that wall switch to
fan is on.

NOTE: A small amount of "wobble" is normal and should not be considered a defect.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
4. Wires in light kit fitter not wired
correctly.
5. Light kit is lamped with more than the
allowable 190W, causing the wattage
limiting device to interrupt the flow of
electricity to the light kit.
4. Check that molex connections
in light kit fitter are connected
properly according to instructions
on page 14.
5. Lamp light kit with bulbs that
total no more than 190W.
TROUBLESHOOTING
20
Lowes.com/harborbreeze
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
