Harbor Breeze 41161 User manual

1
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Español p. 23
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
AR19002
ITEM #1022959, 41536791
NORANDA BAY
CEILING FAN
MODEL #41161
Français p. 19

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Secondary Hanging System .........................................................9
Wiring .........................................................................10
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating Instructions .............................................................14
Care and Maintenance ............................................................15
Troubleshooting..................................................................15
Limited Lifetime Warranty ..........................................................17
Replacement Parts List ............................................................18

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Upper Mounting Bracket 1
C Motor 1
D Lower Mounting Bracket (preassembled to Motor [C]) 1
E Light Kit 1
F Motor Housing Screw (preassembled to Upper Mounting Bracket [B]) 4
G Glass Shade 3
HBlade Arm 5
I Blade 5
J Bulb 3
K Mounting Bracket Screw (preassembled to Lower Mounting Bracket [D]) 4
L Fitter Plate Screw (preassembled to Fitter Plate [M]) 3
M Fitter Plate (preassembled to Motor [C]) 1
N Motor Screw (preassembled to Motor Assembly [C]) 10
O Socket Ring (preassembled to Light Kit [E]) 3
A
B
L
D
C
E
JIHG
FK
O
M
N

4
HARDWARE CONTENTS
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain Extension
Qty. 2
Secondary Spring
Washer
Qty. 1
Secondary
Support Screw
Qty. 1
Support Washer
Qty. 1
Motor Screw
1 extra
AA
KK XXJJ
BB CC DD
MM
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• 󰀨
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical

handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

• The net weight of this fan is: 13.97 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming

to control the fan speed.
WARNING: 
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with


outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: 
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: 
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: 
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAN ICES-005 (B) / NMB-005 (B)
CAUTION: This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the de-
vice.
CAUTION: This equipment has been tested and found to comply with Industry Canada license-
exempt RSS standard(s). These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
󰀨
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
󰀨
connected.
-- Consult the dealer or an experienced radio/TV technician for help.

could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
HKC-US
3350 Player’s Club Pkwy. #225
Memphis, TN 38125
[phone]

7
INITIAL INSTALLATION
1. 󰀨
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Ensure the blades (I) will be at least 30 in. from any

7 ft. Min
30 in. Min
3. Secure the upper mounting bracket (B) to the outlet
box using screws, spring washers, provided with the
outlet box (not included).
Note: It is very important that you use the proper
hardware when installing the upper mounting bracket
(B) as it will support the fan.
1
B
I
2
3

8
INITIAL INSTALLATION
4. Remove the mounting bracket screws (K) from
underneath the lower mounting bracket (D). Remove
the motor screws (N) and set aside for later.
Note:
screwdriver (not included) access to motor screws.
5. Place one tab of the lower bracket (D) into a large
slot in the upper mounting bracket (B). Then slide the
second tab of the lower mounting bracket (D) into the
second large slot on the upper mounting bracket (B)
until all four holes are in alignment.
6. Reinstall the previously removed mounting bracket
screws (K) underneath the lower mounting bracket
(D) and into the upper mounting bracket (B). Securely
tighten the screws.
4
5
6
4
5
6
D
N
K
K
B
D
B
D

9
1
2
3
Braided Cable
Outlet Box
Brace
Open Loop
SECONDARY HANGING SYSTEM
1. Feed the loop of the braided cable, attached to the motor
(C), up through the outlet box mounted in the ceiling.
2. Install secondary support screw (JJ), secondary spring
washer (MM) and support washer (KK) partly into the
side of the brace installed in the ceiling. Then loop
the braided cable up and over the ceiling brace and
place the open loop of the braided cable around the
secondary support screw (JJ).
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
Hardware Used
KK Support Washer x 1
Secondary Spring
Washer x 1
Secondary Support
Screw x 1
3. Tighten the secondary support screw (GG), securing the
braided cable.
Hardware Used
JJ Secondary Support
Screw x 1
WARNING: Secondary support is required for this
product. Failure to follow the steps below could result in
property damage and/or person injury.
MM
JJ
JJ
C
MMKK
JJ

10

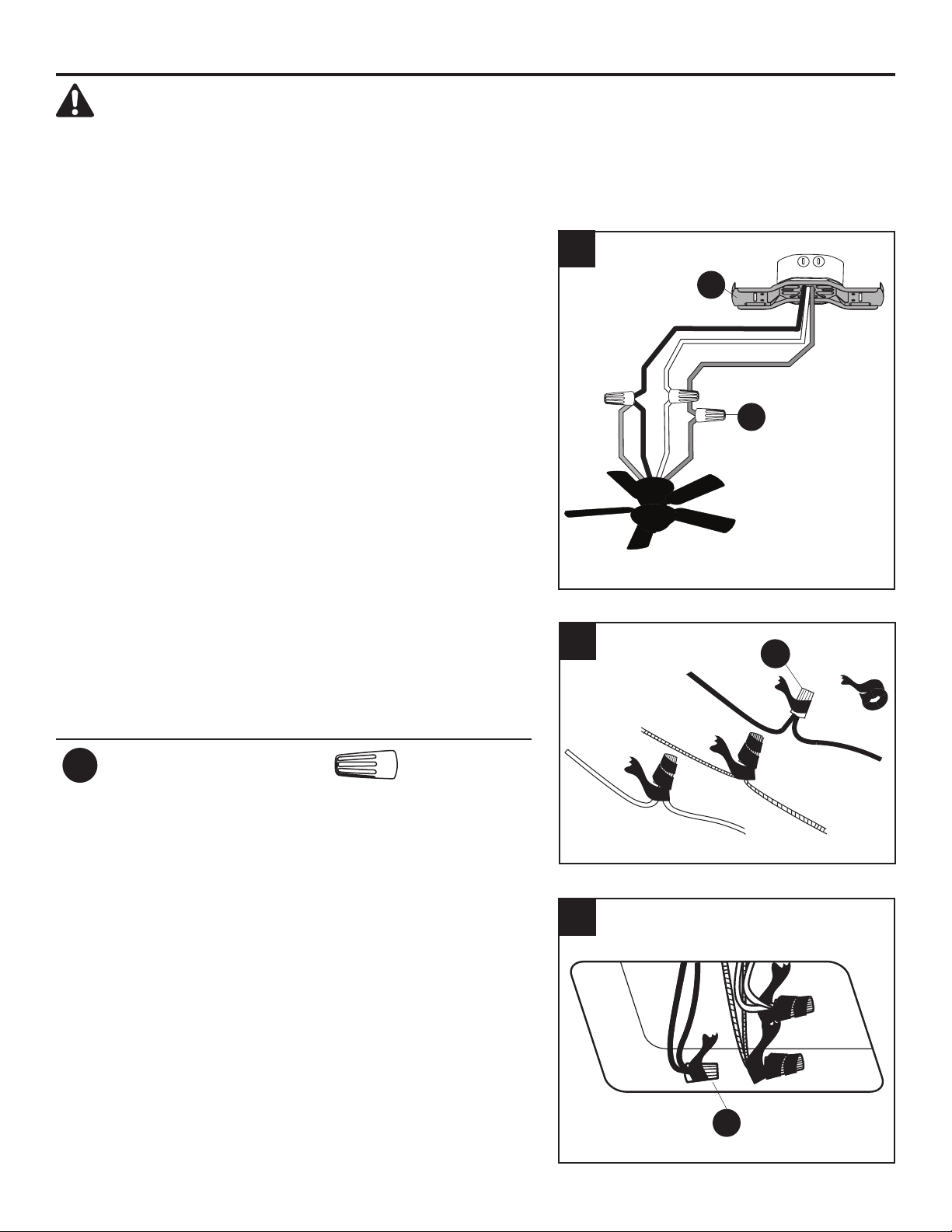

WIRING
WARNING:
provided with this fan are designed to accept only one 12 gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect supply and fan wires according to the
diagram and these steps:
• Connect the Green wires from the fan and the
lower mounting bracket (B) to the Bare/Green
(ground) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to
the Black (hot) supply wire.
Fixez toutes les connexions à l’aide des capuchons
de connexion (AA).
Note: If a second hot power wire is available from
outlet box, connect it to the blue (light power) wire
from the fan for separate light and fan control.
Note: The Blue wire is power for light. The Black
wire is power for the fan. The White wire is neutral/
common. The Green wire is the ground. If house
󰀨
recommended a professional electrician determines
the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands are
visible after making connections. Place the Green and
White wire connections on the opposite side of the
outlet box from the Black.
DD
1
AA
B
2
AA
AA
3

11
FINAL INSTALLATION

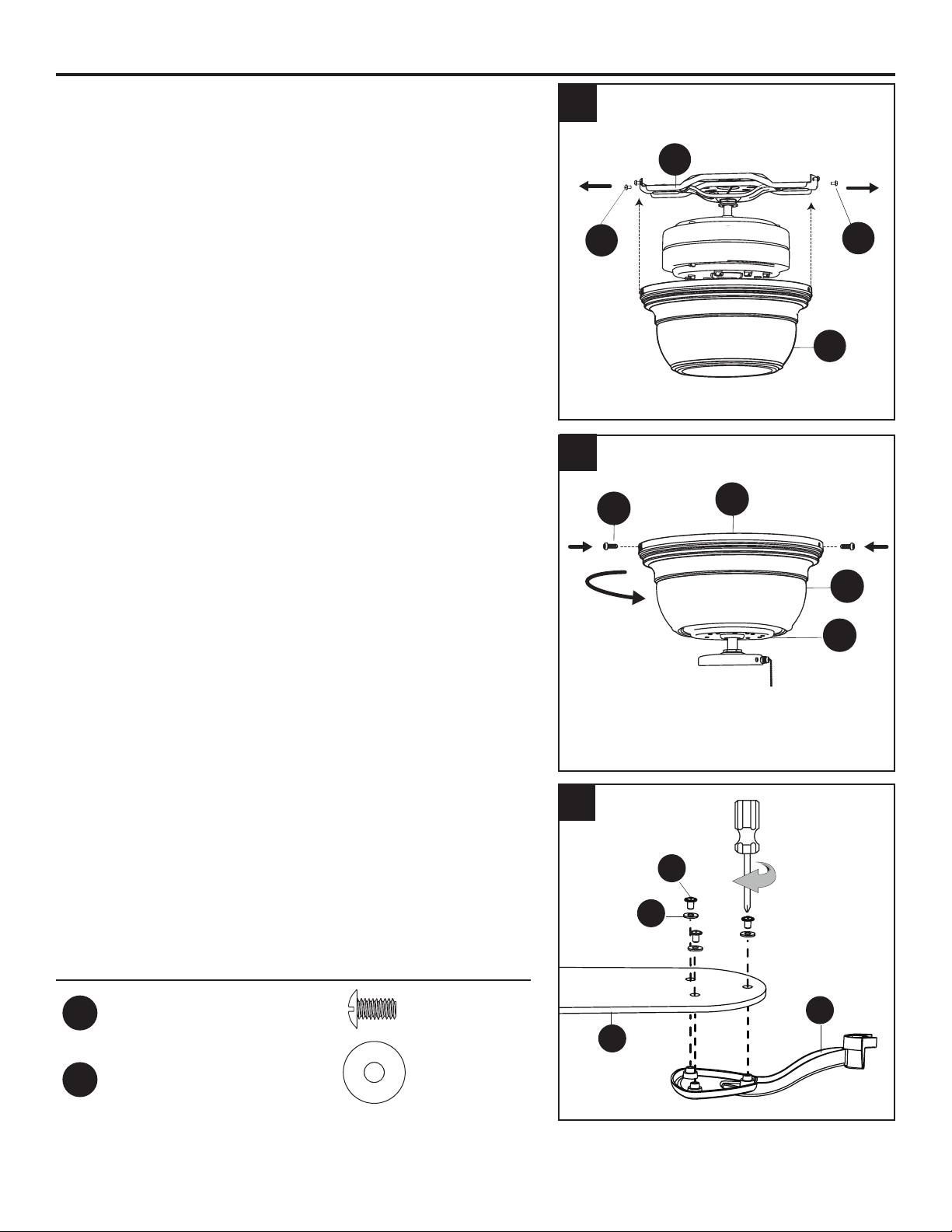

4. Temporarily lift the motor housing (A) to the upper
mounting bracket (B) to determine which two motor
housing screws (F) in the sides of the upper mounting
bracket (B) align with the slotted holes in the top edge
of the motor housing (A). Partially loosen the two motor
housing screws (F) that align with the slotted holes.
Remove the other two motor housing screws (F) from
opposite sides of the upper mounting bracket (B).
B
A
FF
5. Slide the motor housing (A) over the motor (C),
aligning the slotted holes in the motor housing (A) with
the loosened motor housing screws (F) in the upper
mounting bracket (B). Twist the motor housing (A) to
lock. Then re-insert the two previously removed motor
housing screws (F) and securely tighten all screws.
B
A
C
F
6. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (I) and into
the blade arm (H). Tighten each blade screw (BB)
with a Phillips screwdriver, starting with the one in the
middle. Repeat this step for the remaining blades (I)
and blade arms (H).
Hardware Used
BB Blade Screw x 15
CC Blade Washer x 15
6
I
H
BB
CC
4
5

12
FINAL INSTALLATION
7. Install the blade arm (H) to the underside of the
motor assembly (C) with motor screws (N) previously
removed (Step 4, page 8). Tighten with Phillips
screwdriver (not included). Repeat for each blade arm
(H).
Note: 
screwdriver (not included) access to motor screws.

plate (M). Connect the single-pin connectors from the
motor assembly (C) to the single-pin connectors from
the light kit (E) -- blue to blue and white to white.

 9
E
L
7
HN
L
M
E
C
M
8
Notch
Single-pin Connector

13
FINAL INSTALLATION
10. Unscrew the socket ring (O) from the socket of the
light kit (E). Then lift the glass shade (G) into the light
cup. Secure the glass shade (G) by reinstalling the
socket ring (O).
11. Install bulbs (J) into the sockets on the light kit (E).
Important:Make sure you allow the bulbs (J) and
light kit (E) to cool before you replace the bulbs.
12. Snap the end of the pull chain extensions (DD) onto
the ends of the appropriate pull chains.
Hardware Used
DD Pull Chain
Extension x 2
Restore the power at the main fuse or circuit breaker.
Assembly is complete.
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
O
G
E
E
J
DD
10
11
12
Fan Pull Chain
Light Pull Chain
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

14

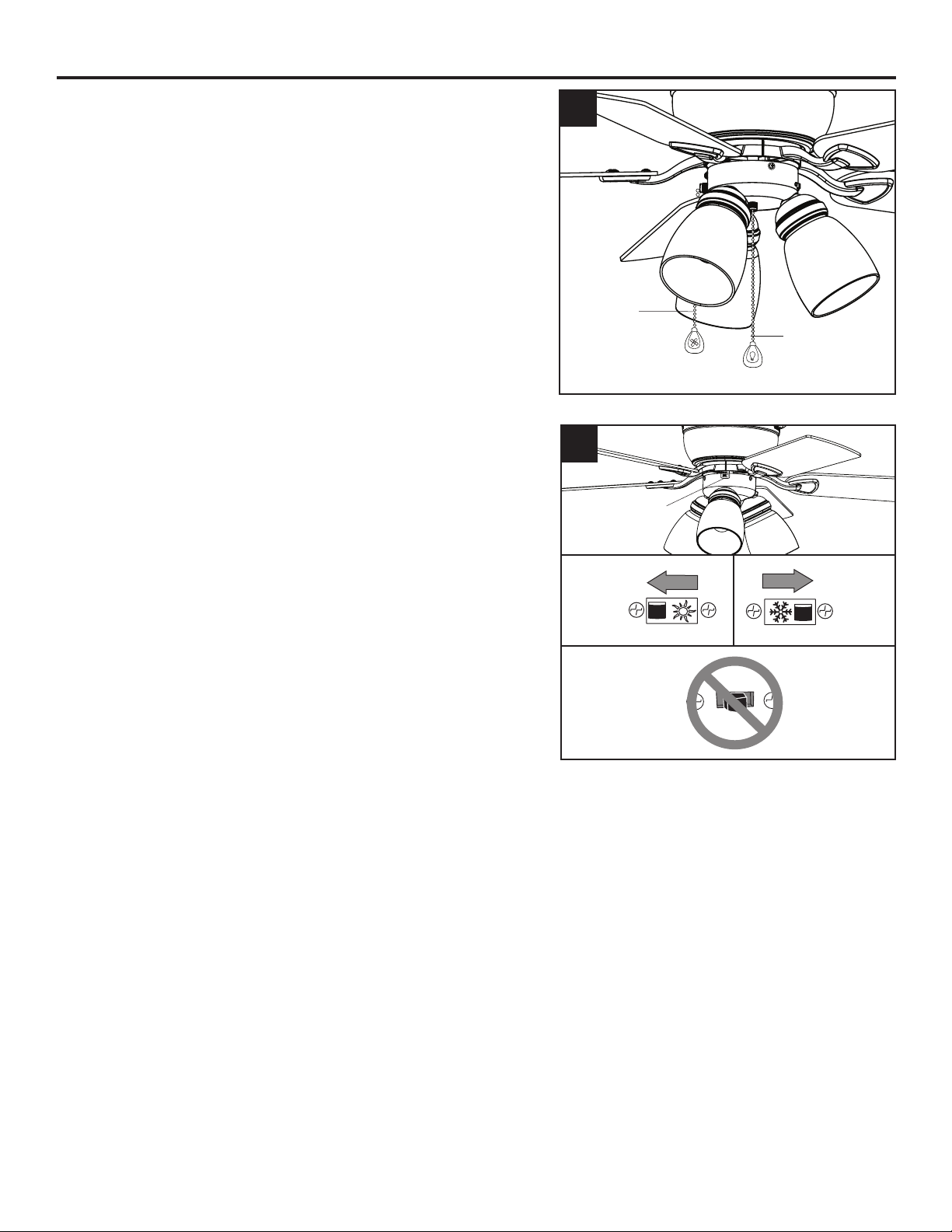

OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF. The light pull chain is
used to turn the lights ON or OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
󰀨
in your comfort.
2A. In warmer weather, push the reverse switch to the
left to display a Sun icon, which will result in downward
󰀨
2B. In cooler weather, push the reverse switch to the

󰀨
the ceiling area.
Important:Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2C).
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
1
Fan
Pull Chain Light
Pull Chain
Fig. 2A Fig. 2B
Fig. 2C
2
Reverse Switch

15
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush

Bulb Replacement: Use 40-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: 󰀨
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. 󰀨
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. 󰀨
the canopy and check all
connections.
3. Check that the connectors from

connected properly.
4. Push the reverse switch
completely to the left or right.
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a
blade from the opposite side.

balancing kit (sold separately).
3. 󰀨
motor housing and verify that the
mounting bracket is secure to the
electrical outlet box. The bracket

against the outlet box.

16
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are
not connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure that the male and female plugs

properly.
3. 󰀨
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The outlet box is not secure.
4. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the motor.
2. Replace the cracked blade.
3. Ensure the outlet box is secured to the
building structure.
4. Ensure the mounting bracket is secured
to the outlet box and that the screws
are tight.

17
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglass blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
󰀩
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.


when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.

date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty

manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This

This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

18
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
PART DESCRIPTION PART#
A Motor Housing 4L000011870
B Upper Mounting Bracket 4L000011880
E Light Kit 4L000011890
G Glass Shade 4L166530001
HBlade Arm 4L072720000
I Blade 4L083560000
HW Hardware Kit 4L000011900
9315PB · 112119
A B E G
H I HW
