Harbor Breeze 40105 User manual

1Lowes.com/harborbreeze
Serial Number _________________________ Purchase Date _________________________
ATTACH YOUR RECEIPT HERE
EB13356
ITEM #0464470
WAKEFIELD CEILING FAN
MODEL #40105
Español p. 23
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

2Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Assembly Instructions ..............................................................7
Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting..................................................................18
Limited Lifetime Warranty ..........................................................21
Replacement Parts List ............................................................22

3Lowes.com/harborbreeze
PACKAGE CONTENTS
A
A
A
B
A
C
A
D
A
O
A
GA
H
A
LA
M P Q S U V
A
N
A I
A
JA
K
A
E
A
FR
T
2
+
+
H


PART DESCRIPTION QUANTITY
A Mounting Bracket 1
B Canopy (preassembled to Mounting Bracket (A)) 1
C Canopy Cover (preassembled to Canopy (B)) 1
D Downrod 1
E Yoke Cover 1
F Motor Housing 1
G Switch Housing 1
H Light Kit 1
I Blade 5
JBlade Arm 5
K Glass Bowl 1
L Finial Cap 1
M Finial 1
N Remote Control 1
O Hanger Ball (preassembled to Downrod (D)) 1
P 25-watt Bulb 3
Q 40-watt Bulb 3
R Fitter Plate (preassembled to Motor Housing (F)) 1
S Coupling (preassembled to Motor Housing (F)) 1
T Flywheel (preassembled to Motor Housing (F)) 1
U Battery 1
V Wall Bracket Assembly 1

4Lowes.com/harborbreeze
HARDWARE CONTENTS
Wire Connector
Qty. 3 + 1 extra
Blade Screw
Qty. 15 +
1 extra
Blade Washer
Qty. 15 +
1 extra
Motor Screw
Qty. 10 +
1 extra
Downrod Pin
Qty. 1
(preassembled
to Downrod
(D))
Downrod Clip
Qty. 1
(preassembled to
Downrod (D))
Motor Housing
Set Screw
Qty. 2
(preassembled
to Coupling
(S))
Flat Washer
Qty. 1
Rubber
Washer
Qty. 1
Hex Nut
Qty. 1
Mounting
Bracket Screw
Qty. 4
(preassembled
to Mounting
Bracket (A))
Switch Housing
Plate Screw
Qty. 3
(preassembled to
Fitter Plate (R))
Switch Housing
Screw
Qty. 3
(preassembled
to Switch
Housing (G))
AA BB CC DD EE FF
HH
GG
MM
II JJ KK LL

5Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 24.73 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoan
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they
are secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
2. Determine the mounting method.
Helpful Hint: Downrod mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (not included). Angle
mounting is best suited for angled or vaulted ceilings.
A longer downrod is sometimes necessary to ensure
proper blade clearance.
Note:Flushmount installation and closemount
installation are not available for this item.
Important:If using the angle mounting, check to
ensure the ceiling angle is not steeper
than 23°.
2
Downrod Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (I) will be at least 30 in. from any
obstructions. Also check the downrod (D) length to
ensure the blades (I) will be at least 7 ft. above the
oor. D
I
3
7 ft. Min.
30 in. Min.

8Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
4. Remove the two mounting bracket screws (KK)
from the round holes of the canopy (B). Set aside
for later use. Detach mounting bracket (A) from
canopy (B).
5. Feed black and white wires up from the plug on the
mounting bracket (A) up through the hole in the top.
A
5
4
B
KK
A

9Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.
6. Connect with supply and mounting bracket (A) wires
according to the diagram and these steps:
•ConnecttheWhitewirefromthemountingbracket
(A) to the White supply wire.
•ConnecttheBlackwirefromthemountingbracket
(A) to the Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (AA).
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Green wire is the ground wire and will be connected
later. If house wires are different colors than referred
to above, stop immediately. It is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 2
7. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
Hardware Used
AA Wire Connector x 2
8. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Black
and White wire connections on opposite sides of the
outlet box.
AA
AA
7
AA
8
A
BLACK
WHITE
WHITE
BLACK
FAN
WHITE
6

10 Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
9. Feed green/bare (ground) supply wire down through
the hole in the top of the mounting bracket (A).Secure
the mounting bracket (A) to the outlet box using
screws and washers provided with the outlet box.
10. Remove the downrod clip (FF) and downrod pin
(EE) from the downrod (D). Then partially loosen the
motor housing set screws (GG) in the yoke at the top
of the motor assembly (F).
Hardware Used
EE Downrod Pin x 1
FF Downrod Clip x 1
GG Motor housing
set screw x 2
11. Place the downrod (D) into the canopy (B) and yoke
cover (E). Feed the wire harness from the motor
housing (F) through the downrod (D).
F
D
FF
EE
GG
D
9
A
F
E
B
D
11
10

11 Lowes.com/harborbreeze
12
GG
FF
D
EE
S
13
F
P
14
A
O
A
DO
ASSEMBLY INSTRUCTIONS
12. Insert the downrod (D) into the coupling (S). Align the
hole in the downrod (D) with the hole in the coupling
(S), then install the downrod pin (EE) through the
coupling (S) and downrod (D). Install the downrod
clip (FF) into the downrod pin (EE) until it snaps into
place. Tighten the motor housing set screws (GG) in
the coupling (S).
Hardware Used
EE Downrod Pin x 1
FF Downrod Clip x 1
GG Motor housing
set screw x 2
13. Install 25-watt bulbs (P) to each socket on the motor
housing (F).
CAUTION: An energy-saving wattage limiter is
included with the fan. When replacing bulbs, ensure
bulb wattage is less than 190 watts, otherwise the
fan will not function.
14. Carefully lift the downrod (D) onto the mounting
bracket (A). Rotate the downrod (D) until the slot on
the hanger ball (O) engages the tab on the mounting
bracket (A).
DANGER: Be careful when aligning the tab to
the slot. If not fully engaged, the fan may fall, which
may result in serious injury or death.

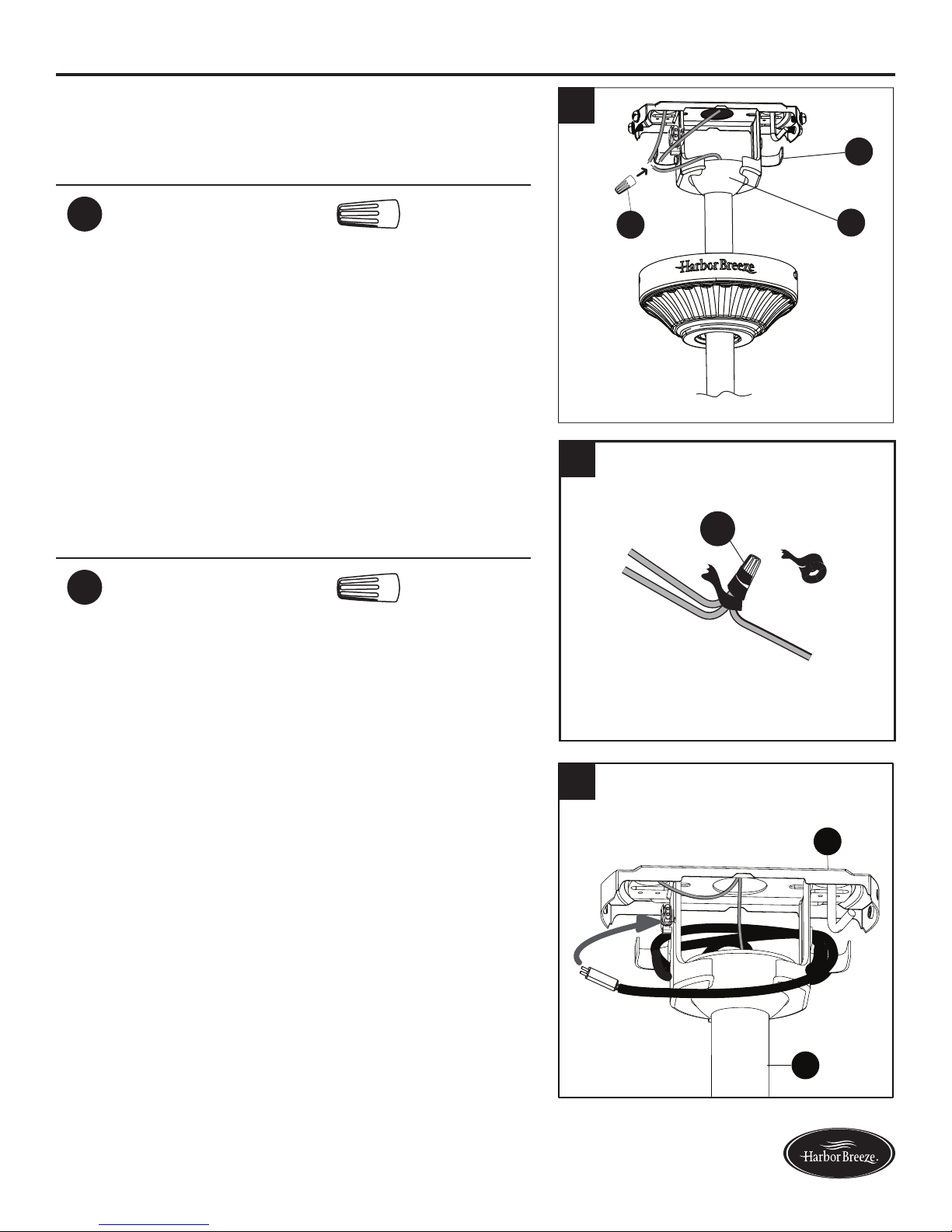

12 Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
15. Connect the green wires from the downrod ball
(O) and the mounting bracket (A) to the bare/green
(ground) supply wire using a wire connector (AA).
Hardware Used
AA Wire Connector x 1
16. Wrap electrical tape around the wire connector (AA)
down to the wire. Turn the spliced/taped wires upward
and gently push the wires and wire connector (AA)
into the outlet box.
Hardware Used
AA Wire Connector x 1
17. Wrap the wire harness coming from the downrod
(D) around the hooks on the back of the mounting
bracket (A).
Note: Extra wire harness length accommodates
longer downrods (sold separately).
A
D
17
15
A
O
AA
AA
16

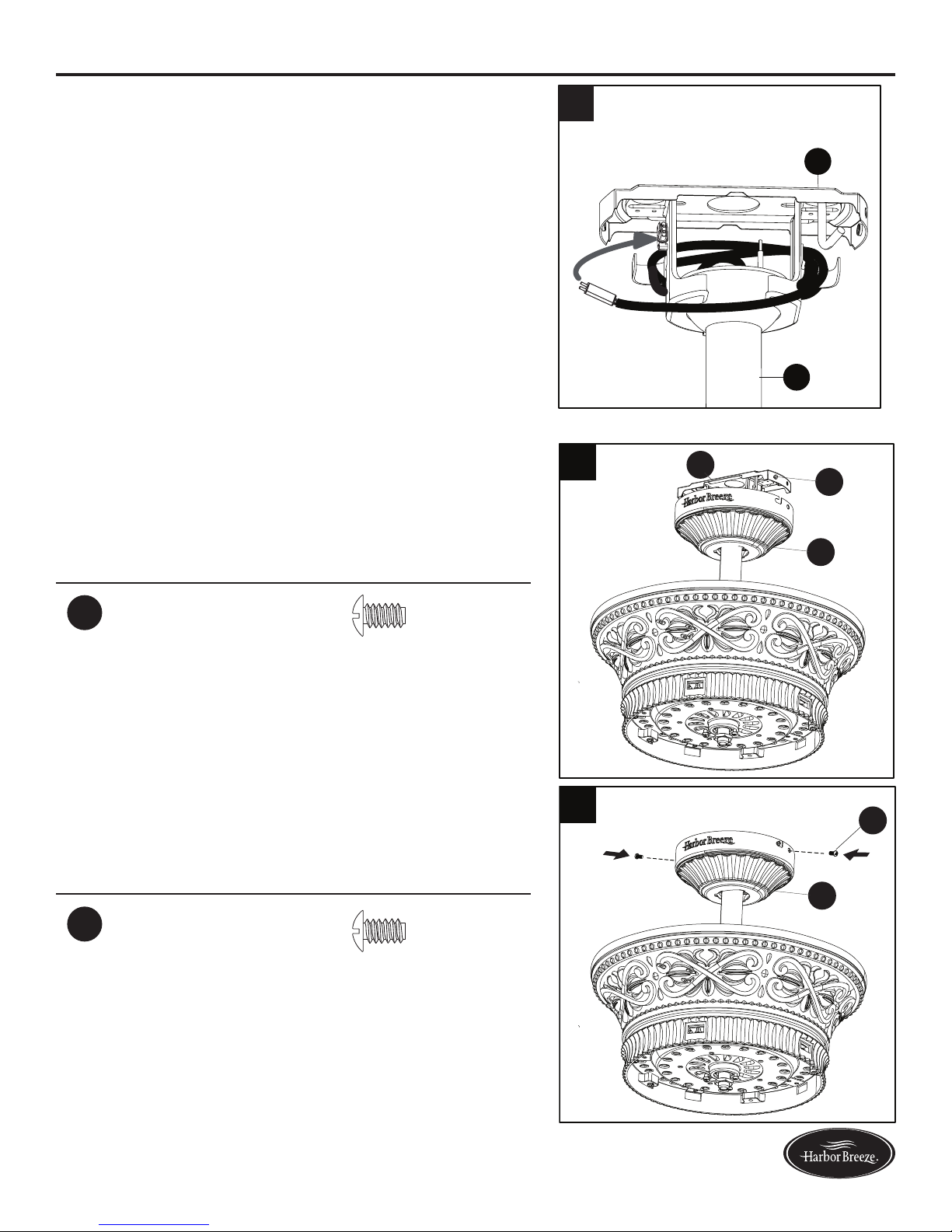

13 Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
19. Align the keyholes on the canopy (B) with the heads
of the mounting bracket screws (KK) preinstalled
in mounting bracket (A). Lift the canopy (B) up and
rotate it clockwise until the mounting bracket screws
(KK) engage the key slots.
Hardware Used
KK Mounting Bracket
Screw x 2
20. Secure the canopy (B) with the mounting bracket
screws (KK) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (KK) securely.
Hardware Used
KK Mounting Bracket
Screw x 2
18
KK
B
A
B
KK
ASSEMBLY INSTRUCTIONS
18. Connect the pin connector from the mounting
bracket (A) to the pin connector at the end of the wire
harness.
A
D
18
19
20

14 Lowes.com/harborbreeze
INITIAL INSTALLATION
21. Position one blade arm (J) under a blade (I) and
secure them together with three blade screws (BB)
and blade washers (CC). Do not tighten the blade
screws (BB) until all three have been started. Tighten
each blade screw (BB) starting with the center blade
screw (BB). Repeat this step for all blades (I).
Hardware Used
BB Blade Screw x 15
CC Blade Washer x 15
3
J
I
CC
BB
22. Insert one blade assembly into one of the slots on
theywheel(T).Alignthemountingholesonywheel
(T) and blade arm (J), securing with motor screws
(DD). Repeat for the remaining blade assemblies.
Hardware Used
DD Motor Screw x 10
3
T
T
DD
J
23. Remove one of the switch housing plate screws (LL)
fromthetterplate(R),andloosen(donotremove)
the other two screws. Insert the wires from the motor
housing (F) through the hole in the switch housing (G).
Hardware Used
LL Switch Housing
Plate Screw x 3
R
G
LL
F
ASSEMBLY INSTRUCTIONS
21
22
23

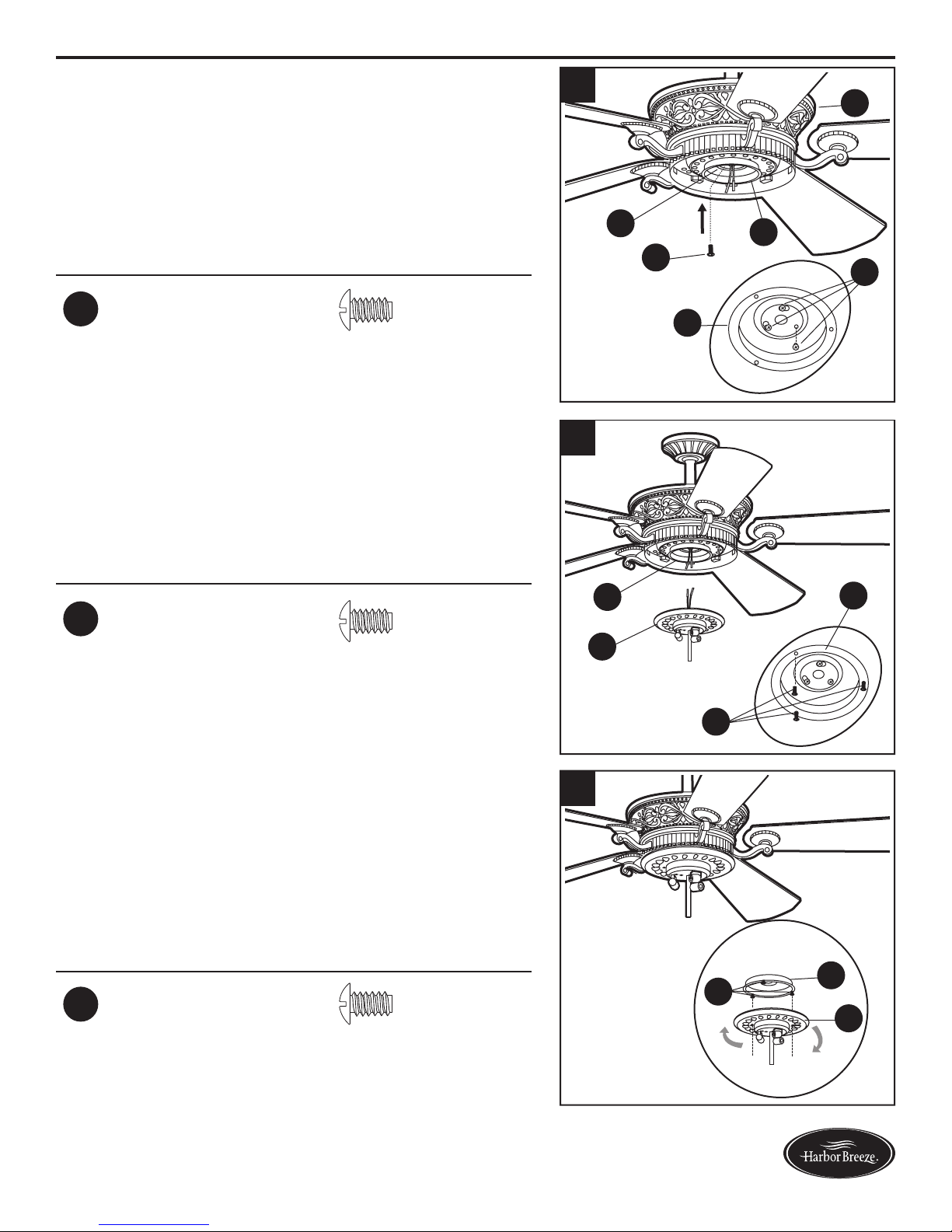

15 Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
24.Attachtheswitchhousing(G)tothetterplate(R)
by twisting the switch housing (G) until the loosened
switch housing plate screws (LL) engage the key
slots on switch housing (G). Re-install the third
switch housing plate screw (LL) into the closed hole
in the switch housing (G) and securely tighten all
three switch housing plate screws (LL).
Hardware Used
LL Switch Housing
Plate Screw x 3
RG
G
LL
F
LL
25. Remove one of the switch housing screws (MM) from
the switch housing (G), and loosen (do not remove)
the other two. Connect the wire-pin connectors in the
switch housing (G) to the wire-pin connectors from
the light kit (H) -- black to black and white to white.
Hardware Used
MM Switch Housing
Screw x 3
GG
H
MM
26. Align the slotted holes in the light kit (H) with the
loosened switch housing screws (MM). Twist the light
kit (H) until the screw heads engage the keyslots.
Install the switch housing screw (MM) that was
previously removed into the closed hole in the light
kit (H) and securely tighten all three switch housing
screws (MM).
Hardware Used
MM Switch Housing
Screw x 3
G
H
MM
24
25
26

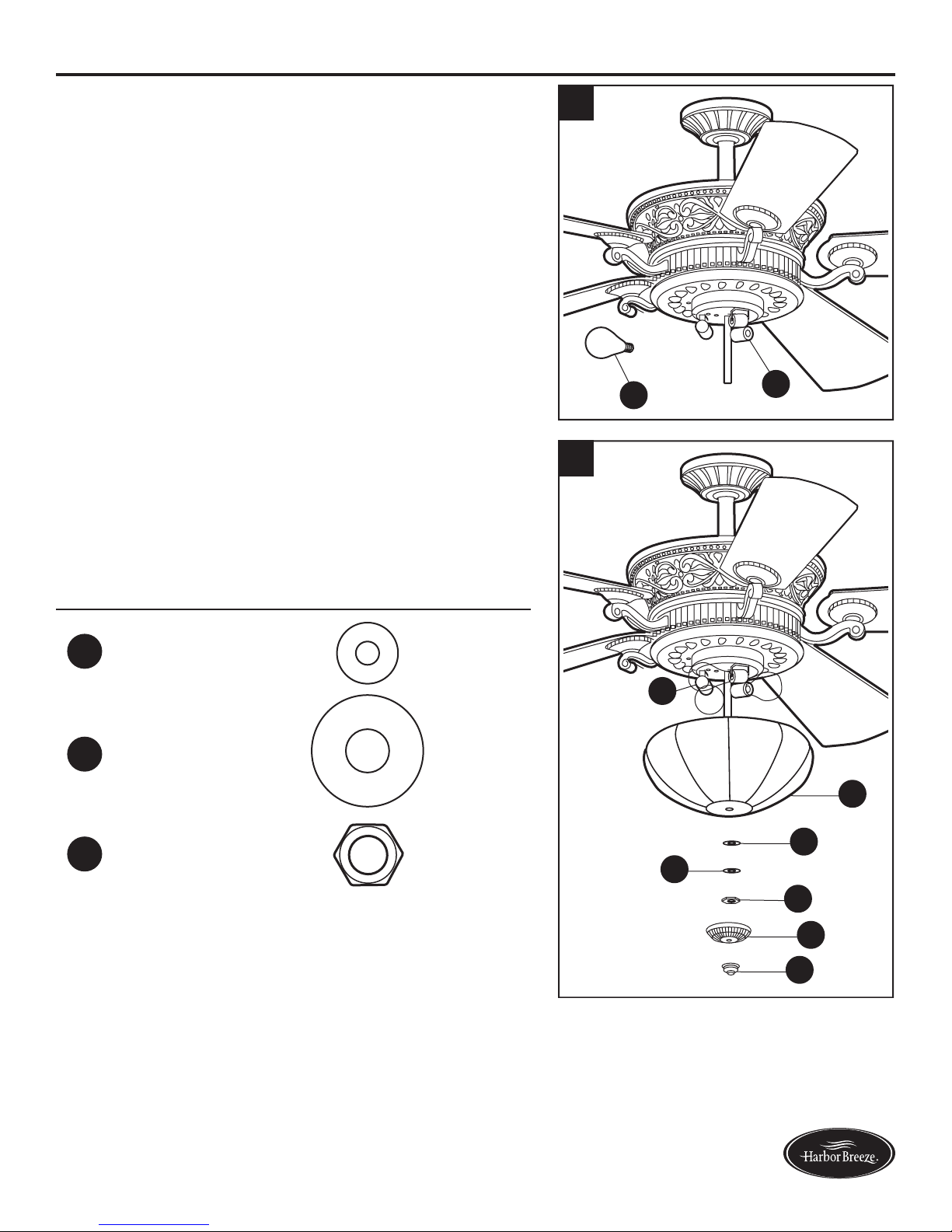

16 Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
27. Install the 40-watt bulbs (Q) into each socket on the
light kit (H).
CAUTION: An energy-saving wattage limiter is
included with the fan. When replacing bulbs, ensure
bulb wattage is less than 190 watts, otherwise the
fan will not function.
QH
28. Lift the glass bowl (K) up to the light kit (H), allowing
the preassembled threaded rod to go through the
center hole in the bottom of the glass bowl (K). Secure
glassbowl(K)withrubberwasher(II),atwasher
(HH),hexnut(JJ),nialcap(L),thennial(M).
Hardware Used
HH Flat Washer x 1
II Rubber Washer x 1
JJ Hex Nut x 1
H
K
II
HH
JJ
L
M
28
27

17 Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. To operate the fan using remote control (N), press
and release the following buttons:
Speed Control - Select fan speed 1 (low) - 6 (high).
Fan On/Off - Turns fan off or turns fan on at most
recently selected speed. Press and hold to turn off or
on the sounds from the remote control.
Variable Breeze - Simulates a natural breeze, as if
you were outside. Press any speed control button to
exit this mode.
Random Light - When button is pressed, light blinks
twicetoconrmRandomLightmode.Lightscycle
on for 5-20 minutes and off for 60 minutes simulating
occupancy. Cycle repeats continuously until any
other button is pushed to discontinue Random Light
mode.
Sleep Timer - Turns fan off after (2H) 2 hours, (4H) 4
hours or (8H) 8 hours.
Light On/Off - Cycles lights on/off - (down light on,
up light on, down light off, up light off). Press and
hold the Light On/Off button to turn on/off both up
light and down light.
Delayed Light Off - Delays turning off light for 1
minute which allows safe exit from room.
Season Slide Switch - Changes direction of blade
rotation. For warm weather slide switch to the left
and for cool weather slide switch to the right.
2. Remove battery door from back of the remote control
(N) to access the following:
DIP Switch - Changes signal frequency if
there is interference from another remote (see
troubleshooting for instructions).
Learn - Syncs remote control (N) to receiver (see
troubleshooting for instructions).
Battery Compartment - Install battery (U) into
remote control (N), being mindful of the polarity
markings. When necessary, replace battery (U) with
a new 12-volt battery.
3. Remote control (N) comes equipped with a wall
bracket. If you wish to install the wall bracket, remove
the small plate to expose the screw holes. Insert
wall brackets screws through holes and into wall,
then cover with the previously removed small plate.
Remote control (N) sits inside the wall bracket.
Random Light
Light On/Off
Delayed Light Off
Speed Control
Fan On/Off
Variable Breeze
Sleep Timer
Season Slide
Switch
2
+
+
H


N
12V
2
DIP Switch
Battery Compartment
Learn Button
N
U
1
Wall Bracket
Screw
Small Plate
N
V
3

18 Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.Youmayoccasionallyapplyalightcoatoffurniture
polish to wood blades for added protection.
Bulb Replacement: Use 25-watt max. or CFL equivalent bulbs for uplights.
Use 40-watt max. or CFL equivalent bulbs for downlights.
Important:Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The season slide switch is
not engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the season slide switch to
either the left or right.
2. Make sure the wall switch is turned
on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The break-in period has not
surpassed.
5. The outlet box is not secure.
6. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch
to control the fan speed.
4. Run the fan continuously for 24 - 48
hours on medium or high speed for a
“break in” period.
5. Ensure the outlet box is secured to
the building structure.
6. Ensure the mounting bracket is
secured to the outlet box and that the
screws are tight.

19 Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from
the opposite side. Or balance the fan
using a balancing kit (not supplied).
3. Turn off the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be
ushwithoutmovementagainstthe
outlet box.
4. Use a longer downrod or move the
fan to another location.
5. Lift up the yoke cover and tighten the
set screw to the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire-pin
connnectors are not
connected properly.
3. There is a faulty wire
connection.
4. The total power of the light is
exceeding 190W.
1. Re-install the bulb(s).
2. Ensure the wire-pin connectors in the
lightkittterareconnectedproperly.
3. Turn the power off and check all
connections at the ceiling outlet box.
4. The fan comes with a 190W limiter.
When the total watts of the lights is
over 190W, the lights do not work.
Please replace the bulbs with lower
wattage bulbs.

20 Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Remote
control does
not work.
1. The power to the fan is off or the fuse
is blown.
2. Power surge may have cleared
memory and remote needs to be
re-synced to the receiver.
3. Battery in remote control needs to be
replaced.
4. Interference from another remote.
1. Turn the power on or check the
fuse.
2. Turn power to fan off and back
on. Within 30 seconds press the
LEARN button on back of remote
control (see p. 17).
3. Insert new 12V battery in battery
compartment of the remote control
(see p. 17).
4. The remote control has been
synced to this fan at the factory
and the dip switch as been
switched to “0” inside the battery
compartment. If you have more
than one remote control in the
room, you may need to change the
dip switch settings as follows:
Slide the dip switch to “1” inside
the battery compartment and turn
the power to the fan OFF Then
turn the power ON and you should
hear the remote receiver make two
musical sounds, indicating that
the power supply is normal. Within
30 seconds, press the “LEARN”
key on the back of the transmitter.
Your remote and fan should be
synchronized. To verify successful
synchronization, the ceiling fan
light (if installed) will blink 3 times
and remain ON, and the fan will
rotate on HIGH speed.
