Harbor Breeze LANSING 40198 User manual

Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Lowes.com/harborbreeze
EB12165
ITEM #0179178, 0176493

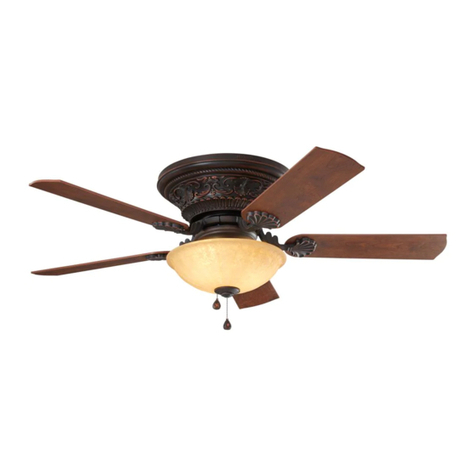

LANSING CEILING FAN
MODEL #40198, 40199
Español p. 26

2Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Assembly Instructions ..............................................................7
Standard or Angled Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................12
Wiring .........................................................................13
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Light Kit Installation ...............................................................18
Operating Instructions .............................................................20
Care and Maintenance ............................................................22
Troubleshooting..................................................................23
Limited Lifetime Warranty ..........................................................24
Replacement Parts List ............................................................25

3Lowes.com/harborbreeze
PACKAGE CONTENTS
A
E
I
B
F
J
C
G
K
D
H
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Light Kit Fitter 1
EMotor Assembly 1
F Yoke Cover 1
GBlade Arm 5
H Blade 5
I Glass Shade 3
J Bulb 3
K Canopy Cover ((preassembled to canopy (B)) 1

4Lowes.com/harborbreeze
HARDWARE CONTENTS
Motor Screw
(preassembled to
Motor Assembly (E))
Qty. 10 and 1 extra
Blade Screw
Qty. 15 + 1
extra
Blade Washer
Qty. 15 + 1 extra
Wire
Connector
Qty. 4
Pull Chain Extension
Qty. 2
Downrod Pin
(preassembled to
Downrod (A))
Qty. 1
Downrod Clip
(preassembled
to Downrod
(A))
Qty. 1
Motor Housing
Set Screw
(preassembled to
Motor Assembly
(E))
Qty. 2
Closemount
Screw
(preassembled
to Motor
Assembly (E))
Qty. 3 + 1
extra
Mounting
Bracket Screw
(preassembled
to Mounting
Bracket (C))
Qty. 4
Plate Screw
(preassembled to
Motor Assembly (E))
Qty. 3
Blade Isolator
Qty. 5
AA BB CC DD EE
FF GG HH II JJ
KK LL

5Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCode,andANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 14.01 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoanout-
let box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptablefor
fansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securetheoutlet
box directly to the building structure. The outlet box and its support must be able to support the mov-
ing weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectorspro-
vided with this fan are designed to accept only one 12 gauge house wire and two lead wires from the
fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they
are secured.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 90 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

7Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
2. Determine the mounting methods to use.
Note:Flushmount installation is not available for this
item.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 20°
2
3. Ensure that the blades (H) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (H) will be at least 7 ft. above
theoor.
3
7 ft. min.
30 in. min.
A
H

8Lowes.com/harborbreeze
ASSEMBLY INSTRUCTIONS
4. Secure the mounting bracket (C) to the outlet box
usingscrews,springwashers,andatwashers
provided with the outlet box (not included).
Note:It is very important that you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
Important:If using the angle mount, ensure that the
open end of the mounting bracket (C) is
installed facing the higher point of the
ceiling.
C
4
5. Remove the motor screws (AA) from the underside of
the motor assembly (E).
Note:If there are plastic motor blocks installed with
the motor screws (AA), discard them but keep
the screws.
Hardware Used
AA Motor Screw x 10
AA
E
5

9Lowes.com/harborbreeze
STANDARD OR ANGLED MOUNTING INSTRUCTIONS
1. Remove the downrod pin (FF) and downrod clip
(GG) from the downrod (A). Then partially loosen the
motor-housing set screws (HH) in the yoke at the top
of the motor assembly (E).
Help Hint: Downrod style mounting is best suited
for ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (not included). Angle
style mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance.
Hardware Used
FF Downrod Pin x 1
GG Downrod Clip x 1
HH Motor Housing
Set Screw x 2
E
A
GG HH
FF
A
1
2. Insert the downrod (A) through the canopy (B),
canopy cover (K), and yoke cover (F). Thread
the wires from the motor housing (E) through the
downrod (A).
C
C
C
2
F
K
A
B
C
C
F
K
A
B

10 Lowes.com/harborbreeze
STANDARD OR ANGLED MOUNTING INSTRUCTIONS
3. Slide the downrod (A) into the yoke of the motor
assembly (E), align the holes, and re-install the
downrod clip (GG) and pin (FF). Then re-tighten
the motor housing set screws (HH) and slide the
yoke cover (F) down until it rests on top of the motor
assembly (E).
Hardware Used
FF Downrod Pin x 1
GG Downrod Clip x 1
HH Motor Housing
Set Screw x 2
F
GG
HH
FF
E
A
3
4. Depending on the length of downrod (A) you use,
you may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead wires,
it is suggested that you do so in the following
manner: Take the lead wires and make sure that
you have pulled them all the way through the top of
the downrod (A) and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included). A
4

11 Lowes.com/harborbreeze
STANDARD OR ANGLED MOUNTING INSTRUCTIONS
5. If you decided to cut back the lead wire in Step 4,
strip 1/2 in. of insulation from the end of the white
wire. Twist the stripped ends of each strand of wire
within the insulation with pliers (not included). Repeat
this step for black, blue (if applicable) and green
wires.
Important:If you did not cut back the lead wires in
Step 4, Step 5 is not necessary and you
may proceed to Step 6.
5
6. Install the ball end of the downrod (A) into the mounting
bracket (C) opening. Align the slot in the ball with the
tab in the mounting bracket (C). The rod should not
rotate if it is done correctly.
DANGER: Failure to align the slot in the ball
with the tab may result in serious injury or death.
Proceed to the Wiring section of this manual.
C
A
6

12 Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS
1. Remove the canopy cover (K) from the bottom of the
canopy (B)
Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. (2.44 m)high.
The downrod, hanging ball, and canopy cover are not
used in this type of installation.
1
K
B
2. Align the canopy (B) with the holes in the top of the
motor assembly (E). Secure the canopy (B) to the
top of the motor assembly (E) with the closemount
screws (II).
Hardware Used
II Closemount Screw x 3
2
B
II
E
3. Raise the fan and place the canopy (B) on the
mounting bracket (C) hook for wiring.
Proceed to the Wiring section of this manual.
3
C
B

13 Lowes.com/harborbreeze
WIRING
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12 gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: If the house wires are different colors than referred to in the following step, stop
immediately. A professional electrician is recommended to determine the correct wiring scheme.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
Chooseawiringdiagramfromthethreechoicesbelowthattsyoursituationandmakethe
appropriate wiring connections as follows:
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect the Black and Blue wires from the
fan to the Black wire from the ceiling. Connect the
White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (DD).
Hardware Used
DD Wire Connector x 4
120 V Power
FROM
CEILING
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
GROUND/GREEN
BLACK
BLUE
WHITE
FROM FAN
FAN
1A
1B. FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH: To control the fan by pull chains
and the light with a separate wall switch, connect
the Black wire from the fan to the Black wire from
the ceiling. Connect the Blue wire from the fan to the
Black wire from the wall switch for the light. Connect
the White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (DD).
Hardware Used
DD Wire Connector x 4
WHITE
WHITE
BLACK
BLACK
BLACK (WALL SWITCH)
BLUE
120 V Power
FROM
CEILING
FAN
FROM FAN
GROUND/GREEN (BARE)
1B

14 Lowes.com/harborbreeze
WIRING
1C. FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES: To control the fan and light with
separate wall switches, connect the Black wire from
the fan to the Black wire from the wall switch for the
fan. Connect the Blue wire from the fan to the Black
wire from the wall switch for the light. Connect the
White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (DD).
Note:The Black wire is hot power for the fan. The
Blue wire is hot power for the light kit. The
White wire is common for the fan and light kit.
The Green (Bare) wire is ground.
Hardware Used
DD Wire Connector x 4
WHITE
WHITE
BLACK (WALL SWITCH)
BLACK
BLACK (WALL SWITCH FOR LIGHT)
BLUE
120 V Power
FROM
CEILING
FAN
FROM FAN
GROUND/GREEN (BARE)
1C
2. Wrap electrical tape (not included) around each
individual wire connector (DD) down to the wire.
DD
DD
DD
2

15 Lowes.com/harborbreeze
WIRING
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (DD) into the outlet
box.
WARNING: Ensure that no bare wire or wire
strands are visible after making connections. Place
the Green and White wire connections on opposite
sides of the outlet box from the Black and Blue (if
applicable) wire connections.
DD
3

16 Lowes.com/harborbreeze
FINAL INSTALLATION
1. Remove the two mounting bracket screws (JJ) from
the mounting bracket (C) and loosen the other two
screws about 1/4 in. Then align the canopy (B) up to
the ceiling over the loose mounting bracket screws
(JJ). Place the keyholes of the canopy (B) into the
mounting bracket screws (JJ) and rotate clockwise.
Hardware Used
JJ Mounting Bracket
Screw x 4
B
JJ
1
C
2. Secure the canopy (B) with the previously removed
mounting bracket screws (JJ) and securely tighten all
four mounting bracket screws (JJ). Push the canopy
cover (K) up into the bottom of the canopy (B) until it
is locked.
Note:Closemount installation will not have the
downrod (A) and canopy cover (K).
Hardware Used
JJ Mounting Bracket
Screw x 4
B
C
JJ
A
2
K
Note:
Closemount installation will not have the
downrod (A) and canopy cover (K).

17 Lowes.com/harborbreeze
FINAL INSTALLATION
3. Partially insert three blade screws (BB) along with
three blade washers (CC) through one blade (H)
and into one blade arm (G). Tighten each blade
screw (BB) with a Phillips screwdriver (not included),
starting with the one in the middle. Repeat this step
for the remaining blades (H) and blade arms (G).
Hardware Used
BB Blade Screw x 15
CC Blade Washer x 15
BB
H
G
CC
H
3
4. Align a blade arm (G) and a blade isolator (LL) with
two holes underneath the motor (E) and insert two of
the previously-removed motor screws (EE) through
the blade arm (G) and into the motor (D). Tighten the
screws securely. Repeat this step for the remaining
blade arms (G).
Hardware Used
AA Motor Screw x 10
Blade Isolator x 5
E
AA
G
LL
4
LL

18 Lowes.com/harborbreeze
LIGHT KIT INSTALLATION
1. Remove the three plate screws (KK) located on the
tterplateportionofthemotorassembly(E).Then
connect the plug from the motor assembly (E) to the
plugfromthelightkittter(D),matchingthecolors
on each plug. Ensure that the plugs connect tightly.
Hardware Used
KK Plate Screw x 3 D
E
1
KK
E
2. Alignholesinthelightkittter(D)withtheholesin
the motor assembly (E). Re-insert the plate screws
(KK) and secure them with a Phillips screwdriver.
Hardware Used
KK Plate Screw x 3
D
E
KK
2
3. Screw the glass shades (I) into the sockets of the
lightkittter(D).
I
D
3

19 Lowes.com/harborbreeze
LIGHT KIT INSTALLATION
4. Install the bulbs (J).
Important:When you need to replace the bulbs,
please allow the bulb (J) and light kit to
cool down before touching the bulb (J) or
the light kit.
Note:This fan uses three 60-watt max. candelabra-
base bulbs.
J
4
5. Attach the pull chain extensions (EE) or custom pull
chains extensions (not included) to the fan and light
pull chains.
Hardware Used
EE Pull Chain
Extension x 2
5

20 Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is MEDIUM,
three is LOW, and four turns the fan OFF.
1
2. The pull chain labeled LIGHT is used to turn the
lights ON or OFF. 2
