Harbor Breeze LAKE LAGODA LP8300LAZ User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and
8 a.m. - 5 p.m., EST, Friday.
Español p. 24
ITEM #0593754
MODEL #LP8300LAZ
LAKE LAGODA CEILING FAN
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Lowes.com/harborbreeze
EB14221
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
1

TABLE OF CONTENTS
Package Contents .........................................................................................................................
Hardware Contents .......................................................................................................................
Safety Information .........................................................................................................................
Preparation ...................................................................................................................................
Assembly Instructions ...................................................................................................................
Wiring Instructions ........................................................................................................................
Final Assembly Instructions ..........................................................................................................
Operating Instructions ..................................................................................................................
Blade Balancing Instructions ........................................................................................................
Care and Maintenance .................................................................................................................
Troubleshooting ............................................................................................................................
Warranty .......................................................................................................................................
Replacement Parts List ................................................................................................................
3
4
4
5
6
12
14
16
19
20
20
22
23
Lowes.com/harborbreeze
2

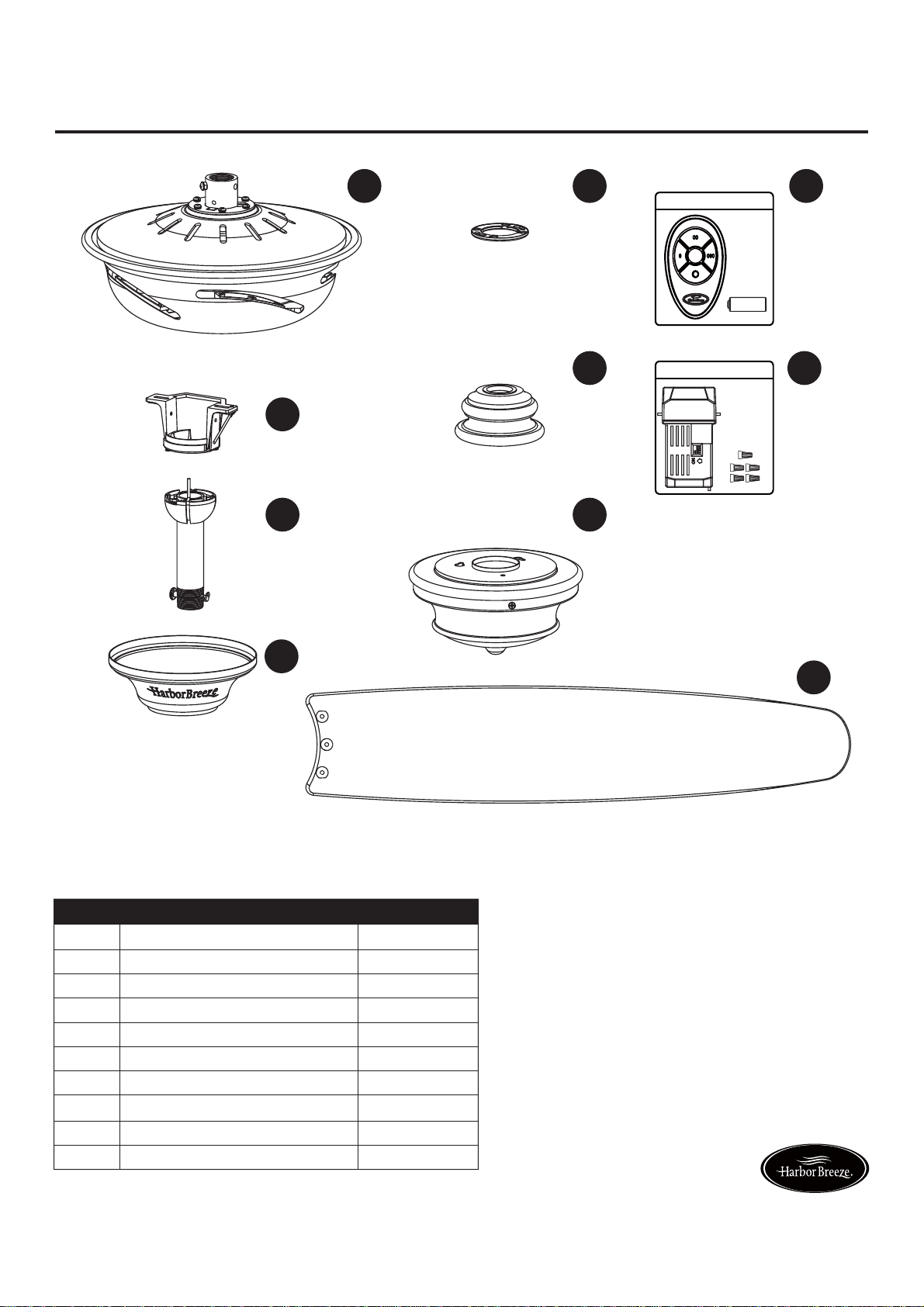

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
Motor Assembly
Hanger Bracket
Downrod Assembly
Ceiling Canopy
Canopy Screw Cover
Motor Coupling Cover
Switch Cup Assembly
Blade
Remote Pack
Power Kit
J
B
A
F
G
C
H
I
Lowes.com/harborbreeze
E
D
A
B
C
D
E
F
G
H
I
J
1
1
1
1
1
1
1
5
1
1
3

'RQRWRSHUDWHWKLVIDQZLWKDYDULDEOH5KHRVWDWZDOOFRQWUROOHURUGLPPHUVZLWFK'RLQJVR
FRXOGUHVXOWLQGDPDJHWRWKHFHLOLQJIDQVUHPRWHFRQWUROXQLW
HARDWARE CONTENTS VKRZQDFWXDOVL]H
:LUH
&RQQHFWRU
4WyH[WUD
CC DD
%DODQFH
.LW
QRWVKRZQ
WRVL]H
4Wy
WDVKHU
4WyH[WUD
BB
AA
6FUHZ
4WyH[WUD
/RZHVFRPKDUERUEUHH]H
SAFETY INFORMATION
%HIRUH\RXEHJLQLQVWDOOLQJWKHIDQGLVFRQQHFWWKHSRZHUE\UHPRYLQJIXVHVRUWXUQLQJRIIFLUFXLW
EUHDNHUV
'RQRWLQVWDOORUXVHIDQLIDQ\SDUWLVGDPDJHGRUPLVVLQJ
0DNHVXUHWKHLQVWDOODWLRQVLWH\RXFKRRVHDOORZVDPLQLPXPFOHDUDQFHRIIWIURPWKHEODGHV
WRWKHIORRUDQGDWOHDVWLQIURPWKHHQGVRIWKHEODGHVWRDQ\REVWUXFWLRQ
,I\RXDUHPRXQWLQJWKHIDQWRDFHLOLQJRXWOHWER[XVHD0(TALRFWDJRQDORXWOHWER[QRWSODVWLF
6HFXUHWKHRXWOHWER[GLUHFWO\WRWKHEXLOGLQJVWUXFWXUH7KHRXWOHWER[DQGLWVVXSSRUWPXVWEHDEOH
WRVXSSRUWWKHPRYLQJZHLJKWRIWKHIDQDWOHDVWOEV
TRUHGXFHWKHULVNRIILUHHOHFWULFDOVKRFNRUSHUVRQDOLQMXUyZLUHFRQQHFWRUVSURYLGHGZLWKWKLV
IDQDUHGHVLJQHGWRDFFHSWRQO\RQHJDXJHKRXVHZLUHDQGWZROHDGZLUHVIURPWKHIDQ,I
\RXUKRXVHZLUHLVODUJHUWKDQJDXJHRUWKHUHLVPRUHWKDQRQHKRXVHZLUHWRFRQQHFWWRWKH
WZRIDQOHDGZLUHVFRQVXOWDQHOHFWULFLDQIRUWKHSURSHUVL]HZLUHFRQQHFWRUVWRXVH%HIRUH
FXWWLQJGULOOLQJRUKDPPHULQJYHULI\WKHLUORFDWLRQ,IQHHGHGFRQWDFW\RXUHOHFWULFLDQSOXPEHU
RUVHUYLFHSHUVRQ
TRUHGXFHWKHULVNRIILUHHOHFWULFVKRFNRUSHUVRQDOLQMXUyGRQRWEHQGWKHEODGHDUPVZKHQ
LQVWDOOLQJWKHPEDODQFLQJWKHEODGHVRUFOHDQLQJWKHIDQ'RQRWLQVHUWIRUHLJQREMHFWVEHWZHHQ
WKHURWDWLQJIDQEODGHV0RXQWWRRXWOHWER[PDUNHG³$&&(3T$%/()25)$16833257´DQG
XVHPRXQWLQJVFUHZVSURYLGHGZLWKWKHRXWOHWER[0RVWRXWOHWER[HVFRPPRQO\XVHGIRUWKH
VXSSRUWRIOLJKWLQJIL[WXUHVDUHQRWDFFHSWDEOHIRUIDQVXSSRUWDQGPD\QHHGWREHUHSODFHG
&RQVXOWDTXDOLILHGHOHFWULFLDQLILQGRXEW
7KLVIDQLVWREHXVHGLQGU\RUGDPSORFDWLRQV
WARNING
3OHDVHUHDGDQGXQGHUVWDQGWKLVHQWLUHPDQXDOEHIRUHDWWHPSWLQJWRDVVHPEOHRSHUDWHRULQVWDOO
WKHSURGXFW
4

Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, 1/4 in. flathead screwdriver, wire
stripper and step ladder.
Helpful Tools (not included):AC tester light, do-it-yourself wiring handbook and wire cutters.
This fan is intended for standard and angled mounting options only. Closemount and flushmount
options are not available. For angled ceilings, note the angle can be no more than 19°.
PREPARATION
SAFETY INFORMATION
Lowes.com/harborbreeze
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
The net weight of this fan is: 24.93 lbs.
Make sure all electrical connections comply with local codes, ordinances or the National
Electrical code. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are
unfamiliar with installing electrical wiring.
After you install the fan, make sure all connections are secure to prevent the fan from falling.
For supply connections, if the conductor of a fan is identified as a grounded conductor, then it
should be connected to a grounded conductor power supply. If the conductor of a fan is identified
as an ungrounded conductor, then it should be connected to an ungrounded conductor power
supply. If the conductor of a fan is identified for equipment grounding, then it should be connected
to an equipment-grounding conductor.
CAUTION
5

ASSEMBLY INSTRUCTIONS
3
A
2
A
2. Remove the two preassembled screws of the
downrod support from the motor assembly (A).
Retain screws for later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
1
A

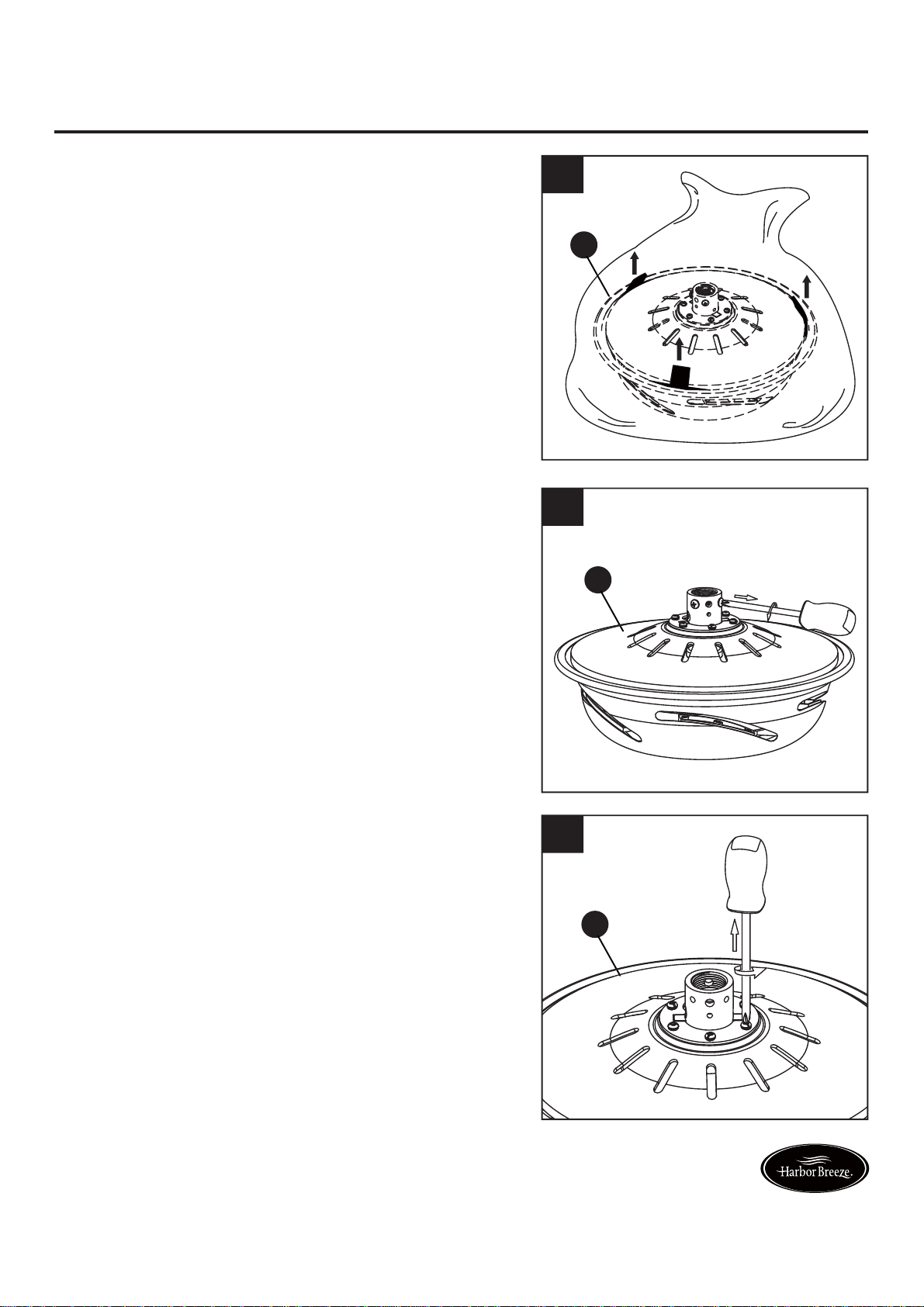

1. Remove motor assembly (A) from plastic bag,
then remove preassembled stabilizer tabs.
Discard bag and tabs.
3. Remove the six preassembled screws of the
motor coupler from the motor assembly (A).
Retain screws for later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
Lowes.com/harborbreeze
6

4
A
A
4. Remove motor coupler washer and upper
housing cover from motor assembly (A).
ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze
5. Position blade (H) through slot in motor
assembly (A) and over threaded posts so
they are showing. Note: Make sure the bottom
edge of the blade (H) is fully seated against
the flywheel of motor assembly (A).
6. Secure blade (H) to motor assembly (A) with
washers (BB) and screws (AA). Repeat Steps
5 and 6 for remaining blades (H).
Hardware Used
AA
BB
x 15
x 15
5
6
AA
H
BB
Screw
Washer
7

ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze
9. Remove the hanger ball portion from the
downrod assembly (C) by loosening the
preassembled set screw in the hanger ball
until the ball falls freely down the downrod.
Remove the preassembled pin from the
downrod, then remove the hanger ball. Retain
the pin and hanger ball for later use.
9
8
8. Remove the preassembled hairpin clip and
clevis pin from the bottom of downrod
assembly (C). Retain for later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
C
7. Re-assemble the upper housing cover and
motor coupler washer to the motor. Secure
with six screws previously removed in Step 3,
page 6.
7
A
Set screw
8

ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze
10

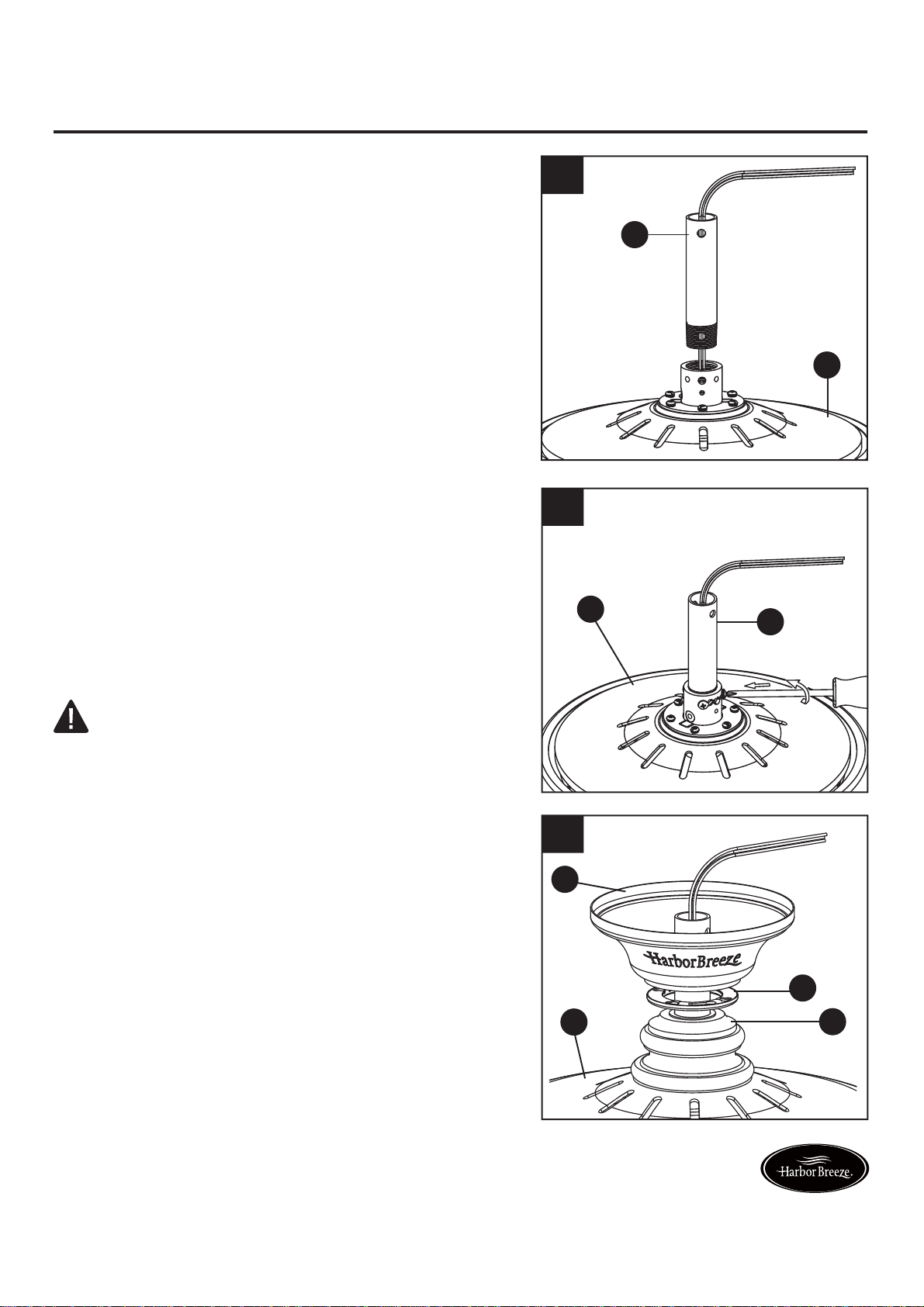

10. Route the black and white wires from motor
assembly (A) through the downrod.
C
A
12
11. Thread the downrod into downrod support of
motor assembly (A). Align the holes in the
downrod support of the motor assembly (A)
with the holes in the downrod and install the
clevis pin previously removed in Step 8, page
8. Secure clevis pin with hairpin clip also
removed in Step 8 Then, re-install screws
previously removed in Step 2, page 6 into
downrod support of motor assembly (A) to
secure downrod.
WARNING
It is critical the clevis pin in the downrod support
is properly installed and the screws are securely
tightened. Failure to do so could result in the fan
falling and causing injury.
12. Route motor coupling cover (F), canopy
screw cover (E) and ceiling canopy (D) over
fixture wires from motor assembly (A).
D
A
E
F
11
C
A
9

ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze
14. Measure approximately 6 to 9 in. of lead wire
from the top of the downrod assembly (C),
then cut off the excess. Strip insulation off 1/2
in. from the end of each lead wire.
14
C
13
13. Re-attach the pin previously removed in Step
9, page 8 into the downrod, then align the
hanger ball so the pin is captured in the
groove at the top. Pull the hanger ball tight
against the pin, then tighten the
preassembled set screw in hanger ball.
A loose set screw could result in a wobbly fan.
CAUTION CSet screw
10

ASSEMBLY INSTRUCTIONS

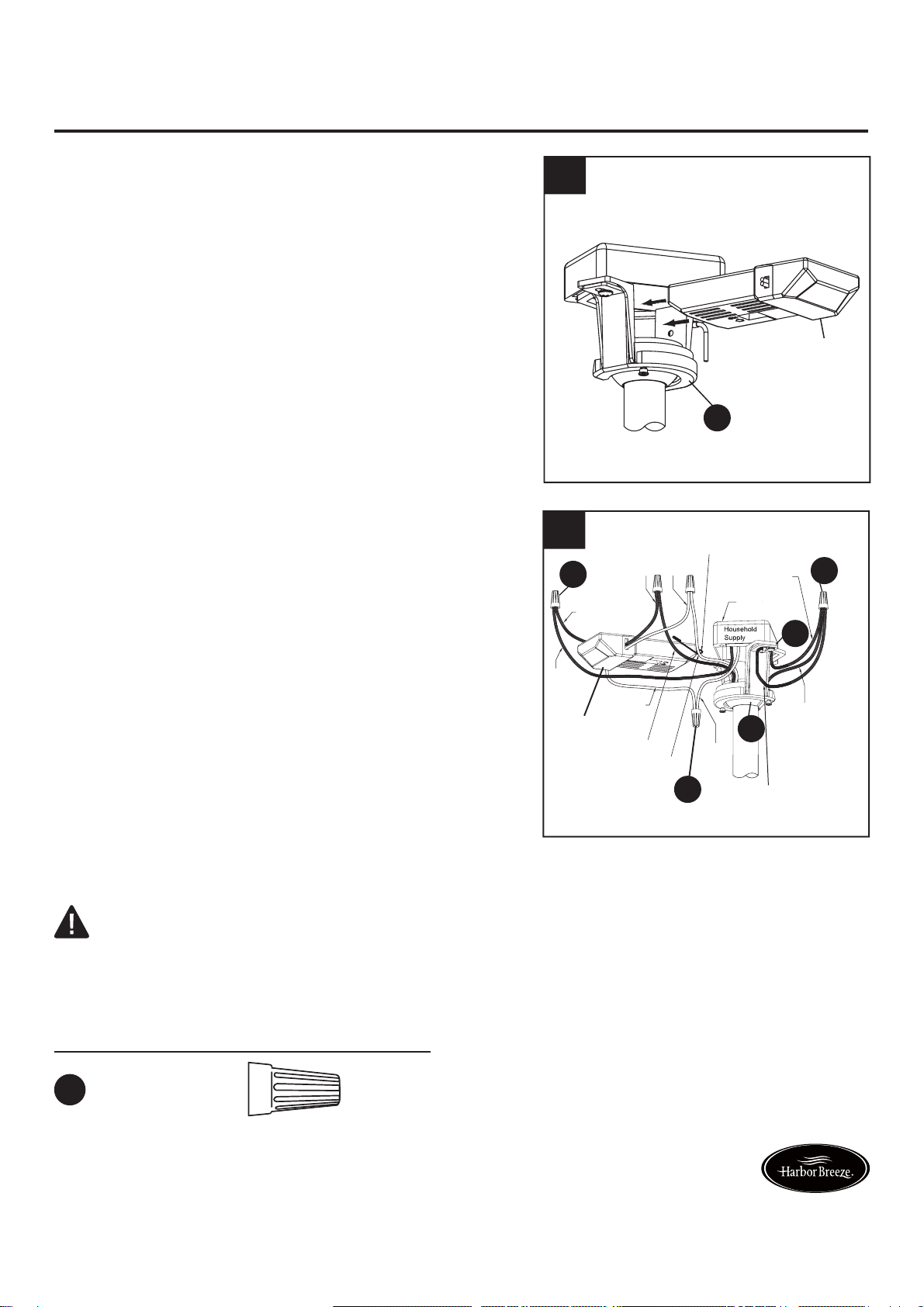

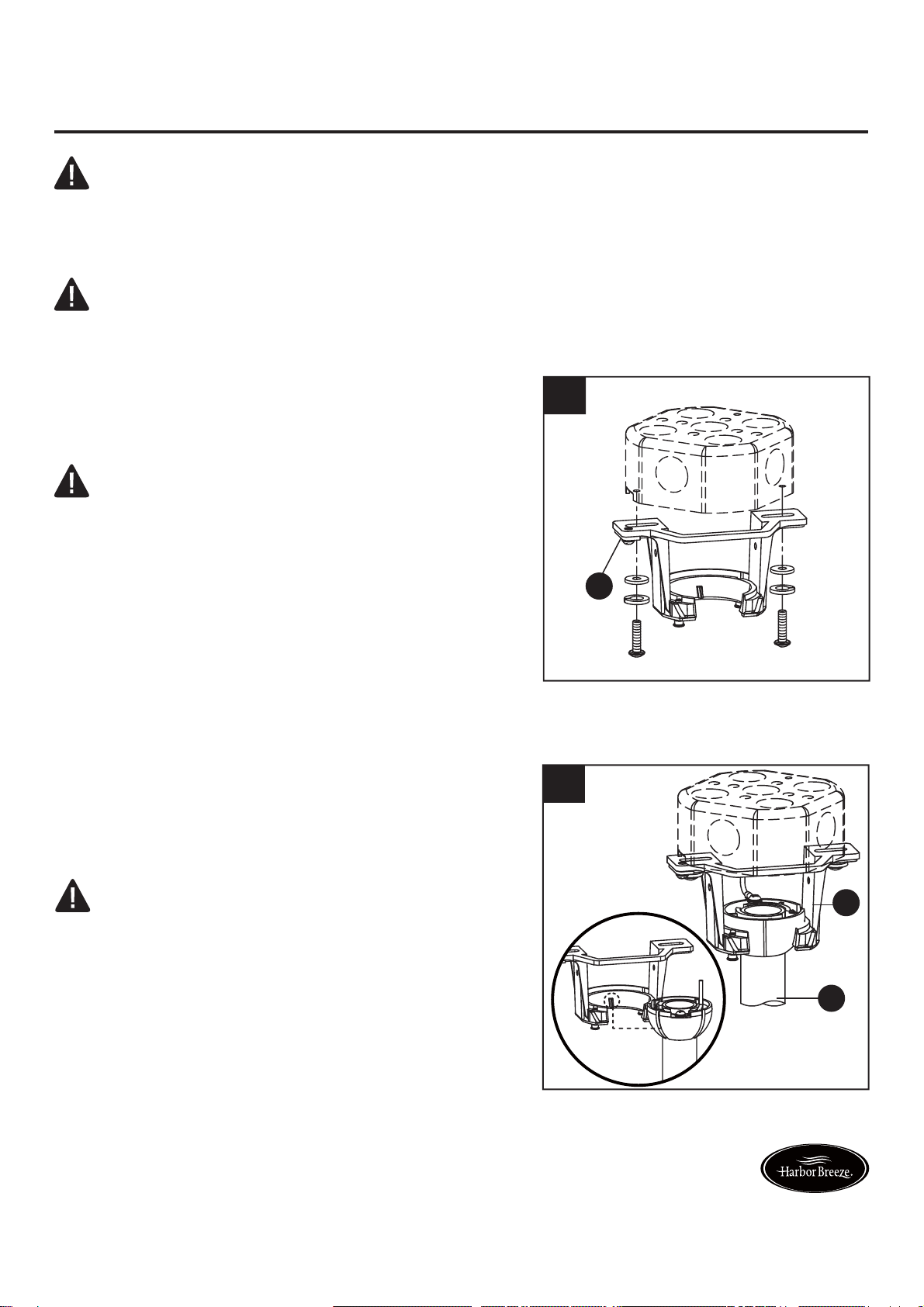

15. Securely attach the hanger bracket (B) to the
outlet box (not included) using the outlet box
screws and washers supplied with the outlet
box.
WARNING
The outlet box must be securely anchored.
Hanger bracket (B) must seat firmly against
outlet box. If the outlet box is recessed, remove
wallboard until hanger bracket (B) contacts box.
If hanger bracket (B) and/or outlet box are not
securely attached, the fan could wobble or fall.
B
15
Lowes.com/harborbreeze
16. Carefully lift the fan assembly, resting the
hanger ball of the downrod assembly (C) on
the hanger bracket (B).
Note: Be sure the groove in the hanger ball
is lined up with tab on the hanger bracket (B).
WARNING
Failure to seat tab in groove could cause damage
to electrical wires and possible shock or fire
hazard.
To avoid possible shock, do not pinch wires
between the downrod assembly (C) and hanger
bracket (B).
B
C
16
WARNING
To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before
hanging.
WARNING
The fan must hang with at least 7 ft. of clearance from the floor to blades.
Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice.
11

Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice.
Lowes.com/harborbreeze
WIRING INSTRUCTIONS

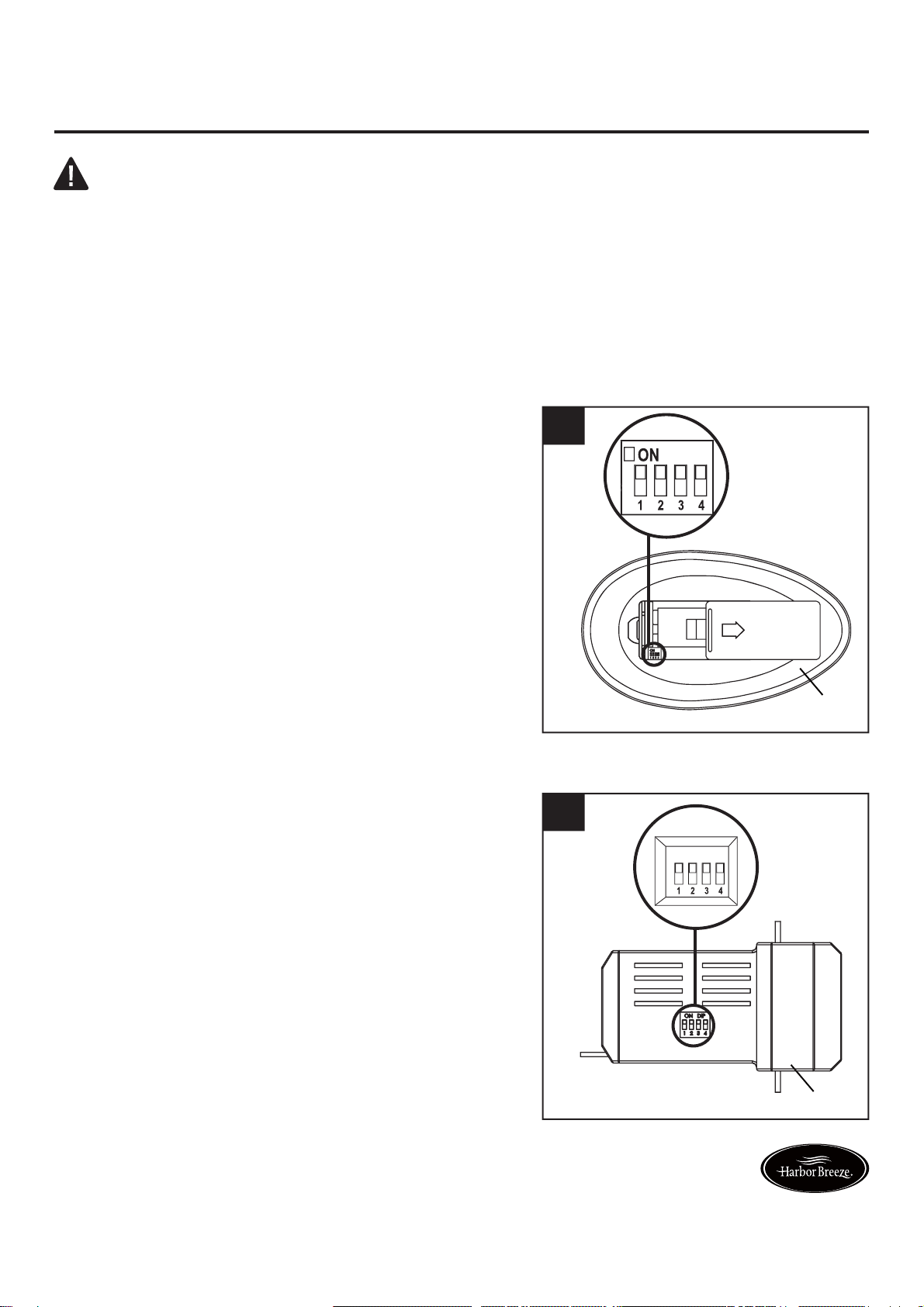

1. To set the transmitter code, remove battery
cover on the remote from remote pack (I) by
pressing firmly below the arrow and sliding
cover off. With a small screwdriver or ball point
pen (neither included), slide switches firmly up
or down. Once desired setting is made,
replace battery cover on remote.
Note: Factory setting is all up. Do not use this
position.
1
Note: The remote in remote pack (I) has 16 different code combinations. To prevent possible
interference from or to other remote units, simply change the combination code in the transmitter and
receiver.
WARNING
To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring
this fan.
2. To set the code on receiver unit from the power
kit (J), slide switches to the same positions as
set on the remote. 2
ON DIP
Remote
Receiver unit
12

Lowes.com/harborbreeze
WIRING INSTRUCTIONS
B
3. Slide the receiver unit from the power kit (J)
into the open end of the hanger bracket (B).
3
x 3
4
Hardware Used
Wire
Connector
CC
4. Connect green wires from hanger bracket (B)
and downrod assembly (C) to bare (ground) wire
from the outlet box using wire connector (CC).
Connect black wire from receiver unit from the
power kit (J) marked “AC IN L” to black supply
wire using wire connector (CC). Connect white
wire from receiver unit from the power kit (J )
marked “AC IN N” to white supply wire using wire
connector (CC). Connect white wire from
receiver unit from the power kit (J) marked “TO
MOTOR N” to white wire from fan using wire
connector supplied with power kit from the
power kit (J). Connect black wire from receiver
unit from the power kit (J) marked “TO MOTOR
L” to black wire from fan using wire connector
supplied with power kit (J).
Note: During wiring process, be careful not to
cut or bend black antenna.
WARNING
Check to see all connections are tight and no
bare wire is visible at the wire connectors
except for the ground wire.
Receiver unit
Receiver unit
Black
Black
Black White
White
White
Black to Motor
White to Motor
BLK-ANTGreen Wire
(Ground)
Green Wire
(Ground) from
Hanger Bracket
Green Wire
(Ground) from
Downrod
Assembly
Listed
Outlet Box
CC
CC
CC
C
B
13

14
Lowes.com/harborbreeze
5. After connections have been made, turn wires
upward and carefully push wires into the outlet
box, with the white and green wires to one side
of the box and the black wires toward the other
side.
5
WIRING INSTRUCTIONS
1
D
2
1. Remove one of the two preassembled
shoulder screws in the hanger bracket (B).
Loosen the second shoulder screw without
fully removing it. Then, rotate ceiling canopy
(D) so second shoulder screw moves into the
small opening of the keyslot. Tighten shoulder
screw and re-install the previously removed
shoulder screw to secure ceiling canopy (D) to
hanger bracket (B).
FINAL ASSEMBLY INSTRUCTIONS
2. Securely attach and tighten the canopy
screw cover (E) over the shoulder screws in
the hanger bracket (B), utilizing the keyslot
twist-lock feature.
WARNING
To avoid possible fire or shock, make sure the
electrical wires are completely inside the canopy
housing and not pinched between the housing
and the ceiling.
E
Black
White
BLK-ANT
Green Wire
(Ground) from
Hanger Bracket
Green Wire
(Ground) from
Downrod
Assembly
Listed
Outlet Box

Lowes.com/harborbreeze
FINAL ASSEMBLY INSTRUCTIONS
G
A
4. Remove one of the three preassembled
screws inside the support bracket of the motor
assembly (A) and retain for later use. Slightly
loosen the remaining screws.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
5
5. Align the large opening of the keyslots on
switch cup assembly (G) with the loosened
screws on motor assembly (A). Turn switch
cup assembly (G) clockwise until the
loosened screws slide into the narrow opening
of the keyslots. Replace the third screw
previously removed in Step 4, page 15, then
tighten all three screws securely.
A
4
G
3
3. Remove the adapter switch cover from the
switch cup assembly (G) by removing the
three preassembled screws. Retain screws for
later use.
Note: Make sure to keep loose hardware
separate to avoid confusion during installation.
15

FINAL ASSEMBLY INSTRUCTIONS
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. Restore electrical power to the outlet box by
turning the electricity on at the main fuse box. 1
ON
ON
ON
ON
ON
ON
ON
ON
7
7. Re-attach the adapter switch cover to switch cup
assembly (G) using screws previously removed in
Step 3, page 15.
G
A
6
WARNING
The color label on the two connectors must
correspond to each other.
G
6. Securely attach the preassembled 9-pin
connector from the motor assembly (A) to the
preassembled wire harness socket within the
switch cup assembly (G).
16
WARNING

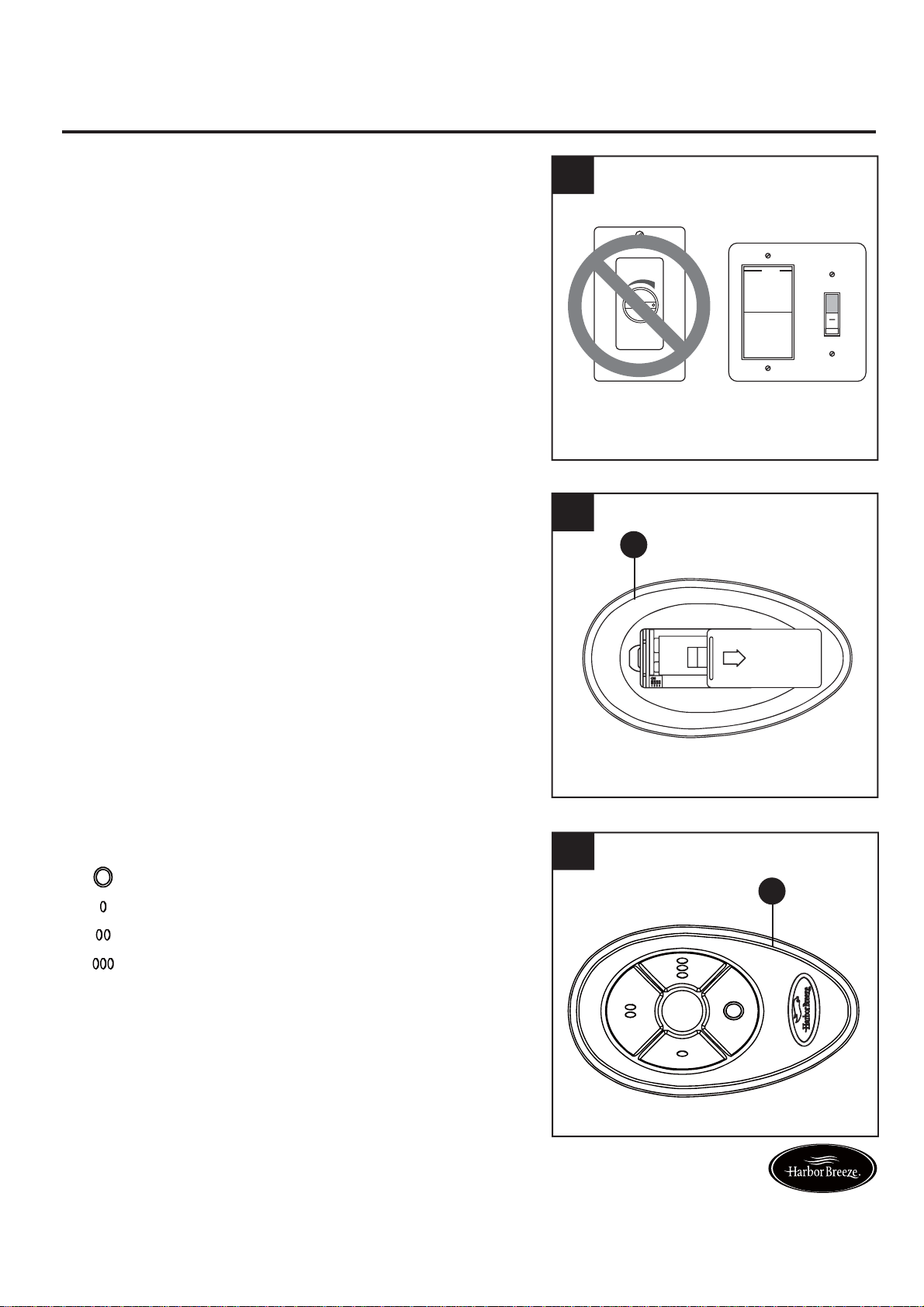

Do not operate this fan with a variable (Rheostat)
wall controller or dimmer switch. Doing so could
result in damage to the ceiling fan's remote control
unit.

2.
IMPORTANT: Using a full range dimmer switch
(not included) to control fan speed will damage
the fan. To reduce the risk of fire or electrical shock,
do not use a full range dimmer switch to control the
fan speed.
For illustrative purposes only-not
intended to cover all types of controls
OPERATING INSTRUCTIONS
Lowes.com/harborbreeze
If you are not expecting to use the remote for a
long period of time, remove the battery to
prevent damage to the remote. Be sure to store
the remote away from excess heat or humidity.
CAUTION
3
2
I
3. To make fan operational, install 12-volt battery
from remote pack (I) into the remote also from
remote pack (I).
4
I
4. The remote controls the fan speed as follows:
- OFF
- LOW
- MEDIUM
- HIGH
17

OPERATING INSTRUCTIONS
Lowes.com/harborbreeze

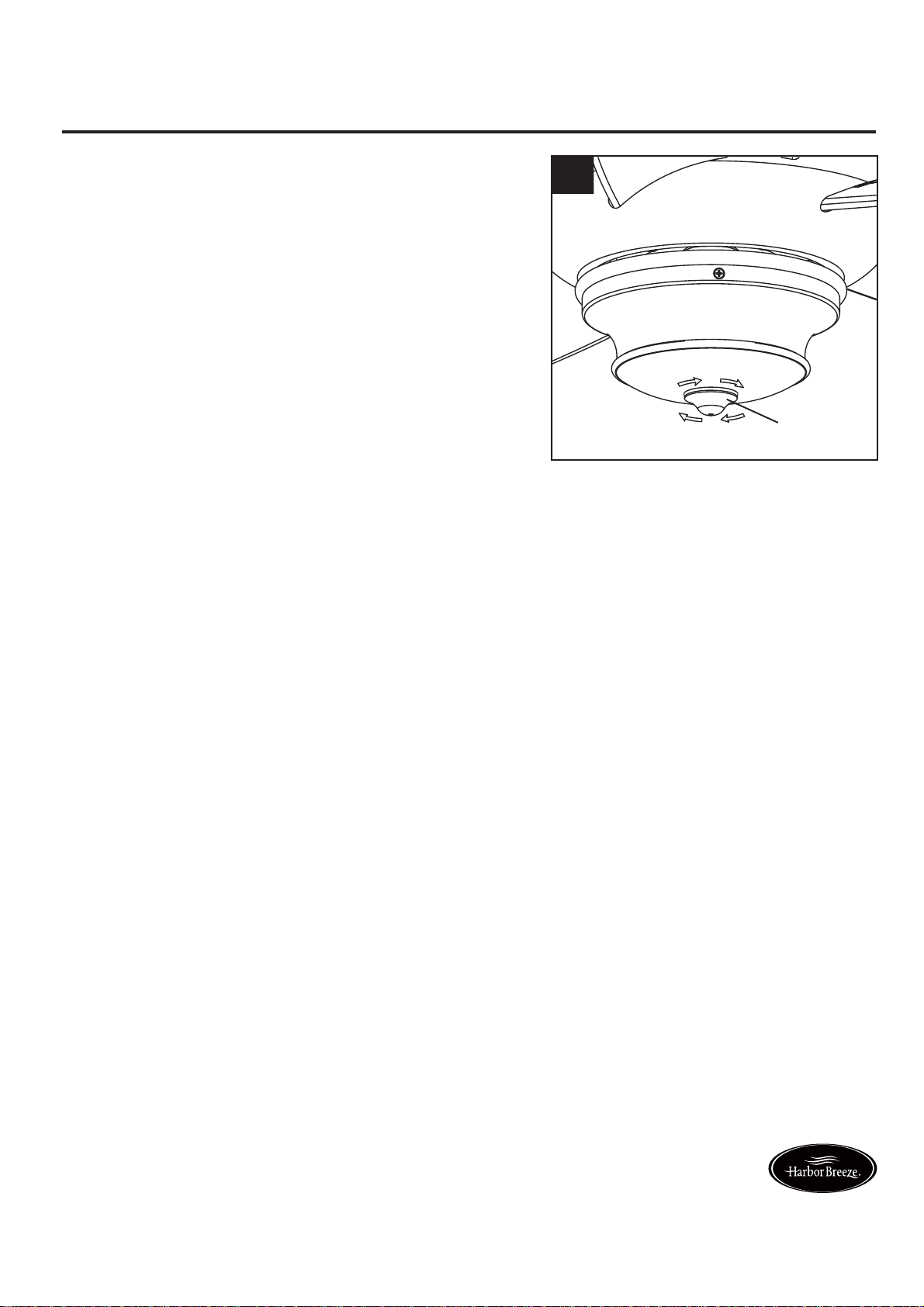

5. To optimize your fan for seasonal performance, use
the reverse switch located on the bottom of switch
cup assembly (G). Turn clockwise once for summer
airflow (downward) and turn clockwise twice for winter
airflow (upward).
5
Reverse switch
18

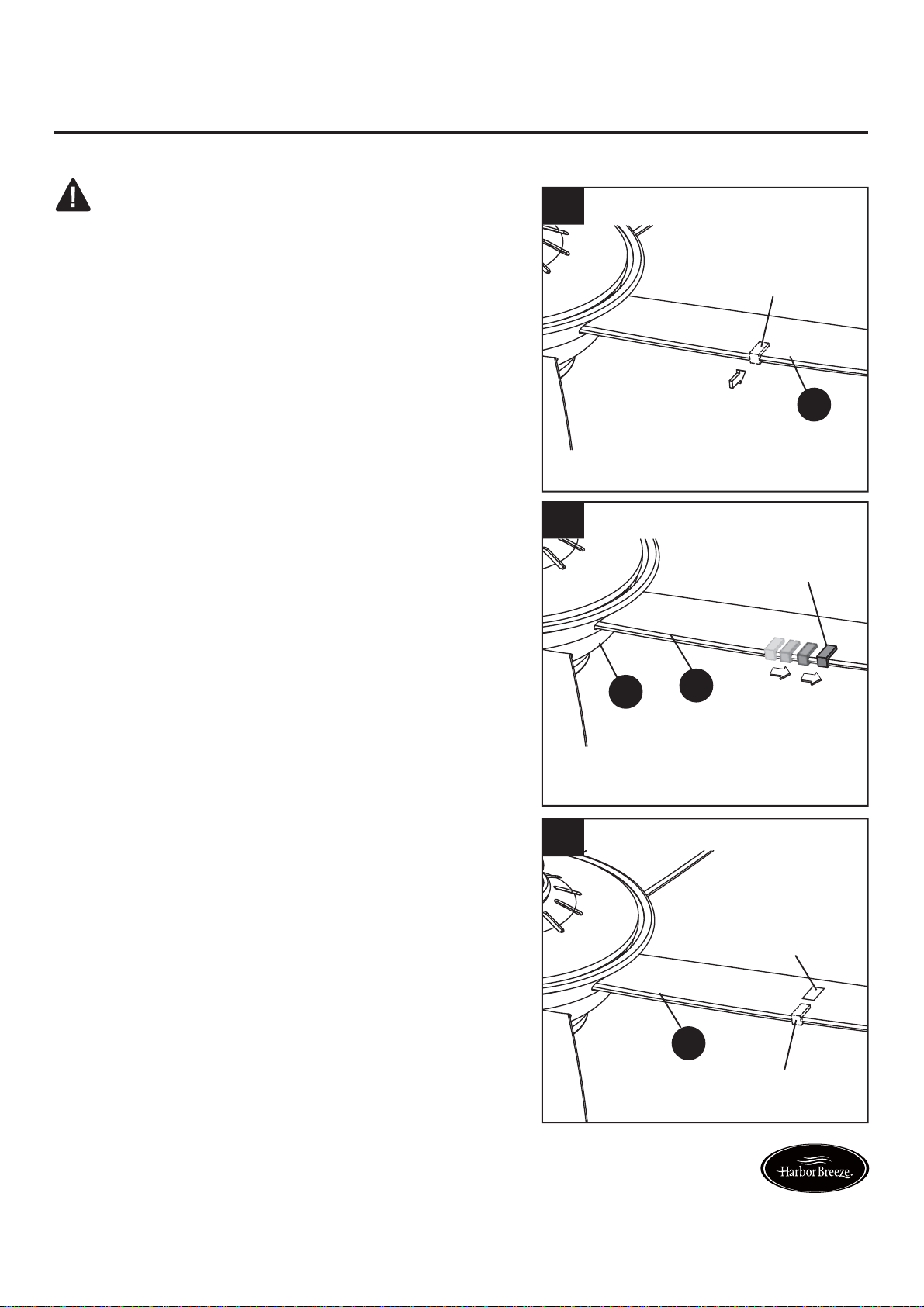

1. Interchanging positions of adjacent blades (H)
can redistribute the weight and result in
smoother operation. If wobble decreases,
leave blades (H) as they are. If wobble
increases, switch back to original position and
attach the balancing clip from balance kit (DD)
to the mid-point on the top edge of one
blade (H).
2. 5XQWKHIDQDWKLJKVSHHGDLUÀRZGRZQDQG
observe wobble. Repeat steps 1 and 2 for
each blade (H) and note which blade (H) has
the least wobble. On that blade (H), attach the
balancing clip to the top edge of the blade (H)
near the motor assembly (A). Restart the fan
and observe wobble. Stop the fan and move
the balancing clip in small steps toward the
end of the blade (H). At each incremental step,
turn on the fan and observe the wobble.
Determine the location of the balancing clip
that results in the least amount of wobble.
3. Peel the backing paper from one of the
weighted squares in the balance kit (DD).
6HFXUHWKHZHLJKWHGVTXDUH¿UPO\WRWKHWRSRI
the blade (H), centered at the balancing clip
location and between the edges of the blade
(H). Remove the balancing clip, start the fan
and observe. If the wobble still persists, repeat
steps 1 through 3 with the remaining balancing
clip and weighted square until the wobble
disappears.
3
BLADE BALANCING INSTRUCTIONS
WARNING
The balancing clip must always be¿rmly pushed
onto the blade until it touches the edge of the
blade. Failure to do so could allow clip toÀ\off
and cause personal injury.
If the fan wobbles when in use, turn off the fan and follow the steps below:
1
2
H
H
Lowes.com/harborbreeze
Balancing Clip
Balancing Clip
H
A
Balancing Clip
Weighted Square
19

4. Motor noise caused by solid state
variable speed control. 4. Some fan motors are sensitive to signals from solid-state
variable speed controls.
Solid-state controls are not
recommended; choose an
alternative control method.
When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required and should be avoided to prevent damage to finish.
3HULRGLFOLJKWGXVWLQJRIWKHEODGHVLVUHFRPPHQGHG A feather duster will work best.
Avoid using water, cleansers, or harsh rags, which can warp and ruin the finish.
3HULRGLFDOO\FKHFNWKDWWKHIDQPRWRUXQLWVFUHZVEODGHVFUHZVVXSSRUWKRXVLQJVFUHZVDUH
tight and secure.
CARE AND MAINTENANCE
WARNING
Do not use water when cleaning the ceiling fan. It could damage the motor or the finish and
create the possibility of electrical shock.
WARNING
 Turn off main power before attempting any troubleshooting.
TROUBLESHOOTING
3. Wire connectors inside housing are
rattling.
1. Blades not attached to fan.
2. Loose screws in motor housing.
1. Check main and branch circuit
fuses or circuit breakers.
2. Check line wire connections to
fan.
3. Check to make sure wire
connectors are secured tightly
inside housing.
1. Attach blades to fan before
operating.
2. Check to make sure all screws
in motor housing are snug
(do not overtighten).
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan will not start. 1. Fuse or circuit breaker blown.
2. Loose power line connections
3. Dead battery in remote control. 3. Replace with new battery.
to the fan.
Fan sounds noisy.
Lowes.com/harborbreeze
20
