Harbor Breeze CENTREVILLE 40117 User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Lowes.com/harborbreeze
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0403517, 0403518, 0403519
52 IN. CENTREVILLE
CEILING FAN
MODEL #40117, 40118, 40119
Español p. 24

2Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring .........................................................................10
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the Fan With No Light Kit Option................................................17
Operating Instructions .............................................................18
Care and Maintenance ............................................................19
Troubleshooting..................................................................20
Warranty .......................................................................22
Replacement Parts List ............................................................23

3Lowes.com/harborbreeze
PACKAGE CONTENTS
A
E
I
FG
H
B C
D
K
J
PART DESCRIPTION QTY
A Motor Housing 1
B Upper Mounting Bracket 1
C Extra Switch Housing 1
DMotor Assembly 1
E Light Kit Fitter 1
F Twist-On Glass Shade 3
GBlade Arm 5
H Blade 5
I Bulb 3
J Switch Housing Plate (preassembled to Motor Assembly (D)) 1
K Lower Mounting Bracket (preassembled to Motor Assembly (D)) 1

4Lowes.com/harborbreeze
HARDWARE CONTENTS
Blade Screw
Qty. 15 + 1 extra
Fiber Blade Washer
Qty. 15 + 1 extra
Wire Connector
Qty. 4
Pull Chain Extension
Qty. 2
Motor Screw
Qty. 10 + 1 extra
(preassembled to
Motor Housing (A))
Motor Housing
Mounting Screw
Qty. 4
(preassembled to
Mounting Bracket (B))
Light Kit Screw
Qty. 3
(preassembled to
Switch Housing
Plate (J))
Bracket Screw
Qty. 4
(preassembled to
Lower
Mounting Bracket (K))
Blade Isolator
Qty. 5
AA BB CC DD
EE FF GG
II
HH

5Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCode,andANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 13.45 lbs. (6.1 kg).
Do not discard the fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoanout-
let box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptablefor
fansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securetheoutlet
box directly to the building structure. The outlet box and its support must be able to support the mov-
ing weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectorspro-
vided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the
fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they
are secured.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

7Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
2. Check to make sure the blades (H) are at least 30 in.
fromanyobstructionandatleast7ft.abovetheoor. 2
7 ft.
min.
30 in.
min.
H
3. Secure the upper mounting bracket (B) to the outlet
boxusingscrews,springwashers,andatwashers
provided with the outlet box (not included).
Note:It is very important that you use the proper
hardware when installing the mounting bracket
(B) as this will support the fan.
3
B

8Lowes.com/harborbreeze
INITIAL INSTALLATION

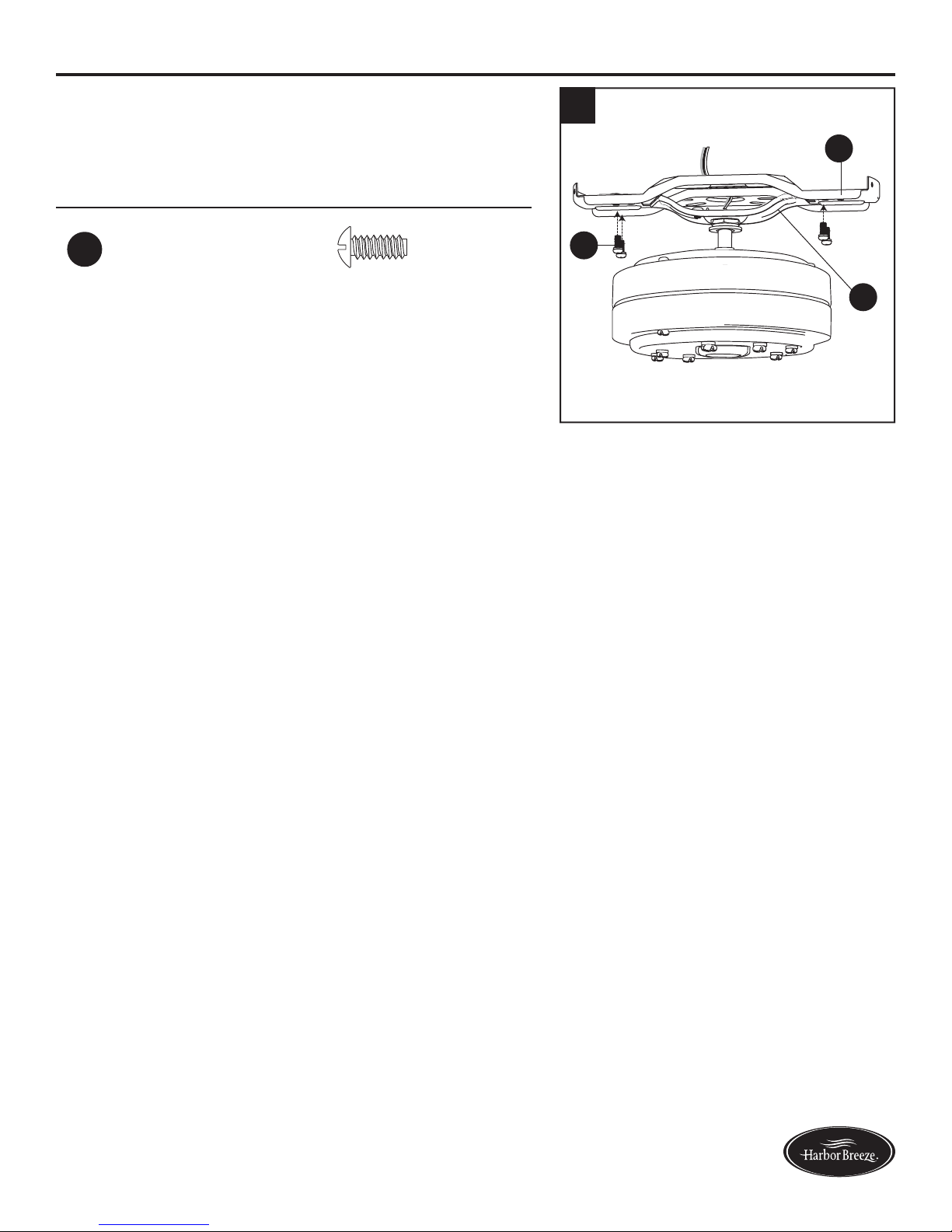

4. Remove the motor screws (EE) from the motor (D)
and save for later use. If there are plastic motor
blocks installed, remove and discard them.
Hardware Used
EE Motor Screw x 10
4
EE
D
5. Remove the bracket screws (HH) from underneath
the lower mounting bracket (K).
Hardware Used
HH Bracket Screw x 4
HH
K
5
6. Place a tab on the lower mounting bracket (K) into
a slot in the upper mounting bracket (B). Then slide
the second lower mounting bracket (K) tab into the
second slot on the upper mounting bracket (B) until
all four holes are in alignment. B
K
6

9Lowes.com/harborbreeze
INITIAL INSTALLATION
7. Reinstall the previously-removed bracket screws
(HH) underneath the lower mounting bracket (K) and
into the upper mounting bracket (B). Securely tighten
the screws.
Hardware Used
HH Bracket Screw x 4
K
HH
B
7

10 Lowes.com/harborbreeze
WIRING
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: If the house wires are different colors than referred to in the following step, stop
immediately. A professional electrician is recommended to determine the correct wiring scheme.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
Chooseawiringdiagramfromthethreechoicesbelowthattsyoursituationandmakethe
appropriate wiring connections as follows:
1A. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect the Black and Blue wires from the
fan to the Black wire from the ceiling. Connect the
White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (CC).
Hardware Used
CC Wire Connector x 4
120 V Power
FROM
CEILING
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
GROUND/GREEN
BLACK
BLUE
WHITE
FROM FAN
FAN
1A
1B. FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH: To control the fan by pull chains
and the light with a separate wall switch, connect
the Black wire from the fan to the Black wire from
the ceiling. Connect the Blue wire from the fan to the
Black wire from the wall switch for the light. Connect
the White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (CC).
Hardware Used
CC Wire Connector x 4
WHITE
WHITE
BLACK
BLACK
BLACK (WALL SWITCH)
BLUE
120 V Power
FROM
CEILING
FAN
FROM FAN
GROUND/GREEN (BARE)
1B

11 Lowes.com/harborbreeze
WIRING
1C. FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES: To control the fan and light with
separate wall switches, connect the Black wire from
the fan to the Black wire from the wall switch for the
fan. Connect the Blue wire from the fan to the Black
wire from the wall switch for the light. Connect the
White wire from the fan to the White wire from the
ceiling. Connect all Ground (Green) wires together
from the fan to the Bare/Green wire from the ceiling.
Secure all wiring connections together with wire
connectors (CC).
Note:The Black wire is hot power for the fan. The
Blue wire is hot power for the light kit. The
White wire is common for the fan and light kit.
The Green (Bare) wire is ground.
Hardware Used
CC Wire Connector x 4
WHITE
WHITE
BLACK (WALL SWITCH)
BLACK
BLACK (WALL SWITCH FOR LIGHT)
BLUE
120 V Power
FROM
CEILING
FAN
FROM FAN
GROUND/GREEN (BARE)
1C
2. Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
CC
CC
CC
2

12 Lowes.com/harborbreeze
WIRING
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (CC) into the outlet
box.
WARNING: Ensure that no bare wire or wire
strands are visible after making connections. Place
the Green and White wire connections on opposite
sides of the outlet box from the Black and Blue (if
applicable) wire connections.
CC
3
Important:Using a full range dimmer switch (not
included) to control fan speed will cause
a loud humming noise from the fan. To
reducetheriskofreorelectricalshock,
do not use a full range dimmer switch to
control fan speed. 1
2
3
Dimmer
Switch Speed
Switch

13 Lowes.com/harborbreeze
FINAL INSTALLATION
1. Temporarily lift the motor housing (A) to the mounting
bracket (B) to determine which two motor housing

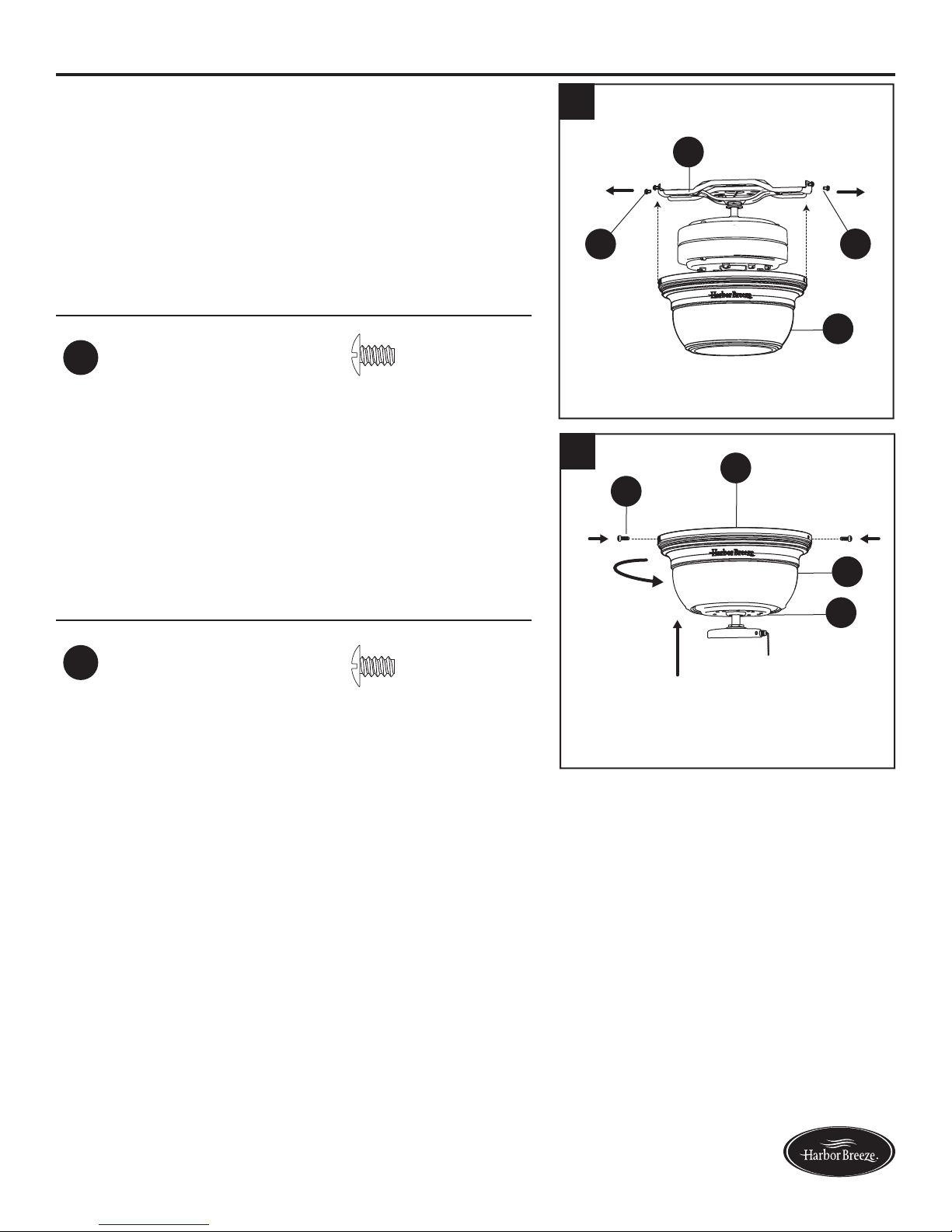

mounting screws (FF) in the sides of the mounting
bracket (B) align with the slotted holes in the top
edge of the motor housing (A). Partially loosen the
two motor housing mounting screws (FF) that align
with the slotted holes. Remove the other two motor
housing mounting screws (FF) from opposite sides of
the mounting bracket (B).
Hardware Used
FF Motor Housing
Mounting Screw x 4
B
A
FF FF
1
2. Slide the motor housing (A) over the motor assembly
(D), aligning the slotted holes in the motor housing
(A) with the loosened motor housing mounting
screws (FF) in the mounting bracket (B). Twist the
motor housing (A) to lock. Then re-insert the two
previously-removed motor housing mounting screws
(FF) and securely tighten all screws.
Hardware Used
FF Motor Housing
Mounting Screw x 4
B
A
D
FF
2

14 Lowes.com/harborbreeze
FINAL INSTALLATION
3. Partially insert three blade screws (AA) along with
threeberbladewashers(BB)toattachoneblade
arm (G) to a blade (H). Tighten each blade screw
(AA), starting with the one in the middle. Repeat this
step with each blade.
Hardware Used
AA Blade Screw x 15
BB Fiber Blade
Washer x 15
AA
BB
G
H
3
4. Align a blade arm (G) and a blade isolator (II) with
two holes underneath the motor (D) and insert two of
the previously-removed motor screws (EE) through
the blade arm (G) and into the motor (D). Tighten the
screws securely. Repeat this step for the remaining
blade arms (G).
Hardware Used
EE Motor Screw x 10
II Blade Isolator
II
x 5
D
EE
G
II
4

15 Lowes.com/harborbreeze
FINAL INSTALLATION
5. If you wish to use the light kit, remove three light
kit screws (GG) from the switch housing plate (J).
Locate the Blue and White wires in the switch
housing plate (J) labeled “FOR LIGHT” and remove
the plastic from these two wires. Connect the White
wirefromthelightkittter(E)totheWhitewirefrom
the switch housing plate (J). Connect the Black wire
fromthelightkittter(E)totheBluewirefromthe
switch housing plate (J). Ensure that the connections
are secure for all wires.
Hardware Used
GG Light Kit Screw x 3
Note:If you do not wish to use the light kit, proceed to
the Using the Fan With No Light Kit Option section
of this manual.
GG
E
J
GG
5
6. Gently push the connected wires into the switch
housing plate (J). Guide the fan pull chain through
theslotonthelightkittter(E)andattachthelightkit
tter(E)totheswitchhousingplate(J)usingthelight
kit screws (GG). Secure the screws with a Phillips
screwdriver.
Hardware Used
GG Light Kit Screw x 3
E
J
GG
Pull Chain
Slot
GG
6

16 Lowes.com/harborbreeze
FINAL INSTALLATION
7. Screw the twist-on glass shades (F) into the sockets
onthelightkittter(E).
F
E
7
8. Install three candelabra-base 60-watt max. bulbs (I)
included.
Important:When you need to replace bulbs, please
allow bulbs and glass shades to cool
down before handling them.
I
8
9. Attach the pull chain extensions (DD) or custom pull
chains extensions (not included) to the fan and light
pull chains.
Hardware Used
DD Pull Chain
Extension
x 2
DD
9

17 Lowes.com/harborbreeze
USING THE FAN WITH NO LIGHT KIT OPTION
1. Remove the three light kit screws (GG) from the
switch housing plate (J).
Hardware Used
GG Light Kit Screw x 3
GG
J
1
2. Align the holes in the extra switch housing (C) with
the holes in the light kit screws (GG). The wide
gap in the top edge of the extra switch housing (C)
should align with the reverse switch on the switch
housingplate(J)forthepropert.Re-insertthelight
kit screws (GG) and tighten securely with a Phillips
screwdriver.
Hardware Used
GG Light Kit Screw x 3
J
GG
C
2
3. Attach the pull chain extension (DD) to the fan pull
chain.
Hardware Used
DD Pull Chain
Extension
x 1
DD
3

18 Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. The pull chain on the switch housing plate (J) has
four positions to control the fan speed. One pull is
HIGH, two is MEDIUM, three is LOW, and four turns
the fan OFF.
DD
J
1
2. The pull chain in the center is used to turn the light
ON and OFF.
DD
J
2
3. Use the fan reverse switch located on the switch
housing plate (J) to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
Note:Wait for the fan to stop before moving the re-
verse switch.
J
3

19 Lowes.com/harborbreeze
OPERATING INSTRUCTIONS

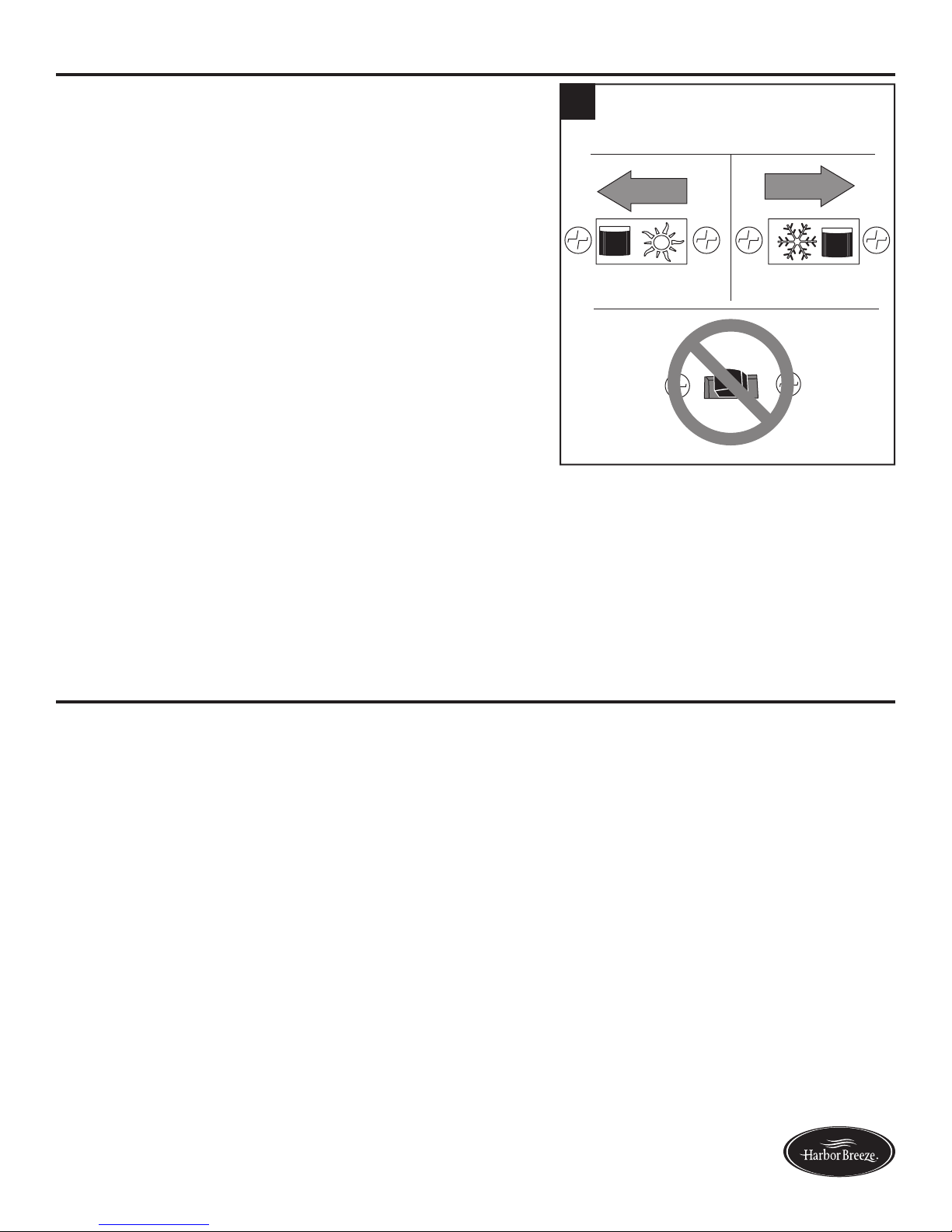

3A. In warmer weather, push the reverse switch to
the left to display a Sun icon, which will result in
downwardairowcreatingawindchilleffect.
3B. In cooler weather, push the reverse switch to
therighttodisplayaSnowake,whichwillresultin
upwardairowthatcanhelpmovestagnant,hotair
off the ceiling area.
Important:The reverse switch must be set either
completely to the left or the right in or-
der for the fan to function. If the reverse
switch is set in the middle position, the
fan will not operate.
Fig. 3A Fig. 3B
3
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.Youmayoccasionallyapplyalightcoatoffurniture
polish to wood blades for added protection.
Important:Shut off the main power supply before you begin any maintenance task. Do not use wa-
ter or a damp cloth to clean the fan.

20 Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to
either the left or right.
2. Make sure the wall switch is turned
on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The break-in period has not
surpassed.
5. The outlet box is not secure.
6. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Run the fan continuously for 24 - 48
hours on medium or high speed for
a “break in” period.
5. Ensure the outlet box is secured to
the building structure.
6. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade
from the opposite side. Or balance
the fan using a balancing kit (not
supplied).
3. Turn off the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be
ushwithoutmovementagainstthe
outlet box.
