CLASSIC STYLE
CEILING FAN
VENTILADOR DE TECHO
CLASSIC STYLE
ITEM #0076253
MODEL #00819
UL MODEL #CSS36
MODELO #00819
MODELO UL #CSS36
Español p. 18
Serial Number Purchase Date
Harbor Breeze ® is a registered trademark of LF,
LLC. All Rights Reserved.
Harbor Breeze ® es una marca registrada de LF,
LLC. Todos los derechos reservados.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Lowes.com/harborbreezeLowes.com/harborbreeze
ARTÍCULO #0076253
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-800-643-0067, de lunes a jueves de 8 a.m. a 6 p.m.,
hora estándar del Este, o los viernes de 8 a.m. a 5 p.m., hora estándar del Este.
ADJUNTE SU RECIBO AQUÍ
Número de serie Fecha de compra
EB15425

32
TABLE OF CONTENTS
Safety Information............................................................................................................... 3
Package Contents............................................................................................................... 4
Hardware Contents............................................................................................................. 5
Preparation.......................................................................................................................... 5
Initial Installation.................................................................................................................. 6
Downrod Style Fan Mounting.............................................................................................. 7
Closemount Style Fan Mounting......................................................................................... 8
Wiring..................................................................................................................................... 10
Final Installation.................................................................................................................. 10
Operation Instructions.......................................................................................................... 15
Care and Maintenance........................................................................................................ 16
Troubleshooting...................................................................................................................16
Warranty..............................................................................................................................17
Replacement Parts List ...................................................................................................... 17
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
Lowes.com/harborbreeze Lowes.com/harborbreeze
• When using an existing outlet box, be sure the box is securely attached to the building structure and
can support the full weight of the fan, so as to avoid potential serious injury or death.
• All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local
electrical codes. Electrical installation should be performed by a qualied licensed electrician.
• Do not use bulbs having a wattage greater than the maximum value stated on the xture and in this
manual. Using a higher wattage bulb than specied will increase xture temperature and cause risk
of re. Disconnect the electrical supply circuit to the fan before installing light kit.
• Electrical diagrams are for reference only.
• The net weight of this fan including the light kit is: 13.6 lbs.
WARNING
CAUTION
WARNING
WARNING
WARNING
FIRE, ELECTRIC SHOCK OR PERSONAL INJURY HAZARD
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked
“ACCEPTABLE FOR FAN SUPPORT OF 15.9 KG OR LESS” and use mounting screws
provided with the outlet box. Most outlet boxes commonly used for the support of lighting
xtures are not acceptable for fan support and may need to be replaced. Consult a
qualied electrician if in doubt.
ELECTRIC SHOCK HAZARD
To reduce the risk of electric shock, do not use this fan with any solid-state speed control
device.
ELECTRIC SHOCK HAZARD
To reduce the risk of electric shock, make sure electricity has been turned off at the circuit
breaker or fuse box before beginning installation.
PERSONAL INJURY HAZARD
To reduce the risk of injury to persons, install fan so that the blade is at least 7 ft. above the oor.
PERSONAL INJURY HAZARD
Reduce the risk of personal injury, do not bend the blade brackets when installing the
brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.

54
PACKAGE CONTENTS
PREPARATION
Lowes.com/harborbreeze Lowes.com/harborbreeze
PART DESCRIPTION QUANTITY
A Mounting Bracket (preassembled to canopy (B)) 1
B Canopy 1
C Canopy Cover (preassembled to canopy (B)) 1
D Downrod Assembly 1
E Blade Bracket 5
F Blade 5
G Motor Housing 1
H Switch Housing (preassembled to motor housing (G)) 1
I Switch Housing Cover 1
J Light Kit 1
K Glass Bowl 1
L Bowl Cap (preassembled to light kit (J)) 1
M Finial (preassembled to light kit (J)) 1
N Bulb 2
A
B
C
D
H
I
J
K
L
M
N
G
F
E
HARDWARE CONTENTS (shown actual size)
BB CC
DD
AA
O
EE
Wire Connector
Qty. 4
Blade Screw
Qty. 16
Rubber Gasket
Qty. 1
(NOT TO SCALE)
Fan Pull Chain
Extension
Qty. 1
Light Pull Chain
Extension
Qty. 1
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 45 minutes
Tools Required for Assembly (not included): Phillips screwdriver, step ladder, electrical tape, pliers,
wire cutter, wire stripper.
O Mounting Screw (preassembly to motor housing assembly (G)) 3

6 7
INITIAL INSTALLATION INITIAL INSTALLATION
DOWNROD STYLE FAN MOUNTING
14
21
32
Lowes.com/harborbreeze Lowes.com/harborbreeze
1. Determine mounting method to use.
A - Downrod Mount (normal or angled ceiling)
B - Closemount (normal ceiling only)
Important: lf using the angle mount, check
to make sure the ceiling angle is not steeper than 20°.
2. Remove three mounting screws (O) from the underside
of the motor housing (G). Discard the three rubbers
and the three screws (O).
3. Remove the mounting bracket (A) from the canopy (B)
by loosening the four screws on the top of the canopy
(B). Remove the two non-slotted screws and save, then
loosen the slotted screws. This will enable you to remove
the mounting bracket (A).
4. Install the mounting bracket (A) to the outlet
box (not included), sliding the mounting bracket (A) over
the two outlet box screws (not included). Securely tighten
the two outlet box screws.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (A) is installed facing the
ceiling.
Follow mounting instructions for “Downrod Style
Fan Mounting” or “Closemount Style Fan
Mounting” depending on mounting method (A or
B) chosen in Step 1 on previous page.
1. Remove pin and clip from downrod assembly
(D) and save.
2. Insert downrod assembly (D) through canopy (B),
canopy cover (C). Thread wires from the motor housing
assembly (G) through downrod (D).
A
B
D
clip
pin
G
A
A
C
B
D
B
O
Loosen but
do not remove
Remove
and save
outlet box

8 9

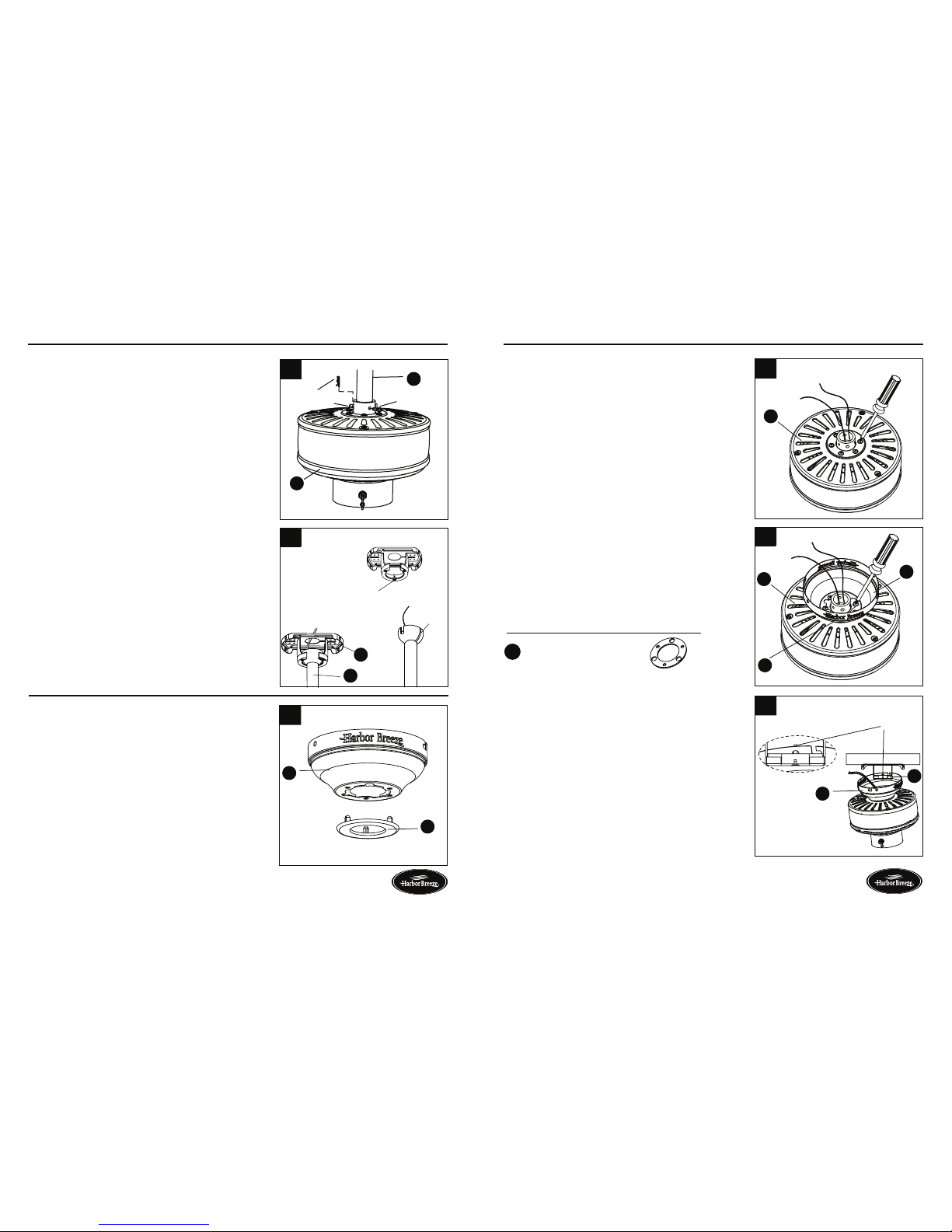

DOWNROD STYLE FAN MOUNTING
CLOSEMOUNT STYLE FAN MOUNTING
CLOSEMOUNT STYLE FAN MOUNTING
2
3
14
Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze
3. Loosen the two set screws from the yoke on
the top of the motor housing (G). Slip downrod
assembly (D) into housing yoke, aligning holes in
downrod assembly (D) and yoke. Insert the pin through
yoke and downrod assembly (D). Insert clip into pin
until it snaps into place. Tighten set screws.
4. lnstall hanger ball on the top of downrod (D) into
mounting bracket (A) opening. Rotate fan until slot on
hanger ball engages the tab on the mounting bracket
(A).
Warning: Be carefully when aligning the tab to the slot!
If not fully engaged, there is a possibility of fan falling,
which may result in serious injury or death.
You may now proceed to the WIRING section on
page 10.
2. Remove every other screw from the top of motor
housing (G) and save.
3. Place the rubber gasket (EE) over the remaining
screws. Pull wires through hole in canopy (B), and
attach canopy (B) to motor housing (G). Align the
mounting holes with the holes in the motor and fasten
using the three screws removed in previous step.
Tighten the screws securely.
4. Hang the fan on the hook on the mounting bracket (A)
using one of the non-slotted holes in the canopy (B).
1. Remove the canopy cover (C) from the bottom of the
canopy (B).
B
B
A
G
G
EE
B
C
Hardware Used
EE x 1
Rubber Gasket
hook
3
4
D
G
A
D
clippin set screw
slot
tab

1110
WIRING
FINAL INSTALLATION
FINAL INSTALLATION
2
1
Lowes.com/harborbreezeLowes.com/harborbreeze
2
3
4
Lowes.com/harborbreezeLowes.com/harborbreeze
1. Connect the BLACK and BLUE wires from fan to
the house BLACK wire. Connect the WHITE wire
from fan to the house WHITE wire. Connect all
GROUNDED (GREEN) wires together from fan to
the house GREEN/GROUNDED wire.
Note: Black wire is hot power for fan. Blue wire is
hot power for light kit. White wire is common for fan
and light kit. Green wire is grounded wire. lf house
wires are different colors than referred to above,
stop immediately. It is recommended a professional
electrician to determine proper wiring.
2. To connect wires, twist wire ends together and
screw wire with wire connectors (AA) on in a
clockwise direction. Tape the wire connectors (AA) and
wires together. The wires should be spread apart with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the
ungrounded conductor on the other side of the outlet
box. Be sure no bare wire or wire strands are visible
after making connection. Place green and white
connections on opposite side of box from the black
and blue connections. The splices should be turned
upward and pushed carefully up into the outlet box.
If you installed the fan with “Closemount Style Fan Mounting”, continue to Steps 1~2. If you
installed the fan with “Downrod Style Fan Mounting”, skip to Step 3.
1. Remove the fan from the hook on the mounting bracket
(A). Align the locking slots of the canopy (B) with the two
screws in the mounting bracket (A). Push up to engage
the slots and turn clockwise to lock in place. Immediately
2. Install the two screws that were removed in previous step
and tighten securely.
You may now proceed to the Step 4.
3. Directly align the locking slots of the canopy (B) with the
two screws in the mounting bracket (A). Push up to
engage the slots and turn clockwise to lock in place.
screws that were removed in previous step and tighten
securely.
4. Attach a blade (F) to a blade bracket (E) using the blade
screw (DD).
1
Grounded/Green
Black
White
Grounded/
Green
Black
Blue
White
outlet box
blue
black
white
green white
GREEN/
black
Supply circuit
speed
switch
GROUNDED
AA
outlet
box
screws
hook
locking
slots A
B
B
B
DD
screw
screw
outlet box
outlet box
Hardware Used
Blade Screw ×16
E
F
DD
Hardware Used
AA Wire Connector x 4

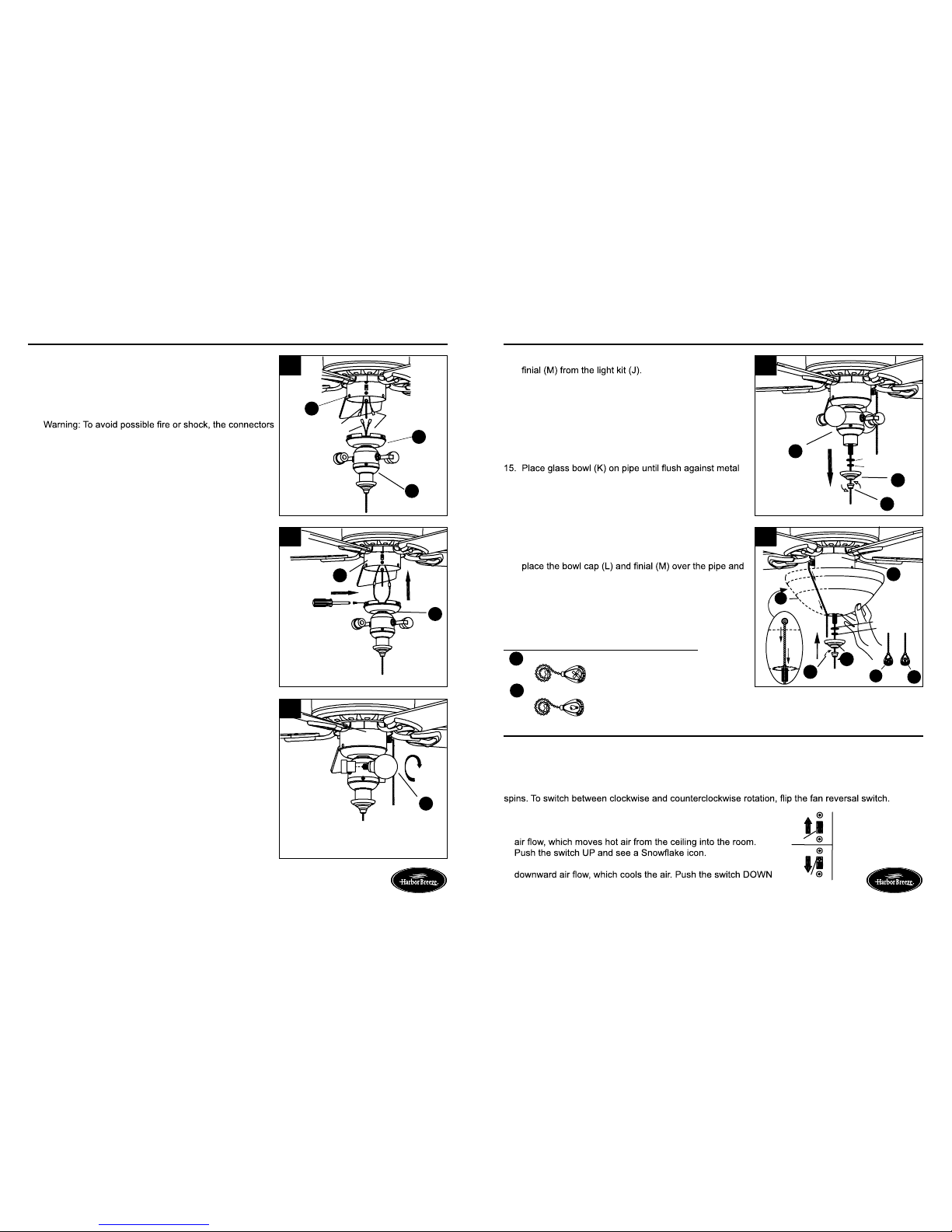

5. Fasten the blade bracket (E) to the motor by inserting
the alignment post into the slot on the bottom of the
motor housing (G) and tightening the blade bracket
screws with washers.
Please note that the blade bracket screws with washers
are pre-installed into the blade bracket (E). Repeat the
step for the remaining blade brackets (E).
6. Remove the three screws from the switch housing
cover (I).
If you wish to use the fan WITHOUT the light kit,
continue to Step 7.
If you wish to use the fan WITH light kit, skip to Step 8.
7. Attach the switch housing cover (I) to the switch housing
(H). Align holes in switch housing cover (I) with holes on
outer edge of the switch housing (H). (Note: The wide
gap in the edge of the switch housing cover (I) should
align with reverse switch on the switch housing (H).)
Re-insert screws and secure all screws.
Add fan pull chain extension (BB).
If using fan WITHOUT the light kit, assembly is complete.
1312
5 8
6 9
7 10
Lowes.com/harborbreeze Lowes.com/harborbreezeLowes.com/harborbreeze Lowes.com/harborbreeze
screw with
washer
alignment
post
slot
E
G
I
H
I BB
Hardware Used
Fan Pull Chain Extension x1
BB
FINAL INSTALLATION FINAL INSTALLATION
8. Remove the plug from the center hole in the switch
housing cover (I).
9. Remove the hex nut from the light kit (J).
10. Insert the black and white wires from the light kit (J)
through the center hole in the switch housing cover (I).
Hold wires taut while installing switch housing cover (I)
to prevent the wire from twisting. Tighten the light kit (J)
onto the switch housing cover (I). Install the hex nut
removed in Step 9.
Plug
I
J
hex nut
I
J
hex nut

1514
11 14
12 15
13
Lowes.com/harborbreeze Lowes.com/harborbreezeLowes.com/harborbreeze Lowes.com/harborbreeze
I
FINAL INSTALLATION FINAL INSTALLATION
11. Connect the white wire from the light kit (J) to the white
wire from the switch housing (H). Connect the black
wire from the light kit (J) to the blue wire from the
switch housing (H). Make sure the wire connectors are
secure.
should not be removed unless a light kit will be
immediately installed and power should be turned off
prior to the removal of the light kit.
12. Attach the switch housing cover (I) to the switch housing
(H). Align holes in switch housing cover (I) with holes on
outer edge of the switch housing (H) (Note: The wide
gap in the edge of the switch housing cover (I) should
align with reverse switch on the switch housing (H).)
Re-insert screws and secure all screws.
13. Install bulbs (N) into sockets. Note: This fan has an
energy-saving wattage limiter included. If you replace
the candelabra-base bulbs with over 190 watts, the light
will automatically turn off. Please ensure the bulb
wattage is always below 190 watts.
I
J
H
blue
black
white
H
I
N
14. Remove the rubber washer, hex nut, bowl cap (L) and
disk.
Thread the fan pull chain through the side hole of the
glass bowl (K), making sure pull chain hangs clear and
is not tangled in the light kit (J) socket. Thread light kit
pull chain through the center hole of the glass bowl (K).
Place rubber washer and hex nut removed in Step 14
onto the pipe and tighten securely. Pass the fan pull
chain through the side hole of the bowl cap (L). Then
tighten securely. Attach the fan pull chain extension
(BB) and light kit pull chain extension (CC). Note: The
side hole of the glass bowl (K), the side hole of the bowl
cap (L) and the three-speed adjustable switch on the
switch housing (H) should be in alignment; if not, the fan
pull chain will be stuck and the fan won’t work.
Hardware Used
x1
Fan Pull Chain Extension
CC
BB
Light Pull Chain Extension x1
L
J
M
rubber washer
hex nut
L
H
K
CC
BB
M
rubber washer
hex nut
OPERATING INSTRUCTIONS
PULL CHAIN: The fan pull chain is for motor speed control: High, Medium, Low and Off. Pull the
chain once for each position.
REVERSE SWITCH:
When the season changes, you may want to change to the direction your fan
Note: Wait for fan to stop before reversing the switch.
A. In cooler weather, clockwise rotation creates an upward
B. In warmer weather, counterclockwise rotation creates a
and see a Sun icon.
Snowflake
icon
Sun icon

16 17
Lowes.com/harborbreeze Lowes.com/harborbreezeLowes.com/harborbreeze Lowes.com/harborbreeze
WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and material present at
time of shipment from the factory for lifetime limited from the date of purchase. This warranty applies
only to the original purchaser. The manufacturer agrees to correct such defect at no charge or at our
option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
the manufacturer of the fan, are at the purchaser’s own responsibility. The manufacturer assumes
no responsibility whatsoever for fan installation during the lifetime limited warranty. Any service
performed by an unauthorized person will render the warranty invalid.
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
date of purchase. For the balance of the warranty, call our customer service department at 1-800-643-
0067 for return authorization and shipping instructions so that we may repair or replace the ceiling
fan. Any fan or parts returned improperly packaged is the sole responsibility of the purchaser. There is
no further expressed warranty. The manufacturer disclaims any and all implied warranties.
The duration of any implied warranty which can not be disclaimed is limited to the lifetime limited
or special damages arising at or in connection with product use or performance except as may
rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m.,
EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART#
E Blade bracket 104000-0255
F Blade 108002-5048
I Switch housing cover 105500-0043
J Light kit 105000-0509
• Important: Shut off main power supply before beginning any maintenance.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth will be suitable for most cleaning.
blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to blades for
added protection.
•At least twice each year, tighten all screws and lower canopy to check mounting bracket screws
and downrod assembly.
CARE AND MAINTENANCE
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Excessive wobbling. 1. Blades are loose. 1. Tighten all blade screws.
2. Blade brackets incorrectly attached. 2. Reinstall blade brackets.
3. Unbalanced blades. 3. Switch with blade from opposite side.
4. Fan not securely mounted. 4. Turn power off. Carefully loosen
5. Fan too close to vaulted ceiling. canopy; remount securely.
5. Lower fan or move it to another
location.
Noisy operation. 1. Blades are loose. 1. Tighten all blade screws.
2. Cracked blade. 2. Replace blades (call customer
3. Unapproved speed control. service).
3. Replace with an approved speed
control device.
Fan does not move. 1. Chain switch is “off”. 1. Pull chain switch.
2. Faulty wire connection. 2. Turn power off. Loosen canopy,
3. Reverse switch not engaged. check all connections.
.
Printed in China
Harbor Breeze®is a registered
trademark of LF, LLC. All rights
reserved.
E
F
I
J
