BM19240
ITEM #1461038
WELLSBORO
CEILING FAN
MODEL #42072
Español p. 19

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................15
Care and Maintenance ............................................................16
Troubleshooting..................................................................16
Limited Lifetime Warranty ..........................................................17
Replacement Parts List ............................................................18

3
PACKAGE CONTENTS

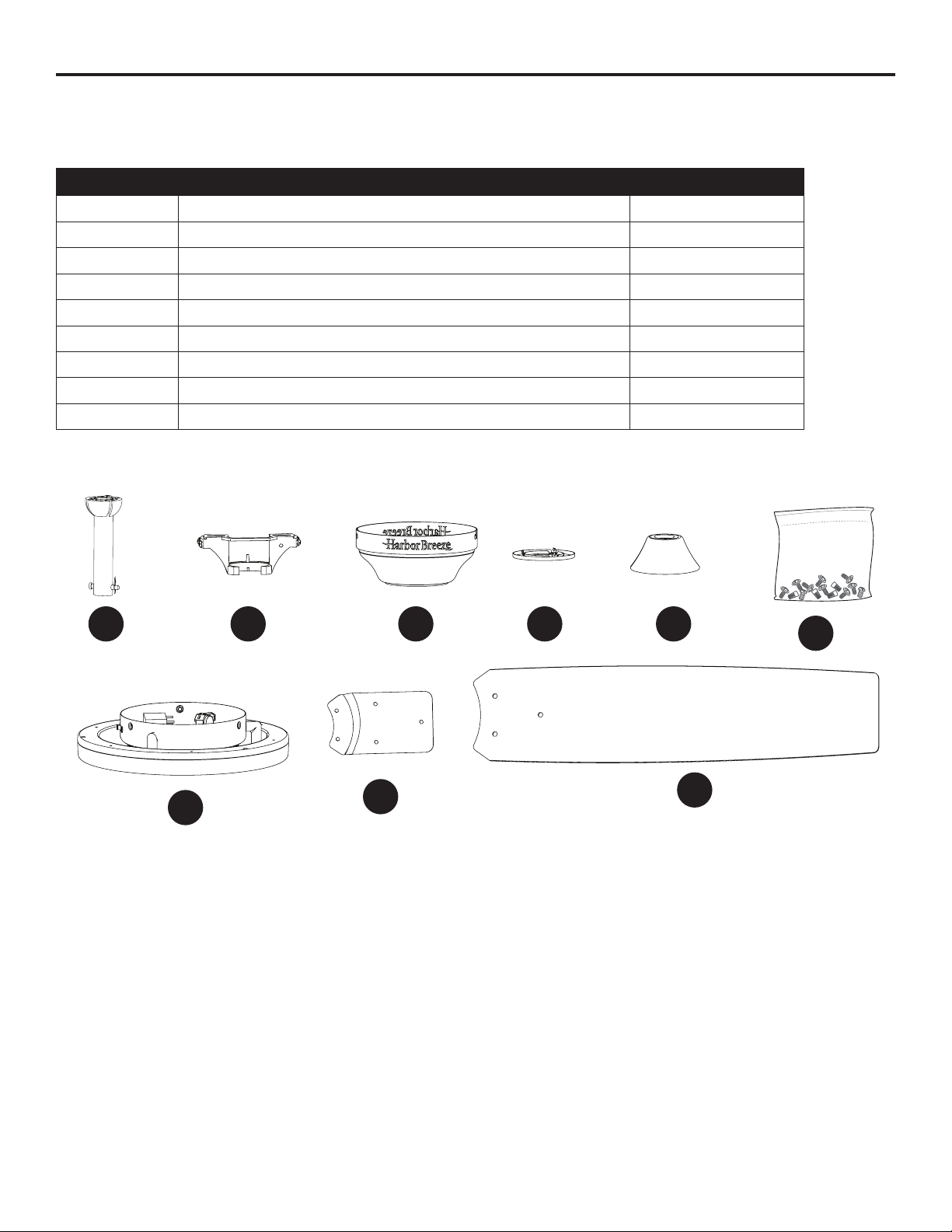

PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
GMotor Assembly 1
H Fitter Plate 1
I Yoke Cover 1
J Light Kit 1
K Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
L Blade 3
M Fitter Plate Screw (preassembled to Fitter Plate [H]) 3
NBlade Arm 3
O Motor Screw (preassembled to Motor Assembly [G]) 6
P Set Screw (preassembled to Motor Assembly [G]) 2
Q Adapter Plate (preassembled to Motor Assembly [G]) 1
R Adapter Plate Screw (preassembled to Adapter Plate [Q]) 4
AD
E
L
K
O
P
F
R
G
Q
H M
I
J
B
C
N

4
HARDWARE CONTENTS
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 9
+ 1 extra
Blade Washer
Qty. 9
+1 extra
Pull Chain Extension
Qty. 2
Screw Cap
Qty. 9
+ 1 extra
Motor Screw
1 extra
XX
(shown actual size)
AA BB CC
LL
DD

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 13.91 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit di󰀨erent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-800-643-0067
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7
INITIAL INSTALLATION

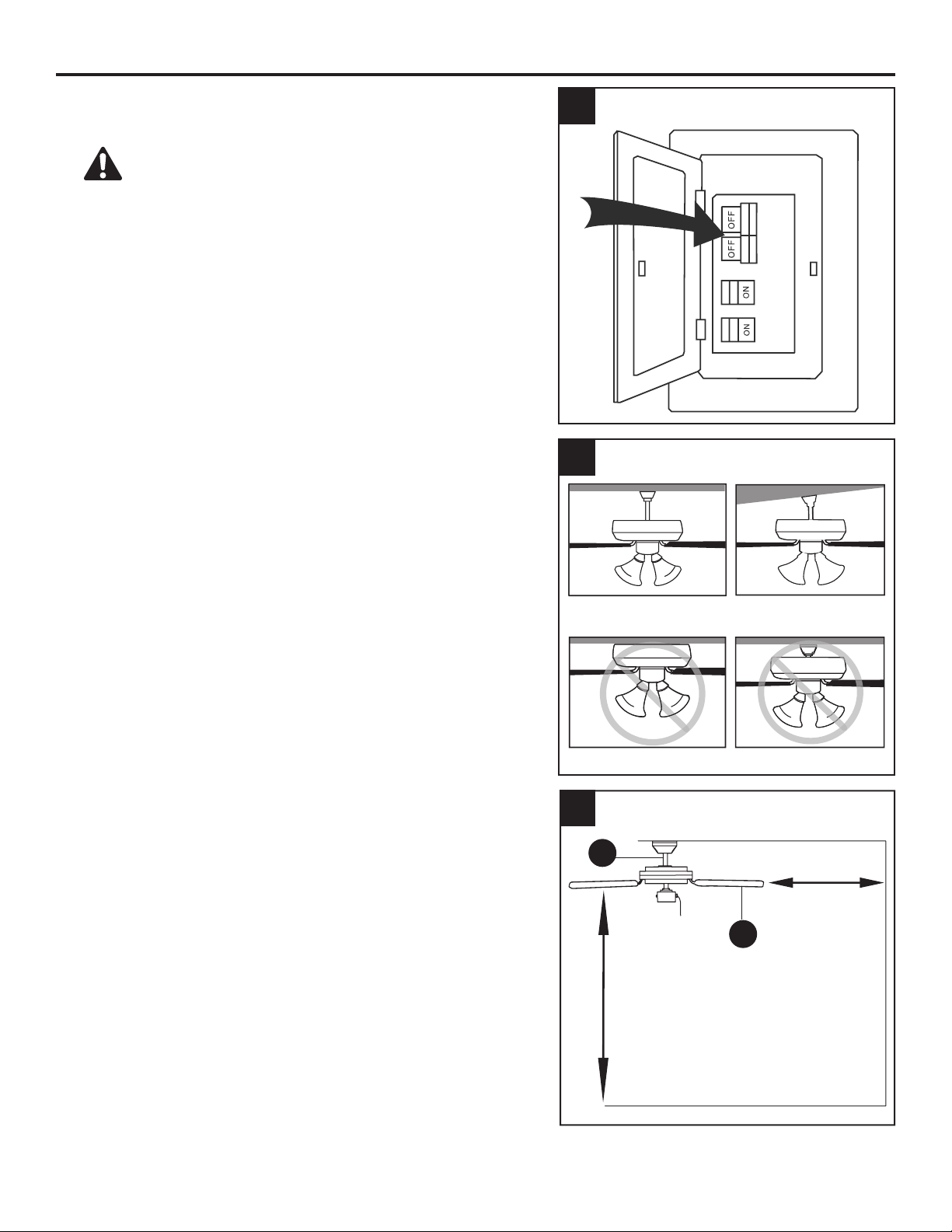

1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Flushmount installation is not available for this
item.
Closemount installation is not available for this
item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (L) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (L) will be at least 7 ft. above
the oor. A
3
7 ft.
Minimum
30 in.
Minimum
2
1
L

8
INITIAL INSTALLATION
4. Loosen all four preassembled mounting bracket
screws (K), then completely remove the two
mounting bracket screws (K) from the round holes
in the canopy (E). Set aside for later use. Detach
mounting bracket (D) from the canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove the six motor screws (O) from the top of
motor assembly (G) and set aside for later use.
4
D
D
Standard
Mounting
Angle
Mounting
6
O
K
D
E
G
5

9
INITIAL INSTALLATION

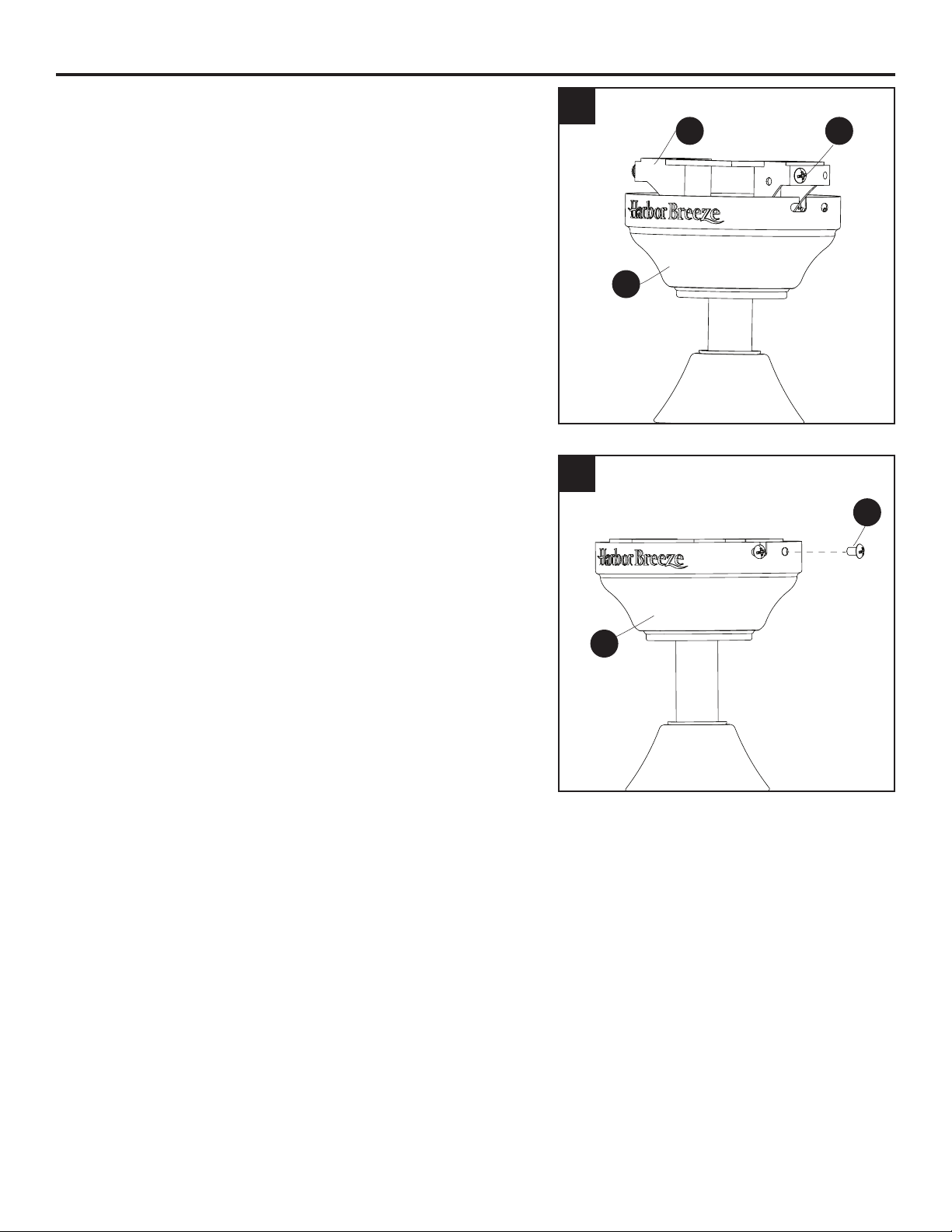

7. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (P) in the yoke at the top of the motor
assembly (G).
8. Insert the downrod (A) through the canopy (E) and
yoke cover (I). Feed the wires from the fan through the
downrod (A).
9. Slide the downrod (A) into the yoke, align the holes,
then re-install the downrod pin (B) and downrod
clip (C). Secure with set screws (P) and slide the
yoke cover (I) down until it rests on top of the motor
assembly (G).
C
A
I
P
B
G
8
Yoke
9
8
A
I
E
7
Yoke
C
A
BP
G

10
INITIAL INSTALLATION

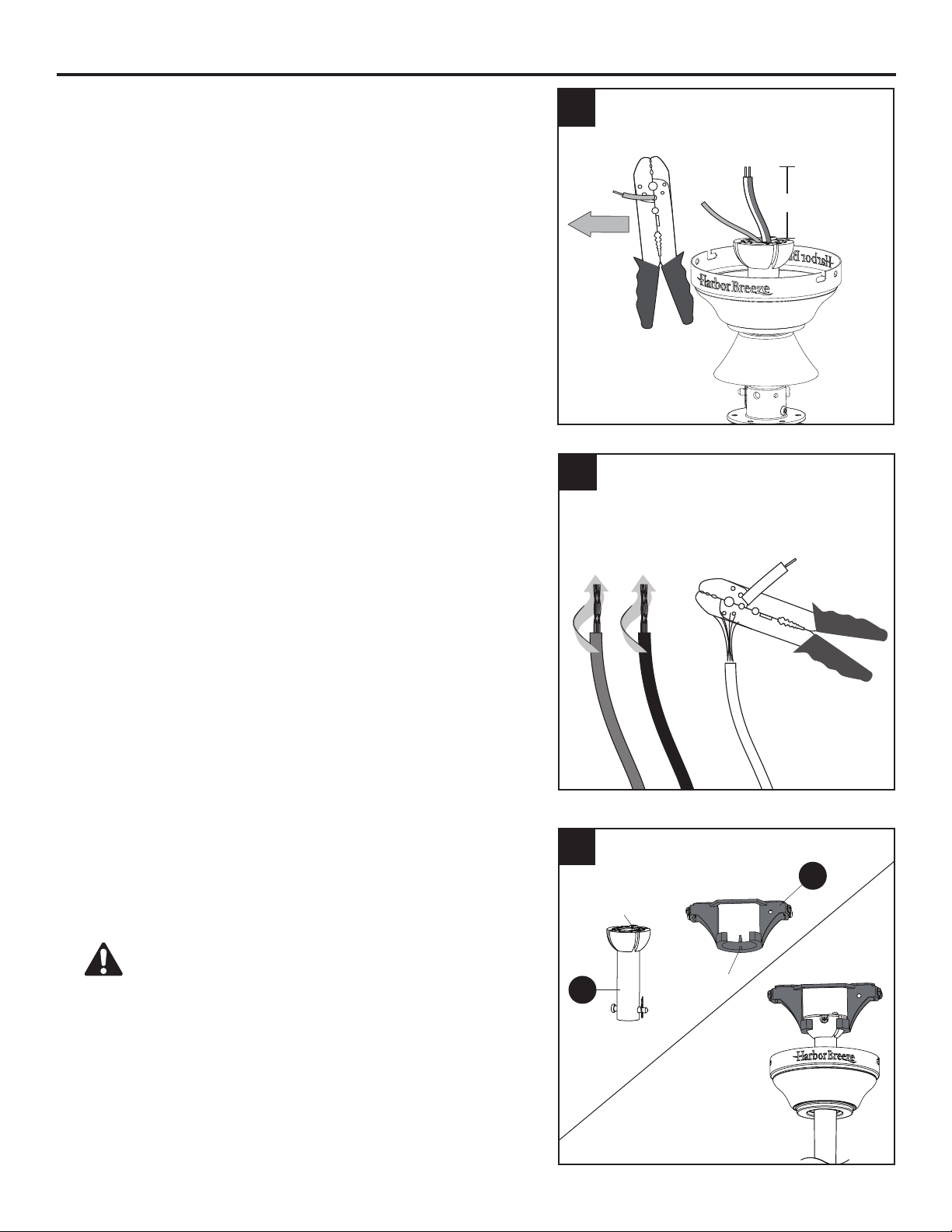

10.Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, pull
them all the way through the top of the downrod. Then
measure 8 inches of lead wire and cut the excess wire
o󰀨 with wire cutters (not included).
11. If you decided to cut back the lead wire in Step 10,
strip 1/2 in. of insulation from the end of each wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included).
If you did not cut back the lead wires in Step 10, Step
11 is not necessary and you may proceed to Step 12
instead.
12. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align a slot in the ball
with the tab in the mounting bracket (D).
Important:The downrod (A) should not rotate if
installed correctly.
DANGER: Failure to align a slot in the ball with
the tab in the mounting bracket may cause the fan to
wobble or fall, which could result in serious injury or
death.
A
D
Tab
Slot
10
11
12
8 in.

11
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use. CAUTION: Be sure
the outlet box is properly grounded or that a ground (green or bare) wire is present.

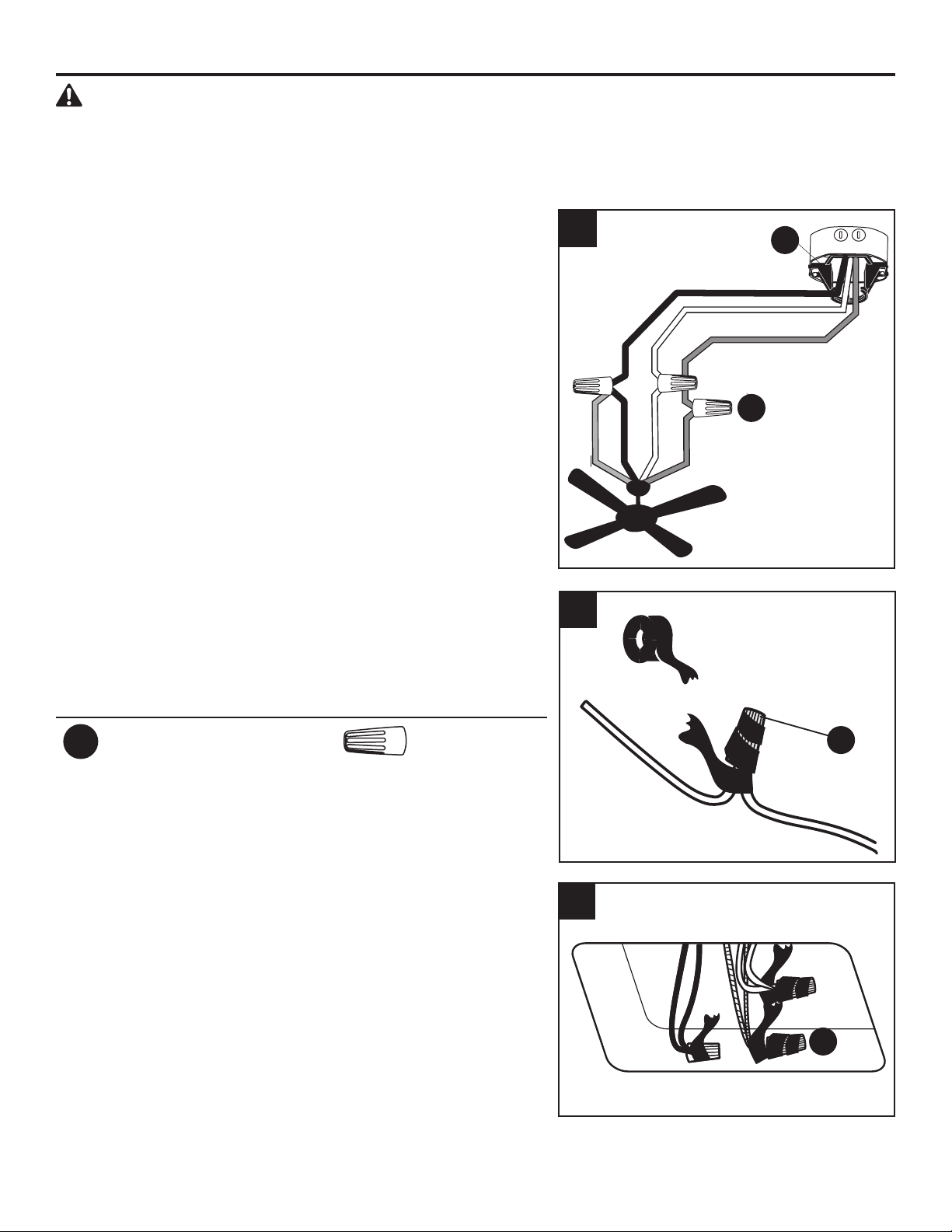

1. Connect supply and fan wires according to the diagram
and these steps:
• Connect the Green wires from the fan and the
mounting bracket to the Bare/Green (ground) supply
wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
Secure all wiring connections together with wire
connectors (AA).
Note: If a second hot power wire is available from outlet
box, connect it to the blue (light power) wire from the
fan for separate light and fan control.
Note: The Blue wire is power for light. The Black
wire is power for the fan. The White wire is neutral/
common. The Green wire is the ground. If house
wires are di󰀨erent colors than referred to above, it is
recommended a professional electrician determines the
proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire strands are visible
after making connections. Place Green and White wire
connections on opposite sides of outlet box from the
Black and Blue wire.
1D
AA
AA
3
2
AA
AA

12
1
2
FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (K) preassembled on mounting
bracket (D). Place the keyholes of the canopy (E)
onto the mounting bracket screws (K) and rotate the
canopy (E) clockwise.
2. Secure the canopy (E) with the mounting bracket screws
(K) previously removed (Step 4, page 8). Tighten all
mounting bracket screws (K) securely.
K
K
E
D
E

13
FINAL INSTALLATION
3. Attach the blades (L) to the blade arms (N) using the
blade screws (BB), blade washers (CC) and screw
caps (LL).
Hardware Used
BB Blade Screw x 9
Blade Washer x 9
Screw Cap x 9
4. Install the blade arm (N) to the topside of the motor
assembly (G) with motor screws (O) previously
removed (Step 6, page 8). Tighten with Phillips
screwdriver (not included).
5. Remove one of the four adapter plate screws
(R) preassembled to the adapter plate (Q) on the
underside of the motor assembly (G) and loosen
the other three. Align the holes of the tter plate (H)
with the loosened adapter plate screws (R) and turn
clockwise. Replace the previously removed adapter
plate screw (R), then tighten all screws.
L
N
4
3
BB
CC
LL
O
N
R
Q
H
G
CC
LL
5
G

14
FINAL INSTALLATION
6. Remove the three tter plate screws (M)
preassembled to the tter plate (H). Then, connect
the 9-pin connector from the tter plate (H) to the
9-pin connector from the light kit (J). Secure the
light kit (J) to the tter plate (H) using the previously
removed tter plate screws (M).
7. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains.
Hardware Used
DD Pull Chain
Extension x 2
8. Turn on power supply to the fan.
Assembly is complete.
DD
J
7
Fan Pull
Chain
Light Pull
Chain
8
6
J
M
H
9-Pin Connector

15
OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control the
fan speed. One pull is HIGH, two is MEDIUM, three is
LOW, and four turns the fan OFF. The pull chain in the
center of the light kit (J) turns the lights ON and OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
di󰀨erence in your comfort.
Note: Wait for the fan to stop before moving the
reverse switch located on the light kit (J).
2a. In warmer weather, push the reverse switch left
to display a Sun icon, which will result in downward
airow creating a wind chill e󰀨ect.
2b. In cooler weather, push the reverse switch
right to display a Snowake icon, which will result in
upward airow that can help move stagnant, hot air o󰀨
the ceiling area.
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
Fig. 2a Fig. 2b
Fig. 2c
2
Fan Pull
Chain
Light Pull
Chain
Reverse
Switch
1

16
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid
scratching the nish. Clean the blades with a lint-free cloth.
Important: Shut o󰀨 the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned o󰀨.
3. The power is o󰀨 or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to either
the left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power o󰀨 and check all
connections at the ceiling outlet box.
There is excessive
wobbling.
1. The blades and/or blade
arms are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to vaulted
ceiling.
5. Set screw on the yoke of the
motor housing is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o󰀨 the power. Verify the mounting
bracket is secure to the electrical outlet
box. The bracket must be ush without
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move fan to a di󰀨erent location.
5. Tighten the set screw on the yoke of the
motor assembly (G).
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
motor.
2. Replace the cracked blade.
3. Do not use a full-range dimmer switch to
control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured to
the outlet box and that the screws are tight.

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire
connection.
1. Ensure the 9-pin connectors in the
light kit are connected properly.
2. Turn the power o󰀨 and check all
connections at the ceiling outlet box.
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglas blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

18
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
PART DESCRIPTION PART #
A Downrod 4L000007500
D Mounting Bracket 4L000006410
E Canopy 4L000004350
F Canopy Cover 4L000002900
I Yoke Cover 4L000000230
J Light Kit 4L000011440
L Blade (x3) 4L085380001
NBlade Arm (x3) 4A073450002
HW Hardware Kit 4L000011450
9473-PB • 100819
A D E F I
L
JN
HW
