Harbor Breeze CLASSIC STYLE BDB52LW5N User manual

ITEM #0076888
0077285
0079837
0080297
CLASSIC STYLE CEILING FAN
Español p. 18
MODEL #BDB52LW5N
BDB52ABZC5N
BDB52MBK5N
BDB52BNK5N
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
E192641
LISTED
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
1
Lowes.com/harborbreeze
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB15397

2Lowes.com/harborbreeze
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 16.53 lbs.
Safety Information ...............................................................................................................
. . 2
Package Contents ..............................................................................................................
. . 4
Hardware Contents
........................................................................................................................... 5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 6
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
. .. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12

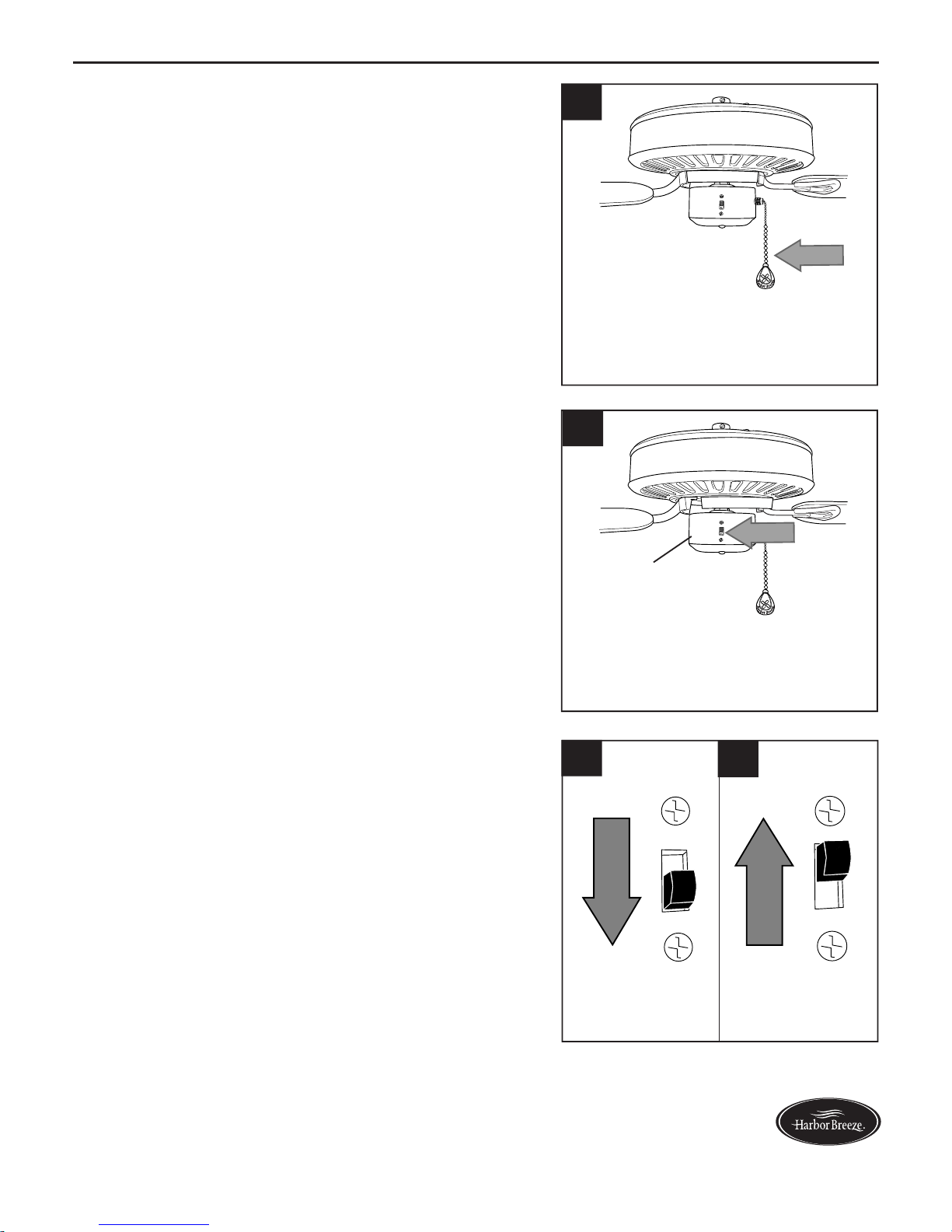

Operating Instructions ......................................................................................................... 14
Care and Maintenance ...................................................................................................
. .... 15
Troubleshooting .................................................................................................................. 15
Limited Lifetime Warranty ................................................................................................... 16

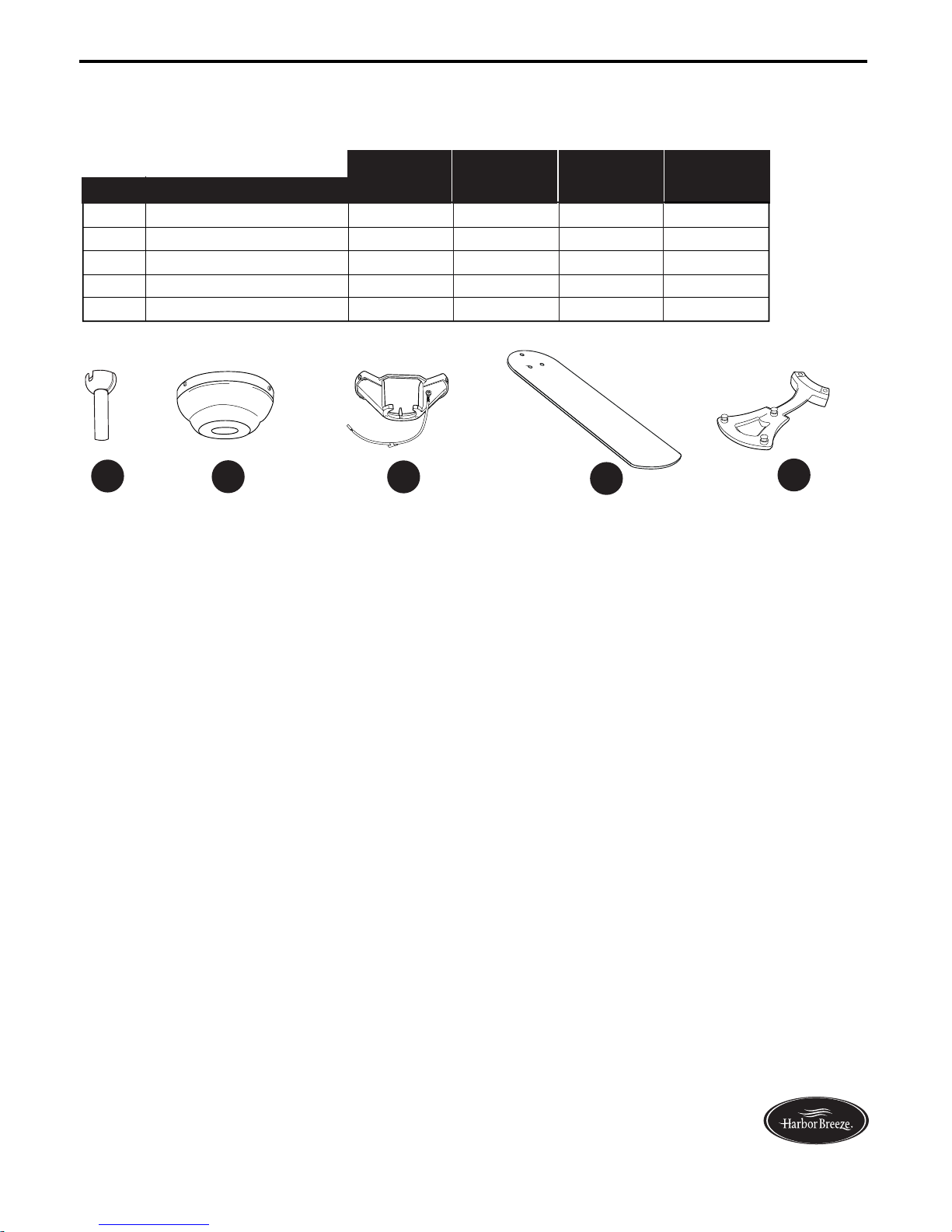

Replacement Parts List ....................................................................................................... 17
TABLE OF CONTENTS

SAFETY INFORMATION
3
Lowes.com/harborbreeze
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.

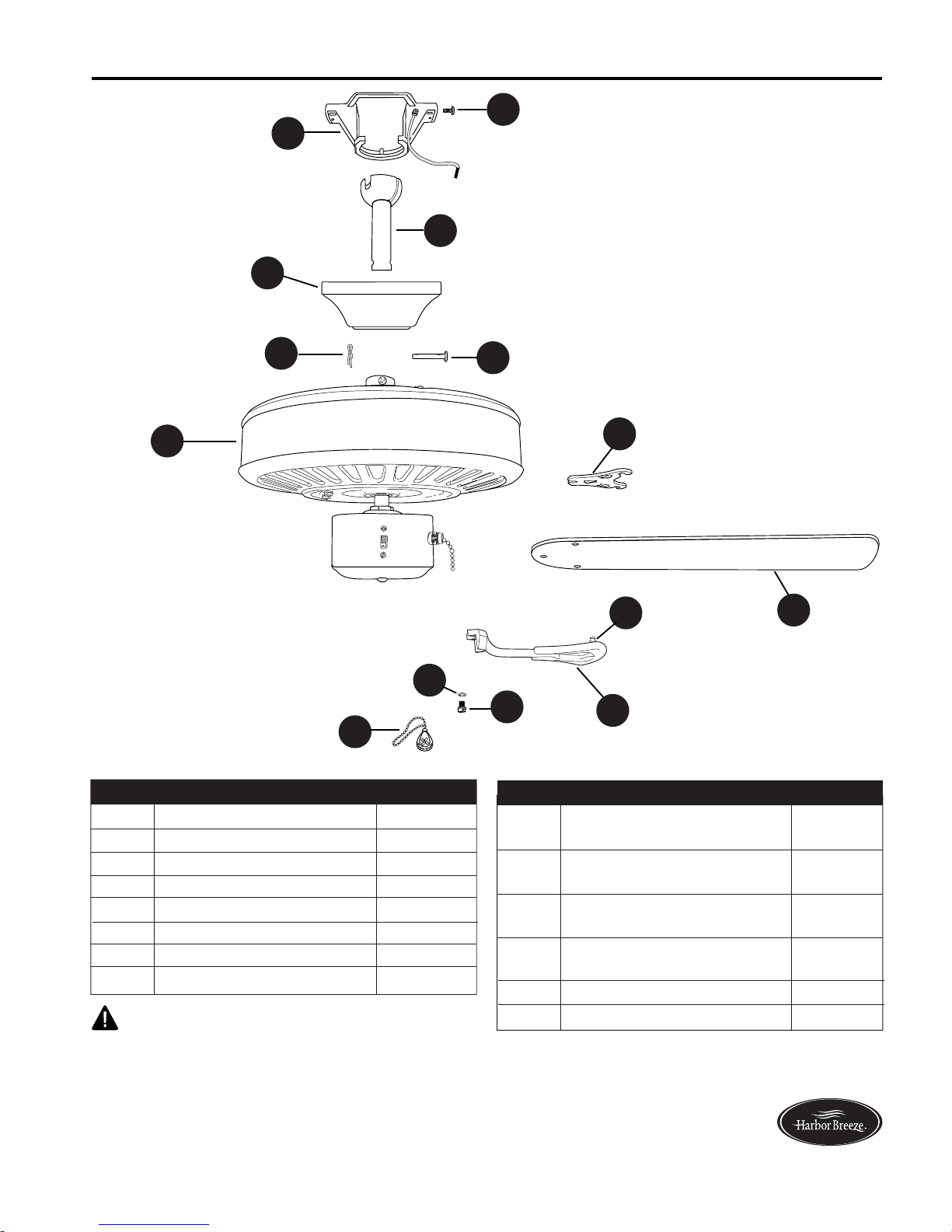

PACKAGE CONTENTS
*US Pat. No. 7351037
PART DESCRIPTION QUANTITY
I Motor Screw 10
(preassembled)
J Blade Screw 15
(preassembled)
K Lock Washer 10
(preassembled)
L Canopy Mounting Screw 4
(preassembled)
M Pin (preassembled) 1
N Clip (preassembled) 1
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E* Plastic Locking Mechanism 5
F Blade 5
G Blade Arm 5
H Pull Chain Extension 1
A
D
B
C
H
N
L
M
I
4
Lowes.com/harborbreeze
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
K
E
J
G
F

5
PREPARATION
Lowes.com/harborbreeze
E3 Wire
Connector
Qty. 4
AA
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to install,
operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters

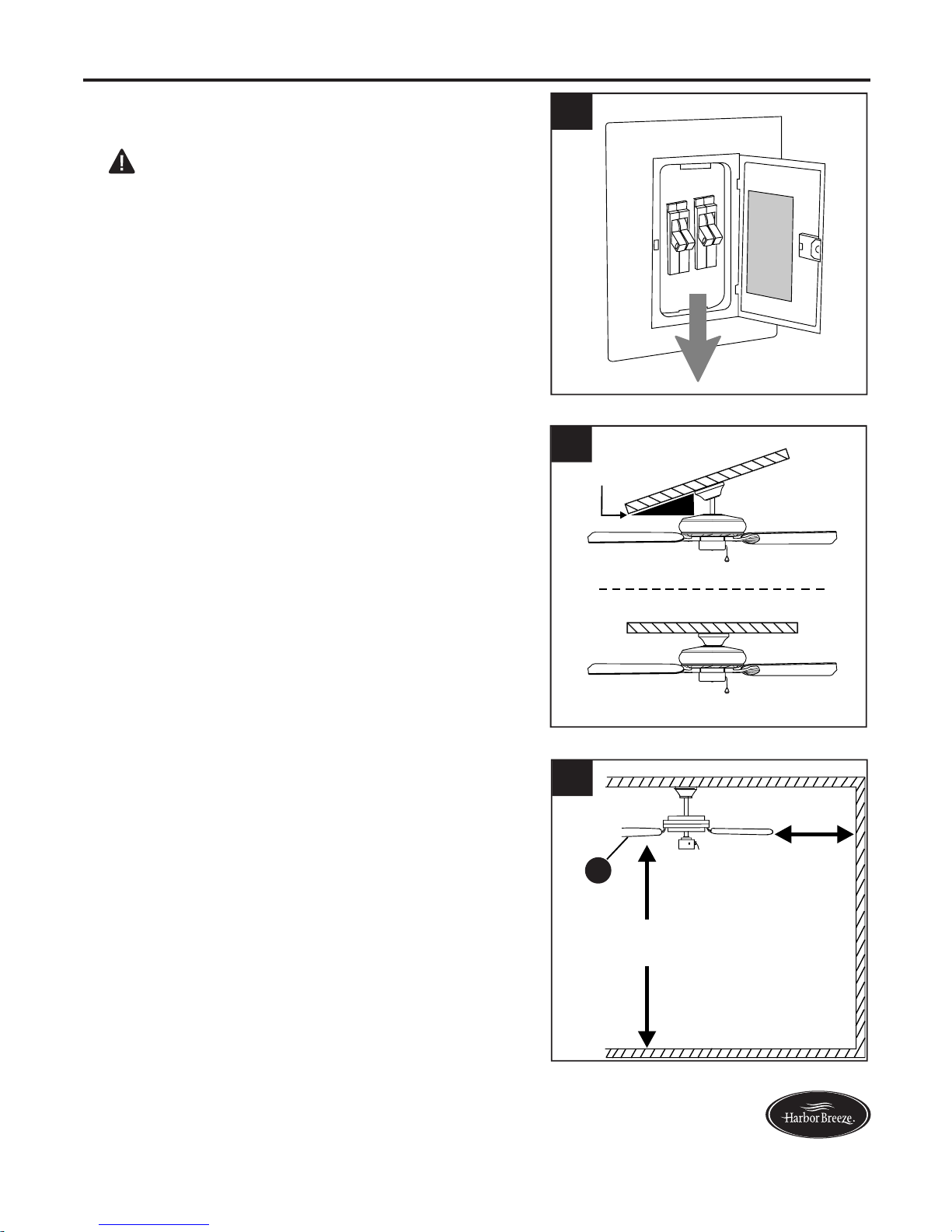

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
3. Check to make sure blades (F) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
INITIAL INSTALLATION
ON
OFF
ON
OFF
3
1
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
2.
F
6
Determine mounting method to use.
A. Downrod-style mount (standard or angled
ceiling)
B. Closemount-style (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
19° max.

INITIAL INSTALLATION
DOWNROD-STYLE FAN MOUNTING
1. Remove pin (M) and clip (N) from yoke at top of
motor housing (D) and partially loosen
preassembled set screws and nuts.
7
Lowes.com/harborbreeze
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE:It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4.
5. Remove motor screws (I) and lock washers (K)
from underside of motor housing (D). [If there are
plastic motor blocks installed with the motor
screws (I) and lock washers (K), discard the
plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below. For
CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 9.
4
Open End
C
C
ANGLE MOUNTSTANDARD MOUNT
K
I
5
D
Plastic Motor Block
Set
Screw
and Nut
1N
M
Yoke
D

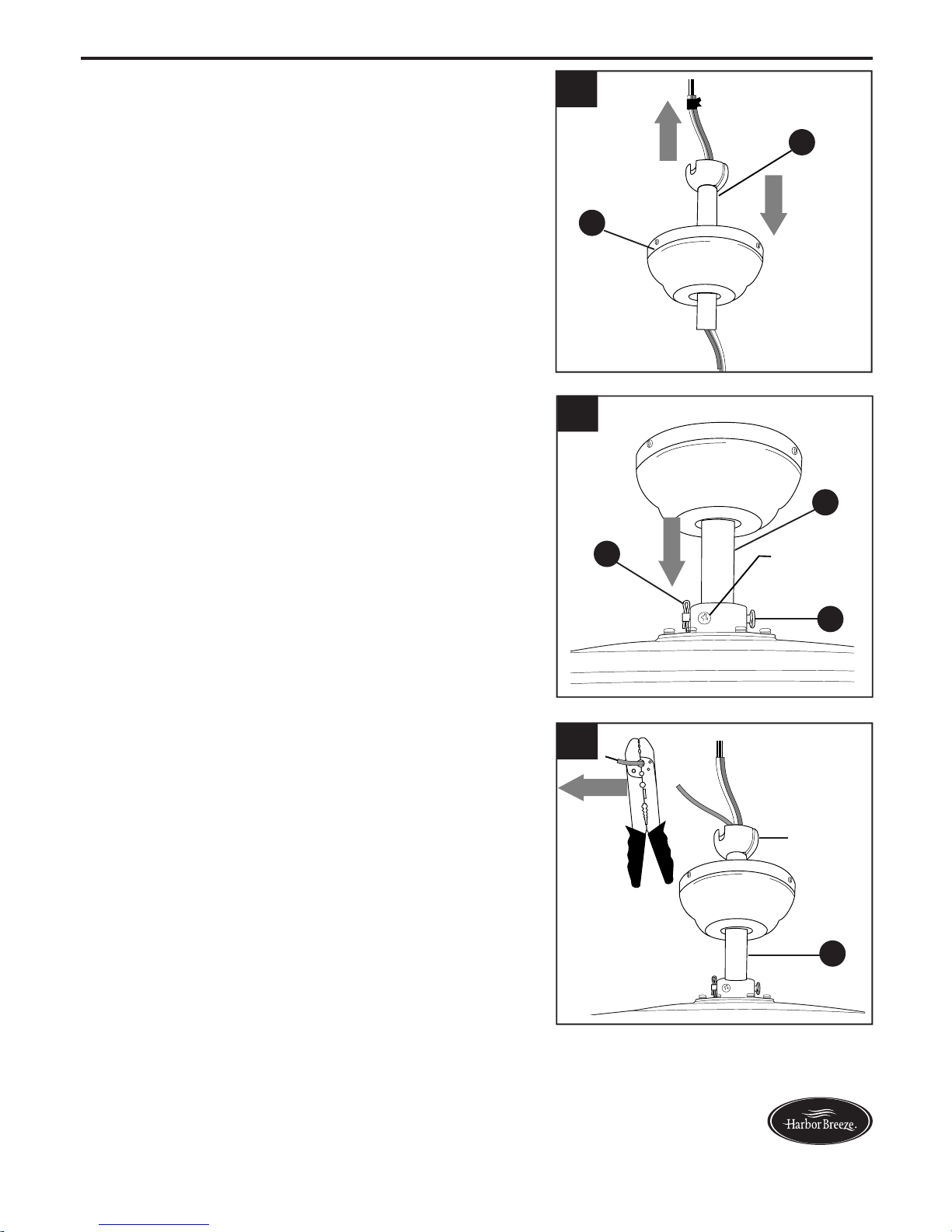

DOWNROD-STYLE FAN MOUNTING
8
Lowes.com/harborbreeze
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the ball on the
downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2. Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through downrod
(A).
3. 3
A
N
M
Ball
A
4
Slip downrod (A) into yoke, align holes and
re-install pin (M) and clip (N). Tighten set screws
in yoke and then tighten nuts on the set screws.
Set Screw
and Nut
2
B
A

DOWNROD-STYLE FAN MOUNTING

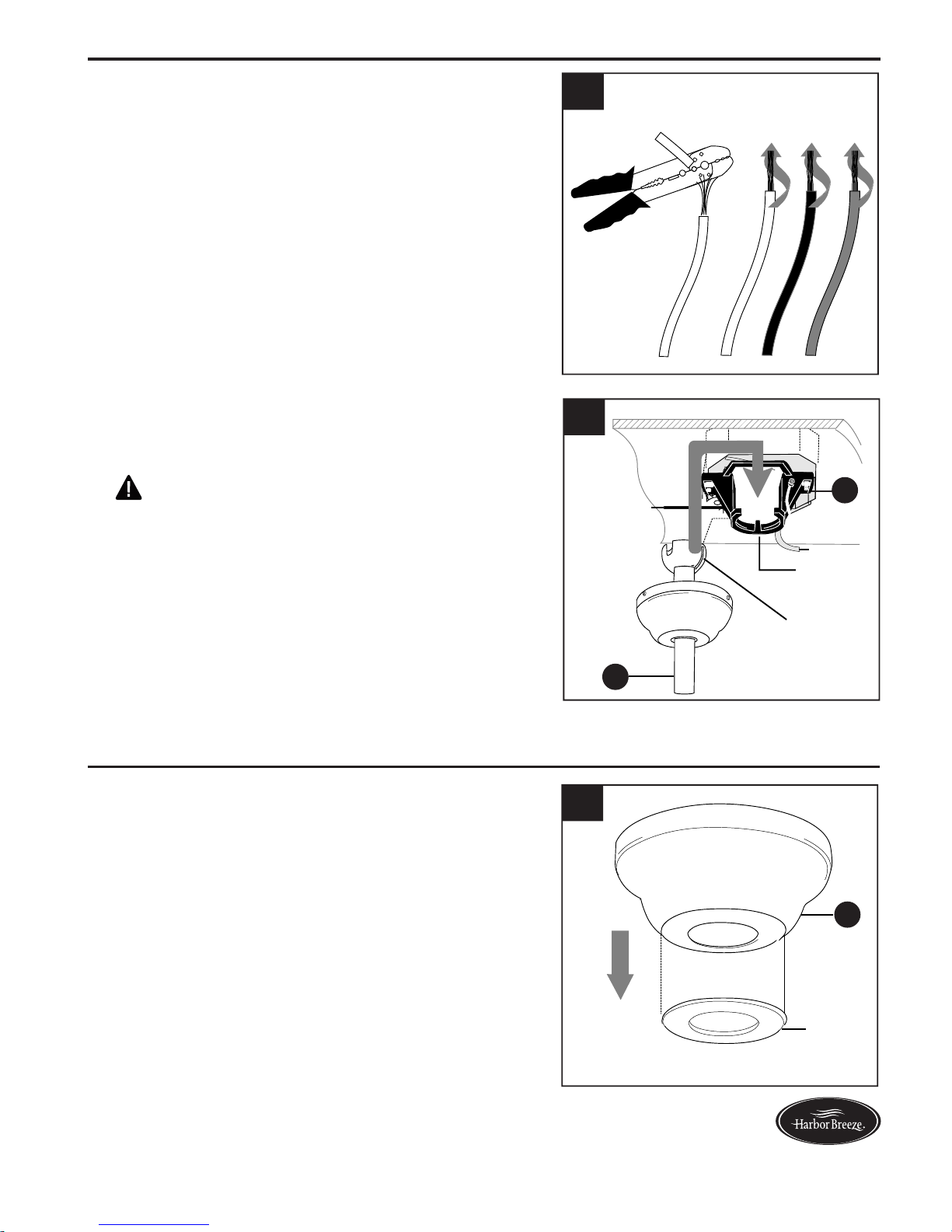

If you decided to cut back the lead wires in
Step 4, strip 1/2 in. of insulation from end of
white wire. Twist stripped ends of each strand
of wire within the insulation with pliers (not
included). Repeat Step 5 for black, blue (if
applicable) and green wires.
5
5.
6.
Remove canopy cover from bottom of canopy (B).
[NOTE: It may be necessary to use the handle
end of a screwdriver (not included) to remove the
canopy cover by tapping on the canopy cover
from the inside of the canopy (B).]
NOTE: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. high. The
downrod (A), canopy cover, pin and clip are not
used in this type of installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
9
Lowes.com/harborbreeze
C
Slot
Tab
6
A
Canopy
Cover
B
1
B
Install ball end of downrod (A) into opening of
mounting bracket (C). Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may cause the fan to wobble or fall, which could
result in serious injury or death.
Continue to WIRING on page 11.

Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three screws and three lock
washers previously removed.
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
CLOSEMOUNT-STYLE FAN MOUNTING
10
Lowes.com/harborbreeze
D
3
B
D
Remove every other screw and lock washer from
top of motor housing (D).
Remove pin (M), clip (N) and preassembled set
screws and nuts from yoke on motor housing (D).
They are not needed for this installation type.
Tab
BD
C
4
2a.
2b.
Yoke
2a
D
M
N
Set Screw
and Nut
2b
D

CC
2. 2
AA AA
AA
11
Lowes.com/harborbreeze
WIRING
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
For each wire connection below, use one of the wire
connectors (AA) provided, making sure to screw wire
connector (AA) on in a clockwise direction.
Connect BLACK and BLUE wire from fan to
BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GREEN wire from fan (on downrod (A) and
mounting bracket (C)) to BARE/GREEN wire from
ceiling.
1.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
E3 Wire Connector x 4
Hardware Used
AA
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light kit. WHITE wire is
common for fan and light kit. BARE/GREEN wire is
ground.
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of box from the BLACK and BLUE (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (AA) into outlet box.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE BLACK
BLUE
BLACK(POWER)
WHITE(NEUTRAL)
GROUND/GREEN (BARE)

WIRING
12
Lowes.com/harborbreeze
1
2
3
Dimmer
Switch Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
IMPORTANT: Using a full range dimmer
switch (not included) to control fan speed will
cause a loud humming noise from fan. To
reduce the risk of fire or electrical shock, do
NOT use a full range dimmer switch to control
fan speed.
3. 3

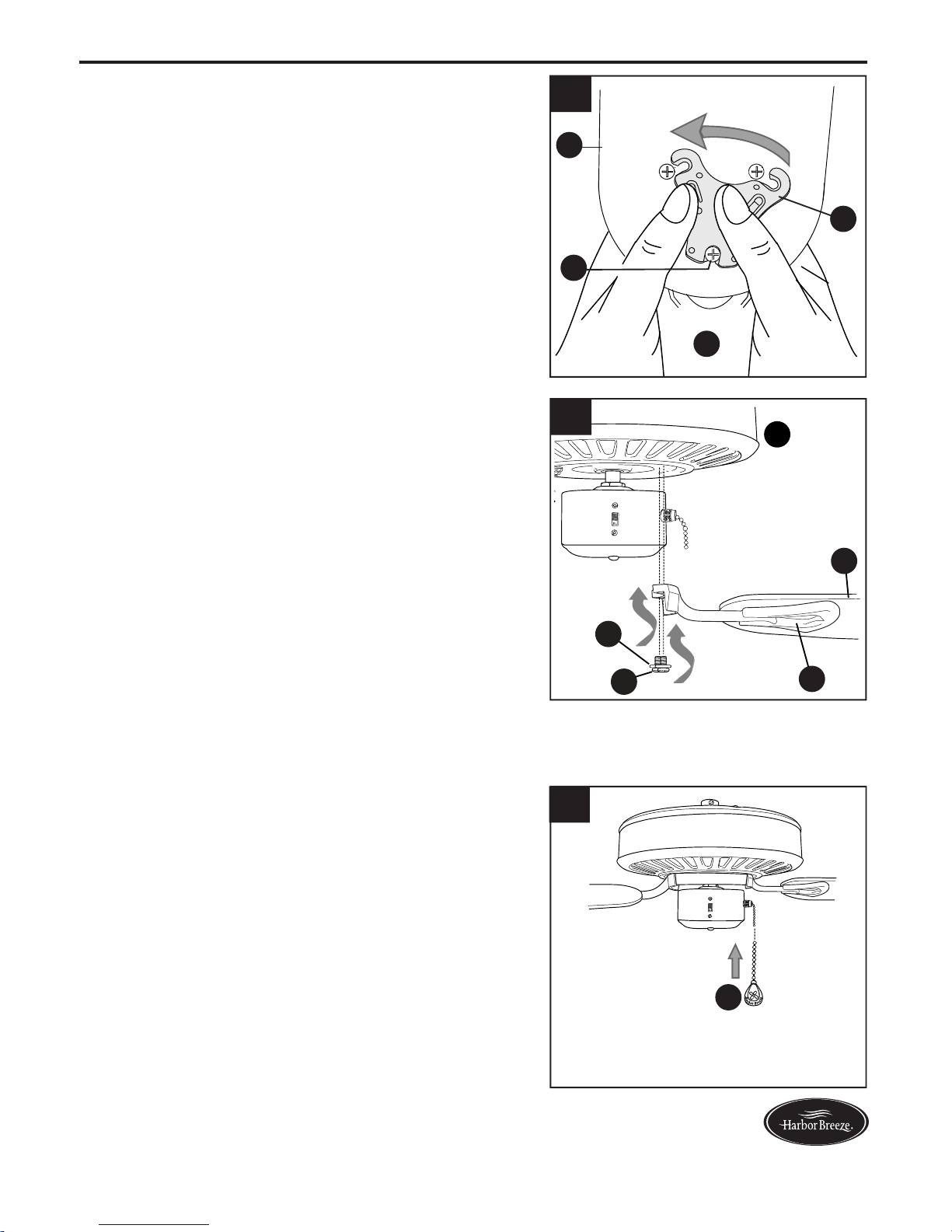

1. Temporarily lift canopy (B) to mounting bracket (C)
to determine which two canopy mounting screws
(L) in mounting bracket (C) align with slotted holes
in canopy (B) and partially loosen these two
canopy mounting screws (L). Remove the other
two canopy mounting screws (L). Now, lift canopy
(B) to mounting bracket (C) again, aligning slotted
holes in canopy (B) with loosened canopy
mounting screws (L) in mounting bracket (C).
Twist canopy (B) clockwise to lock. Re-insert the
two canopy mounting screws (L) that were just
removed and tighten all canopy mounting screws
(L) securely.
FINAL INSTALLATION
Align the three blade screws (J), pre-installed on
one blade arm (G), with the three holes in one
blade (F). Press up on the blade arm (G) firmly so
the blade screws (J) come through the holes in
the blade (F). Be careful not to use so much force
that the blade arm (G) bends.
2.
1
B
D
L
L
D
B
Downrod
Option Closemount
Option
2
J
G
F
E

FINAL INSTALLATION
Attach pull chain extension (H) or a custom pull
chain extension (not included) to the fan pull chain.
5. 5
Note label on plastic locking mechanism (E)
indicating THIS SIDE UP. Place the plastic locking
mechanism (E) on the opposite side of the blade
(F) as the blade arm (G), with the narrower end of
the plastic locking mechanism (E) toward the end of
the blade (F) and against the blade screw (J).
Rotate plastic locking mechanism (E)
counterclockwise to lock plastic locking mechanism
(E) into place.
Repeat Steps 2 and 3 for each blade arm (G) and
blade (F).
3.
Locate motor screws (I) and lock washers (K)
previously removed (Step 5, page 7).
Insert two motor screws (I) along with lock washers
(K) through one blade arm (G) to attach blade arm
(G) to motor. Tighten motor screws (I) securely.
Repeat with remaining blade arms (G), making
sure to completely secure each blade arm (G)
before proceeding with the next.
4.
13
Lowes.com/harborbreeze
3
F
E
J
G
G
4D
H
I
K
F
NOTE: If you purchased a compatible light kit, refer to the instructions provided with the light kit
to complete your installation.

1
OPERATING INSTRUCTIONS
The pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three
is LOW and four turns the fan OFF.
1.
Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2.
2A. In warmer weather, setting the reverse switch in
the DOWN position will result in downward airflow
creating a wind chill effect.
2B. In cooler weather, setting the reverse switch in the
UP position will result in upward airflow that can help
move stagnant, hot air off the ceiling area.
2A 2B
14
Lowes.com/harborbreeze
2
Switch
Housing

OPERATING INSTRUCTIONS
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid
scratching the finish. Clean blades (F) with a lint-free cloth. You may occasionally apply a light
coat of furniture polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water
or a damp cloth to clean the ceiling fan.
CARE AND MAINTENANCE
15
Lowes.com/harborbreeze
2C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
2C
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Check to be sure plastic locking
mechanisms are secure.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Check to be sure plastic locking
mechanisms are secure.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
16 Lowes.com/harborbreeze
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
17
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
Lowes.com/harborbreeze
JMLI1508
ABF
CG
0076888-A
0076888-B
0076888-C
0076888-F
0076888-G
PART DESCRIPTION #0076888 #0077285 #0079837 #0080297
PART # PART # PART # PART #
A Downrod
B Canopy
C Mounting Bracket
F Blade
G Blade Arm
0077285-A
0077285-B
0077285-C
0077285-F
0077285-G
0079837-A
0079837-B
0079837-C
0079837-F
0079837-G
0080297-A
0080297-B
0080297-C
0080297-F
0080297-G
