Hausted MBC User manual

MBC-IN-INS-LAB-REVC16

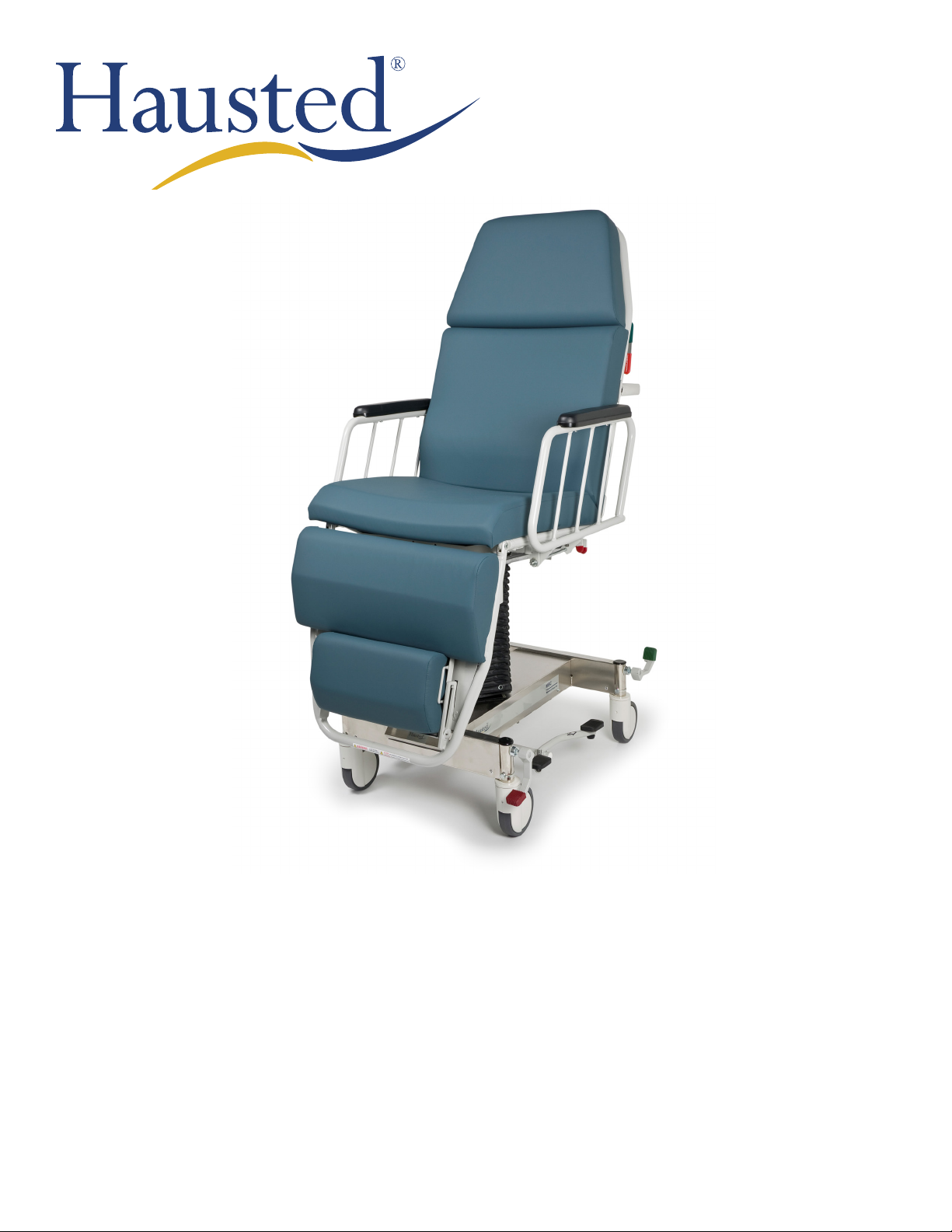

MBC MAMMOGRAPHY / BIOPSY CHAIR
OPERATING MANUAL
READ THIS MANUAL BEFORE OPERATING YOUR
MBC MAMMOGRAPHY / BIOPSY CHAIR.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE
FOUND ONLINE AT WWW.HAUSTED.COM.

MBC-IN-INS-LAB-RevC16 2
CONTENTS
INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC. ..................................................................................................... 3
INDICATIONS FOR USE ..................................................................................................................................................................... 3
SERVICE INFORMATION ................................................................................................................................................................... 3
ADVISORY........................................................................................................................................................................................... 3
1 LIST OF WARNINGS AND CAUTIONS .............................................................................................................................................. 4
SIGNIFICANCE OF SAFETY STATEMENTS...................................................................................................................................... 4
DANGER / WARNING / CAUTION / NOTICE SUMMARY........................................................................................................... 4
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY .................................................................................... 4
WARNING — PROPER OPERATION ........................................................................................................................... 4
IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY............................................................................................... 5
NOTICE — POSSIBLE EQUIPMENT DAMAGE................................................................................................................................. 5
WARNING — PERSONAL INJURY HAZARD .................................................................................................................................... 5
UNPACKING INSTRUCTIONS............................................................................................................................................................ 5
3 OPERATING INSTRUCTIONS ............................................................................................................................................................ 6
MBC SPECIFICATIONS ...................................................................................................................................................................... 7

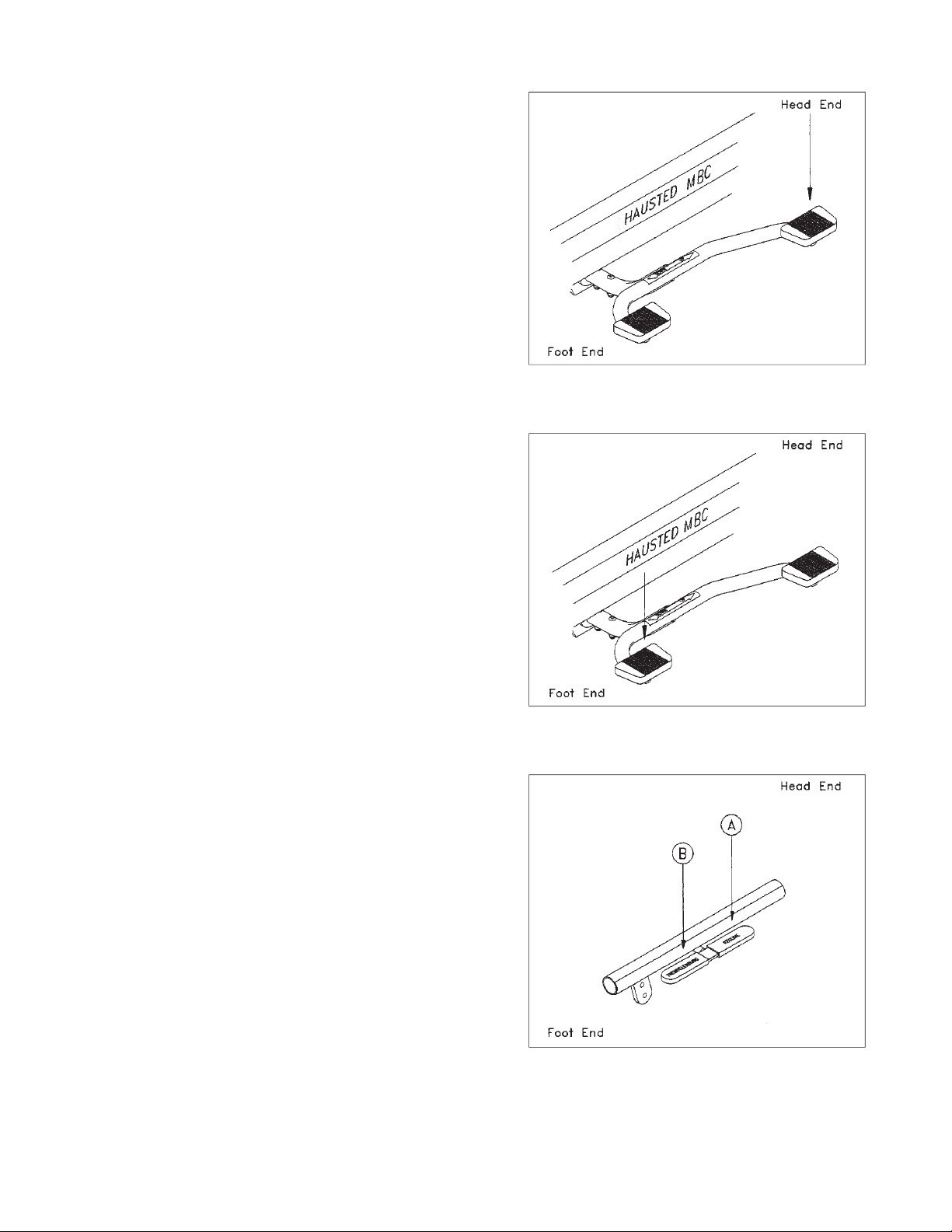

3.1 BRAKING AND STEERING OPERATION ................................................................................................................................... 8
3.1.1 APPLYING THE BRAKES ............................................................................................................................................. 8
3.1.2 RELEASING THE BRAKES .......................................................................................................................................... 8
3.1.3 APPLYING THE STEERING LOCK............................................................................................................................... 8
3.1.4 RELEASING THE STEERING LOCK............................................................................................................................ 8
3.2 HEIGHT AND TOP ADJUSTMENT .............................................................................................................................................. 9
3.2.1 HEIGHT ADJUSTMENT................................................................................................................................................. 9
3.2.2 LOWERING THE UNIT .................................................................................................................................................. 9
3.2.3 TOP ADJUSTMENT ....................................................................................................................................................... 9
3.2.4 TRENDELENBURG ADJUSTMENT.............................................................................................................................. 9
3.3 CPR / SURGICAL SUPPORT LEG ACCESSORY NUMBER HAPC02500............................................................................... 10
3.3.1 OPERATING INSTRUCTIONS..................................................................................................................................... 10
CPR USE...................................................................................................................................................................... 10
STORAGE .................................................................................................................................................................... 10
4 PREVENTIVE MAINTENANCE FOR THE USER ..............................................................................................................................11
5 OPTIONAL ACCESSORIES.............................................................................................................................................................. 12
6 GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND PRODUCT LINE OUTSIDE THE U.S. ............. 13
7 DISPOSAL AND KEY TO SYMBOLS ............................................................................................................................................... 14
DISPOSAL......................................................................................................................................................................................... 14
KEY TO SYMBOLS ........................................................................................................................................................................... 14
8 INDEX ................................................................................................................................................................................................ 15
COPYING PROHIBITED
This manual is protected by Federal Copyright Law, which provides for damages of up to
USD $20,000, as well as criminal nes and imprisonment, for unauthorized copying.

MBC-IN-INS-LAB-RevC16 3
INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC.
This manual contains important information on proper use and maintenance of the Hausted
MBC Mammography / Biopsy Chair. All personnel involved in the use and maintenance of this
equipment must carefully review and comply with the warnings, cautions and instructions
contained in this manual. These instructions are important to protect the health and safety of
personnel operating the MBC and should be retained in a conveniently accessible area for quick
reference.
Complete instructions for uncrating and putting your new equipment in service, as well as
equipment drawings, have been furnished. If missing, contact GF Health Products, Inc. for
replacement copies, giving the serial number and model number of the unit.
GF Health Products, Inc. carries a complete line of accessories for use with these chairs; your
representative will gladly review these with you.
INDICATIONS FOR USE
The Hausted MBC Mammography / Biopsy Chair is intended for use in patient treatment, transport
or recovery.
The chair’s backrest can be positioned from sitting to supine, and height is adjustable. Four easy-
rolling, steerable casters allow maximum mobility and maneuverability.
SERVICE INFORMATION
A thorough preventive maintenance program is essential to safe and proper unit operation. This
manual contains maintenance schedules and procedures which should be followed for satisfactory
equipment performance.
We encourage you to contact GF Health Products, Inc. with maintenance concerns.
ADVISORY
A listing of the safety precautions to be observed when operating and servicing this equipment
can be found in Section 1 of this manual. Do not operate or service the equipment until you
have become familiar with this information. Any alteration of this equipment not authorized or
performed by GF Health Products, Inc., could affect its operation, will void the warranty, could
violate national, state, and local regulations, and could jeopardize your insurance coverage.
EC REP
EC Authorized
Representative:
CEpartner4U BV
ESDOORNLAAN 13
3951DB MAARN
The Netherlands
[phone]
Manufactured by:
GF Health Products, Inc.
336 Trowbridge Drive
Fond du Lac, WI 54937
1-770-368-4700 Main
1-770-368-2386 Fax
www.grahameld.com
www.Hausted.com
Info: The base language of this document is ENGLISH. Any translations must be made from the
base language document.
Class 1 Equipment
Type B Equipment
Equipment not suitable
for use in the presence
of ammable anesthetic
mixture with air or oxygen
or nitrous oxide.
IPX4 (Splash-proof
equipment)
Not suitable for continuous
operation (Duty Cycle:
10% six minutes in one hour)

MBC-IN-INS-LAB-RevC16 4
1 LIST OF WARNINGS AND CAUTIONS
IMPORTANT: Before using the Hausted MBC Mammography / Biopsy Chair, please read and
adhere to the following safety precautions and warnings. Failure to do so could result in
serious personal injury or damage to the MBC Mammography / Biopsy Chair.
Always consult your healthcare professional to determine safe methods most suitable for your
individual abilities. Protect yourself, your attendant, and the Hausted MBC Mammography / Biopsy
Chair by having it serviced regularly. If you experience any malfunction, contact your Graham-
Field authorized distributor immediately, as a hazardous condition could result, causing personal
injury or damage to the Hausted MBC Mammography / Biopsy Chair.
Periodic inspection, adjustment and replacement of worn parts are necessary to provide years of
excellent service. Maintenance MUST be performed by qualied personnel ONLY.
SAVE THESE INSTRUCTIONS.
SIGNIFICANCE OF SAFETY STATEMENTS
Please note the following special statements, used throughout this manual, and their signicance:
DANGER: Indicates a potential hazard situation or unsafe practice that, if not avoided, will
result in death or serious personal injury.
WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided,
could result in death or serious personal injury.
CAUTION: Indicates a potential hazard situation or unsafe practice that, if not avoided,
could result in minor or moderate personal injury.
sNOTICE: Indicates a potential hazard situation or unsafe practice that, if not avoided, could
result in product or property damage.
Info: Provides application recommendations or other useful information to ensure that you get
the most from your product.
DANGER / WARNING / CAUTION / NOTICE Summary
The following is a listing of the safety precautions which must be observed when operating and
servicing this equipment. These precautions are repeated (in whole or in part), where applicable,
throughout the manual.
WARNING: To Reduce the Risk of Personal Injury
WARNING: LACERATION HAZARD — When cutting bands always use a tool specically
designed for that purpose. This will help to avoid personal injuries frequently incurred
when bands are cut and tension released.
WARNING: Notice for California Customers- California Proposition 65 Warning: This
product contains a chemical known to the State of California to cause cancer and
reproductive or developmental harm.
WARNING — Proper Operation
WARNING: The MBC Mammography / Biopsy chair maximum patient weight is 325 lb
(147 kg), EVENLY DISTRIBUTED.
WARNING: The chair is not intended to replace a stretcher or gurney.
WARNING: PERSONAL INJURY HAZARD — Do not sit on end — tipping may occur.

MBC-IN-INS-LAB-RevC16 5
WARNING: PERSONAL INJURY HAZARD — When the unit is in the stretcher position, DO
NOT sit on the head or foot end of the patient surface.
WARNING: PERSONAL INJURY HAZARD — DO NOT stand on the footrest or use it as a
step stool. Tipping may occur.
WARNING: Always secure patient with restraint straps when left unattended in a fully
reclined position.
WARNING: TIPPING HAZARD — The CPR / Surgical Support Legs should be used at any
time when the unit is in the horizontal position, as shown in Figure 3-8.
WARNING: It is recommended that only accessories approved by GF Health Products, Inc.
be used with this device. The use of accessories, transducers, and cables other than those
specied by the manufacturer may result in increased emissions or decreased immunity of
the Hausted equipment.
2 UNCRATING INSTRUCTIONS
IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY
WARNING: Inform shipper of any damages — leave carton intact. Leave equipment in the
receiving area until inspection is complete.
NOTICE — POSSIBLE EQUIPMENT DAMAGE
sNOTICE: This crate contains fragile, expensive medical equipment. Uncrate and handle
carefully. If after uncrating the equipment you nd any damage (no matter how slight),
report the damage to GF Health Products, Inc.
WARNING — PERSONAL INJURY HAZARD
WARNING: When cutting bands, always use a tool specically designed for that purpose.
This will help avoid personal injuries possibly incurred when bands are cut and tension is
released.
IMPORTANT: Follow each step in the order shown in these instructions.
UNPACKING INSTRUCTIONS
Your Hausted equipment has been carefully packed at our manufacturing plant to ensure safe
shipment to your medical facility. There are several procedures you must follow to put your new
equipment in service. These procedures only take a few minutes to complete and all are required
to ensure proper operation of the equipment.
1. Cut the two bands around the shipping carton.
2. Remove the top half of the carton and cut one side of the bottom half.
3. Remove the equipment from the carton.
4. Check to see if all features of the equipment work properly. If all features work, advance to step
5. If any of the features do not work properly, call GF Health Products, Inc. at 1-770-368-4700.
5. Clean the equipment using mild detergent to remove any dirt accumulated during shipment,
and place the equipment into service.

MBC-IN-INS-LAB-RevC16 6
3 OPERATING INSTRUCTIONS
This Operation Manual is to ensure proper use is understood and followed in order to obtain
optimum safety and function of your Hausted MBC Mammography / Biopsy Chair.
The MBC’s versatility in moving from a chair position to a fully reclined position is designed
to permit convenient patient positioning and treatment. The MBC is not intended to replace a
stretcher or gurney, of which we offer a complete product line for your specialty needs.
Hausted’s MBC has a warning label located at the head and foot ends of the chair’s frame, stating:
Do not sit on end: tipping may occur.

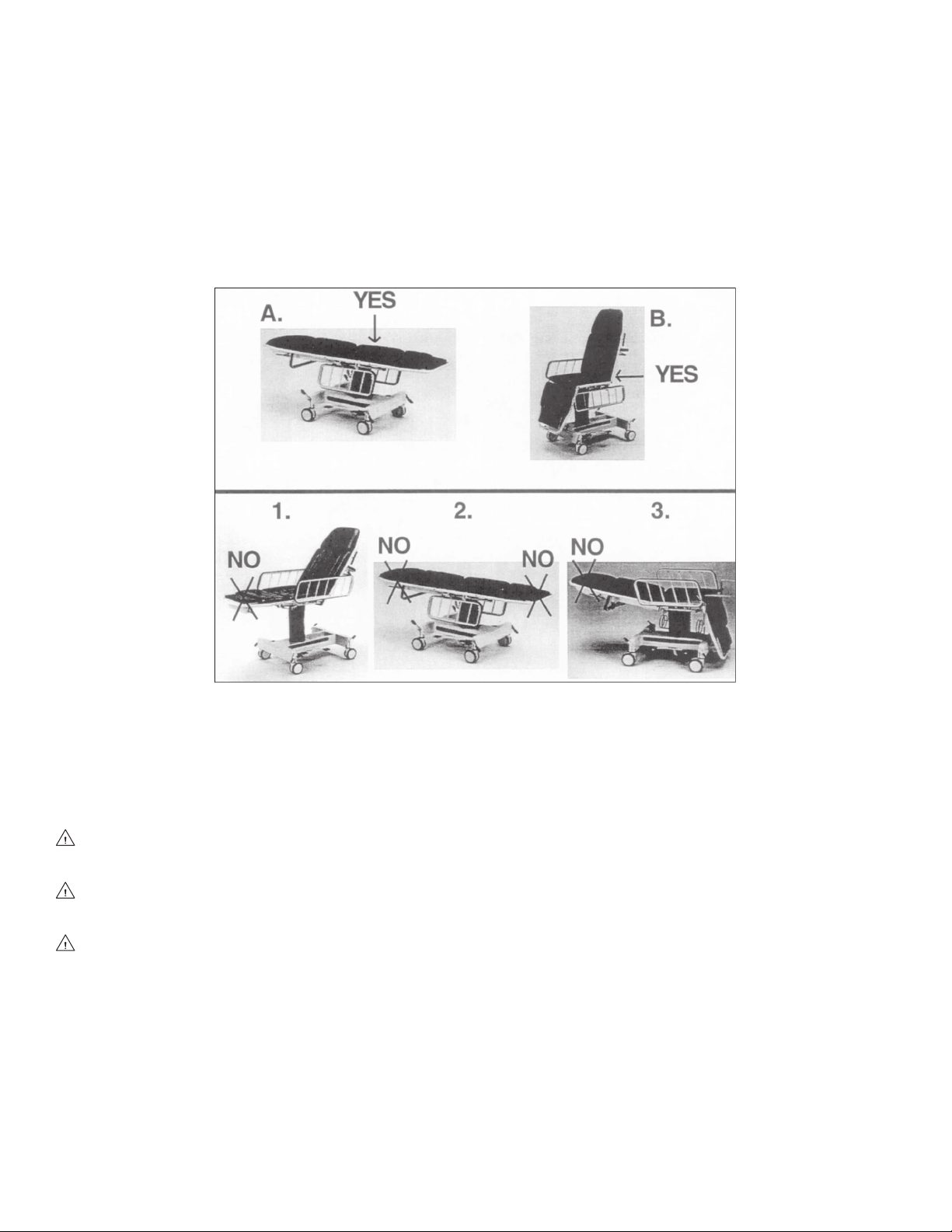

FIGURE 3-1
Patient entry, egress, and transfer from the MBC should always be from the center side rail
locations by lowering the side rail as shown in diagrams A and B above. At no time should the
patient be permitted to enter or exit from the ends of the MBC as shown on diagrams 1, 2 and 3,
except in a full chair position.
WARNING: PERSONAL INJURY HAZARD — When the unit is in the stretcher position, DO
NOT sit on the head or foot end of the patient surface.
WARNING: PERSONAL INJURY HAZARD — DO NOT stand on the footrest or use it as a
step stool. Tipping may occur.
WARNING: Always secure patient with restraint straps when left unattended in a fully
reclined position.
Info: when not in use, do not leave the MBC in a fully reclined position.
These operating instructions are to ensure patient safety and permit you to use your Hausted MBC
to treat, transport and transfer your patient with ease.
If you have any questions, please contact GF Health Products, Inc.’s Customer Service Department
at 1-770-368-4700.

MBC-IN-INS-LAB-RevC16 7
Grasp RECLINE to position
unit anywhere from the chair
position to the stretcher
position.
To position the unit in or out of the
Trendelenburg position from the
chair position, grasp TRENDELENBURG.
When the unit is in the stretcher position,
grasp RECLINE to raise the backrest
slightly, then use TRENDELENBURG.
Depress for STEERING LOCK.
Depress for BRAKE.
Depress and hold to lower unit.
Pump to elevate.
FIGURE 3-2
MBC SPECIFICATIONS
Height adjustment
Hydraulic
Backrest adjustment
(including 10° Trendelenburg)
Pneumatic
Caster braking system
Four-wheel braking system with steering lock
Dimensions
Overall dimensions of
patient surface
Chair position Stretcher position
Width 22 in. (56 cm) 22 in. (56 cm)
Length 50 in. (127 cm) 70.5 in. (179 cm)

MBC-IN-INS-LAB-RevC16 8
3.1 BRAKING AND STEERING OPERATION
FIGURE 3-3
FIGURE 3-4
3.1.1 Applying the Brakes
Activate the four-wheel central braking system
by depressing the red pedal at patient left
front to approximately 45° (Figure 3-3). This
locks all four caster wheels from swiveling and
rotating.
3.1.2 Releasing the Brakes
Release the four-wheel central braking system
by depressing the green pedal at patient left
rear until the pedal is in a horizontal position
(Figure 3-3). All four wheels should then rotate
and swivel freely.
WARNING: Ensure the brakes are locked
when the patient is not being transported.
3.1.3 Applying the Steering Lock
Apply the steering lock by depressing the
green pedal at patient left front downward
to approximately 45° into locked position
(Figure 3-3) and push the unit forward. One or
both of the caster wheels at the opposite end
will lock into a non-swivelling position that
enables straight tracking and swivelling by the
attendant; the steering lock will guide the unit
along a straight path with minimal steering
effort by the attendant. (See Figure 3-4)
3.1.4 Releasing the Steering Lock
Release the steering lock by depressing the
red pedal at patient left rear until the pedal is
in a horizontal position (Figure 3-4). All four
casters should then rotate and swivel freely.

MBC-IN-INS-LAB-RevC16 9
3.2 HEIGHT AND TOP ADJUSTMENT
3.2.1 Height adjustment
To elevate the unit, pump the UP pedal, using
smooth full strokes to ensure patient comfort
(See Figure 3-5).
Info: Pedals are located on both sides of the
unit.
When the unit reaches the desired height, stop
the pumping action.
sNOTICE: Do not stand on the pedal.
3.2.2 Lowering the unit
To lower the unit, depress and hold the DOWN
pedal (See Figure 3-6).
Info: Pedals are located on both sides of the
unit.
When the unit reaches the desired height,
return the pedal to its original position.
sNOTICE: Do not stand on the pedal.
3.2.3 Top adjustment
To adjust the unit anywhere from the chair
position to the stretcher position, grasp the
RECLINE handle, (A), adjust the unit to the
desired position, and release the handle (See
Figure 3-7).
3.2.4 Trendelenburg adjustment
To adjust the unit into Trendelenburg position
the unit must be in the CHAIR position.
Grasp the TRENDELENBURG handle (B), adjust
the unit into Trendelenburg, and release the
handle (See Figure 3-7).
FIGURE 3-5
FIGURE 3-6
FIGURE 3-7

MBC-IN-INS-LAB-RevC16 10
FIGURE 3-8
FIGURE 3-9
CPR / SURGICAL
SUPPORT LEGS
WARNING: TIPPING HAZARD —
THE CPR / SURGICAL SUPPORT LEGS
SHOULD BE USED AT ANY TIME WHEN
THE UNIT IS IN THE HORIZONTAL POSITION,
AS SHOWN IN FIGURE 3-8.
WARNING: TIPPING HAZARD —
The CPR / Surgical Support Legs
should be used at any time when the
unit is in the horizontal position, as
shown in Figure 3-8.
3.3.1 Operating Instructions
See Figure 3-9.
CPR Use
1. Pull the hook and loop fastener away
from the tubes.
2. Adjust the MBC to the desired
horizontal position. The legs will
automatically hinge into position and
lock.
3. Pull the knob out and allow the rack
to slide until it makes contact with the
oor. Release the knob to engage the
lock.
4. Ensure the knob is locked into position
by pushing down on the head end of
the unit. No slippage of the rack should
occur.
5. The legs are now ready for use,
ensuring rigid stability.
Storage
1. Pull the knob and slide the rack until it
is fully retracted. Release the knob.
2. Push the slide collar up and fold the
legs inward.
3. Wrap the hook and loop fastener
around both legs and fasten it to itself.
3.3 CPR / SURGICAL SUPPORT LEG ACCESSORY NUMBER HAPC02500

MBC-IN-INS-LAB-RevC16 11
4 PREVENTIVE MAINTENANCE FOR THE USER
Component Cleaning Procedure Schedule Cleaning Agent * Special Notes
Pads/
Mattresses
Wipe with damp cloth to
remove any foreign material
After each
use
Routine hospital grade
disinfectants, soap and
water
Use only medium
strength cleaners
Do not steam clean or
pressure wash
Chair Wipe with damp cloth to
remove any foreign material
After each
use
Routine hospital grade
disinfectants, soap and
water
Lubricate pivot points
after cleaning
Mechanical
chair
components
Wipe with damp cloth to
remove any foreign material
After each
use
Routine hospital grade
disinfectants, soap and
water
Lubricate pivot points
after cleaning
Mechanical
accessories
Wipe with damp cloth to
remove any foreign material
After each
use
Routine hospital grade
disinfectants, soap and
water
Lubricate pivot points
after cleaning
Procedure Schedule Material
Lubricate all moving and sliding parts and
hinge points
Every 3
months
Lubricating oil, light-duty grease, wax stick
lubricant or Never-Seez lubricant
NEVER LUBRICATE GAS SPRING, MOTOR OR MECH-LOCK SHAFTS
Inspect all fasteners to ensure proper t,
position and tightness (including nuts, bolts,
etc.)
Every 3
months
Proper size wrench and screwdriver
Inspect all surfaces and remove any sharp
or burred areas; apply touch-up paint where
required
Every 3
months
Metal le, proper color paint (specify color when
ordering)
*Disinfectants, vinyl products: Phenolic disinfectants are the best choice for vinyl products; properly diluted
quaternaries are also acceptable. Quaternary/Isopropyl disinfectants are not recommended for vinyl.
Disinfectants, urethane products: Quaternary disinfectants are recommended for urethane products. Quaternary/
Isopropyl disinfectants are recommended for urethane. Phenolics should be avoided on urethane.
Disinfectants, all products: All fabrics may be cleaned with a 1:10 dilution of household bleaches containing 5.25%
sodium hypochlorite as recommended by the Centers for Disease Control in Atlanta, Georgia. There is no harmful
effect on the fabric. Disinfectants applied at full concentration or in highly concentrated solutions will decrease
the useful life of fabric. Iodophor type disinfectants used on fabrics may result in staining.
Soils or Stains: Use neutral soapsuds and lukewarm water. Do not use harsh cleansers, solvents or detergents.
Hard-To -Clean Spots: Use standard household/vinyl cleansers and a soft bristle brush on troublesome spots or
stains. Pre-soak heavy, dried-on soil.
Laundering Vinyl-laminated or Rubber-coated fabric is not recommended. Laundering may substantially
decrease the useful life of the fabric.
sNOTICE — POSSIBLE EQUIPMENT DAMAGE HAZARD: Steam cleaning and pressure
washing of chair is not recommended and can void warranty.
Info: For more detailed information, please contact GF Health Products, Inc. at 1-770-368-4700.
Info: In addition to the User Preventive Maintenance, a more detailed Preventive Maintenance
Program is also required to keep the equipment in good working order. This Preventive
Maintenance Program is found on our website, at www.Hausted.com.

MBC-IN-INS-LAB-RevC16 12
5 OPTIONAL ACCESSORIES
Accessories
HAPC01200 Restraint straps with hook and loop fasteners
HAPC14D00 Oxygen tank holder
HAPC02100 Patient tray
HAPC02600 Heel stirrups with mounting adaptors
HSA067100 Dorsocervical pillow (Qty. 1)
HSA071600 Patient safety strap with hook and loop fasteners, wide (Qty. 1)
H000018 Telescoping IV rod, stainless 27 in. to 50 in. (68 cm to 137 cm) 2-section with holder
H06123900 Armboard with 1 in. (2.5 cm) pad for reclined position
H06599000 Armboard with 1 in. (2.5 cm) pad for seated position
WARNING: It is recommended that only accessories approved by GF Health Products, Inc.
be used with this device. The use of accessories, transducers, and cables other than those
specied by the manufacturer may result in increased emissions or decreased immunity of
the Hausted equipment.
Info: To order accessories, or for more detailed information on accessories, please contact GF
Health Products, Inc. at 1-770-368-4700.

MBC-IN-INS-LAB-RevC16 13
6 GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED
BRAND PRODUCT LINE OUTSIDE THE U.S.
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only (“Purchaser”) that it will replace components, at GF’s sole
discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the
proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals,
including proper use and maintenance. To the extent that a component is warranted by a third party, GF conveys all of its rights
under that warranty to the Purchaser, to the extent permitted.
This limited warranty shall only apply to defects that are reported to the authorized Distributor from whom the Purchaser
purchased the product, commensurate with the rules set forth by that Distributor within the applicable warranty period and which,
upon examination by GF or its authorized representative, prove to be a warranty item. This limited warranty is not transferable.
The warranted components and time periods are set forth below:
COMPONENT ............................PARTS WARRANTY
Frame ........................................... 5 years
Hydraulics ................................... 1 year
Casters ......................................... 1 year
Pneumatic gas springs ............... 1 year
Pads and mattresses .................. 1 year
Patient weighing system............ 1 year
Electrical components ............... 1 year
Optional accessories.................. 1 year
Replacement parts * .................. 90 days
* The warranty period is as designated above. If a part is replaced under warranty, the original warranty period will not be affected. All other replacement
parts will be subject to the warranty period specied.
All warranties for labor are provided strictly by the Distributor from whom the Customer purchased the product.
The warranty period is presumed to commence on the date of shipment from GF’s premises, unless there is an expiration date on
the component in which case the warranty shall expire on the earlier of warranty period or the expiration date.
OBTAINING WARRANTY SERVICE
The Purchaser must contact the Distributor from whom the product was purchased, commensurate with the guidelines set forth by
that Distributor. The Distributor shall contact a GF Customer Service Representative who must authorize warranty service. Specic
directions will be provided by the Customer Service Representative to the Distributor. Failure to abide by the specic directions
will result in denial of the warranty claim.
EXCLUSIONS
The warranty does not cover and GF shall not be liable for the following:
1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence, alteration, accident, freight
damage, tampering or failure to seek and obtain repair or replacement in a timely manner;
2) Products which are not properly installed, used, or cleaned and maintained as required in the ofcial manual for the applicable product;
3) Products considered to be of a consumable nature including, but not limited to: lters, fuses, gaskets, lubricants, and charts;
4) Accessories or parts not provided by GF;
5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection
with such products which are not expressly authorized in writing, in advance, by GF;
6) Any labor or shipping charges incurred in the replacement part installation or repair;
7) Costs and expenses of regular maintenance and cleaning; and
8) Representations and warranties made by any person or entity other than GF.
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES
NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE
GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM
TO THE MODEL OR SAMPLE IN ALL RESPECTS.
THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. GF SHALL NOT BE LIABLE FOR AND
HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, INCLUDING,
BUT NOT LIMITED TO: DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR
INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS.
The warranties contained herein contain all the representations and warranties with respect to the subject matter of this
document, and supersede all prior negotiations, agreements and understandings with respect thereto. The recipient of this
document hereby acknowledges and represents that it has not relied on any representation, assertion, guarantee, warranty,
collateral contract or other assurance, except those set out in this document.
For additional information on this Hausted product or this warranty, please contact a Graham-Field authorized Distributor.
NOTES:
1) Additional terms and conditions may apply.
2) Freight claims must be notated and led according to the specic carrier’s bill of lading terms and conditions. Failure to comply
with these requirements will impair the Purchaser’s ability to collect for freight damage.
3) Claims for any short shipment must be made within forty-eight (48) hours of receipt or pursuant to the terms and conditions set
forth by the carrier, whichever is earlier.

MBC-IN-INS-LAB-RevC16 14
7 DISPOSAL AND KEY TO SYMBOLS
DISPOSAL
Hausted equipment and accessories can be disposed of.
We recommend disassembling and dividing the equipment and components into different
waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or
combustion.
Most plastic components are provided with a plastic types code and ber content to aid sorting of
plastic parts.
Product Metal Scrap Cable Scrap Electronic Scrap Plastic Recycling or
Combustion
MBC X X
KEY TO SYMBOLS
The following symbols are used on Hausted product labels.
Protective Earth Manufacturer
Earth Ground Keep Dry
General Warning Sign Fragile, Handle with Care
CE Mark Electrical and Electronic Equipment
ETL Consult Instructions for Use
EC REP European Authorized
Representative
Caution
Disconnect before Service Pinch Point
www.hausted.com
www.grahameld.com

MBC-IN-INS-LAB-RevC16 15
A
Accessories, optional, list 12
Advisory 3
A word from GF Health Products, Inc. 3
B
Base language of this document 3
Brakes, applying 8
Brakes, releasing 8
Braking and steering operation 8
C
CAUTION statement, signicance 4
Cleaning 11
CPR / Surgical Support Leg Accessory number HAPC025
10
CPR / Surgical Support Leg use and storage 10
D
DANGER statement, signicance 4
DANGER / WARNING / CAUTION / NOTICE Summary 4
Disposal 14
E
EC Authorized Representative: 3
H
Height adjustment 9
I
Indications for Use 3
Info statement, signicance 4
K
Key to symbols 14
L
Limited warranty 13
Lubrication 11
M
Manufactured by: 3
N
NOTICE statement, signicance 4
O
Operating instructions 6
S
Safety statements, signicance of 4
Service information 3
Specications 7
Steering lock, applying 8
Steering lock, releasing 8
Symbol key, Hausted product labels 14
T
Top adjustment 9
Trendelenburg adjustment 9
Troubleshooting guide 11
U
Uncrating instructions 5
Unpacking instructions 5
W
Warnings 4
WARNINGS and CAUTIONS, list 4
WARNING statements 4
WARNING statement, signicance 4
Warranty, limited 13
8 INDEX

1.770.368.4700
Information contained herein is subject to change.
The most current and complete product information can be found on our website.
© 2014, GF Health Products, Inc. All Rights Reserved.
Hausted and Graham-Field are trademarks of GF Health Products, Inc.
Manufactured by GF Health Products, Inc.
