Haws H1011.8HPSHO User manual

model H1011.8HPSHO
Chilled Vandal-Resistant ADA Motion-Activated/Push Button High-Polished Fountain
FEATURES & BENEFITS
CONSTRUCTION
Rugged ADA accessible 18 gauge Type 304 high polished Stainless
Steel swirl design bowl, 14 gauge Type 304 high polished Stainless
Steel bracket, and a vandal-resistant bottom plate provides a long
lasting unit with added peace of mind.
VANDAL RESISTANT
The bubbler heads, push buttons, round bowls, drain strainers and
bottom plates are locked in place, discouraging unwanted vandal
tampering.
BUBBLER HEADS
Polished chrome-plated brass bubbler heads with integral laminar
flow prevents splashing while providing a superior flow pattern. The
integral 11/16" dia. basin shank and stainless anti-rotation roll pin for
vandal resistance strength. Shielded, angled stream opening provides
a steady source of drinking water at .45 gpm.
DRINKING FOUNTAIN VALVES
Fountain incorporates a touchless sensor operated stainless steel
solenoid valve controlled by a transformer on one side and a push-
button activated valve which offers the only all stainless steel valve
body that is machined out of solid bar stock and is fully serviceable
through the front of the push button assembly offering access to the
water control cartridge and integral water supply strainer on the other.
TEMPOR RESISTANT
30-second obstruction time-out to reduce tampering of sensor.
MOUNTING
Heavy-duty 16-gauge galvanized steel mounting frame with welded-in
heavy-duty 10 gauge mounting plate with pre-punched mounting
holes. Further convenience is given to the chiller with the integral
fold-out shelf.
OPTIONS
Bottle Filler: Model 1920HPSHO, bottle ller can be a stand-alone
station, or mounted above Haws 1011HPSHO series drinking
fountain models.
Back Panel: Model BP32HPS, satin nish stainless steel 32" back
panel for model 1920HPSHO bottle ller.
Bottle Filler Stand: Model BTL1001, add-on stainless steel stand to
place bottle on when 1920HPSHO bottle ller is used.
Custom Logo Panel: Model 6475, Hydration By Haws" logo panel
with customization options.
For more information, visit www.hawsco.com or call [phone].
SPECIFICATIONS
Model H1011.8HPSHO electric vandal-resistant ADA wall mounted
combination motion activated/push button drinking fountain shall include
dual 18 gauge Type 304 polished stainless steel basins with integral
swirl design, 14 gauge Type 304 polished stainless steel wall brackets,
100% lead-free waterways, touchless sensor operated solenoid valve
with 30-second obstruction time-out on one side, and vandal-resistant
push-button operated stainless steel valve with front-accessible
cartridge and flow adjustment on the other, polished chrome-plated
brass vandal-resistant bubbler heads with integral laminar anti-squirt
flow, chrome-plated brass vandal-resistant waste strainers, vandal-
resistant bottom plates, high-polished stainless steel back panel and
louvered intrusion-proof grill, high and low fountain mounting levels, and
1-1/4″ O.D. (3.2 cm) waste pipes. The R-134a refrigeration system is
hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at
50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2°C)
ambient. 115 Volts, 60 Hz, rated watts: 370, full load amps.
REQUIRES MODEL HCR8 AND MTGFR.LG PRICED SEPARATELY.
FOR INDOOR USE ONLY
APPLICATIONS
Specically, this type fountain may be placed in settings such as: schools,
ofce buildings, shopping malls, and other indoor environments where
there is a demand for a chilled water source and/or wheelchair access.
Electric water coolers are not recommended or designed for outdoor
applications or enclosed pool areas (chlorine). These conditions may
void warranty. Model meets all current Federal Regulations for the
disabled including those in the Americans with Disabilities Act. Haws
manufactures drinking fountains, faucets and electric water coolers to be
lead-free by all known denitions including NSF/ANSI/CAN 61- Section 9,
NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe
Drinking Water Act. Product is compliant to California Health and Safety
Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Haws
electric water coolers comply with ARI Standard 1010 and ANSI A117.1,
and are listed by Underwriter Laboratories to U.S. and Canadian
standards.
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. [e-mail] :: www.hawsco.com :: 05 Jul, 2023
DISCLAIMER: Continued product improvements make specications subject to change without notice. Check www.hawsco.com for the latest product information and updates.

SUPPLY STOP &
3/8" O.D. TUBING
(NOT SUPPLIED)
1-1/4" IPS TRAPS (NOT SUPPLIED)
WASTE BENDS
33-11/16"
SUPPLY
856mm
FOUNTAIN
1. HOLD ROUGH-IN DIMENSIONS ±1/8" (3.2mm).
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD
BE ADHERED T0. FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN, DIMENSIONS MARKED (*) MUST BE ADJUSTED ACCORDINGLY.
3 ALIGN HOLES IN CHILLER SUPPORT TRAY WITH HOLES IN FRAME
AND FASTEN WITH #10 SHEETMETAL SCREWS.
4 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL FOR
PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE INSTRUCTIONS.
5 REFER TO MTGFR.LG INSTALLATION DRAWING FOR ROUGH-IN DIMENSIONS.
6 INSERT 5/16"-18 PANEL INSERTS FROM OPPOSITE SIDE AT LOCATIONS
SHOWN BY DARKENED HOLES. HOLE COMBINATIONS SHOWN ARE FOR USE
WITH LOW FOUNTAIN ON THE RIGHT AND HI FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HI ON RIGHT AND LOW ON LEFT.
7 HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW
FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.
8 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE
SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP OUT. SNAP INTO NEW POSITIONS AND RE-ASSEMBLE SCREWS.
9. IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE
A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY DIMENSIONS SHOWN (*) MUST BE REVERSED.
10 REFER TO 1RKHO.H & 2RKHO.H OPERATION AND MAINTENANCE
INSTRUCTIONS FOR TRANSFORMER AND SENSOR SETUP.
*
LOCATE AND INSTALL
SENSOR
EYE
HCR8
ELECTRICAL TRANSFORMER
MOUNTING
(SUPPLIED)
(38mm)
(1-1/2")
CLIP
(SUPPLIED)
GRILLE
PANEL
(SUPPLIED)
BACK
Ø
2X
31 1/8"
5/8"
16mm
4
2X
791mm ROUGH-IN
813mm
32"
14-1/8"
359mm
WASTE
9VDC SOLENOID VALVE
57mm
2 1/4"
686mm864mm
34 5/32"
*
LINE
*
27"
FLOOR
CHILLER SUPPORT TRAY
5
5
3
ELECTRICAL
ACCESS
28-11/16"
729mm
FOUNTAIN
*
5
SUPPLY
101.6mm
MOUNTING FRAME
(SUPPLIED)
WASTE BEND
1-1/4" O.D.
MTGFR.LG
991mm
956mm
37 5/8"
ROUGH-IN
*
*
997mm
39-1/4"
39 5/32"*
812mm
32" *
13mm
1/2"
76mm
3"
FOUNTAIN
27-7/8"
708mm
835mm
32-7/8"
FOUNTAIN
WASTE
*
(NOT SUPPLIED)
MOUNTING
CLEARANCE
WIDTH
473mm
18-5/8"
4" FRAME
305mm
12"
FACE WALL
BACK
PANEL
FLANGE
FRAME
406mm
16"
BOWL MOUNTING PATTERN DETAIL
68
SCREW 8
7
NOTES:
2X SHEET METAL
2X MOUNTING CLIP INSIDE OF FRAME
(SUPPLIED)
SCREW
FRAME
MOUNTING
SCREW
(SUPPLIED)
2X MACHINE
*GRILL
(SUPPLIED)
FRAME FLANGE BUTTS AGAINST MUST BE INSTALLED SO THAT IMPORTANT: MOUNTING FRAME FINISHED WALL FACE.
REGULATOR
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
RTM
07/97
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
12
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
REQUIRED -
SOLD SEPARATELY

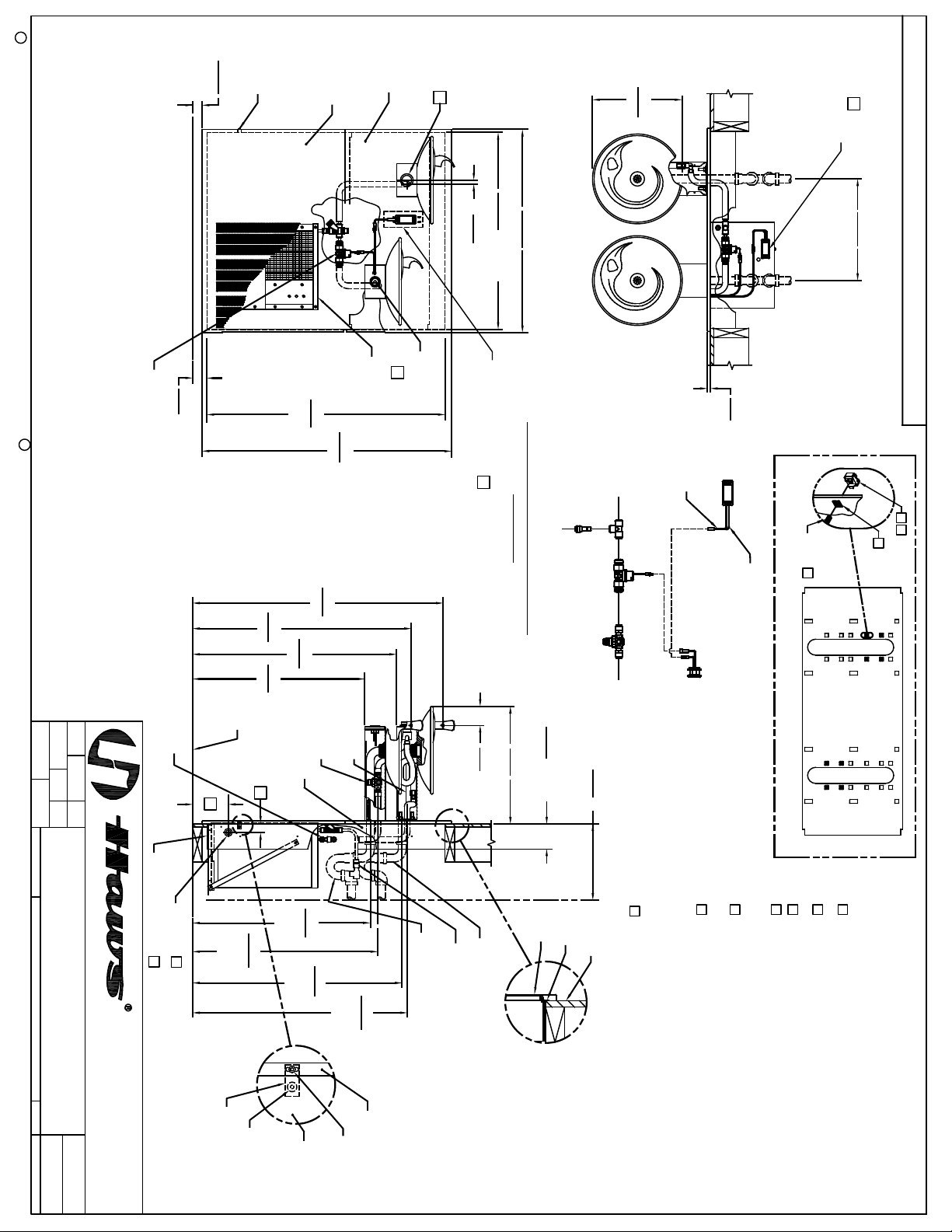

MODEL H1011.8HO SHOWN
MODEL H1011.8HO2 ON SHEET 2
10
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
WITHIN WALL
(ROUGH-IN DIMENSIONS APPLY TO BOTH MODELS WITH EXCEPTION NOTED ON SHEET 2)
MUST BE PROTECTED
10
10
CHILLER
REQUIRED -
SOLD
SEPARATELY
SENSOR
FROM CHILLER OUTLET
TO
BUBBLER
HEAD
-Vo
+Vo
AC(L)
AC(N)
BLACK WIRE
WHITE WIRE
TRANSFORMER
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
TO PUSH
BUTTON
FOUNTAIN
VALVE
SOLENOID
VALVE
PRESSURE
REGULATOR
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER

34-1/8"
SUPPLY
856mm
FOUNTAIN
SENSOR
EYE
CHILLER
HCR8
LINE
FLOOR
*
REGULATORS
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/22/20
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
22
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
SENSOR
EYE
10
10
LOCATE AND INSTALL
ELECTRICAL TRANSFORMER WITHIN WALL
ELECTRICAL
ACCESS
H1011.8HO2)
(MODEL
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
MUST BE PROTECTED
10
10

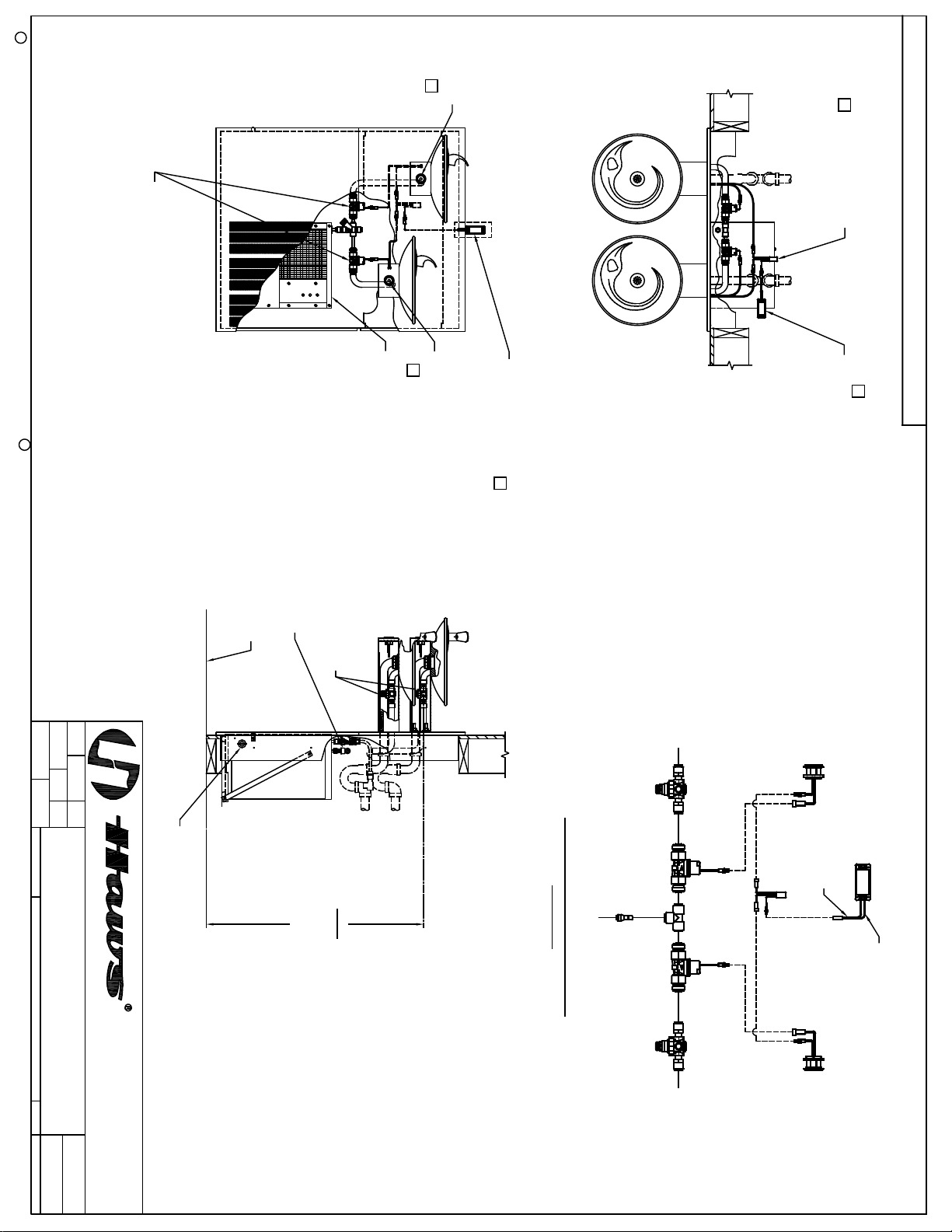

MODEL H1011.8HO2 SHOWN
MODEL H1011.8HO ON SHEET 1
(SEE SHEET 1 FOR APPLICABLE ROUGH-IN DIMENSIONS)
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
FROM CHILLER OUTLET
TO BUBBLER
HEAD
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
TO BUBBLER
HEAD
POWER SPLITTER
CABLE
-Vo
+Vo
AC(L)
AC(N) BLACK WIRE
WHITE WIRE
TRANSFORMER
9VDC SOLENOID VALVES
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER
POWER SPLITTER CABLE
10
