Haws 3611 Guide

09/14/2021 Models 3611/3611F Page 1 of 11
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [email protected]  website: www.hawsco.com
No. 0510001189 (2)
MODELS 3611 & 3611F
Outdoor Bottle Filler/Drinking Fountain
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that all of its products are guaranteed against defective material or poor workmanship for
a period of one year from the date of shipment. The foregoing notwithstanding, HAWS warrants certain
specific products or components thereof for an adjusted period. A list of these excepted products and
components and a description of their respective warranty terms may be found here:
www.hawsco.com/warranty. HAWS’liability under this warranty shall be discharged by furnishing without
charge F.O.B. HAWS factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first-class workmanship, provided that a claim is made in
writing to Company within a reasonable period after receipt of the product. Where claims for defects are
made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS shall
not be liable for the cost of repairs, alterations or replacements, or the labor required to implement them, or
for any expense connected therewith made by the owner or owner’s agents, except upon written authority
from HAWS. HAWS shall not be liable for any damages caused by defective materials or poor
workmanship, except for replacements, as provided above. Buyer agrees that HAWS has made no other
warranties either express or implied in addition to those above stated, except that of title with respect to
any of the products or equipment sold hereunder and that HAWS shall not be liable for general, special,
incidental, or consequential damages claimed to arise under the contract of sale.
Equipment manufactured by HAWS is warranted to function if installation and maintenance instructions
provided are adhered to. The units also must be used for the purpose for which they were intended. Any
HAWS emergency equipment is intended to supplement first-aid treatment. Due to widely varying
conditions, HAWS cannot guarantee that the use of this emergency equipment will prevent serious injury
or the aggravation of existing or prior injuries.
EXCEPT AS EXPRESSLY STATED HEREIN, HAWS HEREBY DISCLAIMS ALL WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY MAY NOT BE MODIFIED OR EXTENDED WITHOUT THE
WRITTEN CONSENT OF HAWS. REMEDIES AND REPLACEMENTS STATED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL HAWS BE LIABLE FOR ANY SPECIAL, PUNITIVE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON INCLUDING BUT NOT LIMITED
TO DAMAGES FOR LOSS OF USE OR PROFITS, SUBSTITUTE PRODUCTS OR COSTS, PROPERTY
DAMAGE, OR OTHER MONETARY LOSS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

09/21 Models 3611/3612F Page 2 of 11
RECOMMENDED TOOLS:
- Measuring Tape
- PVC Pipe Cutter
- Plastic Tubing Cutter
- PVC Solvent Weld Glue
- ¼” Bit-Holding Screwdriver
- Level
- 10”Pipe Wrench
- Adjustable Plier
- 1/8 and 5/32 Tamper Resistant Hex Bits (Supplied)
- 9/16”and 5/8”Box/Open Combination Wrenches, 8”Max Length
- 3/8”Socket Wrench/Rachet, 8”Max Length
- 9/16”Deep Socket
- 15/16”Socket
LOCATION OF UNIT: The Model 3611/3611F (with Filter) Bottle Filler and Fountain can be
installed and assembled to be ADA accessible by first locating the pedestal base with at least
8 inches of clear unobstructed hardscape behind the pedestal. Provide hardscape that is at
least 74 inches wide. When the right pedestal arm is installed in the high orientation, the
height dimensions shown on the model specification sheet meet current Federal Americans
with Disabilities Act (ADA) wheelchair requirements. The bottle filler meets ADA requirements
for either a front approach or a side approach. When installing this unit, local, state and
federal (including ADA) codes must be adhered to. If height other than shown is required, then
dimensions must be adjusted accordingly.
ATTENTION: For model 3611F (model with Filter), the Operating Temperature Range for the
6477 Filter Kit Assembly (Required - supplied separately) is 40° F - 100° F (4.4° C –37.8° C).
SUPPLY LINE: Model 3611 –The minimum recommended line size is 1/2“IPS with 30-90 psi
(2-6 ATM) flowing pressure. Where sediment or mineral content is a problem, an inlet filter is
recommended. Model 3611F(with Filter) –The minimum recommended line size is 1/2“IPS
with 40-90 psi (2.76-6 ATM) flowing pressure.
PLUMBING CONNECTIONS: Model 3611 –Water supply inlet connection is a 3/8“O.D.
compression fitting. Waste outlet is 1-1/2” PVC pipe. Model 3611F –Water supply inlet and
outlet connection (for Filter) is a 3/8“O.D. push-in type fitting. Waste outlet is 1-1/2” PVC pipe.
Plumbing connections will vary depending on how each model is configured during assembly.
Please consult the installation drawings below for supply and waste fitting arrangements and
assembly for your specific model.
MAINTENANCE: Models 3611 & 3611F Periodically clean the pushbutton valve strainer.
Refer to 5874 Series Valve Operation and Maintenance Manual for more information. Model
3611F –Filter replacement to occur at 1 year maximum or 3,000 gallons maximum, whichever
comes first. Replace filter per Filter Replacement instructions listed on model 6477 Operation
& Maintenance Manual.
INSTALLATION PROCEDURE
GENERAL NOTES:
1. For all compression fitting connections, only connect NSF-61 copper or plastic
3/8”outside diameter tubing. The following assembly instructions must be
followed to ensure a watertight connection:

09/14/2021 Models 3611/3611F Page 3 of 11
a. Cut tubing square and clean. Deburr if necessary.
b. Place compression nut and ferrule over end of tubing.
c. For plastic tubing (must be ¼” inside diameter), insert supplied tubing
insert into end of tubing.
d. Push tube into the fitting until it bottoms out.
e. Thread nut onto fitting and tighten snugly with 5/8”wrenches.
*For more information about Haws products, see our website: www.hawsco.com
© 2021 Haws®Corporation –All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.
Tube Sizes
O.D.
Tolerance
Insertion Depth
3/8”
±.005”
3/4”
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
Insufficient bubbler flow (From
Drinking Fountain)
1a.
For 3611 –Verify minimum 30 psi
flowing supply pressure. For 3611F –
Verify minimum 40 psi flowing supply
pressure.
b.
Check that inlet screwdriver stop valve
is wide open. Clean inlet strainer or
adjust valve to increase flow. See 5874
Series Valve Manual*.
c.
For 3611F (Only) –Check water filter.
Replace at 1 year or 3,000 gallons
(max.), whichever comes first.
2.
Insufficient bottle filler flow
2a.
b.
c.
d.
For 3611 –Verify minimum 30 psi
flowing supply pressure. For 3611F –
Verify minimum 40 psi flowing supply
pressure.
Nozzle strainer is clogged. Use nozzle
removal tool to remove strainer and
replace. Replacement strainers may be
ordered by calling Customer Service.
Check that inlet screwdriver stop valve
is wide open. Clean inlet strainer or
adjust valve to increase flow. See 5874
Series Valve Manual*.
For 3611F (Only) –Check water filter.
Replace at 1 year or 3,000 gallons
(max.), whichever comes first.

HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
WHEN ORDERING PARTS, PLEASE
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:2 FV 09/16/21
DRAWING TYPE: SIZE: A
5666
BY:
BJM
PARTS BREAKDOWN
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
0510001189
SHEET 1 OF 2
SPECIFY PART NUMBER
WEBSITE: WWW.HAWSCO.COM
DP
ECN:
E-MAIL: [email protected]
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
© 2021 Haws Corporation - All Rights Reserved.
3611 & 3611F
REPLACEMENT PARTS
BOTTLE FILLER
MODEL 5874PB
PUSHBUTTON
MODEL 3670 DOG BOWL
(NOT FREEZE RESISTANT)
MODEL MTG.3600
INSTALLATION AID
PARTS BREAKDOWN
REPLACEMENT PARTS
FOUNTAIN & BOTTLE FILLER
MODEL PBA7
BUTTON ASSEMBLY
0410000564
BOTTLE FILLER DRAIN
COVER PLATE
MODEL VRK5874
VALVE REPAIR KIT
0006983506
SPANNER WRENCH
MODEL VRK5874HF
VALVE REPAIR KIT,
HIGH FLOW
MODEL VRKNOZ1
QTY 10 AERATORS
AND INSTALL TOOL
0510001030
HEX BIT,
PINNED, 5/32"
0510001029
HEX BIT,
PINNED, 1/8"
OPTIONAL ACCESSORIES
MODEL 3661 HOSE BIB
(NOT FREEZE RESISTANT)
MODEL 3660 LOCKABLE HOSE BIB
(NOT FREEZE RESISTANT)
PAGE 4 OF 11
3611 & 3611F
MODULAR OUTDOOR FOUNTAIN SYSTEM
MODEL 6428
FILTER CARTRIDGE
(FOR 36XXF SERIES
MODELS)
MODEL 5703M
BUBBLER HEAD
REPLACEMENT PARTS
DRINKING FOUNTAIN

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:16 FV 09/16/21
DRAWING TYPE: SIZE: A
5666
BY:
BJM
PARTS BREAKDOWN
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
DP
ECN:
WHEN ORDERING PARTS, PLEASE
SPECIFY PART NUMBER SHEET 2 OF 2
0510001189
© 2021 Haws Corporation - All Rights Reserved.
HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
PAGE 5 OF 11
3611 & 3611F

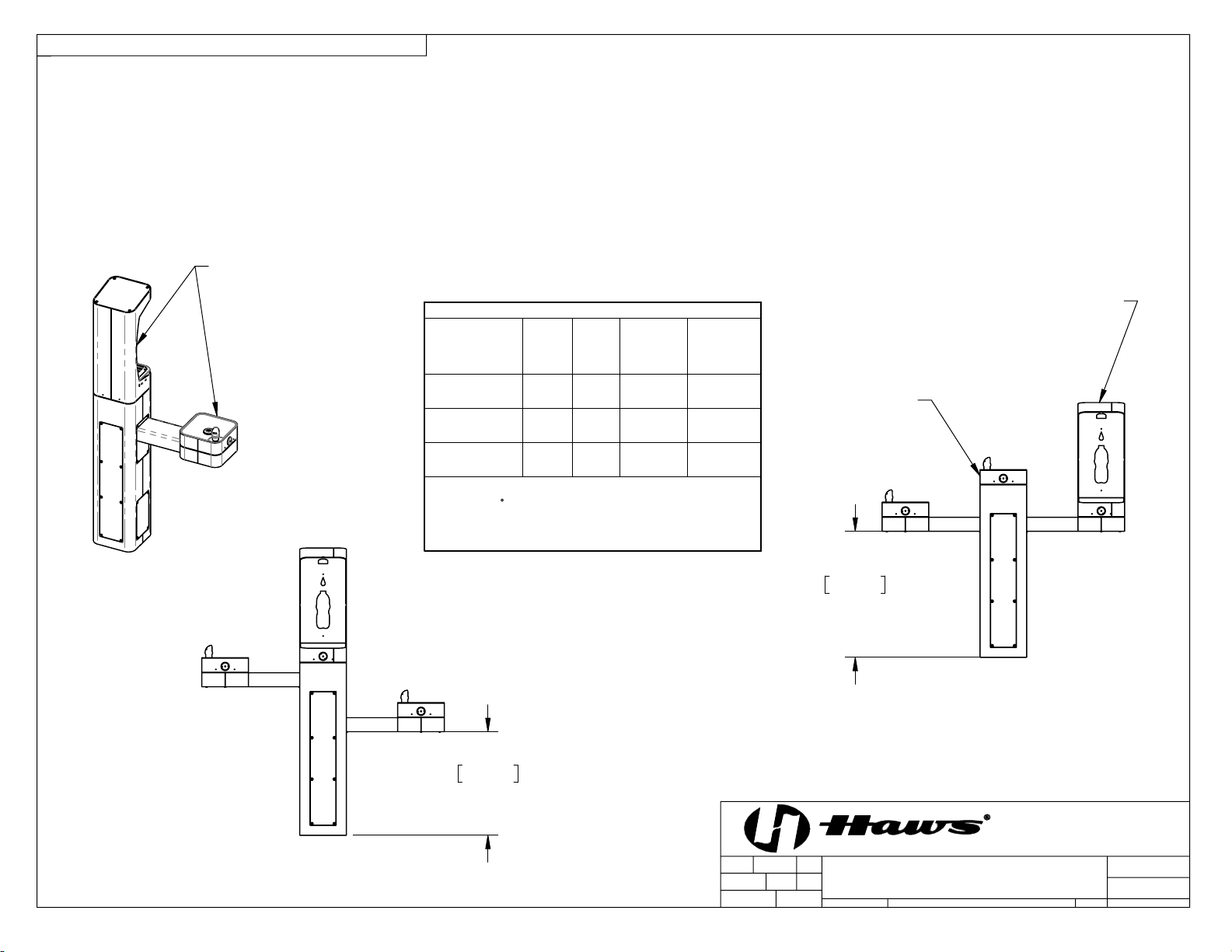

AVAILABLE SUB COMPONENT MODELS
PARTS BREAKDOWN
3611 & 3611F
MODULAR OUTDOOR
FOUNTAIN SYSTEM
MODEL 3671 PEDESTAL ARM ASSEMBLY
MODEL 3680 FOUNTAIN ASSEMBLY
MODEL 3690 BOTTLE FILLER ASSEMBLY
MODEL 3674 PEDESTAL ASSEMBLY

31"
787mm
16"
406mm
27"
687mm
34 3/4"
882mm
61 5/8"
1565mm
ADA WHEELCHAIR
ACCESSIBLE HEIGHT
ADA COMPLIANT
BOTTLE FILLER
CONCRETE ANCHORS INCLUDED.
RE-USABLE TEMPLATE MODEL MTG.3600
AVAILABLE, SOLD SEPARATELY.
21"
533mm
10"
254mm
10"
254mm
2X 10"
254mm
LOWER ACCESS
SIDE PANEL
BOTH SIDES
FULL HEIGHT
ACCESS PANEL
FRONT
HAWS MODEL 3611/3611F IS FULLY COMPLIANT
WITH THE FEDERAL 2010 AMERICANS WITH
DISABILITIES ACT (ADA) ACCESSIBILITY
REQUIREMENTS WHEN INSTALLED AS SHOWN
HERE AND WHEN INSTALLED WITH PROPER
CLEARANCES AND ACCESS. LOCATE THE
PEDESTAL BASE WITH AT LEAST 8" OF CLEAR
UNOBSTRUCTED HARDSCAPE BEHIND THE
PEDESTAL. IT IS THE RESPONSIBILITY OF THE
INSTALLER TO ADHERE TO LOCAL, STATE,AND
FEDERAL CODES WHEN INSTALLING THIS UNIT.
DISTANCE TO SURROUNDING OBJECTS,
APPROACH SURFACES, ETC. SHOULD BE
CONSIDERED.
NOTES:
1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE ADHERED TO.
INSTALL A TRAP IN THE WASTE LINE AND A SCREWDRIVER STOP IN THE SUPPLY LINE IF
REQUIRED.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 1 OF 6
0510001189.D
3611 & 3611F
PAGE 6 OF 11
PAGE 6 OF 11

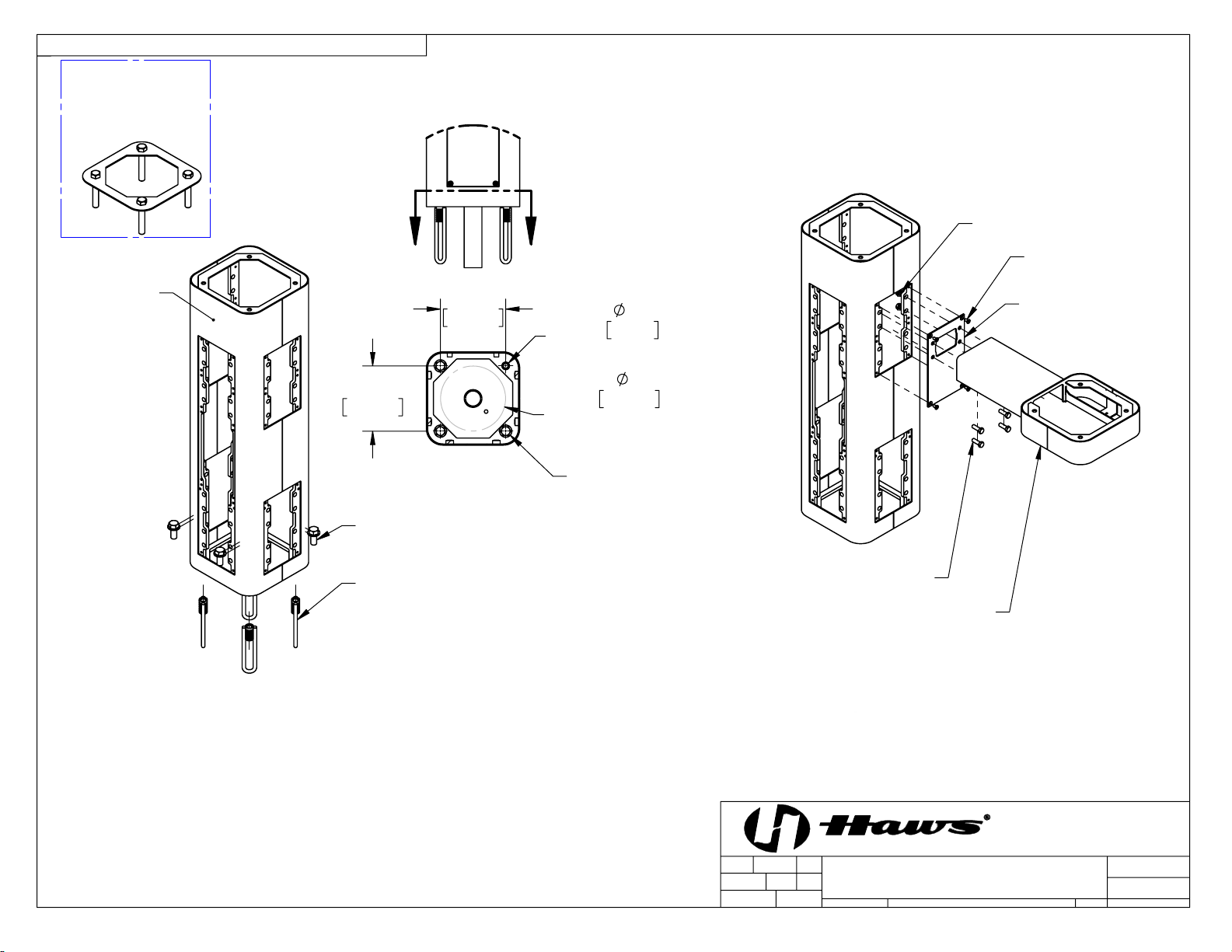

FRONT FACE
4X 5/8" BOLTS AND
WASHERS (SUPPLIED)
4X CAST-IN ANCHORS
(SUPPLIED). SET AT
7" SQUARE SPACING
AND ORIENT AS SHOWN
4X 1/4" FLAT HEAD
SCREWS
PLATE, ORIENT
AS SHOWN
4X 3/8" NUTS
4X 3/8" BOLTS
FOUNTAIN ARM
EE
7"
178mm
7"
178mm
4X
7/8"
21mm
MOUNTING HOLES
7"
177mm
PLUMBING MUST FIT
WITHIN THIS AREA
SECTION E-E
4X 5/8" BOLTS
AND WASHERS
SUPPLIED WITH
ANCHORS
INSTALLATION INSTRUCTIONS
STEP 1
MOUNT PEDESTAL TO CONCRETE SLAB IN DESIRED
ORIENTATION. SLAB TO BE 30" MINIMUM SQUARE
AND 6" MINIMUM THICK (BY OTHERS). PLUMBING CAST
IN CONCRETE MUST FIT IN 7" DIAMETER AREA CENTERED
UNDER PEDESTAL LOCATION.
MODEL MTG.3600
(OPTIONAL)
TEMPLATE FOR
SPACING ANCHORS
DURING CONCRETE
POUR
STEP 2
REMOVE BOTTOM COVER PLATES FROM ARMS BY
REMOVING 3 1/4" BUTTON HEAD SCREWS.
INSTALL ONE FOUNTAIN ARM ON RIGHT SIDE AS
SHOWN. USE 1/4" FLAT HEAD SCREWS (SUPPLIED) TO
INSTALL PLATE. USE 3/8" BOLTS AND NUTS (SUPPLIED)
AND TORQUE TO 18 FT-LBS TO INSTALL ARM.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 2 OF 6
0510001189.D
3611 & 3611F
PAGE 7 OF 11
PAGE 7 OF 11

BOTTLE FILLER
ASSEMBLY
4X 3/8" BOLTS AND
NUTS, INSTALL VIA
FRONT ACCESS
PANEL
TRIM RING
FRONT FACE FOUNTAIN ASSEMBLY
4X 3/8" BOLTS &
NUTS, INSTALL
FROM UNDER
SIDE
TRIM RING
INSTALLATION INSTRUCTIONS
STEP 3
PLACE SQUARE TRIM RING ON BOTTOM OF BOTTLE FILLER
AND PLACE BOTTLE FILLER ON TOP OF PEDESTAL, FACING
THE FRONT. USE 3/8" BOLTS AND NUTS VIA THE FRONT
ACCESS PANEL TO SECURE BOTTLE FILLER TO PEDESTAL.
PLACE TRIM RING AND INSTALL FOUNTAIN ON ARM AS
SHOWN. CAREFULLY CENTER BOTTLE FILLER, FOUNTAIN,
AND TRIM RINGS, THEN TORQUE BOLTS/NUTS TO 18 FT-LBS
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 3 OF 6
0510001189.D
3611 & 3611F
PAGE 8 OF 11
PAGE 8 OF 11

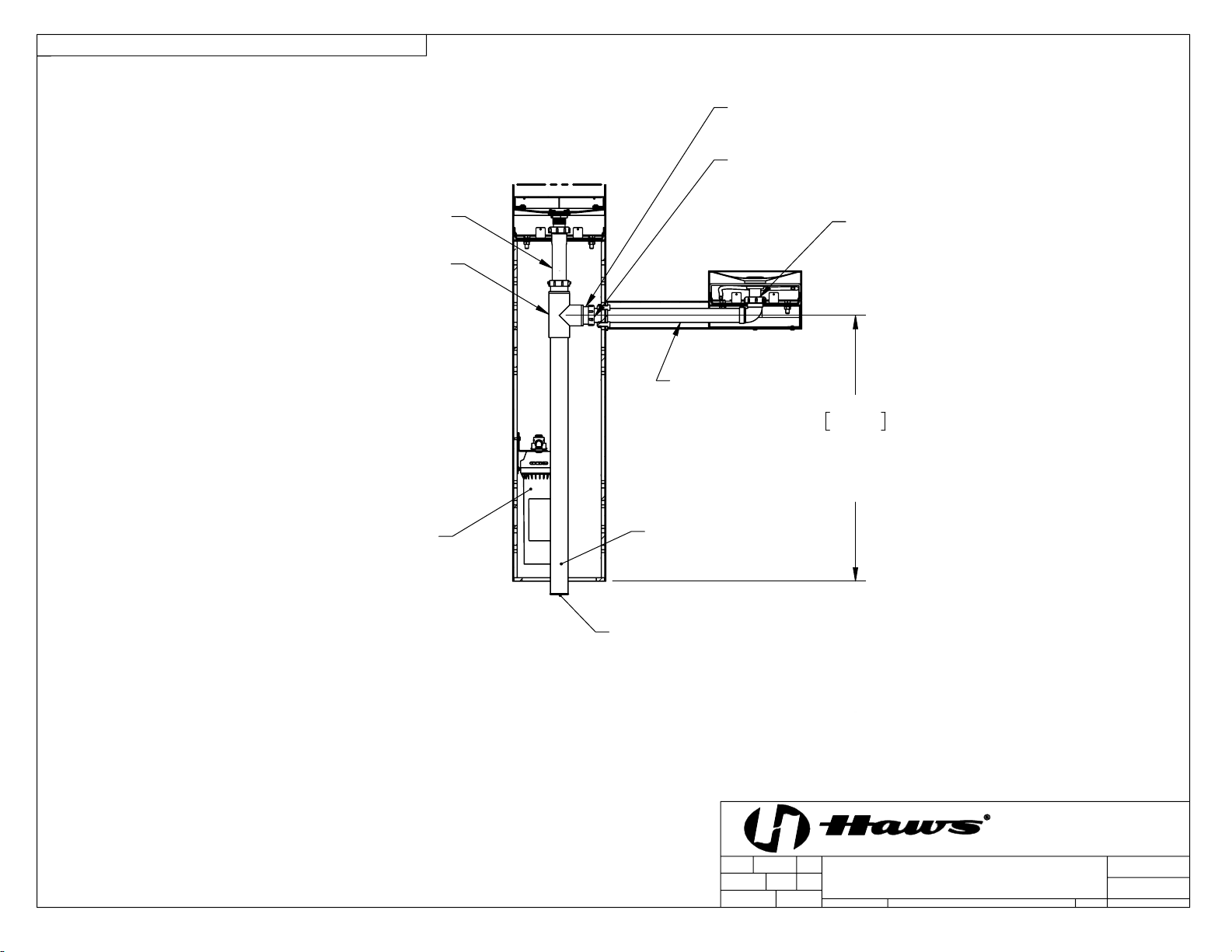

28 1/2"
724mm
TEE ELEVATION
FOR ADA
WHEELCHAIR
POSITION
WASTE BEND
2X COMPRESSION
NUT AND RED
COMPRESSION
WASHER
2X COMPRESSION NUT AND
BLACK COMPRESSION
WASHER
PVC TRAP ADAPTER IS GLUED
INTO PVC TEE
1-1/2" PVC TEE
1-1/2" PVC DRAIN PIPE
WASTE LINE INSTALLED PER LOCAL
CODES AND STANDARDS
8" TAIL PIECE
MODEL 6477 WATER FILTER KIT
LOCATION IN BACK LEFT CORNER
BEHIND DRAIN PIPE. INSTALL AS
SHOWN IN STEP 6 (SHEET 5).
FOR NEW INSTALLATIONS WITH
MODEL 3611F, INSTALLING THE
FILTER PRIOR TO INSTALLING THE
DRAIN PIPE WILL IMPROVE ACCESS.
STEP 4
INSTALL SUPPLIED DRAIN COMPONENTS AS SHOWN. RED COMPRESSION
WASHERS ADAPT FROM 1-1/4" TO 1-1/2" AT EACH DRAIN TAIL PIECE. BLACK
COMPRESSION WASHERS ARE USED IN TRAP ADAPTERS AT TEE.
USE APPROPRIATE PVC CEMENT TO MAKE SOLVENT CEMENT
CONNECTIONS.TRIM WASTE BEND AND/OR TAIL PIECE LENGTH IF
REQUIRED. NOTE THATEXTRA PARTS MAY BE INCLUDED TO FACILITATE
OTHER CONFIGURATIONSOF THIS FOUNTAIN.
INSTALLATION INSTRUCTIONS
MODEL 3611F (WITH FILTER) SHOWN
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 4 OF 6
0510001189.D
3611 & 3611F
PAGE 9 OF 11
PAGE 9 OF 11

NPT TO COMPRESSION
ADAPTER (SUPPLIED)
COMPRESSION TEE WITH
MALE NPT (SUPPLIED)
3/8" TUBING (SUPPLIED)
FOR MODEL 3611F, CUT
TUBING AS REQUIRED TO
INSTALL FILTER IN THIS LINE.
INSERTS, FERRULES, AND
COMPRESSION NUTS
(SUPPLIED)
DRAIN PIPING
NOT SHOWN
FOR CLARITY
FILTER MOUNT
AREA
4X 1/4-20 TAMPER
RESISTANT BUTTON
HEAD SCREWS
(SUPPLIED)
2X 10-32 FLAT
PAN HEAD
FILTER HANGER
SCREWS
(SUPPLIED)
NOTE: FILTER
BRACKET MOUNTS
TO INSIDE OF THESE
RAILS ON THE LEFT
SIDE. USE THREADED
HOLES SHOWN.
FILTER HANGER
ANGLE BRACKET
(SUPPLIED)
FILTER
MOUNTING
BRACKET
(SUPPLIED)
TO BUTTON
VALVE
TO BUTTON
VALVE
FROM SOURCE
3611 SUPPLY PLUMBING
3611F FILTER BRACKET MOUNTING
STEP 5
COMPLETE WATER SUPPLY PLUMBING AS SHOWN. OPEN
SUPPLY VALVE(S) AND TEST. REPLACE ARM BOTTOM
PLATES AND PEDESTAL ACCESS PLATES.
INSTALLATION INSTRUCTIONS
STEP 6
INSTALL FILTER MOUNTING BRACKET (SUPPLIED WITH MODEL 6477)
TO LEFT INSIDE VERTICAL RAILS USING 2 BUTTON HEAD SCREWS
AS INDICATED ABOVE. INSTALL FILTER HEAD ON HANGER ANGLE WITH
4 SUPPLIED SELF-TAPPING SCREWS. INSTALL FILTER HANGER ANGLE
BRACKET IN RIGHTMOST HOLES AS SHOWN. SEE MODEL 6477 OPERATION
AND MAINTENANCE MANUAL FOR ADDITIONAL DETAILS.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 5 OF 6
0510001189.D
3611 & 3611F
PAGE 10 OF 11
PAGE 10 OF 11

BOTTLE FILLER AND
FOUNTAINS CAN BE
INSTALLED TO FACE
ANY DIRECTION
22 1/4"
564mm
CHILD ADA
POSITION
27"
687mm
WHEELCHAIR ADA
POSITION
BOTTLE FILLER CAN
BE INSTALLED ON ARMS
ADA STANDING
HEIGHT FOUNTAIN
INSTALLED ON
PEDESTAL
NOTES ON OPTIONAL CONFIGURATIONS
HAWS 3600/3600F SERIES OUTDOOR FOUNTAINS ARE MODULAR AND CAN
BE ASSEMBLED AND CONFIGURED MANY DIFFERENT WAYS. DISPLAYED
HERE ARE A FEW EXAMPLES. CONFIGURATIONS OTHER THAN THAT SHOWN
IN THE INSTALLATION INSTRUCTIONS FOR THE 3611/3611F MAY AFFECT
COMPLIANCE WITH ADA REGULATIONS. IT IS THE RESPONSIBILITY OF THE
INSTALLER TO UNDERSTAND LOCAL, STATE, AND FEDERAL REGULATIONS
AS APPLICABLE IF INSTALLING THIS FOUNTAIN IN CONFIGURATIONS OTHER
THAN THAT INDICATED ON SHEET 1 (PAGE 6 OF 11).
ADA ARM HEIGHT POSITION OPTIONS
LEFT
SIDE*
RIGHT
SIDE*
ARM
HEIGHT
(LOWER
EDGE)
BUBBLER
NOZZLE
HEIGHT
STANDING
ADA
YES
(STD)
NO
31-7/8
[809 mm]
39-3/8
[999 mm]**
WHEELCHAIR
ADA
YES
YES
(STD)
27
[687 mm]
34-5/8
[878 mm]
CHILD ADA YES YES
22-1/4
[566 mm]
29-7/8
[757 mm]
* RIGHT AND LEFT CAN BE REVERSED IF PEDESTAL IS
ROTATED 180
.
**NOZZLE HEIGHT IS 41-1/2" WHEN FOUNTAIN IS INSTALLED
ON TOP OF PEDESTAL.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
FV
ECN:
SHEET 6 OF 6
0510001189.D
3611 & 3611F
PAGE 11 OF 11
PAGE 11 OF 11
