Haws H1011.8HPSHO2 Quick start guide

model H1011.8HPSHO2
ADA Vandal-Resistant Chilled Motion-Activated Polished Fountain
FEATURES & BENEFITS
CONSTRUCTION
Rugged ADA accessible 18 gauge Type 304 high
polished Stainless Steel swirl design bowl, 14 gauge
Type 304 high polished Stainless Steel bracket, and
a vandal-resistant bottom plate provides a long
lasting unit with added peace of mind.
HANDS OFF
Touchless operation for safety and peace of mind.
MOUNTING
Heavy-duty 16-gauge galvanized steel mounting frame
with welded-in heavy-duty 10 gauge mounting plate with
pre-punched mounting holes. Further convenience is given
to the chiller with the integral fold-out shelf.
BUBBLER HEADS
Polished chrome-plated brass bubbler head with integral
laminar flow prevents splashing while providing a superior
flow pattern. The integral 11/16" dia. basin shank and
stainless anti-rotation roll pin for vandal resistance
strength. Shielded, angled stream opening provides a
steady source of drinking water at .45 gpm.
FOUNTAIN VALVES
Fountain incorporates touchless sensor operated stainless
steel solenoid valves controlled by a transformer for hands
free operation. A pressure regulator is used to adjust the
bubbler flow according to incoming water pressures.
CUSTOM LOGO PANEL
Personalize your new or existing fountain or bottle filler
where space permits with an optional
customizable 10" high by 4.25" wide stainless steel panel.
Virtually any company logo, event logo or graphic
can be placed on this panel. Mounted with strong,
moisture-resistant adhesive backing.
OPTIONS
Cane Detection, Floor Mounted: Model SK6, floor mounted
cane detection for the Haws Hi-Lo drinking fountains.
Custom Logo Panel: Model 6475, Hydration By
Haws󱃃 logo panel with customization options.
Bottle Filler: Model 1920HPSHO, bottle filler can be
a stand-alone station, or mounted above Haws
1001HPS and 1011HPS series drinking fountain models.
Back Panel: Model BP32HPS, satin finish stainless steel
32" back panel for model 1920HPS bottle filler.
For more information, visit www.hawsco.com or call (888)
640-4297.
SPECIFICATIONS
Model H1011.8HPSHO2 electric vandal-resistant ADA wall
mounted motion activated drinking fountain shall include dual
18 gauge Type 304 high-polished Stainless Steel basins with
integral swirl design, 14gauge Type 304 Stainless Steel wall
brackets, 100% lead-free waterways, touchless sensor operated
stainless steel solenoid valves with 30-second obstruction time-
out controlled by a transformer, polished chrome-plated brass
vandal-resistant bubbler heads with integral laminar anti-squirt
flow, chrome-plated brass vandal-resistant waste strainers,
vandal-resistant bottom plates, high-polished stainless steel
back panel and louvered intrusion-proof grill, high and low
fountain mounting levels, and 1-1/4" O.D (3.2 cm) waste pipes.
The R-134a refrigeration system is hermetically sealed and
delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C)
cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C)
ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5
REQUIRES MODEL HCR8 AND MTGFR.LG PRICED SEPARATELY.
APPLICATIONS
Specifically, this type fountain may be placed in settings such
as: schools, office buildings, shopping malls, and other indoor
environments where there is a demand for a chilled water
source and/or wheelchair access. Electric water coolers are
not recommended or designed for outdoor applications or
enclosed pool areas (chlorine). These conditions may void
warranty. Model meets all current Federal Regulations for the
disabled including those in the Americans with Disabilities Act.
Haws manufactures drinking fountains, faucets and electric
water coolers to be lead-free by all known definitions
including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372,
California Proposition 65, and the Federal Safe Drinking Water
Act. Product is compliant to California Health and Safety
Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
Haws electric water coolers comply with ARI Standard 1010
and ANSI A117.1, and are listed by Underwriter Laboratories to
U.S. and Canadian standards.
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. [email protected] :: www.hawsco.com :: 20 July, 2022
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
FOR INDOOR USE ONLY
VANDAL-RESISTANT
The bubbler heads, round bowls, drain strainers and bottom
plates are locked in place, discouraging unwanted vandal
tampering.

SUPPLY STOP &
3/8" O.D. TUBING
(NOT SUPPLIED)
1-1/4" IPS TRAPS (NOT SUPPLIED)
WASTE BENDS
33-11/16"
SUPPLY
856mm
FOUNTAIN
1. HOLD ROUGH-IN DIMENSIONS ±1/8" (3.2mm).
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD
BE ADHERED T0. FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN, DIMENSIONS MARKED (*) MUST BE ADJUSTED ACCORDINGLY.
3 ALIGN HOLES IN CHILLER SUPPORT TRAY WITH HOLES IN FRAME
AND FASTEN WITH #10 SHEETMETAL SCREWS.
4 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL FOR
PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE INSTRUCTIONS.
5 REFER TO MTGFR.LG INSTALLATION DRAWING FOR ROUGH-IN DIMENSIONS.
6 INSERT 5/16"-18 PANEL INSERTS FROM OPPOSITE SIDE AT LOCATIONS
SHOWN BY DARKENED HOLES. HOLE COMBINATIONS SHOWN ARE FOR USE
WITH LOW FOUNTAIN ON THE RIGHT AND HI FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HI ON RIGHT AND LOW ON LEFT.
7 HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW
FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.
8 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE
SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP OUT. SNAP INTO NEW POSITIONS AND RE-ASSEMBLE SCREWS.
9. IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE
A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY DIMENSIONS SHOWN (*) MUST BE REVERSED.
10 REFER TO 1RKHO.H & 2RKHO.H OPERATION AND MAINTENANCE
INSTRUCTIONS FOR TRANSFORMER AND SENSOR SETUP.
*
LOCATE AND INSTALL
SENSOR
EYE
HCR8
ELECTRICAL TRANSFORMER
MOUNTING
(SUPPLIED)
(38mm)
(1-1/2")
CLIP
(SUPPLIED)
GRILLE
PANEL
(SUPPLIED)
BACK
Ø
2X
31 1/8"
5/8"
16mm
4
2X
791mm ROUGH-IN
813mm
32"
14-1/8"
359mm
WASTE
9VDC SOLENOID VALVE
57mm
2 1/4"
686mm864mm
34 5/32"
*
LINE
*
27"
FLOOR
CHILLER SUPPORT TRAY
5
5
3
ELECTRICAL
ACCESS
28-11/16"
729mm
FOUNTAIN
*
5
SUPPLY
101.6mm
MOUNTING FRAME
(SUPPLIED)
WASTE BEND
1-1/4" O.D.
MTGFR.LG
991mm
956mm
37 5/8"
ROUGH-IN
*
*
997mm
39-1/4"
39 5/32"*
812mm
32" *
13mm
1/2"
76mm
3"
FOUNTAIN
27-7/8"
708mm
835mm
32-7/8"
FOUNTAIN
WASTE
*
(NOT SUPPLIED)
MOUNTING
CLEARANCE
WIDTH
473mm
18-5/8"
4" FRAME
305mm
12"
FACE WALL
BACK
PANEL
FLANGE
FRAME
406mm
16"
BOWL MOUNTING PATTERN DETAIL
68
SCREW 8
7
NOTES:
2X SHEET METAL
2X MOUNTING CLIP INSIDE OF FRAME
(SUPPLIED)
SCREW
FRAME
MOUNTING
SCREW
(SUPPLIED)
2X MACHINE
*GRILL
(SUPPLIED)
FRAME FLANGE BUTTS AGAINST MUST BE INSTALLED SO THAT IMPORTANT: MOUNTING FRAME FINISHED WALL FACE.
REGULATOR
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
RTM
07/97
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
12
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
REQUIRED -
SOLD SEPARATELY
MODEL H1011.8HO SHOWN
MODEL H1011.8HO2 ON SHEET 2
10
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
WITHIN WALL
(ROUGH-IN DIMENSIONS APPLY TO BOTH MODELS WITH EXCEPTION NOTED ON SHEET 2)
MUST BE PROTECTED
10
10
CHILLER
REQUIRED -
SOLD
SEPARATELY
SENSOR
FROM CHILLER OUTLET
TO
BUBBLER
HEAD
-Vo
+Vo
AC(L)
AC(N)
BLACK WIRE
WHITE WIRE
TRANSFORMER
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
TO PUSH
BUTTON
FOUNTAIN
VALVE
SOLENOID
VALVE
PRESSURE
REGULATOR
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER

34-1/8"
SUPPLY
856mm
FOUNTAIN
SENSOR
EYE
CHILLER
HCR8
LINE
FLOOR
*
REGULATORS
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/22/20
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
22
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
SENSOR
EYE
10
10
LOCATE AND INSTALL
ELECTRICAL TRANSFORMER WITHIN WALL
ELECTRICAL
ACCESS
H1011.8HO2)
(MODEL
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
MUST BE PROTECTED
10
10

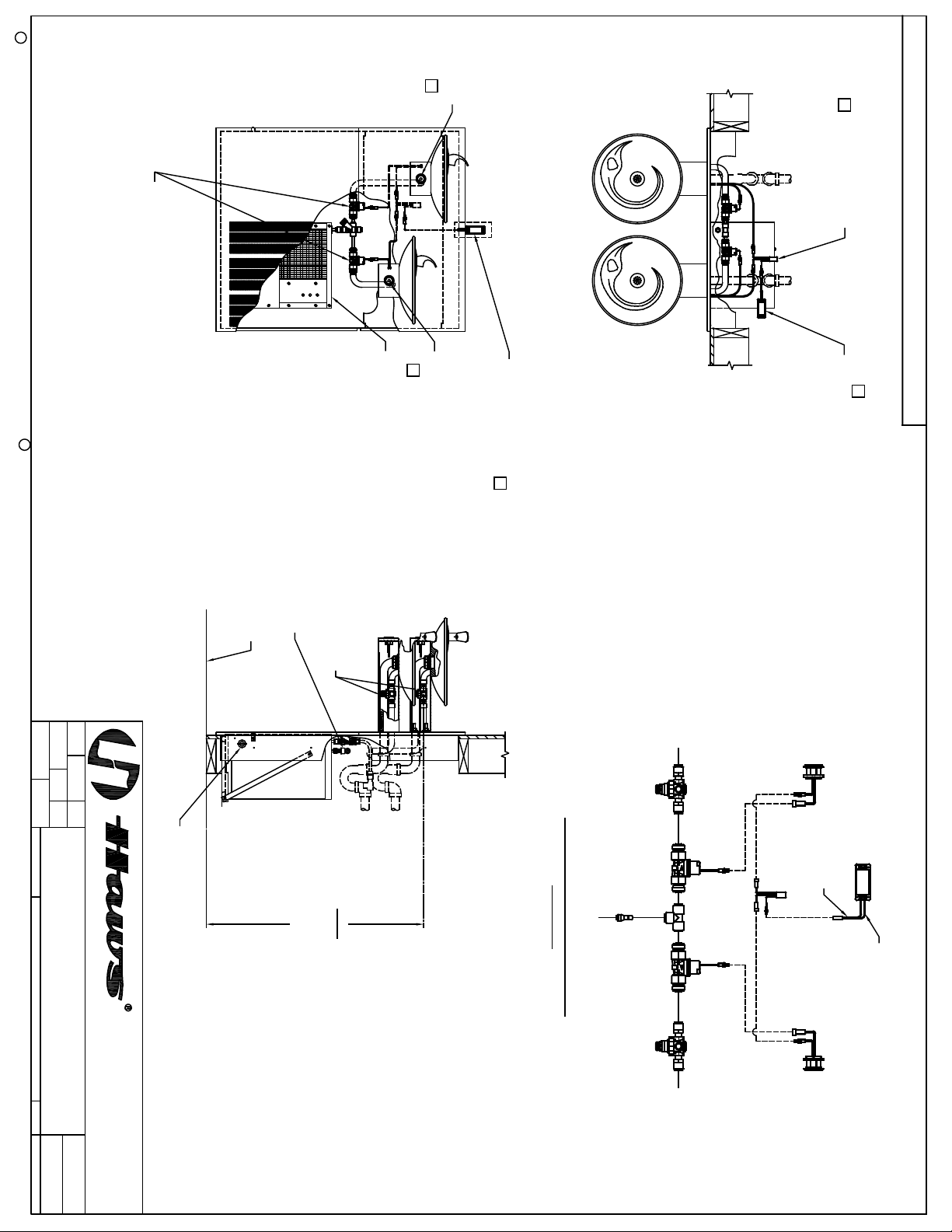

MODEL H1011.8HO2 SHOWN
MODEL H1011.8HO ON SHEET 1
(SEE SHEET 1 FOR APPLICABLE ROUGH-IN DIMENSIONS)
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
FROM CHILLER OUTLET
TO BUBBLER
HEAD
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
TO BUBBLER
HEAD
POWER SPLITTER
CABLE
-Vo
+Vo
AC(L)
AC(N) BLACK WIRE
WHITE WIRE
TRANSFORMER
9VDC SOLENOID VALVES
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER
POWER SPLITTER CABLE
10
