Haws H1119.8HO2 User manual

model H1119.8HO2
Chilled Vandal-Resistant ADA Motion-Activated Dual Fountain
FEATURES & BENEFITS
CONSTRUCTION
Unit is made of 18 gauge Type 304 stainless steel with a satin nish
that resists stains and corrosion, and has soft, rounded corners. Unit
features stainless steel satin nish back panel, vandal-resistant
bottom plate, and 1-1/4" integral trap.
VANDAL RESISTANT
The bubbler heads, drain strainers and bottom plates are locked in
place, discouraging unwanted vandal tampering.
BUBBLER HEADS
Polished chrome-plated brass bubbler head with integral 11/16" dia.
basin shank and stainless anti-rotation roll pin for vandal resistance
strength. Shielded, angled stream opening provides a steady, sanitary
source of drinking water at .45 gpm.
DRINKING FOUNTAIN VALVES
Fountain incorporates touchless sensor operated stainless steel
solenoid valves controlled by a transformer for hands free operation.
A pressure regulator is used to adjust the bubbler flow according to
incoming water pressures.
MOUNTING
Heavy-duty 16-gauge galvanized steel mounting frame with welded-in
heavy-duty 10 gauge mounting plate with pre-punched mounting
holes. Further convenience is given to the chiller with the integral
fold-out shelf.
HANDS FREE
Touchless operation for safety and peace of mind.
OPTIONS
Bottle Filler: Model 1920HO, bottle ller can be a stand-alone
station, or mounted above Haws 1119HO series drinking fountain
models.
Back Panel: Model BP32, satin nish stainless steel 32" back panel
for model 1920 bottle ller.
Cane Detection, Floor Mounted: Model SK6, floor mounted cane
detection for the Haws Hi-Lo drinking fountains.
Custom Logo Panel: Model 6475, Hydration By Haws™ logo panel
with customization options.
For more information, visit www.hawsco.com or call [phone].
SPECIFICATIONS
Model H1119.8HO2 electric vandal-resistant ADA wall mounted motion
activated drinking fountain shall include dual 18 gauge Type 304
Stainless Steel satin nish basins, touchless sensor operated stainless
steel solenoid valves with 30-second obstruction time-out controlled by
a transformer, 100% lead-free waterways, polished chrome-plated brass
vandal-resistant bubbler heads, polished chrome-plated brass vandal-
resistant waste strainers, vandal-resistant bottom plates, stainless steel
satin nish back panel and louvered intrusion-proof grill, high and low
fountain mounting levels, and 1-1/4″ NPT traps. The R-134a refrigeration
system is hermetically sealed and delivers a minimum of 8 gph (30.3 L)
of water at 50° F (10°C) cooled from 80° F (26.7° C) inlet water at 90° F
(32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5
REQUIRES MODEL HCR8 and MTGFR.LG PRICED SEPARATELY
FOR INDOOR USE ONLY
APPLICATIONS
Perfect for either public or private settings, our stainless steel electric
drinking fountains are a great t in indoor environments. Specically, this
type fountain may be placed in settings such as: schools, ofce buildings,
shopping malls, and other indoor environments. Electric water coolers
are not recommended or designed for outdoor applications or enclosed
pool areas (chlorine). These conditions may void warranty. Model meets
all current Federal Regulations for the disabled including those in the
Americans with Disabilities Act. Haws manufactures drinking fountains,
faucets and electric water coolers to be lead-free by all known denitions
including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California
Proposition 65, and the Federal Safe Drinking Water Act. Product is
compliant to California Health and Safety Code 116875 (AB 1953-2006),
and NSF/ANSI/CAN 61: Q ≤ 1. Haws electric water coolers comply with
ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter
Laboratories to U.S. and Canadian standards.
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. [e-mail] :: www.hawsco.com :: 05 Jul, 2023
DISCLAIMER: Continued product improvements make specications subject to change without notice. Check www.hawsco.com for the latest product information and updates.

54mm
2-1/8"
WALL FACE STUD
FLANGE FRAME
FINISHED WALL FACE. FRAME BUTTS AGAINST STALLED SO THAT LIP OF FRAME MUST BE IN- IMPORTANT: MOUNTING
33"
838mm
38-5/8"
981mm
1"
25mm
FLOOR LINE
102mm
4"
127mm
5" ALT SIDE
MIN. FOR
ROUGH-IN
MOUNTING
FRAME
WIDTH
SUPPLY STOP AND 3/8" O.D TUBING
30-3/8"
772mm
SUPPLY
36-3/4"
933mm
WASTE
ELECTRICAL ACCESS
3-3/16"
81mm
38-3/4"
984mm
WASTE (BY OTHERS)
8"8"
32"
813mm
203mm 203mm
12-1/4"
18"
457mm
311mm
1/2"
13mm
1-1/4" IPS
TRAP (SUPPLIED)
CHILLER SUPPORT TRAY
(BY OTHERS)
686mm
27"
6"
152mm
791mm
WASTE
31-1/8"
12"
305mm
1. HOLD ROUGH-IN DIMENSIONS ± 1/8" (3.2mm)
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE OR FEDERAL CODES SHOULD BE
ADHERED TO. FOR INSTALLATION HEIGHTS OTHER THAN SHOWN. DIMENSIONS MARKED (*) MUST BE ADJUSTED ACCORDINGLY.
3 ALIGN HOLES IN CHILLER SUPPORT TRAY WITH HOLES IN FRAME
AND FASTEN WITH #10 SHEET METAL SCREWS.
4 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL FOR
PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE INSTRUCTIONS.
5 REFER TO MTGFR.LG INSTALLATION DRAWING FOR ROUGH-IN DIMENSIONS. 6 INSERT 5/16"-18 PANEL INSERTS FROM OPPOSITE SIDE AT LOCATONS
SHOWN BY DARKENED HOLES. HOLE COMBINATIONS SHOWN ARE FOR USE WITH LOW FOUNTIAN ON THE RIGHT AND THE HI FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HI ON RIGHT AND LOW ON LEFT.
7 HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW
FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.
8 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE
SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP
OUT. SNAP INTO NEW POSITIONS AND RE-ASSEMBLE SCREWS.
9. IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE
A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY DIMENSIONS SHOWN (*) MUST BE REVERSED.
N OT ES:
4
BOWL M OU N T I N G PAT T E RN D ET A I L
5
5
SCREW
8
6 8
7
305mm
12"
37-5/8"
956mm
H CR8
CH I LLER
3-15/16"
100mm
791mm
31-1/8"
5
INLINE STRAINER,
1/4" OD TUBE X
3/8" OD TUBE
INLET (SUPPLIED)
& FITTING
INSULATION, TEE
3/8" OD TUBING, (SUPPLIED)
3
*
*
**
*
*
ROUGH-IN
ROUGH-IN
CLEARANCE
*
*
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
F.VASQUEZ
09-01-98
22
0002080262.D
H1119.8
1:19
11
FV
04/02/20
.
DP
INSTALLATION
5527
2020
FV
M T G FR .L G
M OU N T I N G FR AM E
REQUIRED - SOLD SEPARATELY

APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
BJM
02/10/21
4
0580001156.D
2RKHO.P / 2RKHO.H
DUAL HANDS-OFF RETRO-FIT KIT
N/A
14
BJM
10/26/21
5649
FV
INSTALLATION
5749
2021
BJM
NOTES:
1. 2RKHO.P AND 2RKHO.H RETROFIT KITS ALLOW INDOOR FOUNTAINS TO BE CONVERTED FROM A
HAWS 5874 PUSH BUTTON VALVE TO HANDS-OFF (TOUCHLESS) OPERATION. FOUNTAINS (NOT SUPPLIED) MAY BE MOUNTED ON THE EXTERNAL WALL OF A BUILDING PROVIDED THE TRANSFORMER SHALL BE MOUNTED INSIDE THE WALL AND PROTECTED FROM WATER AS SHOWN IN THIS INSTALLATION PER NEC/CEC AND LOCAL CODE. AVOID
2RKHO.P: INDOOR HO RETRO-FIT KIT (INCLUDES 2X HO SENSOR WITH MOUNTING HARDWARE, 2X
SOLENOID VALVE, 2X REGULATOR, WIRE SPLITTER, AND 100-240V PLUG-IN TRANSFORMER - SEE SHEET 2).
2. RETROFIT KIT MODEL:
2RKHO.H: INDOOR HO RETRO-FIT KIT (INCLUDES 2X HO SENSOR WITH MOUNTING HARDWARE, 2X
3. 2RKHO.P REQUIRES 100-240VAC POWER CONNECTION. 2RKHO.H REQUIRES 100-277V
4. TRANSFORMERS MUST BE MOUNTED SUCH THAT THEY ARE PROTECTED FROM WATER.
5. 2RKHO.P TRANSFORMER IS COMPATIBLE WITH TYPE A AND TYPE B NORTH AMERICAN
ELECTRICAL OUTLETS. FOR OTHER RECEPTACLE TYPES, AN ADAPTER (NOT SUPPLIED) MUST BE PROVIDED BY OTHERS.
SOLENOID VALVE, 2X REGULATOR, WIRE SPLITTER, AND 100-277V HARDWIRE TRANSFORMER - SEE SHEET 3).
POWER CONNECTION.
(NOTES CONTINUED ON SHEET 4)
DIRECT CONTACT WITH SUNLIGHT ON THE SENSOR LENS.
EXAMPLE 1011 FOUNTAIN INSTALLATION
AA
SOLENOID VALVE
(NOTE FLOW DIRECTION ARROW)
PRESSURE REGULATOR
(NOTE "IN" AND "OUT"
FLOW DIRECTION)
HO SENSOR
POWER CONNECTION HARNESS
(SEE ELECTRICAL SCHEMATIC - SUPPLIED
WITH TRANSFORMER KIT - SHOWN FOR
REFERENCE)
EXAMPLE 1920 BOTTLE FILLER INSTALLATION
MOUNTING HARDWARE
Y-STRAINER
(NOTE FLOW DIRECTION ARROW)
3/8" O.D. TUBING SPLITTER (EXISTING)
VIEW A - A
TO SECOND FOUNTAIN/BOTTLE FILLER
(BOTTOM PLATE OMITTED FOR CLARITY)
3/8" O.D. TUBING
(EXISTING)
3/8" O.D. TUBING
TO SECOND SENSOR
TO WIRE SPLITTER. SEE SHEET 4 FOR WIRING DIAGRAM
3/8" O.D. TUBING SUPPLY INLET

APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
BJM
02/10/21
4
0580001156.D
2RKHO.P / 2RKHO.H
DUAL HANDS-OFF RETRO-FIT KIT
N/A
34
BJM
10/26/21
5649
FV
INSTALLATION
5749
2021
BJM

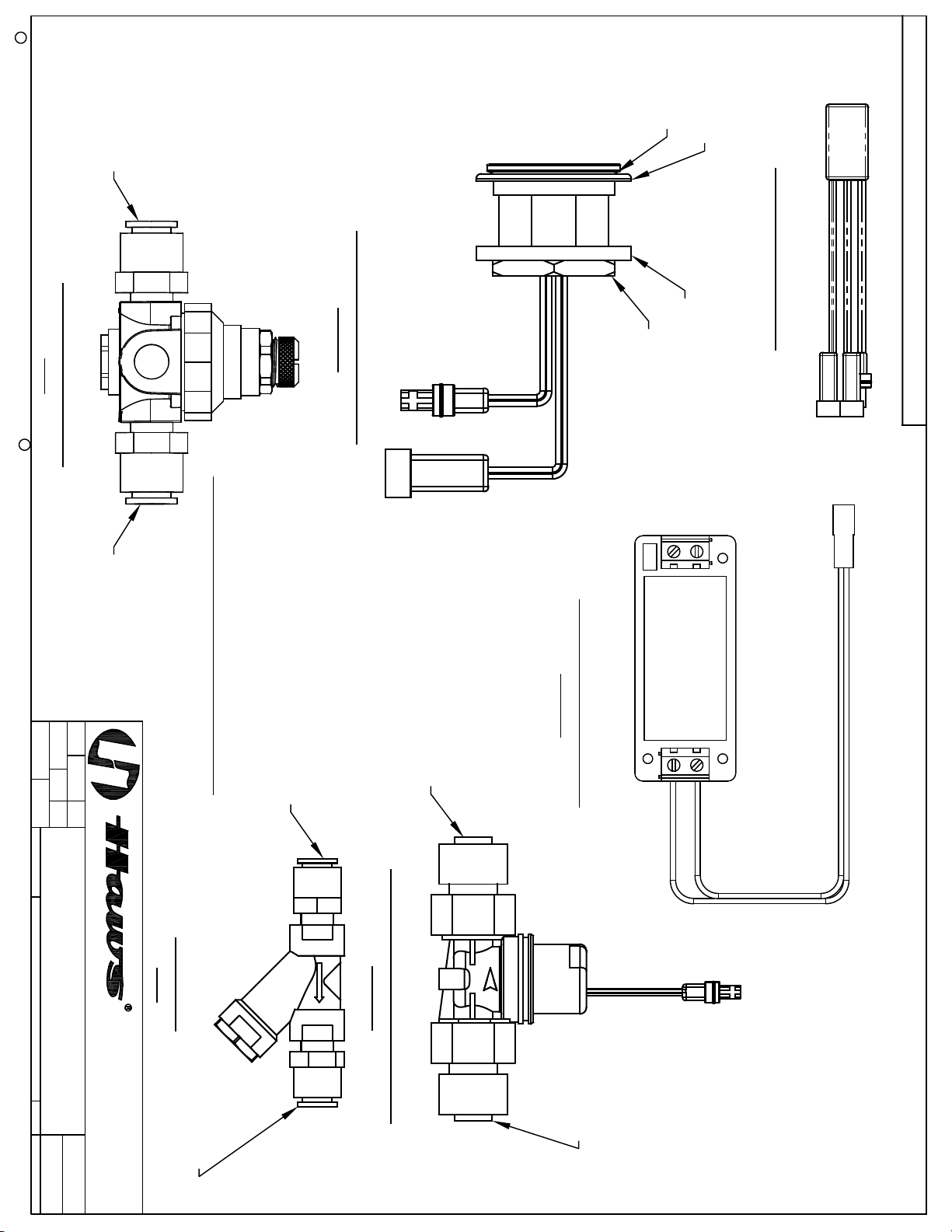

2RKHO.H KIT - MAIN PARTS
SOLENOID VALVE ASSEMBLY (2X)
VRKHO5
3/8" PUSH-IN TUBING
CONNECTOR
HO SENSOR ASSEMBLY (2X)
VRKHO6
VALVE REGULATOR (2X)
5867
RUBBER O-RING
3/8" PUSH-IN TUBING
CONNECTOR
3/8" PUSH-IN TUBING
CONNECTOR
FLANGE WASHER
3/8" PUSH-IN TUBING
CONNECTOR
Y-STRAINER
6433
3/8" PUSH-IN TUBING
CONNECTOR
3/8" PUSH-IN TUBING
CONNECTOR
DUAL POWER SPLITTER
HARDWIRE TRANSFORMER
VRKHO8
CUP WASHER
BRASS NUT
