Haws 1920HO Guide

09/20 Model 1920HO/1920HPSHO/1920WHO Page 1 of 10
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [email protected]  website: www.hawsco.com
No. 0510001063 (2)
Model 1920HO/1920HPSHO/1920WHO
Hands-Off Bottle Filler
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that this specific product is guaranteed against defective material or
poor workmanship for a period of one year from date of shipment. HAWS liability
under this warranty shall be discharged by furnishing without charge F.O.B. HAWS
Factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first class workmanship, provided that
claim is made in writing to Haws within a reasonable period after receipt of the
product. Where claims for defects are made, the defective part or parts shall be
delivered to the Company, prepaid, for inspection. HAWS will not be liable for the
cost of repairs, alterations or replacements, or for any expense connected therewith
made by the owner or his agents, except upon written authority from HAWS,
Sparks, Nevada. HAWS will not be liable for any damages caused by defective
materials or poor workmanship, except for replacements, as provided above. Buyer
agrees that HAWS shall not be liable for general, special, or consequential damages
claimed to arise under the contract of sale. The drinking fountain manufactured by
HAWS is warranted to function if installation and maintenance instructions provided
are adhered to. The units also must be used for the purpose for which they were
intended.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,
PROVIDED OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297
CAUTION! Prior to making any electrical connections, verify with a voltmeter that power
from the service panel is off.

09/20 Model 1920HO/1920HPSHO/1920WHO Page 2 of 10
REQUIRED TOOLS: Screwdriver, 3/32” and 5/32” hex key set, adjustable wrench or socket.
LOCATION OF UNIT: The Model 1920HO/1920HPSHO/1920WHO bottle filler water
dispenser can be installed in various applications. Possible installations include indoor over
an existing drinking fountain, outdoor over an existing fountain, or a standalone wall-mounted
bottle filler. When installing this unit, local, state or federal codes should be adhered to.
SUPPLY LINE: The minimum recommended line size is 3/8" O.D. copper or plastic tubing
with 30-90 psi (2-6 ATM) pressure. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: Inlet is 3/8“ O.D. push-in type fitting.
ELECTRICAL CONNECTIONS: Bottle filler may be mounted on external wall of building
provided transformer shall be mounted inside the wall and protected from water as
shown on RKHO Series O&M installation details (page 8) per NEC/CEC and local code.
Transformer(s):
RKHO.120/120.P: 120 x 24 VAC, 60Hz, .68 AMPS.
RKHO.240: 240 x 24 VAC, 60Hz, .68 AMPS.
RKHO.120/120P/240: Refer to RKHO Series Operation and Maintenance Manual (pn
0580001032, supplied with unit) for transformer wiring Instructions.
MAINTENANCE: Periodically clean the strainer (If one is used with your drinking fountain).
INSTALLATION PROCEDURE
GENERAL NOTES:
1. For all plastic push-in type fitting connections, only connect NSF-61 copper or
plastic tubing. Stainless steel or glass tubing is not recommended. The
following assembly instructions must be followed to ensure a watertight
connection:
a. Cut tubing square and clean.
b. Mark from end of tube the length of insertion (See table below).
c. Push tube into the fitting until it bottoms out.
d. To remove, depress collet and pull tubing out.
Tube Sizes
O.D.
Tolerance
Insertion Depth
1/4”
±.005”
11/16”
3/8”
±.005”
3/4”
1/2”
±.005”
7/8”
CLEANING INSTRUCTIONS FOR HI-POLISHED STAINLESS PRODUCTS:
Haws’recommended cleaning procedure for hi-polished stainless products is as follows:
Use a mild detergent or soap and water for removing stains and fingerprints or use a clean cloth
with window cleaner.
BOTTLE FILLER BRACKET:
If installing the bottle filler in new construction, use Model 6700 Mounting Plate. Follow the
installation instructions supplied with the 6700 for mounting dimensions. Reference Pages 5-10
of this document for 1920HO/1920HPSHO/1920WHO button heights when mounted over

09/20 Model 1920HO/1920HPSHO/1920WHO Page 3 of 10
different Haws drinking fountains. (Note: Mounting Hardware is only supplied with the 6700
Series Mounting Plates and not the Bottle Filler Water Dispensers).
If installing as a retrofit in old construction, it is recommended to use the Model 6700 Mounting
Plate behind the finished wall. If that is not possible, it is recommended to install wood stud
cross-braces behind the wall and mount the 1920HO/1920HPSHO/1920WHO directly to the
wood support. If that is not possible, Model 6700R Retrofit Plate may be used. Follow the
installation instructions supplied with the 6700R. (Note: Mounting Hardware is only supplied with
the 6700 Series Mounting Plates and not the Bottle Filler Water Dispensers).
If installing as a stand-alone bottle filler, use the mounting hole location diagram on Page 5 and
bolt the 1920HO/1920HPSHO/1920WHO securely to the wall. (Note: Mounting Hardware is not
supplied with the Bottle Filler Water Dispensers).
Thoroughly flush supply line to remove all foreign matter. Connect 1/2” IPS supply screwdriver-
stop (not supplied) if one is not already present in the water supply line.
5867 Valve Pressure Regulator –Adjust stream flow using the black pressure regulator
mounted inside bracket, by loosening locknut and rotating knob clockwise to increase flow or
counterclockwise to reduce flow. Tighten locknut and check flow. Repeat steps as needed.
RKHO Series Sensor/Solenoid Setup: Refer to the RKHO Series O&M for instructions.
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
Insufficient water flow.
1a.
Check that any inlet screwdriver stop valve
(not supplied) is wide open. Turn
counterclockwise.
b.
Verify minimum 30 psi flowing supply
pressure.
c.
Clean any strainer(s) that may be installed in
water supply line.
d.
e.
Adjust black regulator valve Model 5867 to
increase flow. Clockwise increases flow.
Make sure nozzle is free of debris.
2.
Excessive water flow.
2a.
Adjust black regulator valve model 5867 to
decrease flow. Counterclockwise decreases
flow.
3.
Water flow is crooked or
splatters.
3a.
b.
c.
Make sure nozzle is free of debris.
Verify that bottle filler is installed level and
straight.
Adjust black regulator valve model 5867 to
decrease flow. Counterclockwise decreases
flow.
For more information about Haws products, see our website: www.hawsco.com
© 2020 Haws®Corporation –All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

PARTS BREAKDOWN
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]M
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
FV
08/18/20
2
0510001063
1920HO/1920HPSHO/1920WHO
1:14
11
FV 10/01/20
5574
SLS
4 OF 10

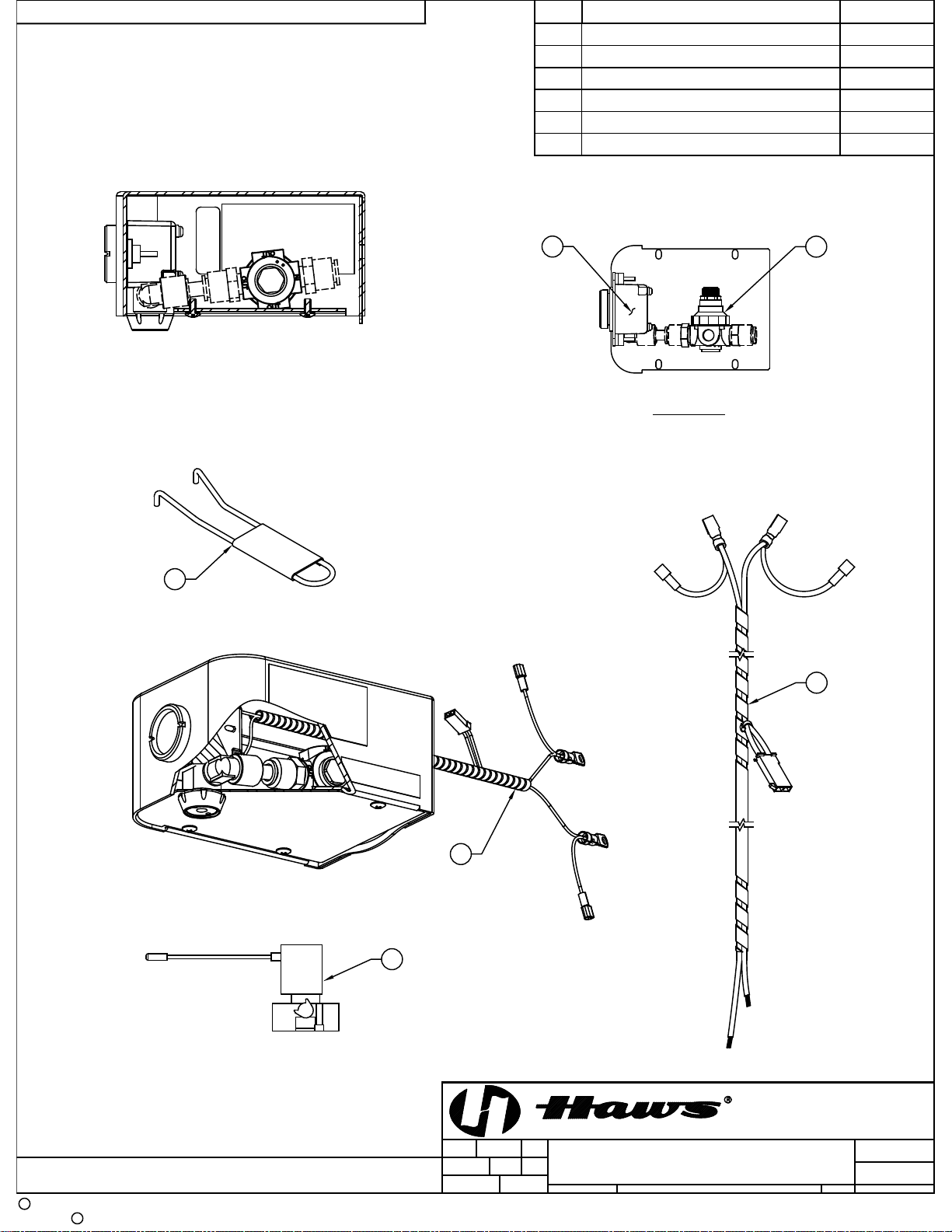

PARTS BREAKDOWN
5592
2020
FV
NOTES:
1. 3/8"-16 UNC BRACKET MOUNTING HARDWARE NOT
SUPPLIED.
1SPANNER WRENCH
2
3
4
5
6
SENSOR
WIRING HARNESS
SOLENOID
PRESSURE REGULATOR VALVE
0006983506
VRKH01
VRKH02
VRKH03
5867
WIRING HARNESS, JUMPER 0210000992
1
2
4
3
5
TOP VIEW
BRACKET REMOVED
FOR CLARITY
6
WIRING HARNESS
NOT SHOWN
ON THIS VIEW

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
16
FV 10/01/20
5574
SLS
5 of 10
INSTALLATION
5592
5 of 10
2020
FV

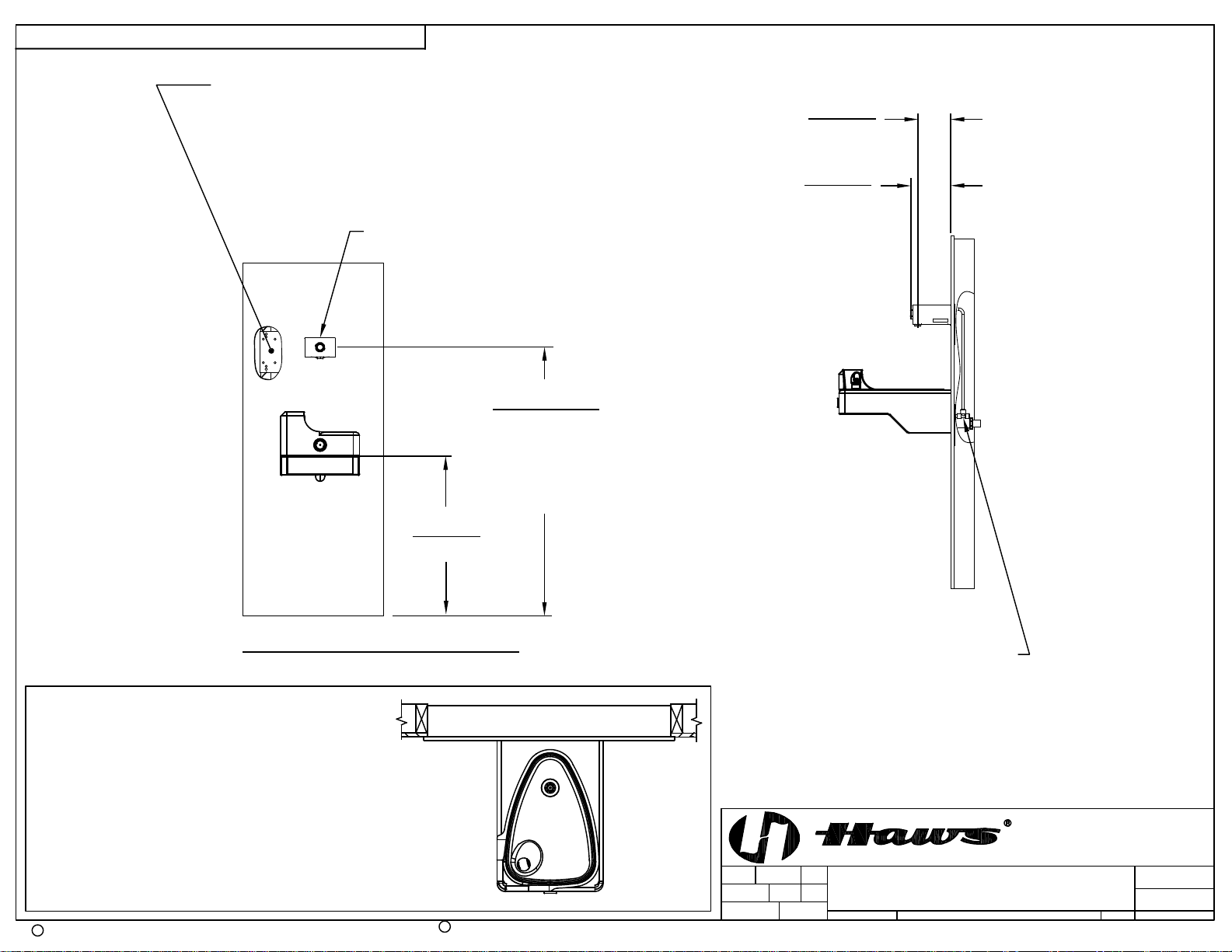

1920HO SERIES MOUNTING HOLE LOCATIONS
NOTES:
1.
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE OR FEDERAL CODES
SHOULD BE ADHERED TO FOR INSTALLATION LOCATIONS,
WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
1-1/8"
29mm
1-7/8"
48mm
Ø7/16"
Ø11mm 3"
76mm
5/8"
17mm
4X
3-5/8"
92mm 3-1/4"
82mm
6-7/8"
175mm
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
5-1/4"
133mm
(3/8"-16 UNC MOUNTING HARDWARE NOT SUPPLIED)
3.
REFER TO RKHO SERIES OPERATION AND MAINTENANCE INSTRUCTIONS
FOR TRANSFORMER/SOLENOID CONNECTIONS AND SENSOR SETUP.
4 IF MOUNTING 1920HO SERIES, ALONE OR OVER A NON-HO FOUNTAIN, USE
WIRING HARNESS THAT COMES ATTACHED TO HO SENSOR. IF USING 1920HO
OVER HO FOUNTAIN, CHANGE OUT WITH JUMPER HARNESS PROVIDED.
4
WIRING
HARNESS
5 REFER TO RKHO SERIES OPERATION & MAINTENANCE INSTRUCTIONS FOR SENSOR SETUP.
5
SENSOR
EYE

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
26
FV 10/01/20
5574
SLS
6 of 10
INSTALLATION
5592
6 of 10
2020
FV

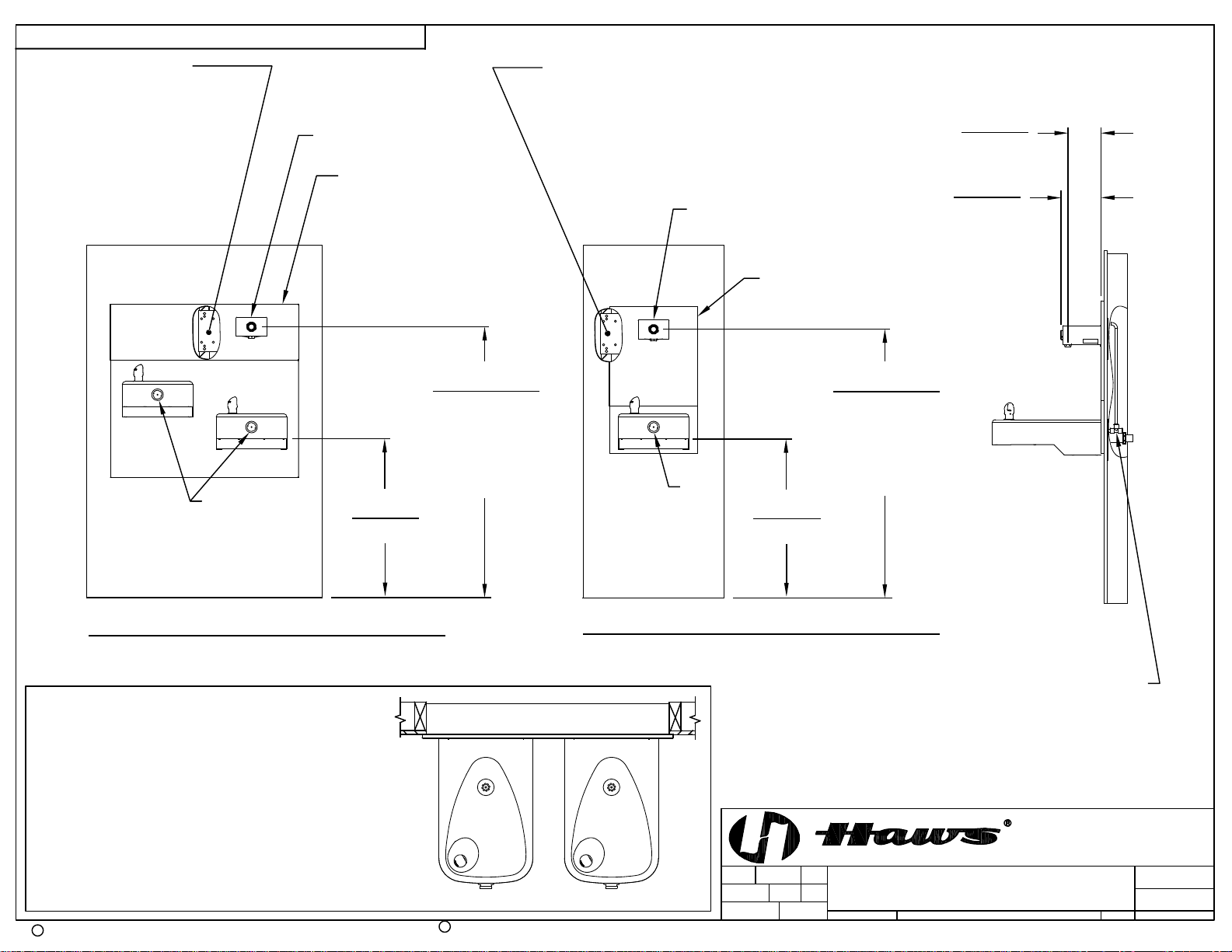

INSTALLATION ABOVE HAWS 1001, 1001HPS,
1001HPSMS, 1001MS, H1001.8, H1001.8HPS
INSTALLATION ABOVE HAWS 1011, 1011HPS,
1011HPSMS, 1011MS, H1011.8, H1011.8HO, H1011.8HPS
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920HO/1920HPSHO
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
6700
FINISH WALL)
BP32/BP32HPS
(47-1/2")
(1206mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(46-1/4")
(1175mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
BP15/BP15HPS
1920HO/1920HPSHO
- OR -
RETROFIT PLATE
(ON TOP OF
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL RKHO.
**

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
36
FV 10/01/20
5574
SLS
7 of 10
INSTALLATION
5592
7 of 10
2020
FV
1920HO
INSTALLATION ABOVE HAWS 1109,
1109.14, H1109.8
INSTALLATION ABOVE HAWS 1119, 1119.14, H1119.8
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES, BACKPANELS
& DRIP TRAY
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
(47-1/2")
(1206mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(47-1/2")
(1206mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
BP15
6469 6469
1920HO
6700
FINISH WALL)
BP32
- OR -
RETROFIT PLATE
(ON TOP OF (IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL RKHO.
**

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
46
FV 10/01/20
5574
SLS
8 of 10
INSTALLATION
5592
8 of 10
2020
FV
1920HO
INSTALLATION ABOVE HAWS 1107L, H1107.8
INSTALLATION ABOVE HAWS 1117L, H1117.8
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
(45-5/8")
(1159mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(46")
(1168mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
BP15
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
1920HO
6700
FINISH WALL)
BP32
- OR -
RETROFIT PLATE
(ON TOP OF (IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL RKHO.
**

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
56
FV 10/01/20
5574
SLS
9 of 10
INSTALLATION
5592
9 of 10
2020
FV
1920WHO
INSTALLATION ABOVE HAWS 1311
INSTALLATION ABOVE HAWS 1501
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
(45-1/2")
(1156mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(45-1/2")
(1156mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPERATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920WHO ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)
1920WHO
6700
FINISH WALL)
BP32W
- OR -
RETROFIT PLATE
(ON TOP OF (IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32RW)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
PAGE
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
2
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
66
FV 10/01/20
5574
SLS
10 of 10
INSTALLATION
5592
10 of 10
2020
FV
1920HO
INSTALLATION ABOVE HAWS 1047
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
(45-1/2")
(1156mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPERATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920HO ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)
