Introduction
This manual assumes that the OmniPL has been installed and configured according to the Installa-
tion Manual and is using the latest firmware version available from Hayward. The OmniPL can now be
programmed with user desired settings such as schedules, themes, and favorites. This manual will
also explain how to manually turn pool equipment on/off, program settings for specific equipment,
view pool equipment status and conditions, and more.
Now that the initial configuration has been completed, the OmniPL will automatically go to the Home
Screen or Idle Screen. All settings and operation functions can be accessed from the Home Screen.
Note that if the OmniPL Controller is not touched for more than two minutes, the Idle Screen will be
displayed.
Using the OmniPL Controller
The OmniPL Controller is the main interface with the device. Once configured, the OmniPL can be
controlled remotely using various Hayward remote terminals or, when connected to the home’s net-
work, by Internet enabled devices such as computers, tablets and phones. The OmniPL Controller
must be used to access the Configuration Wizard. The Configuration Wizard is used for initial con-
figuration (completed during the installation process) and for any changes to existing configuration.
Idle Screen
The OmniPL Controller will display the idle screen after two minutes of user inactivity. When the
filter pump is on, the Idle Screen will display the current temperature of the Body of Water shown in
the upper left corner. If the OmniPL is configured to control two Bodies of Water, the idle screen will
toggle between both. On the right side of the screen, the air temperature will toggle with the date.
ºF
82 10:18
SUNDAY
jul 24

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
4

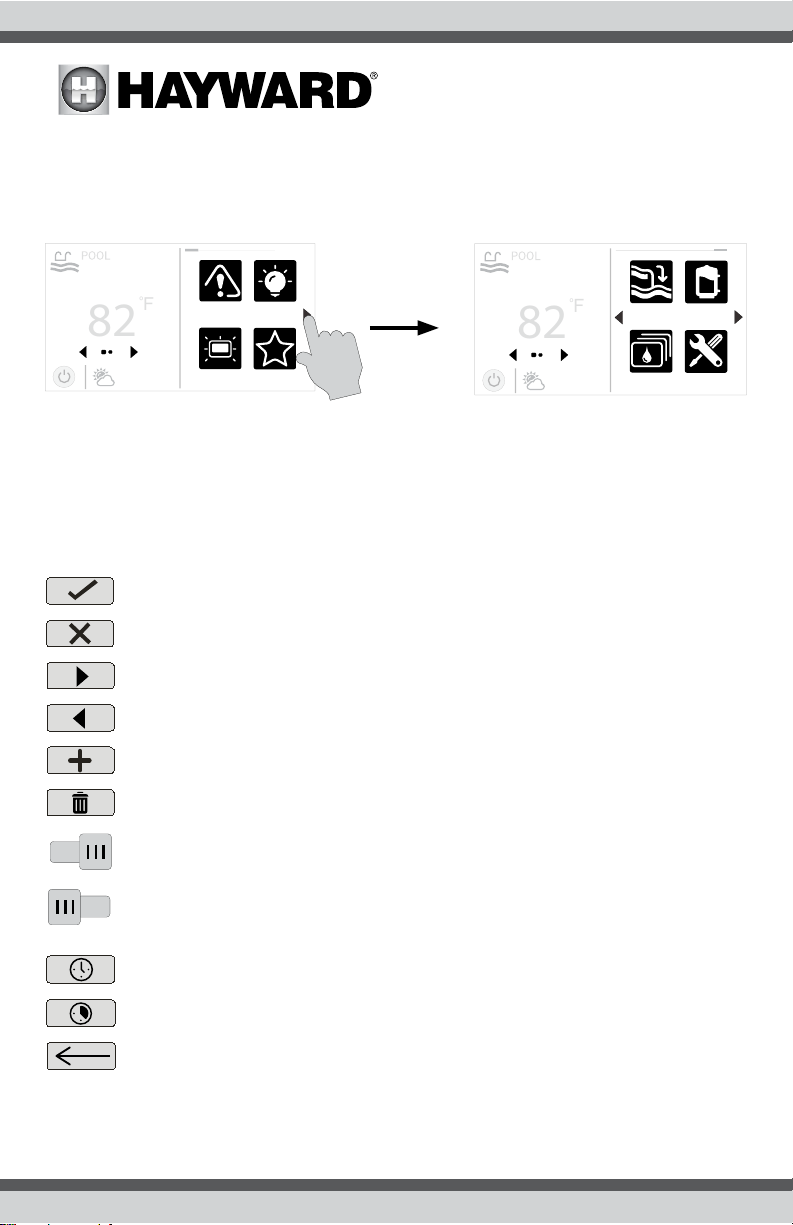

daylight favorites
alarm lights
ºF
air
71º F
82
Home Screen
When the idle screen is touched, the OmniPL will display the Home Screen. This screen will give the
user access to all functions, settings and configuration options.
Power Button
The power button is displayed at all times when the OmniPL is not idle. When touched, it offers the
following 4 functions:
Shut Down - When Shut Down is selected, the OmniPL will turn off all pool equipment and report
when it is safe to remove power. When this message is displayed, you can either power off the unit
or restart the OmniPL by touching the large power button displayed on the left side of the screen.
Service Mode (page 29) - Service Mode will turn off all pool equipment and disable all remote con-
trols including networked devices. Service Mode is useful to prevent scheduled operation and dis-
able remote operation while servicing the pool. After selecting Service Mode, there are two options:
Service Mode (Standard): The OmniPL will remain in Service Mode until you manually exit. To
exit Service Mode, touch the power button and select the Service Mode button again.
Service Mode Timed: Before entering Service Mode, you will select a Service Mode timeout.
This is the amount of time that the OmniPL will stay in Service Mode before automatically exit-
ing. The timeout can be set between 1-96 hours. There is no need to exit Service Mode manu-
ally.
Features Off - Features Off offers a quick way to turn off all equipment with a single touch of a but-
ton. Note that the filter pump, heater, lights and chlorination will continue to run if scheduled.
shut down
service
mode
simple
mode
features
off
daylight favorites
alarm lights
ºF
air
71º F
82

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5
Simple Mode (page 34)- Simple Mode is a customizable screen that can be set up for quick access
to your Favorites (page 19). You can set up only the Favorites that you want shown while in Simple
Mode. Because it’s customizable, Simple Mode can provide a convenient way to access the most
common functions for owners as well as a handy solution to limit access to other users. For infor-
mation on how to create and delete Simple Mode functions, refer to the “Favorites” section in this
manual as well as page 34. The MSP ID number is needed when entering and exiting Simple Mode.
Selecting a Body of Water - Left Side of Home Screen

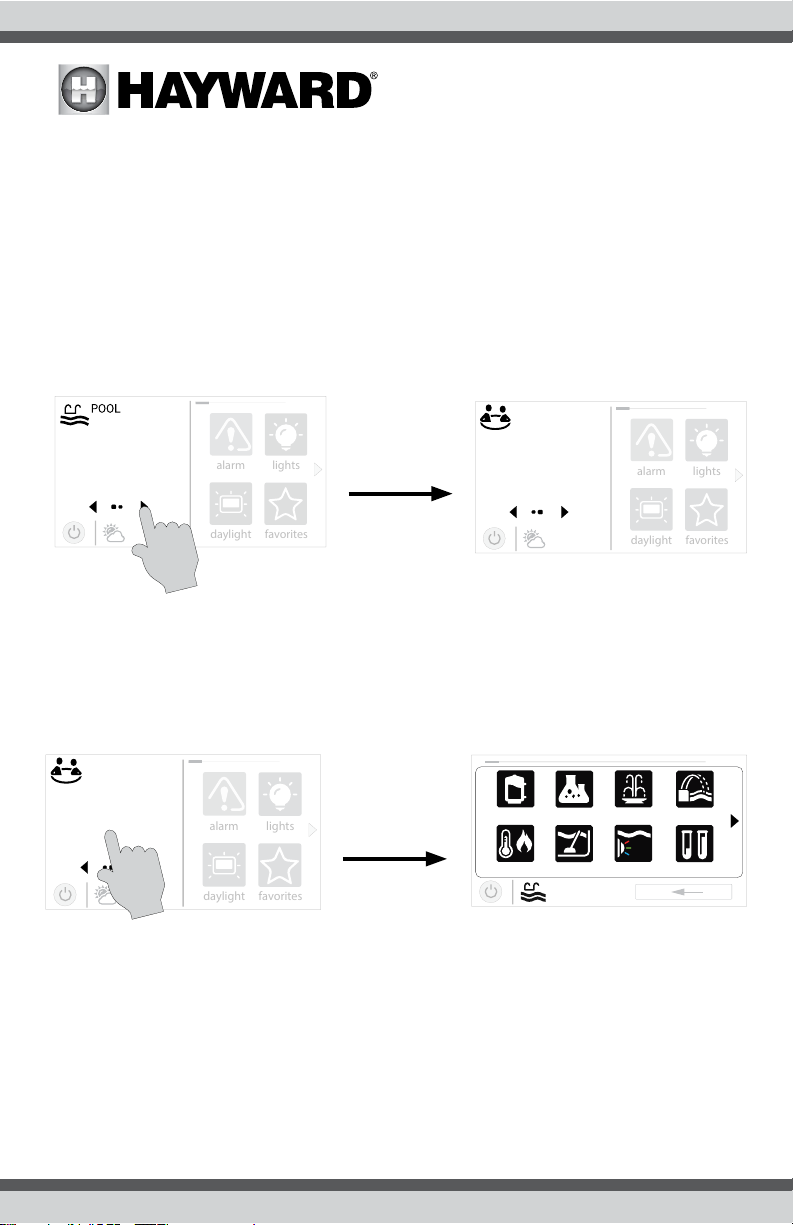

The left side of the Home Screen allows you to select and control a Body of Water. If more than
one Body of Water is used (typically a pool and spa), pressing the left and right arrows in the middle
of the screen will toggle between the Bodies of Water. If just a pool is configured, there will be no
arrows shown.
Features Screen - Controlling a Body of Water
When the desired Body of Water is displayed, touch the left side of the screen to advance to the Body
of Water Features Screens. The items shown on the Features Screen relate to that Body of Water
ONLY. To control a different Body of Water, select the desired Body of Water at the Home Screen first,
then go to the Features Screens.
The various buttons shown in the Body of Water Features Screens are related to initial configuration.
For example, if you configured a gas heater to heat the Spa Body of Water, the heater setting for the
gas heater will be found in the Spa Features Screens.
Favorites - Right Side of Home Screen
The right side of the Home Screen is Favorites. These buttons offer universal control for Backyard
equipment and all Bodies of Water regardless of which one is displayed. Up to four Favorite buttons
will be shown on the home screen. To access more Favorites, touch the arrows to the left or right of
the Favorite buttons.
daylight
favorites
alarm
lights
ºF
air
71º F
82
Press Arrow buttons
on left side of screen
to change Body of
Water.
daylight
favorites
alarm
lights
ºF
air
71º F
SPA
102
daylight
favorites
alarm
lights
º
F
air
71º F
SPA
102
uclights chlorinator
alarm light hung
1 / 2
vsp pH
heater cleaner
POOL
features
When the desired
Body of Water is
displayed, touch left
side of screen to en-
ter Control Screens.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
6
Note that some default buttons will appear on the Favorites Screen. These buttons are related to your
initial configuration settings and are automatically created. In addition, custom “Favorite” buttons
can also be added. The OmniPL supports up to 50 Favorites for quick easy access to commonly
used functions.
Navigation
The OmniPL has been designed to be intuitive allowing most users the ability to navigate with little in-
struction. Below, a list of commonly used buttons are explained. As you navigate through the various
screens, these buttons will likely be displayed. Some sections of this manual may refer to buttons
that are specific to certain types of pool equipment. You’ll find more information about those buttons
under their corresponding section. If your installation does not include that particular equipment,
those sections can be skipped.
Save - Touch this button to save your selection.
Cancel - Touch this button to cancel your selection.
Advance - Touch this button to advance to the next screen.
Back - Touch this button to return to the previous screen.
Add - Touch this button to add an item.
Delete - Touch this button to delete a highlighted item.
Turn On or Enable - This button will either manually turn on pool equipment or enable
a function.
Turn Off or Disable - This button will either manually turn off pool equipment or disable
a function.
Schedule - Touch this button to schedule a function.
Countdown Timer - Touch this button to set a countdown timer.
Back - Touch this button to return to a previous screen.
daylight favorites
alarm lights
º
F
air
71º F
82
Touch arrows to
advance to additional
favorites.
themes cong
spillover vsc pump
º
F
air
71º F
82
ON
OFF

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
7

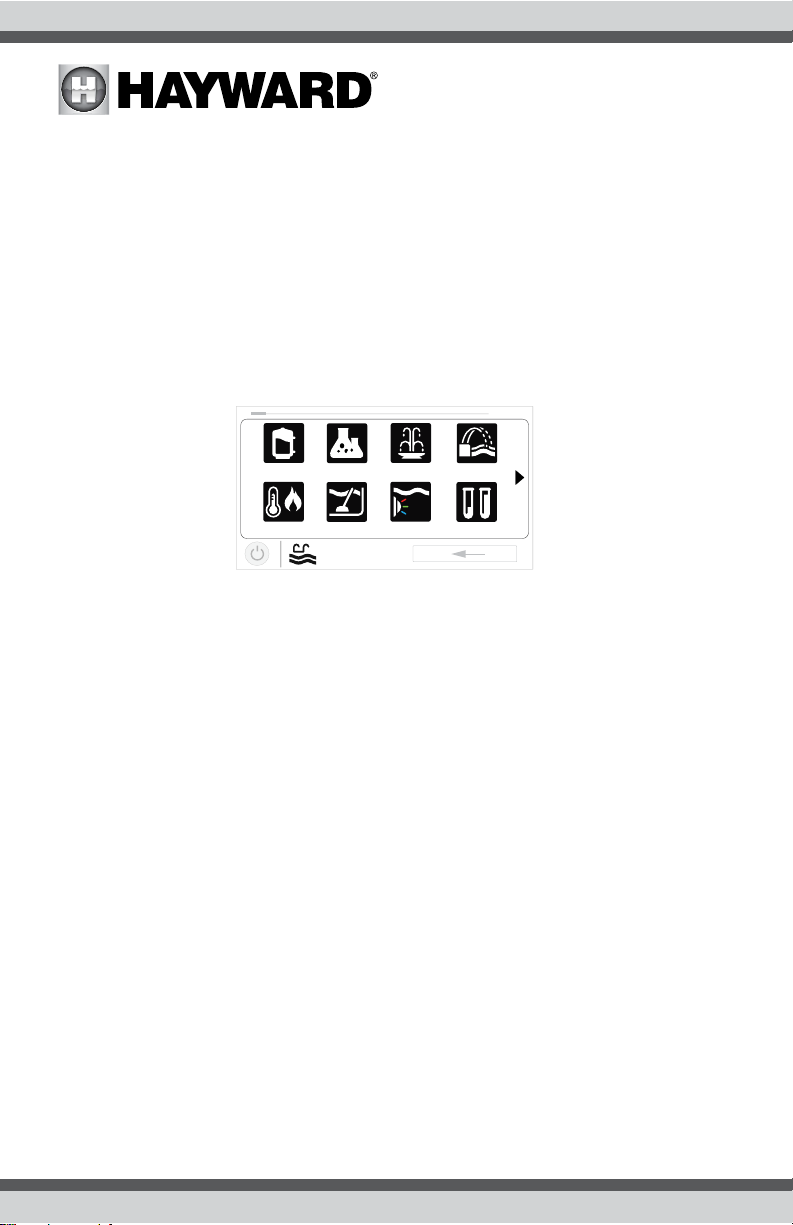

Body of Water Features and Control Screens
As previously stated, the Body of Water Features Screens allow you to control functions and equip-
ment for a particular Body of Water. Making a change will not affect other Bodies of Water. For
example, if the Pool is being displayed when entering the Features Screens, only the pool will be
affected by any changes or settings that you make. The contents of the Features Screen is a result of
how the OmniPL was configured using the Configuration Wizard. If equipment is missing or does not
belong in the Body of Water Features Screen, you may have to go back to the Configuration Wizard
and correct the configuration of that equipment.
An example of a Features Screen is shown below. In this example, we are looking at the Pool (shown
in lower left of screen). The arrow button on the right means that there are more Features Screens
if we advance.
Depending on the equipment that has been configured in your system, your screens will likely be
different. The purpose of this section is to explain how Features and Control Screens work as well
as show some common equipment examples which will help familiarize you with the interface. Even
though some of your equipment may be different, you should see similarities in the following ex-
amples that will help you create and change settings for all the equipment in your Features Screens.
The following examples will be shown for the Pool only. All of the equipment shown in the Features
Screens have been initially configured in the Configuration Wizard to operate with the Pool. You
may have also configured the same type of equipment to operate with a different body of water. For
example, you may have a heater for the pool and a second heater for the spa. The following informa-
tion should help you understand how to control all of your equipment, regardless of which Body of
Water is selected.
Control Screens
After an item has been selected in the Features Screen, you’ll be brought to a Control Screen. Con-
trol Screens are where you will actually make changes to the pool’s equipment settings. To change
a setting, you’ll first select the Body of Water, then select the feature you’d like to change in the
Features Screen, then make your change in that feature’s Control Screen.
Filter Pump
In the example on page 8, a variable speed pump which was named “vsp” has been configured to be
used with the Pool in the Configuration Wizard. Touching the “vsp” button in the Features Screen will
bring you to a pump Control Screen which will let you manually turn on/off the pump, set a schedule,
set a speed, apply a countdown timer and view the status. Single speed and two speed pumps will
have a similar Control Screen.
uclights chlorinator
alarm light hung
1 / 2
vsp pH
heater cleaner
POOL
features

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
8

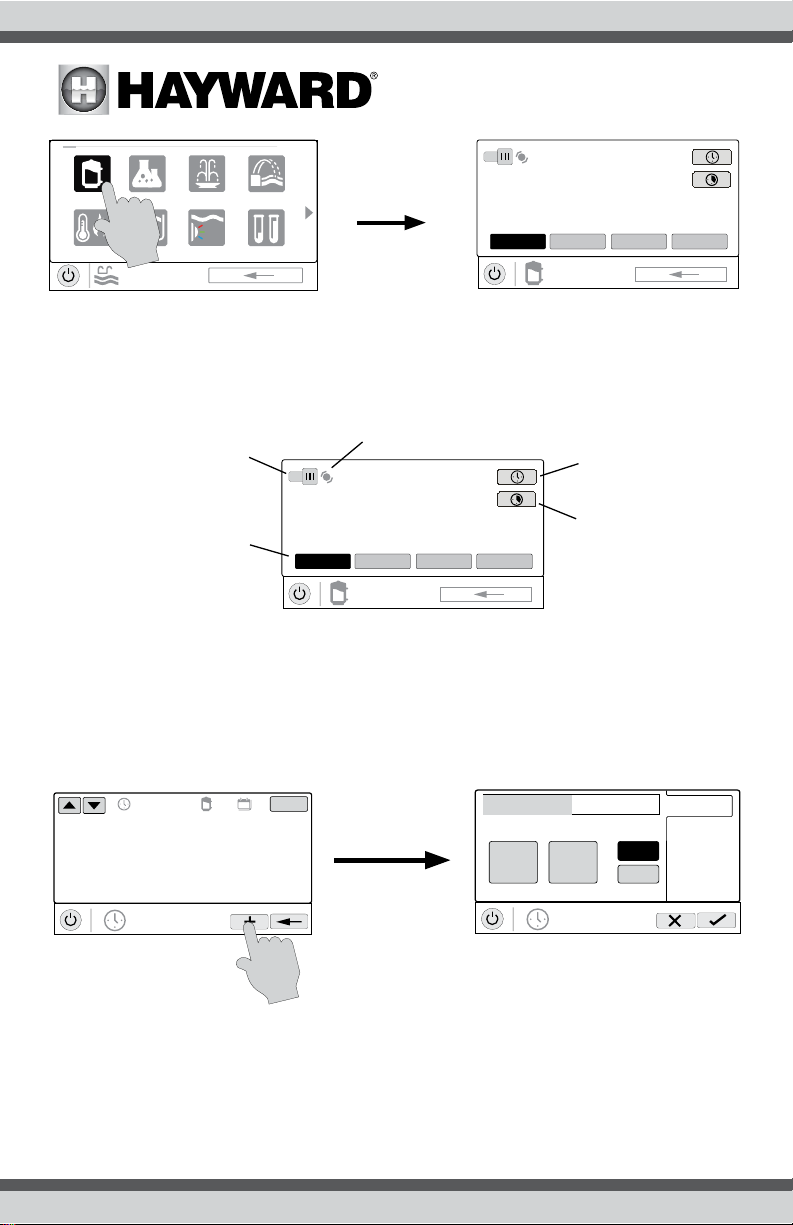

Add a Schedule
If the “Set Schedule” button is touched, you’ll be brought to the pump schedule screen below. Here
you can add, delete, edit, enable and disable schedules. Because there have been no schedules set
up, the screen is blank. Touch the Add button (+) to add a schedule for the pool pump.
uclights chlorinator
alarm light row
POOL
features
1 / 2
vsp
heater cleaner
pH
ON
POOL
vsp pump
ON
MED HIGH CUSTOMLOW
Touching the pump
button brings you
to the pump control
screen.
Pool Features Screen Pump Control Screen
ON
POOL
vsp pump
ON
MED HIGH CUSTOMLOW
Turn On / Turn Off - Slide this
switch manually to turn on/off the
pump. This will override sched-
ules or timer settings.
Status of Equipment - This is an
indicator only. When lit up and in
motion (shown below), the equipment is
active. When grayed out and stationary,
equipment is off. Set Schedule - Touch
this button to add/delete
a schedule for the filter
pump or to enable/disable
an existing schedule.
Countdown Timer -
Touch this button to set a
countdown timer for the
filter pump.
Change Speed- Manually select
the desired speed. This will not be
shown for single speed pumps. Low,
Med, and High are fixed speeds.
The Custom button will bring you to
a screen that allows you to select a
speed based on percentage or RPM
(determined during configuration).
POOL
vsp pump
Please press + button to add schedule items.
ON/OFF
end 7:00 pm
POOL
vsp pump
start 10:00 am
10
start / end
repeat
speed
am
pm
00
:

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
9
Set Schedule Time
Refer to the screen below to set the start and stop times. When finished, touch “repeat”.
Set Schedule Frequency
Refer to the screen below to select how often you’d like the schedule to run. If “custom” is selected,
you’ll be asked which day(s) of the week you would like the pump to run. Touch “speed” when
finished.
Set Pump Speed
Refer to the screen below to select the pump speed during the schedule. If custom is selected, you’ll
be asked to set the % pump speed or RPM depending on the setting. When finished, touch the Save
button to save the schedule.
NOTE: If you intend to run the pump at different speeds throughout the day, create additional sched-
ules. You can start a new schedule on the same minute that the previous one ends. If schedules
Set Start Time- Select this
button to edit the start time.
The pump will start at the time
shown.
Set End Time - Select this button to
edit the end time. The pump cycle will
end at the time shown.
Set Schedule Frequency
- Select how often you’d like
the schedule to run (week-
days, weekends, all week or
custom).
Set Pump Speed - Select this
button to change the pump
speed for the schedule.
Edit Time- Use these buttons to
change desired time.
Select Field- Touch Hours,
Minutes or AM/PM to edit.
end 7:00 pm
POOL
vsp pump
start 10:00 am
10
start / end
repeat
speed
am
pm
00
:
POOL
vsp pump
start / end
repeat
speed
weekdays all weekweekends
custom
POOL
vsp pump
01 10:00 am / 7:00 pm med all week
ON
POOL
vsp pump
start / end
repeat
speed
low highmed
custom
After saving, you’ll
be brought back to
the pump schedule
screen. The new
schedule will be dis-
played.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
10
overlap, the newest schedule’s start time will take priority by ending the previous schedule early. You
can create up to 20 schedules per device.
Edit a Schedule
To edit a schedule, touch the schedule as shown below. You’ll be brought back to the screen which
will allow you to set times, speed and frequency.
Turning a Schedule Off
There may be circumstances when you will want to turn off a schedule temporarily. To do this, slide
the On/Off button to “Off”. The schedule will remain off until you go back to this screen and turn it on.
Deleting a Schedule
Schedules can be deleted when they are no longer necessary. To delete a schedule, select the
schedule and touch Delete as shown below. A Delete button should appear on the side of the sched-
ule. Touch this Delete button to remove the schedule.
POOL
vsp pump
01 10:00 am / 7:00 pm med all week
ON
end 7:00 pm
POOL
vsp pump
start 10:00 am
10
start / end
repeat
speed
am
pm
00
:
POOL
vsp pump
01 10:00 am / 7:00 pm med all week OFF
Are you sure you want to delete
the schedule?
POOL
vsp pump
ON/OFF
01 10:00 am / 7:00 pm med all week
POOL
vsp pump
01 10:00 am / 7:00 pm med all week ON

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
11
Countdown Timer
A Countdown timer runs or enables equipment for the amount of time specified. You can initiate
the Countdown timer at the equipment’s control screen. At the countdown screen, set the desired
countdown time. In this case, the timer will run the pump for the specified countdown time. If the
equipment is already running due to a schedule, the countdown timer setting will override the sched-
ule and turn off at the end of the countdown interval. If the equipment is off, the countdown timer
will turn it on for the duration/speed that has been set.
Heater
Touching the Heater button in the Features Screen will let you enable/disable heaters, set priority,
set temperature, set a schedule and view the status of the heater for the selected Body of Water. An
example of the heater Control Screen is shown below:
POOL
vsp pump
time
speed
low highmed
custom
POOL
vsp pump
time
speed
0000 :
hours minutes
countdown duration
ON
POOL
vsp pump
ON
MED HIGH CUSTOMLOW
uclights chlorinator
alarm light row
POOL
features
1 / 2
vsp
heatercleaner
pH
ON
set temperature
65 F
POOL
heater
85 F
actual
Heater Control Screen

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
12
Setting and Changing Priority
If there is more than one heater configured for the body of water, the Set Priority button will appear in
the Heater Control Screen. If the Priority heater can not meet the demand for heat, the next heater
will be allowed to operate. Use Priority to maximize efficiency by allowing the most cost effective
heater(s) to run first.
The example below shows how to change priority to run the heat pump first, then, if it can’t meet
the demand for heat, the gas heater will be allowed to operate. Note that the time interval used for
heater priority can only be changed in the Configuration Wizard. Note that a time interval setting of
“0” will eliminate priority and always run both heaters at the same time.
ON
set temperature
65 F
POOL
heater
85 F
actual
Status of Equipment - When grayed
out and stationary, equipment is cur-
rently idle. When in motion, the heater
is actively heating.
Enable / Disable - Slide this
switch to enable and disable the
heater. The setting will not take
effect until the Save button is
touched. To turn on the heater,
adjust the setpoint higher than
the actual Body of Water tem-
perature and then Save.
Change Setting- This slider will
raise and lower the heater setpoint
setting.
Set Schedule - Touch
this button to set a
schedule for the heater.
Set Priority - If more than
one heater is configured
for the Body of Water, use
this button to set priority
and enable/disable physi-
cal heaters.
Save Setting - Setting is
not saved until this button is
pushed.
Enable and Disable Heaters -
When “Select Source” is highlighted,
touching a heater button will enable
and disable that heater. A grayed out
heater is disabled.
2
POOL
heater
Select Source Prioritize
1
1
POOL
heater
Select Source Prioritize
2
gas
POOL
heater
Select Source Prioritize
heat pump
gas
POOL
heater
Select Source Prioritize
heat pump
ON
set temperature
65 F
POOL
heater
85 F
actual
Heater Control Screen

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
13

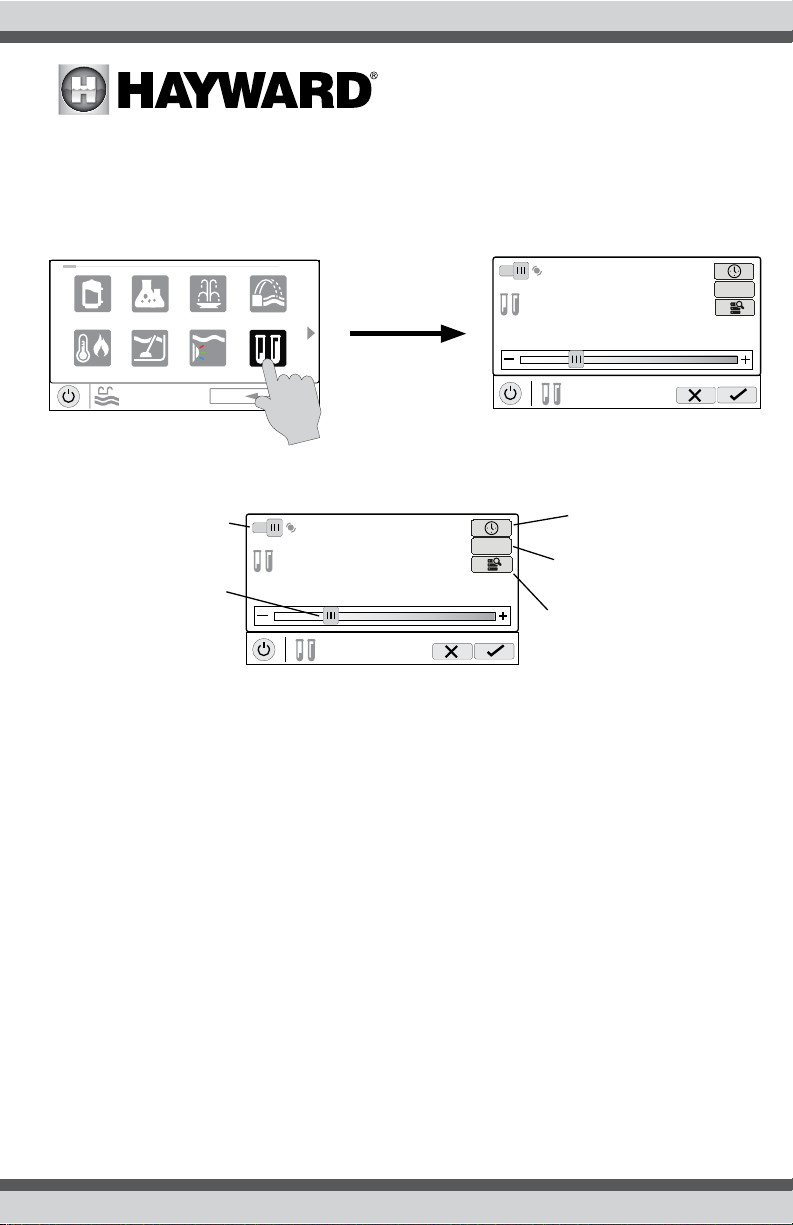

Chlorinator
If a chlorinator has been configured in the Configuration Wizard, you will see it in the Features
Screen. Touching the chlorinator button will bring you to the Chlorinator Control Screen that will allow
you to enable/disable the chlorinator, set a schedule, super chlorinate and view/change diagnostics.
A sample screen is shown below. For schedules, refer to the previous examples in this manual.
If using an HL-CHEM - The Hayward HL-CHEM Sense and Dispense accessory continuously tests
the pool’s sanitization and pH levels allowing the OmniPL to automatically generate the correct
amount of chlorine and dispense the proper amount of pH reducer. If using the HL-CHEM and ORP
has been enabled in the Configuration Wizard, the OmniPL will display chlorinator readings and set-
tings in “mV” rather than “%”. Refer to the information below as well as the HL-CHEM manual for
configuration and operation instructions.
Chlorinator Setting - The OmniPL can only generate chlorine while the filter pump is operating. Set
the percentage of run time that you desire chlorine generation. Raise this value to generate more
chlorine. Lower this value to generate less.
NOTE: After the initial setting, you may need to raise the setting when the pool water temperature
increases significantly, when there is higher than normal bather load or when your chlorinator cell
ages. You may need to lower the setting when the pool water temperature decreases significantly or
there are long periods of inactivity.
Super Chlorinate - When you have an unusually high bather load, a large amount of rain, a cloudy
water condition, or any other condition that requires a large amount of chlorine to be introduced to
the pool, activate the OmniPL Super Chlorinate function. The OmniPL will turn on the filter pump
(if not scheduled), set the pool/spa valves to the correct position, and set the chlorine generator to
uclights chlorinator
alarm light row
POOL
features
1 / 2
vsp
heater cleaner
pH
ON
15%
POOL
chlorinator
3200 ppm
average
SC
ON
15%
POOL
chlorinator
3200 ppm
average
SC

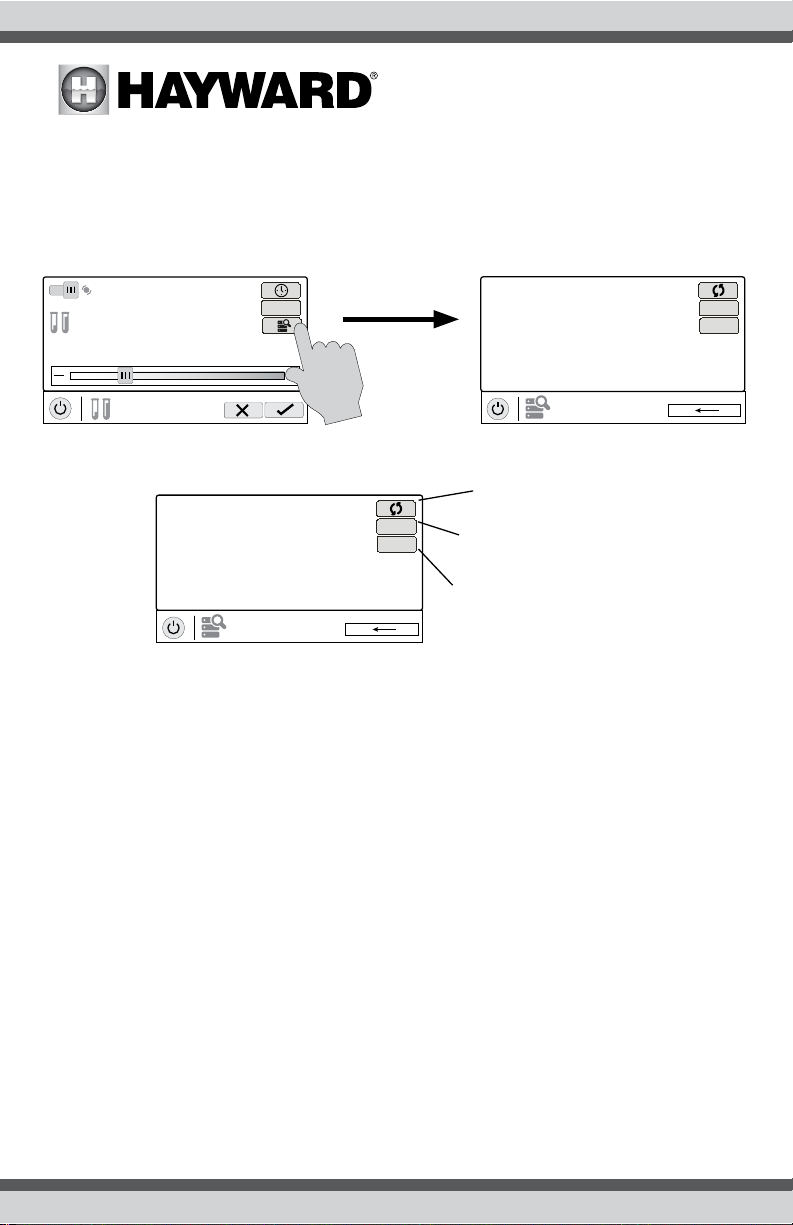

Chlorinator Diagnostics - Touch this
button to view diagnostics, set average
salt, change polarity, and to reset the
cell timer.
Enable / Disable - Slide this
switch to enable and disable the
chlorinator and then touch the
Save button.
Change Setting- This
slider will raise and lower the
chlorinator setpoint setting. If
an HL-CHEM is used and ORP
is enabled, the adjustment will
be displayed in “mV”.
Set Schedule - Touch this
button to set a schedule for
the chlorinator.
Super Chlorinate - Touch this
button to set the amount of hours
that you’d like to super chlorinate.
Chlorinator Control Screen

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14
maximum output. The super chlorinate function will continue for the programmed number of hours
overriding the normal filter pump schedule settings. At the end of the super chlorinate period, the
pool will return to normal operation. If you manually turn off the filter pump, the super chlorinate
function terminates.
Chlorinator Diagnostics
For the chlorinator to be operating, several conditions must exist: the filter pump must be running, the
flow switch must detect flow, the chlorinator setting must be greater than 0%, the water temperature
at the cell must be between 50ºF and 140ºF (superchlorinate will run under 50º except during freeze
protection), and the salt level must be within the operating range. If any of these conditions are not
met, the diagnostic screen will show that the chlorinator is off. Also, depending on the chlorinator
setting, the OmniPL may be in between cycles and the chlorinator is at rest (cell current shows
0.00A). To force the start of the new cycle, you can touch the Reverse Polarity button.
NOTE: If a conventional or solar heater is operating, it is likely that the temperature of the water at the
cell is higher than the pool/spa water temperature displayed on the OmniPL default display.
Restart Average Salt - The OmniPL monitors salt level while chlorinating. At any time, go to the
chlorinator diagnostic screen to view the average salt based on an ongoing calculated average. If
you restart average salt, the previous average is deleted and the OmniPL begins calculating the new
average from that moment. The OmniPL will start with the instant salt reading and calculate an
ongoing average.
Reverse Polarity - The OmniPL periodically reverses the polarity of the voltage applied to the
chlorinator cell in order to automatically clean off any calcium deposits. To check operation in both
polarities, touch this button. The chlorinator will turn off, wait for 15 seconds and then turn on in the
opposite polarity.
Reset Cell Maintenance Timer - To maintain maximum performance, it is recommended that you
open and visually inspect the chlorinator cell every 3 months or after cleaning your filter. The OmniPL
POOL
diagnostic
+/-
00.00
diagnostic
average salt: 3200 ppm
cell type: T-CELL-15
Reset Cell Maintenance Timer -
Touch to restart the timer.
Reverse Polarity - Touch this
button to reset the average salt
reading.
Restart Average Salt - Touch
this button to delete the existing
average salt reading. The OmniPL
will restart a new calculation using
the instant salt level.
ON
15%
POOL
chlorinator
3200 ppm
average
SC
POOL
diagnostic
+/-
00.00
diagnostic
average salt: 3200 ppm
cell type: T-CELL-15

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
15
will remind you to do this by displaying a message to clean and inspect the cell after approximately
500 hours of operation. You can restart the timer by touching this button.
pH Dispense
If using an HL-CHEM: The Hayward HL-CHEM Sense and Dispense accessory continuously tests
the pool’s sanitization and pH levels allowing the OmniPL to automatically generate the correct
amount of chlorine and dispense the proper amount of pH reducer. Refer to the information below
as well as the HL-CHEM manual for configuration and operation instructions.
pH Calibration
If the OmniPL pH reading differs from independent water tests, you can adjust the reading by touch-
ing the Calibrate button and using procedure below. You’ll be asked for the difference between
uclights chlorinator
alarmpH
POOL
features
1 / 2
vsp
heater cleaner
light row
ON Dispensing On
7.3
7.3
pH Dispense Control Screen
ON Dispensing On
7.3
7.3

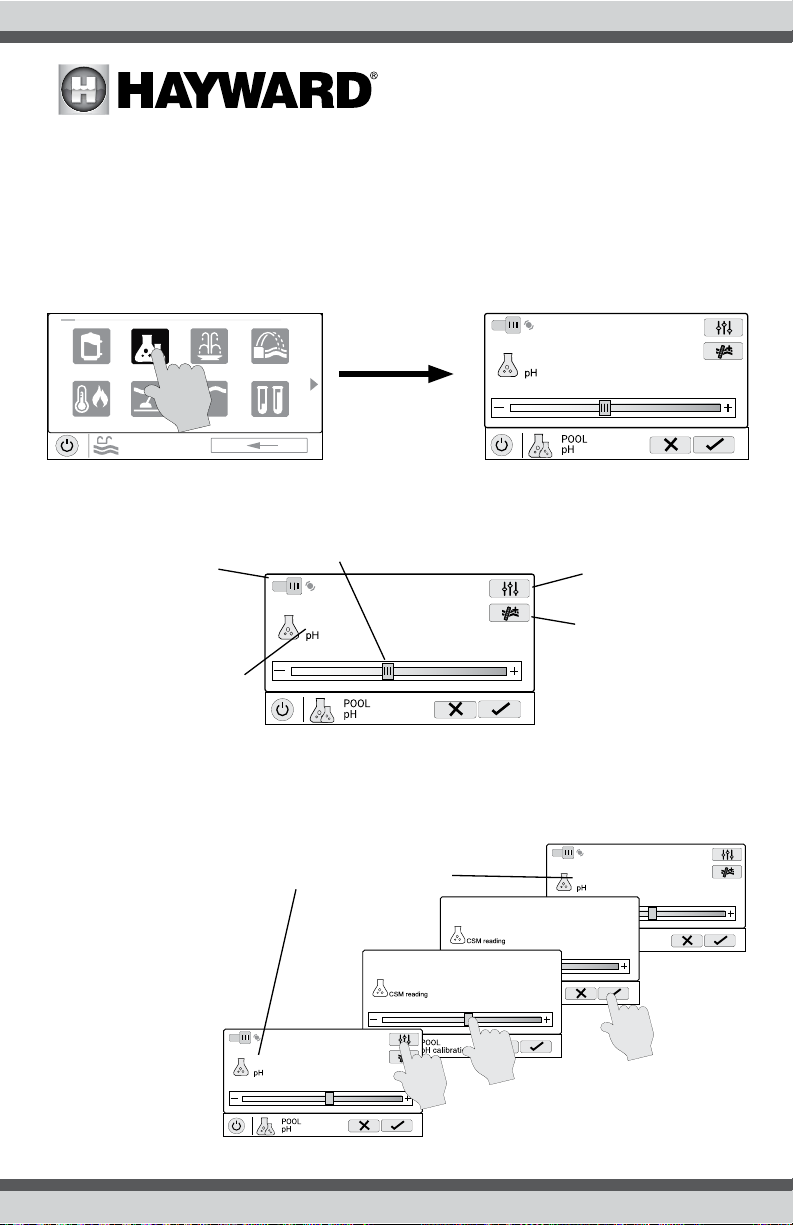

Set pH Level - Set
the desired pH level. Calibrate - Calibrate
the pH reading if the
OmniPL doesn’t display
the correct level.
Force 15 minute Run -
Touching this button will
force the dispenser to run
for 15 minutes. This is only
available in Service Mode.
Enable / Disable - Slide this
switch to enable and disable the
pH dispenser and then touch the
Save button.
Current pH Level - Shows the
current pH reading in the pool
or spa.
ON
Dispensing On
7.5
7.3
.2
7.3
.2
ON
Dispensing On
7.3
7.3
7.5
Calibrate reading from 7.3 to 7.5
the displayed pH level
and the true pH level.
You’ll want to select
the amount needed to
go from the displayed
level to the true level.
In the example below,
the displayed level is
7.3 and the true level
is 7.5. You need to add
.2 to the displayed level
to arrive at the true pH
level.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
16
ColorLogic Lights
You can set schedules for the ColorLogic light as well as a countdown timer. This procedure has
been shown previously. Note that after the countdown interval, the lights will go off regardless of
their previous state.
Light Show/Color - From the ColorLogic Control Screen, select the desired show or color. Use the
Advance button to show all of the available selections. Use the Light Show/Color button to switch
between all light shows and all solid colors.
Synchronize - Because changing colors and shows requires interrupting power to the ColorLogic
lights, there is a chance that the lights could lose synchronization due to timing issues. If you find
that the color or show does not correspond with the selection that you’ve made, the lights may be
out of sync. Touch the Synchronize button to re-sync the ColorLogic lights.
Omni Direct Mode (Universal ColorLogic Lights built after June 2018)
Universal ColorLogic lights built after June 2018 are capable of Omni Direct mode. To run in this
mode, select Omni Direct mode when configuring your lights in the Configuration Wizard (see Instal-
lation Manual). The OmniPL will test your lights during configuration to confirm that they support
Omni Direct mode. If so, the ColorLogic Control Screen will display a Settings icon rather than a
Synchronize button, which allows both Speed and Brightness control shown on the diagram below.
Note that Settings will also be an option when setting up schedules and timers for lights running
ColorLogic Lights
uclights chlorinator
alarm light row
POOL
features
1 / 2
vsp cooling
heater cleaner
ON
Lights
color shows
1 / 2
Mardi Gras
USA
VoodooLounge Tranquility
Twilight Gemstone
ColorLogic Control Screen
ON
Lights
color shows
1 / 2
Mardi Gras
USA
VoodooLounge Tranquility
Twilight Gemstone
Light Show/Color - This button
will change the selection between
light shows ( ) and solid colors
().
Selections - select the
desired light show or
solid color.
Synchronize- Touch this button to
synchronize the ColorLogic lights. The
ColorLogic lights will then default to
Voodoo Lounge.
Set Schedule - Touch this
button to set a schedule for the
ColorLogic lights.
Countdown Timer - Touch this
button to set a countdown timer
for the lights.
Turn On / Turn Off - Slide this
switch to manually turn on/off the
ColorLogic lights. This will over-
ride schedules or timer settings.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
17
in Omni Direct mode. Refer to your Universal ColorLogic manual for more information about Omni
Direct mode.
Other Lights

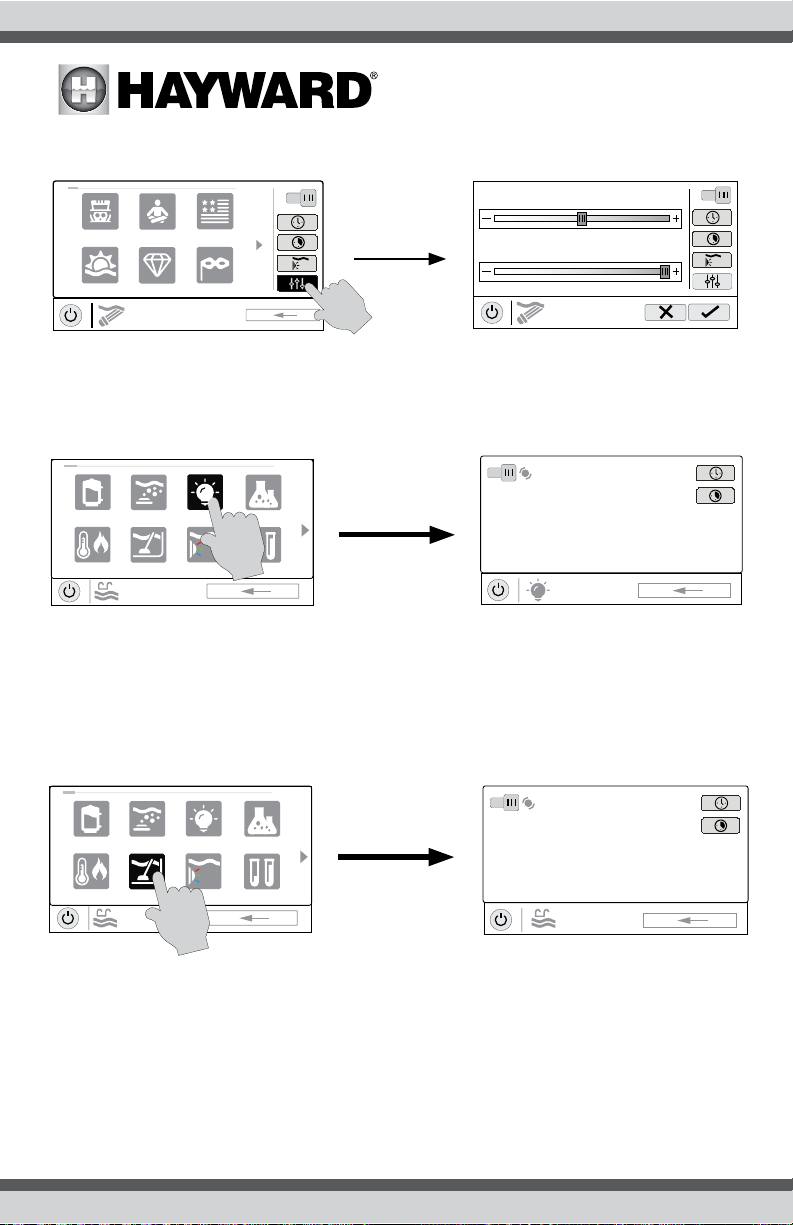

You can turn other lights on/off, set schedules, and set a countdown timer at the Other Lights Control
Screen shown above. These functions have been illustrated previously in this manual.
Cleaners
You can turn the cleaner on/off, set schedules, and set a countdown timer at the Cleaners Control
Screen shown below. You can also set pump speed if a two-speed or variable speed pump has
been configured to be used with the cleaner. These functions have been illustrated previously in
this manual.
Water Features
You can turn the water feature on/off, set schedules, and set a countdown timer at the Water Fea-
tures Control Screen shown on the top of page 18. You can also set pump speed if a two-speed or
variable speed pump has been configured to be used with the water feature. These functions have
been illustrated previously in this manual.
ON
Lights
color shows
1 / 2
Mardi Gras
USA
VoodooLounge Tranquility
Twilight Gemstone
ON
LIGHTS
settings
Brightness 100%
Speed 1x
ON
POOL
deck lights
ON
Other Lights Control Screen
uclights chlorinator
deck lights pH
POOL
features
1 / 2
vsp jets
heater cleaner
ON
POOL
cleaner
ON
Cleaners Control Screen
uclights chlorinator
deck lights pH
POOL
features
1 / 2
vsp jets
heater cleaner

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
18
Accessories
You can turn the accessories on/off, set schedules, and set a countdown timers at the Accessories
Control Screen shown below. You can also set pump speed if a two-speed or variable speed pump
has been configured to be used with the accessory. These functions have been illustrated previously
in this manual.
Schedule
The Schedule button appears in the Features Screen for all Bodies of Water regardless of what
equipment has been configured in the Configuration Wizard. It offers a convenient way to create and
edit schedules. Any equipment that has been configured for this Body of Water, and has an option
for schedules, will be shown in the Schedule Control Screen. Equipment that has been assigned a
schedule will show a clock symbol in the upper right side of the button. Touching any of these but-
tons will bring you to the schedule screen for that equipment. Create and edit schedules as shown
on page 8.
Spillover
If spillover is configured, you can turn spillover on/off, set schedules, and set a countdown timer at
the Spillover Control Screen. These functions have been illustrated previously in this manual.
ON
POOL
jets
ON
Water Features Control Screen
uclights chlorinator
deck lights pH
POOL
features
1 / 2
vsp jets
heater cleaner
ON
POOL
music
ON
Accessories Control Screen
POOL
features
2 / 2
music schedule
spillover
POOL
schedule
music
deck lights pH
vsp jets
uclights chlorinator
heater cleaner
Schedule Control Screen
POOL
features
2 / 2
music schedule
spillover

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
19

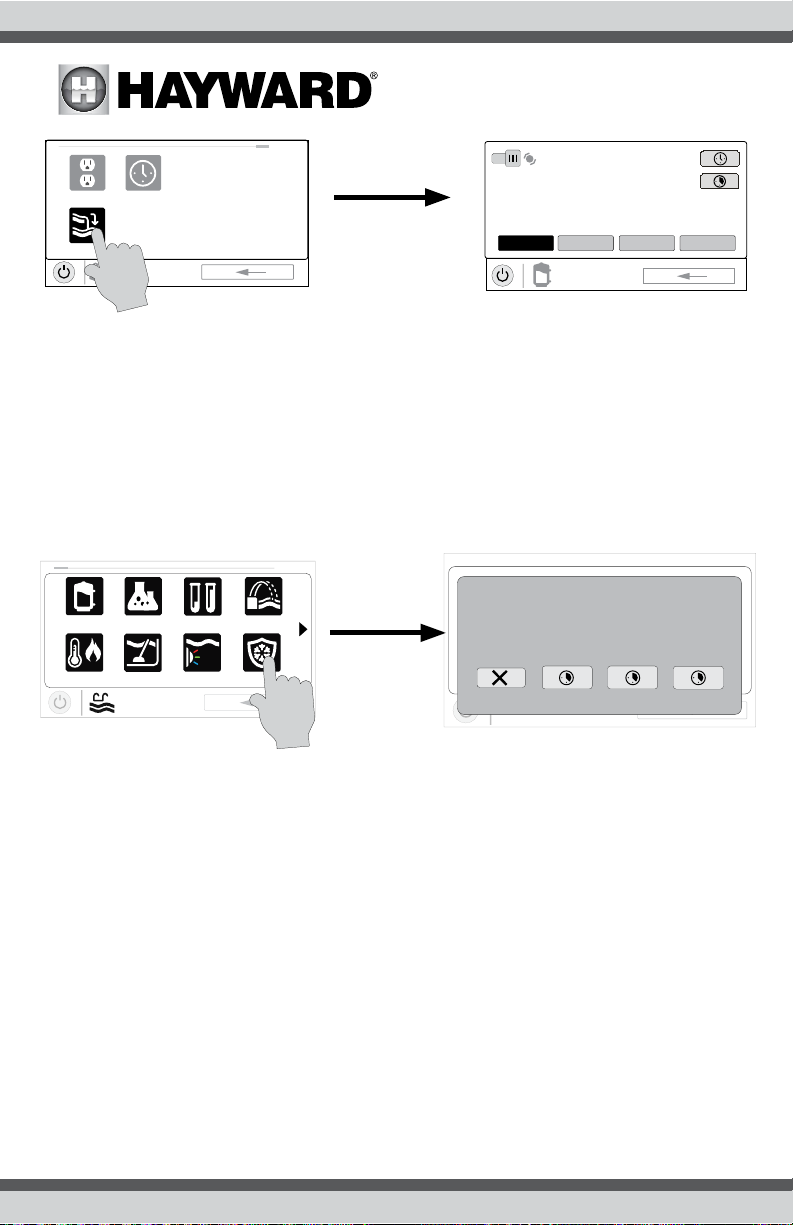

Freeze Protect Override
If freeze protection is enabled AND the air temperature falls below the freeze threshold, the OmniPL
will turn on the filter pump to circulate the water. If two bodies of water are configured, the valves
will also alternate between the pool and spa every 30 minutes and the filter pump will turn off while
the valves are turning. The chlorinator will not operate if freeze protection is the only reason the
pump is running. Freeze protection can be overridden for 60 minutes by touching the Freeze Prot.
button found in the Features Screen for the Body of Water with the highest heating priority (see
below). IMPORTANT: Ensure that equipment is protected from a freeze condition before overriding
this feature. To resume normal freeze protection, simply touch the Freeze Prot. button again.
Favorites
Favorites can be found on the right side of the Home Screen and offer control for equipment regard-
less of which Body of Water is being displayed. Favorites are also used to control equipment that has
been configured for the “Backyard”. Favorites offer quick easy access to frequently used functions
and most Favorites can be added to Simple Mode (page 34).
The OmniPL will automatically create some Favorites based on your system’s configuration. You can
also create your own Favorites. Once Favorites have been created, you can change the location in
which they appear on the Home Screen. In addition, if you no longer require a Favorite, it can be
deleted. The OmniPL supports up to a total of 50 Favorites.
In most cases, touching a Favorite button on the Home Screen will bring you to the same screens
that have been covered in the Control Screens section of this manual. Refer to these screens if
necessary.
ON
POOL
vsp pump
ON
MED HIGH CUSTOMLOW
Spillover Control Screen
POOL
features
2 / 2
music schedule
spillover
uclights
chlorinator light hung
1 / 2
vsp pH
heater cleaner
SPA
features
Freeze Prot.
Overriding Freeze Protect could cause
damage to your system. Are you sure?
60 min 120 min 180 min
