HBM Quantum X MX403B User manual

Operating Manual | Bedienungsanleitung |
Manuel d'emploi
English Deutsch Français
MX403B / MX809B
MX403B / MX809B

Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64239 Darmstadt
Tel. [phone]
Fax [phone]
[email protected]
www.hbm.com
Mat.: 7-2002.3757
DVS: A3757-2.2 HBM: public
05.2017
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
Änderungen vorbehalten.
Alle Angaben beschreiben unsere Produkte in allgemeiner
Form. Sie stellen keine Beschaffenheits- oder Haltbarkeits
garantie dar.
Sous réserve de modifications.
Les caractéristiques indiquées ne décrivent nos produits
que sous une forme générale. Elles n'impliquent aucune
garantie de qualité ou de durablilité.

Operating Manual | Bedienungsanleitung |
Manuel d'emploi
English Deutsch Français
MX403B
1250 V Ut 3000 V
1000 V CAT II
600 V CAT III

2A3757-2.2 HBM: public MX403B
English
1 Introduction 3..............................................
2 Safety instructions 6........................................
2.1 Warning signs and danger symbols 6...........................
2.1.1 Symbols on the measurement module 7........................
2.2 Proper use 7................................................
2.3 Measurement categories 9....................................
2.4 Operating conditions 11.......................................
2.5 Maintenance, repair and modification 12.........................
2.6 Cleaning 13..................................................
2.7 Transportation, storage and disposal 14.........................
2.8 Qualified Personnel 15........................................
2.9 Working safely 15.............................................
2.10 System integration 19.........................................
3 Additional markings used 20.................................
4 Scope of delivery 21.........................................
5 Accessories 22..............................................
6 MX403B operation 27........................................
6.1 Preparatory measures and starting up 27........................
6.2 Connection/measurement 28...................................
6.3 Status Display 30.............................................
7 Specifications 31............................................

MX403B A3757-2.2 HBM: public 3
1 Introduction
QuantumX is a modular data acquisition system from
HBM for demanding measurement and test functions.
The different inputs acquire mechanical, electrical,
hydraulic and thermal measurands, such as force, strain,
torque, pressure, displacement, temperature, rotational
speed, acceleration, position, flow rate, voltage, etc.
The MX403B voltage measurement module can measure
voltages as high as 1000 V, as well as small differential
voltages at high electric potential.
The QuantumX family documentation basically com
prises:
SThe current operating manual for the voltage mea
surement module (available in printed form)
SA quick start guide for initial start-up (available in
printed form)
SData sheets for the individual modules and acces
sories
SThe QuantumX operating manual with connection
descriptions and possible system topologies and
states
SThe operating manual for the EtherCAT1) / Ethernet
Gateway CX27
SThe operating manual for data recorder CX22-W /
CX22
SA comprehensive online help with index and easy
search options which is available after the installation
1) EtherCAT®is a registered brand and patented technology, licensed by Beckhoff Automation
GmbH, Germany

4A3757-2.2 HBM: public MX403B
of a software package (e.g. QuantumX Assistant, cat
manEASY)
These documents can be found:
SOn the QuantumX system CD supplied with the device
SAfter installing the QuantumX Assistant on the hard
drive of your PC
SUp-to-date versions are always available from our
Internet site at http://www.hbm.com/hbmdoc
Notice
When working with the MX403B, always take note of the
standard operating manual (I2322) as well.
The high level of protection of the MX403B is guaranteed
by consistent development in accordance with the latest
conditions specified in the measuring equipment stan
dards IEC 61010-1:2010+Cor.:2011 and
IEC 61010-2-030:2010+Cor.:2011, as well as by VDE
certification and production monitoring.

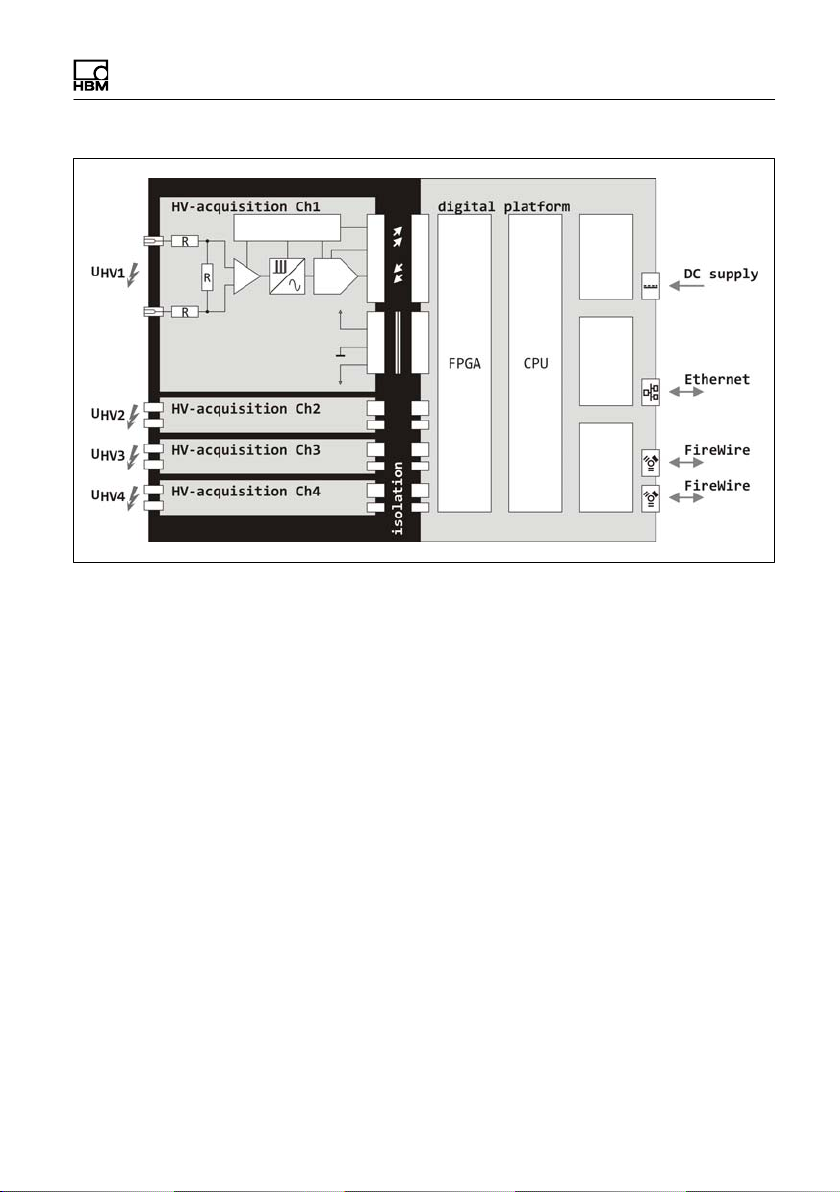

The MX403B has four insulated differential measurement
channels for directly measuring voltages up to 1000 V DC
or 1000 V rms AC.
The different measuring ranges allow the acquisition of
high voltages to remote ground, as well as the measure
ment of small differential voltages at high potential to
remote ground.
The connection is made with 4 mm safety lab jacks,
19 mm pitch, suitable for standardized BNC adapters.
Each channel is equipped with a programmable amplifier,
analog reconstruction and antialiasing filters, a 24bit
ADC and digital filters.

MX403B A3757-2.2 HBM: public 5

6A3757-2.2 HBM: public MX403B
2 Safety instructions
This measurement module is built and tested in accor
dance with EN 61010, Safety Requirements for Electrical
Equipment for Measurement, Control and Laboratory
Use, and was in perfect condition when it left production.
To maintain this condition and ensure risk-free operation
(reducing residual risks, EN 610101:2010 17 c), the user
must comply with the instructions and warning notices
contained in this operating manual.
2.1 Warning signs and danger symbols
Important instructions for your safety are specifically iden
tified. It is essential to follow these instructions in order to
prevent accidents and damage to property.
DANGER
This marking warns of an imminently threatening danger
ous situation which - if safety requirements are disregarded
- will result in death or serious physical injury.
Notice
This marking draws attention to a situation which - if dis
regarded - can result in damage to property.

MX403B A3757-2.2 HBM: public 7
2.1.1 Symbols on the measurement module
Take details in the operating manual into account
Read and comply with the operating manual.
2.2 Proper use
The MX403B voltage measurement module fits perfectly
into the modular QuantumX series and is solely used to
measure high differential voltages or differential voltages
at high potential to remote ground, within the ratings
stated in the specifications.
The device is not intended for use as a safety compo
nent. Please also refer to the section: "Additional safety
precautions".
Proper and safe operation requires proper transportation,
correct storage, siting and mounting, and careful opera
tion.
Everyone involved with siting, starting up, or operating
the measurement module must have read and under
stood the operating manual and in particular the technical
safety instructions.
In the interests of safety, the measurement module
should only be operated by qualified personnel (see
below) and as described in the operating manual. It is
also essential to comply with the legal and safety require
ments for the application concerned during use. The
same applies to the use of accessories.

8A3757-2.2 HBM: public MX403B
DANGER
If the measurement module is not used as intended, the
protection provided by the measurement module may be
impaired.
DANGER
If the measurement module is used outside the ratings,
the protection provided by the measurement module may
be impaired.
