1. Read all instructions in this manual before
using the AEROFLYER.
2. It is the responsibility of the owner to ensure
that all users of the AEROFLYER are adequate-
ly informed of all warnings and precautions.
3. Use the AEROFLYER only as described.
4. Use the AEROFLYER only on a level surface.
Cover the floor beneath the AEROFLYER to
protect the floor or carpet.
5. Make sure that there are no persons or
obstacles within two feet of the front or back
of the AEROFLYER.
6. Inspect and tighten all parts of the
AEROFLYER regularly. Replace any worn
parts immediately.
7. Keep children and pets away from the
AEROFLYER at all times.
8. The AEROFLYER should not be used by
persons weighing more than 250 pounds.
9. Keep hands and feet away from moving parts.
10. Do not wear loose clothing that could
become caught on the AEROFLYER.
11. Always wear athletic shoes for foot protec-
tion when exercising on the AEROFLYER.
12. When you are getting onto and off the
AEROFLYER, tighten the resistance dials,
hold the handles firmly, and center your body
weight directly over the pedals.
13. Always wear the nylon belt when using the
AEROFLYER.
14. Always hold the handgrips on the handles or
place your hands beside the hip pad on the
frame when using the AEROFLYER.
15. If you feel faint, dizzy, or short of breath while
exercising, stop immediately and begin
cooling down.
16. When the AEROFLYER is not in use, always
fold it to the storage position and unbuckle
the nylon belt.
17. When folding the AEROFLYER for storage,
hold the resistance dials to prevent your
hands from being pinched.
18. The AEROFLYER is intended for home use
only. Do not use the AEROFLYER in any
commercial, rental, or institutional setting.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the AEROFLYER.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. HealthRider assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
The decals shown below have been placed on the AEROFLYER. If one of the decals is missing, or if it is
not legible, please call our Customer Service Department toll-free at 1-800-999-3756 to order a free
replacement decal. Apply the decal in the location shown.
WARNING
¥ The safety belt may present a
hazard to children.
¥ Unbuckle safety belt when the
AeroFlyer is not in use.
¥ Never allow children to play on or
around the AeroFlyer.
¥ Fold up AeroFlyer when not in use.

4
BEFORE YOU BEGIN
Handle
Handgrip
Resistance Dial
Leg
Link Arm
Hip Pad
Electronic Monitor
Pedal
Storage Hole
Upright
Lock Knob
Frame
Nylon Belt
Thank you for selecting the innovative HealthRider¨
AEROFLYER. The AEROFLYER blends advanced
engineering with contemporary styling to provide you
with a no-impact, total body workout in the conve-
nience and privacy of your own home.
For your benefit, read this manual carefully before
using the AEROFLYER. If you have questions after
reading the manual, call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is HRAW56070. The
serial number can be found on a decal attached to the
AEROFLYER (see the front cover of this manual for
the location of the decal).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

Assembly requires two people. Place all parts of the AEROFLYER in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Read through all steps before beginning assembly. As you assemble the AEROFLYER, make sure that all parts
are oriented as shown in the drawings. Tighten all parts as you assemble them, unless instructed to do other-
wise. Refer to the drawings below to identify the small hardware used in assembly. Note: If a part is not found
in the parts bag, check to see if it has been pre-attached.
Assembly requires two adjustable wrenches , a hammer , and a phillips
screwdriver (not included).
5
ASSEMBLY
1. Read all instructions at the top of this page
before beginning assembly.

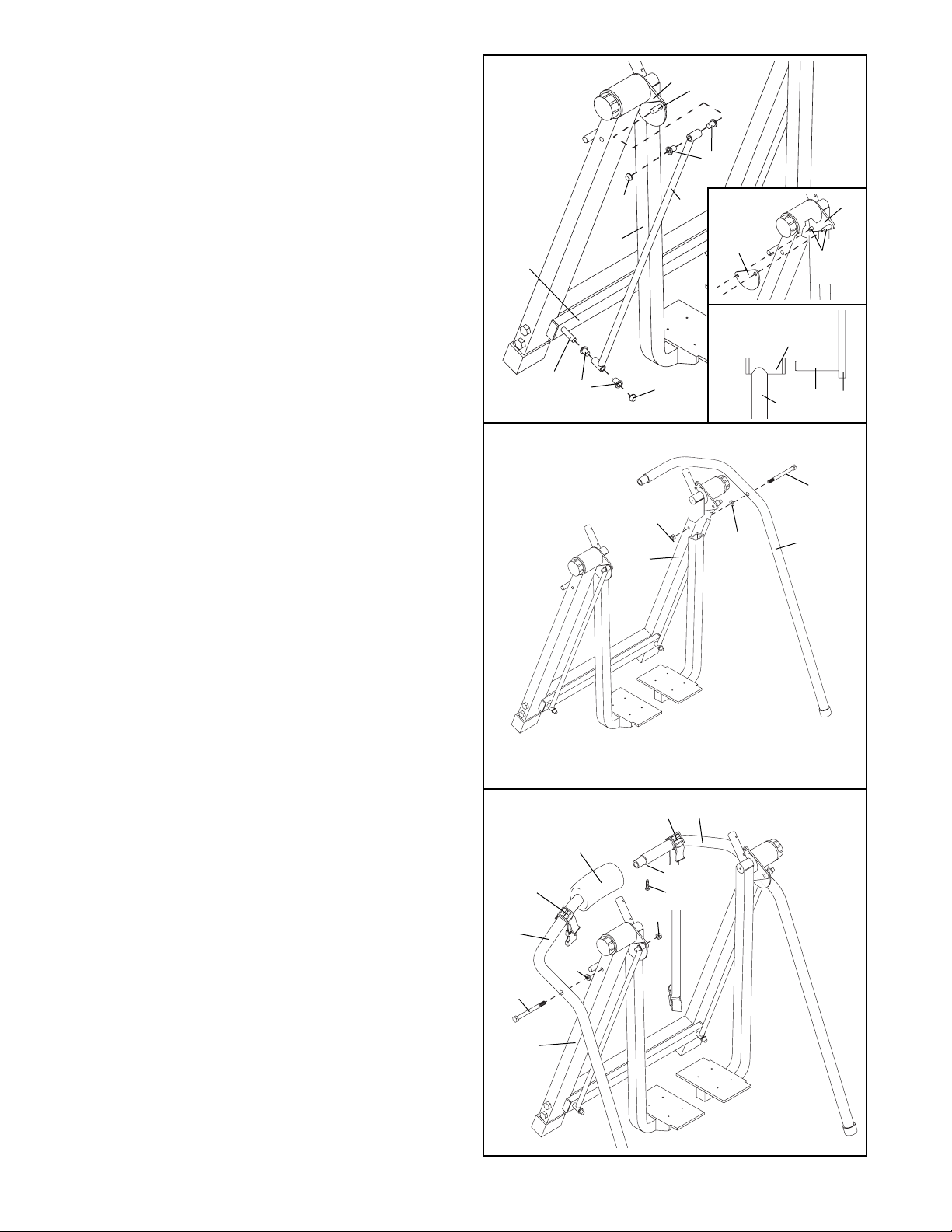

Refer to the drawing at the right and identify the
Left and Right Uprights (1, 2). Note the location of
the stop rods.
Turn the Crossbar (10) so the Rocker Arm (9) is at
the top. Attach the Crossbar to the Left Upright (1)
with two 3/8Ó x 4Ó Screws (44) and two 3/8Ó Flat
Washers (39). Do not tighten the Screws yet.
Attach the Crossbar to the Right Upright (2) in the
same manner.
Fig. 1
3/8" Nylon Locknut (43)Ñ4 3/8" Flat Washer (39)Ñ10
Plastic Spacer (41)Ñ2
#8 x 1/2" Screw (23)Ñ7
3/8Ó Bushing (16)Ñ4
#8 x 1/2" Pedal Screw (21)Ñ8
Lock Washer (58)Ñ1
3/8" Axle Cap (40)Ñ2
3/8Ó Screw (42)Ñ2
3/8" x 4" Screw (44)Ñ4
1
Stop
Rods
44
39
10 9
2

6
3. Attach the Right Frame Section (6) to the Right
Upright (2) with a 3/8Ó Screw (42), a Plastic
Spacer (41), and a 3/8Ó Nylon Locknut (43). Do
not tighten the Nylon Locknut yet.
4. Slide the long end of the Nylon Strap (59) onto
the Right Frame Section (6) as shown. Slide the
short end of the Nylon Strap (59) and the Hip Pad
(28) onto the Left Frame Section (5).
Slide the Left and Right Frame Sections (5, 6)
together. Make sure that the indicated hole is
accessibleÑif necessary, slide the Hip Pad (28) to
the side. Attach the Frame Sections with a #8 x
1/2Ó Screw (23). Do not tighten the Screw yet.
Attach the Left Frame Section (5) to the Left
Upright (1) with a 3/8Ó Screw (42), a Plastic
Spacer (41), and a 3/8Ó Nylon Locknut (43).
Tighten all parts used in steps 1, 3, and 4.
Center the Hip Pad (28) on the Left and Right
Frame Sections (5, 6).
Fig. 3
6
2
42
41
43
7
9
1
40
16
40
Pin
Pin
2. Refer to figure 2b. Slide a Finger Guard (54) onto
the pins on the Left Pivot Bracket (7). Note: The
Finger Guards may already be attached.
Find the Left Link Arm (11), which is labeled with a
ÒleftÓ sticker. Make sure that there are two 3/8Ó
Bushings (16) in each end of the Link Arm. Slide
one end of the Link Arm onto the indicated pin on
the Left Pivot Bracket (7). Make sure that the Link
Arm is turned as shown in figure 2c. Tap a 3/8Ó
Axle Cap (40) onto the pin. Slide the other end of
the Link Arm onto the pin on the Rocker Arm (9).
(Note: It may be necessary to pivot the Rocker Arm
and the Left Leg [1] slightly.) Tap a 3/8Ó Axle Cap
(40) onto the pin.
Attach the other Finger Guard and the Right Link
Arm (not shown) in the same manner.
Fig. 2a
11
Fig. 2c
Fig. 2b
54
7
7
Pins
Pin
16
11
Long
Side
28
59
59
23
5
42
1
41
43
6
Fig. 4
Hole

7
5. Attach the Right Pedal Cover (27) to the lower
end of the Right Leg (2) with four #8 x 1/2Ó Pedal
Screws (21).
Attach the Left Pedal Cover (26) to the Left Leg
(1) in the same manner.
8. Slide one of the Handles (13) onto the Left Leg
(3). Attach the Handle with two #8 x 1/2Ó Screws
(23). Note: There are holes in the top and bottom
of the Handle. If the Screws cannot be inserted
into the top holes, insert them into the bottom
holes.
Attach the other Handle (13) to the Right Leg (4)
in the same manner.
6. The Electronic Monitor (37) requires two ÒAAÓ
batteries (not included)Ñalkaline batteries are
recommended. Press the tab on the battery cover
and remove the battery cover. Insert two ÒAAÓ
batteries into the Electronic Monitor. Make sure
that the batteries are turned as shown.
Replace the battery cover.
7. Remove the two indicated #8 x 1/2Ó Screws (23)
from the Right Upright (2). Attach the Monitor
Bracket (45) to the Right Upright with the Screws.

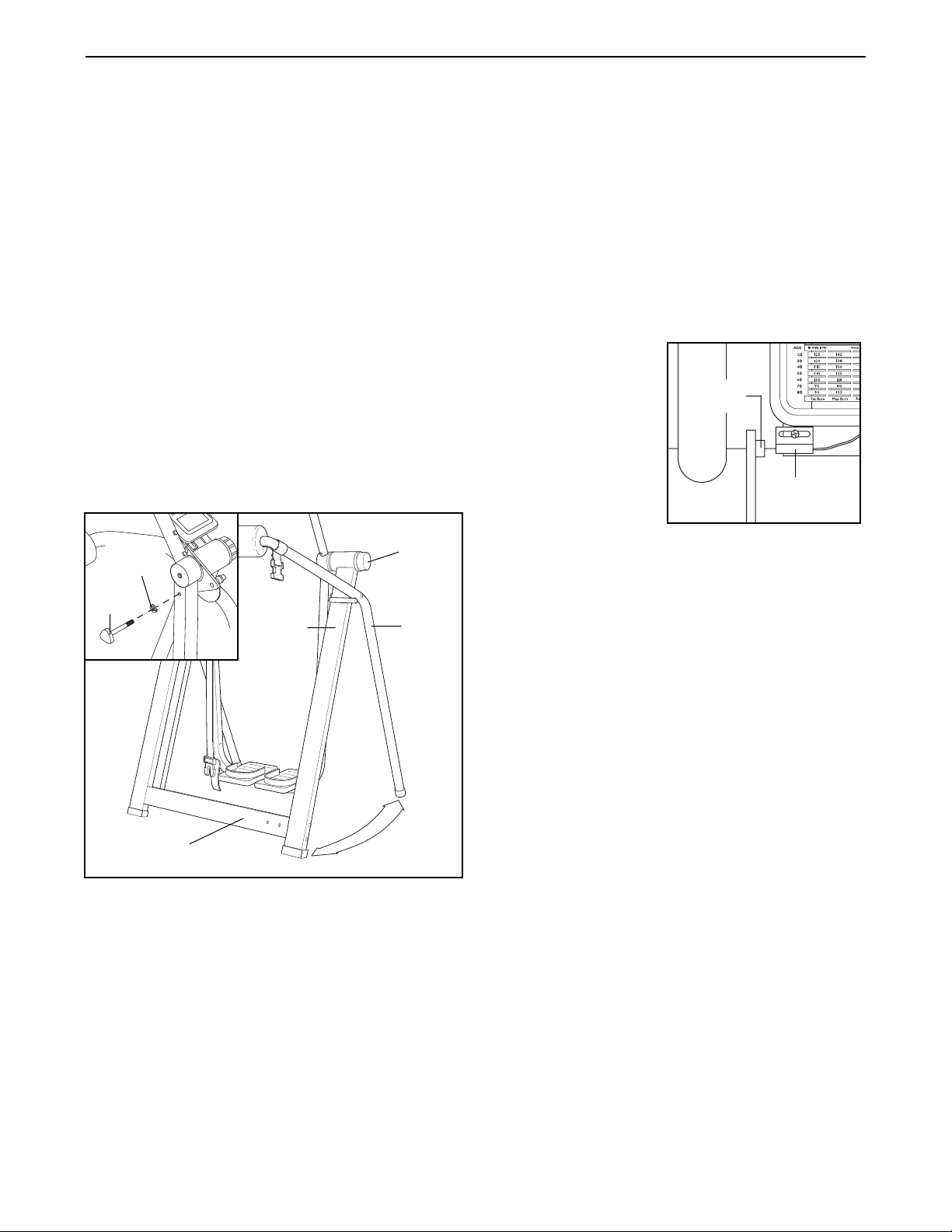

Note: If the Electronic Monitor (37) does not oper-
ate properly, see HOW TO ADJUST THE REED
SWITCH on page 11.
45
23
2
37
37
Batteries
Battery
Cover
27
26
21
1
2
Fig. 6
Fig. 7
Fig. 5
13 23
3
4
13
Fig. 8

8
Note: Extra #8 x 1/2Ó Screws (23) may be included. Before you use the AEROFLYER, firmly retighten all of
the parts used in assembly.
9. Attach the Right Leg Cover (31) to the Right Leg
(4) with a Tree Fastener (32).
Attach the Left Leg Cover (30) to the Left Leg (3)
in the same manner.
Slide a Lock Washer (58) onto a Lock Knob (25).
Insert the Lock Knob into the hole near the top of
the Right Leg (4). Tighten the Lock Knob into the
Right Pivot Bracket (8).
Attach the other Lock Knob (25) to the Left Leg
(3) in the same manner.
31
30
4
8
3
32
25
58
Fig. 9

9
HOW TO USE THE AEROFLYER
The unique AEROFLYER can be used in either the
dependent mode or the independent mode. In the
dependent mode, as one pedal moves forward, the
other pedal moves back an equal distance. In the
independent mode, the pedals move independently of
each other, allowing a freer movement.
HOW TO USE THE DEPENDENT MODE
Make sure that the lock knobs are tightened into the
legs and pivot brackets (see assembly step 9 on page
8). Tighten the resistance dials, hold the handles, and
step onto the pedals.
Wrap the nylon
belt around your
waist as shown
and buckle the
ends together.
Make sure that
the buckle is
fully engaged.
Adjust the length
of the nylon belt,
if necessary.
The proper form for exercising on the AEROFLYER is
similar to the motion of walkingÑmove one leg
forward as you move the other leg back.
For a full body workout, hold the handles as you walk,
and move your arms and legs in motion with the
handles and pedals. To vary the effect of the exercise,
stand erect or lean against the hip pad, or bend your
legs slightly instead of keeping them straight.
For a lower body workout, place your hands on the
frame beside the hip pad as you exercise.
HOW TO USE THE INDEPENDENT MODE
Remove the lock knobs and lock washers from the
legs. Insert one lock knob with a lock washer into the
storage hole in the crossbar. Insert the other lock
knob with a lock washer through the crossbar and
tighten the lock knob into the rocker arm.
Tighten the resistance dials, hold the handles, and
step onto the pedals. Put on the nylon belt. Exercise
as described at the left. CAUTION: When using the
independent mode, be careful to control your
movement and maintain your balance at all times.
RESISTANCE ADJUSTMENT
To vary the intensity of your exercise in the dependent
mode, the resistance of the AEROFLYER can be
changed. To increase the resistance, turn the resis-
tance dials clockwise. To decrease the resistance,
turn the resistance dials counterclockwise.
Resistance
Dials
Nylon
Belt
Storage
Hole
Rocker Arm
Crossbar
CAUTION: When you are getting onto and off
the AEROFLYER, tighten the resistance dials,
hold the handles firmly, and center your body
weight directly over the pedals.
CAUTION: Always wear the nylon belt when
using the AEROFLYER.
CAUTION: Always hold the handgrips on the
handles or place your hands beside the hip
pad on the frame when using the
AEROFLYER.

10
ELECTRONIC MONITOR MODES
The simple-to-operate electronic monitor offers
five different modes to provide instant exercise
feedback. The five modes are described below:
SpeedÑDisplays the number of repetitions you are
performing per minute.
TimeÑDisplays the length of time you have exer-
cised. Note: If you stop exercising for ten seconds or
longer, the time mode will pause until you resume.
DistanceÑDisplays the total number of repetitions
you have completed, up to Ò999.Ó The display will then
reset to Ò0Ó and continue counting.
CaloriesÑDisplays the approximate number of
Calories you have burned. Note: If the resistance is
near the highest or lowest setting, the actual number
of Calories you have burned will be slightly higher or
lower than the number displayed.
ScanÑDisplays the speed, time, distance, and calo-
ries modes, for approximately 5 seconds each, in a
repeating cycle.
DIAGRAM OF THE ELECTRONIC MONITOR
1. LCD displayÑDisplays all modes.
2. Mode indicatorsÑShow which mode is selected.
3. Mode buttonÑSelects all modes.
4. On/Reset buttonÑTurns the power on and resets
all modes.
OPERATING THE ELECTRONIC MONITOR
1. To turn on the power, press the on/reset button or
simply begin exercising on the AEROFLYER. The
entire display will appear for two seconds. The
electronic monitor will then be ready for operation.
2. Select one of the five modes:
Scan modeÑWhen the power is turned on, the
scan mode will be selected automatically. The
scan mode can also be selected by repeatedly
pressing the mode button. One mode indicator will
show that the scan mode has been selected, and
a second mode indicator will show which mode is
currently displayed.
Speed, time, distance, or calories modeÑ
These modes can be individually selected by
repeatedly pressing the mode button. The mode
indicators will show which mode has been select-
ed. (Make sure that the scan mode is not select-
ed.) The modes will be selected in the following
order: speed, time, distance, calories, scan.
3. The monitor has an auto-off feature to turn off
the power. If the pedals are not moved and the
monitor buttons are not pressed for four minutes,
the power will turn off automatically in order to
conserve the batteries.
To reset the LCD display, press the on/reset button.
1
2
34

Inspect and tighten all parts of the AEROFLYER
regularly. Replace any worn parts immediately. The
AEROFLYER can be cleaned with a soft, damp cloth.
Keep liquids away from the electronic monitor. Keep
the monitor out of direct sunlight or the display may
be damaged. Remove the batteries when storing the
AEROFLYER.
HOW TO FOLD THE AEROFLYER FOR STORAGE
When the AEROFLYER is not in use, it should be
folded to the compact storage position. To fold the
AEROFLYER, first remove the lock knobs and lock
washers from the legs. Insert the lock knobs and lock
washers into the holes in the crossbar. Next, hold the
resistance dials and fold the frame and the uprights
together. CAUTION: When the AEROFLYER is not
in use, always fold it to the storage position and
unbuckle the nylon belt. Place the AEROFLYER in
a location where it cannot fall.
REPLACING THE BATTERIES
If the display of the electronic monitor becomes dim,
or if the monitor does not function properly, the batter-
ies should be replaced. To replace the batteries, refer
to assembly step 6 on page 7.
HOW TO ADJUST THE REED SWITCH
If the speed and distance modes do not display cor-
rect information, the reed switch should be adjusted.
The reed switch is
located below the
electronic monitor
(see the drawing at
the right). Loosen the
screw in the reed
switch, move the reed
switch to the side
slightly, and retighten
the screw. Make sure
that the reed switch
does not hit the
indicated magnet when the AEROFLYER is in use.
Repeat until the speed and distance modes display
correct information.
11
STORAGE AND TROUBLE-SHOOTING
Reed
Switch
Magnet
Frame
Crossbar
Upright
Resistance
Knob
Lock
Knob
Lock
Washer

12

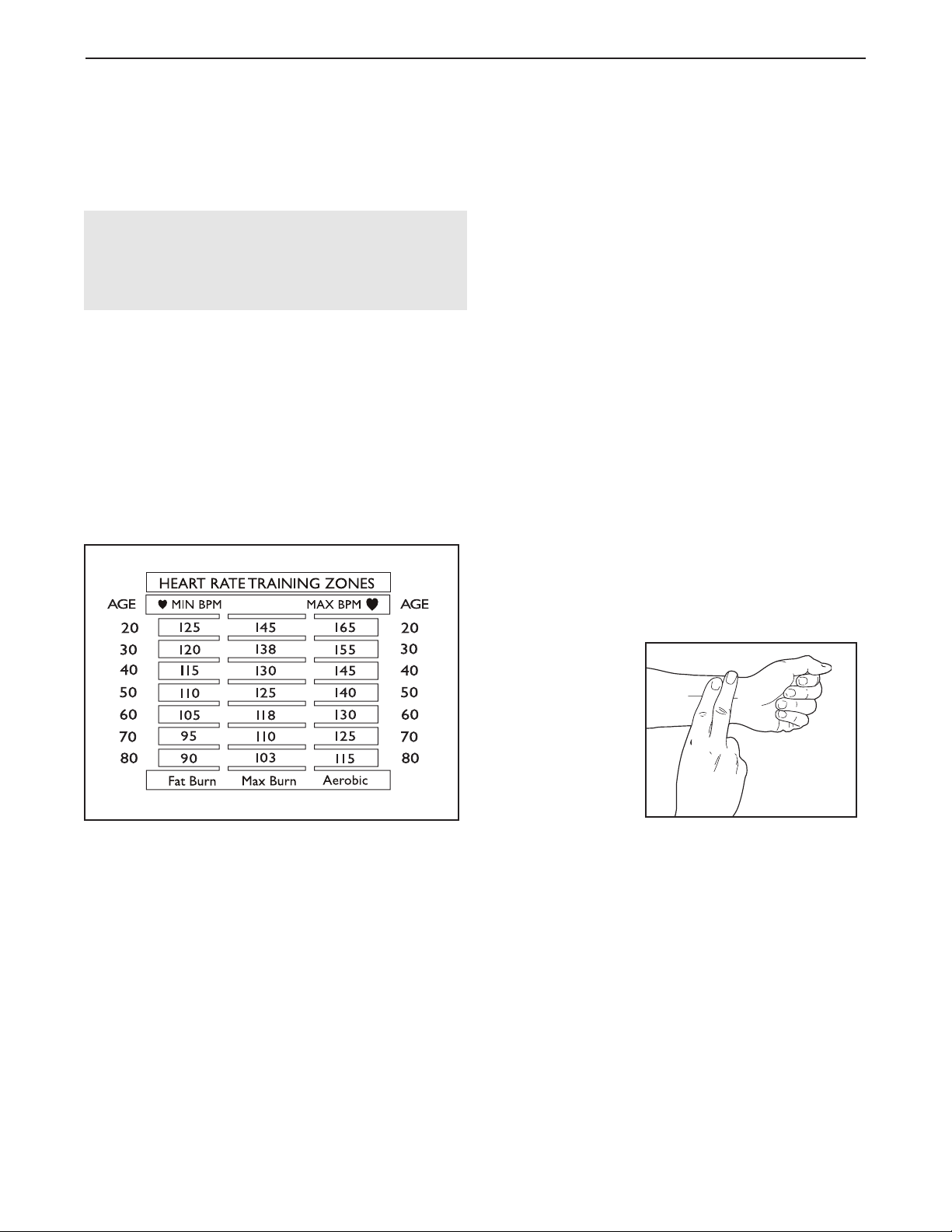

The following general guidelines will help you to plan
your exercise program. Remember that proper nutri-
tion and adequate rest are essential for successful
results.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat burn-
ing, and cardiovascular (aerobic) exercise. (This chart
is also found on the console.)
To find the proper heart rate for you, first find your age
on either side of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers to the
side of your age. The three numbers are your Òtraining
zone.Ó The lowest number is the recommended heart
rate for fat burning; the middle number is the recom-
mended heart rate for maximum fat burning; the high-
est number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust your pace or the resis-
tance until your heart rate is near the lowest number
in your training zone as you exercise.
For maximum fat burning, adjust your pace or the
resistance until your heart rate is near the middle
number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust your pace or the resistance until your heart rate
is near the highest number in your training zone as
you exercise.
HOW TO MEASURE YOUR HEART RATE
To measure your heart rate, first exercise for at least
four minutes. Then, stop exercising and place two fin-
gers on your wrist as shown. Take a six-second heart-
beat count, and
multiply the result
by 10 to find your
heart rate. For
example, if your
six-second heart-
beat count is 14,
your heart rate is
140 beats per
minute. (A six-sec-
ond count is used
because your
heart rate will drop rapidly when you stop exercising.)
Adjust the intensity of your exercise until your heart
rate is at the desired level. You can adjust the intensity
of your exercise by changing your pace or by adjust-
ing the resistance.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases the
body temperature, heart rate, and circulation in prepa-
ration for strenuous exercise.
CONDITIONING GUIDELINES
WARNING: Before beginning this or any exercise
program, consult your physician. This is espe-
cially important for individuals over the age of 35
or individuals with pre-existing health problems.

13
Training zone exercise, consisting of 20 to 30
minutes of exercising with your heart rate in your train-
ing zone.
A cool-down, with 5 to 10 minutes of stretching.
Thorough stretching helps to offset problems caused
when you stop exercising suddenly. Stretching for
increased flexibility is also most effective after exercis-
ing. A proper cool-down should leave you relaxed and
comfortably tired.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown in the
drawings below. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
1
2
3
4

14
PART LISTÑModel No. HRAW56070 R0397A
Note: Extra #8 x 1/2Ó Screws (23) may be included. Specifications are subject to change without notice. See the
back cover of this manual for information about ordering replacement parts.
Key No. Qty. Description
1 1 Left Upright
2 1 Right Upright
3 1 Left Leg
4 1 Right Leg
5 1 Left Frame Section
6 1 Right Frame Section
7 1 Left Pivot Bracket
8 1 Right Pivot Bracket
9 1 Rocker Arm
10 1 Crossbar
11 1 Left Link Arm
12 1 Right Link Arm
13 2 Handle
14 2 Resistance Dial
15 2 Friction Disk w/Spacer Plate
16 8 3/8Ó Bushing
17 2 Friction Cup
18 4 Thrust Washer
19 8 Tension Washer
20 2 Snap Ring
21 8 #8 x 1/2Ó Pedal Screw
22 2 Rubber Foot
23 12 #8 x 1/2Ó Screw
24 2 Handgrip
25 2 Lock Knob
26 1 Left Pedal Cover
27 1 Right Pedal Cover
28 1 Hip Pad
29 2 Frame Endcap
30 1 Left Leg Cover
31 1 Right Leg Cover
32 6 Tree Fastener
Key No. Qty. Description
33 2 Hex Bushing
34 2 Hub Resistance Bushing
35 2 Rocker Arm Endcap
36 1 Large Axle Cap
37 1 Electronic Monitor
38 1 Magnet
39 4 3/8Ó Flat Washer
40 4 3/8Ó Axle Cap
41 2 Plastic Spacer
42 2 3/8Ó Screw
43 2 3/8Ó Nylon Locknut
44 4 3/8Ó x 4Ó Screw
45 1 Monitor Bracket
46 2 Frame End Plate
47 1 Reed Switch/Wire
48 3 Console Screw
49 2 Thrust Bearing
50* 1 Monitor Assembly
51 2 Weld Spacer
52 1 Washer
53 1 ÒDÓ Bushing
54 2 Finger Guard
55 2 Phoenix Ring
56 2 1Ó x 1 3/4Ó Washer
57 2 Pushnut
58 2 Lock Washer
59 1 Nylon Belt
# 1 UserÕs Manual
* Includes all parts shown in the box
# Non-illustrated part

23
5
29
46
44
44
39
39
42
41
40
11
43 40
14
19
17
20
34
1
28
13
24
24
33
15
7
3
25
30 32
26
36
35
9
10
35
32
31
4
12
25
8
38
15
23
23
13
40
43
2
39
41
44
39
46
40 29
6
42
17
19
14
18
20
34 49
18
49
50*
51
52
53
51
16
16
16
16
27
48
47
37
48
45
16
54 16
16
54
55
50*
55
33
56
56
57
23
21
58
57
22
19
19
22
59
23
32
32
21
21
58
23
23
23
EXPLODED DRAWINGÑModel No. HRAW56070 R0397A
15

Part No. 137752 G01004-C R0397A Printed in USA © 1997 HealthRider Corp.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre-
pared to give the following information when calling:
¥ The MODEL NUMBER of the product (HRAW56070).
¥ The NAME of the product (HealthRider¨AEROFLYER).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the part(s) from page 14 of this manual.
HealthRider¨is a registered trademark of HealthRider Corporation, a Subsidiary of ICON Health & Fitness, Inc.
LIMITED WARRANTY
HealthRider Corp. (HealthRider), warrants this product to be free from defects in workmanship and mate-
rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. HealthRiderÕs obligation under this warranty is limit-
ed to replacing or repairing, at HealthRiderÕs option, the product at one of its authorized service centers.
All products for which warranty claim is made must be received by HealthRider at one of its authorized
service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof
of purchase. All returns must be pre-authorized by HealthRider. This warranty does not extend to any
product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an HealthRider authorized service center, to products used for
commercial or rental purposes, or to products used as store display models. No other warranty beyond
that specifically set forth above is authorized by HealthRider.
HealthRider is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
HealthRider Corp. 1500 S. 1000 W., LOGAN, UT 84321-9813
