HEALTH RIDER 15.5 S Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Model No. HRCCEL2927.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
246726
246725
246724
246723
210124
209490 246722
246721
QUESTIONS?
As a manufacturer,we are com-
mitted to providing complete
customer satisfaction.If you
have questions, or if parts are
damaged or missing, PLEASE
DO NOT CONTACT THE STORE.
For assistance, contact
Customer Care.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 8:00 until 17:00 EST
(excluding holidays)
OR E-MAIL US:
[email protected]
www.proform.com
Visit our website at
Visit our website at
www.healthrider.com
Visit our website at
w
USER’S MANUAL

2
HEALTHRIDER is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

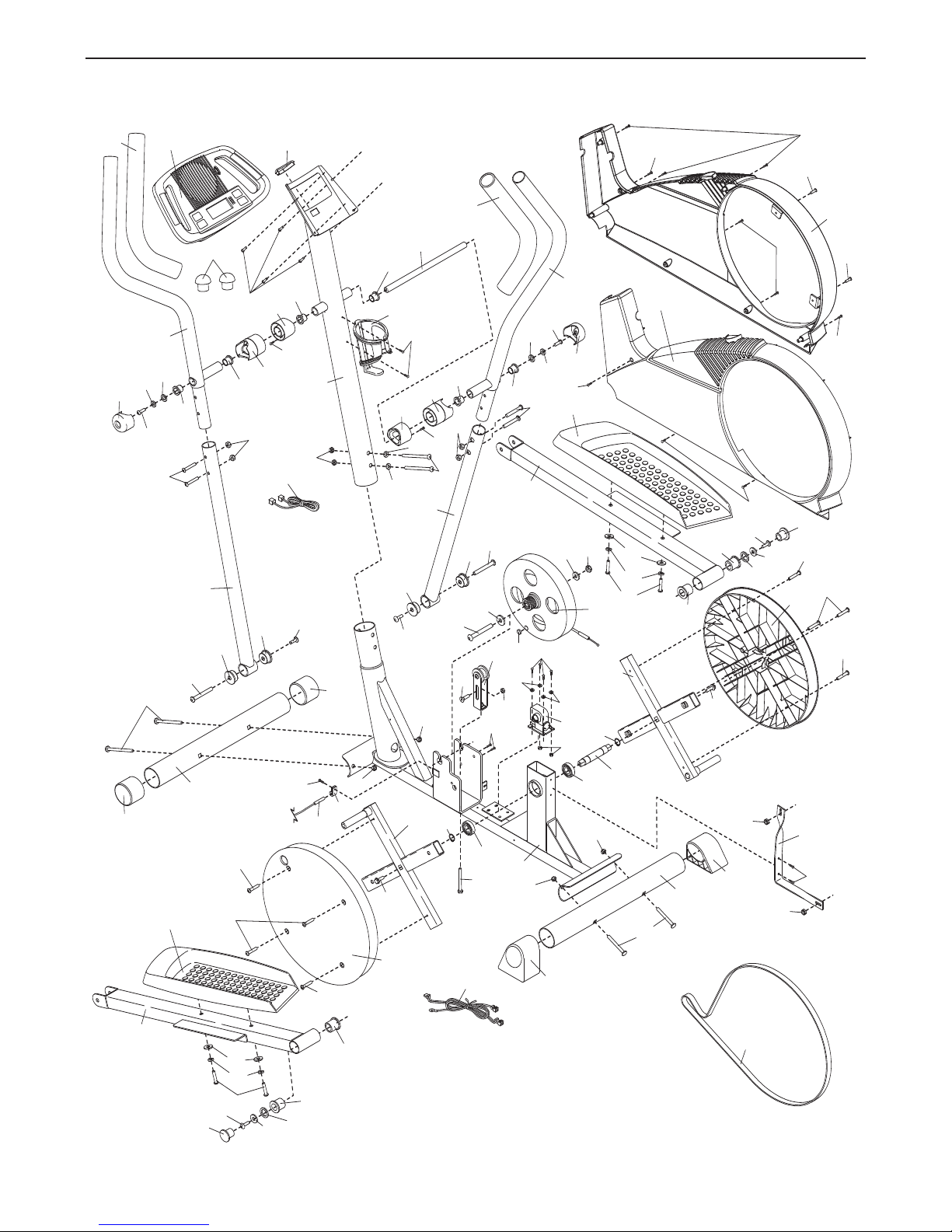

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
246724
246723
210124
209490 2
The warning decal shown here has
been applied in the location shown.
If a decal is missing or illegible,
call the telephone number on the
front cover of this manual and
request a free replacement
decal. Apply the decal in the loca-
tion shown. Note: The decal may
not be shown at actual size.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly.Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the handle-
bars when mounting, dismounting, or using
your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the user’s move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Congratulations for selecting the new HEALTHRIDER®
15.5 S. The HEALTHRIDER 15.5 S is an incredibly
smooth exerciser that moves your feet in a natural
elliptical path, minimizing the impact on your knees
and ankles. And the unique HEALTHRIDER 15.5 S
features adjustable resistance and a simple-to-use
console to help you get the most from your exercise.
For your benefit, read this manual carefully before
using the elliptical exerciser. If you have questions
after reading this manual, please see the front cover
ofthis manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.

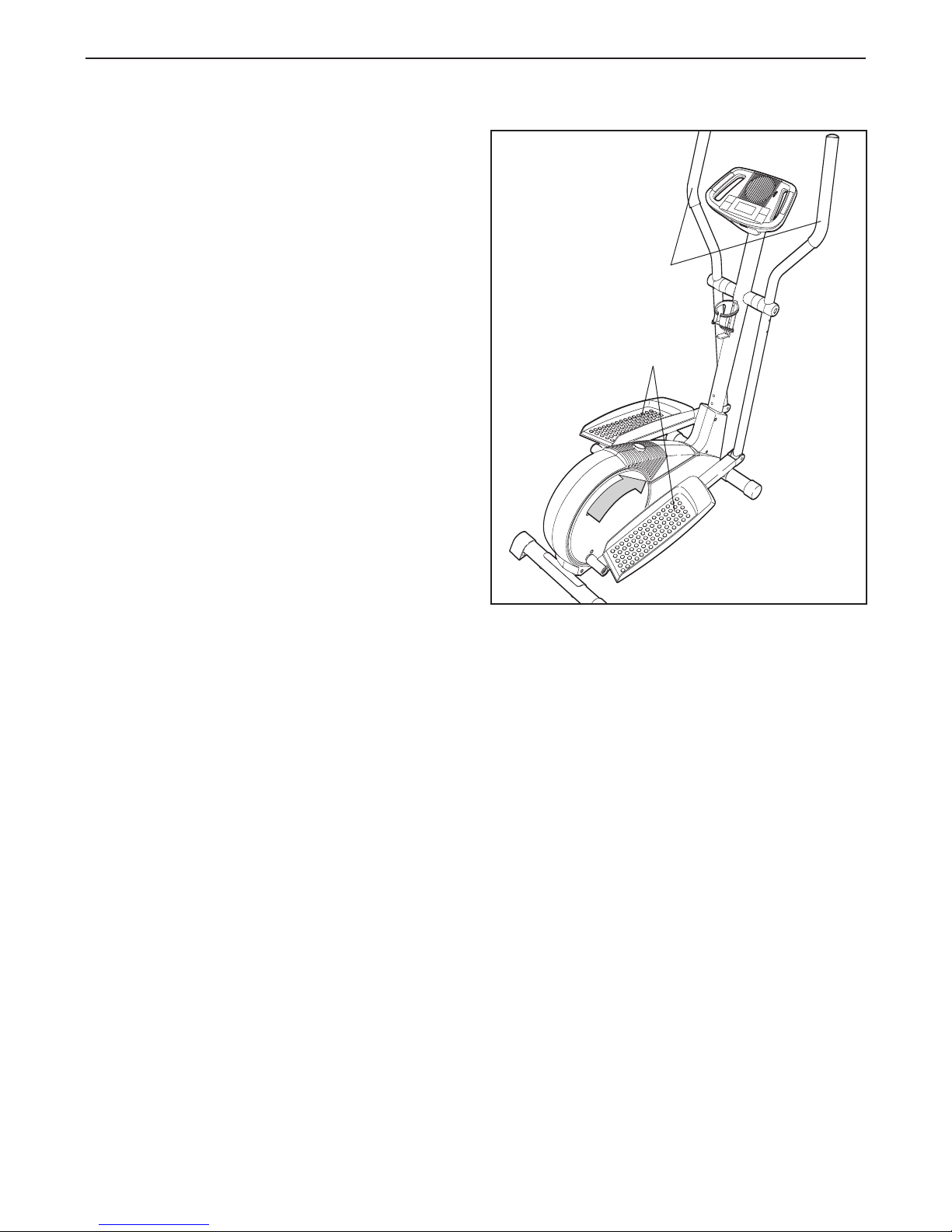

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Handlebar
Pedal Disc
*No water bottle is included
Pedal
Console
Water Bottle Holder*
Fan

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench , Phillips screwdriver , and
rubber mallet .

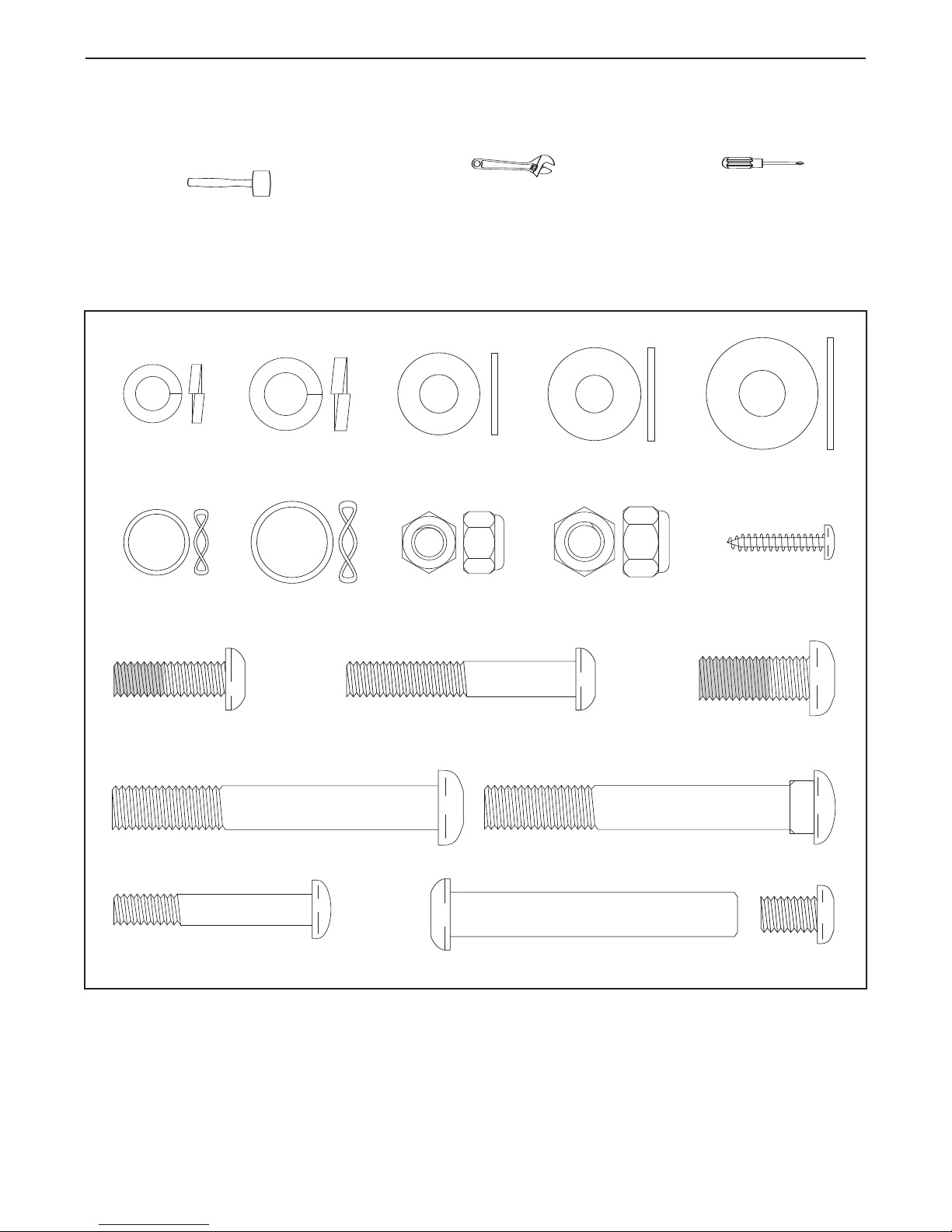

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it has been preassembled.
M10 Split
Washer (45)–2
M10 Nylon
Locknut (33)–6
M10
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
M10 x 75mm Carriage Bolt (34)–4M10 x 74mm Button Bolt (7)–2
Wave
Washer (69)–2
M8 Split
Washer (28)–4 Handlebar
Washer (55)–2
M8 x 25mm Patch
Screw (56)–2
M8
Washer (71)–4
M4 x 22mm
Screw (63)–2
M8 x 52mm Button
Screw (27)–4
M10 Bolt Set (25)–2
Large Wave
Washer (76)–2

6

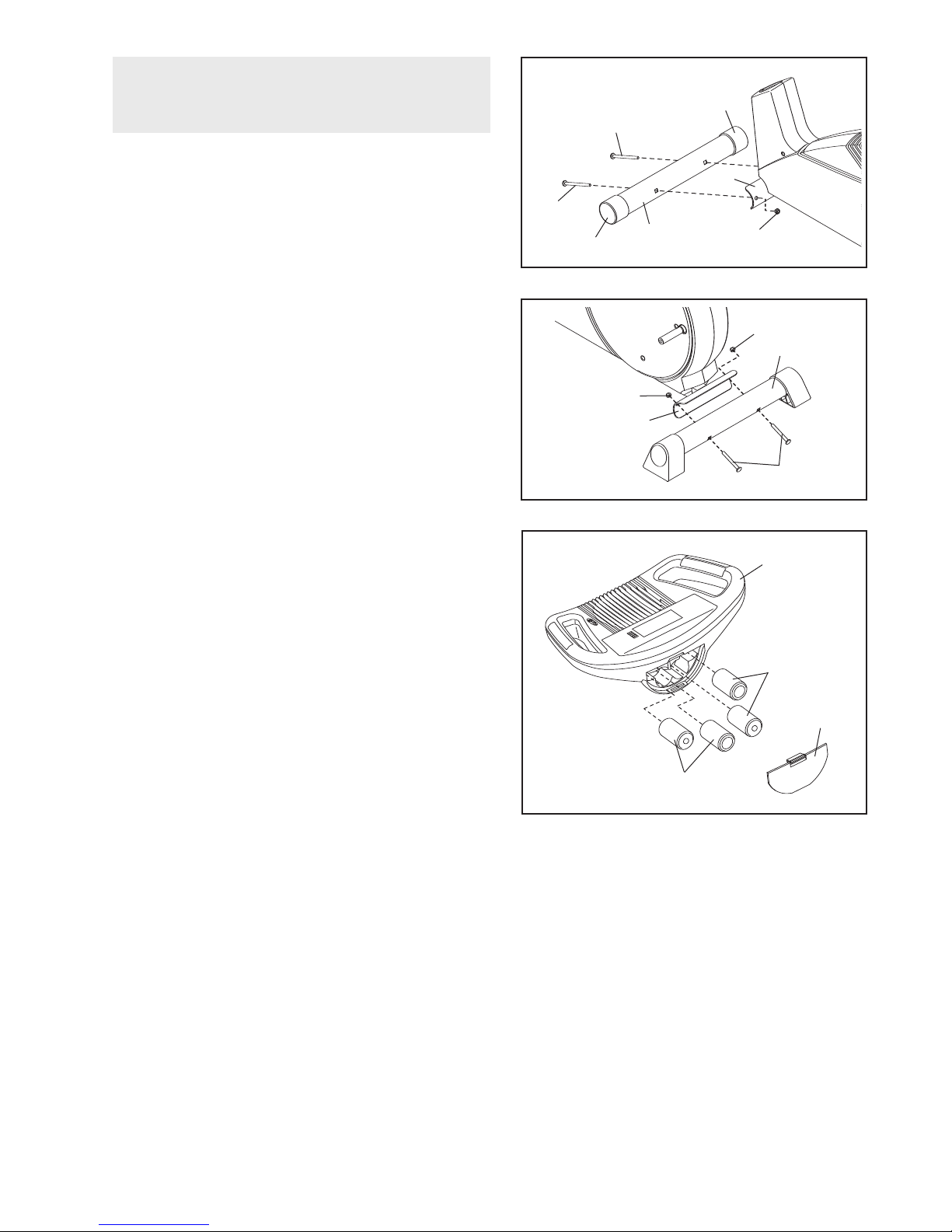

2. While another person lifts the back of the Frame (1),
attach the other Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
34
9
1
233
33
3. The Console (23) requires four 1.5V “D” batteries (not
included);alkaline batteries are recommended.
IMPORTANT: If the elliptical exerciser has been
exposed to cold temperatures, allow it to warm to
room temperature before inserting batteries into
the Console. If you do not do this, the console
displays or other electronic components may
become damaged. Remove the battery cover from
the Console, and insert four batteries into the
Console. Make sure that the batteries are oriented
as shown by the markings on the battery cover.
Then, reattach the battery cover.
23
Batteries
Batteries
Battery
Cover
3
1.
Identify the Stabilizer (9) which has round Endcaps
(21) on the ends. While another person lifts the front
of the Frame (1), attach the Stabilizer to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33). 933
21
21
34
34
1
1
To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.

7
4. While another person holds the Console (23) in the
position shown, connect the console wire to the
Extension Wire (68).
Attach the Console (23) to the Upright (2) with the
four Console Screws (59) included with the Console.
Be careful to avoid pinching the wires.
Attach the Water Bottle Holder (29) to the Upright (2)
with two M4 x 22mm Screws (63).
423
2
59
Console Wire
29
63
68
5
1
2
33
Make sure the
wires do not get
pinched and
damaged during
this step
73
68
7
45
5. While another person holds the Upright (2) in the posi-
tion shown, connect the Extension Wire (68) to the
Lower Wire Harness (73).
Push the Extension Wire (68) and the Lower Wire
Harness (73) down into the Frame (1). Slide the
Upright (2) onto the Frame. Be careful to avoid
pinching the Wires. Attach the Upright with two M10
x74mm Button Bolts (7), two M10 Split Washers (45),
and two M10 Nylon Locknuts (33). Do not tighten the
Button Bolts yet.

50
8
38
8
6. Identify the Left Handlebar (6), which is marked
with a sticker. Insert the Left Handlebar into one of
the Handlebar Legs (5); make sure that the
Handlebar Leg is turned so the hexagonal holes
are on the indicated side. Attach the Left
Handlebar to the Handlebar Leg with two M8 x
45mm Button Bolts (50) and two M8 Nylon Locknuts
(38). Make sure that the Nylon Locknuts are
inside of the hexagonal holes. Do not tighten the
Button Bolts yet.
Insert the Pivot Axle (26) into the Upright (2), and
center the Pivot Axle. Apply a generous amount of
the included grease to both ends of the Pivot Axle.
Turn a Handlebar Spacer (47) so that the small arrow
on the Handlebar Spacer is pointing toward the floor,
and slide the Handlebar Spacer onto the post on the
Left Handlebar (6). Next, slide the Left Handlebar
onto the Pivot Axle (26).
Slide a Handlebar Washer (55) and a Wave Washer
(69) onto an M8 x 25mm Patch Screw (56), and tight-
en the Patch Screw into the Pivot Axle (26). Then,
press the tabs on a Handlebar Cap (46) into the
Handlebar Spacer (47).
Assemble the Right Handlebar (8) and the other
Handlebar Leg (5) in the same way.
Grease
6
47
5
2
5
55
46
26
56
69
6
Hexagonal
Holes
7
27
71
11
13
71
28 28
7. Identify the Left Pedal Leg (11), which is marked
with a sticker. Attach the Left Pedal (13) to the Left
Pedal Leg with two M8 x 52mm Button Screws (27),
two M8 Split Washers (28), and two M8 Washers
(71).
Attach the Right Pedal (not shown) in the same
way.

9
9. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
8. Apply a small amount of grease to the axle on the
left Disc Crossbar (16).
Slide the Left Pedal Leg (11) onto the axle on the
left Disc Crossbar (16). Apply a small amount of
grease to a Large Wave Washer (76) and press it
onto the end of the Left Pedal Leg. Next, slide an
M10 Washer (35) onto an M10 x 27mm Patch
Screw (40), and tighten the Patch Screw into the
axle. Then, press a Pedal Leg Endcap (74) into the
Left Pedal Leg.
Hold the lower end of the left Handlebar Leg (5)
inside of the bracket on the front of the Left Pedal
Leg (11). Next, apply grease to an M10 Bolt Set
(25). Attach the Handlebar Leg to the Left Pedal
Leg with the Bolt Set. Do not overtighten the Bolt
Set; the Handlebar Leg must pivot freely.
Attach the Right Pedal Leg (not shown) to the right
side of the elliptical exerciser in the same way.
See step 5. Tighten the M10 x 74mm Button Bolts
(7) in the Upright (2). See step 6. Tighten the M8 x
45mm Button Bolts (50) in the Handlebar Legs (5).
Grease
Grease
16
25 11
40
74
35 76 11
25
5
2
8

10
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handles on
the console or the handlebars and step onto the pedal
that is in the lowest position. Then, step onto the other
pedal. Push the pedals until they begin to move with a
continuous motion. Note: The pedal discs can turn
in either direction. It is recommended that you
move the pedal discs in the direction shown by
the arrow; however, for variety, you can turn the
pedal discs in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step offthe lowest pedal.
The handlebars are designed to add upper-body exer-
cise to your workouts. As you exercise, push and pull
the handlebars to work your arms, shoulders, and
back.
Pedals
Handlebars

11
HOW TO USE THE CONSOLE
1. Turn on the console.
Note: The console requires four 1.5V “D” batteries
(see assembly step 3 on page 6). If there is a
sheet of clear plastic on the face of the console,
peel off the plastic.
To turn on the console, press the increase button or
begin pedaling.
2. Change the resistance of the pedals as desired.
As you pedal,
change the resis-
tance of the ped-
als by pressing the
increase or
decrease button.
There are ten
resistance levels. The selected resistance level will
be shown in the upper display. Note: After a button
is pressed, it will take a moment for the pedals to
reach the selected resistance level.
3. Follow your progress with the displays.
As you exercise,
the lower left dis-
play can show the
elapsed time and
the distance (total
number of revolu-
tions) that you have pedaled.
The lower right dis-
play can show
your pedaling
speed (in revolu-
tions per minute)
and the approxi-
mate number of calories you have burned. When
you use the handgrip pulse sensor,the lower right
display will also show your heart rate (see step 4
on page 12).
Increase Button
Decrease Button

12

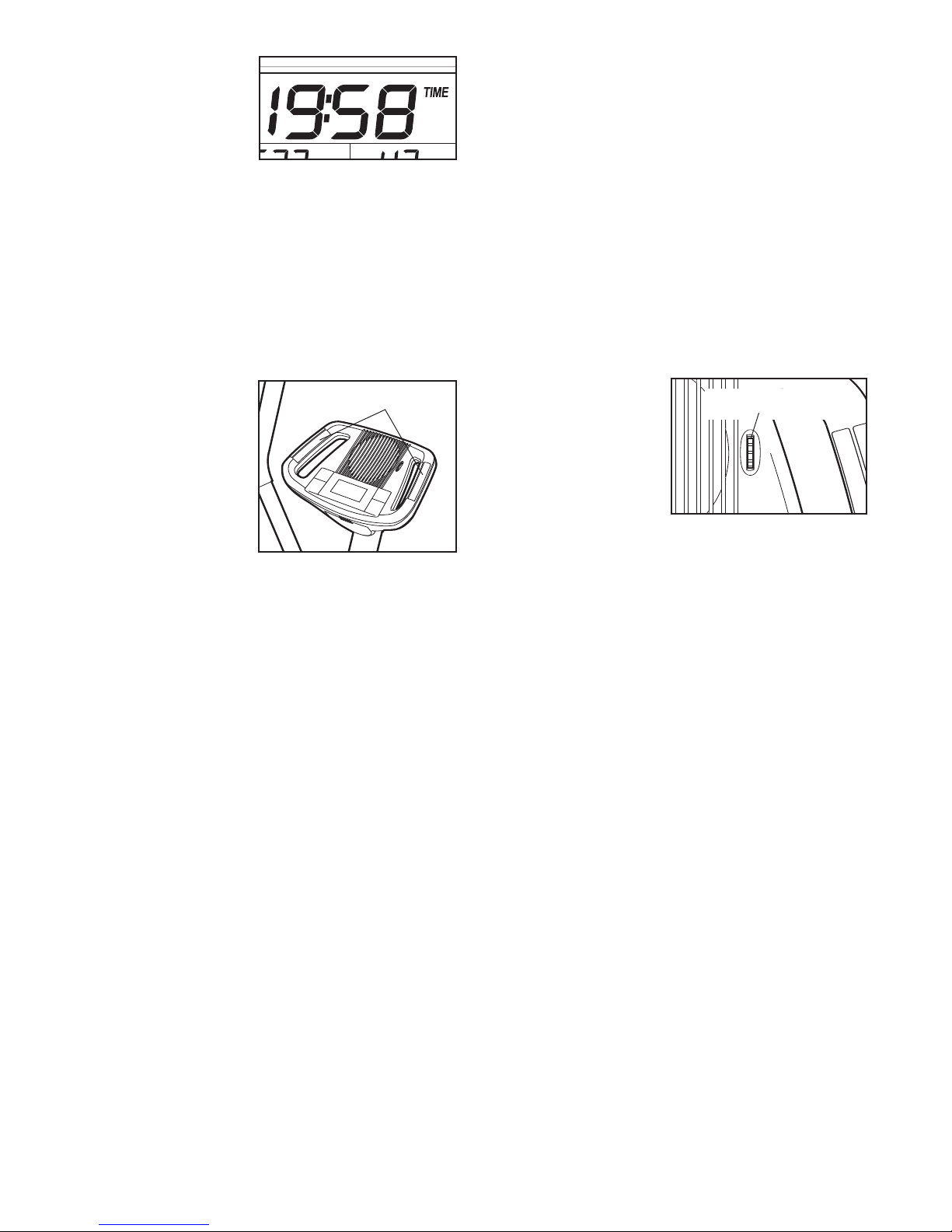

The upper display
is the priority dis-
play.
The priority
display can show
the elapsed time,
the distance that
you have
pedaled, your pedaling speed, or the approximate
number of calories you have burned. Press the
Display button repeatedly until the priority display
shows the information that you are most interested
in viewing. Note: While information is shown in the
priority display, the information will not be shown in
the lower left or right display.
4. Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts
on the hand-
grips, peel off
the plastic. To
use the handgrip
pulse sensor,
hold the hand-
grips with your
palms resting against the metal contacts. Avoid
moving your hands. When your pulse is detect-
ed, the heart-shaped indicator in the lower right
display will flash each time your heart beats. After
amoment, your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 30 seconds.
The display will then show your heart rate along
with other feedback modes.
5. Turn on the fan if desired.
To turn on the fan at low speed, press the Fan but-
ton. To turn on the fan at high speed, press the
button a second time. To turn off the fan, press the
button a third time. Note: If the fan is left on and
the pedals are not moved for thirty seconds, the
fan will automatically turn off to conserve the bat-
teries.
Rotate the thumb
wheel on the right
side of the console
to pivot the fan to
the desired angle.
6. When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, the
displays will pause and the priority display will
flash. If the pedals are not moved and the console
buttons are not pressed for a few minutes, the
console will turn off to conserve the batteries.
Metal Contacts Thumb Wheel

13
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
asmall amount of mild dish soap. Important: Keep
liquids away from the console and keep the con-
sole out of direct sunlight. During storage, remove
the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced. See assembly step 3 on page 6
for replacement instructions.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Right Pedal Leg
(12), the right Pedal Disc (15), and the Side Shields (3,
4). See step 8 on page 9 and remove the Right Pedal
Leg.
Next, remove the four Screws (51, 70) from the right
Pedal Disc (15), and slide the Pedal Disc off. Remove
all Screws (52, 64) from the Right Side Shield (4) and
the two Bolts (41) from beneath the Pedal Disc, and
remove the Right Side Shield (4). Remove all Screws
(52) from the Left Side Shield (3), and move the Left
Side Shield.
Next, see the drawing below and locate the Reed
Switch (53). Loosen, but do not remove, the indicated
M4 x 16mm Self-tapping Screw (52). Slide the Reed
Switch slightly toward or away from the Magnet (58) on
the flywheel. Retighten the Screw. Turn the left Pedal
Disc (15) for a moment. Repeat until the console dis-
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the Side Shields (3, 4), the
right Pedal Disc (15), and the Right Pedal Leg (12).
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the Drive Belt (19) may need to be adjusted. To
adjust the Drive Belt, you must first remove both side
shields. See HOW TO ADJUST THE REED SWITCH
at the left and remove the side shields.
Next, loosen
the M8 x
22mm Flat
Head Screw
(65) and turn
the M10 x
60mm Button
Bolt (62) until
the Drive Belt
(19) is tight.
When the
Drive Belt is
tight, tighten
the Flat Head Screw.Then, reattach the side shields.
MAINTENANCE AND TROUBLESHOOTING
64
41
51
70
70
41
52
52
64
64
12
415
3
58
53
52
15
65
62 19

14
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember,the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING:Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

15
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5

16
NOTES

17
NOTES

18
Specifications are subject to change without notice. See the back cover of this manual for information about
replacement parts. *These parts are not illustrated.
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. HRCCEL2927.0 R0707A
1 1 Frame
2 1 Upright
3 1 Left Side Shield
4 1 Right Side Shield
5 2 Handlebar Leg
6 1 Left Handlebar
7 2 M10 x 74mm Button Bolt
8 1 Right Handlebar
9 2 Stabilizer
10 2 M5 Nylon Locknut
11 1 Left Pedal Leg
12 1 Right Pedal Leg
13 1 Left Pedal
14 1 Right Pedal
15 2 Pedal Disc
16 2 Disc Crossbar
17 1 Flywheel
18 1Side Shield Bracket
19 1 Drive Belt
20 2 Rear Endcap
21 2 Front Endcap
22 1 Belt Idler
23 1 Console
24 2 Handgrip
25 2 M10 Bolt Set
26 1 Pivot Axle
27 4 M8 x 52mm Button Screw
28 4 M8 Split Washer
29 1 Water Bottle Holder
30 2 Large Snap Ring
31 2Large Bearing
32 1Pedal Axle
33 7 M10 Nylon Locknut
34 4 M10 x 75mm Carriage Bolt
35 4M10 Washer
36 2M3 x 16mm Screw
37 2Pedal Arm Bushing
38 5 M8 Nylon Locknut
39 2Inside Pedal Arm Bushing
40 2M10 x 27mm Patch Screw
41 2 M6 x 18mm Bolt
42 6 M5 x16mm Screw
43 4 M5 Washer
44 2 Handlebar Endcap
45 2 M10 Split Washer
46 2 Handlebar Cap
47 2 Handlebar Spacer
48 2 Frame Spacer
49 6 Small Handlebar Bushing
50 4 M8 x 45mm Button Bolt
51 4 M6 x 25mm Screw
52 7 M4 x 16mm Self-tapping Screw
53 1 Reed Switch/Wire
54 1 Cable Clamp
55 2 Handlebar Washer
56 2 M8 x 25mm Patch Screw
57 1 Flywheel Axle
58 1 Magnet
59 4 Console Screw
60 4 Large Handlebar Leg Bushing
61 2 5/16" x 25.4mm Hex Bolt
62 1 M10 x 60mm Button Bolt
63 2 M4 x 22mm Screw
64 4M4 x 25mm Screw
65 1 M8 x 22mm Flat Head Screw
66 2M6 Nylon Locknut
67 2 M5 x 14mm Self-tapping Screw
68 1 Extension Wire
69 2 Wave Washer
70 4 M6 x 28mm Screw
71 4M8 Washer
72 1Resistance Motor
73 1 Lower Wire Harness
74 2 Pedal Leg Endcap
75 1Upright Endcap
76 2Large Wave Washer
*–Hex Key
* – Grease
*–User’s Manual

EXPLODED DRAWING—Model No. HRCCEL2927.0 R0707A
19
61
30
32
31
30
31
24
8
4
3
50
5
38
45
6
46
560
17
2
33
14
12
18
19
1
33
13
11
33
51
15
70
34
9
33
33 20
20
16
61
54
52
53
38
65
62
55
56 38
50
48
47
49
24
56
55
57 35
33
58
21
21
34
60
60
60
23
52
52
64
52 41
52 41
64
49 48 47 49 49
46
16
42
25
25
25
25
15
66
66
35
67
7
45
59
9
22
44
51
35
39
37
40
28
27
39
37
35
40
27
28
49
49 26
2963
36
36
70
68
69
69
71
71
51
51
72
43
42
43
73
10
74
74
75
76
76

Part No. 257611 R0707A Printed in China © 2007 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
•the model number and the serial number of the product (see the front cover of this manual)
•the name of the product (see the front cover of this manual)
•the key number and description of the replacement part(s) (see the PARTS LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON OF/DU CANADA, INC., (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, or a period of one (1) year from the date of purchase.
This warranty extends only to the original purchaser.ICON’s obligation under this warranty is limited to
replacing or repairing, at ICON’s option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center,to products
used for commercial or rental purposes, or to products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other con-
sequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty
extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some
provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
ICON OF/DU CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
