Hearth and Home Technologies Expedition-I User manual

11785 SE Highway 212 –Suite 305
Clackamas, OR 97015-9050
[phone]
WWW.PFSTECO.COM
Hearth & Home
Technologies
Project # 21-661
Model: Expedition-I
AKA: Gifford-CB, Gifford-BM
Type: Single Burn Rate Wood-Fired
Heater
June 18, 2021
ASTM E2780 –10
Standard Test Method for
Determining Particulate Matter
Emissions from Wood Heaters
Contact: Mr. Corie Podschelne
352 Mountain House Road
Halifax, PA 17032
[phone]
[e-mail]
Prepared by: Sebastian Button,
Laboratory Supervisor

Project # 21-661 Model: Expedition-I
Page | 1
This page intentionally left blank.

Project # 21-661 Model: Expedition-I
Page | 2
Contents
Affidavit .........................................................................................................................................................3
Introduction ...................................................................................................................................................4
Notes.........................................................................................................................................................4
Wood Heater Identification and Testing........................................................................................................5
Test Procedures and Equipment ..................................................................................................................6
Results ..........................................................................................................................................................7
Summary Table.........................................................................................................................................7
Test Run Narrative....................................................................................................................................8
Run 1.....................................................................................................................................................8
Run 2.....................................................................................................................................................8
Test Conditions Summary.............................................................................................................................9
Appliance Operation and Test Settings ....................................................................................................9
Appliance Description .................................................................................................................................10
Appliance Dimensions.............................................................................................................................10
Appliance Rear........................................................................................................................................13
Test Fuel Properties....................................................................................................................................14

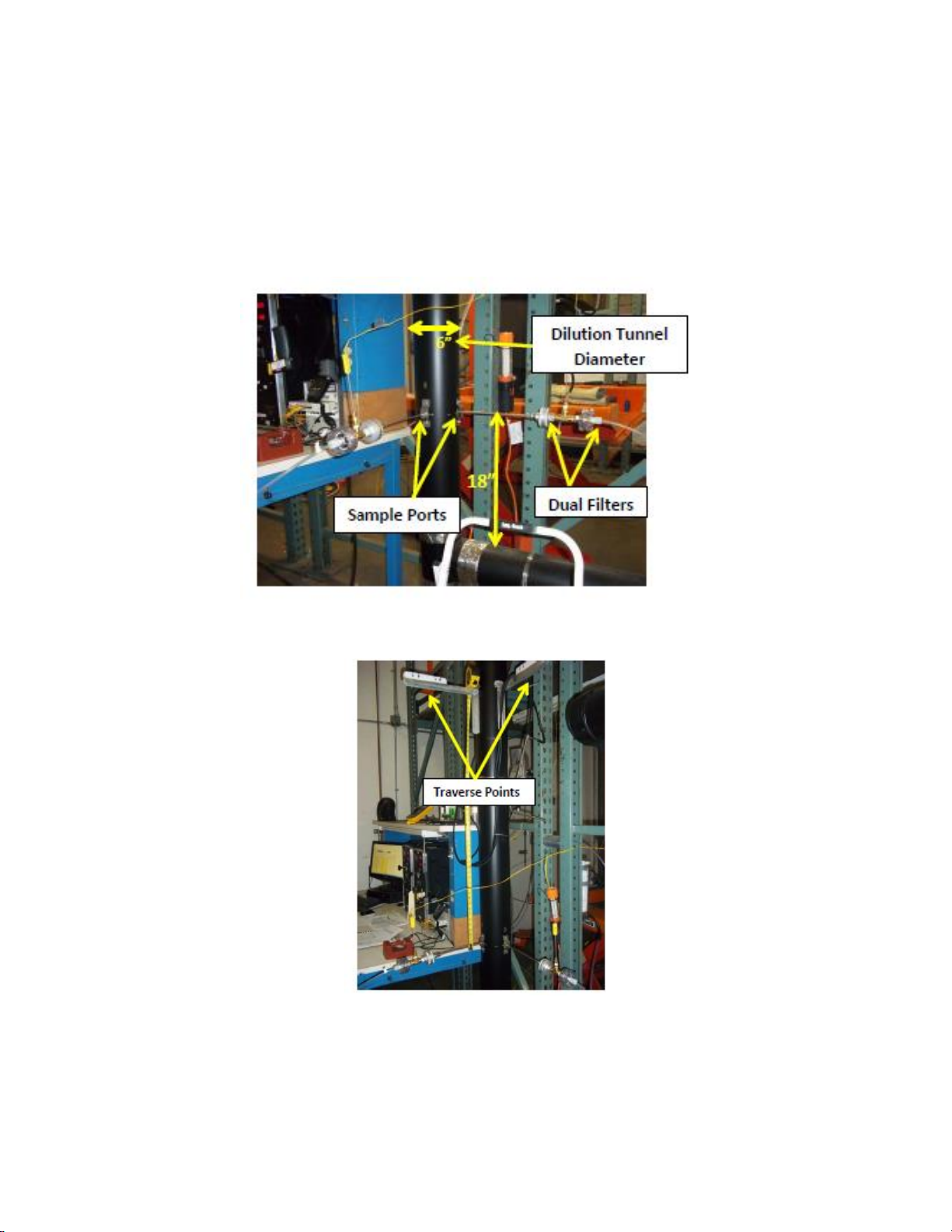

Sampling Locations and Descriptions.........................................................................................................15
Sample Points.........................................................................................................................................15
Sampling Methods ......................................................................................................................................16
Analytical Methods Description...................................................................................................................16
Calibration, Quality Control and Assurances..............................................................................................16
Appliance Sealing and Storage...................................................................................................................16
Sealing Label ..........................................................................................................................................16

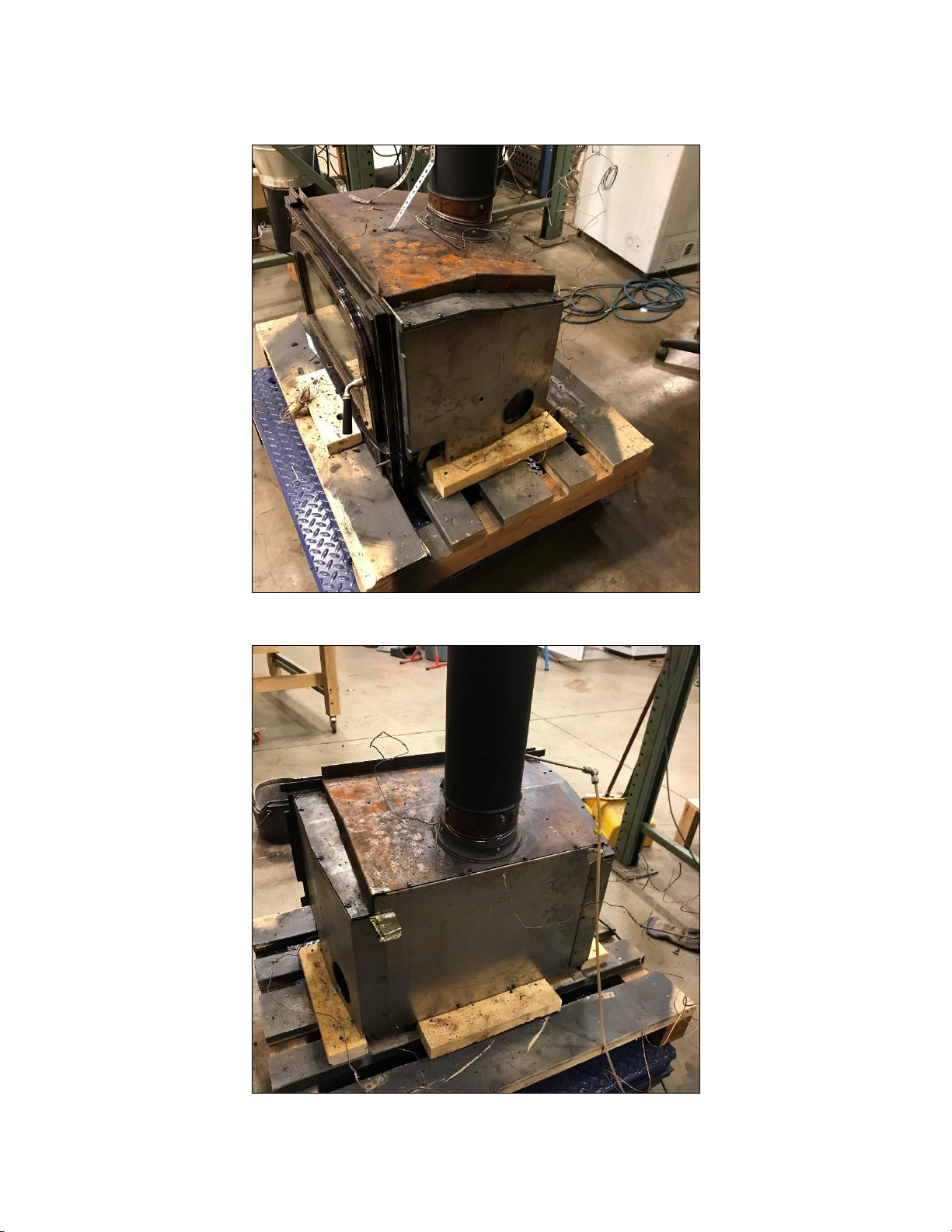

Sealed Unit..............................................................................................................................................17
List of Appendices.......................................................................................................................................18

Project # 21-661 Model: Expedition-I
Page | 3
Affidavit
PFS-TECO was contracted by Hearth & Home Technologies to provide testing services
for the Expedition-I Wood-Fired Room Heater per ASTM E2780, Standard Test Method
for Determining Particulate Matter Emissions from Wood Heaters. All testing and
associated procedures were conducted at PFS-TECO’s Hearth Products laboratory
beginning on 5/13/2021 and ending on 5/13/2021. The laboratory is located at 11785 SE
Hwy 212, Clackamas OR 97015. Testing procedures followed ASTM E2780. Particulate
sampling was performed per ASTM E2515, Standard Test Method for Determination of
Particulate Matter Emissions Collected by a Dilution Tunnel.
PFS-TECO is accredited by the U.S. Environmental Protection Agency for the certification
and auditing of wood heaters pursuant to subpart AAA of 40 CFR Part 60, New Source
Performance Standards for Residential Wood Heaters and subpart QQQQ of 40 CFR Part
60, Standards of Performance for New Hydronic Heaters and Forced Air Furnaces,
Methods 28R, 28WHH, 28 WHH-PTS, and all methods listed in Sections 60.534 and
60.5476. PFS-TECO holds EPA Accreditation Certificate Numbers 4 and 4M (mobile).
PFS-TECO is accredited by IAS to ISO 17020:2012 “Criteria for Bodies Performing
Inspections”, and ISO 17025:2005 “Requirements for Testing Laboratories.” PFS-TECO
is also accredited by Standards Council of Canada to ISO 17065:2012 “Requirements for
Bodies Operating Product Certification Systems.”
The following people were associated with the testing, analysis and report writing
associated with this project.
Sebastian Button, Laboratory Supervisor

Project # 21-661 Model: Expedition-I
Page | 4
Introduction
Hearth & Home Technologies of Halifax, PA contracted with PFS-TECO to perform EPA
certification testing on the model Expedition-I Wood-Fired Room Heater. All testing was
performed at PFS-TECO’s Portland Laboratory in Clackamas, OR.All testing was
performed by Sebastian Button.
Notes
•Prior to start of testing, 50 hours of conditioning was performed by the
manufacturer in accordance with ASTM E2780.
•Prior to start of testing, the dilution tunnel was cleaned with a steel brush.
•A 1st hour emissions sample train was pulled for all test runs.
•The blower assembly on this appliance is integral to the design and not provided
optionally, therefore no fan confirmation test was performed.
•A total of 2 test runs were completed. Test runs were performed in accordance
with ASTM E2780 for a single burn rate appliance. See the Run Narrative section
for further detail on each run.

Project # 21-661 Model: Expedition-I
Page | 5
Wood Heater Identification and Testing
•Appliance Tested: Expedition-I
•Serial Number: Un-serialized Prototype –PFS Tracking Number 100
•Manufacturer: Hearth & Home Technologies
•Catalyst: No
•Variable Burn Rate: No
•Heat exchange blower: Integral
•Type: Wood Stove
•Style: Insert
•Testing Period –Start: Thursday, May 13, 2021
Finish: Thursday, May 13, 2021
•Test Location: PFS-TECO
11785 SE Hwy 212, Suite 305
Clackamas, OR 97015
•Elevation: ~131 Feet above sea level
•Test Technician(s): Sebastian Button
•Observers: Bud Fongeallaz of HHT

Project # 21-661 Model: Expedition-I
Page | 6
Test Procedures and Equipment
All Sampling and analytical procedures were performed by Sebastian Button. All
procedures used are directly from ASTM E2780 and ASTM E2515. See the list below for
equipment used. See Appendix C submitted with this report for calibration data.
Equipment List:
Equipment ID#
Equipment Description
189
Mettler Toledo 3'x3' floor scale w/digital weight indicator
132
Digiweigh DWP-440 Platform Scale
129
APEX XC-50-DIR Digital Emissions Sampling Box A
130
APEX XC-50-DIR Digital Emissions Sampling Box B
187
California Analytical ZRE CO2/CO/O2 IR ANALYZER
064
Digital Barometer
109A/B
Troemner 100mg/200mg Audit Weights
107
Sartorius Analytical Balance
051
10 lb audit weight
148
Dewalt Tape Measure
095
Anemometer
111
Microtector
115
Delmhorst Wood Moisture Meter
SA18857
Gas Analyzer Calibration Span Gas
91005049
Gas Analyzer Calibration Mid Gas

Project # 21-661 Model: Expedition-I
Page | 7
Results
The average emissions rate for the 2 run test series was measured to be 1.9 g/hr with a
Higher Heating Value efficiency of 65%. The average CO emission rate for the 2 tests was
2.54 g/min. The HHT model Expedition-I Expedition-I Wood-Fired Room Heater meets
the 2020 crib wood PM emission standard of ≤2.0 g/hr per CFR 40 part 60, §60.532 (c).
Detailed individual run data can be found in Appendix A submitted with this report.
Summary Table
Run 1
Run 2
Date
5/13/2021
5/13/2021
Run Number
1
2
Emission Rate (g/hr)
1.64
2.12
Burn Rate (kg/hr)
2.29
1.99
Heat Output (Btu/hr)
27,361
23,747
Overall Efficiency (% HHV)
64.3%
64.9%
CO Emissions (g/MJ Output)
5.53
5.80
CO Emissions (g/kg Dry Fuel)
70.46
74.49
CO Emissions (g/min)
2.66
2.42
Emissions Rate –First Hour (g/hr)
2.18
3.30
Particulate emission average of 2 test runs: 1.9 grams per hour.
Weighted average HHV efficiency of 2 test runs: 65%.
Average CO emissions of 2 test runs: 2.54 g/min.

Project # 21-661 Model: Expedition-I
Page | 8
Test Run Narrative
Run 1
Run 1 was performed on 5/13/2021, in accordance with the procedures specified in ASTM
E2780 for a single burn rate appliance. The total test time was 94 minutes. The particulate
emissions rate for the test was 1.64 g/hr, the burn rate was 2.29 kg/hr with an HHV
efficiency of 64.3%. The Train A sample assembly was changed at 1 hr to determine 1st
hour emissions. All test results were appropriate and valid. There were no anomalies and
all test criteria were met.
Run 2
Run 2 was performed on 5/13/2021, in accordance with the procedures specified in ASTM
E2780 for a single burn rate appliance. The total test time was 112 minutes. The
particulate emissions rate for the test was 2.12 g/hr, the burn rate was 1.99 kg/hr with an
HHV efficiency of 64.9. The Train A sample assembly was changed at 1 hr to determine
1st hour emissions. All test results were appropriate and valid. There were no anomalies
and all test criteria were met.
The average burn rate for the two test runs is 2.14 kg/hr, with each test run differing from
the average by 7.0%, which meets the requirement for single burn heaters in ASTM E2780
X1.4.2.

Project # 21-661 Model: Expedition-I
Page | 9
Test Conditions Summary
Testing conditions for all runs fell within allowable specifications of ASTM E2780 and
ASTM E2515. A summary of facility conditions, fuel burned, and run times is listed below.
Appliance Operation and Test Settings
The appliance was operated according to procedures as described in the Operations
Manual, found in Appendix B submitted with this report. Detailed run information can be
found in Appendix A submitted with this report.
Pre-Burn Air Setting
Test Run Air and Fan Settings
Run 1
Automatic Combustion Control (ACC) Activated
upon fuel loading, fan on high
Automatic Combustion Control (ACC) Activated upon fuel
loading, fan on high
Run 2
Automatic Combustion Control (ACC) Activated
upon fuel loading, fan on high
Automatic Combustion Control (ACC) Activated upon fuel
loading, fan on high
Runs
Ambient (°F)
Relative
Humidity (%)
Average
Barometric
Pressure
(In. Hg.)
Preburn
Fuel
Weight
(lbs)
Test Fuel
Weight
(lbs)
Test Fuel
Moisture
(%DB)
Test Run
Time
(Min)
Pre
Post
Pre
Post
1
75
78.8
43.1
36.7
30.00
9.35
9.50
21.6
94
2
79
80.8
30.5
30.1
29.92
9.55
9.77
21.6
112

Project # 21-661 Model: Expedition-I
Page | 10
Appliance Description
Model(s): Expedition-I
Appliance Type: Single Burn Rate Wood-Fired Room Heater
Additional Models: This model series is also offered under the Vermont Casting Branding
as the Gifford-CB and Gifford-BM. These models utilize the same basic design with
respect to performance and emissions controls. All models listed are presumed to have
the same emissions performance as the test specimen provided for certification testing.
Firebox Volume: 1.45 ft3
Air Introduction System: Primary and secondary air enter the appliance through fixed
openings on either side of the bottom of the appliance. The primary air is channeled
towards the front of the firebox and down to an air wash over the loading door, while the
secondary air is channeled up the sides and is orificed into a series of 3 stainless steel
secondary air tubes. Start-up air is activated by the Automatic Combustion Control
(ACC), which is meant to be activated during fuel loading. A gated orifice allows air to
enter the front air channel in the bottom of the firebox, through two orifices directed at the
coal bed. The ACC is controlled by a timer mechanism which slowly closes off the air
supply.
Baffles: The secondary air tubes are covered by a ceramic baffle board, which is insulated
by a ceramic fiber blanket.
Refractory Insulation: The firebox is lined with 1.25” thick firebrick.
Flue Outlet: 6-inch exhaust outlet located on the top of the appliance.
Catalytic Combustor: N/A
Fan: The Expedition-I is equipped with a convection fan attached to the lower front of the
appliance.
Appliance Dimensions
Expedition-I Unit Dimensions
Height
Width
Depth
Firebox Volume
19”
26.5”
16”
1.45 ft3
Appliance design drawings can be found in Appendix D submitted with the CBI copy of
this report.

Project # 21-661 Model: Expedition-I
Page | 11
Firebox Volume

Project # 21-661 Model: Expedition-I
Page | 12
Appliance Front
Appliance Left

Project # 21-661 Model: Expedition-I
Page | 13
Appliance Right
Appliance Rear

Project # 21-661 Model: Expedition-I
Page | 14
Test Fuel Properties
Test fuel used was dimensional Douglas fir lumber in 2” x 4” (nominal). Test fuel was air
dried to the specified moisture range of 19-25% dry basis. A typical fuel load is pictured
below:
Typical Fuel Load

Project # 21-661 Model: Expedition-I
Page | 15
Sampling Locations and Descriptions
Sample ports are located 16.5 feet downstream from any disturbances and 1 foot
upstream from any disturbances. Flow rate traverse data was collected 12 feet
downstream from any disturbances and 5.5 feet upstream from any disturbances. (See
below).
Sample Points

Project # 21-661 Model: Expedition-I
Page | 16
Sampling Methods
ASTM E2515 was used in collecting particulate samples. The dilution tunnel is 12 inches
in diameter. All sampling conditions per ASTM E2515 were followed. No alternate
procedures were used and no sampling intervals fell outside of proportional rates of +/-
10%.
Analytical Methods Description
All sample recovery and analysis procedures followed ASTM E2515 procedures. At the
end of each test run, filters, O-Rings and probes were removed from their housings,
dessicated for a minimum of 24 hours, and then weighed at 6 hour intervals to a
constant weight per ASTM E2515-11 Section 10.
Calibration, Quality Control and Assurances
Calibration procedures and results were conducted per EPA Method 28R, ASTM E2515-
11 and ASTM E2780. Test method quality control procedures (leak checks, volume meter
checks, stratification checks, proportionality results) followed the procedures outlined.
Appliance Sealing and Storage
Upon completion of testing, the appliance was secured with metal strapping and the seal
below was applied, the appliance was then returned to the manufacturer’s location at: 352
Mountain House Road, Halifax, PA 17032, for archival.
Sealing Label

Project # 21-661 Model: Expedition-I
Page | 17
Sealed Unit

Project # 21-661 Model: Expedition-I
Page | 18
List of Appendices
The following appendices have been submitted electronically in conjunction with this
report:
Appendix A –Test Run Data, Technician Notes, Sample Analysis, and Alternate Test
Method Approval
Appendix B –Labels and Manuals
Appendix C –Equipment Calibration Records
Appendix D –Design Drawings (CBI Report Only)
Appendix E –Manufacturer QAP (CBI Report Only)

Conditioning Data.xlsm
Client: Job #:
Model: Tracking #:
Date(s): Technician:
0584 N/A
1785 N/A
2456 N/A
3522 N/A
4978 N/A
5745 N/A
6796 N/A
7801 N/A
8756 N/A
9322 N/A
10 704 N/A
11 441 N/A
12 855 N/A
13 946 N/A
14 786 N/A
15 655 N/A
16 420 N/A
17 568 N/A
18 952 N/A
19 770 N/A
20 400 N/A
21 587 N/A
22 678 N/A
23 922 N/A
24 798 N/A
25 654 N/A
26 826 N/A
27 563 N/A
28 372 N/A
29 630 N/A
30 964 N/A
31 780 N/A
32 411 N/A
33 630 N/A
34 982 N/A
35 700 N/A
36 436 N/A
37 503 N/A
38 944 N/A
39 660 N/A
40 400 N/A
41 560 N/A
42 901 N/A
43 803 N/A
44 498 N/A
45 612 N/A
46 906 N/A
47 741 N/A
48 502 N/A
49 311 N/A
50 632 N/A
Bud Fongeallaz
2/22/21 - 3/18/21
Elapsed Time
(hrs)
Flue (°F)
Catalyst Exit
(°F)
Notes: Indicate initial air setting and any changes in in setting during
conditioning, as well as weight and average moisture content of all fuel
additions.
HHT
21-661
Expedition/Gifford
9.6 lbs single burn rate, MC between 19-25%
10.1lbs single burn rate, MC between 19-25%
3.2lbs single burn rate, MC between 19-25%
9.8lbs single burn rate, MC between 19-25%
4.5lbs single burn rate, MC between 19-25%
10.0lbs single burn rate, MC between 19-25%
4.4lbs single burn rate, MC between 19-25%
9.9lbs single burn rate, MC between 19-25%
5.1lbs single burn rate, MC between 19-25%
1.1lbs single burn rate, MC between 19-25%
9.7lbs single burn rate, MC between 19-25%
3.2lbs single burn rate, MC between 19-25%
10.2lbs single burn rate, MC between 19-25%
9.7lbs single burn rate, MC between 19-25%
3.6lbs single burn rate, MC between 19-25%
5.1lbs single burn rate, MC between 19-25%
2.1lbs single burn rate, MC between 19-25%
9.6lbs single burn rate, MC between 19-25%
8.1lbs single burn rate, MC between 19-25%
3.6lbs single burn rate, MC between 19-25%
2.1lbs single burn rate, MC between 19-25%
10.5lbs single burn rate, MC between 19-25%
5.4lbs single burn rate, MC between 19-25%
8.1lbs single burn rate, MC between 19-25%
3.6lbs single burn rate, MC between 19-25%
10.4lbs single burn rate, MC between 19-25%
5.2lbs single burn rate, MC between 19-25%
2.1lbs single burn rate, MC between 19-25%
0.5lbs single burn rate, MC between 19-25%
3.0lbs single burn rate, MC between 19-25%
11.4lbs single burn rate, MC between 19-25%
6.6lbs single burn rate, MC between 19-25%
11.3lbs single burn rate, MC between 19-25%
4.8lbs single burn rate, MC between 19-25%
8.8lbs single burn rate, MC between 19-25%
1.8lbs single burn rate, MC between 19-25%
10.0lbs single burn rate, MC between 19-25%
0.8lbs single burn rate, MC between 19-25%
8.4lbs single burn rate, MC between 19-25%
Pre-Conditioning Data
4.9lbs single burn rate, MC between 19-25%
11.7lbs single burn rate, MC between 19-25%
5.9lbs single burn rate, MC between 19-25%
8.8lbs single burn rate, MC between 19-25%
2.8lbs single burn rate, MC between 19-25%
3.2lbssingle burn rate, MC between 19-25%
1.9lbs single burn rate, MC between 19-25%
9.6lbs single burn rate, MC between 19-25%
5.8lbs single burn rate, MC between 19-25%
9.9lbs single burn rate, MC between 19-25%
4.6lbs single burn rate, MC between 19-25%
7.7lbs single burn rate, MC between 19-25%
PFS-TECO Page 1 of 1
Signature/Date:___________________________6/21/2021
