Hearth and Home Technologies PHFR-MCE-36 User manual

1
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
Ducted Passive Heat System for Heat Management
Ducted Passive Heat - Front Discharge: PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72
Passive Heat Appliance Models: MEZZO-C Series, CRAVE-C Series, ECHELON-C Series
Installation Instructions
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
CAUTION! Do not install damaged components.
WARNING! Risk of Fire!
• Combustible materials MUST NOT overlap or be placed
behind a decorative front.
• DO NOT apply combustible materials beyond the
minimum clearances. Comply with all minimum
clearances to combustibles as specied. Overlapping
materials could ignite and will interfere with proper
operation of decorative fronts.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
Table of Contents
1. Introduction.....................................1
2. Kit Contents ....................................2
3. Preparation.....................................3
4. Framing (2 X 4 Studs) ............................4
5. Installation Instructions ............................5
6. Finishing Instructions ............................12
7. Maintenance...................................12
1. Introduction
The Ducted Passive Heat (PHFR-MCE-XX) System conveys
warm air from the replace into the same room through
a front discharge slot connected to the appliance heat
management knock outs with the provided ex ducting.
Installation of the Ducted Passive Heat kit must be done
in conjunction with the appliance installation.
Installation of this kit MUST be performed by a qualied
service technician.
WARNING! Risk of Fire! DO NOT install the Ducted
Passive Heat (PHFR-MCE-XX) Heat Management Sys-
tem with models that are not approved. Overheating will
occur.
See Table 1. Follow instructions included with the trim kit
to complete installation of the Passive Heat system.
The Ducted Passive Heat kit is tested and safe when
installed in accordance with this installation manual. It is
your responsibility to read all instructions before starting
installation and to follow these instructions carefully during
installation.
The Passive Heat kit is carefully engineered and must be
installed only as specied. If you modify it or any of its com-
ponents you will void the warranty, and you may possibly
cause a re hazard. Installation must be done according
to applicable local, state, provincial, and/or national codes.
REQUIRED TRIM KITS (Purchased Separately)
Ducted Passive Heat Kit Ducted Passive Heat Trim Kit
PHFR-MCE-36 PHTRIM-MCE-36
PHFR-MCE-48 PHTRIM-PRIMO-48
PHFR-MCE-60 PHTRIM-PRIMO-60
PHFR-MCE-72 PHTRIM-MCE-72
Table 1.1 Required Trim Kits
Note: The Ducted Passive Heat Trim Kit is required with
the Ducted Passive Heat kit and must be purchased
separately.

2Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20

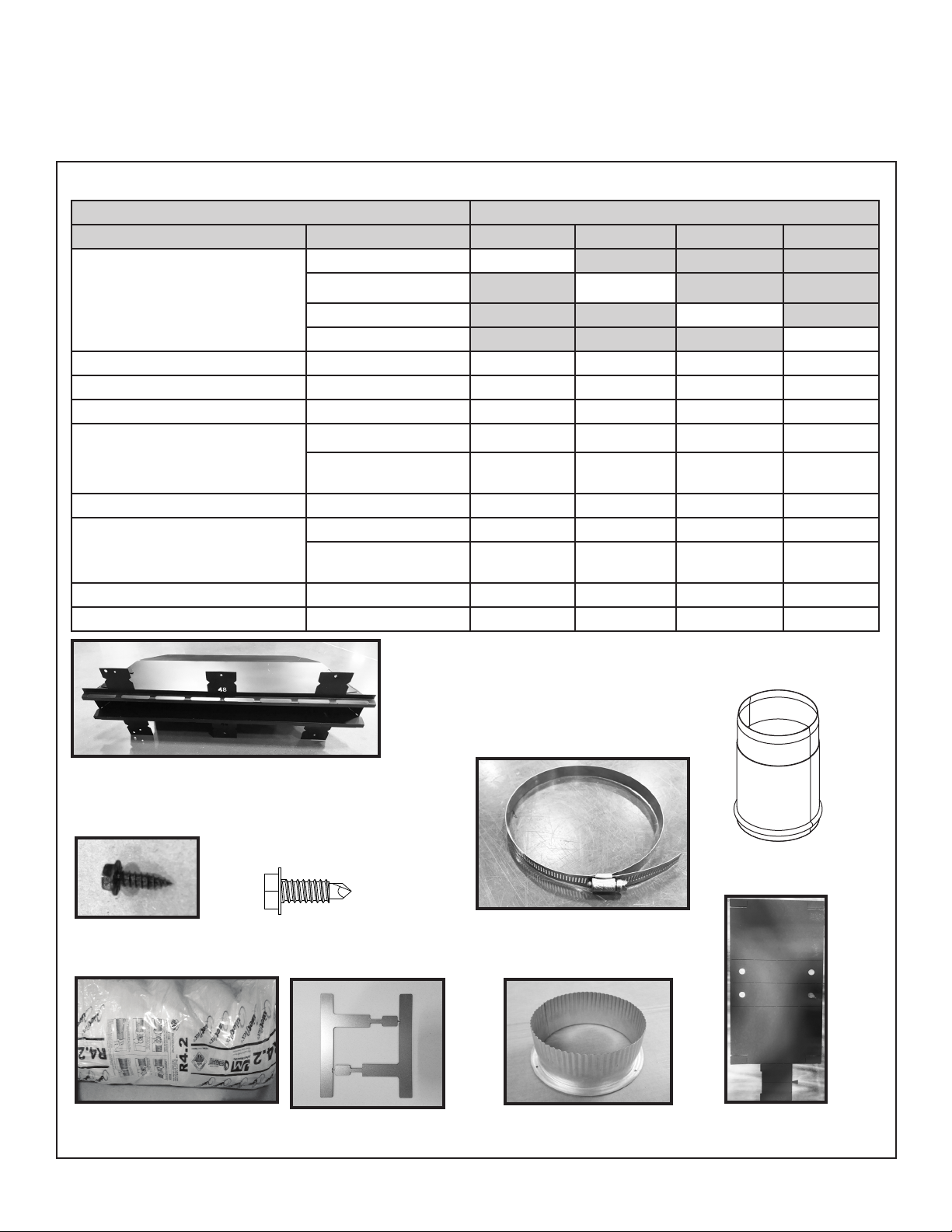

Figure 2.1 Front Discharge Passive Heat Kit Components
Ducted Passive Heat SKU
DESCRIPTION SERVICE PART NO. PHFR-MCE-36 PHFR-MCE-48 PHFR-MCE-60 PHFR-MCE-72
Plenum*
2560-207 2
2560-107 2
2560-208 2
2560-209 2
Collar SRV659-125 4 4 8 8
Flex Air Duct (6” Diameter x 25 ft.) 659-200 1 1 1 1
Gear Clamp: Large SRV662-803 4 4 8 8
Hurricane Screw
2005-861 14 14 24 24
Replacement part:
2005-861/25 1 1 1 1
Finishing Trim 2560-114 1 1 1 1
Self-Tapping #8 Screw
030-860 4 4 8 8
Replacement Part:
030-860/8 1 1 1 1
Pull Tool 2600-200 1 Set 1 Set 1 Set 1 Set
Inner Flue, Top Service part not available 2 2 4 4
659-200
6 Inch Round Duct
SRV659-125 Collar
SRV662-803
Gear Clamp: Large
2005-861
Hurricane Screw
Contents of Ducted Passive Heat Front Discharge Kit
Plenum: 2560-107 Shown (PHFR-MCE-48)
*Actual part number, size and appearance will vary
depending on model.
2. Kit Contents
Verify and remove contents from packaging before
beginning installation. See Figure 2.1 (Front Discharge).
2560-114
Finishing Trim
030-860
Self-Tapping #8 Screw
2600-200 Pull Tool
(1 Set)
Inner Flue, Top
Note: The exible duct used with the Ducted Passive Heat
is manufactured and marked to the requirements of UL-
181, Class I air duct.

3
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
Table 3.1 Air Duct Length & Clearances
3. Preparation
Plan the location of the appliance and the warm air duct
runs. See Table 3.1.
WARNING! Risk of Fire!
• DO NOT fold/kink/pinch/obstruct 6 inch exible ducts.
Appliance could overheat.
• Maintain 1 inch clearance around all sides of exible duct.
*Size 60 And 72 appliance models must use all 4 heat
management knock outs unless the addition of 1 alternate
heat management system is used (HEAT-OUT-GAS, HEAT-
ZONE-GAS) in conjuction with the ducted passive heat.
If alternate heat management systems are used with the
Ducted Passive Heat Kit (PHFR-MCE-XX), they must use
an outside heat management knockout location on the far
left or right of the appliance.
AIR DUCT LENGTH
(Measurements in Inches)
SIZE MIN. MAX.* DUCT Quantity
36 28 150 2
48 28 150 2
60 28 100 4*
72 28 100 4*
*Additional ex duct required for longer runs.
Minimum of one inch clearance required around all
sides of exible duct.

4Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
4. Framing (2 X 4 Studs)

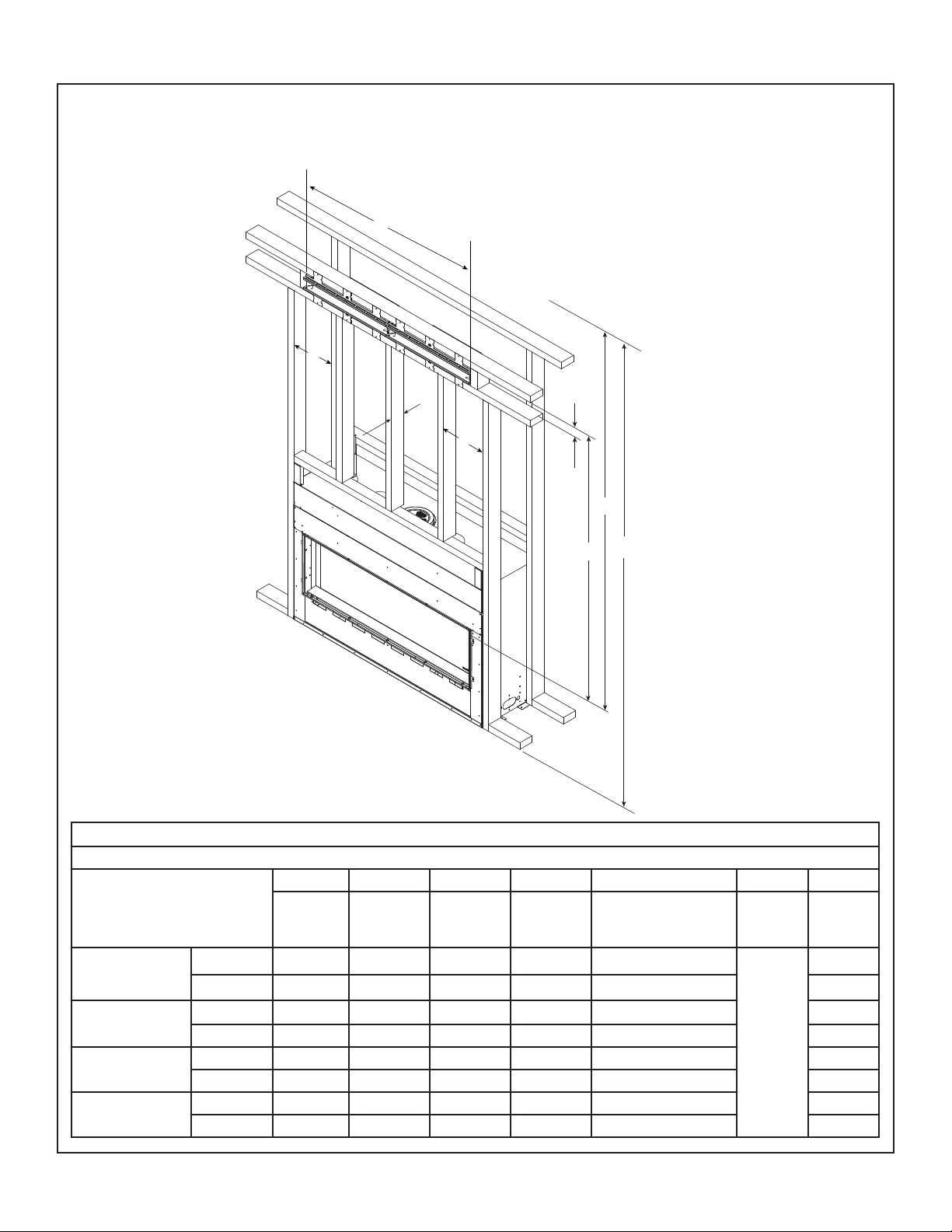

Figure 4.1 Clearances to Combustibles - Front Discharge
MINIMUM FRAMING DIMENSIONS
FRONT DISCHARGE
A B C D E F G
Height of
Discharge
Opening
Width of
Discharge
Opening
Clearance
Opening to
Framing
Clearance
Opening to
Ceiling
Clearance
Bottom of Appliance
to Ceiling
Framing 2 X 4
Studs
PHFR-MCE-36 Inches 6 38-3/4 50-1/2 53-1/2 78
16 inches
(406 mm)
on center
3-1/2
millimeters 152 984 1283 1359 1981 89
PHFR-MCE-48 Inches 6 50-7/8 50-1/2 53-1/2 78 3-1/2
millimeters 152 1292 1283 1359 1981 89
PHFR-MCE-60 Inches 6 62-3/4 50-1/2 53-1/2 78 3-1/2
millimeters 152 1594 1283 1359 1981 89
PHFR-MCE-72 Inches 6 74-3/4 50-1/2 72 96-1/2 3-1/2
millimeters 152 1899 1283 1829 2451 89
Clearances to Combustibles
Ducted Passive Heat Front Discharge
Ducted Passive Heat Kit (PHFR-MCE-XX)
Single-Sided or See-Through
C
D
E
A
B
F
F
G

5
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
1. Remove the appropriate knockouts, as called out
above, from the top of the appliance by dislodging
them with a hammer and then using a screwdriver to
remove from the holes. See Figure 5.1.
REMOVE ALL 4 KNOCKOUTS FOR 60 AND 72 INCH MODELS
REMOVE ONLY TWO INNER KNOCKOUTS
FOR 36 AND 48 INCH MODELS
2. Remove the insulation plug from each knockout.
Discard. See Figure 5.2.
3. Set an inner ue in each of the holes where the
knockouts were removed. See Figure 5.3.
4. Remove the screws from the heat shield as shown in
Figure 5.7. Quantity and location of screws will vary
between models.
Figure 5.1 Remove Knockouts
REMOVE INSULATION PLUGS
Figure 5.2 Remove Insulation Plugs
Figure 5.3 Install Inner Flues
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation. Sheet metal edges are sharp.
5. Installation Instructions
PHFR-MCE-36 and PHFR-MCE-48 kits must be
installed on the two inside passive heat knockouts. Outer
knockouts may be used for additional heat management
systems (HEAT-OUT-GAS, HEAT-ZONE-GAS). Do not
remove the outer knockouts if unused.
PHFR-MCE-60 and PHFR-MCE-72 kits must be installed
on all four passive heat knockouts unless a HEAT-OUT-
GAS or HEAT-ZONE-GAS will be installed.
One additional heat management system may be used
in conjunction with the Ducted Passive Heat kit. If an
additional heat management system (HEAT-OUT-GAS,
HEAT-ZONE-GAS) is installed, that system must use one
of the outer (left or right) knockouts. The other three must
be maintained for connection to the Ducted Passive Heat
kit.
Only one passive heat option may be installed on a single
appliance. Passive Heat kits without ducts may not be
used in conjunction with the Ducted Passive Heat kit.
Note: For 36 and 48 sized models the kit will include two
collars. The two inside knockout locations are the only
ones used.
WARNING! Risk of Fire! Remove ONLY the knockouts
required for the specic heat management kits being
installed. Appliance and combustible materials will
overheat.

6Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20

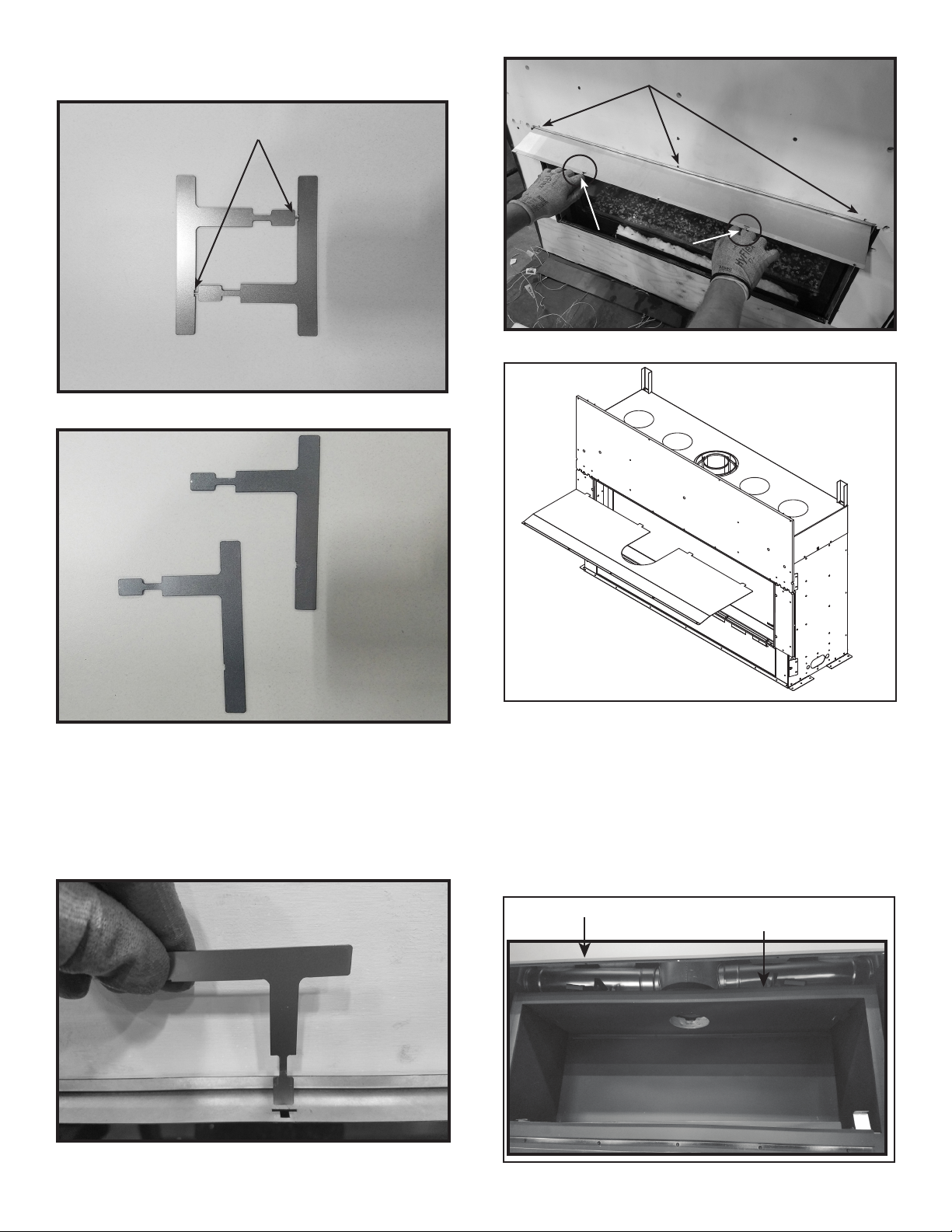

6. Insert pull tool into slots on left and right sides of
appliance. See Figure 5.6.
7. Carefully pull the heat shield out of the appliance as
shown in Figure 5.7 and Figure 5.8. Discard heat
shield. Repeat procedure on other side if application
is on a see-through appliance.
Figure 5.7 Use Pull Tools to Remove Heat Shield
Figure 5.5 Pull Tools Separated
Figure 5.6 Pull Tool Inserted Into Slot
REMOVE SCREWSREMOVE SCREWS
PULL TOOLSPULL TOOLS
Figure 5.8 Remove Heat Shield
WARNING! Risk of Fire! Remove all debris and objects
from rebox top and appliance top before operating the
appliance.
8. Inspect for and remove all debris that may have
accumulated or objects that may have been placed on
the rebox top and appliance top during the installation
process. All debris and objects must be removed
prior to operation of the appliance. Firebox top and
appliance top are shown in Figure 5.9.
Figure 5.9
APPLIANCE TOP FIREBOX TOP
5. Bend pull tools and break apart as shown in Figure
5.4 and Figure 5.5.
BREAK HEREBREAK HERE
Figure 5.4 Bend and Break Pull Tools Apart

7
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
9. Install collars over the openings using hurricane
screws provided in the kit. PHFR-MCE-36 and PHFR-
MCE-48 kits must be installed on the two inside pas-
sive heat knockouts. Outer knockouts may be used
for alternate heat management systems. See Figure
5.10 and 5.11.
PHFR-MCE-60 and PHFR-MCE-72 kits must be in-
stalled on all four passive heat knockouts. One ad-
ditional heat management system may be used in
conjunction with the Ducted Passive Heat kit. If an
additional heat management system (HEAT-OUT-
GAS, HEAT-ZONE-GAS) is installed, that system
must use one of the outer (left or right) knockouts
while the other three must be maintained for connec-
tion to the Ducted Passive Heat kit.
Only one passive heat option may be installed on
a single appliance. Passive Heat kits without ducts
may not be used in conjunction with the Ducted Pas-
sive Heat kit.

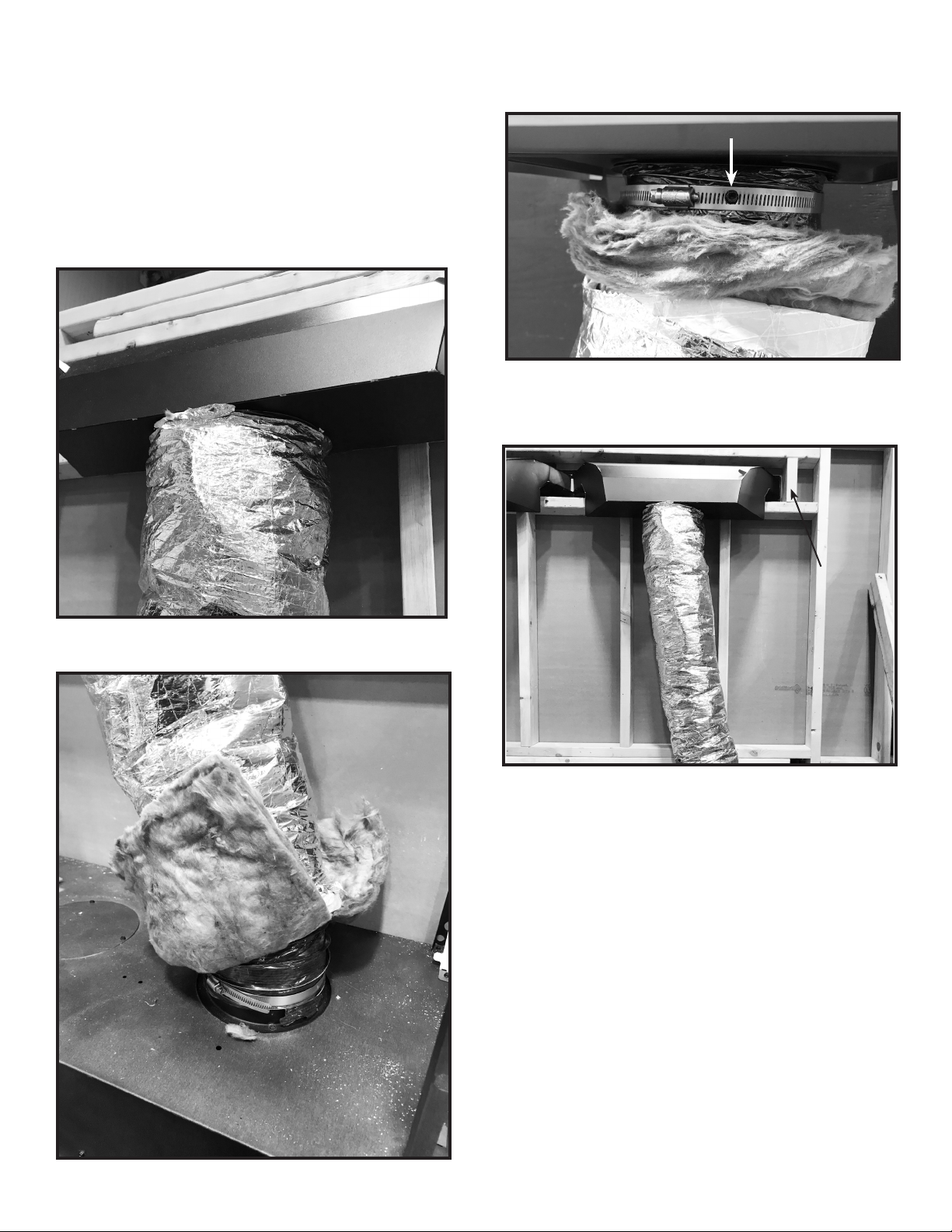

Install Plenums and Flexible Duct

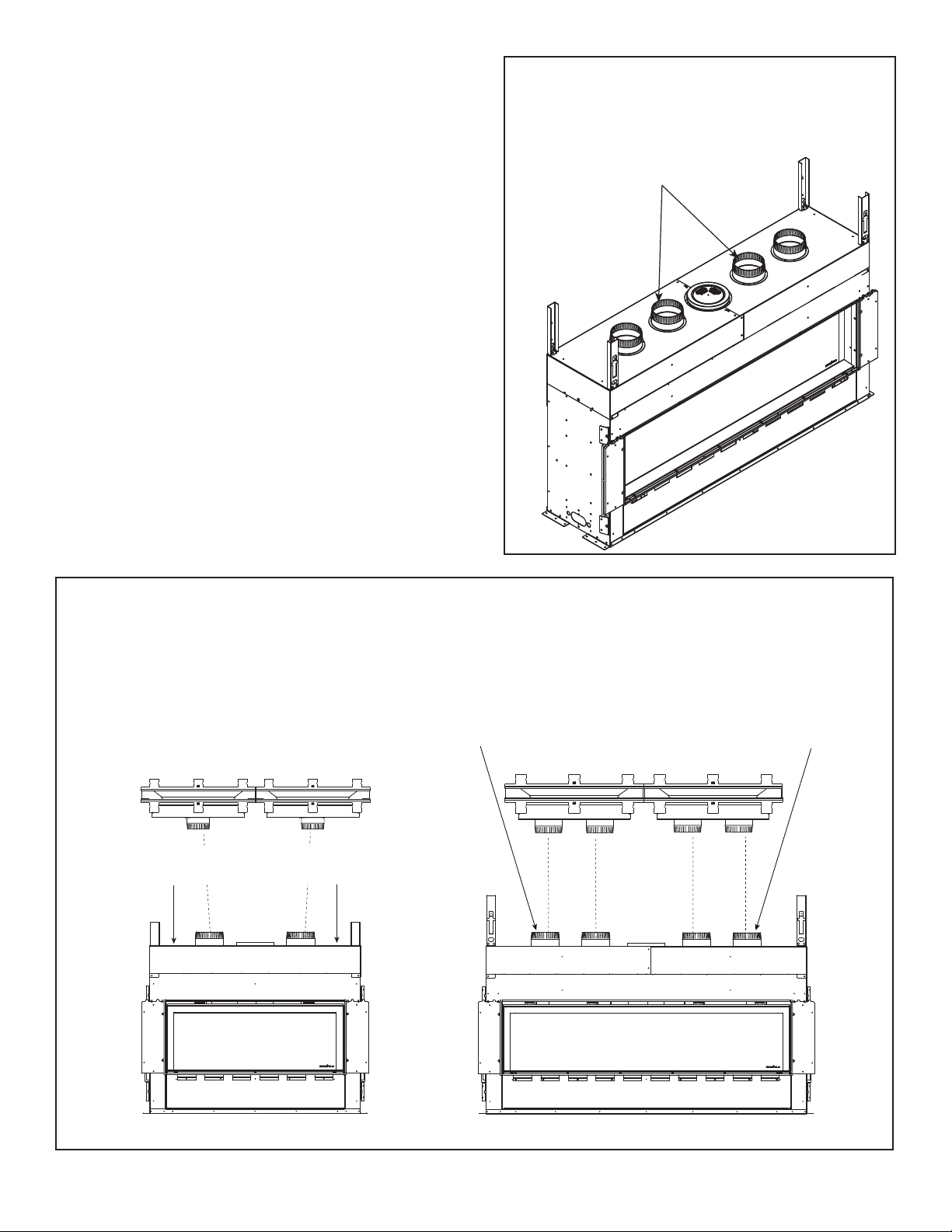

Figure 5.10 Ducted Passive Heat Front Discharge Configuration
COLLAR LOCATIONS
FOR 36 AND 48 INCH MODELS
Figure 5.11 Remove Passive Heat Knockouts
WARNING! Risk of Fire! DO NOT remove appliance
heat management knock-outs unless an approved
heat management system is installed. Appliance and
combustible materials will overheat.
PHFR-MCE-36
PHFR-MCE-48
PHFR-MCE-60
PHFR-MCE-72
DUCTED PASSIVE HEAT
(Front Discharge*)
*Only one passive heat option may be installed on a single appliance.
Ductless passive heat kits may not be used in conjuction with the ducted passive heat kits.
One outside heat management knockout may be used for alternate heat management
(HEAT-ZONE-GAS, HEAT-OUT-GAS)
On 60 & 72 one outside (far left or far right) heat management knockout
may be used for an alternate heat management system
(HEAT-OUT-GAS, HEAT-ZONE-GAS)
On 36 & 48 the outside heat management knockouts
may be used for an alternate heat management systems
(HEAT-OUT-GAS, HEAT-ZONE-GAS)

8Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20

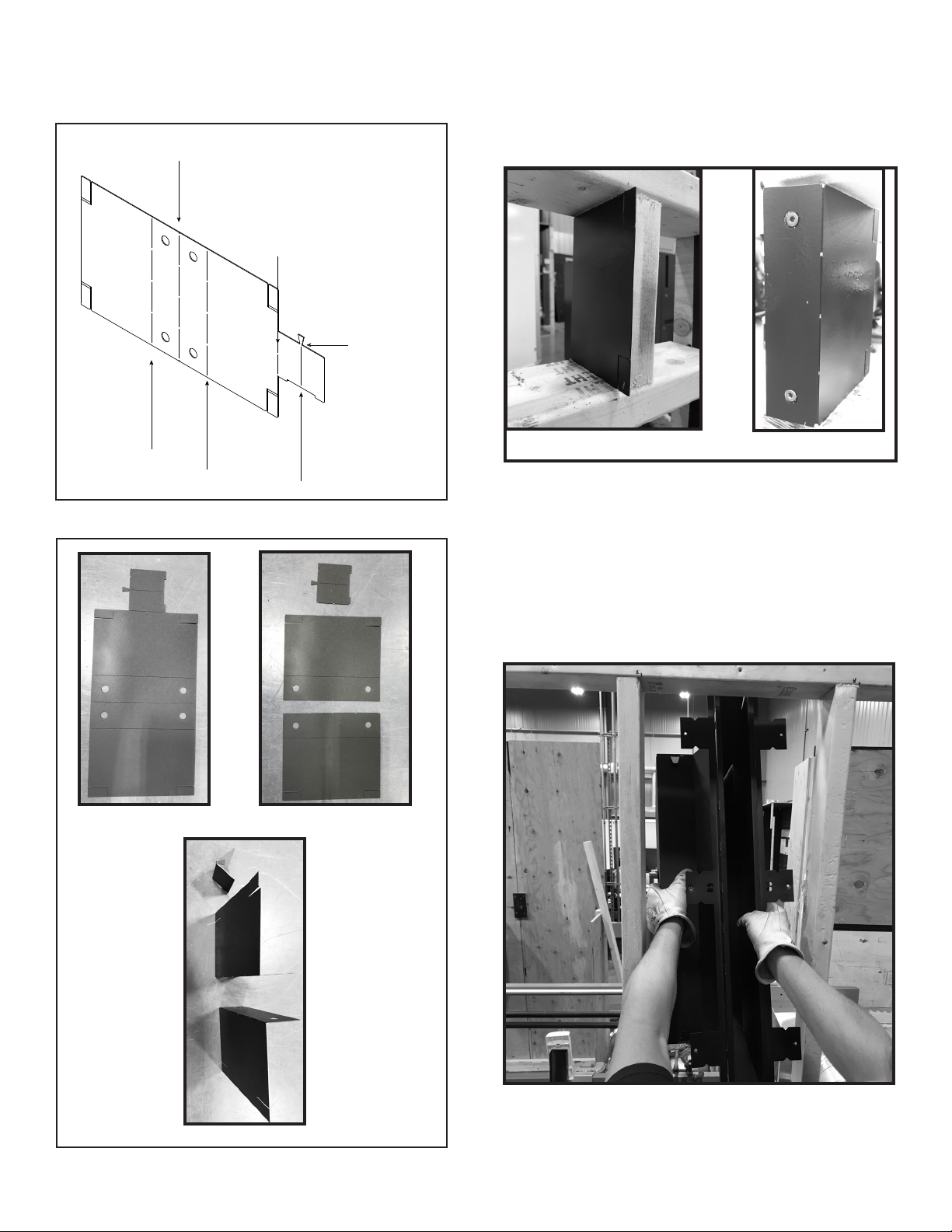

10. Locate the nishing trim piece and break at the two
places noted in Figure 5.12. Bend as indicated in Fig-
ure 5.13, Detail A, B, and C.
BREAK HERE
BREAK HERE
BEND HERE
BEND HERE
BEND HERE
CENTER FINISHING TRIM
LEFT
OR RIGHT
LEFT
OR RIGHT BEND HERE
Figure 5.12 Finishing Trim
Figure 5.14 Finishing Trim Installed
12. Two passive heat plenums are included with the kit
and both must be installed with the appliance or the
appliance will overheat. The plenums are placed into
the framed opening from inside the chase.
WARNING! Risk of Fire! Two plenums MUST be in-
stalled for passive heat to function correctly. Overheating
of appliance and combustible materials will occur.
13. Position the rst plenum into the wall by turning verti-
cally to clear the studs. See Figure 5.15.
Figure 5.15 Turn Plenum Vertically to Clear Framing Studs
14. Turn plenum back to horizontal orientation and tilt to
bring bottom nailing tabs through the opening rst.
Rotate the plenum forward to get the top nailing tabs
through. See Figures 5.16, 5.17, and 5.18.
Figure 5.13 Break and Bend Finishing Trim
DETAIL A - FRONTDETAIL A - FRONT DETAIL B - BACKDETAIL B - BACK
11. Install the left and right nishing trim pieces on the
framing on the sides of the discharge opening using
construction screws or nails as shown in Figure 5.14,
Detail A and B. Notice that the screws are installed
on the back side of the framing. See Figure 5.14 and
Figure 5.29.
DETAIL ADETAIL A
DETAIL CDETAIL C
DETAIL BDETAIL B

9
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20

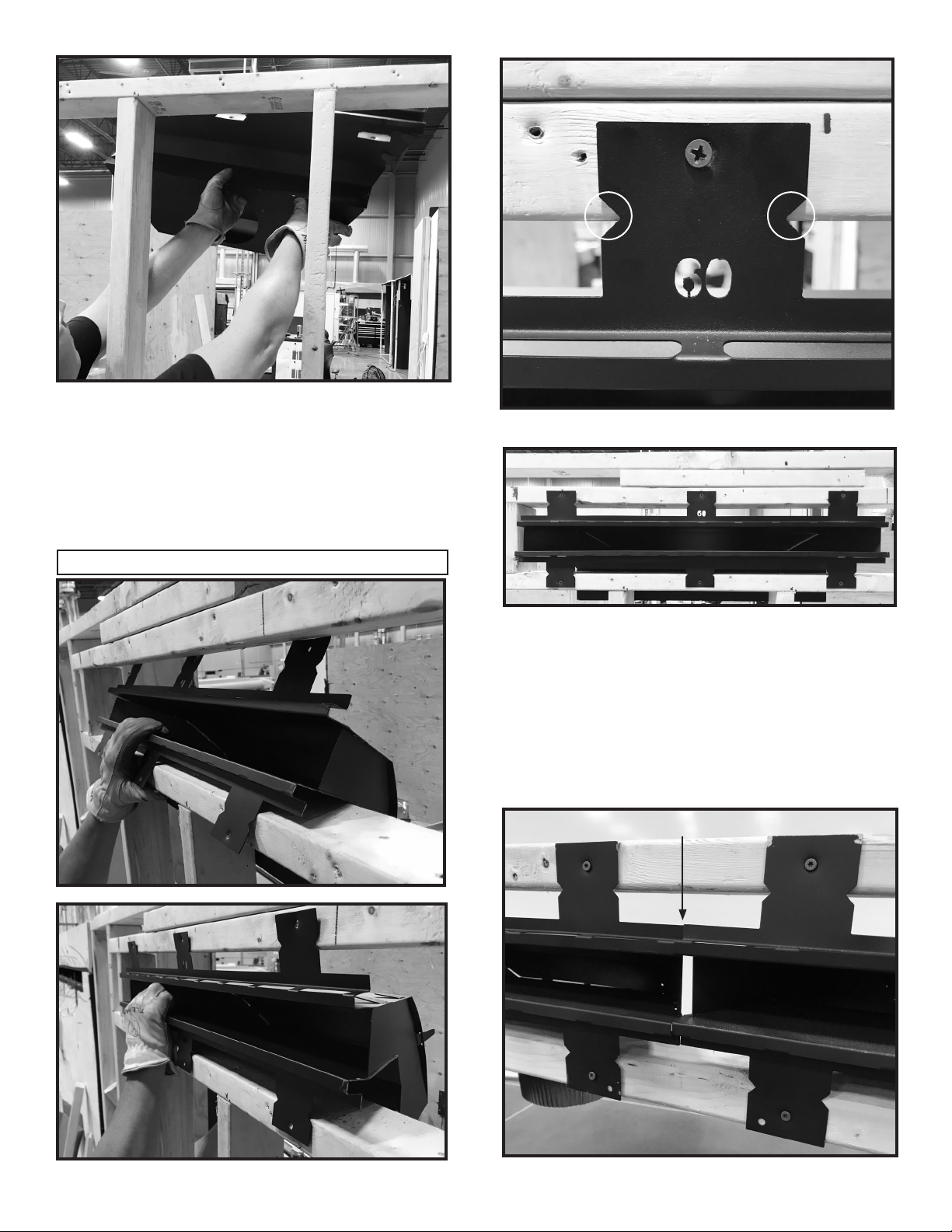

Figure 5.16 Rotate Plenum to Horizontal Orientation
15. Position the plenum adjacent to the nishing trim
piece that was installed in Step 11 on the framing as
shown in Figure 5.17 and Figure 5.18. The notches
in the nailing tabs allow for vertical centering of the
plenum and are to be lined up with the edge of the
header as shown in Figure 5.19. Mount the plenum
into the wall using drywall framing screws or nails.
See Figure 5.20.
Figure 5.18 Position Plenum
Figure 5.19 Secure Nailing Tabs
Figure 5.20 Plenum Secured in Place
Note: The two plenums must be touching each other in
the center of the opening in order for the trim to t properly.
See Figure 5.21.
16. Place the second plenum into position so that it sits
side by side with the other plenum. The two plenums
must be centered left to right in the framed opening.
Figure 5.21 Plenums Contact Each Other
PLENUMS CONTACT EACH OTHERPLENUMS CONTACT EACH OTHER
Figure 5.17 Place Plenum From Inside of the Chase
Note: Finishing trim pieces not installed on all photos.

10 Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20

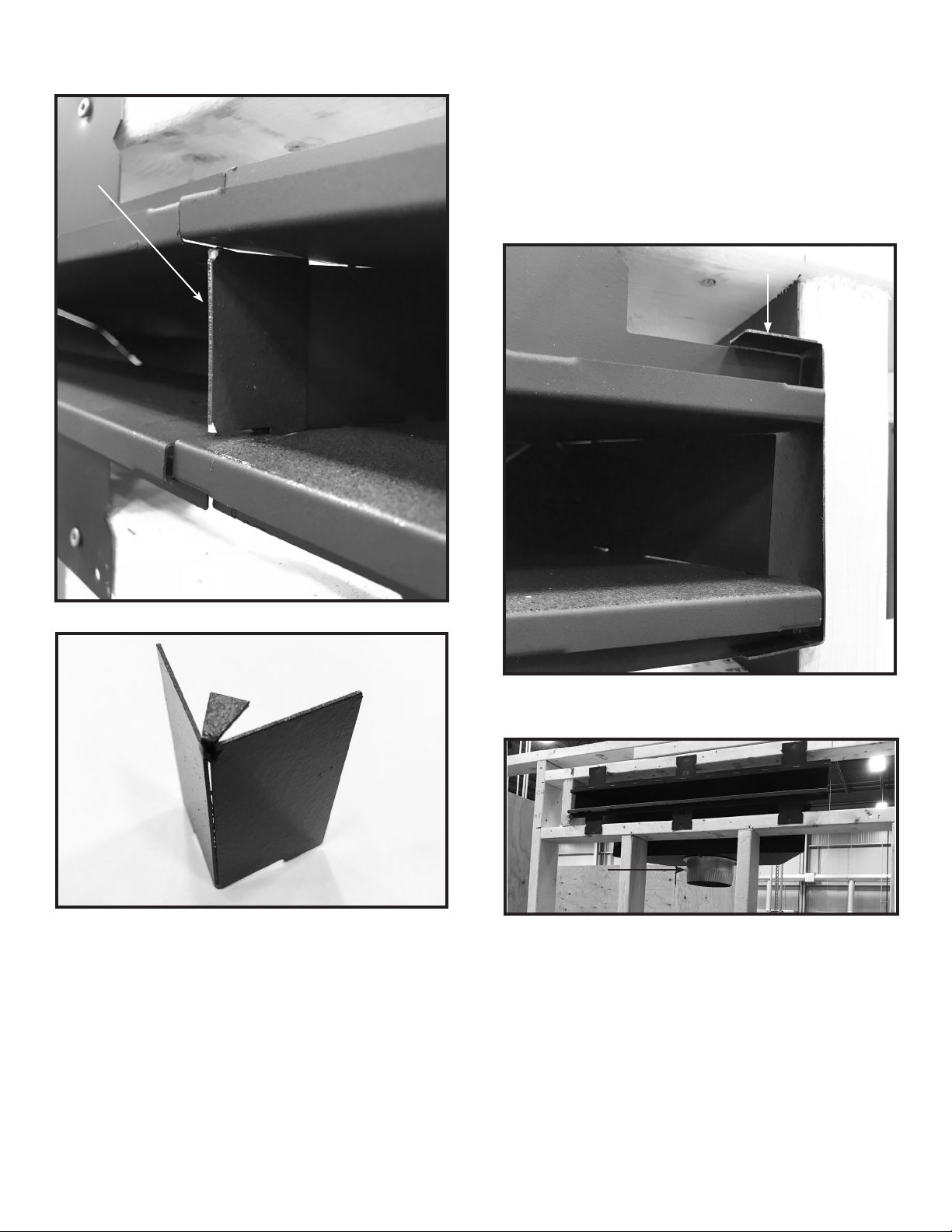

Figure 5.25 Install Collar(s) to Bottom of Plenum
18. Bend the edge of the left and right side trim pieces
over for a reference on where to cut the drywall. See
Figure 5.24.
19. Install collar to bottom side of each plenum using hur-
ricane screws provided in the kit. See Figure 5.25.
Note: The PHFR-MCE-60 and PHFR-MCE-72 require
two collars per plenum.
Figure 5.24 Bend Side Trim Piece
BEND SIDE TRIM PIECEBEND SIDE TRIM PIECE
17. Insert the center nishing trim piece between the two
plenums. See Figure 5.22 and 5.23.
Figure 5.22 Insert Center Finishing Trim Piece
CENTER FINISHING TRIM PIECECENTER FINISHING TRIM PIECE
Figure 5.23 Insert Center Finishing Trim Piece
COLLARCOLLAR

11
Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
20. Cut ex venting to appropriate length to run from top
of appliance to the bottom of the plenum. Ensure
there are no kinks. See Figure 5.26 and Figure 5.27.
21. Secure ex venting to collars on both the appliance
and the bottom of the plenum using the provided gear
clamps. See Figure 5.27 and Figure 5.29.
Figure 5.27 Install Flex Venting to Appliance
Figure 5.29 Flex Vent Installed with No Kinks
BACK SIDE: LOCATION OFBACK SIDE: LOCATION OF
FINISHING TRIM PIECEFINISHING TRIM PIECE
(See Figure 5.14.)(See Figure 5.14.)
22. Install self-tapping screw through gear clamp into col-
lar. Repeat for all collars. See Figure 5.28
Figure 5.28 Install Screw into Collar
SCREWSCREW
WARNING! Risk of Fire! DO NOT fold/kink/pinch/ob-
struct 6 inch exible ducts. Overheating of appliance and
combustible materials will occur.
Figure 5.26 Install Flex Venting to Collar on Bottom of Plenums

12 Hearth & Home Technologies • PHFR-MCE-36, PHFR-MCE-48, PHFR-MCE-60, PHFR-MCE-72 Instructions • 2560-972 • 6/20
WARNING! Risk of Fire! DO NOT block passive heat
registers! Overheating of appliance and combustible
materials will occur.
6. Finishing Instructions

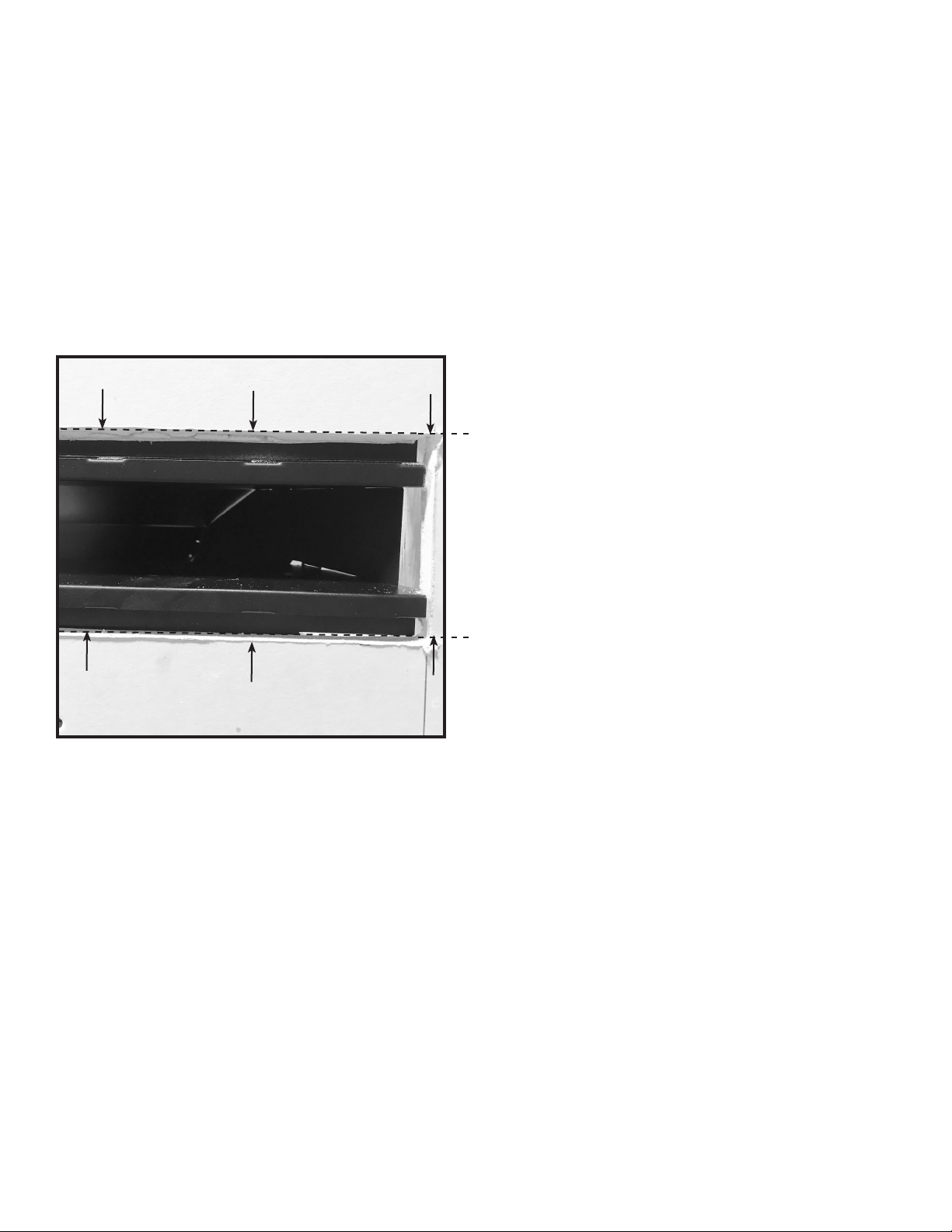

1. Apply wall sheathing material up to 1/2 inch thick up to
the edge of the plenum. See Figure 6.1.
Figure 6.1 Wall Sheathing Installed
NO WALL SHEATHING MATERIAL BEYOND THIS LINENO WALL SHEATHING MATERIAL BEYOND THIS LINE
NO WALL SHEATHING MATERIAL BEYOND THIS LINENO WALL SHEATHING MATERIAL BEYOND THIS LINE
2. Install the appropriate trim kit as instructed. See Table
1.1.
WARNING! Risk of Overheating! DO NOT apply wall
sheathing past outside edge of plenum. Overheating of
appliance and combustible materials will occur.
7. Maintenance
Service and maintain the gas replace per instructions
included with the appliance. Keep the air register(s) clean
and free of any blockage.
Please contact your Hearth & Home Technologies
dealer with any questions or concerns.
For the location of your nearest Hearth & Home Technologies
dealer,
please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
