1.1 Warnings
1.2 Health and Safety
1.3 Electrical Supply
1.4 Location
1.5 Clearance Distance
1.6 Standards
2 Introduction
2.1 Introduction
2.2 HSTIRFN wireless controller
2.3 HSCFHMC colour touchscreen controller
2.4 Connection to controllers
3 Intelligent fan speed control
3.1 Automatic fan speed control
4 Selecting heater controls
4.1 HSTIRFN wireless controller
4.2 Pairing to the HSTIRFN wireless controller
4.3 Heater status indication
4.4 Operation of the HSTIRFN wireless controller
4.5 HSCFHMC controller
4.6 Connecting heaters to the HSCFHMC controller
5 Dimensions and fixing location
6 Installation details
6.1 Mounting
6.2 Electrical connections
7 Technical specification
7.1 Technical specification single & three phase heaters
8 Wiring details
8.1 Installer Wiring 3 phase heaters
8.2 Installer Wiring single phase heaters
8.3 Factory Wiring 3 phase heaters
8.4 Factory Wiring single phase heaters
9 Fault detection / indication
9.1 Fault detection
9.2 Status indication - main pcb
9.3 Status indication - secondary pcb
9.4 Overheat protection reset
10 BMS Connection MODBUS Protocol
11.1 BMS connection
11.2 MODBUS protocol
Contents
1 General Information

3
51000241 Issue 02
All units must be wired in accordance with I.E.T.
regulations for the Electrical Equipment of
Buildings.
BMS control, time switches and door interlocks
can be installed at the discretion and
responsibility of the installer.
Follow paragraph 4 ‘technical specification’ for
more details.
1.4 Location
Ideal for large areas such as large offices
warehouses, factories, large workshops and
many other commercial applications. Care must
be taken to allow complete free air movement
into the inlet grilles of the unit to ensure correct
working operation of the heater. The discharge
opening should be pointed towards the heated
area. The heater must always be installed
horizontally using the mounting bracket
provided. This ensures correct positioning and
adequate clearance.
1.5 Clearance Distance
1. It is recommended that a minimum clearance
of 50mm is allowed above the heater and
minimum of 300mm on each side. The clearance
allows for the air inlet. It also prevents surfaces
overheating.
2. The minimum mounting height (floor to bottom
of the heater) is 2m. The maximum mounting
height is 3.4m.
1.6 Standards
The heater conforms to the following standards
Electrical Equipment (Safety) Regulations 2016
SI. 2016 1101
Electromagnetic Compatibility Regulations
2016 SI. 2016 No. 1091
Radio Equipment Regulations 2017 SI. 2017
No. 1206
The Ecodesign for Energy Related Products
and Energy Information (Amendment) (EU E xit)
Regulations 2019. SI. 2010 2617
The Restriction of use of Certain Hazardous
Substances. SI. 2012 No. 3032
1.1 Warnings
All installations must be in accordance
with the regulations. These instructions
must be handed to the user on
completion of the installation. Installers
and service engineers must be able to
demonstrate competence and be
suitably qualified in accordance with the
regula-tions. To ensure continued and
safe operation it is recommended that
the appliance is serviced annually. The
heater’s outlet/inlet grille must not be
obstructed during use. Any modifications
made to the unit, not approved by
Heatstore, will void manufacturer’s
warranty and potentially create a
hazard. The appliance is NOT intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities or lack of experience or
knowledge unless they have been given
instruction concerning use of the
appliance by a person re-sponsible for
their safety. Children should be
supervised to ensure that they do not
play with the appliance. Parts of the
heater can become very hot when in
operation and can cause burns. The
heater is not equipped with a room
thermostat and should not be used in
small rooms, so as to avoid overheating.
1.2 Health and Safety
Please read these instructions thoroughly before
installing the appliance. Sole liability rests with the
installer to ensure that all site safety procedures
are adhered to during installation. Sole liability
rests with the installer to ensure that protective
safety wear such as hand, eye, ear and head
protection is used during installation of the prod-
uct. Ensure that all anchoring points are suitable
for the weight of the appliance.
1.3 Electrical Supply
This heater must be permanently connected
to the electricity supply via a double or 4
pole switch having 3mm gap on each pole.
There are no exceptions.
1. General Information

4
51000241 Issue 02
ers and Whave
2.2 HSTIRFN wireless controller
The HSTIRFN wireless controller (not supplied
with the heater) can control any number of
HSCFH heaters within its range. It has a large
easy-to-read backlit LCD display and offers up
to six temperature settings a day, seven days
a week. The HSTIRFN can also provide three
levels of heat and 3 fan speeds in manual
control mode. Follow HSTIRFN user guide for
more details.
2.3 HSCFHMC Controller
The HSCFHMC colour touch screen controller
(not supplied with the heater) giving options for
8 fan and 8 heat settings, together with
accurate temperature control, can be
mounted up to 50m from the heaters.
The electronic touch screen controller (shown
on the picture above) allows the user to control
either a single heater or a network of up to 8
heaters with individual settings.
The controller is designed to be mounted on a
surface double gang back box, and is
powered by an RJ45 connection. The controller
will not fit metal or dry lining back box.
The total cable length of the system can be up
to 50 metres.
Up to two environmental sensors HSCHES can
be connected to the heaters.
2.
Introduction
WARNING:
THIS HEATER SHOULD NOT BE
INSTALLED WHERE THERE IS A
CORROSIVE ATMOSPHERE OR
EXCESSIVE DUST.
2.1 Introduction
1. This instruction manual describes the
commercial fan heater range from
Heatstore. These heaters are robustly
designed for use as space heating in large
areas. With a maximum heat throw of up to
11m depending on the room temperature
and selected fan speed, they are ideal for
areas such as garages, workshops and
warehouses.
2. Each heater is equipped with an intelligent
fan control, which allows the heater to
adapt to the environment by automatically
adjusting the fan speed. The heater provides
instant directional warmth, and also has a
fan-only setting for air circulation.
3. The heaters are wall mounted with
multi-directional brackets.
4. Heaters are available in 6kW, 9kW and
12kW rating. The 6kW heater is single phase
and the 9kW and 12kw heaters are 3 phase.
The heaters can be controlled by either
HSTIRFN wireless controller or HSCFHMC
colour touch screen master controller. For
larger areas, up to 8 air curtains can be
easily interconnected using CAT5/CAT6 RJ45
networking cable, when used together with
HSCFHMC controller. The heaters can be
also controlled by BMS using MODBUS
control system.
5. It is recommended that this control cable is
run separately within its own trunking to
avoid external interference.
6. Up to two environmental sensors CHES can
be connected to the heaters when used
together with HSCFHMC controller.
7. Environmental sensors offer 3 functions;
remote temperature measuring, microwave
occupancy sensor and remote or boost
switch connection. All functions are fully
programmable and can be associated with
any heaters in the system.
The controllers aren’t supplied with the
heaters and have to be purchased
separately.

5
51000241 Issue 02
2.4 Controllers
HSTIRFN
Controlling heaters using
HSTIRFN wireless controller
Controlling heaters using
HSCFHMC touch screen controller
HSCFHMC
maximum 8 heaters
30m maximum distance
Optional HSCHES environmental
sensor (maximum 2 HSCHES in the system)
3.1 Automatic speed control
The intelligent fan control incorporates one of the latest low energy consumption EC motors. This
allows the heater to operate quietly, whilst still providing the best possible levels of comfort.
The intelligent fan control is only activated when the heat is switched on. If the heater is running
in fan/boost mode only (heat switched off), then the fan will operate at a fixed speed.
When activated, the intelligent fan control detects the temperature of the room and,
depending on which heat mode is activated, it will calculate the best possible airflow and
adjusts the fan speed accordingly.
In order to maintain a constant airflow temperature, the fan runs at a lower speed when the
ambient temperature is low and will speed up as the room is getting warmer. This will result in
reduced throw at low room temperatures.
NOTE: When turning the heater on, or changing heat mode or fan speed mode, the fan will
respond accordingly after a short time delay.
2.
Introduction
3. Intelligent Fan Control

6
51000241 Issue 02
4.2 Pairing to the HSTIRFN Controller
This must be done, otherwise the heaters
will not work.
Power up the HSTIRFN wireless controller (see
user instructions for HSTIRFN for details).
Set heater into pairing mode as follows:
Locate the status light.
Turn power to the heater on. The light should
be green. Now, the heater is ready for
pairing for the next 20 seconds. After 20
seconds, it will return to normal operating
mode and pairing will not be possible.
(Heater must be powered off, and then back
on again in this case)
To pair heater with HSTIRFN, Press and hold
and buttons together until display shows
HSTIRFN identification code.
Press the button. This must be done within
20 seconds from powering up the heater.
The screen on the controller should flash.
If the pairing was successful, the light will
show purple for 5 seconds, and the heater
will to start. If the HSTIRFN is signalling the
heat output to be on, it will begin
outputting heat. If the HSTIRFN is signalling
the heat output to be off, the heater will
switch off after 5 seconds.
4.3 Heater status indication
4.4 Operation of HSTIRFN
The HSTIRFN controller will come factory set
in temperature control mode. This can
be changed to manual operation mode
which simulates a 4-switch box. In this mode,
the tem-perature control is disabled and the
controller doesn’t have to be installed in the
same location as the heaters, however they
must still be within the wireless range.
To switch to manual mode, press and hold
the .& icons for 5 seconds to access the
setup menu. Use icon to navigate through
the menu. Navigate to option 6, and change
the value to 2, this will change your controller
to manual/timer mode.
The fan speed F0, F1, F2 or F3 is displayed on
the left side of the display. Press to cycle
through the fan settings.
The heat setting H0, H1, H2 or H3 is displayed
on the right side of the display. Press UP or
DOWN buttons to adjust the heat setting.
In Manual Control Mode, many of the
functions of the HSTIRFN are very similar to
automatic mode, except that the fan and
heat settings are adjusted instead of the set
temperature:
Light colour Heater status
Heater is in stand-by mode/ not
receiving signal from controller.
Heater is ready for pairing with
controller. See section 4.1 “Pairing
to the controller” for details.
Reduced heat output
Full power heat output
Heater is in fan only mode
If the LED is flashing white, there is a
fault. The unit will continue to
function in restricted mode.
However, in specific circumstances
the unit will stop running. See
section 6.1 for more details.
Heater paired successfully - Solid
Purple light for 5 seconds
4. Selecting heater controls
4.1 HSTIRFN Controller
The heater has to be configured for
a selected control method at the time
of installation. Only 1 control method can
be used at the same time. To control
heater using the HSTIRFN controller the DIP
switch 1 locat-ed under the electrical
connections cover has to be set to ‘1’ as
on the picture below.

7
51000241 Issue 02
Fig. 1: Dimensions
4. . Selecting heater controls
4.5 HSCFHMC Controller
The heater has to be configured for a selected
control method at the time of installation. To
control the heater using a HSCFHMC controller
the DIP switch 1 located under the electrical
connections cover has to be set to ‘0’ as on the
picture.
4.6 Connecting heaters to the HSCFHMC
The HSCFHMC is connected to the heater by
CAT5/CAT6 RJ45 cable. The RJ45 connector
is located under the terminals cover on the
bottom of the heater. There are 2 equal
RJ45 connectors in each heater. The controller
can be connected to any one. The second
connector is used If there are additional heaters in
the system for a daisy chain connection.
Controller is powered via the
RJ45 connector. Each heater in the system must
be set to unique ID. This is selectable
by DIP switches 2,3 and 4.
5. Dimensions & Fixing locations

8
51000241 Issue 02
6.1 Mounting
It is the sole responsibility of the installer to
ensure that the points of attachment to the
building are sound. Consultation with the
consultant/architect or owner of the building
is recommended to ensure that a sound,
mechanically stable installation is achieved.
Before fitting or wiring the heater, ensure that
the casing faces, as shown in figures 1&2,
follow these installation guidance notes.
The wall bracket is secured to one of the inner
cardboard box corners. Cut the plastic bag
to remove it. All fixing screws are attached to
the side of the inner cardboard box.
The heater must always be installed
horizontally, using the mounting bracket
provided. This ensures correct positioning and
adequate clearance.
Assemble the swivel bracket as shown on
Fig.3. Use M8 and M5 bolts with locknuts and
washers as supplied in bag. Attach the
assembled bracket to the bottom of the
heater by using 4 x M6 bolts with plain and
spring washers as shown on Fig.3.
Secure the wall bracket to the wall with
suitable fixings. Ensure the position of this
bracket will allow suitable clearances
between the heater, when fitted, and
adjacent walls. Mini-mum of 3 fixings must be
used to secure the wall bracket to the wall.
Attach the heater to the wall bracket.
Finally, adjust the direction of the heater to
the desired area and tighten up all clamping
nuts and bolts.
Care should be taken when choosing a
position, ideally there should be a clear line of
sight between the heater and controller. If the
signal has to travel around corners, walls or
any metal objects it will decrease the range.
Ensure that the heater is fixed to a secure wall
within the mounting height limits stated in
‘clearance distances’. Mount the heater as
shown in figures 1 and 2.
The angle of the heater can be adjusted in
steps, 22.5 deg. vertically and 180 deg.
horizontally.
The weight of the heaters is
approximately 10kg
6.2 Electrical connections
(HSCFH60WX): The heater is suitable for
connec-tion to 230-240 Volts single phase 50Hz
supply. The heater consumes approximately
6kW on the full heat setting. The maximum
current draw is 25A.
(HSCFH90WX, HSCFH120WX): The heaters are
suitable for connection to a 400-415 volt 3
phase 50Hz supply only.
The maximum current draw for the
HSCFH90WX/HSCFH120WX is approximately
12.5A, 16.6A per phase.
The heater consumes approximately, 9kW,
12kW (HSCFH90WX, HSCFH120WX models
respectively) on the full heat setting.
Earth terminals are adjacent to the terminal
block and are clearly marked with the earth
symbol.
Fig. 2: Swivel Bracket Assembly
6. Installation Details

9
51000241 Issue 02
Installation height M 2.4 - 4
Heat medium Electric heating element
Heat output kW 6 9 12
Fan type EC centrifugal fan 133-190
Fan control Electronic fan speed control
Heat switching Solid state electronic control
Weight kg 10 10 10
Electrical Data
Supply voltage
415V ~ 3ph 50Hz only
Total load kW 6 9 12
Max current per phase A/pha 13 16.5
Max motor power W 120 120 120
External fuse size amps A/pha 32 16 20
Controller HSTIRFN wireless or HSCFHMC Touch screen controller
Controller wiring CAT5 / CAT6 with RJ45 connectors
Cable terminal size
Mains terminal block position
Control terminal position Centre of base unit
Air Data
Air volume Max speed m³/h 900 900 900
Air velocity Max speed @ 0M m/s
Noise level @ 3m Max speed dBA 60
Min speed dBA 50
Dims Data
Width mm 332
Depth mm 338
Height mm 272
9.5
240V ~ 1ph
50Hz only
Bottom of the heater.
Terminals N; L1; L2 & L3
10mm² Max
7. Technical Specifications
HSCFH60WX HSCFH90WXHSCFH120WX
Bottom of the heater
Terminals N; L
7.1 General Data
Bottom of the heater

10
51000241 Issue 02
8.1 Installer Wiring - 3 phase heaters
CAT5 cable
8 . Wiring Details
HSCFHMC HSTIRFN

11
51000241 Issue 02
8.2 Installer Wiring - single phase heaters
CAT5 cable
8 . Wiring Details
HSCFHMC HSTIRFN

12
51000241 Issue 02

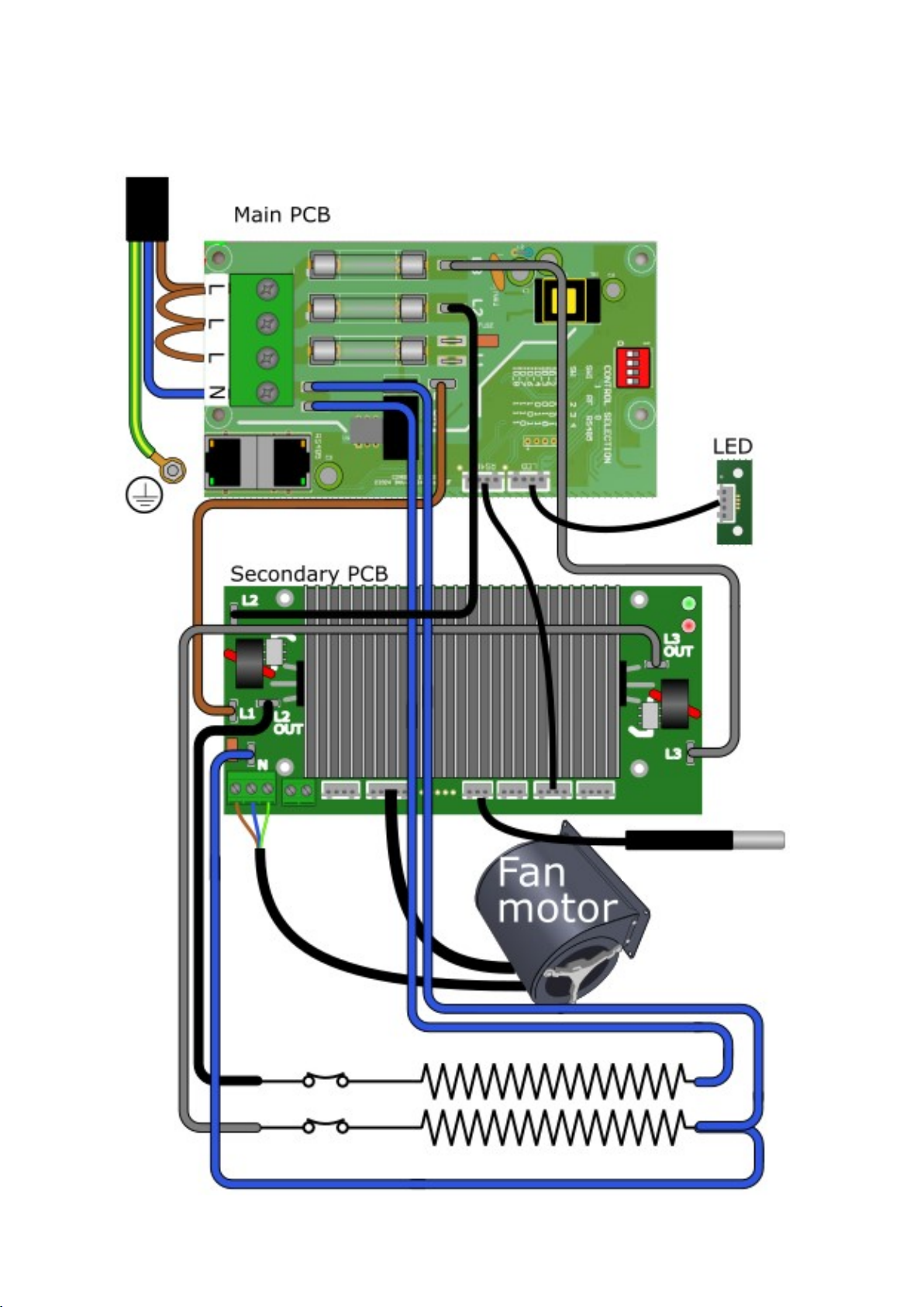

8.3 Factory Wiring - 3 phase heaters
temperature sensor

13
51000241 Issue 02
8.4 Factory Wiring - single phase heaters
temperature sensor

14
51000241 Issue 02
A green LED on the secondary PCBs shows
that there is power available. The red LED
will flash one of the sequences as shown in
the table below. The sequence is repeated
every 5 seconds.
1 Power measurement when triacs
switched off:
Response: Auto run motor
2 Motor fault
Response: Disable heating
3 Triac heatsink overheat:
Response: Reduce heating
4 Low power measurement when
triacs switched on:
Causes: Thermal cut-out operat-
ed, blown fuse, missing phase
Number
of flashes
Fault
Main PCB
Secondary PCB
9.1 Fault detection
Heaters are equipped with electronic fault
detection. In the event of a fault being
detected, heater will show the nature of the
fault by flashing status LED located at the front
of the heater. The LED will flash one of the
sequences as shown in the table below. The
sequence is repeated every 5 seconds.
9.4 Over heat protection reset
The heater is equipped with electronic over
heat protection and also resettable over
temperature cut-outs. There are two cut-
outs located on the top of the heating
element. In the unlikely event of electronic
failure, the mechanical cut-outs will switch
off power to the heating element. In order
to reset cut-outs, isolate the heater from
power and leave heater to cool down.
The cause of cut-outs operating should be
investigated before resetting as the only
time the mechanical cut-out operates is
when electronics can’t protect heater from
overheating.
1 Overheating detected
Response: Power reduced until
heater cools down
2 Temperature measurement fault
Response: Intelligent speed con-
trol disabled, fan speed increased
3 Power not detected when heat
switched ON
Response: Fan operates as nor-
mal
Possible causes: missing phase,
blown fuse, faulty electronics
4 Problem with motor
Response: Heater will not work
Number of
flashes
Fault
5 Power detected when not
switched ON
Response: Fan runs continuously
6 Internal communication error
Response: Heater will not work
9.2 Status indication - main PCB
There are 2
LEDs on the
RJ45 connectors
indicating
that the power
is available. If
the heater is in
stand-by mode,
the green LED is ON. If the heater is switched
ON the orange LED is indicating that the
auxiliary power is available for the electronic.
9.3 Status indication - secondary PCB
For fault diagnostic being carried out by a
competent person there is an additional fault
indication on the secondary PCB.
9. Fault detection / indication

15
51000241 Issue 02
1.1 BMS Connection
There are 2 ways for connecting heaters to BMS.
1. Using HSCHES and external switch as a
simple BMS on/off connection
2. Using MODBUS protocol.
The heater is compatible with BMS systems using
MODBUS protocol.
The connection to BMS system can be made using
one of the RJ45 connectors.
Only one means of control can
be used at any time. If BMS is used to control the
heater, the colour screen controller
must not be used.
The BMS can control fan speed and
heat output and also read and report
the heater status.
Speed can be set in the range of 600 -
1700RPM in 1RPM steps. If the speed is
set below 600RMP, the heating element is
automatically disabled. Care has to be taken
when selecting speed. The fan speed should be
always correct for the selected heat output. If the
speed is too low, the heater can overheat.
Heat output can be set in the range of 0 - 100% in
1% steps.
10.2 MODBUS Protocol
The DIP switch 1 must be set to ON position for BMS
control.
The DIP switches 2, 3 and 4 are used to configure
each air curtain with a unique address.
RJ45 cable can be used to network
up to 8 heaters in a daisy-chain
configuration.
All possible addresses:
RS485
serial half-duplex interface
MODBUS RTU
9600 baud
8 bits
1 start bit
no parity + 2 stop bits
‘mark’ parity + 1 stop bit
Supported MODBUS function codes:
0x03 read multiple input registers
0x04 read multiple holding registers
0x06 write single holding register
0x10 write multiple holding registers
16 Bit Input Registers:
1 Status
2 Temp 1
3 Temp 2
4 Temp Heatsink
5 Temp External
6 External Switches
Temperatures are formatted as 16 bit signed integers.
Units are sixteenths of a degrees Celsius, as used by
DS18B20 temperature sensors. The hex value 0xF000 is
used to denote an invalid reading.
The status register uses bits to indicate faults:
Bit 0 - overheat
Bit 1 - heatsink overheat
Bit 2 - temp sensor 1
Bit 3 - temp sensor 2
Bit 4 - heatsink temp sensor
Bit 5 - remote temp sensor
Bit 6 - L2 on current low
Bit 7 - L2 off current high
Bit 8 - L3 on current low
Bit 9 - L3 off current high
Bit 10 - motor PSU
Bit 11 - motor
Bit 12 - MCU
Bit 13 - connection
Bit 14 - 12V auxiliary power
Bit 15 - main PCB relay
External switches register uses bits to show the state
of switches:
Bit 0 - Switch 1
Bit 1 - Switch 2
Bit 2 - Switch 3
Bit 3 - Switch 4
16 Bit Holding Registers:
1 RPM (units revolutions per minute)
2 Power (units percentage 0 –100)
RPM must be set to at least 600, otherwise heating is
disabled.
1 1000
2 1100
3 1010
4 1110
5 1001
6 1101
7 1011
8 1111
Main PCB
10
. BMS Connection MODBUS Protocol

16
51000241 Issue 02
Declaration Of Conformity
In accordance with UK Government Guidance.
WE HEREBY CERTIFY THAT THE APPLIANCES DETAILED HEREON HAVE BEEN
INSPECTED AND TESTED, AND CONFORM TO THE REQUIREMENTS OF THE
FOLLOWING UK STATUTORY INSTRUMENTS WHERE APPLICABLE:
Electrical Equipment (Safety) Regulations 2016 SI. 2016 1101
Electromagnetic Compatibility Regulations 2016 SI. 2016 No. 1091
Radio Equipment Regulations 2017 SI. 2017 No. 1206
The Ecodesign for Energy Related Products and Energy Information (Amendment) (EU Exit)
Regulations 2019. SI. 2010 2617
The Restriction of use of Certain Hazardous Substances. SI. 2012 No. 3032
Transposed standards used:
·BSEN55014 (2006)
·BSEN301 489.1 & .3
·BSEN300 220.1 & .2
·BSEN60 730.2.9
·BSEN 60335.1 (2012 )
·BS EN 60335.2.30 (2009)
PART NUMBER AND DESCRIPTION OF APPLIANCE: HSCFH60WX, HSCFH90WX, HSCFH120WX
NAME OF RESPONSIBLE PERSON:
POSITION:
DATE:
Martyn Field
Technical Services Manager
01/11/22
Contact details
Heatstore
Unit 12, Access 18, Bristol, BS11 8HT
Telephone: [phone]
Email: [email protected]
www.heatstore.co.uk
