HEATSTRIP ELEGANCE User manual

1
HEATSTRIP® ELEGAN CE with Remote
(THE-R Range)
Supe rio r Technology. S up erio r Style.
Product Manual

2
CONTENTS Rev A Apr19
Product overview____________________________ 3
Specifications ______________________________4
Spot heating principle ________________________ 5-6
Radiant footprint ____________________________ 7
Selection Guide _____________________________ 8
Table layout ________________________________ 9
Installation requirements ______________________ 10
Installation location __________________________ 11
Mounting options ____________________________ 12
Standard mounting brackets ___________________ 13
Flush mount enclosure _______________________ 14
FME dimensions _________________________ 14
FME installation clearance dimensions________ 14
FME installation instructions ________________ 14
Extension mounting bracket ___________________ 15
Suspension mount bracket ____________________ 16
Wall controller w/ remote control ________________ 17-18
Safety, Maintenance _________________________ 19
Warranty __________________________________ 20
Dutch _____________________________________ 21
French ____________________________________ 41
German ___________________________________ 61

3
HEATSTRIP® Elegance. Superior Technology. Superior Style
After many years of developing, researching and working in
partnership with coating technology experts, Thermofilm, a
world leader in electric heaters, has produced a unique
composition to produce the new generation of outdoor heaters.
HEATSTRIP® Elegance comes in an “off-white” colour which
blends
in seamlessly with most white ceilings in alfresco areas.
• Electric radiant heater perfect for your protected alfresco
area, pergola, verandah or café
• The elegant, slimline design and “off-white” colour blends in
seamlessly with most white ceilings
• World leading element design produces a more compact
and higher output heater
• Significantly more cost-effective than bottled gas heaters
• Corrosion-resistant to handle the toughest outdoor
environments
• Convenient DIY installation on 2400W models,
3200W model must be hard wired
• Optional mounting brackets
• 2 year residential warranty and 1 year commercial warranty

4
Specifications - Australia
MODEL POWER
(WATTS) CURRENT (AMPS) DIMENSIONS (mm) WEIGHT (Kg) LEAD LENGTH
(mm)
PLUG
THE2400EUR 2400 10 1306 x 170 x 42.7 72000 YES
THE3200EUR 3200 13.3 1710 x 170 x 42.7 92000 NO
MODEL
HEATER TYPE High intensity electric radiant overhead heater with high surface area
profiled alloy
OUTPUT Refer to model code chart above
POWER 240 Volts Nominal at 50 Hertz, Single Phase
CONNECTION 3 Core Cable 2.5mm2
APPROVALS AUSTRALIA/NZ
MOUNTING HEIGHT MINIMUM
RECOMMENDED
MAXIMUM
2.1 m
2.3 m to 2.5 m
2.7 m in a fully enclosed outdoor area (For higher
ceiling heights, units can be lowered using optional
bracket kits or refer to the HEATSTRIP Max range)
MOUNTING OPTIONS Suitable for ceiling, wall, beam, fixed umbrella and recess mounting. Also
available for extension mount using rigid fixing poles and chains / wire
suspension.
PROTECTION RATING IP55 Protection from water ingress from all directions
MATERIALS OF CONSTRUCTION High temperature coated aluminium alloy
THE3200R
42.7mm
42.7mm
42.7mm

5
Operating cost comparison
In many instances, patio heaters powered by gas bottles are used as an outdoor heating source. The below
table shows the operational cost comparison between HEATSTRIP® and a bottled gas outdoor heater. Not only
are the hourly running costs considerably less with HEATSTRIP®, but you never have to worry about running out
of gas, no refilling, no unattractive gas bottle to waste space; and HEATSTRIP® actually improves the value of
your property.
Notes:
1. Calculations of hourly running cost for outdoor gas heater is based on $25.00 average to fill a 9kg gas bottle and
average running time of 9 hours. $25.00 / 9 hours = $2.78 per
hour
2. Electricity rate of 25.0 cents/kWh
3. All calculations are excluding GST.
2.4kW x 0.25 cents = $0.60 or 60 cents per hour
3.2kW x 0.25 cents = $0.80 or 90 cents per hour
Calculations of yearly running cost are based on 180 hours
usage
180 hours x $2.78 = $500.40 yearly running cost for outdoor
gas heater
180 hours x $0.60 = $108.00 yearly running cost for 2400W HEATSTRIP Elegance
180 hours x $0.80 cents = $144.00 yearly running cost for 3200W HEATSTRIP Elegance
RUNNING COST OUTDOOR GAS
HEATER HEATSTRIP ELEGANCE ELECTRIC RA-
DIANT HEATER
THE2400EUR THE3200EUR
PER HOUR $2.78/hr $0.60/hr $0.80/hr
PER YEAR $500.40 $108.00 $162.00

6
BAR
BAR STOOLS
DINING TABLE
LOUNGE
BBQ
2 x THH24006 x THH2400
Spot heating principle
In most outdoor or difficult-to-heat indoor applications, there are 2 options when calculating the size and quantity
of the heaters required.
Option 1 is to comfort heat the entire area based on the total dimensions of the space, regardless of whether the
entire area is being fully occupied.
Option 2 is to spot heat the high use areas, such as over outdoor tables, BBQ’s, lounges, assembly lines or in-
door workstations.
Often it is more practical and efficient to spot heat high use areas. Spot heating will reduce both the initial capital
cost as well as the ongoing running costs. Spot heating will allow the area to be “zoned”, meaning only the areas
that are being used are heated, such as tables in a restaurant or outdoor alfresco area.
Option 1 and 2 show a comparison between heating an entire area or spot heating over a table.
The bottom layout shows the flexibility of using HEATSTRIP® to provide a comfortable environment, even when
the layout of the area is very unusual.
Option 1: 6 x THE2400R Option 2: 2 x THE2400R

7

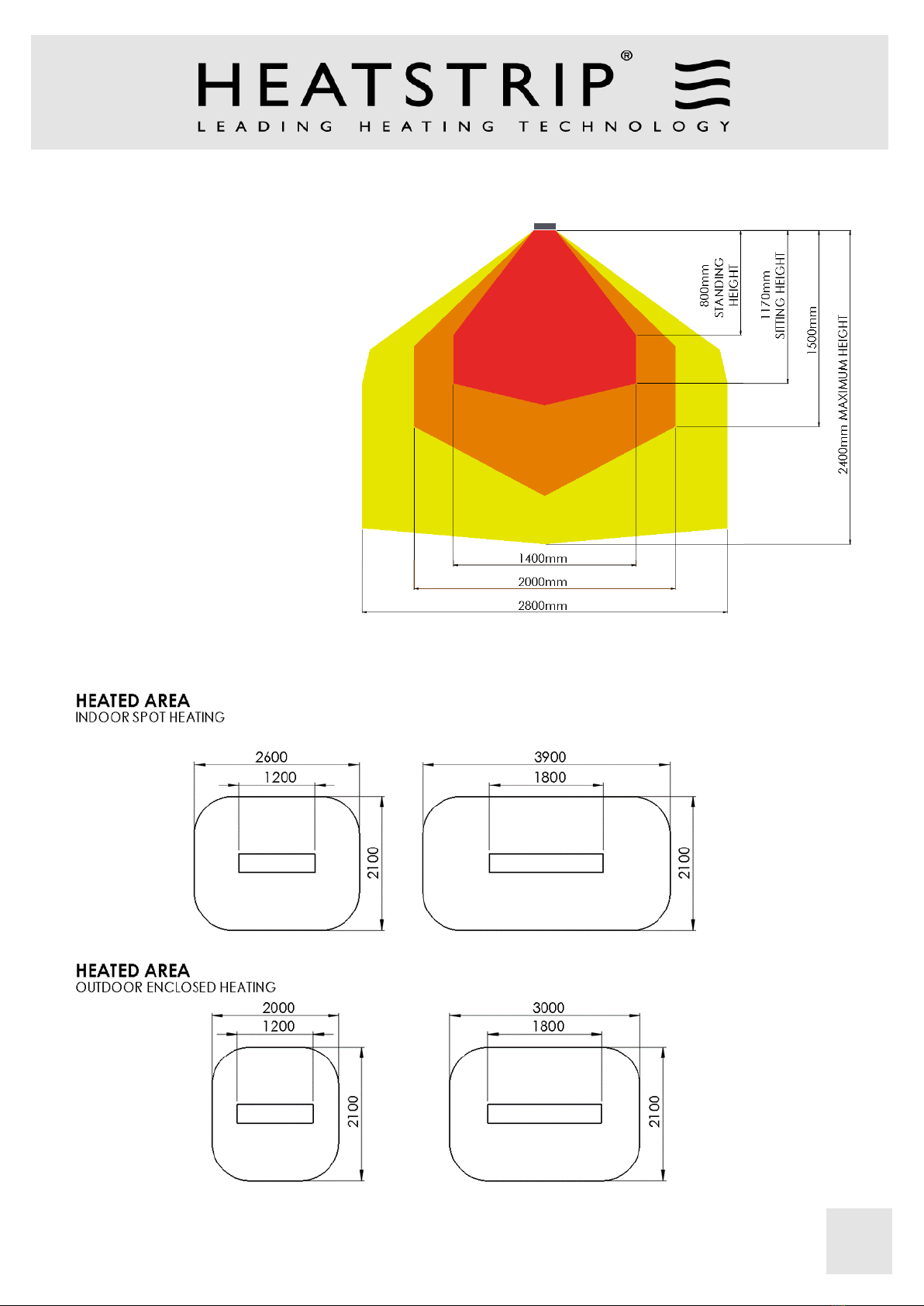

Radiant footprint
HEATSTRIP® electric heaters produce radiant heat which heats objects rather than the air. Therefore, it is imperative that
objects to be heated (ie. people), are within
the direct radiant footprint of the heater.
The diagram to the right shows the radiant
footprint of HEATSTRIP® Elegance and is an
approximate guide based on a fully enclosed
outdoor environment.
This diagram shows that the maximum heat
output is found directly under the heater, and
the temperature decreases as you move
away from the heater.
It highlights the importance of maintaining
recommended mounting heights, and if
possible, positioning the heater directly
above the area to be heated.
Note that the temperature is similar for all 3
models, regardless of the wattage however,
as the size increases and the length of the
unit increases, the radiant footprint will be
longer.
The below diagrams show the approximate
heating area for each model, based on both an indoor and outdoor enclosed environment, with direct overhead mounting.
The radiant footprint is reduced in angled and wall mounted installations.
THE2400EUR THE3200EUR
THE2400EUR THE3200EUR

8
Selection guide
General recommendations for HEATSTRIP® Elegance:
• Ideal mounting height: 2.3m to 2.5m. Maximum is 2.7m in a fully protected/enclosed outdoor environment.
• Ideal mounting location: ceiling mounted, directly above area to be heated (eg. above a table)
• Minimum recommended heating capacity for various installations are: 400W/m2 for indoor spot heating; 500W/m2
for protected outdoor areas, and 600W/m2 for exposed outdoor areas. To ensure the HEATSTRIP® Elegance pro-
vides satisfactory performance, Thermofilm strongly recommends using conservative coverage areas when speci-
fying how many heaters are required for each installation.
The table below outlines the maximum coverage of each HEATSTRIP® Elegance model based on 2 different scenarios
with direct overhead mounting at minimum installation height. For example, for an outdoor area that is protected from pre-
vailing winds by walls, café blinds etc, Model THE2400EUR will cover a maximum of 4.8m2 and Model THE3200EUR will
cover a maximum of 6.4m2.
For angled wall mounting applications, the coverage is reduced by up to 40%.
MODEL INDOOR PROTECTED (m2)OUTDOOR ENCLOSED (m2)OUTDOOR EXPOSED (m2)
THE2400EUR 64.8 4
THE3200EUR 86.4 5.3

9
Table layout
For the majority of outdoor applications, the most effective method is to spot heat a table or similar area. The diagrams below
provide an easy selection guide for the approximate model and quantity of heaters required to heat common residential table
settings.
Selections are based on HEATSTRIP® Elegance being mounted at 2.4m from the floor in a fully enclosed undercover outdoor
area.
THE2400R
THE2400EUR THE2400EUR
THE3200EUR THE3200EUR
2x THE2400EUR 2x THE3200EUR

10
Installation Requirements
The ideal mounting position for the HEATSTRIP® Elegance is on the ceiling directly above the area to be heated. If this is
not possible, HEATSTRIP® can be mounted on a wall and angled downwards. In this situation, ensure the mounting height
is in the range of 2.1m to 2.7m and the table is close to the wall.
For mounting heights more than 2.7m, we recommend the use of the optional accessories to reduce the height of the
heater to 2.3m—2.5 m. This will increase the effectiveness of your HEATSTRIP®. Refer to the Mounting Accessory section
for more information.
Electrical connections/GPO’s should not be located at the back of the heater. They should be located outside the physical
footprint of the units to minimize heat build-up behind the units.
If the heater is to be mounted on an incline (e.g. vaulted ceiling), ensure the electrical connection is located at the lowest
point of the heater.
Incorrect Installation Correct Installation
The heating surface must never be directed toward the ceiling

11
Installation location —the diagrams below provide the minimum recommended clearances in (mm).
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this
heater in small rooms when they are occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
Angled
Ceiling
Installation
Ceiling
Installation
Angled
Wall
Installation LIGHT, FAN OR SPRINKLER
MUST NOT BE BELOW HEATER
LIGHT, FAN OR SPRINKLER
MUST NOT BE BELOW HEATER
LIGHT, FAN OR SPRINKLER
MUST NOT BE BELOW HEATER
SURFACE
BELOW
HEATER
SURFACE
BELOW
HEATER
SURFACE
BELOW
HEATER

12
STANDARD
BRACKET
STANDARD
BRACKET
CEILING
FLUSH
MOUNT
ENCLOUSURE
STANDARD
BRACKET
POLE / BEAM
MOUNTING

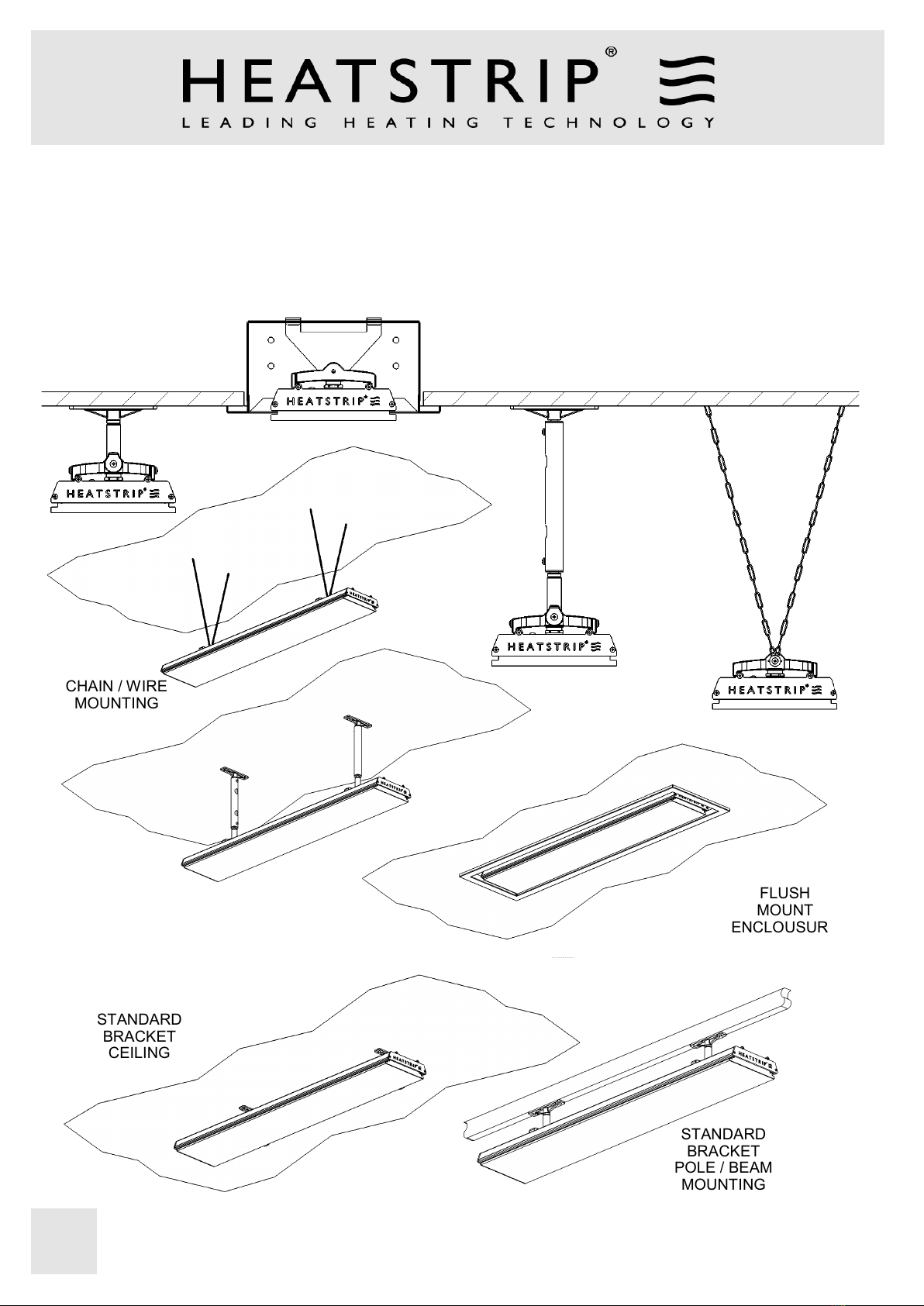

Mounting options
Installing the HEATSTRIP® Elegance is simple and easy using the standard mounting brackets supplied. For other irregular locations
there are range of mounting options available - refer to diagrams below
The HEATSTRIP® Elegance can be mounted directly to the ceiling, angled downwards on a wall, fitted flush with the ceiling, attached
to beams or poles or suspended by rods, wires or chain .
CHAIN / WIRE
MOUNTING
EXTENSION
MOUNTING
BRACKET

13
Standard mounting brackets
The HEATSTRIP® Elegance comes with a pair of standard mounting brackets. These adjustable brackets allow direct
ceiling, wall or pole/beam mounting, and come with pre-set angle options of parallel, 22.5° and 45°.
PART No PACKAGED
DIMENSIONS (mm) WEIGHT (kg) MATERIALS
ZBRAK-113W 125 x 150 x 40 0.2 ALLOY
CEILING
WALL
MODEL “X”
MINIMUM DISTANCE (mm)
THE2400EUR 700
THE3200EUR 1000

14
Flush mount enclosure
The Flush Mount Enclosure is an ideal way to neatly install the HEATSTRIP® into a ceiling. They are available for all
HEATSTRIP® Elegance models, and are supplied as a one-piece unit suitable for mounting individual heaters. Flush
mounting can be used with plaster or timber lined ceiling materials.
An ideal mounting height is 2.3m-2.5m, with a maximum ceiling height of 2.7m in an outdoor enclosed environment.
Maximum mounting heights should be strictly followed, otherwise the performance of the units may be reduced.
A minimum clearance of 150mm behind the enclosure must be provided.
The enclosure is manufactured from powder coated steel.
Please refer to the Flush Mount Enclosure Installation Manual for more detailed installation information.
SUITABLE FOR
MODEL PART No HOLE CUTOUT DIMENSIONS (mm) OVERALL DIMENSIONS (mm) WEIGHT (kg)
THE/D2400EUR THE/DRAC-056/8 240 x 1390 290 W x 1440 L x 125 D 8
THE/D3200EUR THE/DRAC-057/9 240 x 1790 290 W x 1840 L x 125D 9

15

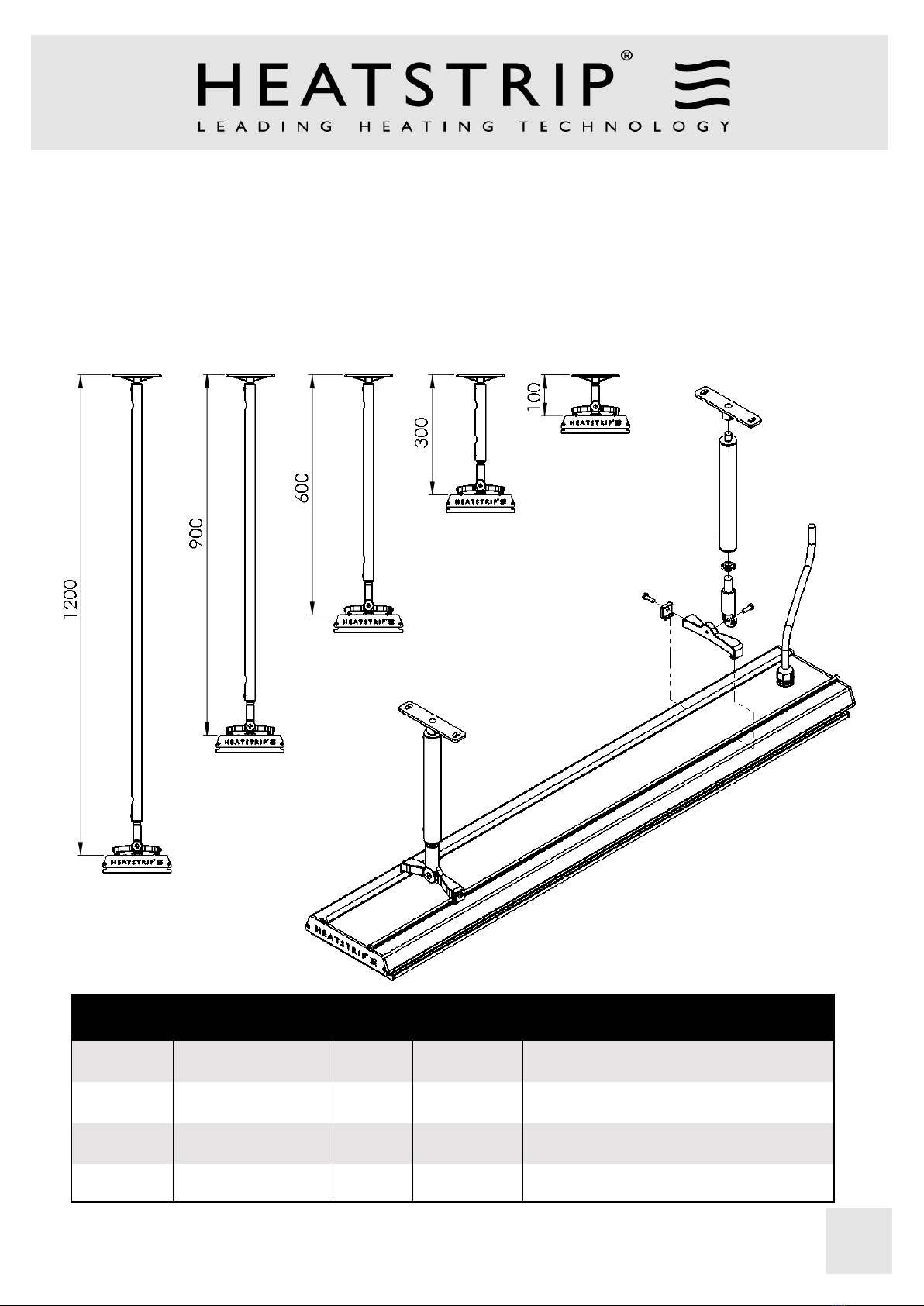

The Extension Mount bracket allows HEATSTRIP® Elegance units to be lowered from high ceilings using rigid connec-
tions. The standard length options as part of the kit are 300mm, 600mm, 900mm and 1200mm.
The kits include all brackets, poles and screws necessary for connection to the heaters, however it does not include
screws for attachment to the ceiling.
The extension mount bracket utilises component from the standard bracket kit which is supplied with each heater.
For minimum distance requirements between poles please refer to page 14.
Extension Mount Bracket
PART No PACKAGED
DIMENSIONS (mm) WEIGHT (kg) MATERIALS NOTES
THEAC-043 300 x 150 x 50 0.21 Aluminium Kit includes 2x300mm extension pole
THEAC-044 600 x 150 x 50 0.38 Aluminium Kit includes 2x600mm extension pole
THEAC-045 900 x 150 x 50 0.55 Aluminium Kit includes 2x900mm extension pole
THEAC-046 1200 x 150 x 50 0.71 Aluminium Kit includes 2x1200mm extension pole

16
Chain / Wire Suspension Mount
HEATSTRIP® Elegance can by suspended using chain or wire to lower the installation height from high outdoor or indoor
roofs of ceilings.
Thermofilm does not provide any dedicated installation kit for this type of mounting, however the following information may
be used to assist in safely installing the HEATSTRIP® Elegance.
Any chain or wire must be suitably rated to withstand the weight of the heater.
The use of chain or wire mounting is NOT recommended for unprotected outdoor installations.

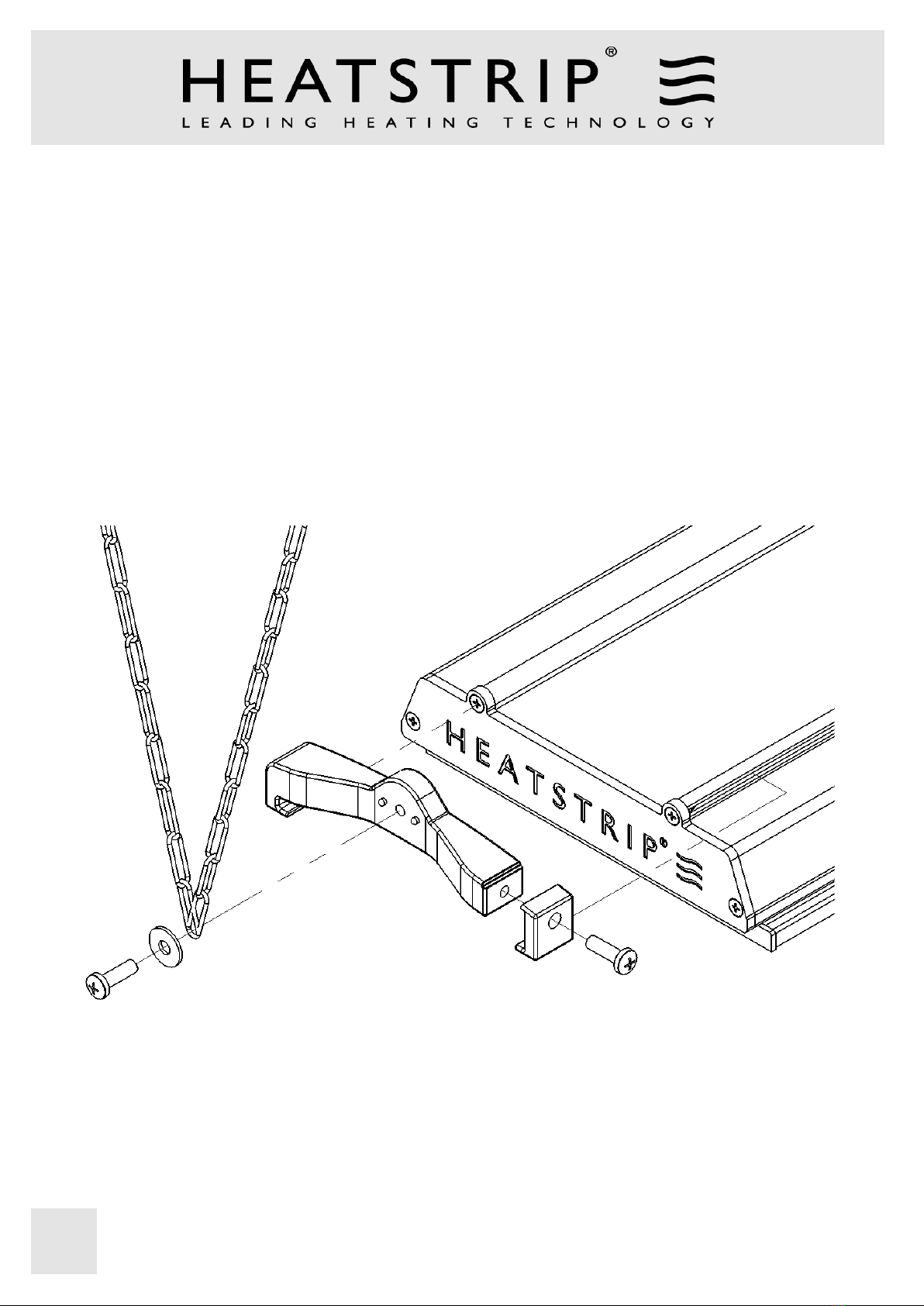

It is recommended to use a the component from the standard bracket kit (shown below) which is supplied with each heater
to attach any chain or wire to the heater.
For minimum distance requirements between poles please refer to page 14.
Diagram above shows one potential means
of installation using chain or wire

17

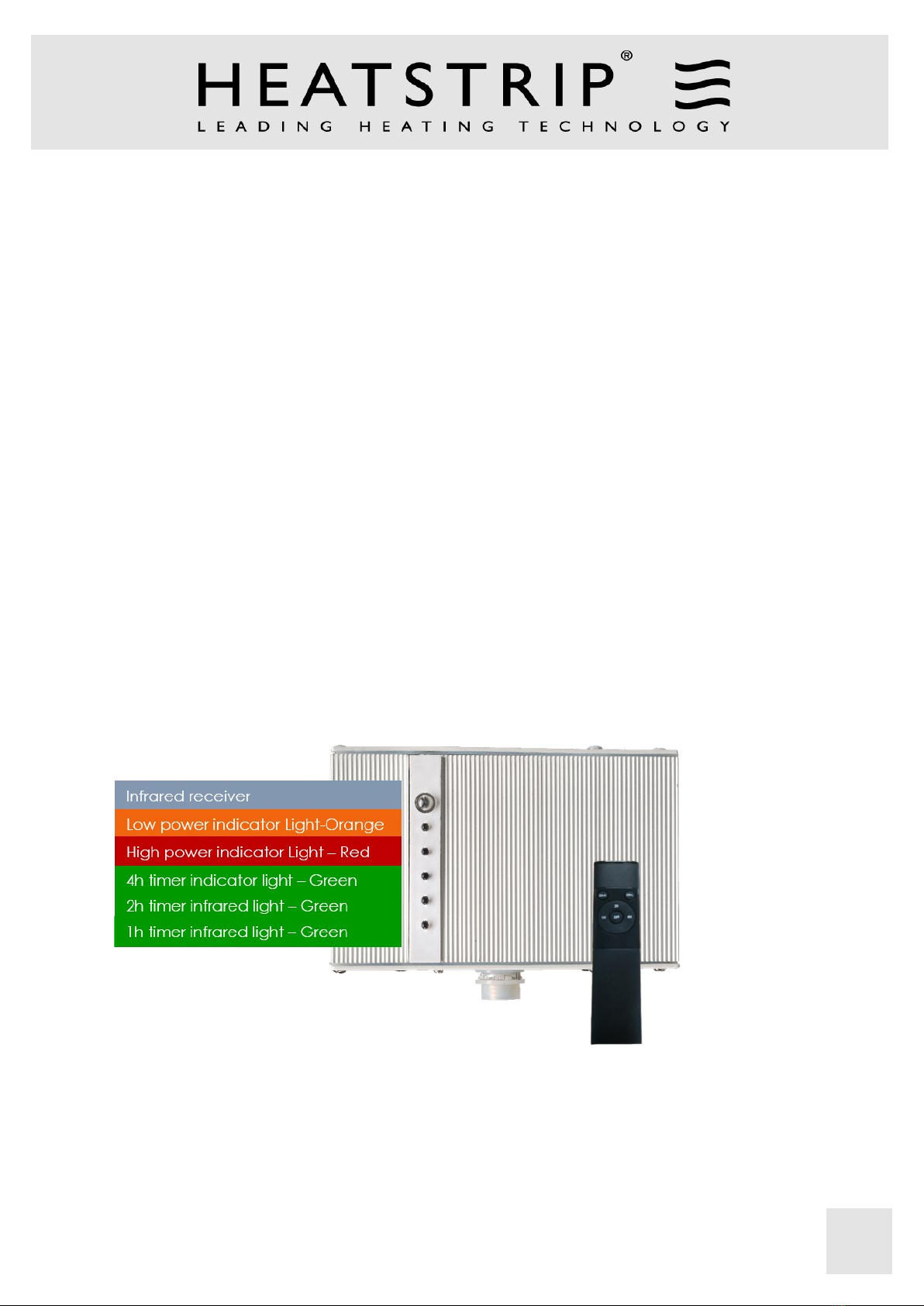

THE-R Operation Control with Remote
The THE-R is a custom designed and manufactured heater. It has been designed for ease of use and provide low running
cost of your heater. It provides both temperature control (allowing the user to turn the heater output up or down depending
on the ambient temperature and conditions) and a timer for automatic heater shut– off operation
When the heater is plugged in, press “power” on the remote, the power indicator light on the unit is lit, and then press the
function button. It provides both temperature control allowing the user to turn the heat output High or Low and a timer for
automatic heater operation, either 1, 2 or 4 hours.
The heater allows a combination of the multiple timer (1/2/4 hour) and heat outputs (High/Low). The default operation is
continuous operation at full temperature.
The timer function has four settings: 1 hour, 2 hours, 4 hours or constantly ON. This feature is ideal for applications such as
alfresco areas, restaurant dining, assembly line production etc. when continuous heat is not required. The timer also reduces
the likelihood of heaters being inadvertently left turned on.
Depending on the ambient temperature, there may be a requirement to adjust the heat. The controller has 2 settings: they are
High and Low.
THE-R Functions
Remote pairing
All units operate using the same remote control frequency, therefore, multiple heaters can be operated using a single
remote control.
The remote will function at distance of over 8m when used in a straight line. This distance reduces when used at an
angle.
Controller functionality, please refer to page 17.

18
Remote Control Operation
REMOTE FUNCTIONS
ON-HTemperature High
ON-LTemperature Low
OFF Unit Off
1H 1H Automatic Timer
2H 2H Automatic Timer
4H 4H Automatic Timer
Signal Transmitter
• To use the remote controller, aim the
transmitter to the heater. A line of sight
transmission is required for the unit to
function.
• The controller does not have a protection
rating. The controller must be kept away
from wet applications.
• The remote will function at distances of
over 8m when used in a straight line. This
distance reduces when used at an angle.
Temperature Control Button
• Press ON-H temperature will be
adjusted to HIGH.
• Press ON-L temperature will be
adjusted to LOW.
OFF Button
• Press this button once to turn OFF
operation.
Battery
• AAA Battery required for operation.
Automated Countdown Timer
• Press 1H to begin 1 hour automatic
shutdown.
• Press 2H to begin 2 hour automat-
ic shutdown.
• Press 4H to begin 4 hour automat-
ic shutdown.
Receiver
• Receiver is
located on
the heater.

19
Safety
HEATSTRIP® Elegance has an IP rating of 55. This means it is safe for water ingress from all directions. The
HEATSTRIP® can be safely hosed down.
HEATSTRIP® has undergone extensive testing both in laboratory conditions, in Thermofilm’s manufacturing facility in
Melbourne and field trials in Australia and overseas. It is this testing that gives the purchaser the confidence of a high
quality product. Independent laboratory testing has confirmed Thermofilm’s full compliance with Australian and other
International Standards including CE, AS/ANZ, UL/CSA
HEATSTRIP® is Class 1 equipment and must be earthed.
In operation, this heater is VERY HOT— do not touch any part of the heater while it is turned on. Do not touch any part
until 30 minutes after it is turned off.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or intellectual
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the
appliance.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small
rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is
provided.
Do not allow any cables, furnishings, flammable materials or other items come in contact with any surface of the heater.
If installed in wet areas, the heater switches or controls must be located so that they cannot be touched by persons in the
bath or shower.
The heater needs to be installed as per the installation instructions paying special attention to the minimum clearances.
The heater needs to be mounted on a rigid bracket or fixing.
The heater must not be mounted immediately below or in front of a socket outlet.
The heater comes in plug (2400W) and hardwired (3200W) versions. In both cases the fixed wiring must be installed by a
licensed electrician in accordance with the relevant wiring regulations. Provision for disconnection must be incorporated
into any fixed wired heater installation.
The supply cord can not be replaced. If the supply cord is damaged the appliance shall be scrapped or returned to the
point of purchase for return to Thermofilm.
Maintenance
The HEATSTRIP® Elegance is made from durable materials, however regular care and maintenance of your heater will
help prolong the life of the heater.
It is recommended that you clean the heater with a soft cloth gently wipe the surfaces of the heater with a mild detergent
to remove the built up contaminants from the environment. Then rinse all detergent off the heater.
All chemicals in the atmosphere including cigarette smoke, pollution etc. will tarnish the surface of the heater. In this case,
additional cleaning and maintenance may be required. Carrying out the cleaning process at least every three months will
reduce the amount of build up and keep the HEATSTRIP® in good condition. If the heater is in a corrosive environment eg.
salt spray, we recommend that you clean your heater with a light spray of fresh water every week. After cleaning, turn the
heater on for 20 minutes to dry any water residue and prevent water staining.
Before cleaning or inspection activity, the heater must be switched off and cooled down completely.
Do not use any abrasive materials or products to clean the heater, this includes solvents, citrus based cleaners or other
harsh cleaning products.
When handling the heater, ensure that your hands are clean or that you use clean gloves as grease or dirt can mark the
surface of the heater.
Do not use high pressure water to clean heaters.

20
Warranty Terms & Conditions
The below Warranty Terms and Conditions apply for New Zealand and Australia only. For international warranty please
refer to international warranty terms and conditions.
Thermofilm warrants to the original owner that HEATSTRIP Elegance products will be free from defects in materials and
workmanship for a period of 24 months from the date of purchase for residential applications and 12 months for commercial
applications in accordance with the following warranty terms and conditions.
Provision of this warranty is subject to:
• The HEATSTRIP® products must be installed in accordance with the Installation Instructions and relevant electrical
standards and codes.
• The HEATSTRIP® products must be maintained and cleaned according to instructions detailed in the Installation Manual.
• There is no warranty expressed or implied with regard to capacity requirements. The selection of the unit or units
depends entirely upon the system design and capacities as determined by the purchaser.
• The customer has not repaired, opened or altered the product in any unauthorised manner.
• This warranty excludes damage to the product or components arising from circumstances outside the control of
Thermofilm, including, but not limited to, where the product is not used for intended purpose; where the product has
been rectified in any way; incorrect installation; incorrect power supply; damaged caused during delivery; misapplication,
misuse, abuse, vandalism, lack of maintenance or accident.
• Thermofilm’s obligations under this warranty are limited to repair or replacement at Thermofilm’s factory of any
components of the product which Thermofilm identifies to its satisfaction to be defective.
• Transportation charges involved in return of the product to the Thermofilm factory (or any other location authorised in
writing by Thermofilm) is the sole responsibility of the customer.
• All products are inspected and tested before despatch and are at the risk of the purchaser after the shipment from the
Thermofilm factory, if not delivered by Thermofilm to destination.
• No products or components will be supplied in advance of an examination of the faulty product or components by
Thermofilm or an authorized representative of Thermofilm.
• Thermofilm does not participate in any site related costs or labour expenses incidental to replacement of parts, repairing,
removing, installing, servicing, transportation or handling of parts to complete products, and assumes no liability on parts
repaired or replaced without written authorisation. Thermofilm shall not be liable for any default or delay in performance
of its warranty obligations caused by any circumstances beyond its control, including, but not limited to, judicial or
government restrictions, strikes, fires, floods, abnormal weather conditions, delayed supply of components.
Should products be determined as damaged on arrival, immediately notify the transport company of the condition and have
them noted on the freight documents. If damage is discovered after unpacking, demand immediate inspection by the
transportation company and insist that a record of the damage is made on the freight documentation.
The customer warrants using the product in accordance with:
• Any instructions provided to it by Thermofilm from time to time.
• All government and local regulations, including but not limited to all relevant electrical, environmental laws and
regulations governing the installation, storage, use, handling and maintenance of the goods.
• All necessary and appropriate precautions and safety measures relating to the installation, storage, use, handling and
maintenance of goods.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
All warranty requests for repairs or replacements must be accompanied by a complete “Warranty Claim Form” available
from Thermofilm, together with proof of purchase (and where possible, photos of the installation) and the heater returned
to the place of purchase.
In the event of a warranty claim, the goods need to be returned to the distributor/retailer for repair/replacement. Contact
Gedistribueerd door: Geproduceerd door:
Cook & Heat B.V. Thermofilm Australia Pty Ltd
www.heatstrip.eu 17 Johnston Court
Dandenong South
Victoria 3175 Australia
