HEATSTRIP Indoor THS-A User manual

Product &
Installation Manual
HEATSTRIP®
Classic with Remote (THHA-R)
The heater that is a design feature!

2
Product Overview Rev B MAR21

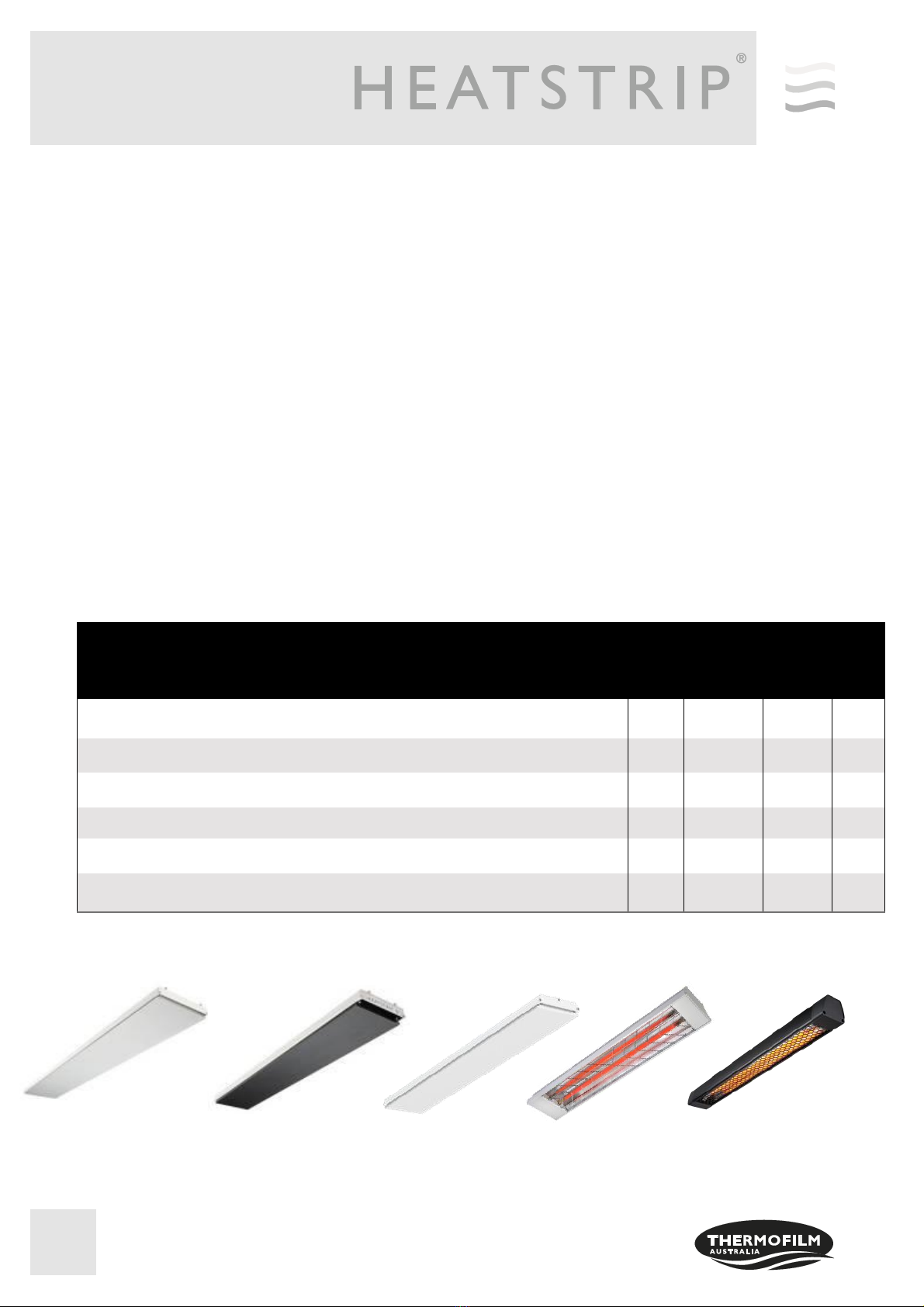

There are 5 different ranges within the electric HEATSTRIP® product category. Each has a different temperature rating
making them suited to a variety of applications. Below is a list of some common applications, to assist with the selection of
the most effective and efficient series. This is a general guide only, please refer to the Product Manual for each product, for
more information.
HEATSTRIP® Indoor (THS-A models) is a medium intensity heater used for protected indoor applications only with
installation heights up to 2.5m (THS800A) or 2.7m (all other THS-A models).
HEATSTRIP® Classic (THHA & THHA-R models) is a premium high temperature heater and is primarily used for protected
outdoor areas with an ideal mounting height of 2.3m to 2.5m and maximum mounting height of 2.7m.
HEATSTRIP® Elegance (THE, THER, THE-RA models) is a premium high temperature heater and is primarily used for
protected outdoor areas with an ideal mounting height of 2.3m to 2.5m and maximum mounting height of 2.7m.
HEATSTRIP® Max (THX, THXDCR models) is an ultra high temperature heater used for uncovered or open indoor or outdoor
areas with an ideal mounting height of 2.3 m to 2.7m, and up to a maximum 3.5m for protected indoor applications.
HEATSTRIP® Intense (THY, THYW models) is an instant high temperature heater perfect for any exposed outdoor or indoor
areas with an ideal mounting height of 2.3m to 2.8m, and a maximum of 3m in an outdoor exposed application.
APPLICATION THS THH-R
THE THX THY
Indoor insulated areas: classrooms, offices, bathrooms, wet areas, drying rooms √√√
Outdoor under cover: café, veranda, patio, balcony ceiling height 2.7m or less √√√
Outdoor under cover: café, veranda, patio, balcony ceiling height 2.7m or more √
Highly exposed outdoor area √√
Indoor open area: warehouse, factory, production areas, sports facilities √√√√
Indoor spot heating, above tables, assembly areas √√√
HEATSTRIP® Indoor (THS-A) HEATSTRIP® Elegance (THE)
HEATSTRIP® Classic (THH-A) HEATSTRIP® Max (THX)
HEATSTRIP® Intense (THY)

3
Efficient, cost effective electric heating
The innovative design of the HEATSTRIP® enables comfortable and even heat dispersion from the surface with minimal
operating costs.
Design flexibility
Two HEATSTRIP® models are available, ensuring the heating requirements of any undercover outdoor or open
indoor area is possible. Brackets for direct ceiling or wall/ceiling angled mounting are supplied as standard.
Optional HEATSTRIP® accessories include extension mount brackets and flush mounting enclosures.
Minimal maintenance
The HEATSTRIP® incorporates no internal moving parts ensuring quiet and virtually maintenance free operation.
Australian Designed
Designed and engineered in Australia HEATSTRIP® is fully backed by a 24 month residential warranty, and 12 month
commercial warranty.
Stylish design— The Heater that is a Design Feature!
The attractive HEATSTRIP® Classic comes with a standard black face and black anodised alloy rear casing.
Easy to use
The HEATSTRIP® Classic with remote operates with the remote control provided. With easy On/Off function, 3 heat levels
and an adjustable timer option with 0-24 hours. The unit takes approximately 15 minutes to heat up to maximum
temperature and approximately 30 minutes to cool down, depending upon the ambient temperature. Please don’t forget to
turn it off.

4
Why choose HEATSTRIP® electric radiant heaters for your outdoor or hard-to-heat indoor
area?
Many conventional patio heaters rely on convection heating which works by heating the surrounding air to provide comfort.
This can be quite impractical for outdoor and open-indoor areas as there is typically constant air movement which can
easily blow away the warmed air. Radiant style heaters transfer heat directly to objects through infra-red waves.
While convection heaters heat the air between objects, radiant heaters directly heat the surface of the objects themselves.
HEATSTRIP® electric radiant heaters are more effective within an outdoor or uninsulated indoor area because they
provide targeted warmth directly to the people and objects in their path.
Discrete, stylish heating for undercover outdoor and indoor open areas
Using the radiant heating principle, HEATSTRIP® can provide effective and energy efficient comfort heating for undercover
outdoor and indoor open areas. HEATSTRIP® has successfully enabled many entertainment venues such as restaurants,
pubs and clubs to utilise their outdoor dining areas day and night, through all seasons. Within your workplace or business,
HEATSTRIP® can provide comfort heating for designated outdoor smoking and leisure areas, as well as for workstation
spot heating in factories, warehouses and showrooms. Within your home, HEATSTRIP® can provide comfort heating for
undercover alfresco dining and BBQ area, patios, verandas, courtyards and balconies.
Subtle, minimalist design
The stylish, slimline black face of the HEATSTRIP® does not emit light or glow when in use, blending elegantly into your
décor. Ceiling, wall and umbrella mounting options ensure that your valuable floor and table space is not wasted.
Efficient, cost effective electric heating
The innovative design of the HEATSTRIP® enables comfortable and even heat dispersion from the heater surface with
minimal operating costs.
THH2400AR THH3200AR

5

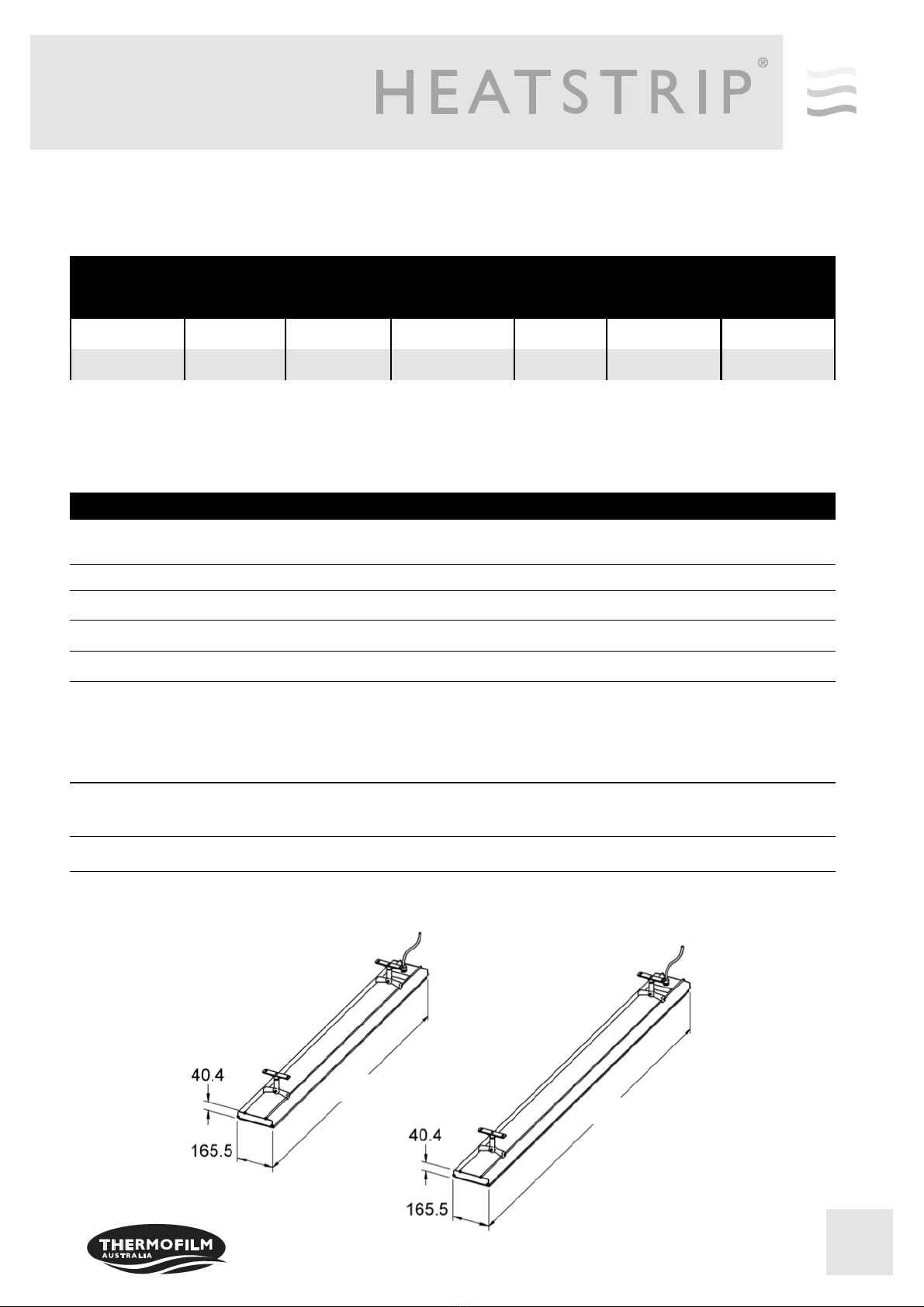

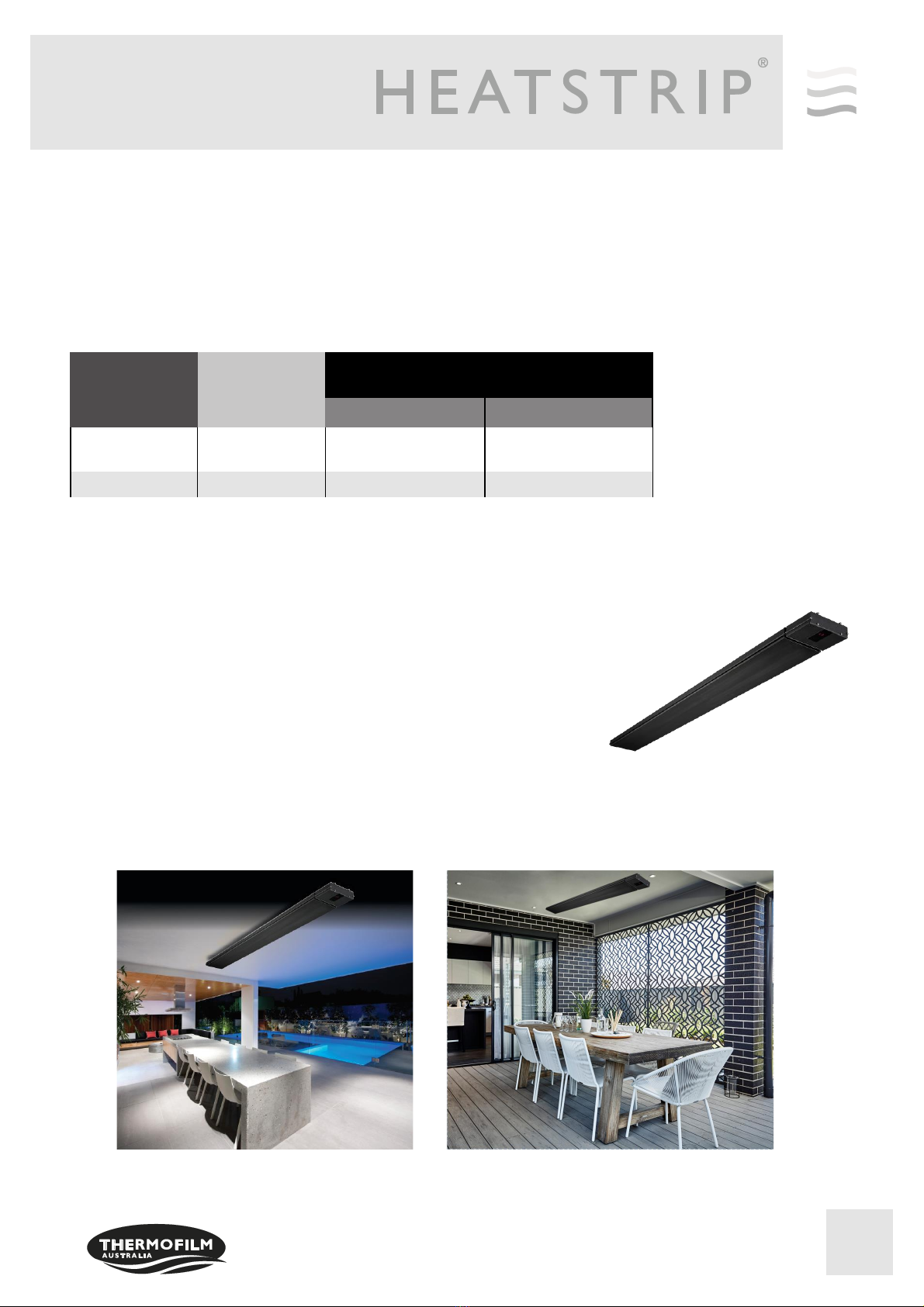

Specifications - Australia
MODEL POWER
(WATTS) CURRENT (AMPS) DIMENSIONS (mm) WEIGHT (Kg) LEAD LENGTH
(mm)
PLUG
THH2400AR 2400 10 1371 x 165 x 48 71000 YES
THH3200AR 3200 13.3 1780 x 165 x 48 9500 NO
MODEL
HEATER TYPE High intensity electric radiant overhead heater with high surface area
profiled alloy
OUTPUT Refer to model code chart above
POWER 230-240 Volts Nominal at 50—60 Hertz, Single Phase
CONNECTION 3 Core Cable 2.5mm2
APPROVALS AUSTRALIA/NZ
MOUNTING HEIGHT MINIMUM
RECOMMENDED
MAXIMUM
2.1 m
2.3 m to 2.5 m
2.7 m in a fully enclosed outdoor area (For higher
ceiling heights, units can be lowered using optional
bracket kits or extension poles see Page 19)

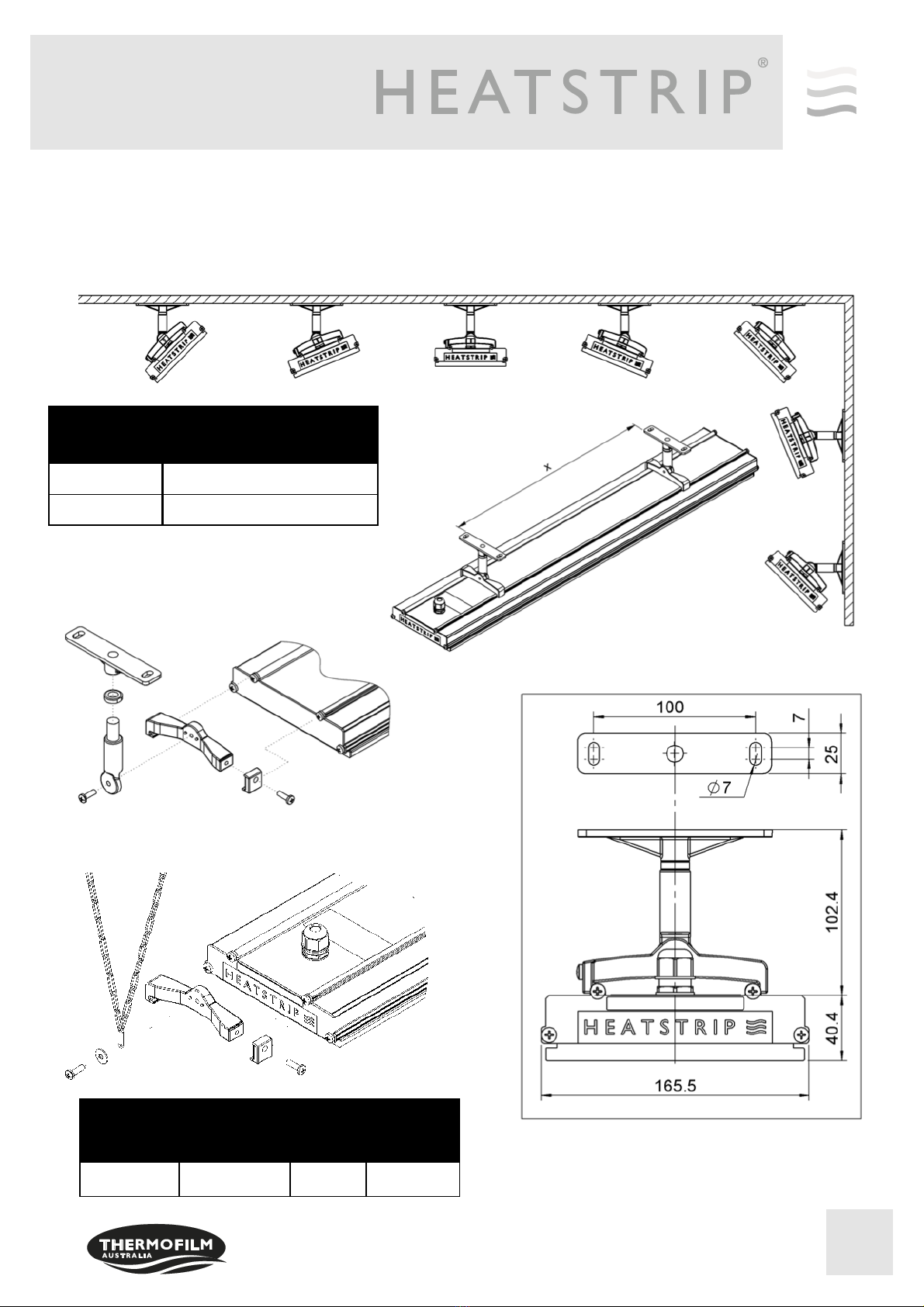

MOUNTING OPTIONS Suitable for ceiling, wall, beam, fixed umbrella and recess mounting. Also
available for extension mount using rigid fixing poles and chains/wires.
PROTECTION RATING IP55 Protection from water ingress from all directions
THH2400AR THH3200AR
1371 1780

6
Specifications - International
MODEL REGION VOLTAGE
(Volts) POWER (WATTS) CURRENT (AMPS) DIMENSIONS (mm) WEIGHT (Kg) LEAD LENGTH
(mm)
PLUG
THH1500AEU EUROPE 230 1500 6.3 924 x 165 x 48 51000 YES
230V
THH2400AEU EUROPE 230 2400 10 1364 x 165 x 48 71000 YES
230V
THH3200AEU EUROPE 230 3200 13.3 1774 x 165 x 48 8500 NO
THH1500AUK UNITED
KINGDOM 240 1500 6.3 924 x 165 x 48 51000 YES 240V
THH2400AUK UNITED
KINGDOM 240 2400 10 1364 x 165 x 48 71000 YES 240V
THH3200AUK UNITED
KINGDOM 240 3200 13.3 1774 x 165 x 48 8500 NO
THH1500US-ANORTH
AMERICA 115 1500 12.5 924 x 165 x 115 5NONE NO
THH2400US-A
(240V) NORTH AMERICA 240 2400 10 1364 x165 x 115 7NONE NO
THH3200US-A
(240V) NORTH AMERICA 240 3200 13.3 1774 x 165 x 115 9NONE NO
THH2400US-A
(208V) NORTH AMERICA 208 2400 11.53 1364 x 165 x 115 7NONE NO
THH3200US-A
(208V) NORTH AMERICA 208 3200 15.4 1774 x 165 x 115 9NONE NO
THH1300AJP JAPAN 100 1300 6.3 924 x 165 x 48 51000 YES
100V
THH1400AJP JAPAN 200 1400 7.5 924 x 165 x 48 51000 YES
200V
THH1600AJP JAPAN 200 1600 10 1104x 165 x 48 61000 YES
200V
HEATSTRIP® is supplied to many international markets, and therefore is available in a range of voltages and
lead configurations to meet local market approvals. HEATSTRIP® is fully compliant to the following
international standards.
Europe CE, ROHS, IEC 60335-2-30:2002
USA/Canada UL/CSA E321442
Japan PSE

7
Operating cost comparison
In many instances, patio heaters powered by gas bottles are used as an outdoor heating source. The below
table shows the operational cost comparison between HEATSTRIP® and mushroom—style bottled gas outdoor
heater. Not only are the hourly running costs considerably less with HEATSTRIP®, but you never have to worry
about running out of gas, no refilling, no unattractive gas bottle to waste space; and HEATSTRIP® actually im-
proves the value of your property.
Notes:
1. Calculations of hourly running cost for outdoor gas heater is based on $25.00 average to fill a 9kg gas bottle and
average running time of 9 hours. $25.00 / 9 hours = $2.78 per hour
2. Electricity rate of 25 cents/kWh
3. All calculations are excluding GST.
2.4kW x 0.20 cents = $0.60 cents per hour
3.2kW x 0.20 cents = $0.80 cents per hour
Calculations of yearly running cost are based on 180 hours usage
180 hours x $2.78 = $500.40 yearly running cost for outdoor gas heater
180 hours x $0.60 = $108 yearly running cost for 2400W HEATSTRIP®
180 hours x $0.80 cents = $144 yearly running cost for 3200W HEATSTRIP®
RUNNING
COST OUTDOOR GAS HEATER HEATSTRIP® CLASSIC ELECTRIC
RADIANT HEATER
THH2400AR THH3200AR
PER HOUR $2.78/hr $0.60/hr $0.80/hr
PER YEAR $500.40 $108.00 $144.00

8
BAR
BAR STOOLS
DINING TABLE
LOUNGE
BBQ
2 x THH24006 x THH2400

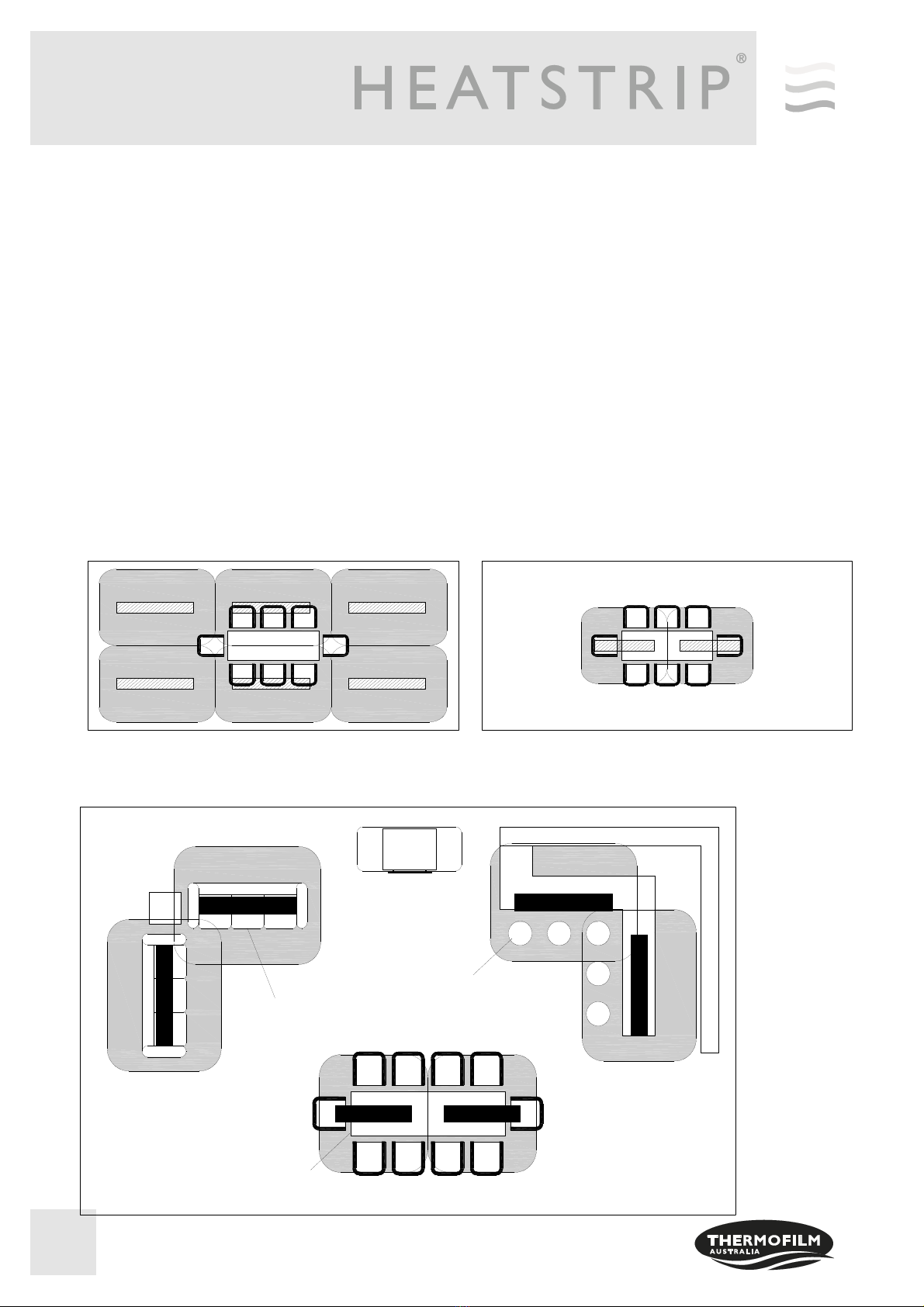

Spot heating principle
In most outdoor or difficult-to-heat indoor applications, there are 2 options when looking at the size and quantity
of the heaters required.
Option 1 is to comfort heat the entire area based on the total dimensions of the space, regardless of whether the
entire area is being fully occupied.
Option 2 is to spot heat the high use areas, such as over outdoor tables, BBQ’s, lounges, assembly lines or in-
door workstations.
Often it is more practical and efficient to spot heat high use areas. Spot heating will reduce both the initial capital
cost as well as the ongoing running costs. Spot heating will allow the area to be “zoned”, meaning only the areas
that are being used are heated, such as tables in a restaurant or outdoor alfresco area.
Option 1 and 2 show a comparison between heating an entire area or spot heating over a table.
The bottom layout shows the flexibility of using HEATSTRIP® to provide a comfortable environment, even when
the layout of the area is very unusual.
Option 1: 6 x THH2400AR Option 2: 2 x THH2400AR

9

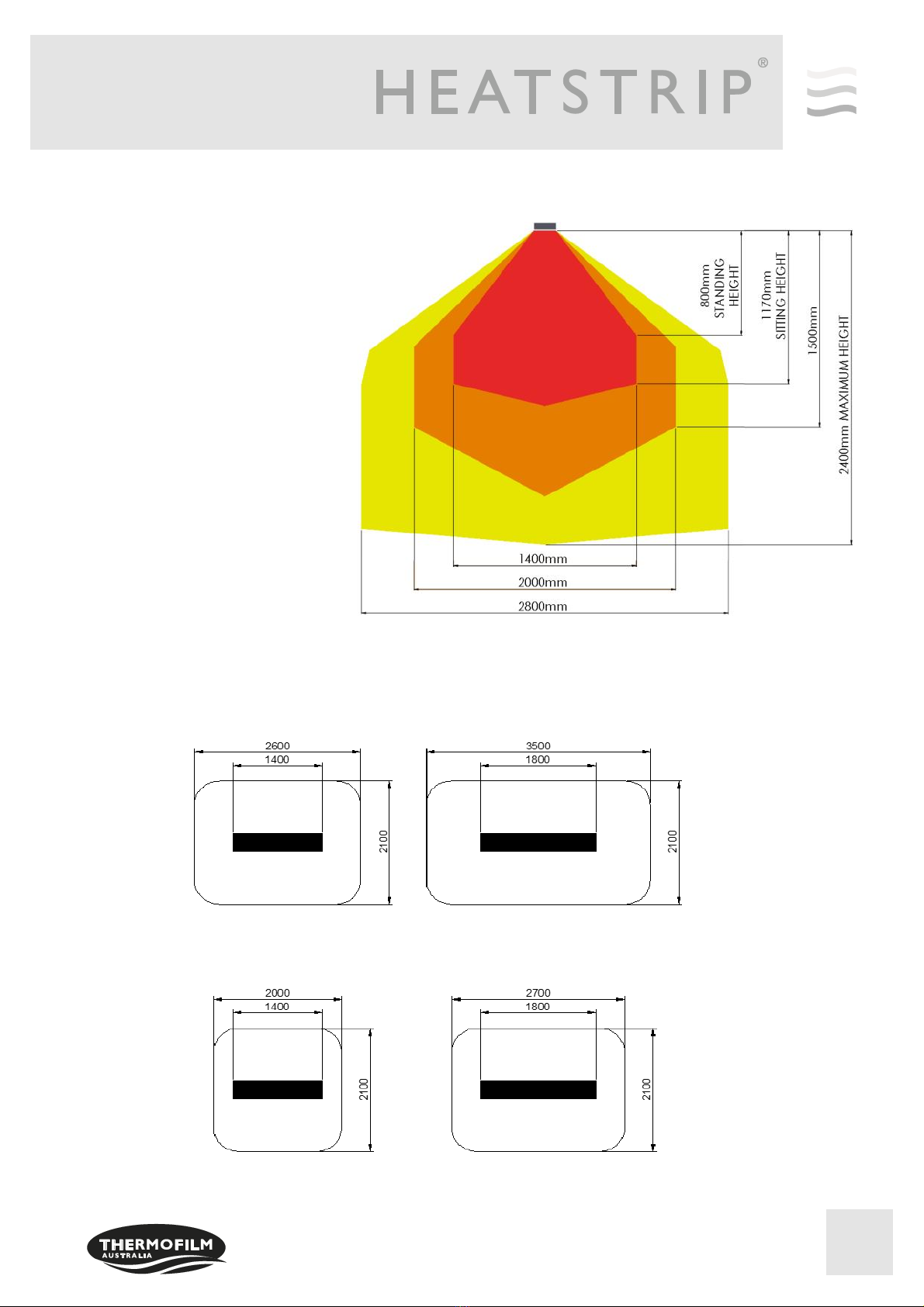

Radiant footprint
HEATSTRIP® electric heaters produce radiant heat which heats objects rather than the air. Therefore, it is imperative that
objects to be heated (ie. people), are within
the direct radiant footprint of the heater.
The diagram to the left shows the radiant
footprint of HEATSTRIP® Classic, and is an
approximate guide based on a fully enclosed
outdoor environment.
This diagram shows that the maximum heat
output is found directly under the heater, and
the temperature decreases as you move
away from the heater.
It highlights the importance of maintaining
recommended mounting heights, and if
possible, positioning the heater directly
above the area to be heated.
Note that the temperature is the same for the
2 models, regardless of the wattage.
However, as the size increases and the
length of the unit increases, the radiant
footprint will be longer.
The below diagrams show the approximate
heating area for each model, based on both an indoor and outdoor enclosed environment, with direct overhead mounting.
The radiant footprint is reduced in angled, wall mounted installations.
THH2400AR
THH2400AR
THH3200AR
THH3200AR
Outdoor Layout
Indoor Layout

10
Selection guide
General recommendations for HEATSTRIP® Classic with remote:
• Ideal mounting height: 2.3m to 2.5m. Maximum is 2.7m in a fully protected/enclosed outdoor environment.
• Ideal mounting location: ceiling mounted, directly above area to be heated (eg. above a table)
• Based on the radiant footprint of the previous page, for a protected outdoor area, a minimum of 500W/m2 is re-
quired. For indoor spot heating, a minimum heating capacity of 400W/m2 is recommended.
The table below outlines the coverage of each HEATSTRIP® Classic with remote model based on 3 different
scenarios with direct overhead mounting. For example, for an outdoor area that is protected from prevailing winds by
walls, café blinds etc, Model THH2400AR will cover 4.8m2 and Model THH3200AR will cover 6.4m2
For angled wall mounting applications, the coverage is reduced by up to 40%.
MODEL INDOOR PROTECTED (m2)OUTDOOR ENCLOSED (m2)OUTDOOR EXPOSED (m2)
THH 2400AR 64.8 4
THH 3200AR 86.4 5.3

11
Table layout
For the majority of outdoor applications, the most effective method is to spot heat a table or similar area. The diagrams below
provide an easy selection guide for the approximate model and quantity of heaters required to heat common residential table
settings.
Selections are based on HEATSTRIP® Classic with remote being mounted at 2.4m from the floor in a fully enclosed undercov-
er outdoor area.
THH2400AR THH3200AR
THH3200AR 2x THH2400AR
2x THH2400AR 2x THH2400AR
4x THH2400AR 2x THH3200AR

12
Installation Requirements
The ideal mounting position for the HEATSTRIP® Classic with remote is on the ceiling directly above the area to be
heated. If this is not possible, HEATSTRIP® can be mounted on a wall and angled downwards. In this situation, ensure the
mounting height is in the range of 2.1m to 2.7m and the table is within 2.5m of the wall.

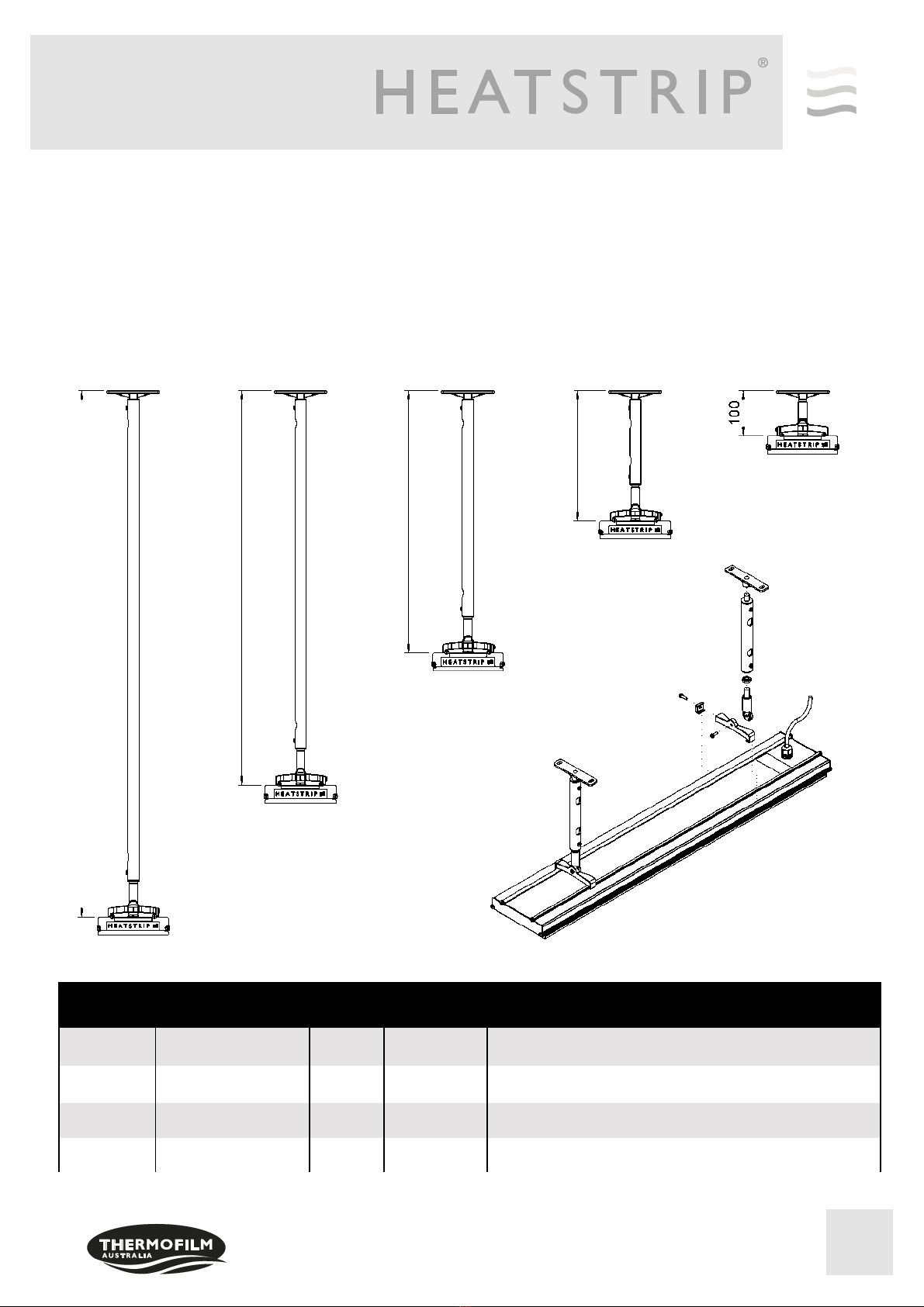

For mounting heights more than 2.7m, we recommend the use of the optional accessories to reduce the height of the
heater to 2.3m—2.5 m. This will increase the effectiveness of your HEATSTRIP®. Refer to the Mounting Accessory section
for more information.
Electrical connections/GPO’s should not be located at the back of the heater. They should be located outside the physical
footprint of the units to minimize heat build-up behind the units.

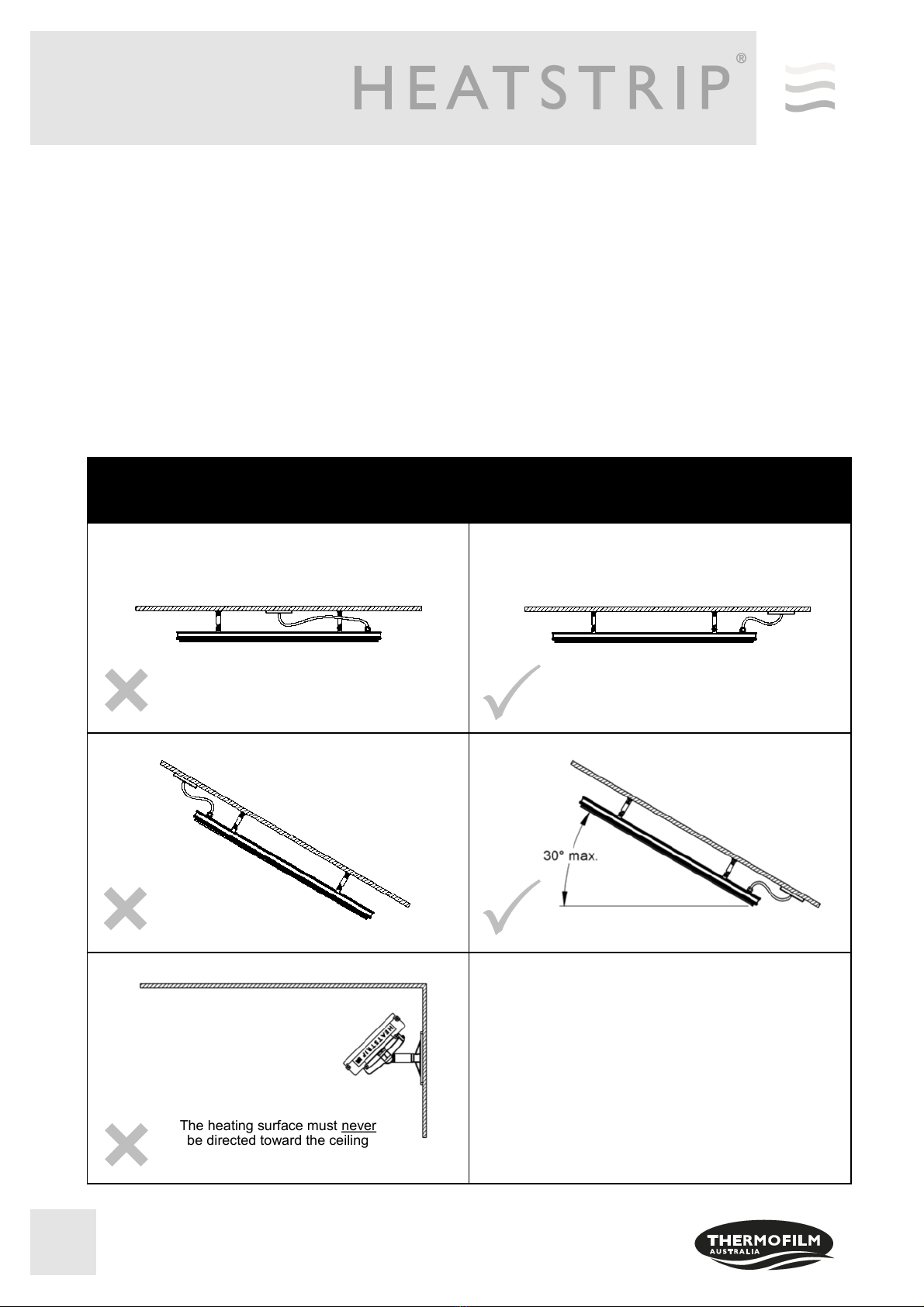

If the heater is to be mounted on an incline (e.g. vaulted ceiling), ensure the electrical connection is located at the lowest
point of the heater.
Incorrect Installation Correct Installation
The heating surface must never
be directed toward the ceiling

13

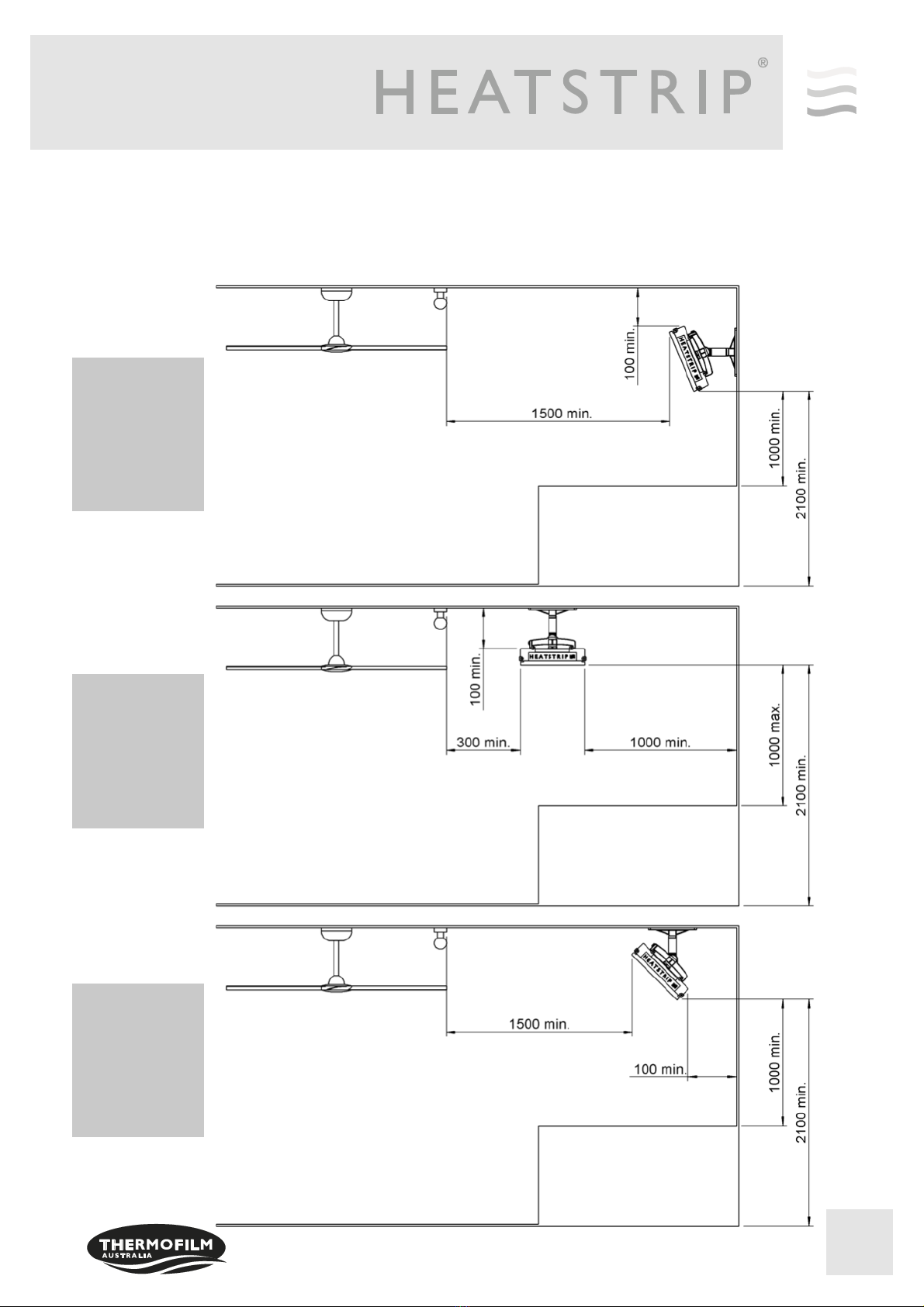

Installation location — the diagrams below provide the minimum recommended clearances in mm.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this
heater in small rooms when they are occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
Angled
Wall
Installation
Ceiling
Installation
Angled
Ceiling
Installation
Lights, fans, and sprinklers
must NOT be below heater Surface
Below
Heater
Lights, fans, and sprinklers
must NOT be below heater
Surface
Below
Heater
Lights, fans, and sprinklers
must NOT be below heater
Surface
Below
Heater

14
Mounting options
Installing the HEATSTRIP® Classic with remote is simple and easy using the standard mounting brackets supplied. For other
irregular locations there are range of mounting options available - refer to diagrams below
The HEATSTRIP® Classic with remote can be mounted directly to the ceiling, angled downwards on a wall, fitted flush with the
ceiling, suspended on chains or poles, attached to beams or poles, or mounted end-to-end. Refer to the following pages for
more detailed information on each mounting option.

15
Standard mounting brackets
The HEATSTRIP® Classic comes with a pair of standard mounting brackets. These adjustable brackets allow direct ceiling or
wall mount, and come with preset angle options of parallel, 22.5° and 45°.
PART No PACKAGED DIMENSIONS
(mm)
WEIGHT
(kg) MATERIAL
ZBRAK-113B 125 x 150 x 40 0.2 ALLOY
MODEL “X”
MINIMUM DISTANCE (mm)
THH2400AR 1000
THH3200AR 1470
Adding chains to Standard Mounng Bracket
Pung the Standard Mounng Bracket together

16
SUITABLE FOR
MODELS PART No HOLE CUTOUT DIMENSIONS (mm) OVERALL DIMENSIONS (mm) WEIGHT (kg)
THH 2400AR THHAC-013 1420 x 230 1470 x 280 x 125 8
THH 3200AR THHAC-014 1830 x 230 1880 x 280 x 125 9
Flush mount enclosure
The Flush Mount Enclosure is an ideal way to neatly install the HEATSTRIP® into a ceiling. They are available for
all HEATSTRIP® Classic models, and are supplied as a one-piece unit suitable for mounting individual heaters.
Flush mounting can be used with plaster or timber lined ceiling materials.
An ideal mounting height is 2.3m-2.5m, with a maximum ceiling height of 2.7m in an outdoor enclosed environment.
Maximum mounting heights should be strictly followed, otherwise the performance of the units may be reduced.
The facia of the enclosure is matte black and the rear casing is black zinc coated steel.
Please refer to the Flush Mount Enclosure Installation Manual for more detailed installation information.

17

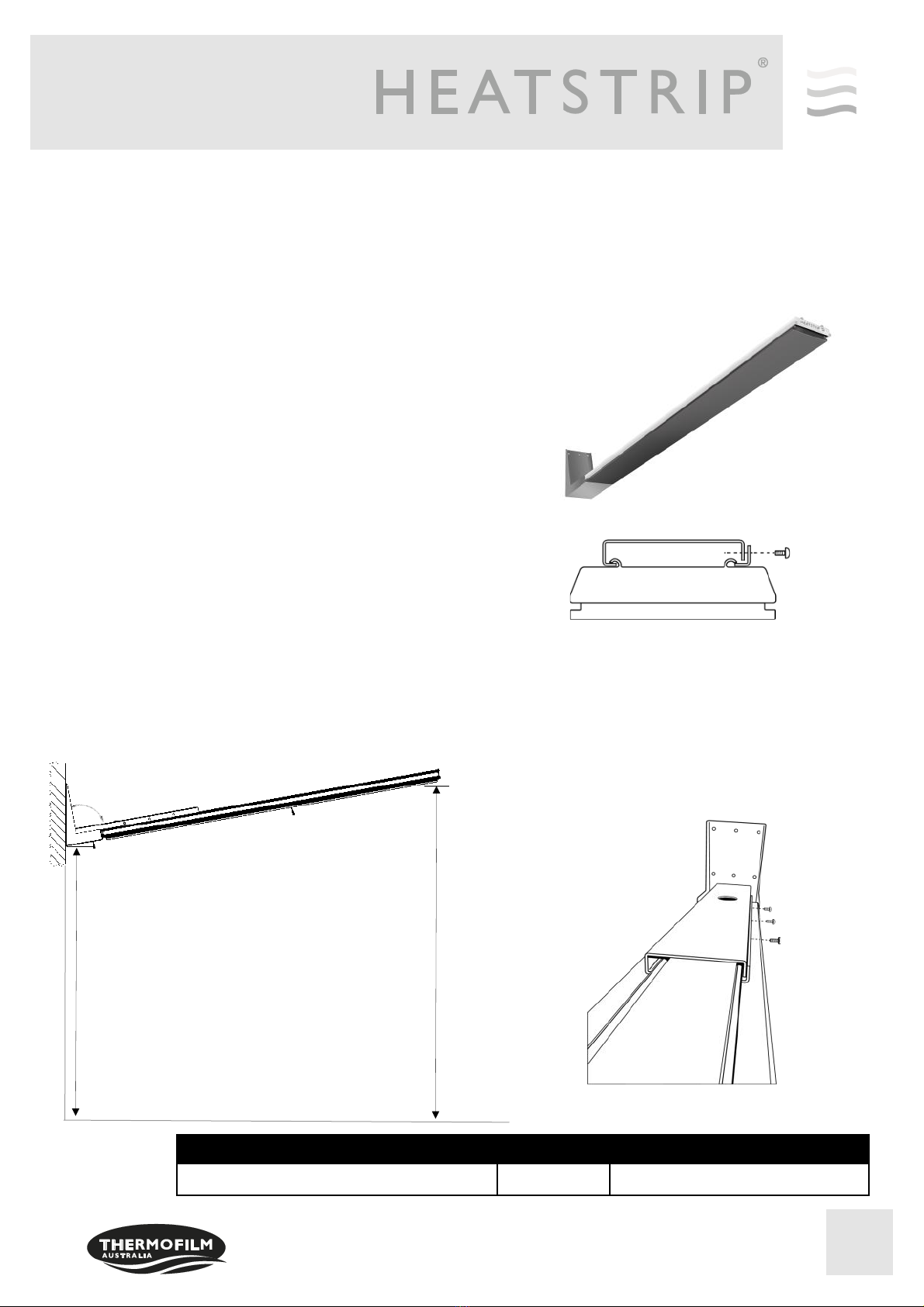

HEATSTRIP Wall Mounting Kit - (THHAC-028)
Installation Location - The below diagram outlines the recommended clearances.
Note: The minimum height from the ground to bottom of the bracket is 2.1m, and the maximum height from
the ground to the end of the heater is 2.7m. We recommend a mounting height of 2.3 to 2.5m.
2100mm Min.
DIMENSION (mm) WEIGHT (Kg) MATERIALS
550 (L) x 165 (W) x 250 (H) 3.5 Powder coated Mild Steel
FLOOR
97°
2700mm Max.
Wall mount
HEATSTRIP Classic &
Elegance Models
HEATSTRIP Wall Mounting Kit is an ideal way to install units into hard to mount applications
where wall mounting is preferable to direct overhead mounting, applications include heating
over tables, lounges, work stations etc. These kits are suitable for all HEATSTRIP Elegance
& Classic models.
Instructions:
Fix the wall bracket in the desired location using 6 x 8 mm fasten-
ers that will be more than adequate to safely support the bracket
and the HEATSTRIP unit.
When bracket is installed lift the heater into position passing the
power cord through the hole. Locate the heater so the L bracket fits
into the mounting grove located on the back of the HEATSTRIP.
Position the angle piece into the mounting grove on opposite side
of the heater and secure firmly onto the bracket using the 3 screws
provided.

18

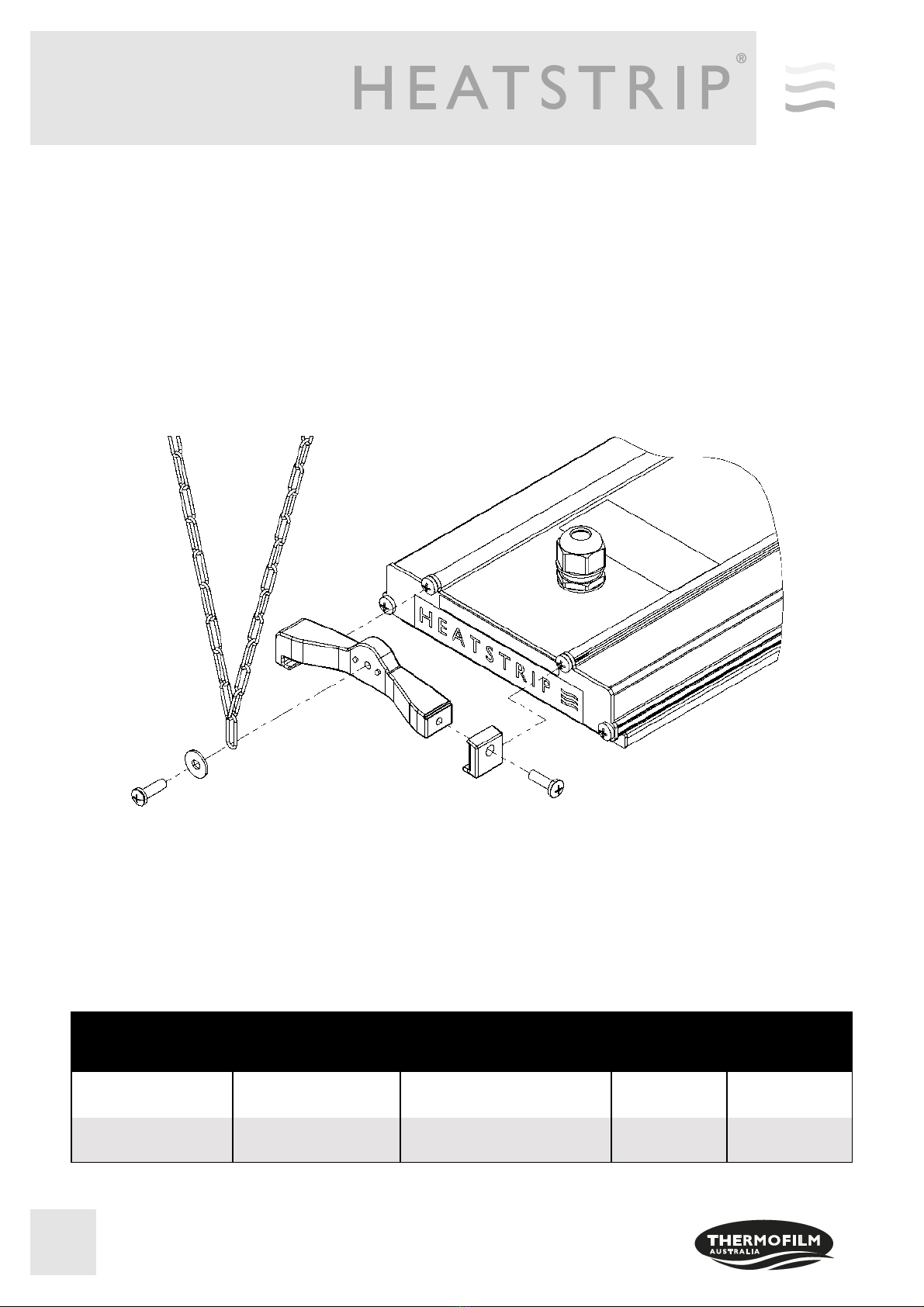

If the space to be heated is an enclosed outdoor environment with a ceiling height of 2.7m or more, it is recommended to
lower the heaters to an ideal mounting height of 2.3m—2.5m. The Suspension Mount bracket provides a cheap, easy
and effective option for lowering the HEATSTRIP® Classic from high ceilings. The bracket is designed to be used with
chains or wires. There can be multiple chain/wire arrangement options, as per the diagram below.
Note: chains or cable are not supplied with heaters or brackets.
PART No PACKAGED
DIMENSIONS (mm) WEIGHT (kg) MATERIALS
SUITABLE FOR
MODELS
THHAC-002 300 x 150 x 50 1AlloyTHH 2400AR
THHAC-003 1200 x 120 x 50 2AlloyTHH3200AR
Suspension mount bracket
Chain / Wire Suspension Mount

19
Extension Mount Bracket
The Extension Mount bracket allows HEATSTRIP® Classic units to be lowered from high ceilings using rigid connections. The
brackets are designed to be used with 20mm x 1mm round tube (and supplied as a complete kit that attaches to standard
mounting brackets supplied with the heater. The standard length options as part of the kit are 150mm, 300mm, 600mm,
900mm and 1200mm.
The extension mount brackets utilise components from the standard bracket kit which is supplied with each heater and it
provides an extra 100mm of length
*screws to ceiling are not included
PART No DIMENSIONS (mm) WEIGHT
(kg) MATERIALS NOTES
THYAC-047 300 x 20 x 20 0.21 ALLOY Kit Includes 2 x 300mm Extension Poles , Black
THYAC-048 600 x 20 x 20 0.38 ALLOY Kit Includes 2 x 600mm Extension Poles, Black
THYAC-049 900 x 20 x 20 0.55 ALLOY Kit Includes 2 x 900mm Extension Pole, Black
THYAC-050 1200 x 20 x 20 0.71 ALLOY Kit Includes 2 x 1200mm Extension Pole, Black
Standard Bracket
1300
1000
700
400

20
HEATSTRIP® Classic with Remote
The THHA-R is a custom designed and manufactured heater. It has been designed for ease of use and provide low running
cost of your heater. It provides 3 levels of temperature control, Adjustable set timer option from 0-24 hours with the touch of a
button.
When the heater is plugged in or hardwired , press “power” on the remote, the power indicator light on the unit will light up and
indicate the L1, L2, L3 using the + or - to change the heat settings, To set the timer click through the 0-24 hour timer .
THHA-R Functions
L1 is the lowest heat setting and L3 is the highest heat setting.
The timer function has 0-24 hour timer. This feature is ideal for applications such as alfresco areas, restaurant dining, assem-
bly line production etc. when continuous heat is not required. The timer also reduces the likelihood of heaters being inadvert-
ently left turned on.
Remote pairing
All units operate using the same remote control frequency, therefore, multiple heaters can be operated using a single remote
control. The remote will function at distance of over 8m when used in a straight line. This distance reduces when used at an
angle.
LED / control panel
Timer (0-24 hour)
On/Off
Remote battery 2x AAA batteries (Not includ-
ed)
Remote range 10m
Wall socket supply 220V — 240V, 50Hz
Max load 10A (2400W)
Standby consumption <1W
Remote frequency 38kHz IR
Heat Sengs controlled by + & -
