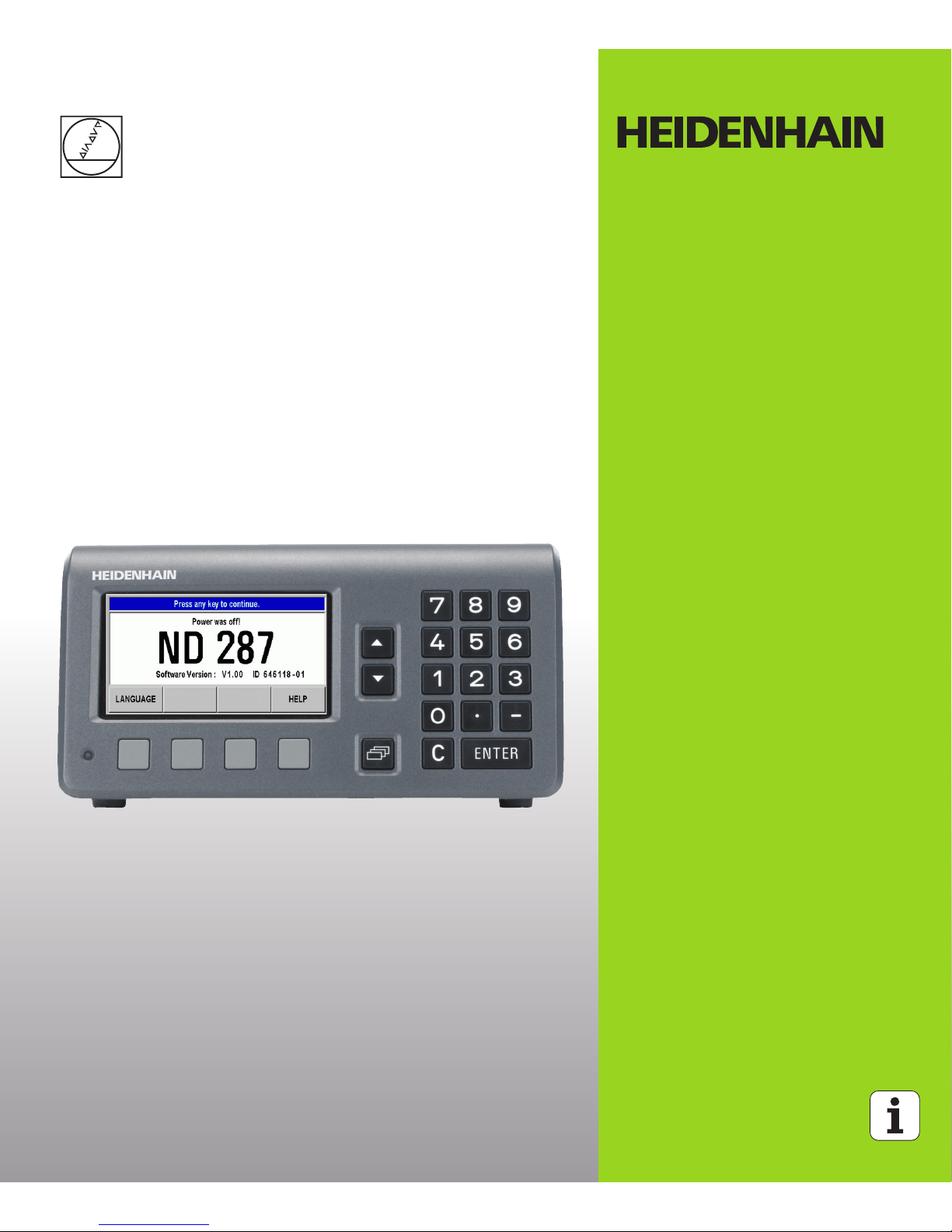

HEIDENHAIN ND 287 - 8-2010 User manual

Operating Instructions
ND 287
English (en)
8/2010

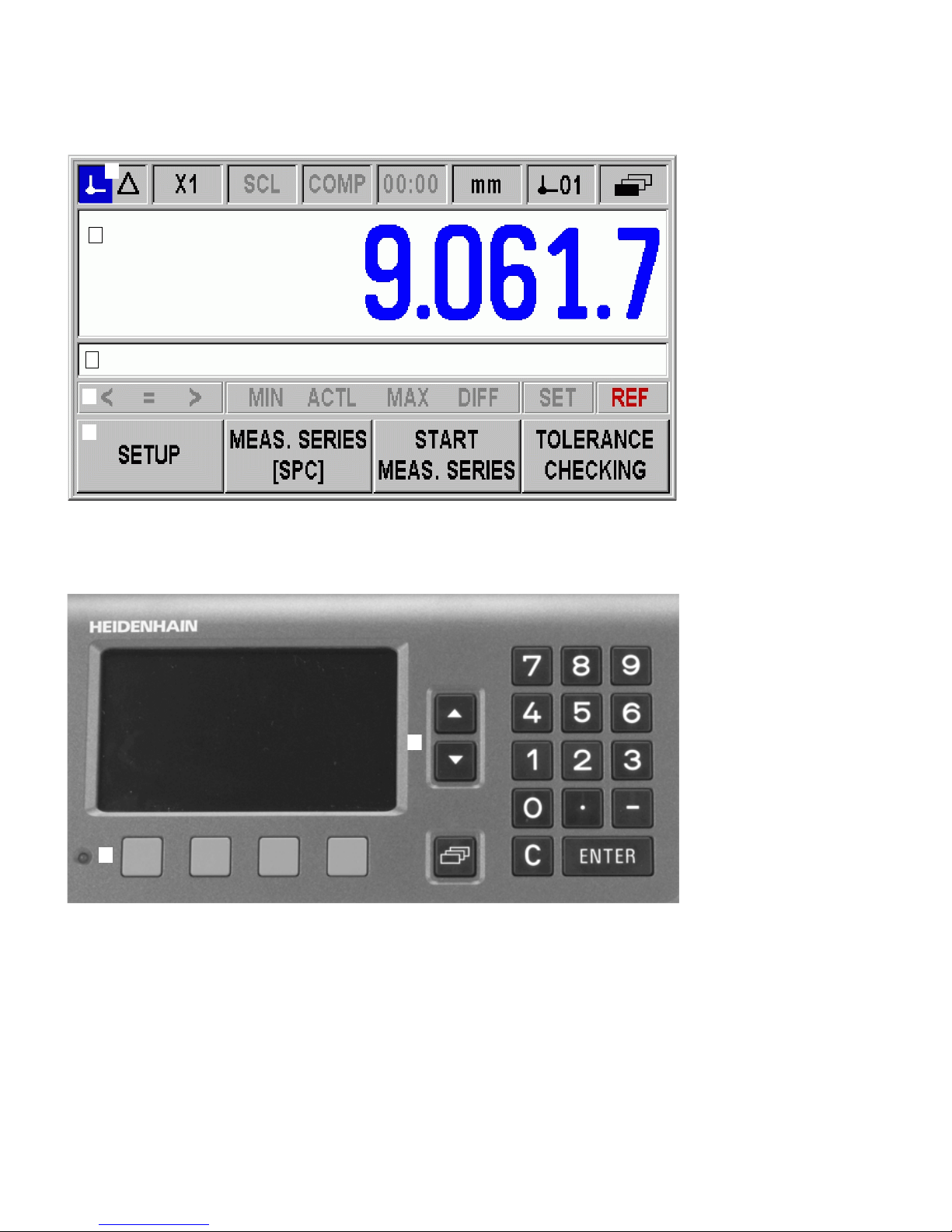

ND 287 Screen
1
2
3
4
5

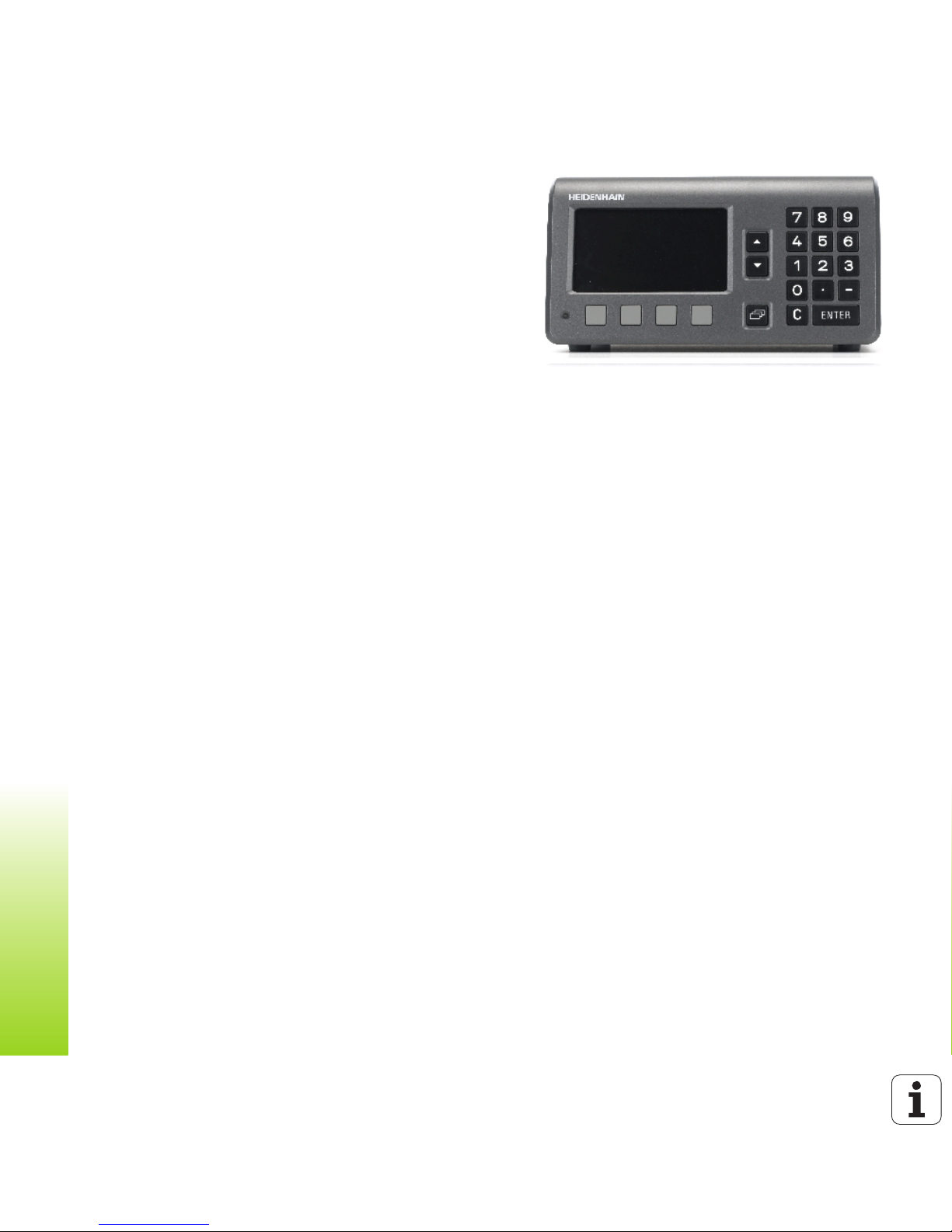

ND 287 Front Panel
7
6

Controls and Displays

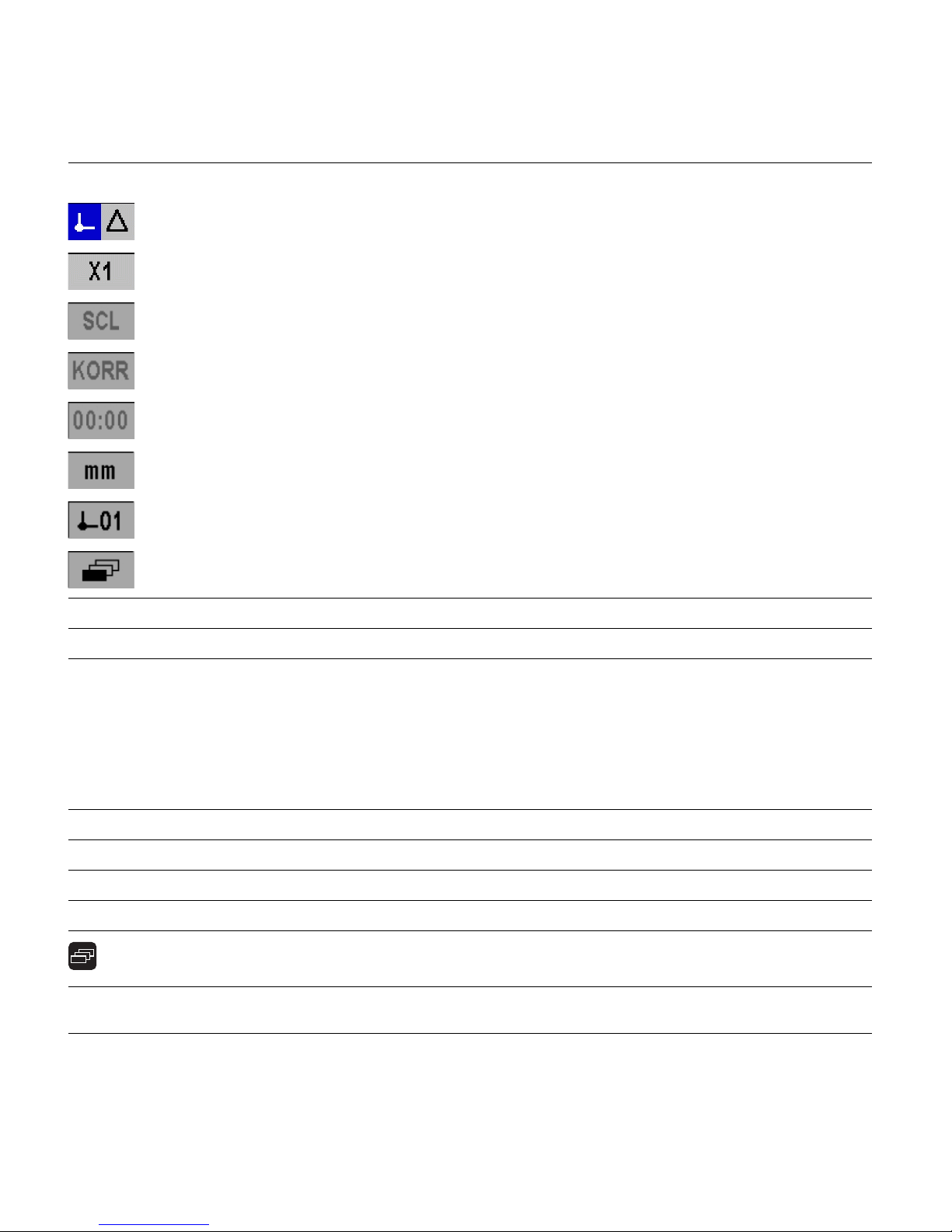

1Status bar
Current operating mode: Actual Value, Distance-To-Go.
Current display mode for input X1, X2 or coupled axes X1:X2.
SCL shown in black: Scaling factor is active.
COMP shown in black: Error compensation or axis-error compensation is active for the currently displayed axis
or coupled axes.
Elapsed time of running stopwatch: If the stopwatch is stopped, the box appears dimmed.
mm, inch, DEG, DMS or rad: Currently active unit of measure
Currently active datum: The ND 287 allows you to work with two different datums.
Indicates the soft-key page (soft-key row) you are currently on.
2Position display: Current position value (length or angle), or other measured value
3Message line for displaying information, errors or warnings.
4Status display:
<• / = / >: The first three symbols become effective when tolerance checking and sorting mode is activated.
MIN, ACTL or MAX and DIFF: Minimum, current or maximum measured value of a series of measurements,
or difference between minimum and maximum measured value.
SET: If you enter a new value during datum setting, the SET symbol will start flashing.
REF: The REF symbol is flashing until the reference mark evaluation for the displayed axis has been
completed (if an incremental encoder is connected).
5 and 6 Soft keys and soft-key buttons for executing functions.
1,2,3,4... Numeric input keys.
ENTER Use the ENTER key to confirm your entry or to return to the previous screen.
C Use the C key to clear an entry, acknowledge an error message or return to the previous screen.
The NAVIGATION key moves through the soft-key pages (soft-key rows).
7Use the UP or DOWN arrow key to move between fields within a form or menu items (parameters) within a
menu.

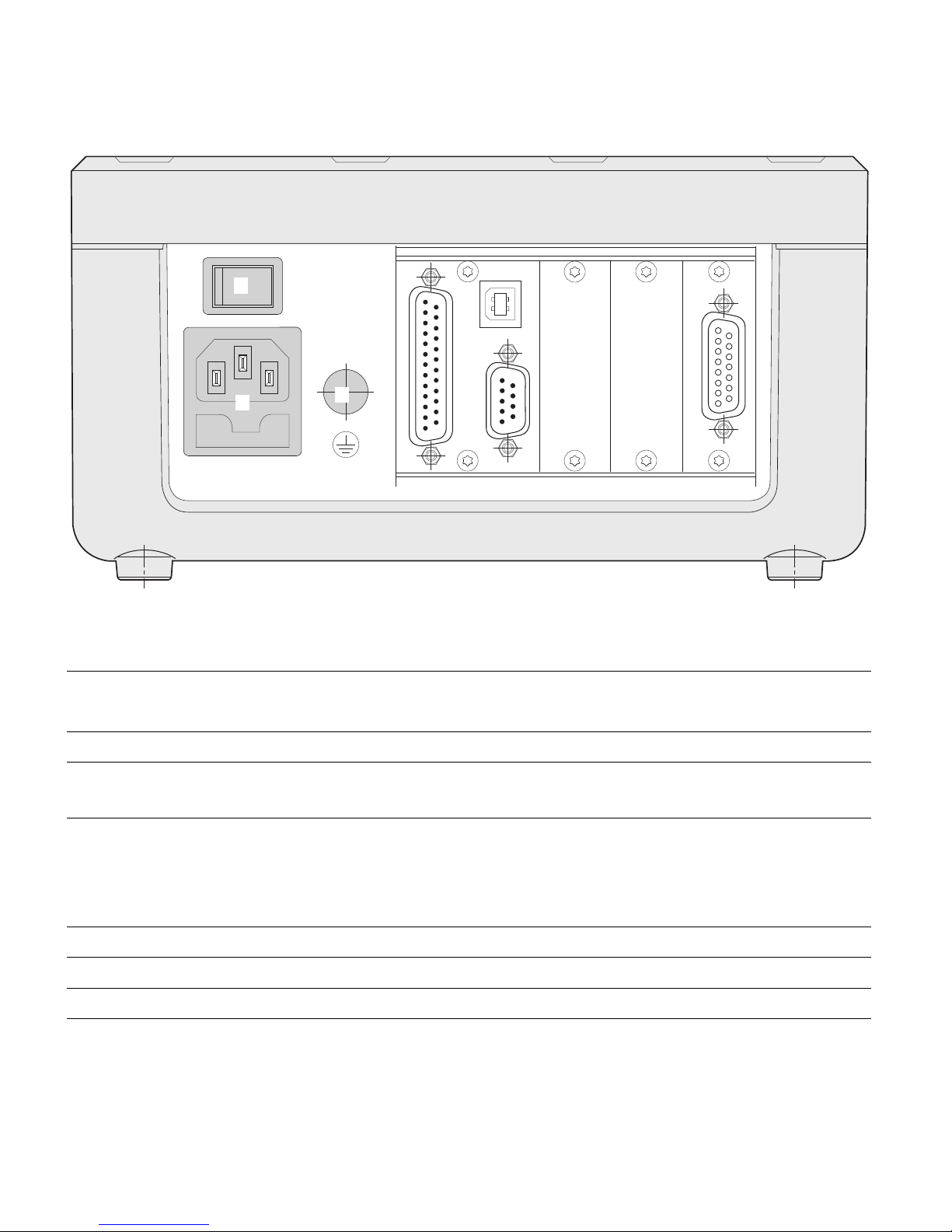

ND 287 Rear Panel
X1
X2
X26(X27)
X32/X31
X41
1
2
3
Connections
1Power switch
2Power connection with fuse
3Ground (protective earthing)
X1 Encoder module for connecting a HEIDENHAIN encoder with 11 µApp , 1 Vpp or EnDat 2.1/2.2 interface
Option: Analog module for connecting an analog sensor
X2 Optional:
Encoder module for connecting a HEIDENHAIN encoder with 11 µApp , 1 Vpp or EnDat 2.1/2.2 interface
for a second axis or
Analog module for connecting an analog sensor, primarily a temperature sensor for axis-error
compensation
X26 (X27) Option: Ethernet module (100baseT) for network connection via TCP/IP protocol
X32/X31 Two serial ports for data transfer: RS-232-C/V.24 (X31) and USB Type B (UART, X32)
X41 Switching inputs and outputs at D-sub connection

ND 287 5
Introduction
Introduction
Software version
The software version is shown on the power-up screen of the ND 287.
Symbols within notes
Every note is marked with a symbol on the left indicating to the
operator the type and/or potential severity of the note.
Fonts
The chart below shows how the different variables (soft keys, hard
keys, forms and form fields) are represented within the text of this
manual:
Soft keys – SETUP soft key
Hard keys – ENTER hard key
Menus and forms – UNITS OF MEASURE form
Parameters and input fields – ANGULAR field
Data in fields - ON, OFF
This manual describes the functions that are available in
the ND 287 and the installation of the units.
General information
e. g. on the behavior of the ND 287.
Refer to accompanying documents
e.g. when a special tool is required for a function.
Danger to the operator, workpiece or internal
components
e.g. danger of collision
Electrical hazard
e. g. danger of electrical shock when opening a housing.
The ND 287 must be prepared by a qualified and
authorized technician to perform this function.

ND 287 7
I – 1 ND 287 Position Display Unit ..... 14
I – 2 Fundamentals of Positioning ..... 16

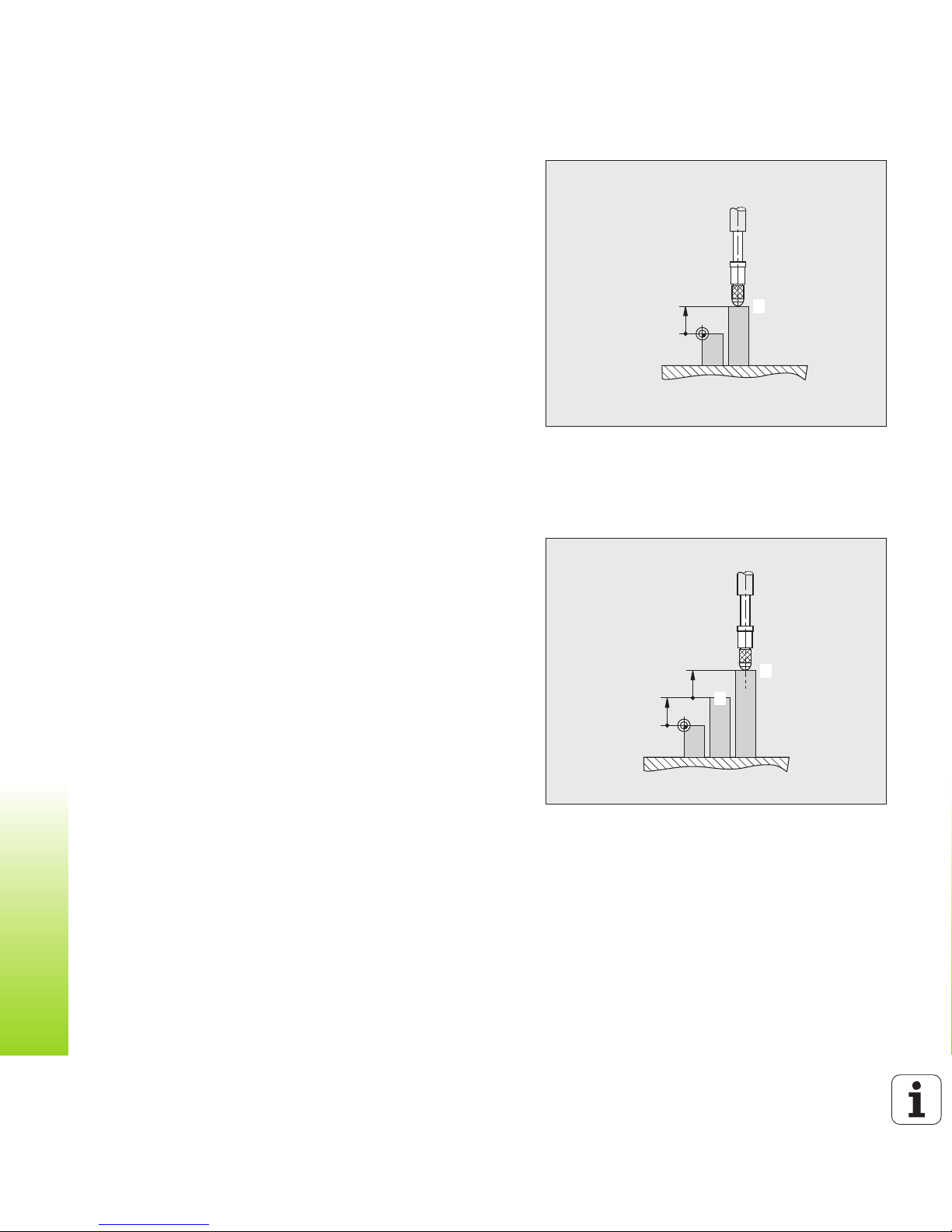

Datums ..... 16
Actual position, nominal position and distance-to-go ..... 17
Absolute workpiece positions ..... 18
Incremental workpiece positions ..... 18
Incremental position encoders ..... 19

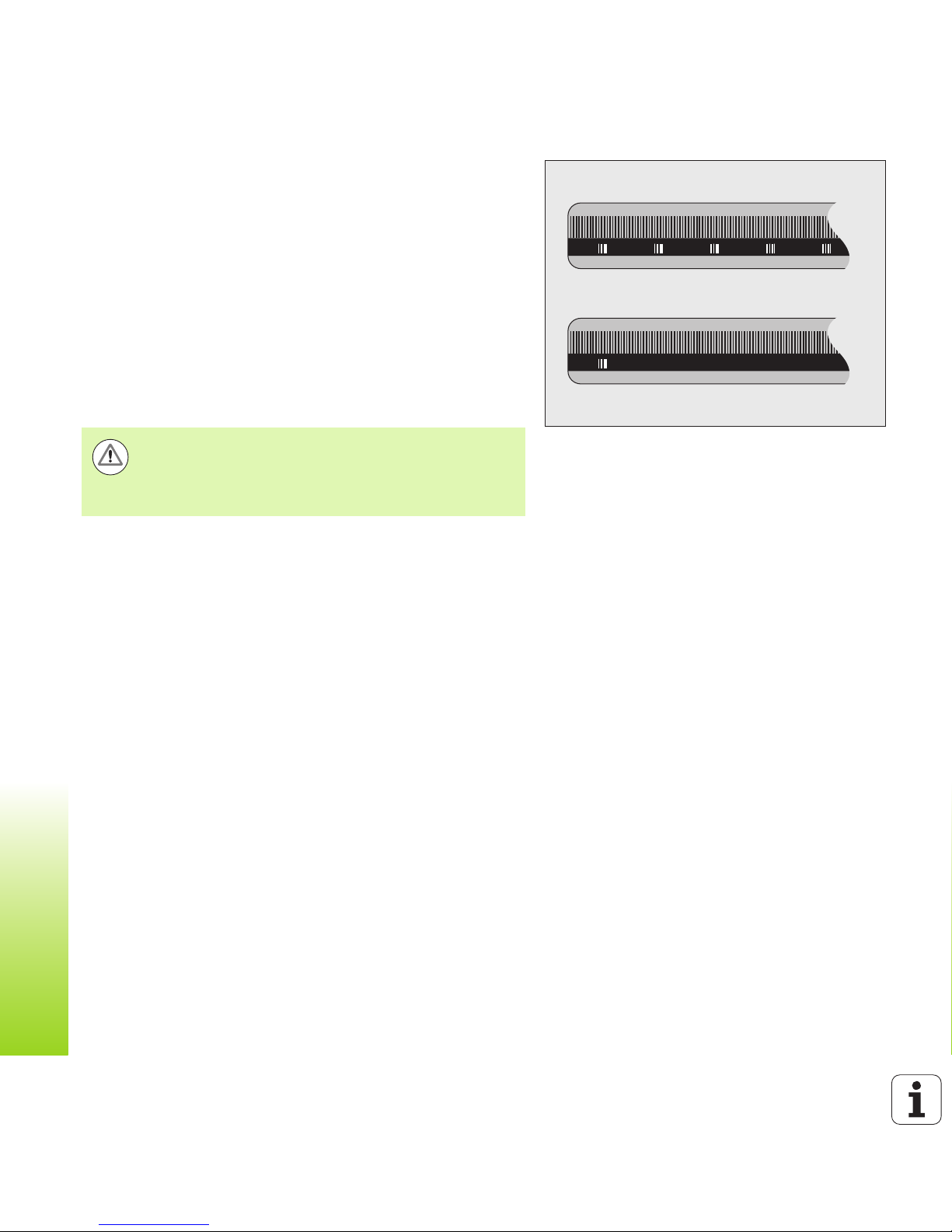

Absolute position encoders ..... 19
Reference marks ..... 20
I – 3 Basic Functions of the ND 287 ..... 21
Switching on the ND 287 ..... 21
Reference mark evaluation ..... 22
Working without reference mark evaluation ..... 22
Switching off the ND 287 ..... 22
Standard screen layout ..... 23
Soft-key functions on the standard screen ..... 25
Axis display mode ..... 27
Data input ..... 27
Integrated help system ..... 28
Data input forms ..... 29
Instruction box messages ..... 29
Error messages ..... 29
I – 4 Job Setup ..... 30
Operating modes ..... 30
Datum setting ..... 31
Setting the display value for one axis or for two axes in the X1 or X2 display mode ..... 31
Setting the display value for two axes in display mode X1:X2 (applies to X1+X2, X1-X2, f(X1,X2)) ..... 32
Calling the JOB SETUP menu ..... 33
Unit of measure ..... 34
Scaling factor ..... 35
Value for datum point ..... 36
Stopwatch ..... 36
Console adjustment ..... 37
Language ..... 37
Switching signals ..... 38
Measured value output ..... 39
Function of external inputs ..... 40
Compensation using a reference part ..... 41
I Working with the ND 287 Position Display Unit ..... 13

8
I – 5 Series of Measurements and Statistical Process Control ..... 42
Functions ..... 42
Switching between series of measurements and SPC mode ..... 42
Calling the SERIES OF MEASUREMENTS menu ..... 43
Analysis of series of measurements ..... 43
Setting up a series of measurements ..... 44
Defining the display for a series of measurements ..... 46
Defining the record mode ..... 47
Starting and stopping a series of measurements ..... 48
Calling the SPC menu ..... 49
SPC analysis ..... 49
Setting up SPC ..... 52
Samples ..... 52
Tolerances ..... 53
Control limits ..... 54
Statistical distribution ..... 55
Measured value recording ..... 55
Deleting SPC statistics ..... 56
Starting and stopping SPC ..... 56
I – 6 Sorting and Tolerance Checking ..... 58
Sorting function ..... 58
Defining the sorting parameters ..... 59
I – 7 Error messages ..... 60
Overview ..... 60

ND 287 9
II – 1 Installation and Electrical Connection ..... 64
Items supplied ..... 64
Optional accessories ..... 64
Mounting ..... 65
Environmental conditions ..... 65
Mounting location ..... 65
ND 287 – Mounting and installation ..... 65
Electromagnetic compatibility/
CE compliance ..... 66
Electrical connection ..... 67
Electrical requirements ..... 67
Wiring the power connector ..... 67
Grounding ..... 67
Preventative maintenance or repair ..... 68
Connecting the encoders ..... 68
D-sub connection X1/X2 (15-pin, female) for the following input signals ..... 68
Optional: Analog module with ±10-V interface at input X1 or X2 for connecting an analog sensor ..... 69
II – 2 Installation Setup ..... 70
INSTALLATION SETUP menu ..... 70
Setting up the encoder ..... 72
Incremental linear encoder ..... 73
Incremental angle encoder ..... 74
Absolute encoder ..... 75
Analog sensor with ±10 V interface, preferably a temperature sensor ..... 76
Configuring the display ..... 77
Linear encoder ..... 77
Angle encoder ..... 77
Analog sensor for compensation ..... 77
Counter settings ..... 78
Formula for coupled position ..... 79
Error compensation ..... 80
Linear error compensation (not for rotary encoders) ..... 81
Non-linear error compensation ..... 82
Setting up the serial port ..... 86
Setting up the data interface ..... 86
Diagnostics ..... 88
Keypad test ..... 88
Display test ..... 88
Encoder test ..... 89
Power supply ..... 91
Switching inputs test ..... 92
Switching outputs test ..... 93
II Installation, Specifications ..... 63

10
II – 3 Switching Inputs and Outputs ..... 94
Switching inputs at D-sub connection X41 ..... 94
Input signals ..... 95
Signal level of inputs ..... 95
Ignoring the reference mark signals ..... 95
Switching outputs at D-sub connection X41 ..... 96
Output signals ..... 96
Signal level of outputs ..... 96
Trigger limits ..... 97
Sorting limits ..... 98
Trigger signal for error ..... 98
Zero crossover ..... 98
II – 4 Encoder Parameters ..... 99
Table values ..... 99
HEIDENHAIN linear encoders ..... 99
HEIDENHAIN angle encoders ..... 100
II – 5 Data Interface ..... 101
Data communication ..... 101
Serial data transfer with the Import or Export function ..... 102
Data transfer from the ND 287 to a printer ..... 102
Data transfer from the ND 287 to a PC ..... 102
Importing data into the ND 287 from a PC ..... 103
Data format ..... 103
Control characters ..... 103
Software update (firmware update) installation ..... 104
Wiring the connecting cable ..... 105
USB Type B (UART), socket as per IEC 61076-3-108 ..... 106
External operation via RS-232-C/V. 24 or USB interface ..... 107
Key commands ..... 107
Description of key commands ..... 108
Key is pressed (TXXXX commands) ..... 109
Output of screen contents (AXXXX commands) ..... 109
Execute function (FXXXX commands) ..... 113
Execute special function (SXXXX commands) ..... 113
II – 6 Measured Value Output ..... 114
Alternatives for starting measured value output ..... 114
Measured value output after a trigger signal ..... 114
Propagation times ..... 114
Duration of measured value transfer ..... 114
Measured-value output via the serial data interface X31 or X32 ..... 115
Propagation times ..... 115
Duration of measured value transfer ..... 116
Example: Data sequence during measured-value output ..... 116
