Motorschutzbügel/ Engine guard
inkl./incl. Protection Pad
140920
INHALT
CONTENT
1x 700011026 Motorschutzbügel links schwarz
1x 700011027 Motorschutzbügel rechts schwarz
ODER
1x 700011028 Motorschutzbügel links orange
1x 700011029 Motorschutzbügel rechts orange
1x 700011030 Schraubensatz:
1x 700011026 Engine guard left black
1x 700011027 Engine guard right black
OR
1x 700011028 Engine guard left orange
1x 700011029 Engine guard right orange
1x 700011030 Screw kit:
2x Zylinderschraube M10x85
3x Zylinderschraube M10x65
2x Zylinderschraube M8x40
5x U-Scheibe Ø10,5
2x U-Scheibe Ø8,4
2x Selbstsichernde Mutter M8
1x Stahldistanz Ø18xØ11x15
1x Stahldistanz Ø18xØ11x13
1x Stahldistanz Ø18xØ11x35
1x Stahldistanz Ø22xØ11x41
2x Stahldistanz Ø22xØ11x30
2x Allen screw M10x85
3x Allen screw M10x65
2x Allen screw M8x40
5x Washer Ø10,5
2x Washer Ø8,4
2x Self lock nut M8
1x Steel spacer Ø18xØ11x15
1x Steel spacer Ø18xØ11x13
1x Steel spacer Ø18xØ11x35
1x Steel spacer Ø22xØ11x41
2x Steel spacer Ø22xØ11x30
1x 5070050 Protection Pad Set 1x 5070050 Protection Pad set
2x Pad
2x Blende
2x Stufenhülse Ø9
2x Pad
2x Cover
2x Step sleeve Ø9
KTM 890 Duke R
2020-
Artikel Nr.: / Item-no.:
5017602 00 01 schwarz/black
5017602 00 06 orange
KTM 790 Duke
2018-
Artikel Nr.: / Item-no.:
5017569 00 01 schwarz/black
5017569 00 06 orange
2
5017569 00 0x / 5017602 00 0x
WICHTIG
IMPORTANT
Beachten Sie die in Ihrem Land geltenden Zulassungsbestimmungen.
Für den Bereich der BRD gilt: Ein Eintrag in die Fahrzeugpapiere ist nicht erforderlich.
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,wie
man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen.
Ziehen sie alle zugänglichen Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf
das entsprechende Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist.
Anzugsmomente beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
VORBEREITUNG
PREPARING
Zur besseren Montage die obere Schraube der Fußrastenhalterung rechts lösen.
Links und rechts jeweils die vordere Schraube der Motoraufhängung, die obere Schraube der Rahmenbefesti-
gung sowie die vordere Schraube links und rechts der Fußrastenhalterung entfernen, die dabei gelöste Distanz
rechts entfällt, die Schraube wird wieder verwendet. Alle anderen Schrauben entfallen.
For better assembly, loosen the upper screw of the footrest holder on the right.
Remove the front screw of the engine suspension left and right, the upper screw of the frame fastening and the
front screw left and right of the footrest holder, the detached spacer right is obsolete, the screw is reused. All
other screws are omitted.
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Set Verlängerung/extension Ratsche/Ratchet

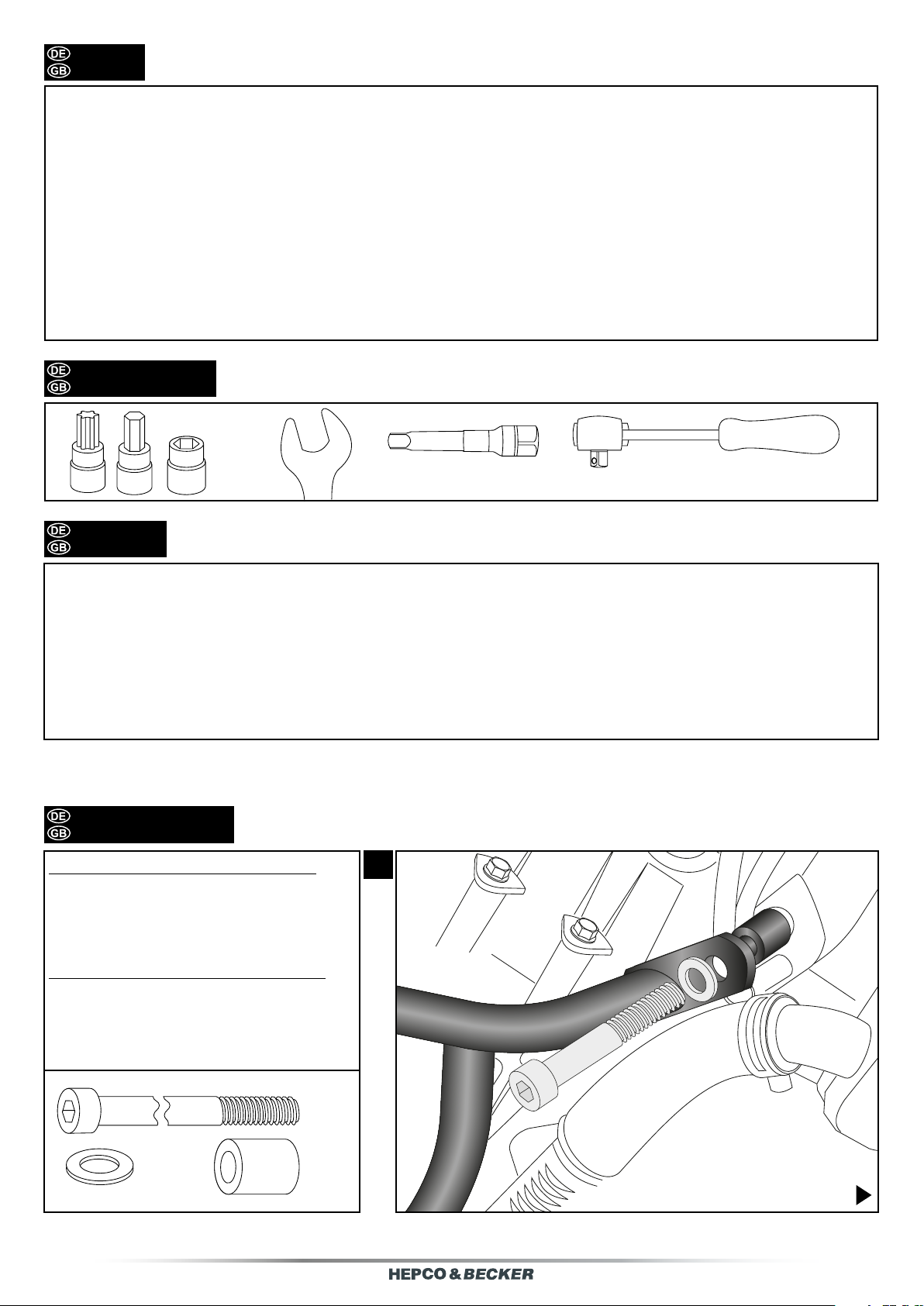

MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
1
1x
1x1x
Montage Motorschutzbügel rechts vorne:
Die Montage erfolgt mit der Zylinderschraube
M10x85 und U-Scheibe ø10,5 in der nun
freien Gewindebohrung. Zwischen Lasche und
Rahmen die Stahldistanz ø18xø11x35 fügen.
Fastening of the engine guard right front:
With allen screw M10x85 and washer ø10,5
in the now free boring. Add steel spacer
ø18xø11x35 between frame and crash bar.
Fahrtrichtung/driving direction
3
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
5017569 00 0x / 5017602 00 0x
3
2
4
1x
1x
1x
1x
Montage Motorschutzbügel links vorne:
Die Montage erfolgt mit der Zylinderschraube
M10x65 und U-Scheibe ø10,5 in der freien
Gewindebohrung. Zwischen Lasche und
Rahmen die Stahldistanz ø18xø11x13 fügen.
Montage Motorschutzbügel rechts unten:
Mit der Originalschraube im nun freien Gewin-
de, hinter der Fußraste. Zwischen Lasche und
Rahmen die Stahldistanz ø22xø11x41 fügen.
Montage Motorschutzbügel links unten:
Mit der Zylinderschraube M10x85 und U-
Scheibe ø10,5 in der nun freien Gewindeboh-
rung vor der Fußraste. Zwischen Lasche und
Rahmen die Stahldistanz ø18xø11x15 fügen.
Fastening of the engine guard left front:
With allen screw M10x65 and washer ø10,5
in the now free boring. Add steel spacer
ø18xø11x13 between frame and crash bar.
Fastening of the engine guard right bottom:
With original screw in the now free boring
behind the footrest. Add steel spacer
ø22xø11x41 between frame and crash bar.
Fastening of the engine guard left bottom:
With allen screw M10x85 and washer ø10,5
in the now free boring behind the footrest.
Add steel spacer ø18xø11x15 between frame
and crash bar.
Fahrtrichtung/driving direction
Fahrtrichtung/driving direction
Fahrtrichtung/driving direction
1x
1x1x
4
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
Hepco & Becker GmbH
An der Steinmauer 6
D-66955 Pirmasens
Germany
Tel.: +49 (0)6331 - 1453 - 100
Fax: +49 (0)6331 - 1453 - 120
eMail: vertrieb@hepco-becker.de
www.hepco-becker.de
Als weiteres Zubehör lieferbar:/ Also available:
Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage.
ACHTUNG
CAUTION
Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren ! Abgebaute Teile wieder montieren.
Bitte beachten Sie unsere beigefügten Serviceinformationen.
Control all screw connections after the assembling for tightness! Reassemble the dismantled parts.
Please notice our enclosed service information.
Alurack / Easyrack
C-Bow Halter, einseitig / C-Bow holder, single-sided
Sportrack
Tankring
Hitzeschutzblech / Heat shield
5017569 00 0x / 5017602 00 0x
6
5
2x
Befestigung der ProtectionPads links/rechts:
Mit den Zylinderschrauben M8x40, zusammen
mit der Stufenhülse. Von der Rückseite mit den
U-Scheiben Ø8,4 und selbstsichernden Muttern
M8 verschrauben.
Blenden einsetzen.
Montage Motorschutzbügel rechts/links hinten:
Mit der Zylinderschraube M10x65 und
U-Scheibe Ø10,5. Zwischen Lasche und
Rahmen die Stahldistanz Ø22xØ11x30 fügen.
Originale Gummipuffer entfallen.
Fastening of the ProtectionPads left/right:
With allen screws M8x40 and sleeve.
Secure with washers Ø8,4 and self lock nuts
M8 from behind. Insert covers.
Fastening of the engine guard right/left rear:
With allen screw
M10x65 and washer Ø10,5.
Add steel spacer Ø22xØ11x30 between flap
and frame. Original rubber buffers are not
required.
2x 2x
2x 2x
2x
2x
Fahrtrichtung/driving direction
