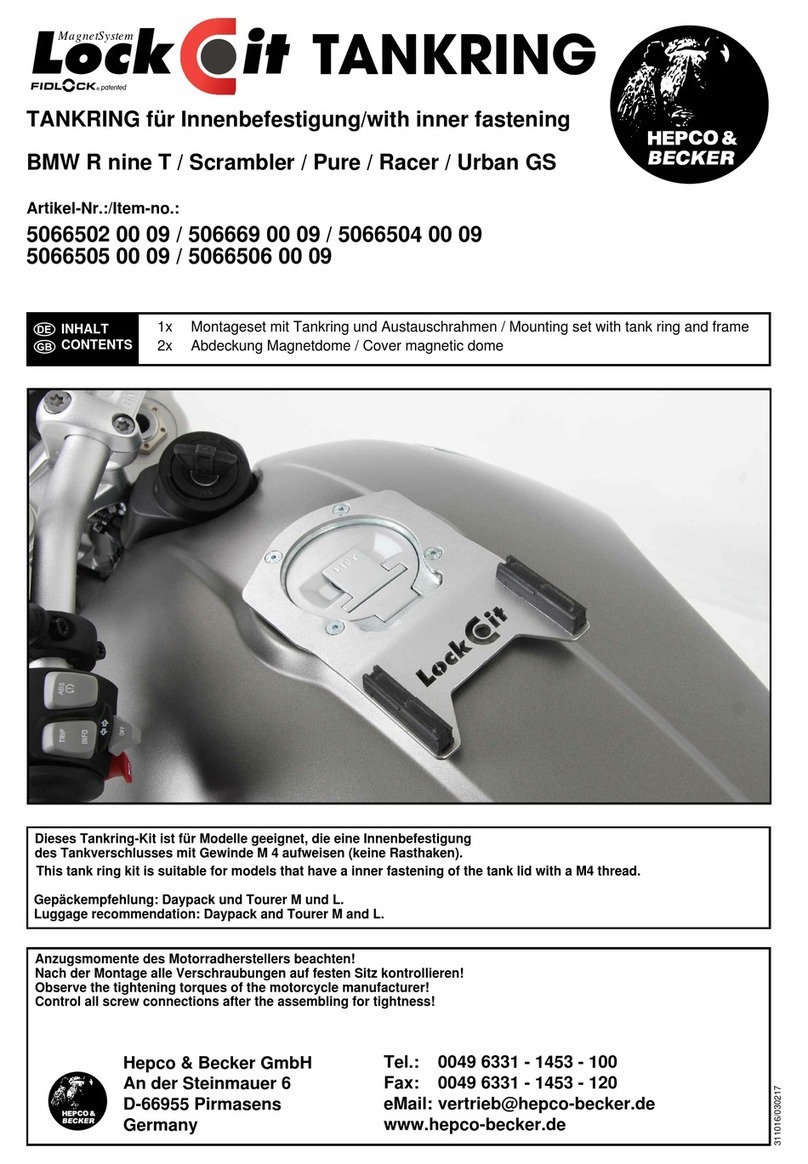

hepco & becker Lock-it 5064564 00 01 User manual

hepco & becker

hepco & becker Lock-it 5064564 00 01 User manual

hepco & becker 5077573 00 01 User manual

hepco & becker

hepco & becker 5077573 00 01 User manual

hepco & becker 6306527 00 01 User manual

hepco & becker

hepco & becker 6306527 00 01 User manual

Popular Motorcycle Accessories manuals by other brands

SRC H-ADV150-04-01AL quick start guide

SRC

SRC H-ADV150-04-01AL quick start guide

DMD P1 owner's manual

DMD

DMD P1 owner's manual

GIVI Airflow AF1110 manual

GIVI

GIVI Airflow AF1110 manual

Suzuki 99143-00A1 000 Series installation instructions

Suzuki

Suzuki 99143-00A1 000 Series installation instructions

Cardo Systems FREECOM 4+ Pocket guide

Cardo Systems

Cardo Systems FREECOM 4+ Pocket guide

Shark S 700 user manual

Shark

Shark S 700 user manual

R&G CR0081 Fitting instructions

R&G

R&G CR0081 Fitting instructions

SRC B-TRK502-01-01-SL quick start guide

SRC

SRC B-TRK502-01-01-SL quick start guide

HOMCOM AA0-077 user manual

HOMCOM

HOMCOM AA0-077 user manual

SHOEI JO Instructions for use

SHOEI

SHOEI JO Instructions for use

Wunderkind Custom 106503-F15 Installation and safety

Wunderkind Custom

Wunderkind Custom 106503-F15 Installation and safety

Suzuki 57100-05881 installation instructions

Suzuki

Suzuki 57100-05881 installation instructions

SIKH HELMETS Y-61 quick start guide

SIKH HELMETS

SIKH HELMETS Y-61 quick start guide

Dräger HPS 3500 Instructions for use

Dräger

Dräger HPS 3500 Instructions for use

M-WAVE SKI manual

M-WAVE

M-WAVE SKI manual

Kuryakyn 6212 installation instructions

Kuryakyn

Kuryakyn 6212 installation instructions

Tool it PROMAX LCD 9.13G manual

Tool it

Tool it PROMAX LCD 9.13G manual

Custom Dynamics TruWrapz installation instructions

Custom Dynamics

Custom Dynamics TruWrapz installation instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

1x Schraubensatz: 1x Screw kit:
4x Zylinderschraube M6 x12
4x Zylinderschraube M6 x 20
4x Senkkopfschraube M8 x 20mm
4x Senkkopfschraube M8 x 25mm
4x Senkscheibe Ø 8,4
4x U-Scheibe ø6,4
4x U-Scheibe ø8,4
4x Selbstsichernde Mutter M6
4x Selbstsichernde Mutter M8
2x U-Scheibe Ø 8,4 x 3 mm
4x Viereck-Scheiben 20 x 20 x ø6,4
4x Kunststoffkappen M8
4x allen screw M6 x12
4x allen screw M6 x 20
4x countersunk screw M8 x 20mm
4x countersunk screw M8 x 25mm
4x countersunk washer Ø 8,4
4x washer ø6,4
4x washer ø8,4
4x self lock nut M6
4x self lock nut M8
2x washer Ø 8,4 x 3 mm
4x special washer 20 x 20 x ø6,4
4x plastic cap M8
1
Bei Bestellung eines Aluracks zusätzlich:
1x 799.901HB Alu-Rack
1x 799.902HB TC-Bügel für Alu-Rack
1x 799.903HB Abdeckplatte für Rack
Bei Bestellung eines Easyracks zusätzlich:
1x 700008650 Easyrack
1x 700008647 Abdeckblende links
1x 700008648 Abdeckblende rechts
When ordering a Alurack:
1x 799.901HB alu-rack
1x 799.902HB bow for Alu-rack
1x 799.903HB plastic cover for rack
When ordering a Easyrack:
1x 700008650 Easyrack
1x 700008647 plastic cover left
1x 700008648 plastic cover right
1x 700007728 Rohradapter links
1x 700007729 Rohradapter rechts
1x 700007702 Halteadapter rechts
1x 700007703 Halteadapter links
1x 700007728 tube adapter left
1x 700007729 tube adapter right
1x 700007702 adapter right
1x 700007703 adapter left
DUCATI Diavel
ab Baujahr 2011 / from date of manufacture 2011
Easyrack
Artikel Nr.: / Item-no.:
6617503 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6507503 01 01 schwarz/black
INHALT
CONTENTS
Easyrack - Symbol
Alurack
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Die Sitzbank abnehmen und die Blinker demontieren, damit die Gewindebohrungen im Rahmen zugänglich sind.
Dismantle seat and the rear indicators to reach the threads in the frame.
2
Preparing of the Alurack:
Fix the bow to the rack with allen screws M6 x 12.
NOTICE:
The bow is needed in use with a Hepco & Becker topcase only .
Vorbereitung des Aluracks:
Den beiliegenden TC-Bügel mit den Zylinderkopf-
schrauben M6 x 12 hinten unter dem Alurack
verschrauben.
HINWEIS:
Der TC-Bügel ist nur bei Anbringung eines Hepco & Becker
Topcases erforderlich.
4x
DUCATI Diavel
ab Baujahr 2011 / from date of manufacture 2011
Easyrack
Artikel Nr.: / Item-no.:
6617503 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6507503 01 01 schwarz/black
WICHTIG
IMPORTANT
VORBEREITUNG
PREPARING
Ratsche/Ratchet
Verlängerung/extension
Set
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
2
Fahrtrichtung
Montage der Rohradapter an die Halteadapter links und rechts:
Die Rohradapter werden mit den Senkschrauben M8 x 25mm und
Senkscheiben Ø8,4 an den Halteadaptern montiert.
Aussen mit U-Scheibe ø8,4 und selbstsichernder Mutter M8
verschrauben. kunststoffkappen aufstecken.
4x 4x 4x 4x
Fastening of the tube adapters left and right:
at the adapter plate with countersunk head screws M8 x 25mm
and countersunk washers Ø8,4.
Secure with washer ø8,4 and self lock nut M8.
Assemble plastic caps on the nuts.
1
Montage der Halteadapter links/ rechts:
Die Halteadapter werden mit den
Senkschrauben M8 x 20mm am Rahmen
montiert. Am vorderen Befestigungspunkt
(1) die U-Scheibe Ø8,4 x 3mm
zwischenfügen. Dann können die Blinker
wieder montiert werden.
Fastening of the adapters left+right:
at the frame with countersunk head
screws M8 x 20mm.
Front point (1) add washers Ø8,4 x 3mm.
Mount the blinker again.
4x 2x
driving direction
Fahrtrichtung
3
driving direction
DUCATI Diavel
ab Baujahr 2011 / from date of manufacture 2011
Easyrack
Artikel Nr.: / Item-no.:
6617503 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6507503 01 01 schwarz/black
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
4
ACHTUNG
CAUTION
Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren ! Abgebaute Teile
wieder montieren. Bitte beachten Sie unsere beigefügten Serviceinformationen.
Control all screw connections after the assembling for tightness! Reassemble the
dismanteled parts. Please notice our enclosed service information.
6307503 00 01 C-Bow Halter / C-Bow holder
Als weiteres Zubehör lieferbar:/ Also available:
Hepco & Becker GmbH
An der Steinmauer 6
D-66955 Pirmasens
Germany
Tel.: +49 (0)6331 - 1453 - 100
Fax: +49 (0)6331 - 1453 - 120
eMail: [email protected]
www.hepco-becker.de
Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage.
Alurack:
Easyrack:
3
Fastening of the Alurack/Easyracks:
On the rack adapters.
Use allen screws M6 x 20 and special washer
20x20xø6,4. Secure with washers ø6,4 and
self-lock nuts M6. Mount the plastic cover.
Montage des Aluracks/Easyracks:
Das Rack wird mit den Zylinderschrauben
M6x20,den Viereck-Scheiben 20x20xø6,4,
den U-Scheiben ø6,4 und den selbst-
sichernden Muttern M6 an den Gepäck-
brückenhalter verschraubt. Anschließend
die Kunststoffabdeckung montieren.
4x 4x
4x
4x
DUCATI Diavel
ab Baujahr 2011 / from date of manufacture 2011
Easyrack
Artikel Nr.: / Item-no.:
6617503 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6507503 01 01 schwarz/black
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
