Hercules Fazua Futura User manual

TRANSLATION OF THE ORIGINAL
OPERATING INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE USE
Pedelecs
FUTURA Fold Carbon I-10S
21-Y-0001
MY21H05 - 1 • 1.0 • 30. November 2020

MY21H05-2_1.0_30.11.2020 2
Contents
Contents
1 About these operating instructions 6
1.1 Manufacturer 6
1.2 Language 6
1.3 Laws, standards and directives 6
1.4 For your information 6
1.4.1 Warnings 6
1.4.2 Markups 7

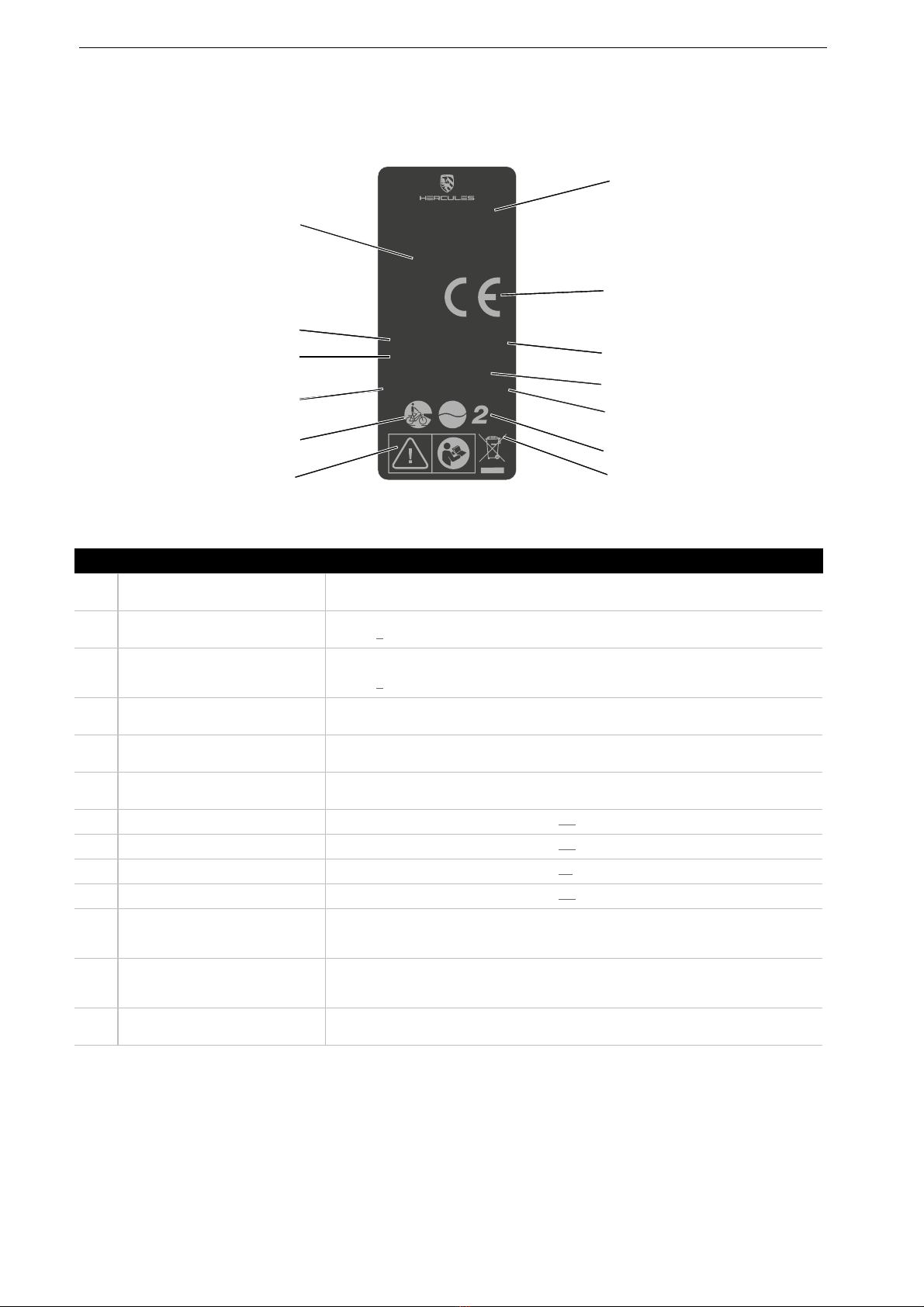

1.5 Nameplate 8
1.6 Type number and model 9
1.7 Identifying the operating instructions 9
2 Safety 10
2.1 Residual risks 10
2.1.1 Risk of fire and explosion 10
2.1.1.1 Rechargeable battery 10
2.1.1.2 Charger 10
2.1.1.3 Hot components 10
2.1.2 Electric shock 10
2.1.2.1 Damage 10
2.1.2.2 Water penetration 11
2.1.2.3 Condensate 11
2.1.3 Risk of a crash 11
2.1.3.1 Incorrect quick release setting 11
2.1.3.2 Incorrect tightening torque 11
2.1.4 Risk of amputation 11
2.1.5 Key breaking off 11
2.2 Toxic substances 11
2.2.1 Brake fluid 11
2.2.2 Suspension oil 11
2.2.3 Defective battery 11
2.3 Requirements for the rider 11
2.4 Vulnerable groups 11
2.5 Personal protective equipment 11
2.6 Safety markings and safety instructions 12
2.7 What to do in an emergency 12
2.7.1 Dangerous situation in road traffic 12
2.7.2 Leaked brake fluid 12
2.7.3 Battery vapours emitted 13
2.7.4 Battery fire 13
2.7.5 Leaked brake fluid 13
2.7.6 Oil and lubricant leaks from the fork 13
2.7.7 Oil and lubricant leaks from the rear
frame damper 13

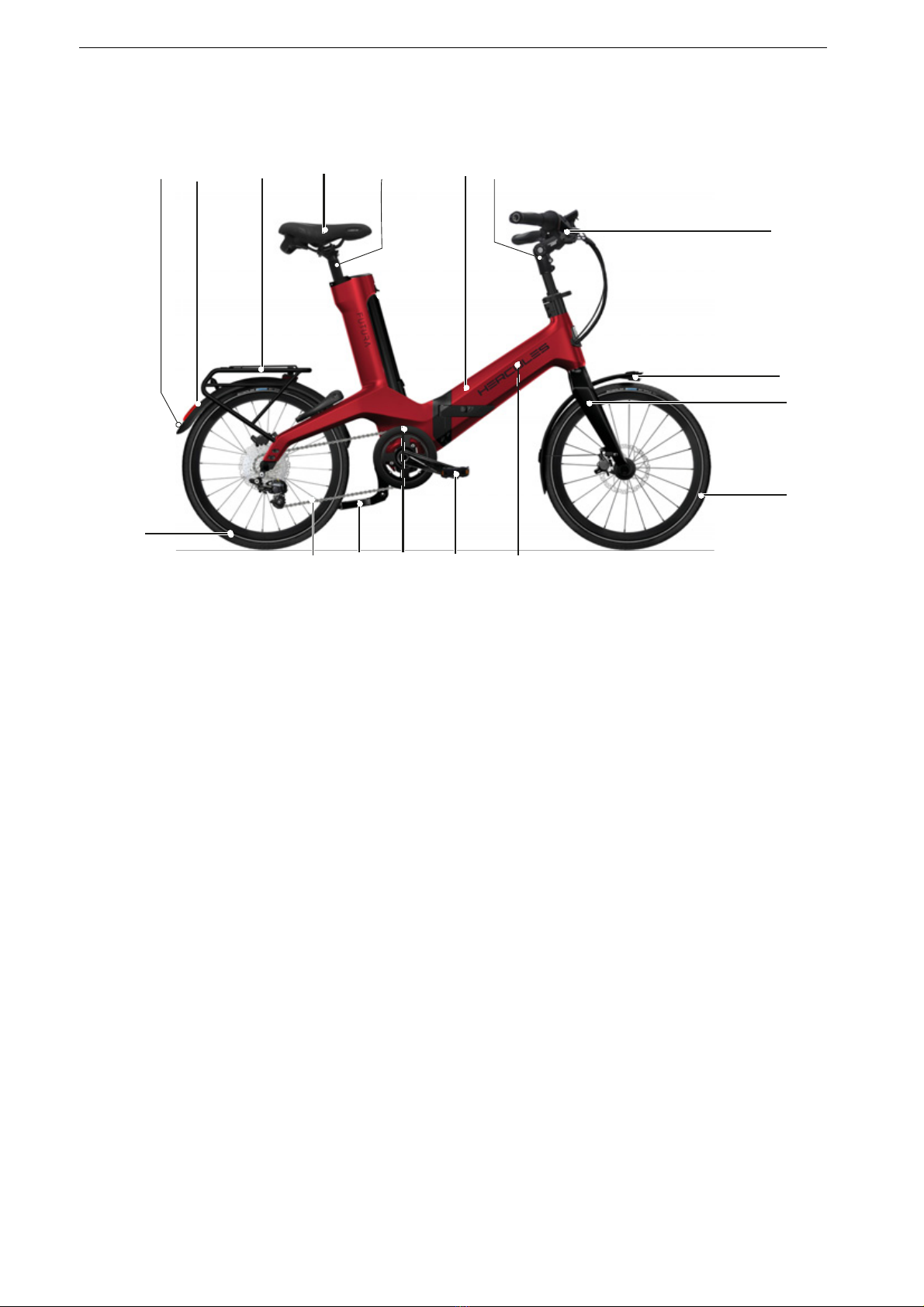

3Overview 14
3.1 Description 15

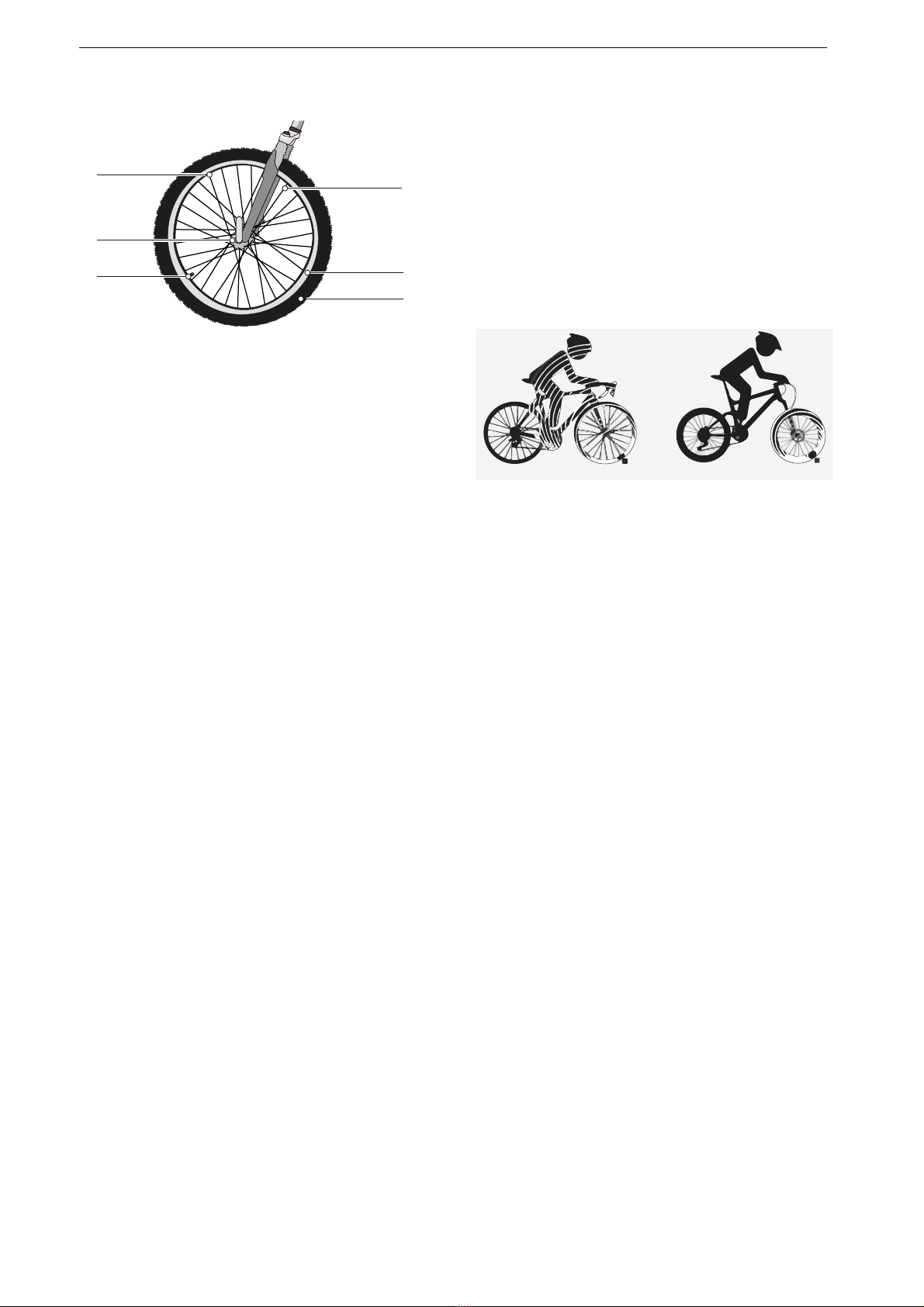

3.1.1 Wheel 15
3.1.1.1 Valve 15
3.1.2 Suspension 15
3.1.2.1 Suspension fork 15
3.1.2.2 Steel suspension fork 17
3.1.3 Brake system 17
3.1.3.1 Disc brake 17
3.1.4 Electric drive system 18
3.1.5 Motor 18
3.1.6 Rechargeable battery 19
3.1.7 Control panel 19
3.2 Charger 20
3.3 Proper use 21
3.4 Improper use 22
3.5 Data privacy information 22
3.5.1 Maximum permitted total weight 22
3.6 Technical data 23
3.6.1 Pedelec 23
3.6.2 Emissions 24
3.6.3 Tightening torque 24
3.7 Description of controls and screens 25
3.7.1 Handlebars 25
3.7.2 Rechargeable battery 25
3.7.3 Control panel indicators 25
3.7.4 Control panel 25
3.7.4.1 Display bar 25
3.7.4.2 Level of assistance 26
3.8 Environmental requirements 27
4 Transporting and storing 29
4.1 Physical transport characteristics 29
4.1.1 Designated handles/lifting points 29
4.2 Transportation 30
4.2.1 Using the brake transport securing
system 30
4.2.2 Transporting the pedelec 30
4.2.3 Shipping a pedelec 30
4.2.4 Transporting the battery 30
4.2.5 Shipping the battery 30
4.3 Storing 31
4.3.1 Break in operation 31
4.3.1.1 Preparing a break in operation 31
4.3.1.2 Carrying out a break in operation 31
5 Assembly 32
5.1 Required tools 32
5.2 Unpacking 32
5.2.1 Scope of delivery 32
5.3 Preparing the battery 32
5.3.1 Checking the battery 32
5.4 Commissioning 33
5.4.1 Checking the stem and handlebars 33
5.4.1.1 Checking the connections 33
5.4.1.2 Firm hold 33
5.4.1.3 Checking the headset backlash 33
5.5 Pedelec sale 33
6 Operation 34
6.1 Risks and hazards 34
6.2 Personal protective equipment 35
6.3 Tips for a greater range 35

MY21H05-2_1.0_30.11.2020 3
Contents
6.4 Error messages 37
6.5 Instruction and customer service 38
6.6 Adjusting the pedelec 38
6.6.1 Adjusting the saddle 38
6.6.1.1 Adjusting the saddle tilt 38
6.6.1.2 Determining the seat height 38
6.6.1.3 Adjusting the seat height with
quick release 39
6.6.1.4 Height-adjustable seat post 39
6.6.1.5 Adjusting the seat position 40
6.6.2 Adjusting the handlebars 40
6.6.3 Adjusting the stem 40
6.6.3.1 Adjusting the height of the handlebars 40
6.6.3.2 Adjusting the quick release clamping
force 41
6.6.4 Adjusting the brake 41
6.6.5 Retracting the brake linings 41
6.7 Accessories 42
6.8 Check list before each ride 43
6.9 Raising the kickstand 44
6.10 Using the pannier rack 44
6.11 Using the saddle 44
6.12 Charger 45
6.12.1 Connecting the charger to the mains 45
6.13 Rechargeable battery 45
6.13.1 Charging the battery 45
6.13.1.1 Charging the battery in the drive unit 45
6.13.1.2 Charging the battery on the pedelec 45
6.13.2 Inserting the battery into the drive unit 46
6.13.3 Removing the battery from the drive unit 46
6.14 Drive unit 46
6.14.1 Installing the drive unit on the pedelec 46
6.14.2 Removing the drive unit from the
pedelec 47
6.15 Electric drive system 48
6.15.1 Switching on the electric drive system 48
6.15.2 Switching off the drive system 48
6.15.3 Drive system standstill 48
6.16 Control panel 49
6.16.1 Using the push assist system 49
6.16.2 Selecting the level of assistance 49
6.17 Brake 50
6.17.1 Using the brake lever 50
6.18 Gear shift 51
6.18.1 Using the derailleur gears 51
6.19 Folding 52
6.19.1 Folding up your pedelec 52
6.19.1.1 Folding up the pedal 52
6.19.1.2 Folding up the stem, version I 52
6.19.1.3 Folding up the stem, version II 52
6.19.1.4 Pushing in the seat post 53
6.19.1.5 Folding up the frame 53
6.19.2 Preparing the bicycle so that it is
ready to ride again 53
6.19.2.1 Folding out the frame 53
6.19.2.2 Folding out the pedal 54
6.20 Parking the pedelec 55
7 Cleaning and servicing 56
7.1 Cleaning after each ride 57
7.1.1 Cleaning the suspension fork 57
7.1.2 Cleaning the pedals 57
7.2 Basic cleaning 58
7.2.1 Cleaning the frame 58
7.2.2 Cleaning the stem 58
7.2.3 Cleaning the wheel 58
7.2.4 Cleaning the drive elements 58
7.2.5 Cleaning the chain 58
7.2.6 Cleaning the battery 58
7.2.7 Cleaning the display 59
7.2.8 Cleaning the motor 59
7.2.9 Cleaning the brake 59
7.2.10 Cleaning the saddle 59
7.3 Servicing 59
7.3.1 Servicing the frame 60
7.3.2 Servicing the stem 60
7.3.3 Servicing the fork 60
7.3.4 Servicing the drive elements 60
7.3.5 Servicing the pedals 60
7.3.6 Servicing the chain 60
7.4 Maintenance 60
7.4.1 Wheel 60
7.4.1.1 Checking the tyres 60
7.4.1.2 Checking the rims 60
7.4.1.3 Checking and adjusting the tyre
pressure 61
7.4.1.4 Checking and adjusting the tyre
pressure – Schrader valve 61
7.4.2 Brake system 62
7.4.3 Checking the brake linings for wear 62
7.4.4 Checking the pressure point 62
7.4.5 Checking the brake discs for wear 62
7.4.6 Checking the electrical cables and
brake cables 62
7.4.7 Checking the gear shift 62
7.4.8 Checking the stem 62
7.4.9 Checking the USB port 63
7.4.10 Checking the chain tension 63
8 Maintenance 64
8.1 Suspension system 65
8.1.1 Rear frame damper 65
8.1.2 Suspension fork 66
8.1.3 Suspension seat post 67
8.2 Axle with quick release 67
8.2.1 Checking the quick release 68

MY21H05-2_1.0_30.11.2020 4
Contents
8.3 Maintaining the stem 68
8.4 Adjusting the gear shift 68
8.4.1 Cable-operated gear shift, single-cable 68
8.4.2 Cable-operated gear shift, dual-cable 69
8.4.3 Cable-operated twist grip, dual-cable 69
9 Troubleshooting, fault clearance
and repair 70
9.1 Troubleshooting and fault
clearance 70
9.1.1 The drive system or display do not
start up 70
9.1.2 Assistance function errors 71
9.1.3 Battery error 72
9.1.4 Display errors 73
9.1.5 Lighting does not work 73
9.1.6 Other errors 73
9.2 Repair 74
9.2.1 Original parts and lubricants 74
9.2.2 Replacing the lighting 74
9.2.3 Adjusting the headlight 74
9.2.4 Tyre clearance check 74
10 Recycling and disposal 75
11 Documents 76
11.1 Parts list 76
11.1.1 Futura Fold Carbon I-10 76
11.2 Assembly report 77
11.3 Maintenance instructions 79
12 Glossary 83
12.1 Abbreviations 85
12.2 Simplified terms 85
13 Appendix 86
I. Translation of the original EC/EU
Declaration of Conformity 86
14 Keyword index 87

MY21H05-2_1.0_30.11.2020 5
About these operating instructions
Thank you for your trust!
HERCULES pedelecs are premium quality
bicycles. You have made an excellent choice.
Your specialist dealer will provide you with
guidance and instruction and assemble your
product. Your specialist dealer will also be happy
to assist you in the future whether you require
maintenance, conversion or repair.
You are receiving these operating instructions
with your new pedelec. Please take time to
become familiar with your new pedelec and follow
the tips and suggestions in the operating
instructions. They will help you to enjoy your
pedelec for a long time to come. We hope you
have fun and wish you well on all of your rides!
These operating instructions are mainly designed
for the rider or the operator. They aim to ensure
that non-professionals can use the pedelec safely.
Download the operating
instructions onto your
phone at the following link,
so that you can use them
when you are out riding:
https://www.hercules-bikes.de/de/de/index/
downloads.html.
Copyright
© HERCULES GmbH
Distribution or reproduction of these operating
instructions and utilisation or communication of
their content is prohibited unless expressly
approved. Any infringement will render the
offender liable for compensation. All rights
reserved in the event that a patent, utility model or
industrial design is registered.
Editing
Text and images:
ZEG Zweirad-Einkaufs-Genossenschaft eG
Longericher Strasse 2
50739 Köln, Germany
Translation
RKT Übersetzungs- und Dokumentations-GmbH
Markenstrasse 7
40227 Düsseldorf, Germany
In case of any questions or problems
regarding these operating instructions,
please contact:
[e-mail]
Notice
These operating instructions are not a substitute
for personal instruction by the supplying specialist
dealer.
These operating instructions are an integral part
of the pedelec. Therefore, if it is re-sold at a later
time, they must be handed over to the subsequent
owner.
Sections are also designed especially for the
specialist dealer. These sections aim to ensure
that specialist dealers complete initial assembly
and maintenance safely and reliably. The
sections for specialist dealers are highlighted in
grey and marked with a spanner symbol.

MY21H05-2_1.0_30.11.2020 6
About these operating instructions
1 About these operating
instructions
1.1 Manufacturer
The pedelec manufacturer is:
HERCULES GMBH
Longericher Strasse 2
50739 Köln, Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.hercules-bikes.de
Subject to internal changes
The information contained in these operating
instructions are the approved technical
specifications at the time of printing. Any
significant changes are included in a new
published version of the operating instructions.
You will find any modifications to these operating
instructions at:
https://www.hercules-bikes.de/de/de/index/
downloads.htm
1.2 Language
The original operating instructions are written in
German. A translation is invalid without the
original operating instructions.
1.3 Laws, standards and directives
The operating instructions comply with the
essential requirements specified in:
• Machinery Directive 2006/42/EC
• Electromagnetic Compatibility Directive
2014/30/EU
• ISO 20607:2018 Safety of machinery –
Instruction handbook – General drafting
principles
• EN 15194:2018 Cycles – Electrically power
assisted cycles – pedelec bicycles
• EN 11243:2016, Cycles – Pannier racks for
bicycles – Requirements and test methods
• ISO 17100:2016-05 Translation Services –
Requirements for translation services.
1.4 For your information
Different markings are used in the operating
instructions to make them easier to read.
1.4.1 Warnings
Warnings indicate hazardous situations and
actions. You will find warnings in the operating
instructions:
Will lead to serious or even fatal injuries if
ignored. High-risk hazard.
May lead to serious or even fatal injuries if
ignored. Medium-risk hazard.
May lead to minor or moderate injuries if ignored.
Low-risk hazard.
Notice
May lead to material damage if ignored.
DANGER
!
WARNING
!
CAUTION
!

MY21H05-2_1.0_30.11.2020 7
About these operating instructions
1.4.2 Markups
You will find stylised forms of typeface in the
operating instructions:
Instructions for specialist dealers are highlighted
in grey. They are indicated by a screwdriver
symbol. Information for specialist dealers does
not require non-professionals to take any action.
Stylised form Use
Italics Glossary term
Underlined in blue Link
Underlined in grey Cross references
Check marks Requirements
Triangle Instruction for action
1Instruction for
action
Several instructions for
action in specified order
Result of the action
SPACED Indicators on the display
screen
• Bulleted lists
Only applies to pedelecs
with this equipment Each type has a different
kind of equipment. A
note beneath the
heading indicates
components which can
be used as an
alternative.
Table 1: Markups

MY21H05-2_1.0_30.11.2020 8
About these operating instructions
1.5 Nameplate
The nameplate is situated on the frame. You can
see the exact position of the nameplate in Figure 2.
You will find thirteen pieces of information on the
nameplate.
Figure 1: Example Nameplate
Typ:
21-17-1017
0,25 kW / 25 km/h
zGG 150 kg
EPAC 25 kg
BJ 2020 / MJ 2021
EN 15194
nach
EPAC
2
3
1
4
5
6
7
89
12
13
10
11
Hercules GmbH
Longericher Str. 2
50739 Köln, Germany
No. Designation Description
1CEmarking The manufacturer uses the CE marking to declare that the pedelec complies with
applicable requirements.
2 Manufacturer's contact details You can contact the manufacturer at the address. You can find more information in
Section 1.
3 Type number All pedelec models have an eight-digit type number, which is used to specify the design model year, the type of pedelec and the version. You can find more information in
Section 1.
4 Maximum continuous power The maximum continuous power is the greatest possible power for the electric motor
output shaft over 30 minutes.
5 Maximum permitted total weight The maximum permitted total weight is the weight of the fully assembled pedelec with the
rider and baggage.
6 Year of manufacture The year of manufacture is the year in which the pedelec was manufactured. The
production period is from August 2020 to July 2021.
7 Pedelec type You can find more information in Section 3.3.
8 Safety markings You can find more information in Section 1.4.
9 Disposal instructions You can find more information in Section 10.
10 Area of use You can find more information in Section 3.8.
11 Model year The model year refers to the first production year that the series-manufactured pedelec was produced in the version concerned. The year of manufacture is different to the model
year in some cases.
12 Weight of the ready-to-ride pedelec The weight of the ready-to-ride pedelec is specified as a weight of 25 kg or above and refers to its weight at the time of purchase. You must add each additional accessory to
the weight.
13 Shut-off speed The speed that the pedelec reaches at the moment when the current has dropped to zero
or to the no-load current value.
Table 2: Nameplate details

MY21H05-2_1.0_30.11.2020 9
About these operating instructions
1.6 Type number and model
These operating instructions are an integral part
of pedelecs with the type numbers:
1.7 Identifying the operating
instructions
The Identification number position is located on
bottom left-hand side on each page. The
identification number is composed of the
document number, the version number and the
release date.
Type no. Model Pedelec type
21-Y-0001 Futura Fold Carbon I-10 Folding bicycle
Table 3: Type number, model and pedelec type
Identification number MY21H05-2_1.0_30.11.2020

MY21H05-2_1.0_30.11.2020 10
Safety
2 Safety
2.1 Residual risks
2.1.1 Risk of fire and explosion
2.1.1.1 Rechargeable battery
The safety electronics may fail if the batteries are
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
Only use and charge the battery and
accessories if they are in perfect condition.
Never open or repair the battery.
Batteries with external damage must be
removed from service immediately.
If a battery is dropped or struck, remove it from
service and observe it for at least 24 hours.
Faulty batteries are hazardous goods. Dispose
of faulty batteries in the correct manner. Store
battery in a dry place until disposal. Never
store in the vicinity of flammable substances.
The battery is only protected from spray water.
Penetration by water can cause a short circuit.
The battery may self-ignite and explode.
Never immerse the battery in water.
Put battery out of service if you suspect water
has penetrated it.
Temperatures over 60 °C can also cause liquid to
leak from the battery and the battery will become
damaged. The battery may self-ignite and
explode.
Protect the battery against heat.
Never store next to hot objects.
Never expose the battery to sustained direct
sunlight.
Avoid wide temperature fluctuations.
Chargers with excessive voltage damage
batteries. This may result in fire or an explosion.
Only use batteries approved for the pedelec.
Clearly label the supplied charger.
Metal objects may interconnect the battery's
electrical terminals. The battery may self-ignite
and explode.
Never insert paper clips, screws, coins, keys
and other small parts into the battery.
2.1.1.2 Charger
The charger heats up when charging the battery.
In case of insufficient cooling, this can result in fire
or burns to the hands.
Never use charger on a highly flammable
surface.
Never cover the charger during charging.
Never leave the battery unattended during
charging.
2.1.1.3 Hot components
The brakes and the motor may become very hot
during operation. There is a risk of burns or fire in
case of contact.
Never touch the brakes or the motor directly
after a ride.
Never place the pedelec on a flammable
surface, such as grass or wood, directly after
use.
2.1.2 Electric shock
2.1.2.1 Damage
Damaged chargers, cables and plug connectors
increase the risk of electric shock.
Check the charger, cable and plug connector
before each use. Never use a damaged
charger.

MY21H05-2_1.0_30.11.2020 11
Safety
2.1.2.2 Water penetration
If water penetrates into the charger, there is a risk
of electric shock.
Never charge the battery outdoors.
2.1.2.3 Condensate
Condensation may form in the charger and battery
when the temperature changes from cold to hot,
which might cause a short circuit.
Wait until both charger and battery are at room
temperature before connecting the charger or
battery.
2.1.3 Risk of a crash
2.1.3.1 Incorrect quick release setting
Excessively high clamping force will damage the
quick release and cause it to lose its function.
Insufficient clamping force will result in
unfavourable transmission of force. This can
cause components to break. This will cause a
crash with injuries.
Never fasten a quick release using a tool (e.g.
hammer or pliers).
Only use the clamping lever with the specified
set clamping force.
2.1.3.2 Incorrect tightening torque
If a screw is fastened too tightly, it may break. If a
screw is not fastened enough, it may loosen. This
will cause a crash with injuries.
Always observe the indicated torque on the
screw or in the operating instructions.
2.1.4 Risk of amputation
The brake disc in disc brakes is so sharp that it
can cause serious injuries to fingers if they are
inserted into the brake disc openings.
Always keep fingers well away from the
rotating brake discs.
2.1.5 Key breaking off
If you leave a key inserted when riding or
transporting the pedelec, it may break off or the
locking system may open accidentally.
Remove the key to the battery lock.
2.2 Toxic substances
2.2.1 Brake fluid
Brake fluid may leak out after an accident or due
to material fatigue. Brake fluid can be fatal if
swallowed or inhaled.
Never dismantle the brake system.
Avoid contact with skin.
Do not inhale vapours.
2.2.2 Suspension oil
Suspension oil in the fork and the rear frame
damper is toxic to the touch, irritates respiratory
tracts and causes cancer, sterility and mutation in
germ cells.
Never dismantle the rear frame damper or the
suspension fork.
Avoid contact with skin.
2.2.3 Defective battery
Liquids and vapours may leak from damaged or
faulty batteries. Excessively high temperatures
may also cause liquids and vapours to leak from
the battery. Such liquids and vapours can irritate
the airways and cause burns.
Never dismantle the battery.
Avoid contact with skin.
Do not inhale vapours.
2.3 Requirements for the rider
The rider must demonstrate adequate physical,
motor and mental abilities to ride on public roads.
A minimum age of 14 years is recommended.
2.4 Vulnerable groups
Keep batteries and charger away from children
and people with reduced physical, sensory or
mental capabilities or lacking in experience and
knowledge.
If minors use the pedelec, a legal guardian must
should provide them with comprehensive
instructions.
2.5 Personal protective equipment
Wear a suitable cycling helmet, sturdy footwear
and typical close-fitting clothing to provide
protection.

MY21H05-2_1.0_30.11.2020 12
Safety
2.6 Safety markings and safety
instructions
The pedelec and battery nameplates contain
these safety markings and safety instructions:
2.7 What to do in an emergency
2.7.1 Dangerous situation in road traffic
In the event of any hazards or dangers in road
traffic, apply the brakes on the pedelec until it
comes to a halt. The brake acts as an
emergency stop system in such cases.
2.7.2 Leaked brake fluid
Remove those affected from the danger area to
fresh air.
Never leave those affected unattended.
Immediately remove any clothing items
contaminated with brake fluid.
Never inhale vapours. Ensure sufficient
ventilation.
Wear gloves and safety gloves as protective
equipment.
Keep unprotected persons away.
Take care with leaked brake fluid as it poses a
slip hazard.
Keep leaked brake fluid away from naked
flames, hot surfaces and sources of ignition.
Avoid contact with skin and eyes.
After inhalation
Take in fresh air. Immediately consult a doctor
in case of any discomfort.
After skin contact
Wash affected skin with soap and water and
rinse well. Remove contaminated clothing.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Rinse eyes under flowing water for at least ten
minutes with the lids open; also rinse under
lids. Immediately consult a doctor in case of
any pain or discomfort.
Symbol Explanation
General warning
Adhere to the instructions for use
Table 4: Meaning of safety markings
Symbol Explanation
Read the instructions
Separate collection of electrical
and electronic devices
Separate collection of ordinary
and rechargeable batteries
Must not be thrown into fire
(burning prohibited)
It is forbidden to open any
batteries
Device of protection class II
Only suitable for use indoors
Fuse (device fuse)
EU conformity
Recyclable material
Protect from temperatures
above 50 °C and direct sunlight
Table 5: Safety instructions
max. 50°C

MY21H05-2_1.0_30.11.2020 13
Safety
After swallowing
Rinse out mouth with water. Never induce
vomiting. Risk of aspiration!
If a person is lying on their back and vomiting,
place them in the recovery position. Seek
medical advice immediately.
Environmental protection measures
Never allow brake fluid to flow into the sewage
system, water courses or groundwater.
Notify the relevant authorities if fluid
penetrates the ground, water courses or the
sewage system.
Consult a doctor immediately in the event of
any pain or discomfort caused by combustion
gas or leaking fluids.
2.7.3 Battery vapours emitted
Vapours may be emitted if the battery is damaged
or used improperly. The vapours may cause
respiratory tract irritation.
Get into fresh air.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Carefully rinse eyes with plenty of water for at
least 15 minutes. Protect unaffected eye. Seek
medical advice immediately.
After skin contact
Remove any solid particles immediately.
Rinse the affected area with plenty of water for
at least 15 minutes. Then dab the affected skin
gently. Do not rub dry.
Remove contaminated clothing immediately.
Immediately consult a doctor if there is any
redness, pain or discomfort.
2.7.4 Battery fire
The safety electronics may fail if the battery is
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
1Keep your distance if the battery becomes
deformed or starts to emit smoke.
2If charging, remove the plug connector from
the socket.
3Contact the fire service immediately.
Use Class fire extinguishers to put out the fire.
Never extinguish damaged batteries with water
or allow them to come into contact with water.
Inhaling vapours can cause intoxication.
Stand on the side of the fire where the wind is
blowing from.
Use breathing apparatus if possible.
2.7.5 Leaked brake fluid
The brake system must be repaired immediately if
brake fluid leaks out. Dispose of leaking brake
fluid in an environmentally responsible way in
accordance with statutory regulations.
Contact your specialist dealer.
2.7.6 Oil and lubricant leaks from the fork
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in compliance with statutory
regulations.
Contact your specialist dealer.
2.7.7 Oil and lubricant leaks from the rear
frame damper
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in accordance with statutory
regulations.
Contact your specialist dealer.

MY21H05-2_1.0_30.11.2020 14
Overview
3Overview
Figure 2: Pedelec viewed from right: HERCULES Futura Fold Carbon I-10 used as example
1Front wheel
2Fork
3 Front guard with headlight
4Handlebars
5Stem
6Frame
7 Seat post
8 Saddle
9 Pannier rack
10 Rear light
11 Rear guard
12 Rear wheel
13 Chain
14 Kickstand
15 Motor
16 Pedal
17 Battery and nameplate
1
2
3
4
567891011
12
13 14 15 16 17

MY21H05-2_1.0_30.11.2020 15
About these operating instructions
3.1 Description
3.1.1 Wheel
Figure 3: Visible wheel components
1Tyres
2 Rim
3 Spoke
4 Spoke nipples
5Hub
6Valve
The wheel comprises the wheel itself, an inner
tube with a valve and a tyre.
3.1.1.1 Valve
Each wheel has a valve. It is used to fill the tyre
with air. There is a valve cap on each valve. The
screw-on valve cap keeps out dust and dirt.
The pedelec has either
• a classic Dunlop valve,
• a French valve (also known as a Sclaverand or
Presta valve) or
• a Schrader valve.
3.1.2 Suspension
3.1.2.1 Suspension fork
Unlike a rigid fork, a suspension fork has two
functions which improve floor contact and comfort:
suspension and damping. The suspension prevents
an impact, such as one caused by a stone lying in the
pedelec's path, from being channelled directly into
the rider's body via the fork. The impact is absorbed
by the suspension system instead. This causes the
suspension fork to compress.
Figure 4: Pedelec without suspension (1) and with
suspension (2)
After compressing, the suspension fork returns to
its original position. If there is a damper, it
decelerates movement, preventing the
suspension system from springing back in an
uncontrolled manner and stopping the fork from
vibrating up and down. Dampers which dampen
compressive deflection movements, i.e. a
compression load, are called compression
dampers or compression dashpots.
Dampers which dampen rebound deflection
movements, i.e. a rebound load, are called
rebound dampers or dashpots.
The compression can be disabled in any suspension
fork. A suspension fork will then behave like a rigid
fork.
1
2
3
6
5
4
12

MY21H05-2_1.0_30.11.2020 16
About these operating instructions
Negative deflection
Sag is the percentage of total deflection that is
compressed by the rider's weight, including
equipment (such as a backpack), their seating
position and frame geometry. Sag is not caused
by riding.
The pedelec rebounds at a controlled speed if it is
optimally adjusted. The wheel stays in contact
with the ground when passing over bumps
(blue line).
The fork head, handlebars and rider broadly follow
the terrain when riding over bumps. The
suspension motion is predictable and controlled.
Figure 5: Optimum fork riding performance
When optimally adjusted, the fork counteracts
deflection, stays higher in its deflection range and
helps the rider to maintain speed while riding on
hilly parts of terrain.
Figure 6: Optimum fork riding performance on hilly terrain
When optimally adjusted, the fork deflects quickly
and unhindered when the bike hits bumps and
absorbs a bump. Traction is retained (blue line).
The fork responds quickly to the bump. The
headset and handlebars rise slightly when
absorbing a bump (green line).
Figure 7: Optimum fork riding performance over bumps

MY21H05-2_1.0_30.11.2020 17
About these operating instructions
3.1.2.2 Steel suspension fork
The stem and handlebars are fastened to the fork
steerer. The wheel is fastened to the axle.
Figure 8: Suntour steel suspension fork as an example
3.1.3 Brake system
The pedelec features a hydraulic brake system.
The brake fluid is in a closed hose system. If the
rider pushes the brake lever, the brake fluid
activates the brake on the wheel.
The mechanical brakes are used as an
emergency stop system and bring the bicycle to a
halt quickly and safely in the event of an
emergency.
3.1.3.1 Disc brake
Figure 9: Brake system with disc brake – example
1Brakedisc
2 Brake calliper with brake linings
3Handlebars with brake lever
4 Front wheel brake disc
5 Rear wheel brake disc
On a pedelec with a disc brake, the brake disc is
screwed permanently to the wheel hub. The brake
lever is pushed to increase brake pressure. The
brake fluid is used to transfer pressure through
the brake cables to the cylinders in the brake
calliper. The braking force is boosted by a speed
reduction and applied to the brake linings. These
apply the brake disc mechanically. If the brake
lever is pushed, the brake linings are pressed
against the brake disc and the wheel movement is
decelerated until it comes to a stop.
1 Fork steerer
2 Sag setting wheel
3Crown
4 Dust seal
5Q-Loc
6Axle
7 Fork end
8 Stanchion
9 Compression setting
1
1
2
3
4
5
6
8
9
7
1
2
3
4
5

MY21H05-2_1.0_30.11.2020 18
Overview
3.1.4 Electric drive system
The pedelec is driven by muscle power applied to
the chain drive. The force which is applied by
pedalling in the direction of travel drives the front
chain wheel. The chain transmits the force onto
the rear chain wheel and then onto the rear wheel.
Figure 10: Diagram of mechanical drive system
1 Direction of travel
2 Chain
3 Rear chain wheel
4 Front chain wheel
5 Pedal
The pedelec also has an integrated electric drive
system. The electric drive system is made up of
5 components:
Figure 11: Diagram of electric drive system
1 Control panel
2 Bottom-bracket gears
3Motor
4Rechargeable battery
5 A charger designed for the battery.
3.1.5 Motor
Figure 12: Motor
As soon as the required muscle power from the
rider pedalling passes a certain level, the motor is
activated gently and assists the rider's pedalling
motion. The motor force is determined by the set
level of assistance. The system performance is
determined using the pedal assistance settings on
the control panel.
The pedelec does not have a separate emergency
stop or emergency shut-off button. The motor
switches off automatically as soon as the rider no
longer pedals, the temperature is outside the
permitted range, there is an overload or the shut-
off speed of 25 km/h has been reached.
When you step on the pedals again and the speed
drops below 25 km/h, the system starts again
A push assist system can be activated. The speed
depends on the selected gear. The rider slows the
pedelec down to their own pace by holding the
pedelec more firmly while pushing.
1
2
543
1
234
1
2

MY21H05-2_1.0_30.11.2020 19
Overview
3.1.6 Rechargeable battery
Figure 13: Rechargeable battery, view of charging port
side
1 Charging port
2 On-Off button
3 Charge level (battery)
The lithium ion battery has an internal electronic
protection circuit, This battery is specifically
designed for the charger and pedelec motor. The
battery temperature is monitored at all times. The
battery is protected against deep discharge,
overcharging, overheating and short circuit. In the
event of a hazard, a protective circuit switches the
battery off automatically. If the pedelec has not
been moved for 10 hours and no button has been
pressed on the control panel, the electric drive
system and the battery automatically switch off to
save energy. The same applies if the battery level
falls below 30%, the pedelec has not been moved
for 3 hours and no button has been pressed on the
control panel.
The battery's service life can be extended if it is
well maintained and, above all, stored at the
correct temperatures. The charging capacity will
decrease with age, even if the battery is
maintained properly. If the operating time is
severely shortened after charging, this is a sign
that battery has reached the end of its useful life.
When the battery is switched on, the battery level
indicator shows the start animation. The LEDs
then briefly indicate the charge level of the
battery.
If the battery is switched on, the charge level can
be queried by briefly pressing the On-Off button.
3.1.7 Control panel
Figure 14: Overview of the structure and control panel
Transportation temperature 5°C-25°C
Ideal transportation temperature 10 °C - 15 °C
Storage temperature 5°C-25°C
Ideal storage temperature 10 °C - 15 °C
Charging ambient temperature 10 °C - 30 °C
Table 6: Rechargeable battery technical data
1
23
Designation
1 Display bar
2 Top button
3 Middle button
4 Bottom button
5 Extension cable
6 Battery level indicator or pedal assistance
7 Status screen
Table 7: Overview of control panel
1
2
3
4
5
7
6
6
6
6
6
6
6
6
6
6

MY21H05-2_1.0_30.11.2020 20
Overview
3.2 Charger
The lithium ion battery has an internal electronic
protection circuit, It is matched to the charger.
You must therefore only use the supplied charger
to charge the pedelec.
Figure 15: Charger detail
1 Mains plug
2 Charger LED indicator
3 Mains plug
4 Connecting cable
5 Power jack
Nominal input voltage 100 ... 240 V AC
Frequency 50 ... 60 Hz
Output voltage 42 V DC
Charging current 2 A
Operating temperature -20 ... +60 °C
Storage temperature -20 ... +60 °C
Protection class IP 54
Weight about 0.6 kg
Table 8: Charger technical data
2
3
1
4
5
1
