Grill Guard Secondary Latch Installation Guide
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
Important
Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it
was designed for will constitute improper use of the product and may void warranty.
Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OEM hardware means the truck's original factory hardware.
For further detail of warranty coverage and warranty repair information visit www.HERD.com.

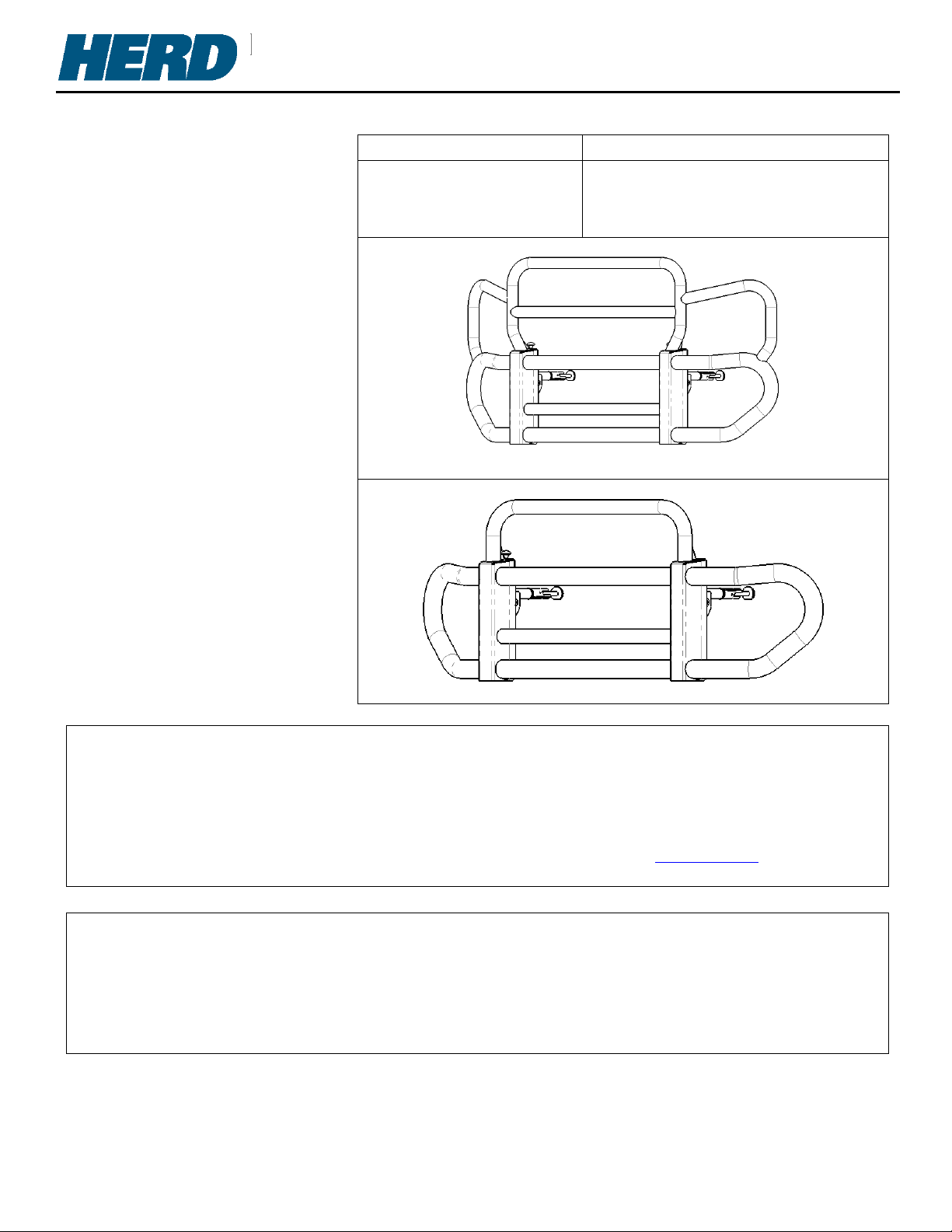

Part #
Product
404006
703008
All Grill Guards G2/G3
GG-300 Series
GG-200 Series
General Safety
Take time to fully read the instructions before installing the Slam Latch mechanism.
At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
Parts and components of the Herd bumper can be heavy, handle with care to avoid injuries.
Respect power tools and use them as advertized.
For assistance call
1-888-543-4373
www.HERD.com
HERD North America Inc.
2168 Springfield Road
Sunnyside, MB Canada R5R 0J3

Installation Procedure
2
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
a. Driver Side b. Passenger Side
Figure 1 - Parts and hardware included for Short Latch kit 703008.
ITEM
QTY.
DESCRIPTION
1
1
ASSY - LATCH PS
2
1
ASSY - LATCH DS
3
4
NUT-NYLOCK 3/8-16 NC GR8 YZP
4
4
NUT-NYLOCK 3/8-16 NC GR8 YZP LOW HT
5
8
WASHER-FLAT 3/8 SAE GR8 YZP
6
2
PL - GRILL GUARD SHORT LATCH
7
4
BOLT-HEX 3/8-16X1-1/4 NC GR8 YZP
8
2
WASHER AERO SPRING
9
2
NUT-NYLOCK 1/2-13 NC GR8 YZP
10
2
BAR LATCH ACTUATOR
11
2
PIN-HAIRPIN 1/16x1-1/8

Installation Procedure
3
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
a. Driver Side b. Passenger Side
Figure 2 - Parts and hardware included for Tall Latch kit 404006.
ITEM
QTY.
DESCRIPTION
12
1
ASSY - LATCH TALL DS
13
1
ASSY - LATCH TALL PS
14
4
NUT-NYLOCK 3/8-16 NC GR8 YZP
15
8
WASHER-FLAT 3/8 SAE GR8 YZP
16
4
BOLT-HEX 3/8-16X1-1/4 NC GR8 YZP
17
2
BAR LATCH ACTUATOR LONG
18
2
PIN-HAIRPIN 1/16x1-1/8

Installation Procedure
4
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
1. Open the grill guard.
Figure 3 - Open the grill guard
2. Remove the original latch
and identify the type: Short
Latch or Tall Latch. Refer to
figures 4a and 4b.
a. Short Latch installed Short Latch
Remove the bolts

Installation Procedure
5
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
b. Tall Latch installed Tall Latch
Figure 4 - Type of latch
3. Identify the type of gusset
(Type A or Type B) according
to the cutout. Refer to
figures 5a and 5b.
a. Type A
Remove the bolts

Installation Procedure
6
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
b. Type B
Figure 5 - Gusset type
4. Modifying the gusset
If you have a Type A gusset with
a Short Latch: Cut through the
gusset along the slot, as shown
in figure 6.
If you have a Type A gusset with
a Tall Latch: No modification
required.
If you have a Type B gusset with
a Tall or Short Latch: No
modification required.
Figure 6 - Cut through the gusset for Type A Short Latch
Cut

Installation Procedure
7
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
Installation of the new
latch
5. If you have a Type A gusset
with a Short Latch shown in
figures 1 and 7 (Passenger
Side shown):
Assemble the new latch
(items 1 and 2) to the
grill guard by sliding the
latch through the
cutout.
Place the plate (item 6)
on top of the gusset.
Secure the fasteners
(items 5, 7) using low
height nuts (item 4).
Connect the knob (item
10) to the latch using
the hairpin (item 11)
Note:
Skip to step 6 for Type B
Short Latch
Skip to step 7 for Type A
or B Tall Latch
Figure 7 –Assemble the Type A Short Latch

Installation Procedure
8
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
Installation of the new
latch
6. If you have a Type B gusset
with a Short Latch shown in
figures 1 and 8 (Passenger
Side shown):
Assemble the new latch
(items 1 and 2) to the
grill guard by sliding the
latch through the
cutout.
Secure the fasteners
(items 5, 7) using
standard nuts (item 3).
Connect the knob (item
10) to the latch using
the hairpin (item 11).
Figure 8 –Assemble the Type B Short Latch

Installation Procedure
9
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
Installation of the new
latch
7. If you have a Type A or B
gusset with a Tall Latch
shown in figures 2 and 9
(Passenger Side shown):
Assemble the new latch
(items 12 and 13) to the
grill guard by sliding the
latch through the
cutout.
Secure the fasteners
(items 15, 16) using
standard nuts (item 14).
Connect the knob (item
17) to the latch using
the hairpin (item 18).
Figure 9 –Assemble the Type A or B Tall Latch

Installation Procedure
10
Part No: S015
Rev: A
Date: 2019-09-16
ECN: 19-055
1-888-543-4373
www.HERD.com
1-888-543-4373
8. For all Short Latches only.
Remove the hinge bolts and
insert the washer (item 8) as
shown in the figures 1 and
10 using the provided nut
(item 9).
Figure 10 –Add washer to the hinge for the Short Latches
Washer
