Herd Aero User manual

1
Installation Guide
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
This Guide is for all Truck Guard
Models, including (where
applicable):
Aero
Defender
Texas
Big Texas
Road Train
Super Road Train
Important
•Herd Truck Guards are vehicle "Make & Model" specific. Use of a Truck Guard on a vehicle other than the
model it was designed for will constitute improper use of the product and may void warranty.
•Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
•For further detail of warranty coverage and warranty repair information visit www.HERD.com.
Truck I.D.
Truck Models
PB21
Peterbilt 579 - SBA
General Safety
•Take time to fully read the instructions before installing the Herd Truck Guard.
•At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
•Parts and components of the Herd Truck Guard can be heavy, handle with care to avoid injuries.
•Respect power tools and use them as advertised.
For assistance call
1-888-543-4373
www.HERD.com
Thank you for choosing HERD!
HERD North America Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Sunnyside, MB Canada R5R 0J3

Reference this Parts List if your Truck Guard has a CEB (Captive Eye Bolt) Latching System
2
1-888-543-4373
www.HERD.com
1-888-543-4373
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
Figure 1 –Captive Eye Bolt Latching System
Table 1: Parts and Hardware Included
Items marked with * are not shown in Figure 1 above
Item No
Part No
Description
Qty
1
BR-PB21-AT (Only with Aero, Road Train, Super Road
Train, Texas, & Big Texas Versions)
or
BR-PB21-FLT (Only with Defender Version)
BRACKET, PETERBILT, 579 - SBA
1
2
1MPA027 (Only with Aero, Road Train, Super Road
Train, Texas, & Big Texas Versions)
or
1MPA024 (Only with Defender Version)
ASSY - LEGACY LIFT ASSIST
2
3
7-EYEBOLT KIT
CAPTIVE EYEBOLT ASSEMBLY
2
5
HERD TRUCK GUARD
TRUCK GUARD APPEARANCE MAY VARY BY SKU
1
*6
500084
BOLT-HEX 1/2-13X1-1/2 NC GR8 YZP
2
*7
500206
WASHER-FLAT 1/2 SAE GR8 YZP
4
*8
500167
NUT-NYLOCK 1/2-13 NC GR8 YZP
2
*9
500134
BOLT-HEX 9/16-12X2 NC GR8 YZP
18
*10
500216
WASHER-FLAT 9/16 SAE GR8 YZP
36
*11
500177
NUT-NYLOCK 9/16-12 NC GR8 YZP
18
*12
500120
BOLT-HEX 5/8-11X2-1/2 NC GR8 YZP
4
*13
500214
WASHER-FLAT 5/8 SAE GR8 YZP
8
*14
500176
NUT-NYLOCK 5/8-11 NC GR8 YZP
4
*15
500211
WASHER-FLAT 3/4 SAE GR8 YZP
2
*16
500172
NUT-NYLOCK 3/4-10 NC GR8 YZP
2
*17
500148
BOLT-HEX M6X1.0X20 CL10.9 YZP
6
*18
500219
WASHER-FLAT M6 CL8.8 YZP
12
*19
500184
NUT-NYLOCK M6X1.0 CL8.8 YZP
6
5
3
1
2

Reference this Parts List if your Truck Guard has a Slam Latch Latching System
3
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
Figure 2 –Slam Latch Latching System
Table 2: Parts and Hardware Included
Items marked with * are not shown in Figure 2 above
Item No
Part No
Description
Qty
1
BR-PB21-AT-SL (Only with Aero, Road Train, Super Road
Train, Texas, & Big Texas Versions)
or
BR-PB21-FLT-SL (Only with Defender Version)
BRACKET, PETERBILT, 579 - SBA
1
2
1MPA027 (Only with Aero, Road Train, Super Road Train,
Texas, & Big Texas Versions)
or
1MPA024 (Only with Defender Version)
ASSY - LEGACY LIFT ASSIST
2
4
4-MC-SLA-A
ASSY- LEGACY SLAM LATCH
1
5
HERD TRUCK GUARD
TRUCK GUARD APPEARANCE MAY VARY BY SKU
1
*6
500084
BOLT-HEX 1/2-13X1-1/2 NC GR8 YZP
2
*7
500206
WASHER-FLAT 1/2 SAE GR8 YZP
4
*8
500167
NUT-NYLOCK 1/2-13 NC GR8 YZP
2
*9
500134
BOLT-HEX 9/16-12X2 NC GR8 YZP
18
*10
500216
WASHER-FLAT 9/16 SAE GR8 YZP
36
*11
500177
NUT-NYLOCK 9/16-12 NC GR8 YZP
18
*12
500120
BOLT-HEX 5/8-11X2-1/2 NC GR8 YZP
4
*13
500214
WASHER-FLAT 5/8 SAE GR8 YZP
8
*14
500176
NUT-NYLOCK 5/8-11 NC GR8 YZP
4
*15
500211
WASHER-FLAT 3/4 SAE GR8 YZP
2
*16
500172
NUT-NYLOCK 3/4-10 NC GR8 YZP
2
*17
500148
BOLT-HEX M6X1.0X20 CL10.9 YZP
6
*18
500219
WASHER-FLAT M6 CL8.8 YZP
12
*19
500184
NUT-NYLOCK M6X1.0 CL8.8 YZP
6
5
4
2
1

Installation Procedure
4
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
1. Disconnect the driving lights and
remove 4 OEM bolts from behind
the bumper as shown.
Remove the OEM bumper. If the
truck has a collision mitigation
radar sensor, unplug and remove
it.
Figure 3–OEM Bumper Removal Back View (Passenger Side Shown)
2. Remove and retain the OEM
hardware shown from both the
driver and passenger sides
(One Bolt Per Side).
This hardware will be reused
later in mounting the HERD
Bracket Submounts
(Part of Item 1) to the truck
frame.
Figure 4 –OEM Bolt Removal (Drivers Side Shown)
Remove 2 Bolts Per Side
Disconnect Driving Lights
Remove & Retain OEM Hardware for Later Use

Installation Procedure
5
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
3. Insert the Tow Receiver Inserts
(Part of Item 1) into the tow
receivers on both driver and
passenger sides. Fasten in place
with OEM clevis pin.
Figure 5 –Tow Receiver Insert

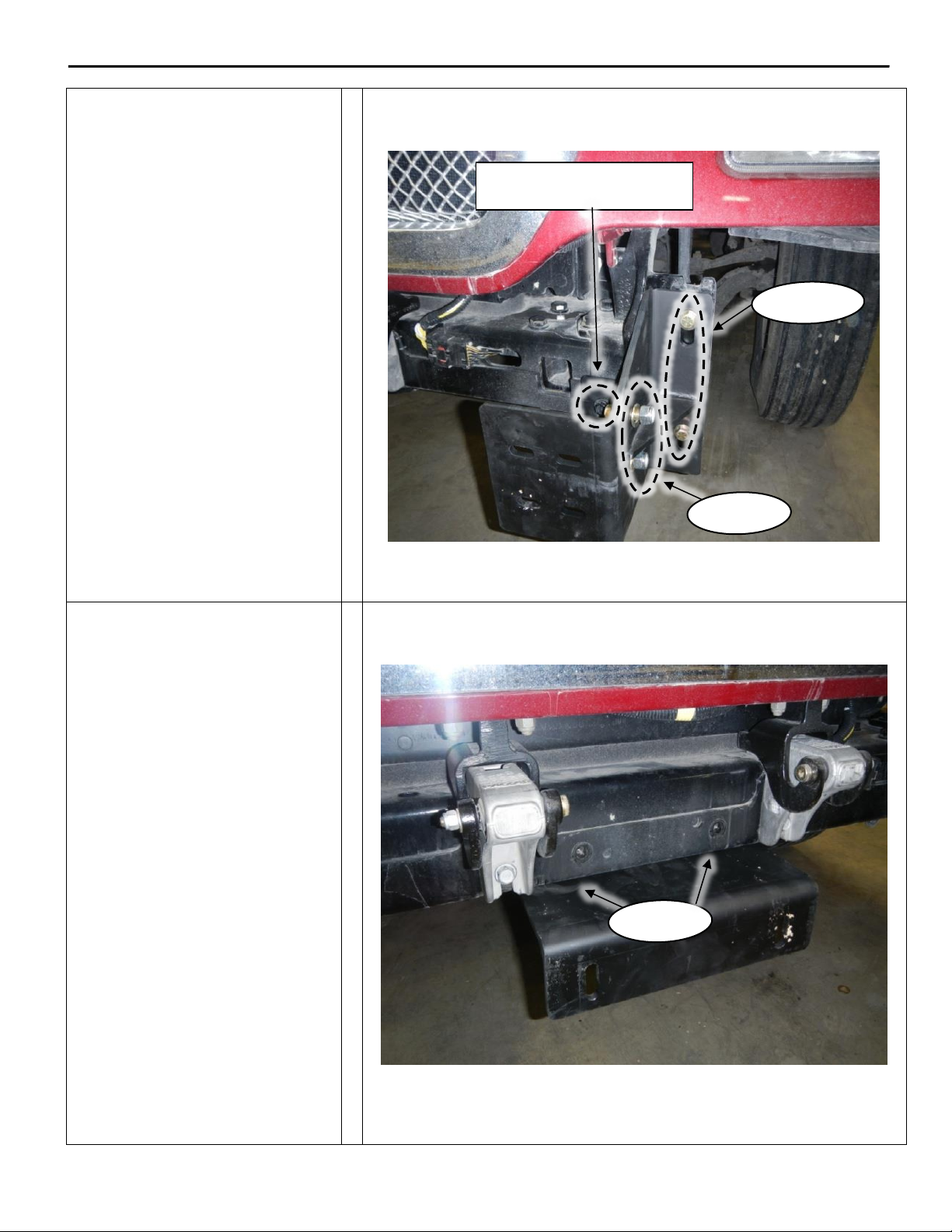

4. Figure 6 shows an exploded view
of the HERD Bracket &
Submounts (Item 1). First install
the driver side, passenger side, &
center submounts to the truck
from. Next fasten the bracket to
the submounts using the
provided hardware. Lastly, fasten
the threaded rod portion of the
tow reciever inserts to the
bracket. This is shown in further
detail in Steps 5-7.
Figure 6 –Exploded View of HERD Bracket & Submounts
Passenger Side
Submounts
Driver Side
Submounts
Center
Submount

Installation Procedure
6
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
5. Install the passenger and driver
side submounts (Part of Item 1)
to the truck frame using the
supplied hardware
(Items 9, 10, 11, 12, 13, 14) and
the OEM Hardware Retained in
Step 2.
Figure 7 –Side Submount Installation (Driver Side Shown)
6. Install the center submount
(Part of Item 1) to the bottom of
the crossmember using the
supplied hardware (Items 6, 7, 8)
as shown in Figure 8.
Figure 8 –Center Submount Installation
Reuse Factory Hardware That was
Retained in Step 2
9, 10, 11
12, 13, 14
6, 7, 8

Installation Procedure
7
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
7. Fasten the passenger and driver
side submounts to the HERD
bracket (Item 1) using the
supplied hardware
(Items 9, 10, 11).
Next, fasten the center
submounts to the bracket (Item1)
using the supplied hardware
(Items 9, 10, 11).
Next, fasten down the threaded
rod portion of the Tow Receiver
Insert using the provided
hardware (Items 15 & 16).
Note:
If installer has a crane available,
Truck Guard can be attached
onto truck with bracket,
otherwise disassemble Truck
Guard from bracket first. Keep
hardware. If HERD Truck Guard is
equipped with lift assist, the
springs must be removed. Refer
to instructions S004 (Defender
Truck Guards) or S005
(Aero/Texas Truck Guards) for
proper lift assist disassembly
procedure.
Figure 9 –HERD Bracket Installation (Back Side Shown)
15, 16
9, 10, 11

Installation Procedure
8
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
8. If the Herd Truck Guard was
disassembled from bracket in
Step 7, reinstall Herd Truck Guard
onto bracket using the hardware
kept from Step 7.
For DFLT & Defender models
only: To install the hinge bolts,
the Truck Guard must be in the
open (down) position to allow
the bottom lip to go under and
around the steel hinge.
Figure 10 –View of Bracket Hinge
9. If the HERD Truck Guard comes
with an option for OEM driving
lights, install the driving lights on
both passenger and driver sides
using the provided hardware
(Items 17, 18, 19).
Figure 11 –OEM Driving Light Installation (Passenger Side Shown)
17
18
9
18
9
19
9

Installation Procedure
9
Part No: PB21-LEGACY-IG
Rev: A
Date: 2019-09-25
1-888-543-4373
www.HERD.com
1-888-543-4373
10. Close the Truck Guard and
check fitment. Truck guard
position can be adjusted side to
side and up or down as
required. Once fitment is
confirmed, tighten all mounting
bolts. Torque 3/4” hardware to
150lb-ft. Torque 1/2” and 9/16”
hardware to 110lb-ft.
Figure 12 –Herd Truck Guard Installed
Important
•Check mounting points after the first 5000 km and every 3-6 months.
•If this Truck Guard is equipped with Legacy Herd Slam Latch, periodic adjustment is required.
Refer to Legacy Slam Latch Installation adjustment instructions to properly adjust your Slam Latch.
•The drop-forged eyebolts are an integral part of the strength of Herd Truck Guards. When tightened firmly,
they will minimize vibration and provide superior impact resistance.
•To help maintain the factory finish, avoid acid wash.
