Hettich HettCube 200 User manual

200/200 R; 400/400 R; 600/600 R
Read the instructions prior to performing any task!
Translation of the original operating manual
HettCube
Operating manual
1 / 174
en
12.2020 / Rev. 02
AB66005

en
12.2020 / Rev. 02
AB66005
2 / 174
Andreas Hettich GmbH & Co. KG
Föhrenstraße 12
D-78532 Tuttlingen/Germany
+49 (0)7461/705-0
+49 (0)7461/705-1125
[email protected], [email protected]
www.hettichlab.com
© 2019

3 / 174
en
12.2020 / Rev. 02
AB66005
Table of contents
Table of contents
1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 Symbol on the shipping carton label. . . . . . . . . . . . . 10
1.3 Personal protective equipment. . . . . . . . . . . . . . . . . 11
1.4 Personnel qualication. . . . . . . . . . . . . . . . . . . . . . . 11
1.5 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.6 Replacement parts/consumable material. . . . . . . . . 12
1.7 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.8 Return shipments. . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 Device description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 Standard device. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2 Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.2.1 Glass door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.2.2 Additional device access port. . . . . . . . . . . . . . . . . 19
3.2.3 Independent Pt100 temperature sensor with 4-20 mA
analogue output. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.2.4 Switchboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.2.5 Continuous cooling (option). . . . . . . . . . . . . . . . . . 20
3.2.6 Passive dehumidication. . . . . . . . . . . . . . . . . . . . 21
3.3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4 Transport and storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1 Unpacking the incubator. . . . . . . . . . . . . . . . . . . . . 27
5.2 Setting up, connecting and switching on the incubator
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.2.1 Installing the incubator. . . . . . . . . . . . . . . . . . . . . . 30
5.2.2 Incubator connection. . . . . . . . . . . . . . . . . . . . . . . 31
5.2.3 Initial commissioning. . . . . . . . . . . . . . . . . . . . . . . 35
5.3 Inserting and removing the slide-in modules. . . . . . . 38
5.3.1 Standard slide-in modules. . . . . . . . . . . . . . . . . . . 38
5.3.2 Telescopic slide-in modules. . . . . . . . . . . . . . . . . . 39
6 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.1 Operating elements. . . . . . . . . . . . . . . . . . . . . . . . . 43
6.2 Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.3 Door locking mechanism. . . . . . . . . . . . . . . . . . . . . 44
6.4 Fixing the mechanical display protection of the control
panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.5 Standard check before every use. . . . . . . . . . . . . . . 45

en
12.2020 / Rev. 02
AB66005
4 / 174
Table of contents
6.6 Switching on the incubator. . . . . . . . . . . . . . . . . . . . 46
6.7 Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.8 Operating modes. . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.8.1 Functional description of standstill mode. . . . . . . . 47
6.8.2 Functional description of manual mode. . . . . . . . . 48
6.8.3 Functional description of program mode. . . . . . . . 49
6.9 Main screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.10 Process ow information. . . . . . . . . . . . . . . . . . . . . 52
6.11 Manual mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.11.1 Manual mode settings. . . . . . . . . . . . . . . . . . . . . . 54
6.11.2 Starting manual mode. . . . . . . . . . . . . . . . . . . . . . 66
6.11.3 Manual mode changes during running operation. . 67
6.12 Program mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
6.12.1 Program mode settings. . . . . . . . . . . . . . . . . . . . . 69
6.12.2 Creating a program. . . . . . . . . . . . . . . . . . . . . . . . 70
6.12.3 Editing a program. . . . . . . . . . . . . . . . . . . . . . . . . . 78
6.12.4 Copying and deleting a program. . . . . . . . . . . . . . 81
6.12.5 Program mode — Start settings. . . . . . . . . . . . . . . 84
6.12.6 Program mode overview. . . . . . . . . . . . . . . . . . . . 90
6.13 Device settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
6.13.1 About. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
6.13.2 Date & time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
6.13.3 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
6.13.4 Tolerance band. . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
6.13.5 Temperature guard. . . . . . . . . . . . . . . . . . . . . . . . . 98
6.13.6 Control contact (option). . . . . . . . . . . . . . . . . . . . 101
6.13.7 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6.13.8 Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6.13.9 Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
6.13.10 Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
6.13.11 Power failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
6.13.12 Failure alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.13.13 Export. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
6.13.14 Import. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
6.13.15 Hours of operation. . . . . . . . . . . . . . . . . . . . . . . . 114
6.13.16 Logbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
6.13.17 System information. . . . . . . . . . . . . . . . . . . . . . . 115

5 / 174
en
12.2020 / Rev. 02
AB66005
Table of contents
6.13.18 Admin access. . . . . . . . . . . . . . . . . . . . . . . . . . . 115
6.13.19 Service dashboard. . . . . . . . . . . . . . . . . . . . . . . . 118
6.14 Heat compensation. . . . . . . . . . . . . . . . . . . . . . . . 118
7 Cleaning, disinfection and maintenance. . . . . . . . . . . . . . . 120
7.1 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
7.2 Disinfection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
7.3 Removal of radioactive contaminants. . . . . . . . . . . 123
7.4 Autoclaving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
7.5 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
8 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
8.1 Activating the automatic circuit breaker. . . . . . . . . 125
8.2 Warnings and error messages. . . . . . . . . . . . . . . . 126
8.2.1 Door warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
8.2.2 Event overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 132
8.2.3 Tolerance band alarm. . . . . . . . . . . . . . . . . . . . . . 132
8.2.4 Temperature protection, class 3.1 / 3.2. . . . . . . . 132
9 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
9.1 HettCube 200. . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
9.2 HettCube 200 R. . . . . . . . . . . . . . . . . . . . . . . . . . . 134
9.3 HettCube 400. . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
9.4 HettCube 400 R. . . . . . . . . . . . . . . . . . . . . . . . . . . 137
9.5 HettCube 600. . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
9.6 HettCube 600 R. . . . . . . . . . . . . . . . . . . . . . . . . . . 141
9.7 Denition of the utilized space. . . . . . . . . . . . . . . . 143
9.8 Type plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
9.9 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
11 Free and Open Source Software. . . . . . . . . . . . . . . . . . . . . 148
12 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
13 Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A Software symbols. . . . . . . . . . . . . . . . . . . . . . . . . . 155
B Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
B.1 Temperature drop during the entire weekend (Friday
afternoon to Monday morning). . . . . . . . . . . . . . . 159
B.2 Temperature drop over one day (Sunday). . . . . . . 160
B.3 Temperature drop with holiday function (using Wed-
nesday as an example). . . . . . . . . . . . . . . . . . . . . 160
B.4 Temperature drop on the weekend with start delay161
B.5 Temperature drop on the weekend including the pas-
sive dehumidication option. . . . . . . . . . . . . . . . . 162

en
12.2020 / Rev. 02
AB66005
6 / 174
Table of contents
B.6 External devices are integrated in program mode, e.g.
DAY/NIGHT simulation.. . . . . . . . . . . . . . . . . . . . 163
B.7 Combination of standstill mode with incubation mode
(energy-saving mode). . . . . . . . . . . . . . . . . . . . . . 164
B.8 Incubator is always cleaned on Wednesdays due to
the laboratory routine (SOP) (standstill mode). . . . 165
C Accessory overview. . . . . . . . . . . . . . . . . . . . . . . . 167
D Declaration of conformity. . . . . . . . . . . . . . . . . . . . 171
E List of standards. . . . . . . . . . . . . . . . . . . . . . . . . . . 173

7 / 174
en
12.2020 / Rev. 02
AB66005
Introduction
Signal words
Warning categories
General symbols
1 Introduction
1.1 Symbols
Signal word Meaning
DANGER This combination of symbol and signal
word indicates an immediate dan-
gerous situation that will result in death
or serious injury if it is not avoided.
WARNING This combination of symbol and signal
word indicates a possible dangerous
situation that can result in death or
serious injury if it is not avoided.
CAUTION This combination of symbol and signal
word indicates a possible dangerous
situation that can result in minor injury
if it is not avoided.
NOTICE This combination of symbol and signal
word indicates a possible dangerous
situation that can result in material and
environmental damage if it is not
avoided.
Warning signs Type of danger
Warning – danger zone.
Warning – biological hazard.
Warning – high-voltage.
Warning – falling objects.
This listing symbol denotes descriptions of tasks that you must
perform.
■This dot is for denoting lists.

en
12.2020 / Rev. 02
AB66005
8 / 174
Introduction
Symbols on the incubator
Cross references are indicated as follows:

Chapter 1.1 ‘Symbols’
on page 7
Warnings/symbols on the incubator which are no
longer recognizable should be immediately replaced
by the operating company.
The images shown in the following depict the posi-
tions of the warnings and symbols afxed to the
incubator.
Fig. 1: Information on the front side of the incubator, IVD logo
IvD-COMPLIANT
The device meets the requirements of the directive about in-vitro
diagnostics, 98/79/EC.

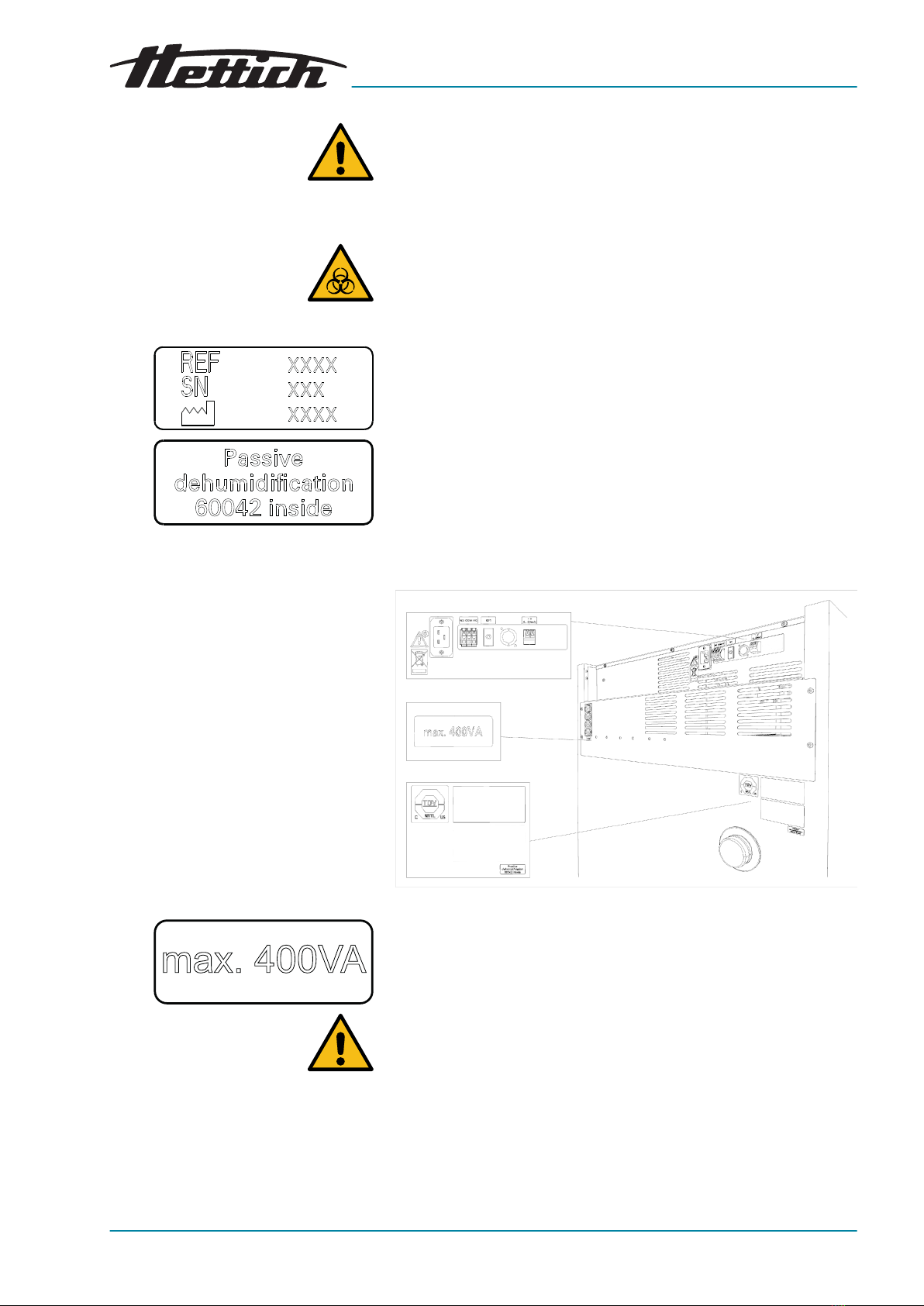

Fig. 2: Information on the front side of the incubator

9 / 174
en
12.2020 / Rev. 02
AB66005
Introduction
Attention, general danger point
Non-observance of this warning can lead to material damage and
personal injury.
Before using the incubator, make sure you read the operating
instructions and observe the safety information.
Attention: Biohazard
Nonobservance of this warning can lead to personal injury.
Before using the incubator, make sure you read the operating
instructions and observe the safety information.
Service information
The service information contains the data you will require when you
talk to the Service Hotline. This includes the order number, serial
number and year of construction.
Passive dehumidication 60042 inside (option)
The device is equipped with the passive dehumidifcation option.
Continuous cooling (option)
The device is equipped with the continuous cooling option.

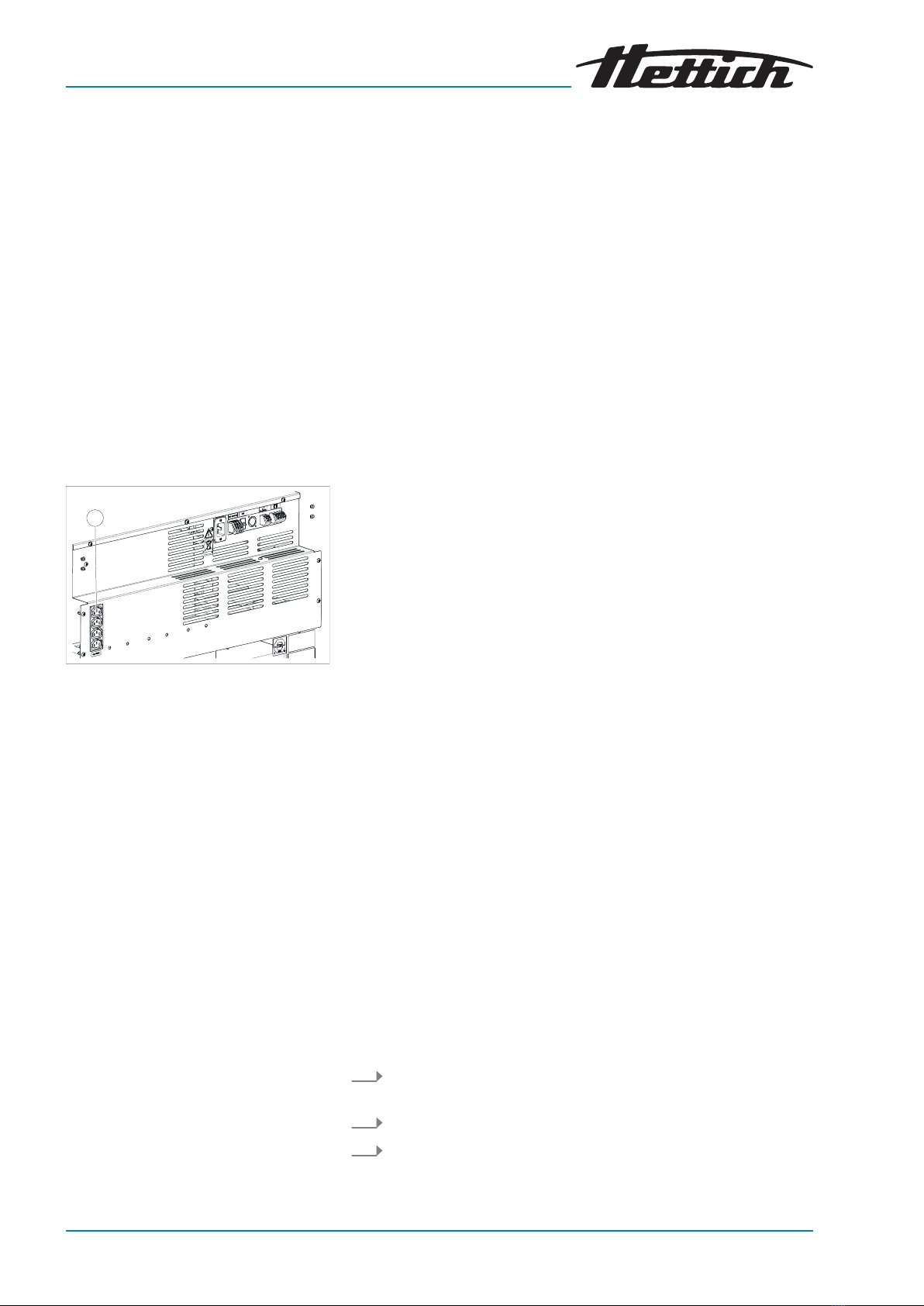

Fig. 3: Information on the rear side of the incubator
Symbol for additional devices (for Switchboard option only)
This symbol indicates the maximum load for the connections of the
additional devices (for Switchboard option only).
Attention, general danger point
Non-observance of this warning can lead to material damage and
personal injury.
Before using the incubator, make sure you read the operating
instructions and observe the safety information.

en
12.2020 / Rev. 02
AB66005
10 / 174
Introduction

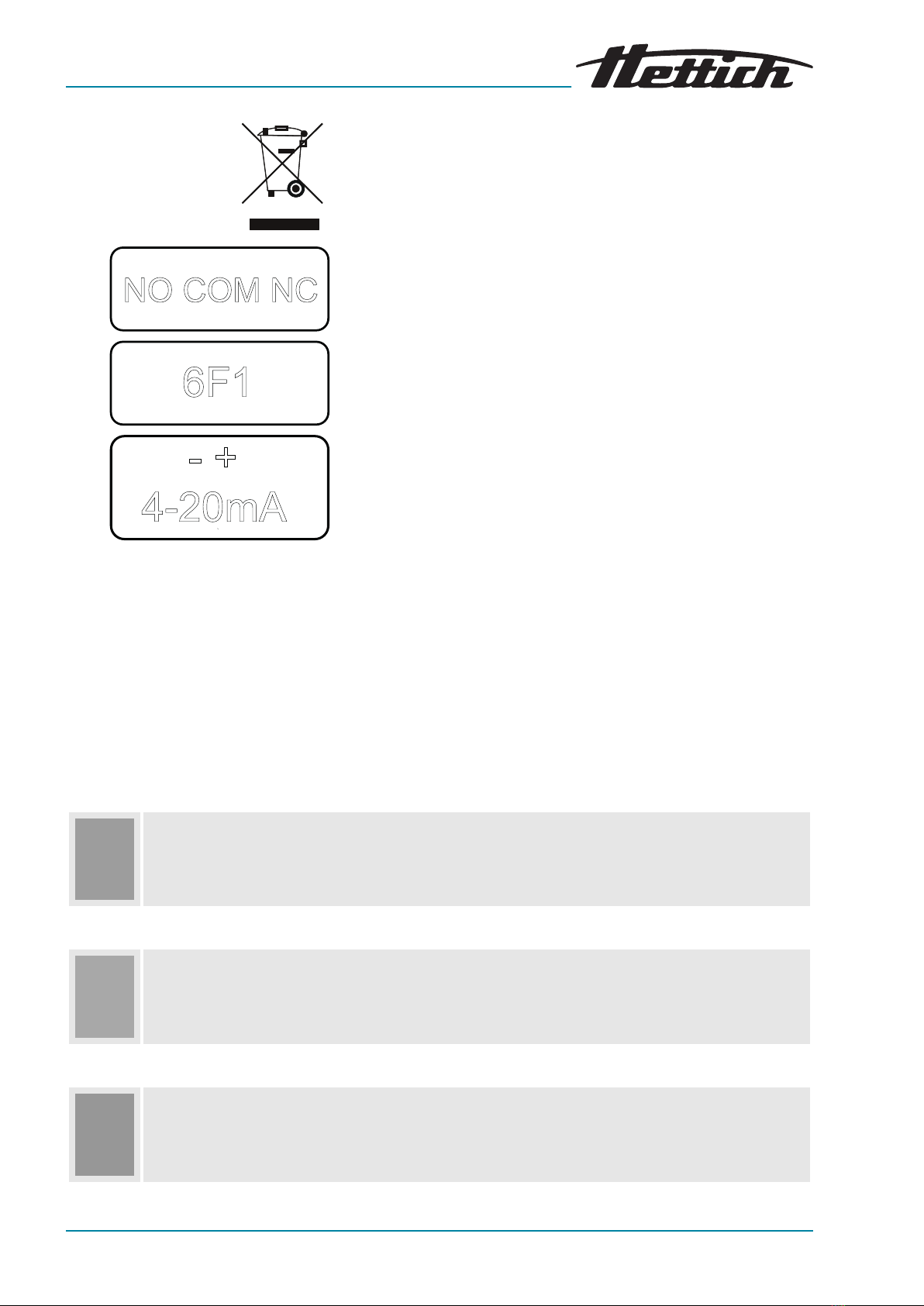

Symbol for separate collection of electric and electronic devices
Symbol according to directive 2012/19/EU. Applies in the countries
of the European Union, as well as in Norway and Switzerland.
Symbol for potential-free alarm output
This symbol indicates the potential-free alarm output.
Symbol for fuse (for Switchboard option only)
This symbol indicates the fuse 6F1 (for Switchboard option only).
Symbol for analogue output for independent temperature measure-
ment (option)
This symbol indicates the 4-20 mA analogue output for an inde-
pendent temperature measurement.
Symbol for TÜV-inspected device
The device safety requirements are inspected by TÜV (Technischer
Überwachungsverein, Engl: Technical Control Board).
Type plate
Nameplate with technical data specications.
1.2 Symbol on the shipping carton label
This way up.
Shows the correct upright position of the package.
Fragile, handle with care.
Refers to a medical device that can break or be damaged if handled carelessly.
temperature range
The shipping packaging must be stored, transported and handled within the temperature range
shown (-20°C - +60°C).

11 / 174
en
12.2020 / Rev. 02
AB66005
Introduction
A service technician is someone who was trained and authorized by
Andreas Hettich GmbH & Co. KG to perform service work on the
incubator.
Before commissioning the incubator, the operating instructions are to
be read and observed. Only those persons who have read and
understood the operating instructions may work with the device. For
the purpose of the Medical Device Directive, the operating company
is responsible for making sure that personnel who work with the
incubator are sufciently qualied to do so.
Intended use
humidity range
The shipping packaging must be transported and handled within the indicated humidity range
(10% - 80%).
keep dry
The shipping packaging must be kept away from rain and kept in a dry environment.
1.3 Personal protective equipment
The assessment of the personal protective equipment must take
place on site according to the actual risks which are posed by the
used substances, the procedures and the environmental conditions.
The operating company must create a hazard analysis according to
the corresponding standards and directives and enact work instruc-
tions which ensure the safe handling of the incubator and accesso-
ries.
1.4 Personnel qualication
Repairs may only be performed by a person authorized by the manu-
facturer.
Interventions and modications to incubators by per-
sons not authorized by the company Andreas Het-
tich GmbH & Co. KG will be at one's own risk and
result in the voiding of all warranty claims, as well as
the voiding of liability claims against Andreas Hettich
GmbH & Co. KG.
Service technician
User
1.5 Intended use
■This incubator is a medical product (microbiological incubator) for
the purposes of the IVD directive 98/79/EC.
■This is used for cultivating micro-organisms (e.g. bacteria, fungi)
and is used in microbiology labs.

en
12.2020 / Rev. 02
AB66005
12 / 174
Introduction
Improper use
■The combination of natural and forced circulated air results in low
drying-out rates of the cultures, high temperature consistency and
precise temperature distribution. Therefore, the incubator is suit-
able for incubating human pathogens, which
–require a characteristic optimum temperature (campylobacter
jejuni or coli at 42°C, e.g.: of clostridium difcile at 36°C).
–require long-term cultures (mycobacterium tuberculosis at
36°C / up to 8 weeks).
■Also the incubation tasks of similar materials and samples with
equally high demands are possible.
■The incubator is only intended for this purpose.
■Another use or one which goes beyond this, is considered to be
non-intended. The company Andreas Hettich GmbH & Co. KG is
not liable for damage resulting from this.
■Observing all information in the operating instructions and com-
plying with the measures described therein is also a part of the
intended use.
Another use or a use going beyond the intended use is considered to
be improper. The company Andreas Hettich GmbH & Co. KG is not
liable for damage resulting from this.
■Operation in a potentially explosive, biologically, chemically or
radioactively contaminated atmosphere.
■It is forbidden to put ammable or explosive materials or materials
which chemically react together with high energy in the incubator.
■The presence of persons or animals inside the incubator.
■Using the incubator or its accessories as a climbing aid.
■Operation outdoors.
■Use on moving subsurfaces, e.g. ships, rail transport or airplanes.
■Stacks of impermissible incubator sizes and stacks without xa-
tion (allowed is a stack of a total of two incubators of size
200/200 R.).
■The incubator in the standard conguration is not intended to be
used in continuous cooling operation.
1.6 Replacement parts/consumable material
Only original spare parts and original accessories approved by the
manufacturer may be used.
WARNING
If no original spare parts or original accessories are
used, the warranty as well as liability claims against
the company Andreas Hettich GmbH & Co. KG are
void.
1.7 Scope of delivery
■1 x incubator
■1 x mains cable (power supply)
■1 x operating instructions

13 / 174
en
12.2020 / Rev. 02
AB66005
Introduction
■1 x mains cable, 2.5 m (design according to country)
■2 x keys
■1 x plug for access port on the rear wall
■1 x HTS* slide-in module with telescopic rails
■1 x standard slide-in module (HettCube 200/200 R)
■2 x standard slide-in modules (HettCube 400/400 R)
■3 x standard slide-in modules (HettCube 600/600 R)
* HTS: Hettich Tray System
1.8 Return shipments
If it is necessary to send back the incubator or its accessories to Het-
tich,
■request the return documents necessary for this from Hettich or
the responsible Hettich sales partner. These contain the return
number as well as a clearance certicate form for the returned
article.
■Due to the legal regulations and especially to protect the Hettich
sales partner and Hettich employees, clean and disinfect the incu-
bator and accessories and certify that it is harmless with your sig-
nature (clearance certicate).
■If the clearance certicate is missing, Hettich reserves the right to
invoice the customer for the costs for cleaning and disinfection.

en
12.2020 / Rev. 02
AB66005
14 / 174
Safety information
2 Safety information
■Before commissioning the incubator, the operating instructions
are to be read and observed. Only those persons who have read
and understood the operating instructions may operate the incu-
bator.
■In addition to the operating instructions and the binding regula-
tions for accident prevention, the recognized professional rules for
safe and proper work are to be observed. The operating instruc-
tions are to be supplemented with instructions based on the
national regulations for accident prevention and environmental
protection of the country where the device is used.
■The incubator is built according to the state-of-the-art and is reli-
able. It could pose a danger to the user or third parties, however,
if it is not operated by personnel familiar with the incubator or is
used improperly or not as intended.
■The operating company must inform itself about the potential
health hazards which can be posed by the used sample material,
and, if necessary, take appropriate measures to rule out such
hazards.
■The incubator may only be operated when it is set up correctly. If
installation is not done correctly, hazards to personnel and sample
material cannot be ruled out.
■The use of external devices inside the incubator only makes
sense if this additional heat output can be compensated. For
important information concerning this, see

Chapter 6.14 ‘Heat
compensation’ on page 118 . The maximum heat input in the inte-
rior of the incubator named there must not be exceeded. If the
incubator is switched off or fails, the external devices in the inte-
rior must be switched off immediately in order to not damage the
incubator. It is therefore recommended to only connect external
devices to the optionally available switchbox. This way, it is
ensured that when the incubator switches off or fails or when the
temperature guard is triggered, the external devices are also de-
energized.
■There is a danger of an uncontrolled increase in the utilized space
temperature if devices with a heat load are operated in the
uncooled incubator or if heat-developing reactions or processes
are carried out.
■Continuous operation at < 5°C can cause the evaporator to ice
up. This will result in a reduction in the cooling capacity. If a lot of
ice builds up, there is a danger that the incubator fan will be dam-
aged.
■When operating the display of the incubator, the incubators must
not be switched off for the following 2 minutes. If the incubator is
switched off in < 2 minutes, the device could crash during the
start process when being restarted, and cannot be operated
afterwards.
■Do not step or lean on the oor of the interior, the slide-in mod-
ules and drawers or the door.

15 / 174
en
12.2020 / Rev. 02
AB66005
Safety information
■The drying rate of the culture medium during incubation is inu-
enced by various factors, such as
–ambient conditions (e.g., relative humidity of the environment)
–handling and working method (e.g., previous processes, dura-
tion, and frequency of doors opening)
–culture or incubation conditions (e.g., incubation time and
temperature).
These inuences should be especially considered in the case of
longer incubation times.
■The sample material should not be placed outside of the dened
utilized space

Chapter 9.7 ‘Denition of the utilized space’
on page 143 . The specied temperature data refer to the dened
utilized space.
■Repairs may only be performed by a person authorized by the
manufacturer.
■Only original spare parts and approved original accessories of the
company Andreas Hettich GmbH & Co. KG may be used.
■The safety and reliability of the incubator are only guaranteed if:
–the incubator is operated according to the operating instruc-
tions.
–the electrical installation at the set-up site of the incubator
meets the requirements of the EN/IEC regulations.
The incubator is safe if used as intended and
observing the descriptions and information given in
this documentation.

en
12.2020 / Rev. 02
AB66005
16 / 174
Device description

Fig. 4: Front side of device
1 Housing made of powder-coated
steel sheet-metal
2Device foot

Chapter 5.2.1 ‘Instal-
ling the incubator’ on page 30
3Transport rollers

Chapter 5.2.1
‘Installing the incubator’
on page 30
4 Adjustable foot to protect the incu-
bator from tilting
5 Door handle
6 Door, self-closing at an opening
angle less than 90°
7 Front panel

Fig. 5: Front panel
1 Service interface (USB)
2 Door lock
3 Switch
4 Touchscreen
5Mechanical display protection

Chapter 6.4 ‘Fixing the mechanical
display protection of the control
panel’ on page 45
3 Device description
3.1 Standard device
Touchscreen incl.
■Temperature guard, class 3.1; for cooled devices, class 3.1 and
3.2.; individually adjustable

Chapter 6.13.5 ‘Temperature
guard’ on page 98 .
■Tolerance band asymmetrically adjustable

Chapter 6.13.4 ‘Tol-
erance band’ on page 97 .
■Door alarm individually adjustable

Chapter 6.13.9 ‘Door’
on page 106 .
The incubator is equipped with a temperature guard of protection
class 3.1, in accordance with DIN12880:2007-05. The temperature
guard is for protecting the incubator (device protection), its surround-
ings and the sample material (sample protection) against impermis-
sible, excessive temperatures.
Class 3.1:
Device protection and sample protection (excessive temperatures).
Class 3.2:
Sample protection (excessive temperatures, for cooled incubators
only).
If the electronic temperature regulation fails during operation, the
temperature guard takes over the regulating function.
Further information about the temperature guard can be found in the
operating instructions

Chapter 6.13.5 ‘Temperature guard’
on page 98 .

17 / 174
en
12.2020 / Rev. 02
AB66005
Device description

Fig. 6: Front side of device, door
opened
1 Access port Ø 42 (standard on the
rear side of device)
2 Shelf
3 Interior made of high-quality stain-
less steel 1.4301 (ASTM 304)
4 Shelf, HTS
5 Magnetic seal
6 Door damper


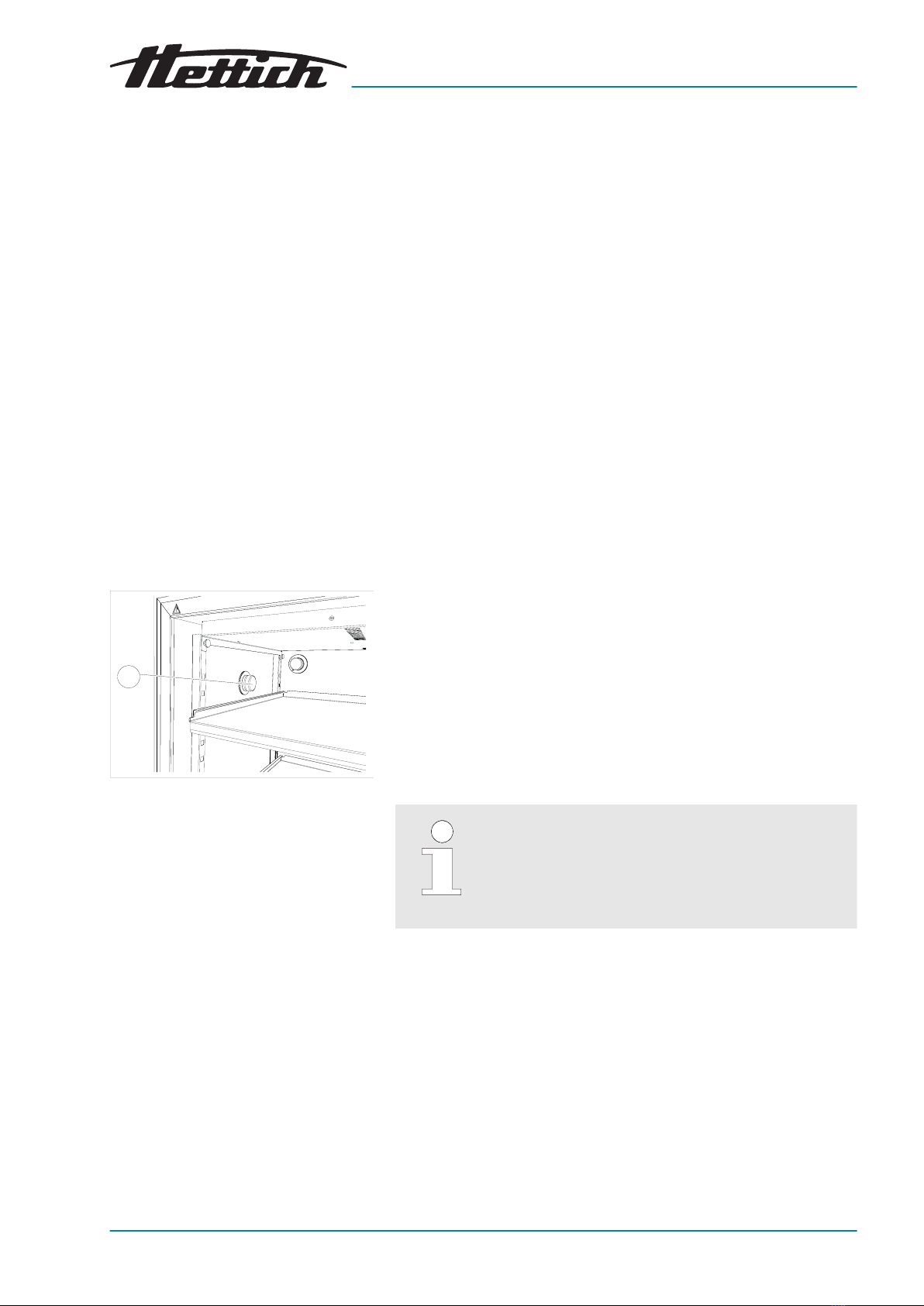

Fig. 7: Access port, rear side
1 Access port
The incubator has a access port with a Ø of 42 mm on the rear side.
Through this opening, cables from external measuring systems can
be fed into the interior.
After feeding through the cable, the access port
must be sealed with the foam plug included in
delivery to prevent temperature deviations in the inte-
rior. If the access port is not used, this must be
sealed with the screw plug.

en
12.2020 / Rev. 02
AB66005
18 / 174
Device description


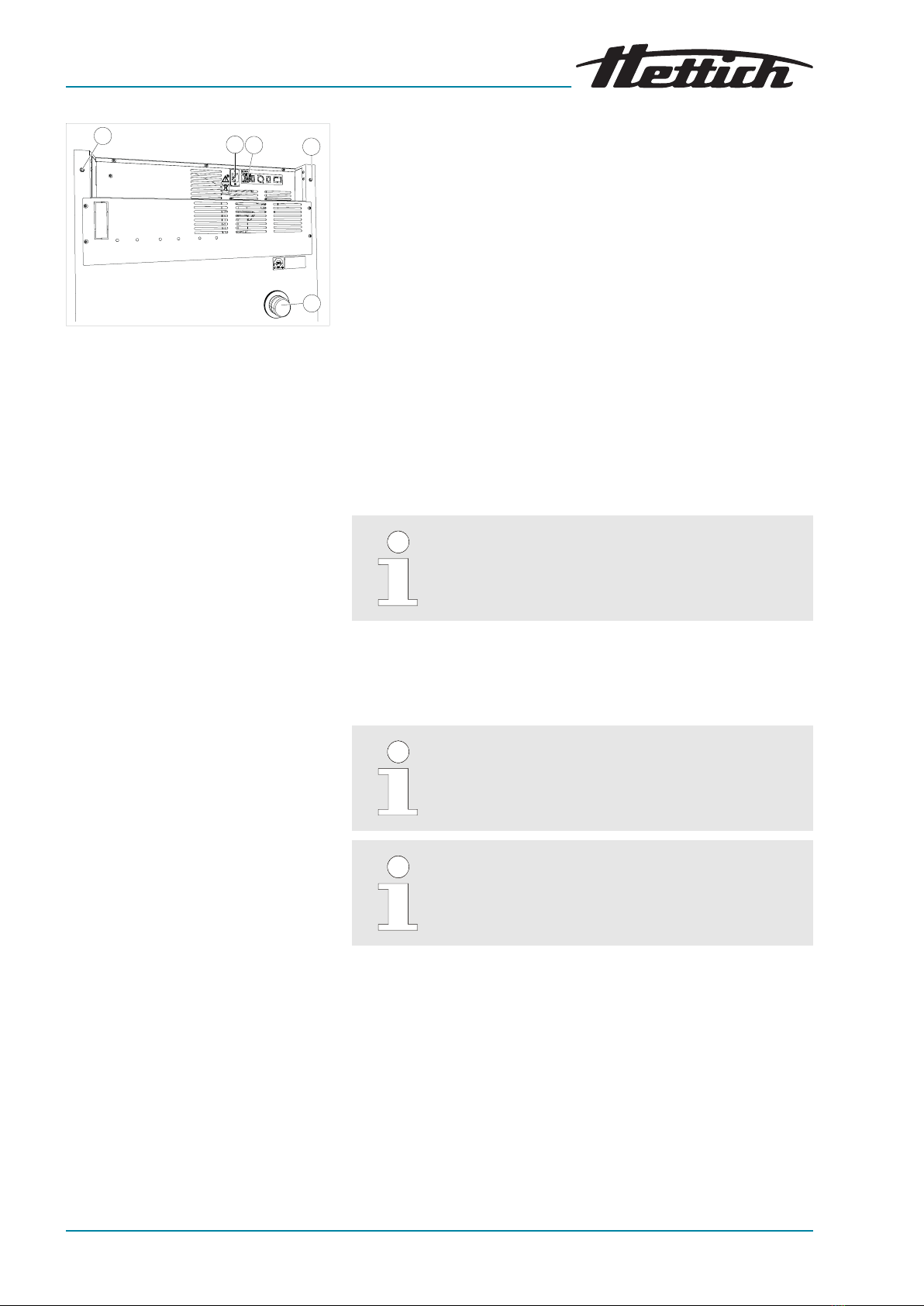

Fig. 8: Rear side of device (size 200)
1 For device size 200 only: Thread
insert M6 for xing kit 60012
2 Mains cable connection
3 Potential-free analogue output
4 Standard access port, Ø 42 mm
3.2 Options
Options are articles which are permanently installed
in the device.
3.2.1 Glass door
The glass door consists of several stacked glass panes. The outer
pane of the door is made of safety glass (ESG glass).
Test runs can be inuenced by the allowed incident
light.
For incubators with a glass door, the temperature
deviation values and the power consumption
increase slightly.
Depending on the ambient temperature and the relative ambient
humidity, there may be condensation on the inside and outside of the
glass door. The following diagram illustrates the condensation of the
glass door.

19 / 174
en
12.2020 / Rev. 02
AB66005
Device description
1
Fig. 10: Access port on the left side of
the incubator (optional)
1 Lateral access port
Fig. 9: Condensation diagram
3.2.2 Additional device access port
Additional device access port (Ø 22, 42, 67 mm) centred on the left
side of the device. Other positions possible after consultation.
In addition to the standard access port, it is possible to realize addi-
tional access ports.
The incubator can be provided with a access port on the left side of
the incubator.
The access port is available with Æ 22 mm, Æ 42 mm or Æ 67 mm
and has a screw plug.
It is also possible to install the optional access port at the rear side of
the incubator.
In such a case, contact a service technician of the manufacturer.
Every direct connection from the inside of the device
to the outside can result in technical data deviations.
When using an access port, this should be sealed
from the outside with adhesive tape in addition to the
foam plugs included in delivery.

en
12.2020 / Rev. 02
AB66005
20 / 174
Device description
Fig. 11: 4-20 mA analogue output
1 4-20 mA analogue output for inde-
pendent temperature measurement
(option)

Fig. 12: Switchboard
1 Connections for additional devices
(Switchboard option)
3.2.3 Independent Pt100 temperature sensor with 4-20 mA analogue output
The device is equipped with an additional, independent Pt100 tem-
perature sensor. The temperature values are output via a 4-20 mA
analogue output on the rear side of the device.
3.2.4 Switchboard
The incubator has a socket strip arranged on the rear side of the
device. This socket strip can be switched on and off individually or
time-controlled via the touchscreen. It is operated via the control
contact function

Chapter 6.13.6 ‘Control contact (option)’
on page 101
. It is particularly meant for the operation of additional
devices in the incubator.
The four sockets of the socket strip can only be switched on or off
simultaneously.
Due to the heat that the additional devices bring into the incubator, it
usually only makes sense to use the Switchboard option in a cooled
incubator

Chapter 6.13.6.1 ‘Switchboard option’ on page 102
and

Chapter 6.14 ‘Heat compensation’ on page 118 .
The Switchboard option and passive dehumidication option are
mutually exclusive. Therefore, it is only possible to realize either the
Switchboard option

Chapter 6 ‘Operation’ on page 41 or the
passive dehumidication option

Chapter 6 ‘Operation’
on page 41
on one incubator.
3.2.5 Continuous cooling (option)
For applications in continuous operation for which temperatures
below 15 °C are required, Hettich offers an alternative operating
mode in its cooled incubators.
After the long-term cooling phase has ended, perform the subse-
quent dehumidication process. Particularly when the device is tem-
porarily put out of operation after long-term cooling.
Dehumidication process:
1. Open the standard feed-through at the rear and heat the
device up to +60°C.
2. Maintain this temperature for at least 2 hours.
3. Switch off the device or begin a new application.
