HiB Globe Plus 50 User manual

Fitting Instructions
Thank you for purchasing this HiB product.
Please read through these instructions carefully and refer back to
them during installation to ensure that your product is fitted safely
and that it retains its high quality finish.
GLOBE PLUS
Globe Plus 50: Art No 78781000 / Globe Plus 60: Art No 78722000
Globe Plus 80: Art No 78723000
FI#01 028 R201113 Ver No. 1.1 Jan 2020
T: [phone] F: [phone] E: [email protected] W: hib.co.uk DC 15/11/2019 16:15:49
Sheet 1 of 3
19301-60 -GLOBE PLUS 60 - 800mm x 600mm
Illuminated bluetooth and 2 pin socket mirror
REVISION: A

2
Electrical Safety Information
Warnings for Safe Use
HiB recommends that all electrical bathroom products must be installed
in accordance with current building and wiring regulations.
If in doubt please contact an electrician.
Before drilling ensure that there are no hidden cables or pipes in the wall.
• This product is intended for Domestic Use only
• Please read the instructions and warnings carefully before installing the product
and ensure this document is kept with the product for future reference to ensure
product longevity and in the interest of safety.
• If you give the product to another person, please give them this manual as well.
• If any modification is made it will invalidate the warranty and may render the
product unsafe.
• This product is IP44 rated and suitable for installation in Zones 2 and Outside Zone
according to the IEEE regulations.
• It is not suitable for use in saunas, steam rooms and shower cubicles.
• Appropriate circuit protection should be available for the product.
• When drilling use appropriate eye protection.
• The use of a Residual Current Device (RCD) is advised for any power tools used
during the installation of this product.
• Take suitable precautions when handling glass.
• Do not use if glass is broken or unsafe.
• Beware of hidden cables or pipes. Take care if drilling on tiled surfaces in case the
drill slips.
• Always switch off the electrical supply to the product at the mains during
installation and maintenance.
• It is recommended that this product is installed by a person who is able to meet
the level of competence required in order to comply with relevant regulations. If
in doubt consult a qualified tradesperson.
• Do not enter IP44 box unless competent and item is isolated from mains.
• Do not use if any electrical wires appear damaged or degraded.
• This product is designed for installation into a brick or masonry block wall, if
mounting onto other substrate ensure appropriate fixing and batons (if required)
are used and the load bearing of the wall is sufficient.
• It is recommended that this product is installed by two people.
• Avoid leaving excessive standing and surface water on the product for prolonged
periods of time.
• Dispose of packaging in accordance to local authority regulations.
• At end of life dispose of item according to local authority regulations.

3
hib.co.uk

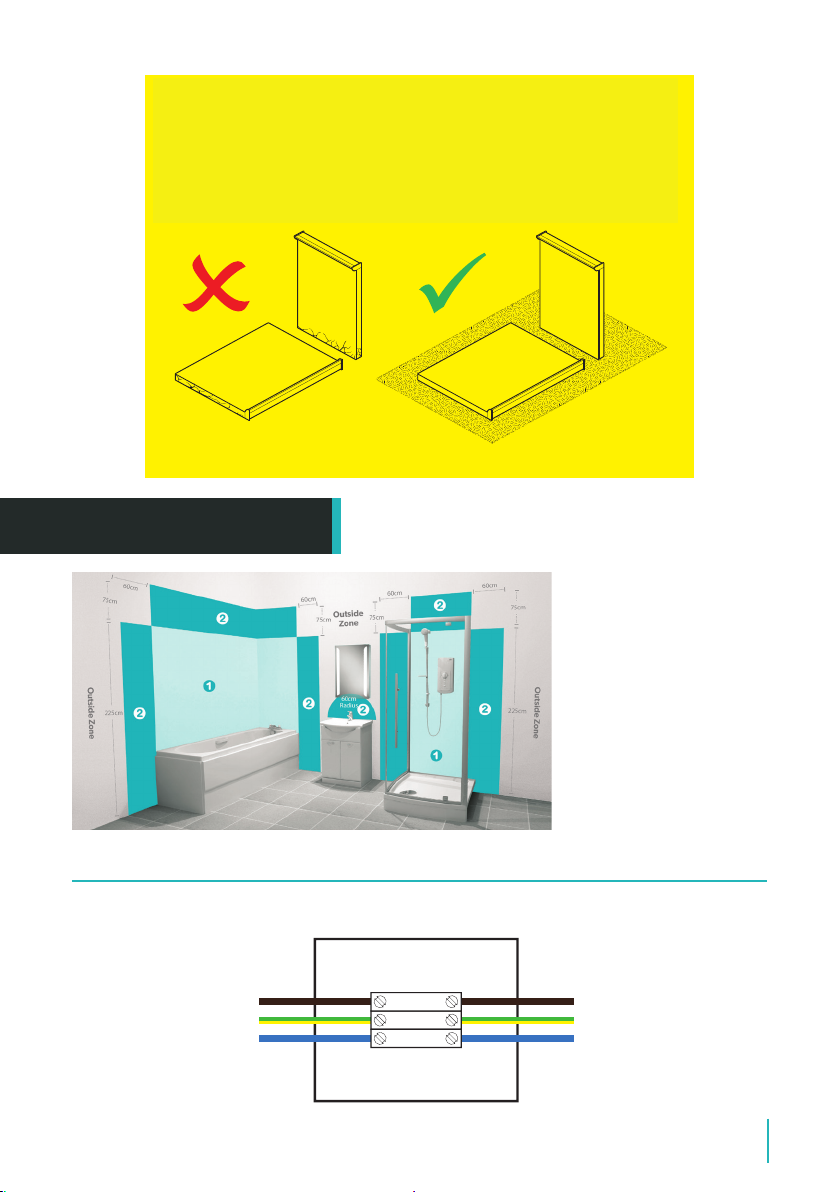

Electrical Information
All installations must comply
with guidelines which are
based on a zonal concept
and must be followed to
ensure the safe installation of
electrical appliances in the
bathroom.
These regulations apply to
domestic installations only.
Installations must be made in
accordance with the current
IEE wiring regulations and
relevant building regulations.
This product is IP44 rated and is suitable for installation in zones: 2& Outside Zone
live
earth
neutral
MAINS SUPPLYLUMINAIRE
Wiring Diagram
Live supply can be Red or Brown
Earth supply is Green and Yellow
Neutral supply can be Blue or Black
Live is Brown
Earth is Green and Yellow
Neutral is Blue
Fig 1. - Zonal Diagram
Caution
We recommend that you place this mirror on a so flat surface to ensure no
breakages. We also recommend that you leave corner protectors on until
final fitting.
Do not li this product via the illuminated frame
CAUTION

4
What’s in the Box?
Tools Required
Pencil Spirit Level Drill Drill bit Screwdriver
• Globe Plus Mirror
• Fittings pack

5
hib.co.uk
CLOCK
hr/min
VOLUME
DATE
dd/mm
TEMPERATURE
Degrees celsius

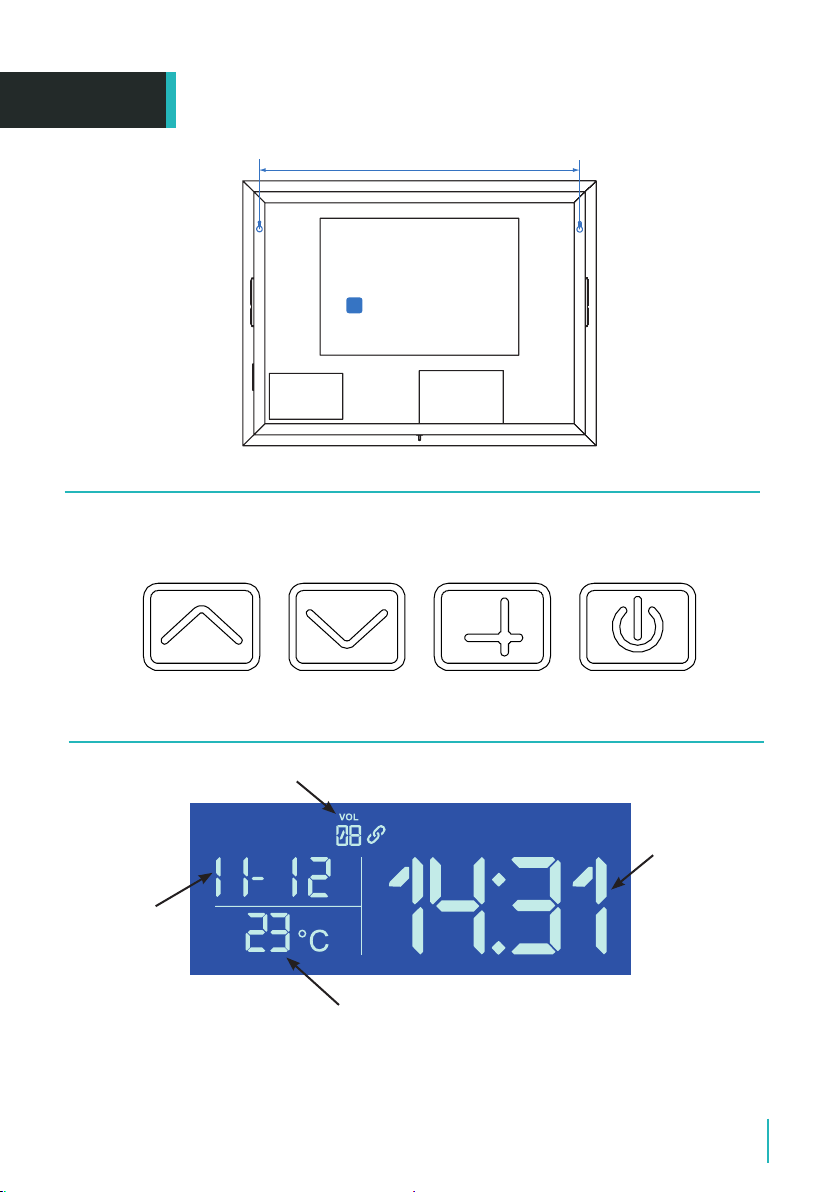

Figures
Fig 2. - Mounting points
Fig 3. - Operational control buttons
Fig 4. - Bluetooth® Module Interface
Hanging landscape
mounting points
REAR VIEW
Power
On / Off
Clock/Date
control button
Volume UP
Adjust clock/date
Volume DOWN
Adjust clock/date

6
Installation
It is recommended that this product is installed by two people.
1. Position the mirror in a suitable location according to the zonal diagram - Fig.
1, ensuring that the domestic electrical mains supply is within reach of the
electrical entry point of the product.
2.Carefully mark the position of the mirror using a so pencil ensuring it is level.
3.Remove the mirror and mark the mounting points on the wall, see Fig. 2. Please
ensure that all marked mounting points accurately match up with the
fixing points on the mirror.
4.Using a suitable drill bit, drill holes in the marked positions to a suitable depth. If
drilling through tile, use a ceramic drillbit.
5.Insert wall plugs level with the surface of the wall. If fitting to a tiled surface,
wall plugs should be inserted below the tile surface to avoid cracking. NB. For
plasterboard walls, specialist fixings should be purchased, available from any
DIY or hardware store.
6.Screw supplied fixings into wall plugs.
7. Ensure the domestic electrical mains supply to which the mirror is being
connected is turned off. Connect the domestic mains supply to the terminal
box according to the wiring diagram on page 3.
8.Hang the mirror in position.
9. Switch the domestic electrical mains supply for the mirror back on.
NB. On first use of the charging socket, there may be resistance when inserting the
plug. Make sure that the mirror is held firmly so that it is not pushed off the wall.
Aer a few uses, resistance will ease and the socket will function as normal.

7
hib.co.uk
Operation
To switch on/off and adjust illumination colour temperature
1. Press the Power button once to turn ON illumination and Bluetooth®connectivity, Fig. 3.
2. If a Bluetooth® device has been paired previously it will automatically connect and sound a
tone to indicate connection.
3. To adjust the colour temperature of the illumination press and HOLD the Power switch. The
illumination will start to change colour and cycle through the available colour range.
4. When the desired colour temperature is obtained simply release the switch.
5. Press the Power switch again to turn the illumination mirror OFF.
NB. If a Bluetooth®device is connected it will be maintained and the screen will remain
illuminated.
6. To turn the mirror / screen off completely and disconnect from a paired device press and
HOLD Power switch for 3 seconds.
Pairing and un-pairing a device to the mirror
1. To activate the Bluetooth®, turn the mirror on by pressing the Power switch, Fig. 3.
2. Activate the Bluetooth®on your device. Refer to the device’s operations manual for details.
3. Search for ‘HiB002’. The mirror will sound a tone to indicate a successful pairing
connection.
4. Once connected the ‘chain-link’ symbol will stop flashing to indicate that the device is now
connected , Fig. 4.
5. You can now play audio through your Bluetooth®mirror.
6. When the mirror is turned off the connection to the Bluetooth® module will be lost.
7. When the mirror is turned on again it will automatically reconnect to the last connected
device if it is still within range.
Playback / Volume adjustments
1. When a device is connected and content is playing you can skip the song by pressing the
UP switch.
2. You can play the previous song by pressing the DOWN switch.
3. To adjust the volume up PRESS and HOLD the UP switch.
4. To adjust the volume down PRESS and HOLD the DOWN switch.
To adjust the Clock and Date
NB. - Ensure mirror illumination is turned off.
1. Press and hold the Clock/Date switch, Fig. 3.
2. Aer 3 seconds the display will start ‘blinking’ indicating the edit mode has been activated.
3. Adjust the time or date accordingly by pressing the UP or DOWN switches.
4. When the correct setting has been reached press the Clock/Date switch again to move to
the next editable element.
5. The function will cycle through the following: Time - HOUR
Time - MINUTE
Date - DAY
Date - MONTH
Date - YEAR
6. Press the Clock/Date button again to confirm changes.

Care
Aftercare
In the unlikely event that this product should fail please contact the retailer
from which the item was purchased.
To preserve the high quality finish of your HiB product, please ensure you
regard the following care and cleaning recommendations:
• Clean the product with water and a so cloth, a mild detergent may be
used if required.
• Ensure any excess moisture is removed aer use.
• Do not use abrasive sponges or cleaning agents.
• Avoid leaving excessive standing and surface water on the product for
prolonged periods of time.
WEEE compliance
Must not be mixed with
general household waste
©HiB Copyright: No part of this document may be reprinted or duplicated without HiB consent. All sizes and measurements are approximate, but we do try
and make sure they are as accurate as possible. In the interest of continuous product development, HiB reserves the right to alter specifications as necessary.
E & OE.
