2. CONTROL LOCATION
2.CONTROL LOCATION
MODEL: Tonik 125/Tonik 50cc
Fuel tank cap
Light/Starter
switch
Exhaust Muffler
High& Low beam/
/
Turn signal/Horn
switch
Tail/brake light
Fuse /CDI
&Battery
Air Cleaner
Oil level
Front turn signal light
Helmet hook
Storage box
Kick starter
pedal
Main stand
Ignition switch
Rear brake
level
Side stand
Front light
Rear turn
signal light
Front brake
level
Engine number
Frame number
Position light

4
3.BEFORE RIDING
4.SAFE RIDING
3.BEFORE RIDING
This manual describes the correct usage of this motorcycle including safety riding, simple inspection
methods and so on.
For a more comfortable and safety riding, please read this manual carefully.
For your benefit, please ask your SANYANG dealer the operating manual and carefully read the
following:
yCorrect use of the motorcycle.
yPre-delivery inspection and maintenance.
Thank you very much for your patronage
In order to maximize your motorcycle’s performance, a periodical inspection and maintenance
should be completely carried out.
We recommend that after riding your new motorcycle for the first 300 kilometers, you should take
your motorcycle to the original dealer for an initial inspection, and to have your motorcycle inspected
periodically every 1000 kilometers thereafter.
yIn case the motorcycle’s specifications and construction are modified and different from the photos
and diagrams on the owner’s manual / catalogues, the specifications and construction of the actual
motorcycle shall prevail.
4. SAFE RIDING
It is very important to be relax and clothe properly when driving, observe traffic regulations, do not rush,
always drive carefully and relaxed.
Usually, most people would ride their newly bought motorcycle very carefully, but after they became familiar
with their motorcycles, they tended to become reckless which may result in an accident.
To remind you:
yPlease wear a safety helmet, and properly tighten the chin belt when riding a motorcycle.
yClothes with open or loose cuffs may be blown by wind and cause the cuffs to get caught on the
steering handle and thus affects riding safety.
ySo, put on clothes with tight sleeves.
yHold the steering handle by both hands when riding. Never ride with only one hand.
yObserve the speed limit.
yWear suitable low-heel shoes.
yPerform periodical maintenance and inspection in accordance with the schedule.
WARNING!!
yTo avoid getting burned by exhaust pipe when taking a passenger. Make sure your passenger has
put his/her feet on the pedals.
yAfter running, the exhaust pipe is very hot, be careful not to get burned when conducting an
inspection or maintenance.
yAfter running, the exhaust pipe is very hot, select a suitable location to park your motorcycle to avoid
others getting burned by the exhaust pipe.
CAUTION:
Modified motorcycle will affect its structure or performance, and cause poor engine operation or
exhaust noise, which will result in shortening the motorcycle’s service life.
Besides, modification is illegal and does not conform to the original design and specifications.
A modified motorcycle will not be covered by warranty, therefore, do not modify your motorcycle at
will.

5
5. DRIVING
6.USE GENUINE SPARE PARTS
5.DRIVING
yKeep the related parts of your body such as arms, palms, lumbar, and toes relax and ride with
the most comfortable posture in order to be able to react quickly whenever it is necessary.
yRider’s posture will greatly affect riding safety. Always keep your body’s gravity in the center of the
saddle, if your body’s gravity is on the rear part of saddle, the front wheel load will be reduced, and
this will cause the steering handle shaking. It is dangerous to ride a motorcycle with an unstable
handle.
yIt will be much easier to make a turn if rider inclines his body inward when turning. On the other
hand, the rider will feel unstable if his body and the motorcycle do not incline.
yThe motorcycle is hard to control on a bumpy, unleveled, unpaved road, try to know the road
conditions in advance, slow down and use your shoulder’s force to control the handle.
ySuggestion: Do not load objects on the front pedals unnecessarily, to avoid affecting the riding safety
and the operation of steering handle.
CAUTION:
The rider’s feeling on the handle is slightly different with a load or without a load.
Overload may cause the handle to swing and affects the riding safety.
Therefore, do not overload your motorcycle.
CAUTION:
yDo not place flammable materials such as rags between the body side cover and engine to avoid
components damaging by fire.
yDo not load objects on areas not specified for loading to avoid damage.
SUGGESTION
To maximize the motorcycle’s performance and prolong its service life:
The first month or first 1000km is the wear- in period for the engine and components.
Avoid rapid acceleration, and keep the speed below 60km/hr.
6. USE GENUINE SPARE PARTS
In order to maintain the motorcycle’s best performance, each part’s quality, material, and machined
precision must conform with the design requirements. “SYM Genuine Spare Parts” were made from
the same high quality materials used for the original motorcycle. No parts would be sold to the market
until they could meet the designed specifications through sophisticated engineering and stringent quality
control. Therefore, it is necessary to purchase “SYM Genuine Spare Parts” from “SYM Authorized
Dealers or Franchised Dealers” when replacing spare parts. If you buy cheap, or fake substitute parts
from the market, no guarantee can be provided either for the quality or durability. Also, it may result in
unexpected troubles and lower the motorcycle’s performance.
yAlways use SYM Genuine Spare Parts to keep your motorcycles pure blood and to ensure its long
service life.

6 7. USE OF EACH COMPONENT
7.USE OF EACH COMPONENT
(The following is SYM 4 stroke air-cooling 125 c.c./50 c.c. scooter’s basic operation, and they
could vary from different individual models. Please consult the end of this manual.)
§GAUGES §
The panel figure for speedometer may vary from model to model, but the location usually are the same.
CAUTION:
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as
gasoline…etc to avoid damaging these components.

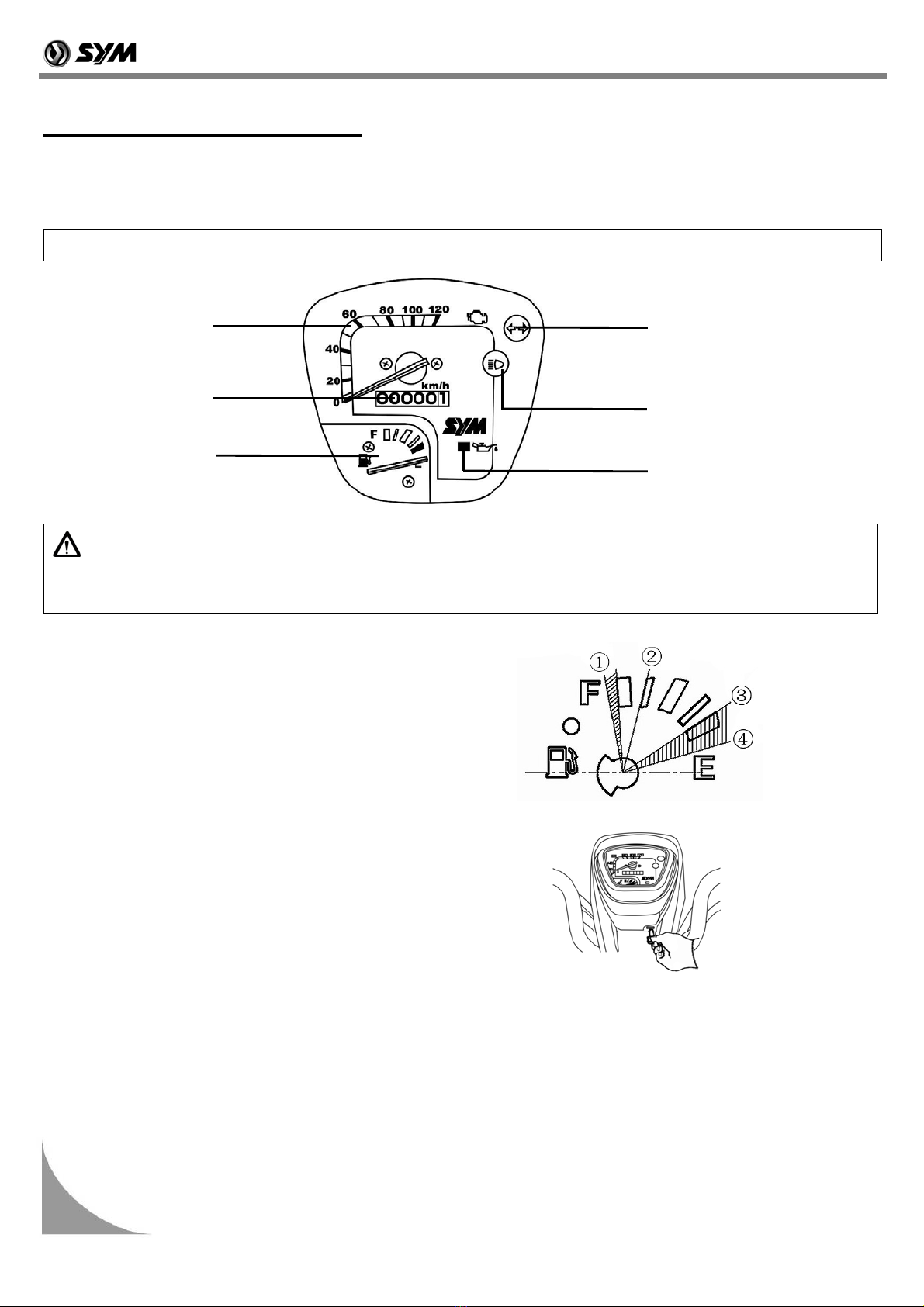

ySpeedometer：
Indicates driving speed.
yOdometer：
Indicates total accumulated distance traveled.
yHigh Beam Indicator：
This indicator comes on with high beam
headlight is turned on.
yTurn (left/right) Signal Indicator：
The left or right Indicator will be flashing
according to the operated directions of turn
signal light switch when it is turned on.
yFuel Meter:
The pointer in this meter shows how much fuel
remains in the tank.
When the pointer stays position "①" , it means
full of gasoline in the fuel tank.
The pointer stays position "②" , it means 50% of
gasoline in the fuel tank.
When the pointer stays position "③" , it means
residual about 1.0 liters in the fuel tank. That is
the reserved gasoline. It can continue to ride
about 30 ~ 50km.
When the pointer stays position "④" , it means
empty in the fuel tank.
yEngine oil replacement indicator:
Engine oil replacement indicator is used to
indicate the time tables of engine oil replacement,
the color is expressed as green as usual. When
the vehicle traveling about 1,000 kilometers, the
indicator light turns red. It means that it need to
supply or replace engine oil.
After adding engine oil, insert the key into the
relieve hole as shown, the indicator will change
from red to green.
High Beam Indicator
Fuel meter
Odometer
Speedometer Turn Left/Right Signal
Indicator
Engine oil replacement
indicator

7
7. USE OF EACH COMPONENT
§OPERATION OF IGNITION SWITCH §
“ON” position:
yEngine can be started in this position.
yIgnition switch key can not be removed.
“OFF” position:
yEngine is shut off and can not be started in this position .
yIgnition switch key can be removed.
§OPERATION OF STEERING HANDLE LOCK SWITCH §

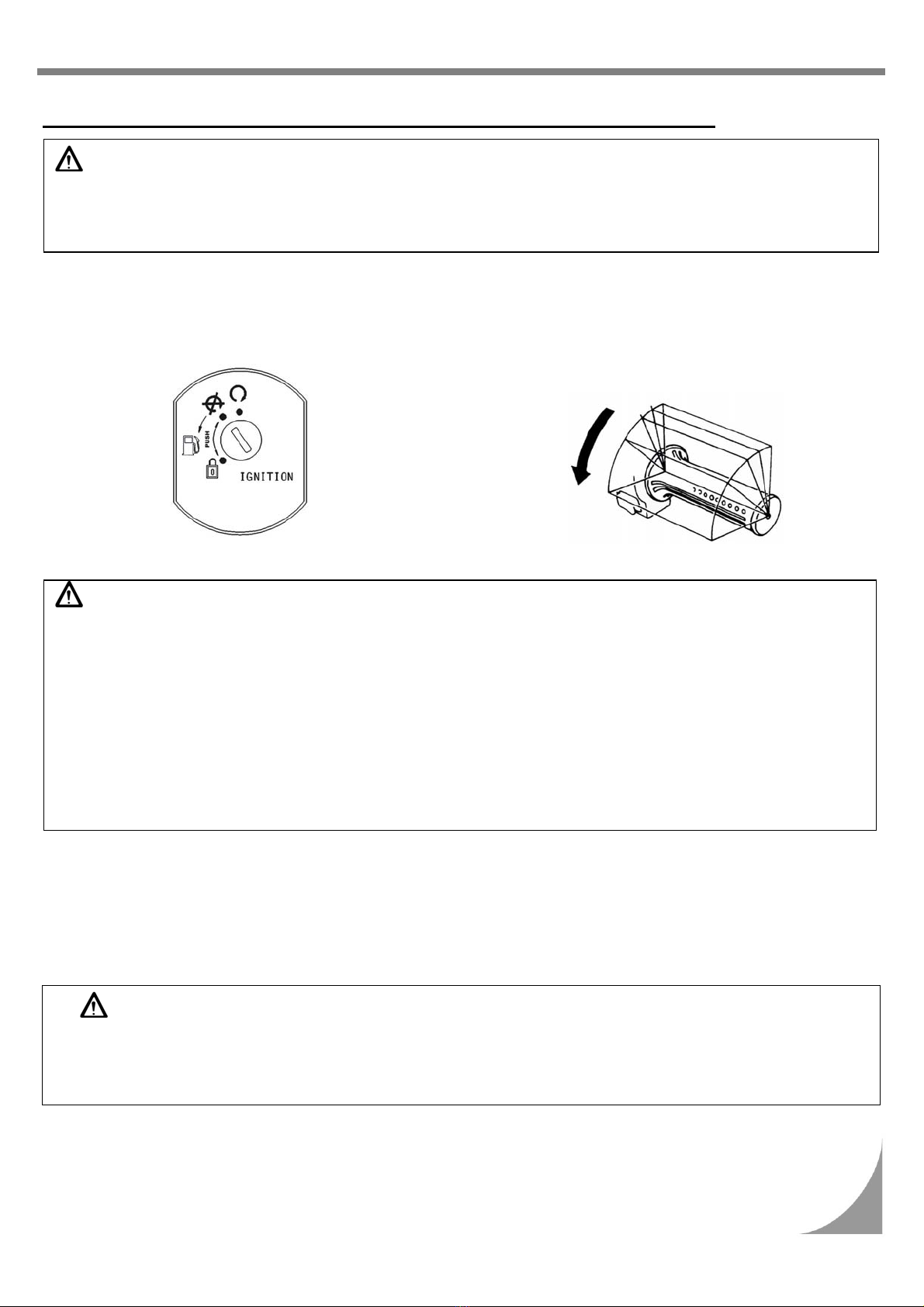

“Steering handle lock” position
yTurn the steering handle to left and insert the key into,
press ignition switch key clockwise and then lightly turn
it to left to the “lock” position.
yThe steering handle is locked in this position.
yIgnition switch key can be removed.
yWhen unlocking, simply turn the key from the “LOCK”
position to the “OFF” position.
§OPERATION OF FUEL TANK COVER SWITCH§
“Fill gasoline lock” position
yInserted the ignition switch key in the main switch lock.
yTurn the ignition switch key to the“fill gasoline”position counter-clockwise.
yThen, the fuel tank cover can be open. You can fill gasoline in the fuel tank.
CAUTION:
yNever operate the ignition switch key when the motorcycle is running. To turn the ignition switch
to “OFF” and “LOCK” position will shut off the electrical system and that may result in a dangerous
accident. Therefore, the ignition switch can only be turned off after the motorcycle has been
completely stopped.
yAlways remove the key and be sure to take the key away with you after locking the steering handle
before leaving your motorcycle.
yIf ignition switch remains in the “ON” position for a prolonged period after the engine has been
stopped, the battery’s capacity will be reduced and this may affect the engine’s start ability.
yMake sure to take the key away with you before you lock your seat.
§USE OF BUTTONS §
CAUTION:
yMake sure to take the key
away with you before you
lock your seat.
Turn Signal
Switch Horn Switch
High/low
beam switch
Hazard warning
switch
Electrical starter
button

8 7. USE OF EACH COMPONENT
Insert the key into the main switch to be “ON”position, and the engine is being started, the speed meter
light, position light, tail light, license plate light are always come on.
yHazard warning switch
When the switch is turned to this position as the engine is being started, the front and rear turn
signal lights will flash.
Switch to this position to turn of the front and rear signal hlghts.
yElectrical starter button
This is a starting motor button (switch) for engine starting.
With the main switch “on”, press this button while holding the front or rear brake lever will start
the engine.
CAUTION:
yRelease this button immediately after engine has been starter, and never press the button again to
avoid damaging the engine.
yThis mechanism is a safety design. The engine can only be started after the front or rear brake
lever (pedal) has been applied.
yDo not use light system. Turn headlight and turn signal light to the “off” position when the engine is
being started.
yHigh/low beam switch
This is the high and low beam of headlight switching switch. Press this switch to switch between high
and beams.
This is for high beam.
This is for low beam.(please turn to low beam riding in city.)

9
7. USE OF EACH COMPONENT
yHorn Switch
Press this button down when ignition switch is in the “ON”position, the horn will sound.
yTurn Signal Switch
Turn signal lights are used when turning left/right or changing lane.
Turn ignition switch to the “ON”position, and slide the turn signal switch to left or right . Then, the turn
signal lights will flash.
To release, simply return the turn signal light button to the original position.
Left -side turn signal light flashing means you intend to make a right turn.
Right-side turn signal light flashing means you intend to make a left turn.
§STORAGE BOX§
yThis box is located under the seat.
yMaximum load capacity:5kg.
yDo not store valuables in the box.
yMake sure that the seat has been locked completely after it
was pressed down.
yTake out valuables before washing to avoid wetting these
objects.
yDo not place thermal sensitive objects in the box because of
engine’s heat and high temperature.
Storage box

10 7. USE OF EACH COMPONENT
§SAFETY HELMET HOOK§
yStop the motorcycle, and hook the safety helmet
chin belt the hook.
§FUEL TANK CAP§
1.Insert the key into the main switch, and turn the ignition switch
key to the“fill gasoline”position counter-clockwise, then the
fuel tank cap can be removed.
2. Do not fill above the fuel upper limit when refueling.
3. Align the “△”mark on the cap with the “△”mark on the fuel
tank, then close the fuel tank cap .
CAUTION:
yMain stand should be put down on the ground, engine should be shut off and flames should be
strictly prohibited to ensure safety when refueling.
yDo not fill above fuel upper limit when refueling. Otherwise, fuel will flow out through a hole on the
cap that may damage the body’s painting, in serious cases, it may cause a fire to burn down the
motorcycle.
yMake sure the cap has been tighten properly.
§BRAKE§
yAvoid unnecessary sudden braking.
yUse front and rear wheel brakes simultaneously when braking.
yAvoid brake continuously for a long period of time because that may overheat the brakes and reduce
its braking efficiency.
ySlow down and brake early when riding in rainy days on slippery roads. Never apply the brakes
suddenly to prevent skidding and falling.
yUsing only the front brake or the rear brake increases the risk of falling because the motorcycle is
tend to pulled to one side.
《Engine Brake》
Return the throttle valve handle back to its original position, and apply engine brake.
It is necessary to apply brake both for front wheel and for rear wheel intermittently when riding on a long or
stiff slope.
CAUTION:
yDo not hang the safety helmet onto this hook
when riding to avoid damaging motorcycle and
loosing safety helmet’s function.
Hook
Fuel tank cover
For Front Wheel For Rear Wheel

11
8. IMPORTANT POINTS AND CAUTIONS FOR STARTING ENGINE
8.IMPORTANT POINTS AND CAUTIONS FOR STARTING ENGINE
CAUTION:
yPlease check the oil and fuel volume are adequate or not before starting the engine.
yTo start the engine the main parking stand must be firmly on the ground and the brake is applied
on the rear wheel to prevent the motorcycle from moving forward suddenly.
1.Turn ignition switch key to the ”ON” position.
2.Apply hand(foot) rear wheel brake.
3.Do not accelerate, press starter button when the brake is applied.
［We care for you! Before drive off, keep the hand brake applied on the rear wheel.］
CAUTION:
yIf engine can not be started after press the kick starter arm for 3~5 times, turn the throttle valve
handle 1/8~1/4 turns, and then press the kick starter arm again for an ease start.
yIn order to avoid damaging the starter motor, please do not press the starter button continuously
over 15 seconds.
yIf engine still can not be started after pressing starter button over 15 times, stop and wait for 10
seconds before start it again.
yIt is harder to get the engine started after the motorcycle has been left idle for a long time or after
refueling only after the fuel has been depleted. Then, it is necessary to press starting lever or
starter button several times, and keep the throttle valve handle at the close position to start the
engine.
yIt may need several minutes to warm up engine if it is a cold start.
yExhaust contains harmful gases (CO), therefore please start the engine at a well ventilated place.
【When starting engine with starting lever.】
yAfter step 1~5 is completed, press the kick starter forcefully by foot with the throttle valve handle at
the close position.
yIf engine is difficult to start with the starting lever when the engine is cold, rotating the throttle valve
1/8~1/4 turns will make the start easier.
yPut the kick starter back to its original position after the engine has been started.
CAUTION:
yFirmly support the motorcycle with the main parking stand before starting the engine with the kick
starter arm.
yStarter engine with the kick starter arm occasionally to prevent it from loosing its function because
of unused for a long time.
1/4
1/8

12 9. THE BEST WAY TO DRIVE OFF
9.THE BEST WAY TO DRIVE OFF
yturn on the turn signal light before moving, and make sure no vehicle is coming from behind. Then,
drive off.

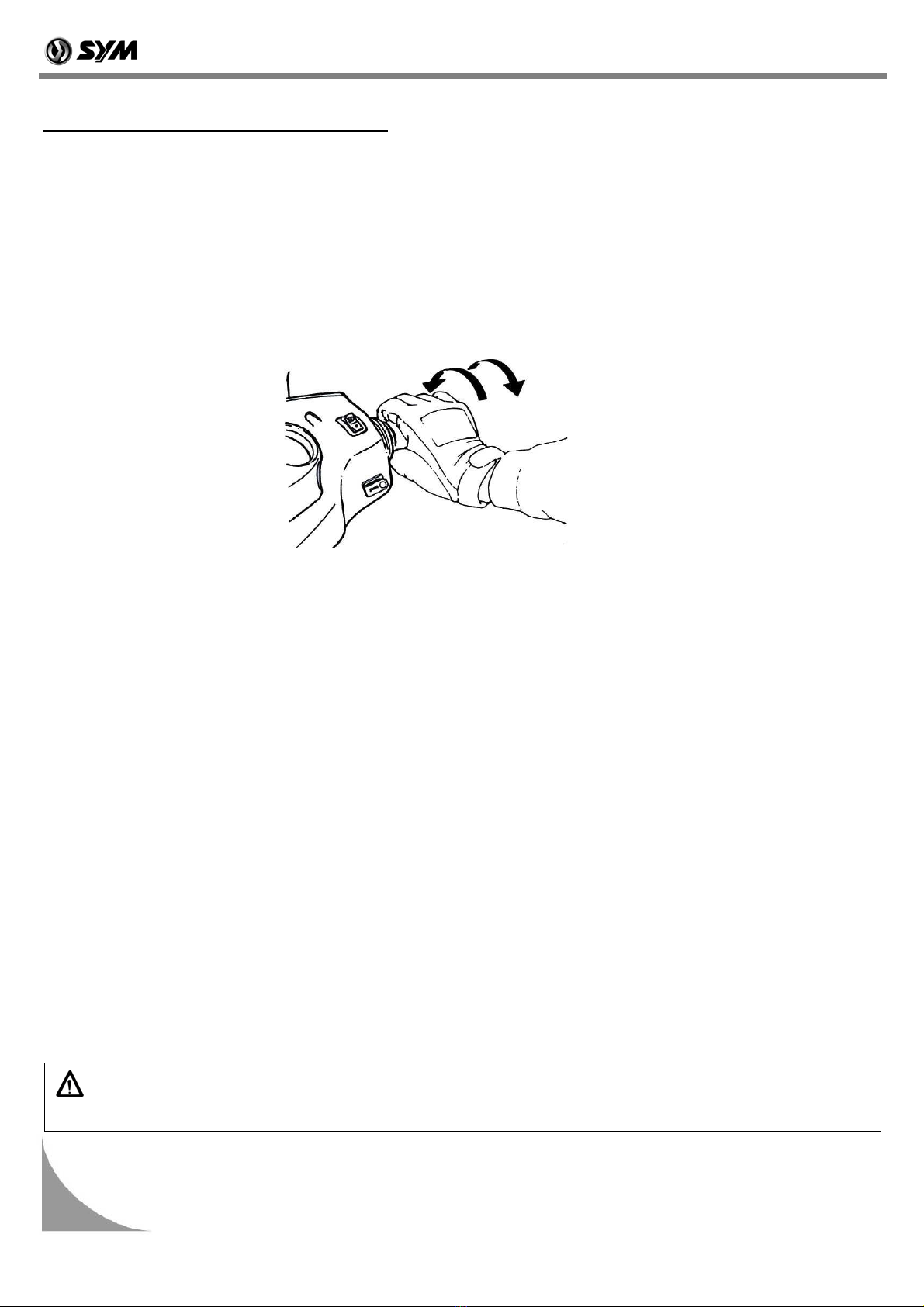

§THE CONTROL OF THROTTLE VALVE HANDLE §
Acceleration : To increase speed. When riding on an inclined road, turn the throttle valve handle
slowly to allow the engine to output its power.
Deceleration : To decrease speed.
§PARKING METHOD §
ywhen approaching the parking lot:
1. Turn on the turn signal light early, and pay attention to the vehicles in front, from rear, left and right, then
take the inner lane and approach slowly.
2. Return the throttle valve handle back to its original position, and apply brakes in advance. (Brake light
comes on when braking to warn drivers of vehicles behind.)
yWhen stop completely:
3. Press the turn signal switch back to its original position, and turn the ignition switch key to the “OFF”
position to shut off the engine.
4. Get off the motorcycle from left side after the engine has been stopped, and select a parking place
where the motorcycle will not interfere with traffic and the ground is level, then put down motorcycle’s
main parking stand.
5. Hold the steering handle with your left hand, and hold down the front end of saddle or hold the parking
handle on the lower-left side of saddle with your right hand.
6. Press the main parking stand with your right foot, put down the main parking stand firmly on the ground.
To remind you: Lock the steering handle and remove the key after parking to prevent the motorcycle
from being stolen.
CAUTION:
yPark your motorcycle at a safe place where it will not interfere with traffic.
Deceleration
Acceleration

13
10. INSPECTION AND MAINTENANCE BEFORE RIDING
10.INSPECTION AND MAINTENANCE BEFORE RIDING
(Please refer to the components location diagram for the following components.)
§ROUTINE INSPECTION §
Check Items Check Key Points
Engine Oil Is there enough engine oil?
Fuel Is it enough? Is it Octane 90 or above
Front Braking condition?
(Brake lever free play: 10~20mm)
Brake Rear Braking condition?
(Brake lever free play: 10~20mm)
Front Is tire pressure normal?
(Standard: 1.75kg/cm2)
Tires Rear Is tire pressure normal?
(Standard: 2.0 kg/cm2for 1 person, 2. 25 kg/cm2for 2 persons)
Steering Handle Does the handle vibrate abnormally or is difficult to turn?
Speedometer, lights, and
rearview mirror Is it operated properly? Do lights come on? Can it be seen clearly from behind?
Tightness of Main Components Are screws, nuts loosen?
Abnormal Points Do the previous troubles still exist?
CAUTION:
yIf any problem founded during routine inspection, correct the problem before using the motorcycle
again, have your motorcycle checked and repaired by the “SANYANG dealer or authorized
service personnel” if necessary.
§ENGINE OIL INSPECTION AND CHANGE §
yINSPECTION:
1. Use the main parking stand to support the motorcycle on a
level ground, remove the dipstick after engine stopped for
3~5 minutes. Wipe oil off the dipstick and then insert it into
the guide tube again (Do not rotate it.)
2. Remove the dipstick and check whether oil level is in
between the upper and lower marks.
yAdd oil to upper limit if oil is under the lower limit. (Check
cylinder, crankcase…etc for leakage.)

14 10. INSPECTION AND MAINTENANCE BEFORE RIDING
OIL CHANGE:
yChange engine oil after the first 300km, and change the engine oil
every 1000km thereafter.
yIn order to maintain the engine’s maximum performance, check
whether the engine oil is enough every 500km. Add oil to upper
limit if the engine oil has been found to be inadequate.
yEngine Oil : Use (API) SL/CFSAE 10W-30 grade or better engine
oil. Otherwise, damage will not be covered by warranty.
yUse SAE 5W-40 engine oil when outside temperature is below 0℃
※Recommended Oil: SYM Genuine 4X OIL.
yOil Capacity :
TONIK 125CC : 0.75 Liter (0.60 liter for routine change).
TONIK 50CC: 0.80 Liter (0.65 liter for routine change).
oil filter change: 0.60～0.65 liters.
【Oil Filter Cleaning】
The oil filter nut assembly of the element, and remove the
element. Remove the foreign materials from the element by
using a gasoline or air spraying gun.
WARNING:
yOil level will not be correct when checking the oil level with
the motorcycle parked on an unleveled ground or
immediately after the engine stopped.
yEngine and exhaust pipe are hot right after engine stopped.
Pay special attention not to get burned when checking or
replacing engine oil.
yIf the oil lever approach lower limit again after refilled, check
the engine for leaks and refill it again.
yKeep away from spark and flames when refilling the oil.
§FUEL INSPECTION§
yTurn main switch key to “ON” position, and check fuel gauge’s needle range to make sure there is
enough amount of fuel in the fuel tank.
yThis motorcycle’s engine is designed for using the unleaded fuel of Octane 90 or above.
yFirmly secure the main stand on the ground, shut off the engine and keep flames away from the
motorcycle when refueling.
yDo not fill above fuel upper limit lever when refueling.
yMake sure the fuel tank cap had been tighten properly.
§TRANSMISSION OIL INSPECTION AND CHANGE§
INSPECTION:
yUse the main stand to support the motorcycle on a level ground, after the engine stops, wait for 3~5
minutes. Remove the transmission oil infusion bolt, put a measuring glass under the drain bolt, and
remove the drain bolt. Let the oil flows into measuring glass and check for decreased or not. (at
disassembly:110c.c/at change:100c.c.).
OIL REPLACEMENT:
yStop the engine and use the main stand to support your motorcycle on a lever ground. Remove the
infusion bolt and drain bolt, drain out the oil.
yInstall the drain bolt and tighten it. Fill new transmission oil (90~100c.c.), and install the infusion bolt
and tighten it. (make sure that bolts are tightened and check that there’s no leakage.)
yRecommend Oil: Genuine SYM HYPOLD GEAR OIL (SAE 85W-140).
Upper limit
Oil filter
Filter nut
Lower limit

15
10. INSPECTION AND MAINTENANCE BEFORE RIDING
§INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY§
INSPECTION: (Brake lever free play must checked with the engine shut off.)
yBrake lever and pedal free play for front and rear wheels.
◆If checking the hand-braking lever for front wheels, its free play (the stroke of hand-braking lever from
no braking to initial braking) should be 10~20mm. It is abnormal if the feel is spongy when holding the
hand-braking lever forcefully.
◆If checking the foot-braking pedal for rear wheels, its free play (the stroke of foot-braking pedal from no
braking to initial braking) should be 20~30mm. It is abnormal if the feel is spongy when press the
foot-braking pedal forcefully.
Adjustment:﹙Drum type﹚
yThe indentation of brake adjustment nut must be aligned with the pin. (see below figure)
yTurn the adjustment nut on brake arm of front and rear wheels to adjust the free play of hand-brake
lever.
yHold the hand-brake levers after adjusting with both hands until there is effective brake feeling.
yMeasure the free play with a ruler.
CAUTION:
When free play is between 10~20 mm, check brake indicators of front and rear wheels. If the arrow
on the brake arm aligned with the “△” marked on the brake disk, that means the brake lining has
been excessively worn, and must be replaced immediately.
To decrease
free play
To increase
free play
Adjustment nut Rear Wheel drum typeFront wheel drum type
10~20 mm
Rear Wheel hand-brake type
Pin
Adjustment nut
Wear limit mark

16 10. INSPECTION AND MAINTENANCE BEFORE RIDING
§DISK BRAKE INSPECTION§(applicable for model equipped with disc brake.)

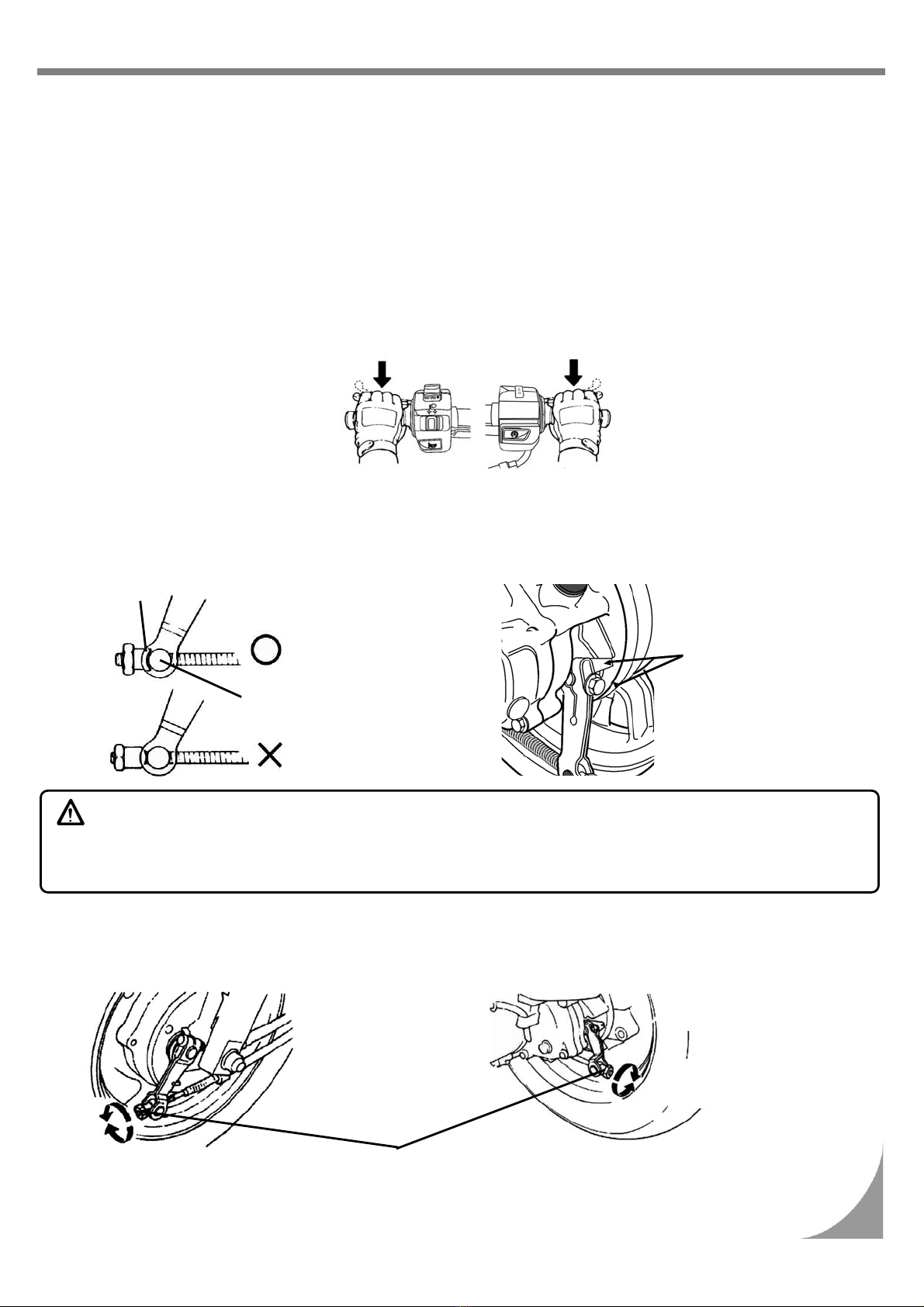

yVisual check brake lines for leakage, or damage, check
brake lines connections for looseness using a wrench or
similar tool, and check whether steering handle vibration in
driving, or any parts’ interference may have damage the brake
lines. If so, bring your motorcycle to your SANYANG dealer for
repairing or service.
（leak, damaged, looseness of brake line）
（Checking front brake lining）
ycheck the brake from behind the brake caliper.
The brake pad must be replaced with new
lining when the brake pad wear limit reaches
the brake disk.
（Checking oil quantity in brake oil reservoir）
yPark the motorcycle on a lever ground, and
check if fluid lever is under the “LOWER”
mark. Recommended Brake Fluid: WELL
RUN BRAKE OIL (DOT3 or DOT4 ).
（Replenishment of front wheel brake fluid）
1.Loosen the screws and remove the master cylinder
cover.
2.Wipe clean foreign materials, dirt around the reservoir,
being careful not to let foreign materials fall into the
reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper lever.
5.Install the diaphragm plate and the diaphragm, and
install the master cylinder cover.
6.please note the diaphragm direction, and do not let
foreign materials fall into the reservoir. And tighten the
master cylinder cover securely.
CAUTION:
yTO prevent chemical reaction, please do not use brake fluids other than those recommended.
yDo not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
CAUTION:
yPlease drive your motorcycle on a dry road surface
slowly and operate front and rear brakes in order to
find out if there is any malfunction so as to ensure
the motorcycle is at optimum condition and safe
ride. .
Brake disk
Brake calipe
r
Brake pad wear
limit grooves
Screw
Maste
r
cylinder cove
r
Diaphragm
Upper
Brake fluid

17
10. INSPECTION AND MAINTENANCE BEFORE RIDING

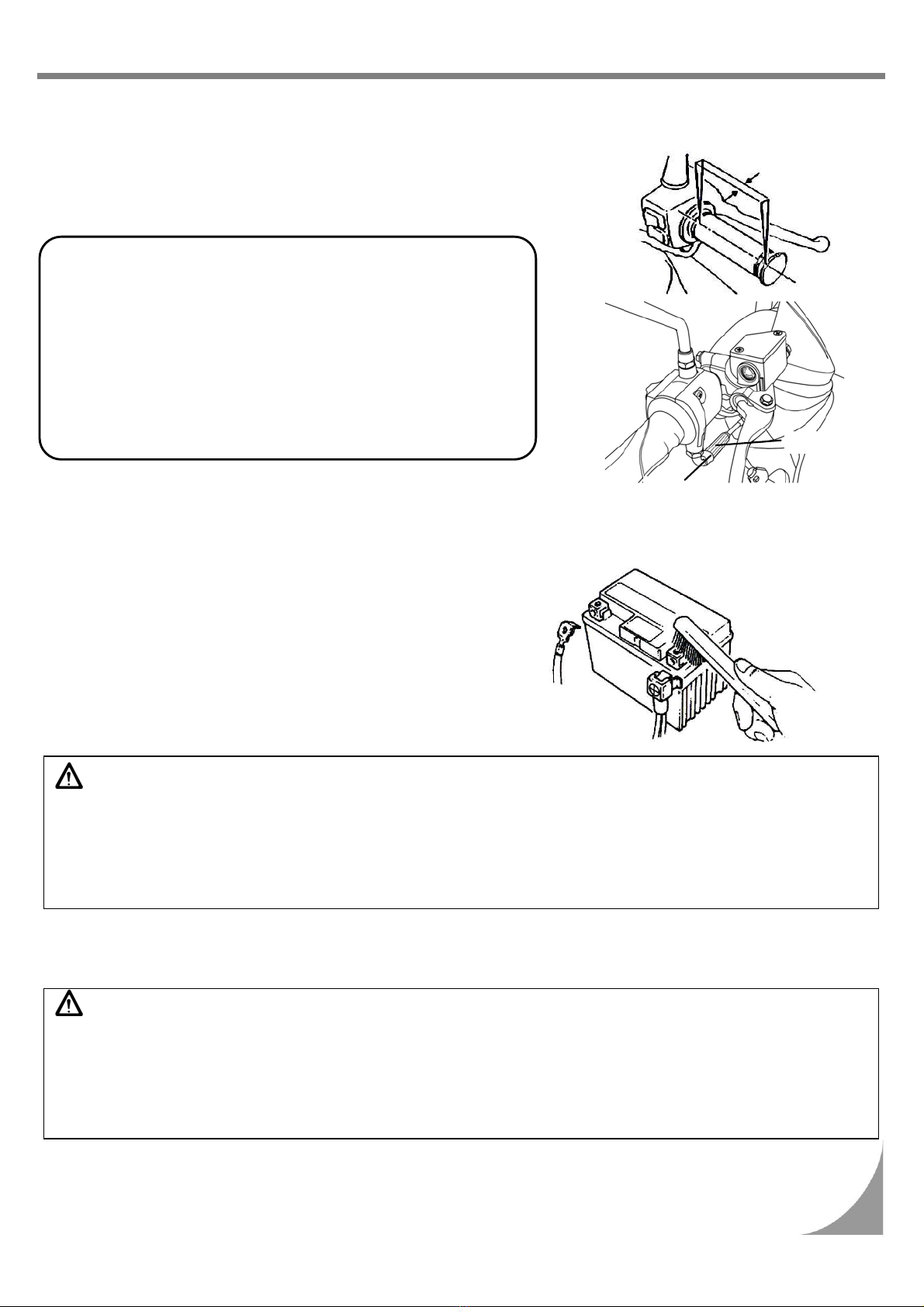

§THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT §
yCorrect clearance allows throttle vale handle to rotate
2~6mm.
yLoosen the lock nut first, then turn the adjust nut to adjust.
Tighten the lock nut securely when finished.
§INSPECTION AND MAINTENANCE OF BATTERY §
yThe motorcycle is equipped with a maintenance-free type battery, so it is unnecessary to check and
add electrolyte. Have your motorcycle checked by SYM Authorized Dealer or Franchised Dealer should
any abnormality is found.
﹙Cleaning of battery terminals﹚
yRemove the battery terminals and clean if there are
dirt and corrosion on them.
yBattery removal procedures are as follows:
Turn ignition switch to the “OFF” position, then
remove negative cable screw firstly and disconnect
the negative cable. Then, remove positive cable
screw and positive cable.
CAUTION:
yClean the battery posts with warm water if the posts are eroded and have some white powders on
them.
yIf there is an obvious erosion on the terminals, disconnect the cables, and then clean the erosion
off with a steel brush or a piece of sandpaper.
yInstall battery cable after cleaning and apply a thin coat of grease on the terminals.
yInstall battery in reverse order of removal.
yThe motorcycle is equipped with a maintenance-free type battery, so it is unnecessary to check and
add electrolyte. Have your motorcycle checked by SYM Authorized Dealer or Franchised Dealer should
any abnormality is found.
CAUTION:
yThis is a closed type battery. Never remove the caps.
yIn order to prevent electric leakage and self-discharge when the battery sits idle for long periods.
Remove battery from motorcycle, store it in well-ventilated and dimly lighted place after the battery
has been fully charged. Disconnect battery’s negative cable if the battery is still kept on the
motorcycle.
yIf the battery needs to be replaced, replace with a same closed-type battery (Maintenance-Free).
Check Items:
1. Check throttle valve cable to see if it can be moved
smoothly from a closed position to a wide open position.
2. Rotate steering handle from side to side to check if the
throttle valve cable is interfered.
3. Check to see if the throttle valve cable is obstructed by
other cables preventing it from being operated smoothly.
2~6 mm
Lock nut
Adjust nut
Negative
Positive

18 10. INSPECTION AND MAINTENANCE BEFORE RIDING

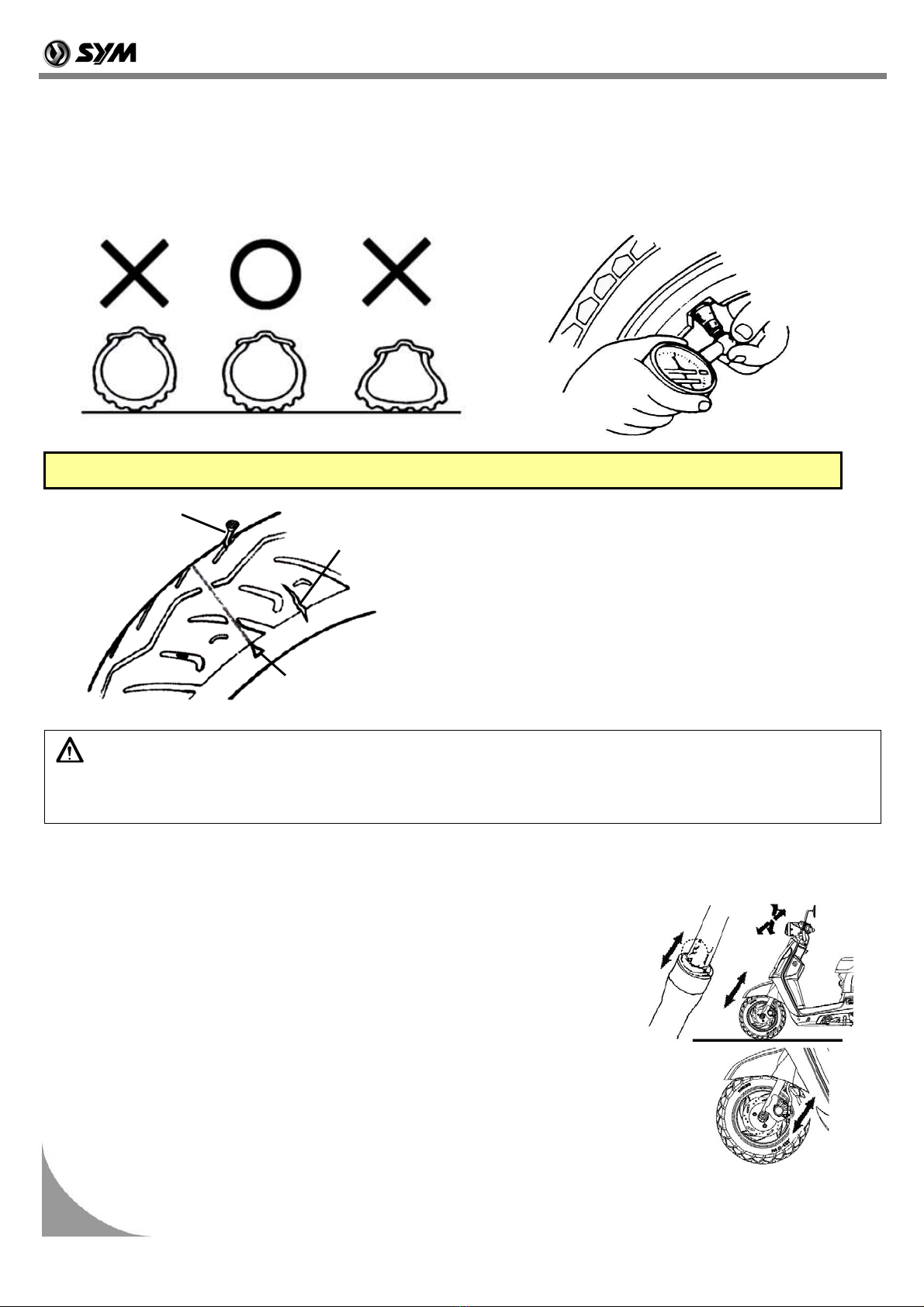

§TIRE INSPECTION §
yTires should be checked and inflated with the engine shut off.
yIf a tire’s ground contacting curve is abnormal, check it with an air pressure gauge and inflate it to the
specified pressure.
yTires pressure must be checked with an air pressure gauge when cold.
yVisual check tires for frontal and lateral side walls for
crack or damage.
yVisual check tires for any nails or small stones
wedged in the tread.
yCheck the “tread wear indicator” condition to see if
tread groove depth is insufficient.
yA tire with a wear bar showing is worn out and should
be replaced immediately.
CAUTION:
yAbnormal tire pressure, wear, or crack is the most important cause that results in the loss control
of the steering handle and a punctured tire(s).
§STEERING HANDLE FRONT SHOCK ABSORBERS INSPECTION §
yPerform this check with engine shut off and ignition switch key
removed.
yVisual check front shock absorbers for damage.
yOperate steering handle up and down, and check front shock
absorbers for noises due to bends.
yCheck the bolts and nuts of front shock absorbers with wrenches for
tightness.
yShake steering handle up & down, left & right, and front & rear to
check if it is loosen, has too much resistance and pulls to one side.
yCheck steering handle if it is being pulled too tight by the brake
cables.
yTake your motorcycle to SYM Authorized Dealer or Franchised
Dealer for a check or adjustment if any abnormal conditions are
found.
PLEASE REFER TO SPECIFICATIONS FOR STANDARD TIRE PRESSURE
Tread wear
indicator
Crack and
dama
g
e
Foreign materials
(nails or small
stones)

19
10. INSPECTION AND MAINTENANCE BEFORE RIDING

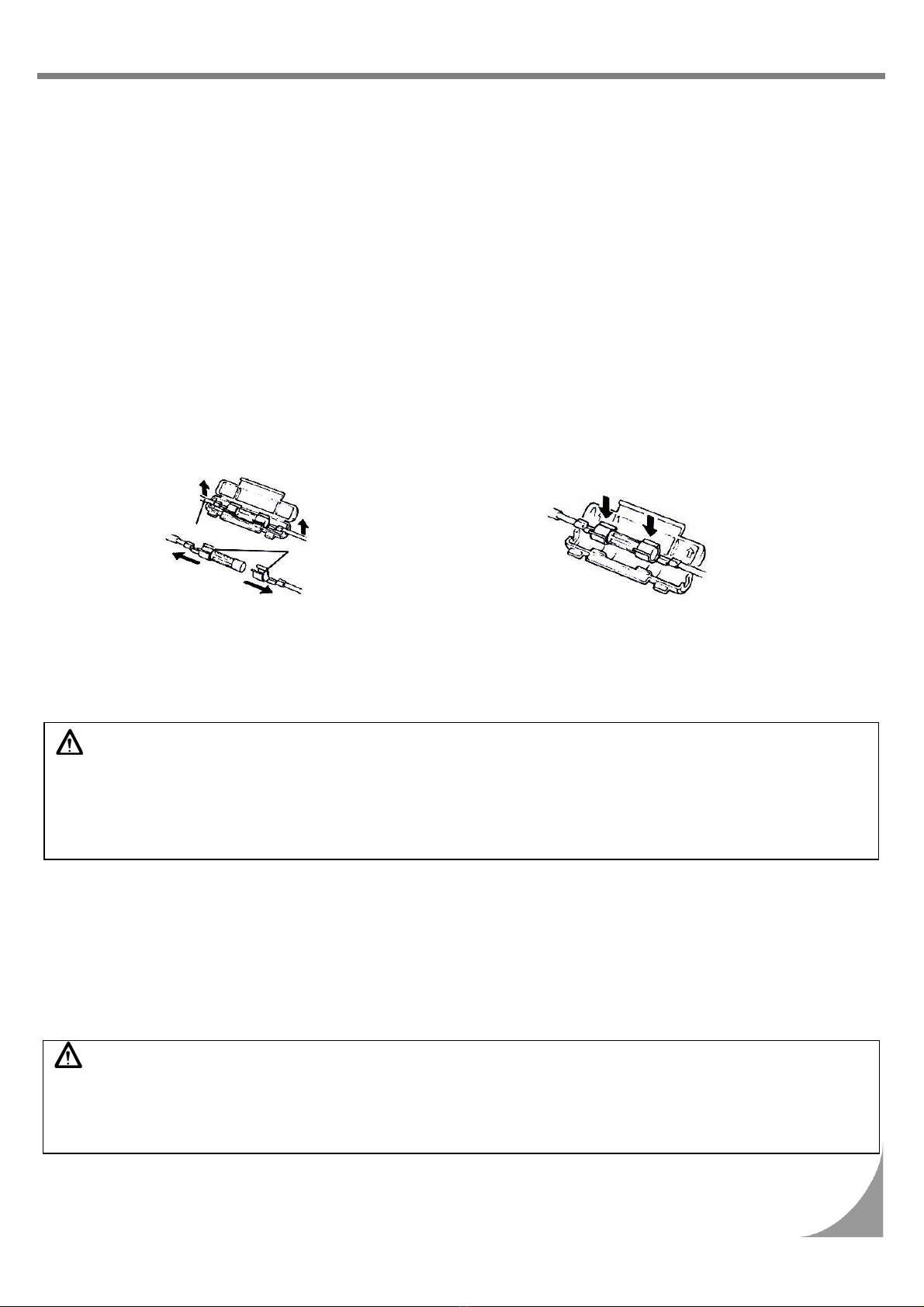

§CHECKING AND CHANGING FUSES §
Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the
same specified amperage rating (10A&15A). Using a fuse of more than 10A&15A amperes, a brass or iron
wire to replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the circuit.
yRemove the storage box, and you’ll find the fuse holder near battery.
yOpen the fuse box cover, and pull out the fuse. Check it for damage or broken.
yFuses must be firmly secured with wire connectors when replacing. Loose connections will result in
overhead and damage.
yUse only parts having the specified specification to replace electrical components such as light bulbs.
Using parts not having the specified specifications for replacement may cause the fuse to blow and
over-discharge the battery.
yAvoid spraying water directly on or around fuse box when washing the motorcycle.
yIf the new fuse burn out quickly again, please check the faulty reason before replace it again. Take
your motorcycle to your dealer for an inspection if a fuse is blown by unknown causes.
§CHECKING THE TURN SIGNAL LIGHTS AND HORN §
yTurn the ignition switch key to the “ON” position.
yTurn on the turn signal light switch, and make sure that the front & rear and left & right signal lights
flashes and also check if the warning buzzer sounds.
yCheck turn signal light covers if they are dirty, crack, or loosen.
yPress horn button to check if it works.
CAUTION:
ySpecified specification bulbs should be used for turn signal lights. Otherwise, the normal
operation of turn signal lights will be affected.
yTurn on the turn signal light before turning or switching lane to warn driver of vehicles behind.
yTurn off the turn signal light immediately by pressing its button down after using. Otherwise, the
flashing of twin signal lights may confuse the drivers of vehicles behind.
§CHECKING THE FRONT AND REAR LIGHTS §
yStart engine and turn on the head lamp switch. Check if head lamp and rear lamp come on.
yCheck the brightness and direction of front light by wall to see if it is correct.
yCheck the head lamp cover if it is dirty, crack, or loosen.
§CHECKING THE BRAKE LIGHT §
yTurn the ignition switch key to the “ON” position, hold the hand-braking levers for front and rear wheels.
Check if the brake lights come on.
yCheck the brake light cover if it is dirty, crack, or loosen.
CAUTION:
yUse only specified specification bulbs, do not use bulbs with different specifications to avoid
damaging electrical system, burning out bulbs, and discharging the battery.
yDo not modify or add other electrical components to prevent over load or short circuit which may
result in a fire and burn down the motorcycle in serious cases.
【INSTALLATION】
Press in from above
【REMOVE】
Wire Fuse connectors

20 10. INSPECTION AND MAINTENANCE BEFORE RIDING
§CHECKING FOR FUEL LEAKAGE§
yCheck fuel tank, fuel cup, fuel hose, carburetor for leakage.
§CHECKING THE LUBRICATION OF BODY’S VARIOUS MECHANISMS§
yCheckthebody’spivotpointsiftheyhaveenoughlubrication.
(for example, the pivot points on the main stand, the side stand, and the brake lever…etc.).
§CHECKING THE SPARK PLUG§
yRemove the cap of spark plug cable (remove the spark plug using
the spark plug wrench in the tool kit.
yCheck the electrode if it is dirty or fouled by carbon deposits.
yRemove the carbon deposits on the electrode with steel wire, and
clean the spark plug with gasoline, then, wipe dry with a rag.
yCheck the electrode, and adjust its gap to 0.6~0.7 mm. (Check it
with a feeler gauge)
yHand tight the spark plug as far as it can go and then tighten it
another 1/2~3/4 turns with a wrench.
yTighten torque Value:1.2~1.2kmf-m.
WARNING:
The engine is very hot after running. Pay attention not to get burned.
※Use only spark plugs suitable for the engine specifications of this motorcycle recommended by the
manufacturer. (Refer to specifications.)
§CHECKING THE AIR CLEANER §
《DISASSEMBLE PRCEDURE》
1. Remove mounting screws from air cleaner cover.
2.Remove the air cleaner cover, then remove filter element.
3.Take the element out and clean it. (Refer to maintenance
schedule.)
《DISASSEMBLE PRCEDURE》
yAssemble the air cleaner in reverse order of disassemble.
CAUTION:
yDust deposit is one of the major causes of reducing output horsepower and increasing fuel
consumption.
yChange the air cleaner element more frequently to prolong the engine’s service life if the
motorcycle is driven on dusty roads very often.
yIf air cleaner is installed improperly, dust will be absorbed into cylinder, which may cause a
premature wear and reducing output power and engine life.
yBe careful not to soak the air cleaner when washing the motorcycle. Otherwise, it will cause
engine hard to start.
0.6~0.7 mm
Screws
Element
