Hill Laboratories HA90W User manual

REFERENCE MANUAL
Hill 90W
Wound Care
Chair

ill Laboratories has been making quality a family business since 1945.
Your new A90W Wound Care Chair is built on an established ill tradition
of innovation and value. Our reputation rests on the confidence that
your ill Chair will strengthen this legacy and provide you with solid,
reliable service for many years to come.
And welcome to the ill Laboratories family
Congratulations!
IMPORTANT!
Your ill Table or Chair has advanced electronics with critical
functions that are controlled by a circuit board.
Since electrical spikes, surges and undervoltage can be
detrimental to electronic components, we require, in order
to maintain your warranty, that you protect your table with
an automatic voltage regulator.
The APC LE1200 voltage regulator, rated at 1200 VA, is one
example of a device that provides a minimum level of
required protection.

Your ill Laboratories Wound Care Chair has been thoroughly tested and inspected
before shipment. All parts are guaranteed against defect in materials for one full
year from date of purchase. During this period, any such defect will be remedied
by ill Laboratories or by a factory-authorized repair service without charge.
Tables damaged by mishandling or accident will be
repaired at a reasonable charge.
All correspondence should be directed to your local dealer, or when this is not
possible, to ill Laboratories directly.
We appreciate your business and your confidence in our product. Our aim is to
provide you with excellent service and satisfaction for many years to come.
President of ill Laboratories Company
Table Serial Number_______________________________
The ill Laboratories Guarantee
At Your Service

Ready for use
3
Protective
crylic b se
Encloses all
interior parts
Electric Foot Ped ls
for height, tilt, back and foot
Electric B ck
controlled by foot pedal
Stirrups
Quickly insert and remove
F ce Cut-Out
with insert
Electric Tilt Se t
for Trendelenburg,
controlled by foot pedal
Fold-B ck
Armrests
optional inserts
shown right
Electric Tilt,
M nu lly Extending
Foot Section
(See next section for use)
Recept cle
for lamp or other
accessories
Specifications
Table Rating
600 lbs./ Static Tested at 8x Rating/Rated at 250 lbs.*
Height Range - 22"- 32"
Standard Width - 26", optional 30"
Length Reclined - 71", Extends to 79"
Table Base Skirting
Acrylic thermo-plastic
Foam
Ultra-Cell®for comfort and shape retention
Shipping Weight
Approximately 250 lbs
Electric Requirements
115 v~ 60 z. 10 A, where specified - 230 v~, 50 z.
Receptacles in base - 250 Watt maximum
Note: Grounding reliability can only be achieved
when the equipment is connected to an equivalent
receptacle marked hospital only or hospital grade.
There is no EMI concern related to the safe opera-
tion of this table.
Transportation and Storage Conditions
Ambient Temper ture R nge:
-30°C to +60°C (-22°F to 140°F)
Rel tive Humidity
0% to 90% (non-condensing)
*We have tested this model at 600 pounds. The UL standard requires static load testing at four times the rating stated on
the label. The static load test was 1000 lbs. making the label rating 250 lbs.
Adjust ble
Leveling
Feet

Table Care
4
Special Caution:
To avoid injury or damage to the chair, NEVER SIT OR LEAN ON T E FOOT SECTION
W EN IT IS RAISED TO T E ORIZONTAL POSITION. The foot section is designed to sup-
port a seated patient’s feet and lower legs only. To prevent any problem from occuring,
adjust the foot section down before a patient exits the chair.
~
Attention Symbol
consult accompanying
documents
D ngerous Volt ge
Symbol
Type BF Applied
P rt Symbol
Ground
Symbol
Altern ting Current
Symbol
Table Care
C eaning your Tab e
Standard Upho stery - Norma Care and C eaning
Remove ordinary dirt and smudges with a mild soap and water solution and a clean soft cloth or towel. Dry with a soft lint-free
cloth or towel.
Hi Laboratories a so offers two exce ent products, both avai ab e on ine at Shop.Hi Labs.com:
• ill Leather and Vinyl Cleaner (available in case of 4)
• Protex Disinfectant Spray (available in case of 4 and wipes)
For difficu t stains, after using Hi Leather and Viny C eaner, use one of the fo owing non-abrasive c eaners with a soft c oth or damp
sponge:
• Formula 409 All-Purpose Cleaner
• Fantastik Spray Cleaner
• Magic Eraser
Caution! Never use bleach, abrasive powder, steel wool, industrial strength or solvent cleaners.
Finesse Upho stery - Norma Care and C eaning
Remove most ordinary smudges and dirt with a mild soap (like Joy, Dove or Ivory dishwashing
liquids) and water solution and a clean soft cloth or towel. Dry with a soft lint-free cloth or towel.
Hi Laboratories a so offers two exce ent products, both avai ab e on ine at Shop.Hi Labs.com:
• ill Leather and Vinyl Cleaner (available in case of 4)
• Protex Disinfectant Spray (available in case of 4 and wipes)
For more difficu t stains ike oi , grease, crayon, ipstick, shoe or furniture po ish
Use a mild petroleum solvent such as naphtha (lighter fluid) or mineral spirits (paint thinner). Lightly wipe the stain with a clean
cloth moistened with solvent. Blot the area and allow to dry.
For Ink: Use one part Wisk detergent and one part rubbing alcohol. Dab lightly with a cloth which has been moistened with the
solution—DO NOT RUB! As the ink loosens, blot the area with a dry cloth. Rinse with a cloth dampened in clean water and dry
with a soft cloth.
Caution! Never use rubbing alcohol on Finesse except in the limited manner described above.
Caution and Symbo Exp anation
Caution: Children should never be left alone in a room with the table but should always be accompanied by an adult.
Caution: Always unplug the table before performing any maintenance.
Caution: Check table once a year to make sure all internal and external bolts are secure.
Caution: The power cord should be located to avoid risk of tripping or having objects rolled over or placed on it. Damaged
cords should be replaced with another of hospital grade.
Caution: Grounding reliability can only be achieved when connected to an equivalent receptacle marked hospital only or hospi-
tal grade.
Symbo s - Each symbo s be ow is used in your tab e abe ing. An exp anation of each is be ow.

Table Features
Extending the
Foot Section
The adjusting foot section
extends to support a patient’s
legs a full 8 inches. To adjust,
locate the black handle under
the right side of the cushion (see photo 1). Pull the spring-loaded handle out and hold in
position while, with your other hand, pull the foot cushion to the desired length. Release the
handle so that the mechanism inserts securely into one of the preset hole positions.
R ted t 20 pounds nd tested with 160 pounds.
Stirrup (option l)
Your ill 90W Chair may be equipped with a stirrup/calf-
support accessory (photo 3 or 3B). These can be inserted
into the right or the left receiver located at the front of the
foot section (Photo 4). To insert, loosen the handle on the
receiver (“A”, Photo 4), push the stirrup in to
the desired length, and tighten the handle.
Length of the stirrup can also be adjusted
similarly with the top handle adjustment (“B”,
photo 4). To adjust calf-support to up or
down position, pull handle (“C”, Photo 3B),
adjust position of support, then release handle.
R ted t 10 pounds nd tested with 80
pounds.
Armrest Inserts
Armrest Inserts (optional) provide
sturdy forearm positioning for
thinner patients. The inserts slide
easily in and out of receivers found
on the inside of each armrest.
Adjust ble Leveling Feet
Adjustable leveling feet are adjusted by turning clockwise to decrease the
height and counterclockwise to increase the height.
Foot Section
Mechanism shown
from below.
Pulls out to adjust.
Photo 1
Photo 2
Photo 3B
Photo 4
Stirrup can be
inserted into
the right or the
left receiver.
Photo 6
Photo 5
A
B
5
Photo 3
C

Table Features
F ce-Cut Out with
Insert
Your ill Wound Care Chair come
standard with a face-cut-out for
face-down procedures. The insert
or filler-block slides easily into the
cut-out when not in use.
Fold-Down
Armrests
When the fold-down armrests are posi-
tioned in the normal position (as shown in
Photo 10 below), they can be easily folded
back by simply lifting from the bottom
until the armrests are parallel with the
back seat cushion as shown to the left.
Rated at 10 pounds and tested with 80 pounds.
Foot Ped ls
Your Wound Care Chair has four separate foot pedals mounted together on one convenient
control. The far left pedal is marked B ck and independently controls the angle of the back
cushion. The middle-left pedal is labeled Tilt and controls the tilt angle of the seat cushion
(Caution: The lift back cushion needs to be tilted up a minimum of 15° in order to tilt the
table into the trendelenburg position. To avoid injury or
damage, the lift back should not be operated without the
flat plastic panel in place on top of the plastic enclosure.
See photo 10.). The middle-right pedal is marked Height
and controls the movement of the table base up and down.
The far right pedal is labeled Foot. This pedal controls the angle
of the foot section from horizontal position to 90° perpendicular.
Photo 10
Photo 9
Photo 8Photo 7
6

Diagrams
7
32”
22”
32” 23 3/8” 14 1/2” 8”
34” or 38” 26” or 30”
3°
65°
-3°
-89°
35° (with back at 35+°)
2°
Height Range

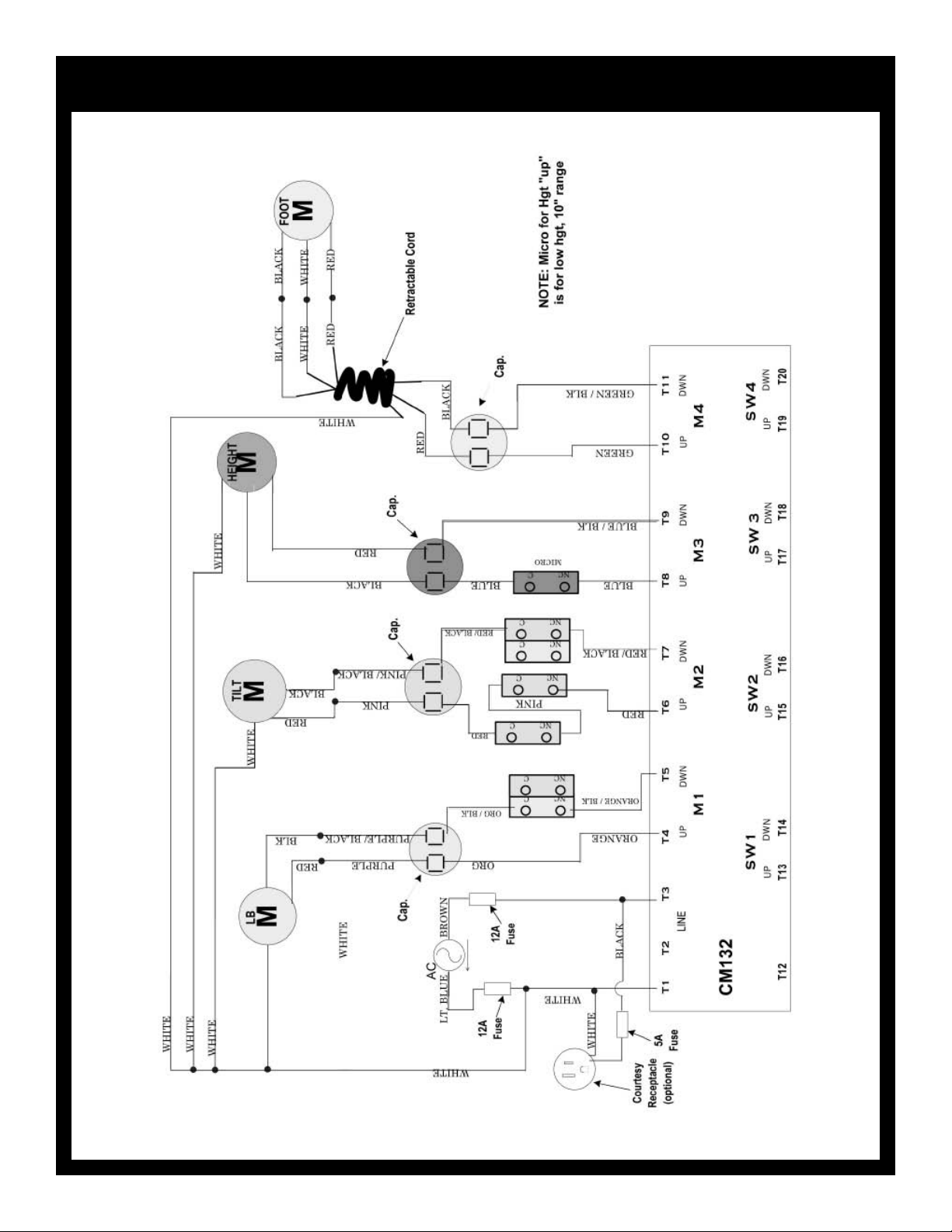

Wiring Diagrams
8
Part 1

Wiring Diagrams
9
Part 2

Additiona service needed?
Contact your oca dea er or reach us direct y:
Phone: [phone] • Fax: [phone] • Email: Support@ illLabs.com
Technicians are avai ab e 9 am - 4 pm E.S.T., Monday - Friday.

90D Dermatology
Chair
Podiatry Model
90MD
A90E
PT Tilting
AFT Automatic
Flexion
Mat Table
A90 Lift Back
A90
Anatomotor
Massage w/Traction
Tables Manufactured by Hill Laboratories
Air90C
i-Lo
Air-Flex
w/4 Drops
A90V Tilt
Vascular/Diagnostic
Rath Mechanical
McKenzie Technique
PT Mobilization
Repex Table
McKenzie Technique
Counterstrain
(multi-positional)
90W Wound Care Chair
F54 Plus
ands-Free Ultrasound

P.O. Box 2028, 3 Bacto Hill Road, Frazer, PA 19355 • pho e 1-877-445-5020 • 610-644-2867 • fax [phone] • www.HillLabs.com
