Hitachi D-3300M User manual

~,
¢

e

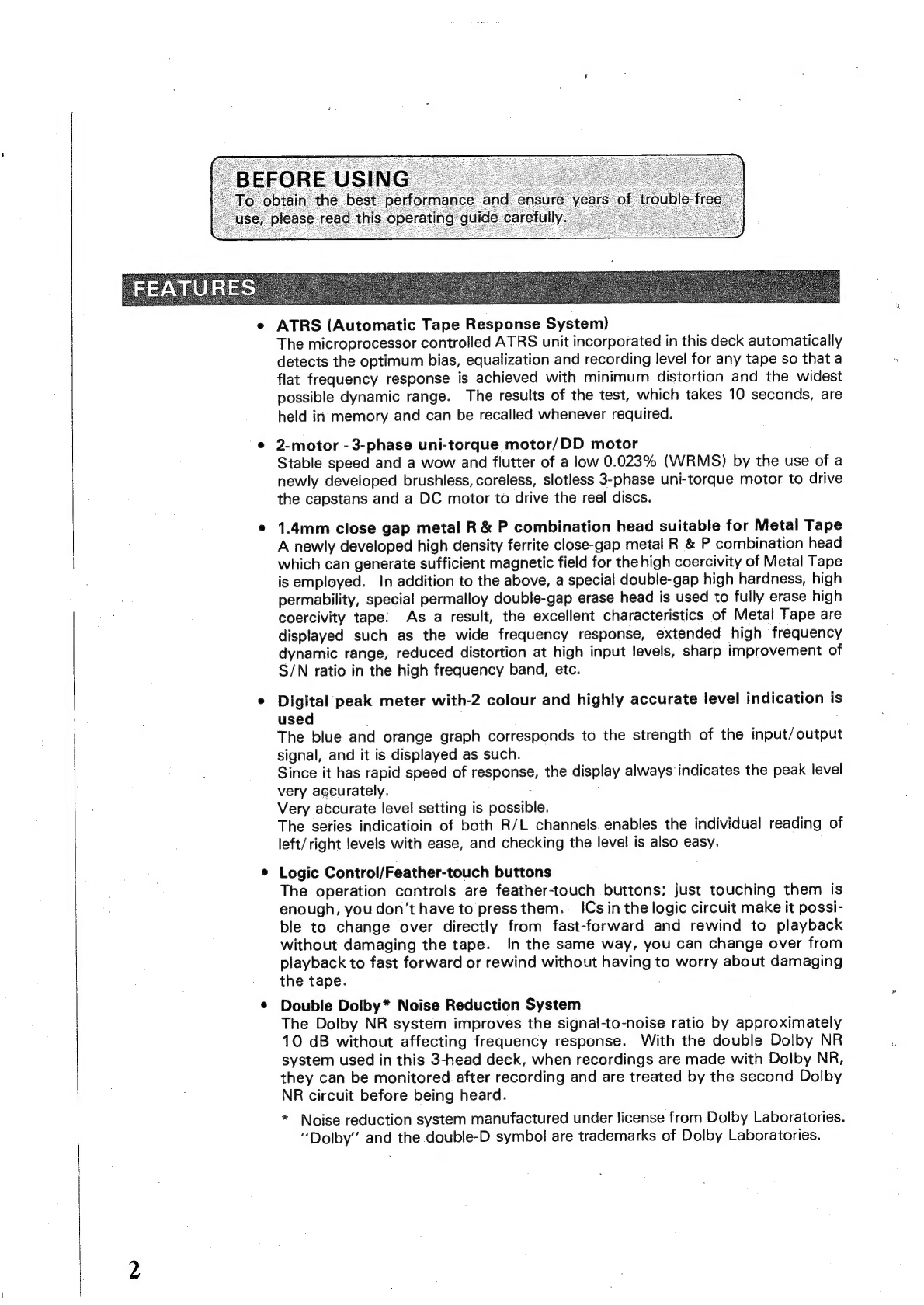

ATRS
(Automatic
Tape
Response
System)
The
microprocessor
controlled
ATRS
unit
incorporated
in
this
deck
automatically
detects
the
optimum
bias,
equalization
and
recording
level
for
any
tape
so
that
a
flat
frequency
response
is
achieved
with
minimum
distortion
and
the
widest
possible
dynamic
range.
The
results
of
the
test,
which
takes
10
seconds,
are
held
in
memory
and
can
be
recalled
whenever
required.
2-motor
-
3-phase
uni-torque
motor/DD
motor
Stable
speed
and
a
wow
and
flutter
of
a
low
0.023%
(WRMS)
by
the
use
of
a
newly
developed
brushless,
coreless,
slotless
3-phase
uni-torque
motor
to
drive
the
capstans
and
a
DC
motor
to
drive
the
reel
discs.
1.4mm
close
gap
metal
R
&
P
combination
head
suitable
for
Metal
Tape
A
newly
developed
high
density
ferrite
close-gap
metal
R
&
P
combination
head
which
can
generate
sufficient
magnetic
field
for
the
high
coercivity
of
Metal
Tape
is
employed.
In
addition
to
the
above,
a
special
double-gap
high
hardness,
high
permability,
special
permalloy
double-gap
erase
head
is
used
to
fully
erase
high
coercivity
tape.
As
a
result,
the
excellent
characteristics
of
Metal
Tape
are
displayed
such
as
the
wide
frequency
response,
extended
high
frequency
dynamic
range,
reduced
distortion
at
high
input
levels,
sharp
improvement
of
S/N
ratio
in
the
high
frequency
band,
etc.
Digital
peak
meter
with-2
colour
and
highly
accurate
level
indication
is
used
The
blue
and
orange
graph
corresponds
to
the
strength
of
the
input/output
signal,
and
it
is
displayed
as
such.
Since
it
has
rapid
speed
of
response,
the
display
always
indicates
the
peak
level
very
accurately.
-
Very
accurate
level
setting
is
possible.
The
series
indicatioin
of
both
R/L
channels.
enables
the
individual
reading
of
left/right
levels
with
ease,
and
checking
the
level
is
also
easy.
Logic
Control/Feather-touch
buttons
The
operation
controls
are
feather-touch
buttons;
just
touching
them
is
enough,
you
don’t
have
to
press
them.
ICsin
the
logic
circuit
make
it
possi-
ble
to
change
over
directly
from
fast-forward
and
rewind
to
playback
without
damaging
the
tape.
In
the
same
way,
you
can
change
over
from
playback
to
fast
forward
or
rewind
without
having
to
worry
about
damaging
the
tape.
:
Double
Dolby*
Noise
Reduction
System
The
Dolby
NR
system
improves
the
signal-to-noise
ratio
by
approximately
10
dB
without
affecting
frequency
response.
With
the
double
Dolby
NR
system
used
in
this
3-head
deck,
when
recordings
are
made
with
Dolby
NR,
they
can
be
monitored
after
recording
and
are
treated
by
the
second
Dolby
NR
circuit
before
being
heard.
*
Noise
reduction
system
manufactured
under
license
from
Dolby
Laboratories.
“Dolby”
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories.

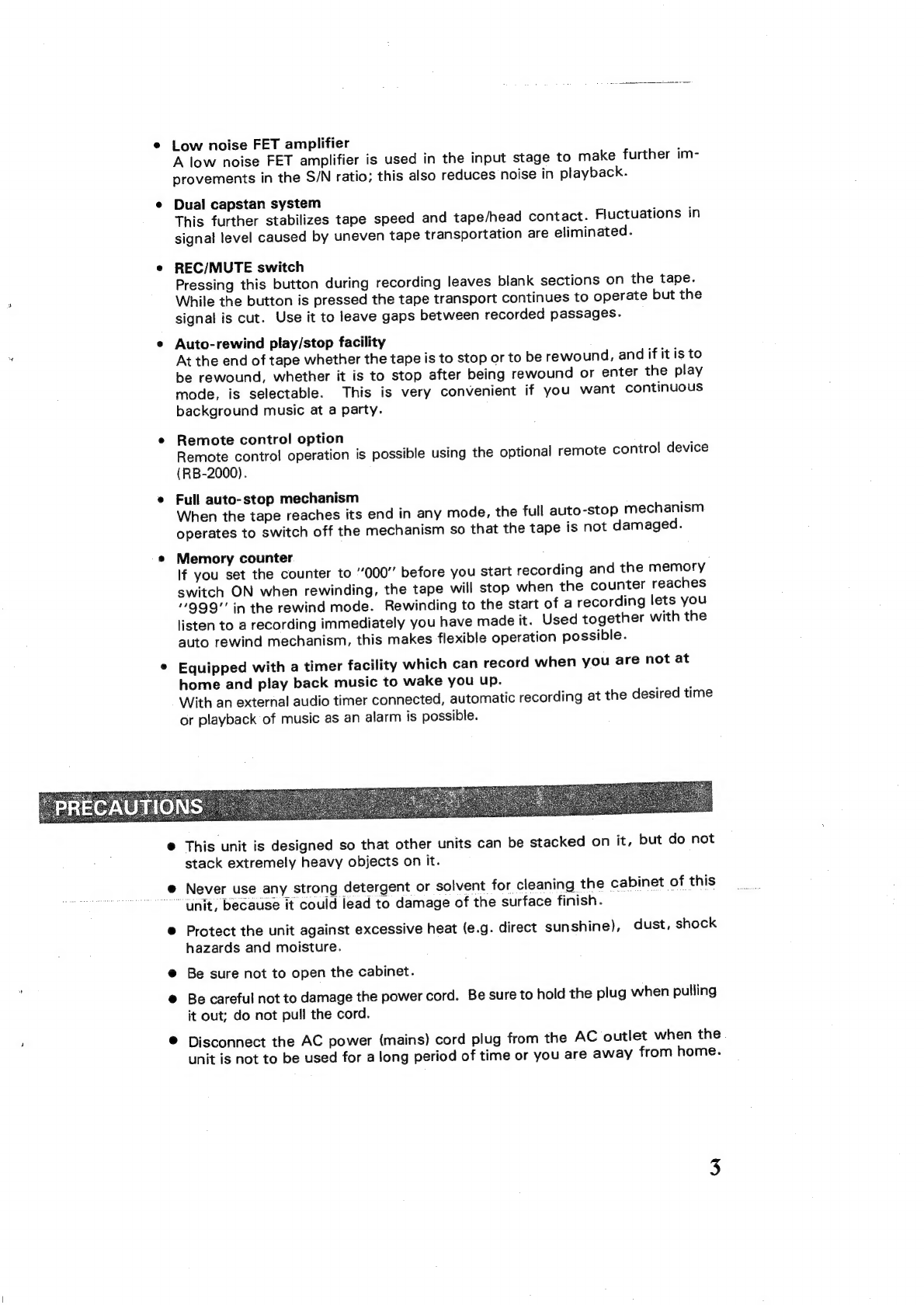

Low
noise
FET
amplifier
A
low
noise
FET
amplifier
is
used
in
the
input
stage
to
make
further
im-
provements
in
the
S/N
ratio;
this
also
reduces
noise
in
playback.
Dual
capstan
system
This
further
stabilizes
tape
speed
and
tape/head
contact.
Fluctuations
in
signal
level
caused
by
uneven
tape
transportation
are
eliminated.
REC/MUTE
switch
Pressing
this
button
during
recording
leaves
blank
sections
on
the
tape.
While
the
button
is
pressed
the
tape
transport
continues
to
operate
but
the
signal
is
cut.
Use
it
to
leave
gaps
between
recorded
passages.
Auto-rewind
play/stop
facility
At
the
end
of
tape
whether
the
tape
is
to
stop
or
to
be
rewound,
and
if
it
is
to
be
rewound,
whether
it
is
to
stop
after
being
rewound
or
enter
the
play
mode,
is
selectable.
This
is
very
convenient
if
you
want
continuous
background
music
at
a
party.
Remote
control
option
:
Remote
contro!
operation
is
possible
using
the
optional
remote
control
device
(RB-2000).
Full
auto-stop
mechanism
:
When
the
tape
reaches
its
end
in
any
mode,
the
full
auto-stop
mechanism
operates
to
switch
off
the
mechanism
so
that
the
tape
is
not
damaged.
Memory
counter
If
you
set
the
counter
to
000’
before
you
start
recording
and
the
memory
switch
ON
when
rewinding,
the
tape
will
stop
when
the
counter
reaches
1999"
in
the
rewind
mode.
Rewinding
to
the
start
of
a
recording
lets
you
listen
to
a
recording
immediately
you
have
made
it.
Used
together
with
the
auto
rewind
mechanism,
this
makes
flexible
operation
possible.
Equipped
with
a
timer
facility
which
can
record
when
you
are
not
at
home
and
play
back
music
to
wake
you
up.
With
an
external
audio
timer
connected,
automatic
recording
at
the
desired
time
or
playback
of
music
as
an
alarm
is
possible.
This
unit
is
designed
so
that
other
units
can
be
stacked
on
it,
but
do
not
stack
extremely
heavy
objects
on
it.
Never
use
any
strong
detergent
or
solvent
for
cleaning
the
cabinet
of
this
unit,
because
it
could
lead
to
damage
of
the
surface
finish.
Protect
the
unit
against
excessive
heat
(e.g.
direct
sunshine),
dust,
shock
hazards
and
moisture.
@
Be
sure
not
to
open
the
cabinet.
©
Be
careful
not
to
damage
the
power
cord.
Be
sure
to
hold
the
plug
when
pulling
it
out;
do
not
pull
the
cord.
Disconnect
the
AC
power
(mains)
cord
plug
from
the
AC
outlet
when
the
unit
is
not
to
be
used
for
a
long
period
of
time
or
you
are
away
from
home.

Wim
OOgAIGo
itil
MNOOOCoAS,
QDHWVIWOMD
OY
BO YW
@

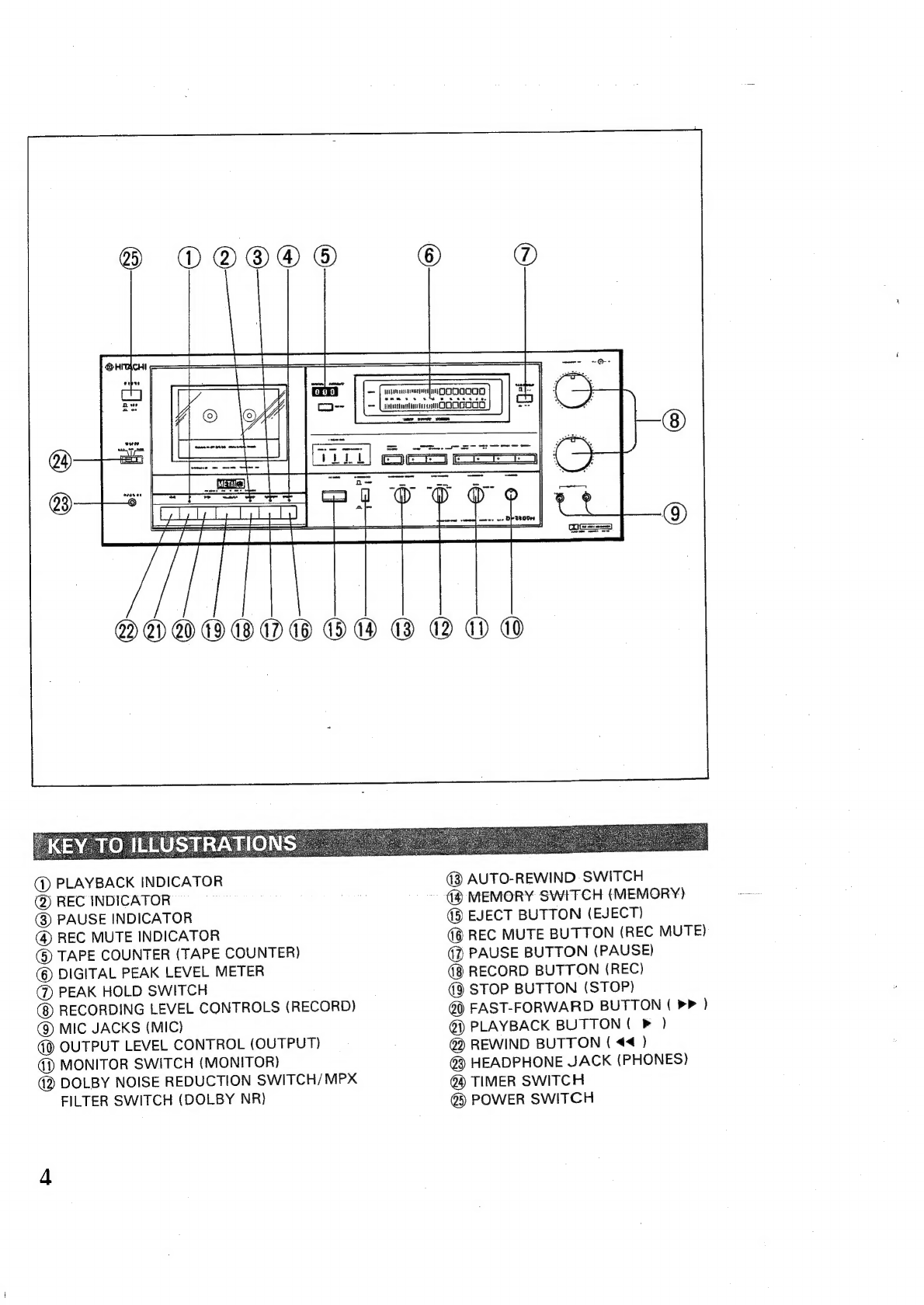

PLAYBACK
INDICATOR
@)
REC
INDICATOR
@)
PAUSE
INDICATOR
@)
REC
MUTE
INDICATOR
()
TAPE
COUNTER
(TAPE
COUNTER)
@
DIGITAL
PEAK
LEVEL
METER
@
PEAK
HOLD
SWITCH
RECORDING
LEVEL
CONTROLS
(RECORD)
@)
MIC
JACKS
(MIC)
OUTPUT
LEVEL
CONTROL
(OUTPUT)
()
MONITOR
SWITCH
(MONITOR)
2
DOLBY
NOISE
REDUCTION
SWITCH/MPX
FILTER
SWITCH
(DOLBY
NR)
(3
AUTO-REWIND
SWITCH
MEMORY
SWITCH
(MEMORY)
(3
EJECT
BUTTON
(EJECT)
REC
MUTE
BUTTON
(REC
MUTE)
(
PAUSE
BUTTON
(PAUSE)
RECORD
BUTTON
(REC)
STOP
BUTTON
(STOP)
@)
FAST-FORWARD
BUTTON
(
>>
}
@)
PLAYBACK
BUTTON
(
>
)
@)
REWIND
BUTTON
(
44
)
@)
HEADPHONE
JACK
(PHONES)
@)
TIMER
SWITCH
@)
POWER
SWITCH

RECORD
.-@-r
332.6
@
BATTERY
INDICATOR
(BATT)
@)
TEST
INDIGATORS

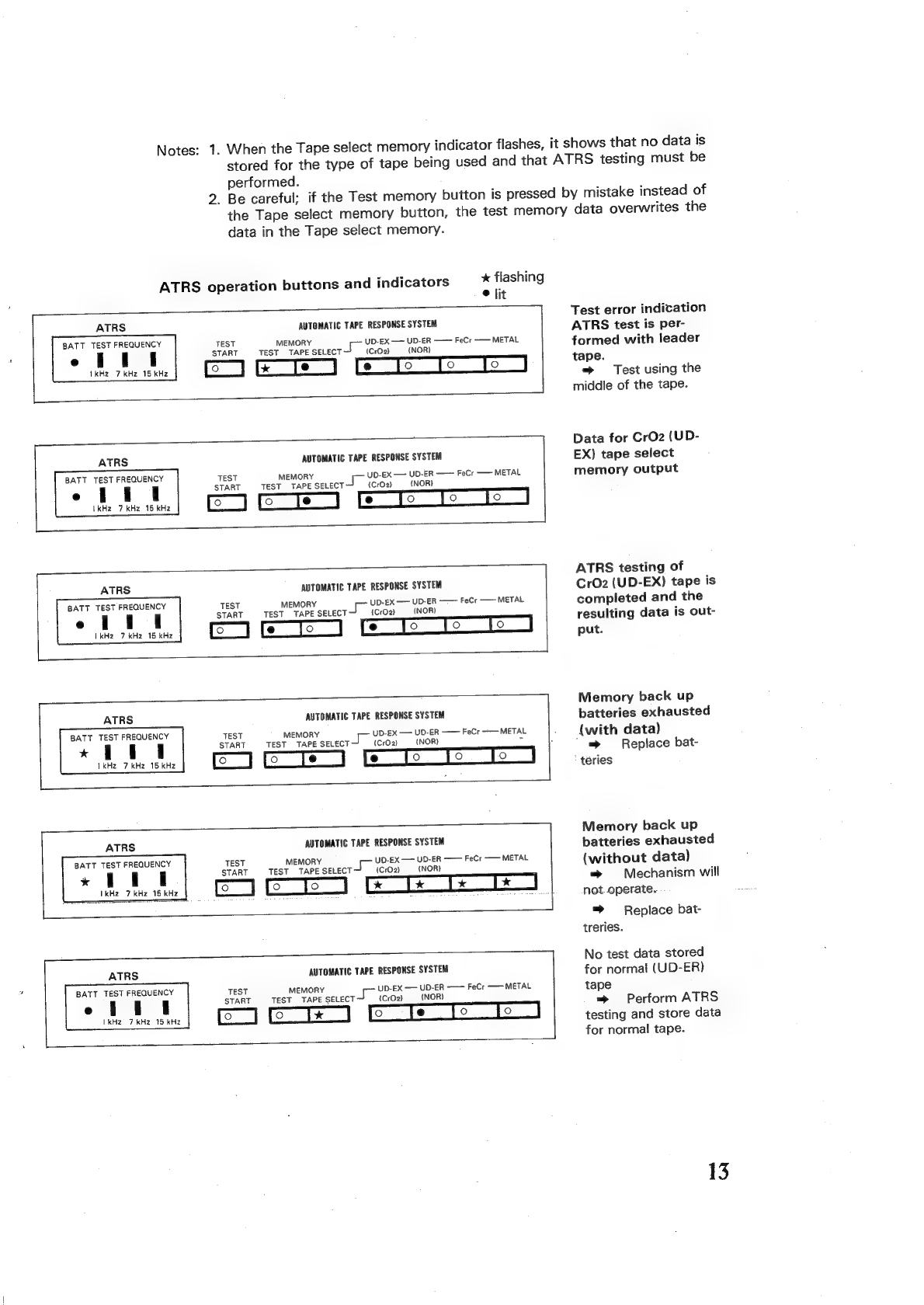

TEST
START
BUTTON
(TEST
START)
@)
TEST
MEMORY
BUTTON
TAPE
SELECT
MEMORY
BUTTONS
6)
TAPE
SELECT
BUTTONS
@D
INPUT
JACKS
(LINE
IN)
@3
OUTPUT
JACKS
(LINE
OUT)
@4)
REMOTE
CONTROL
JACK
@)
MEMORY
BACK-UP
BATTERY
HOUSING
66)
DIN
(REC/PLAY)
JACK
6?)
VOLTAGE
SELECTOR

PEAK
HOLD
SWITCH
The
peak
level
can
be
held
using
this
switch.
REC
MUTE
SWITCH
(REC
MUTE)
When
this
switch
is
pressed
during
recording,
the
tape
continues
running
but
no
signal
is
recorded.
This
is
convenient
so
as
not
to
record
commercials,
etc.
and
to
leave
gaps
between
recordings.
DOLBY
NOISE
REDUCTION
SWITCH/MPX
FILTER
SWITCH
(DOLBY
NR)
Set
this
to
the
appropriate
position.
ON/MPX
OFF:
For
recording
program
sources
other
than
FM
broadcasts
via
Dolby
NR
circuit
or
to
play
back
tapes
recorded
via
Dolby
NR
circuit.
ON/MPX
ON:
For
recording
FM
broadcasts
via
Doiby
NR
circuit.
OFF:
For
recording
or
playing
back
without
Dolby
NR
circuit
and
for
playing
back
tapes
recorded
without
Dolby
NR.
MONITOR
SWITCH
(MONITOR)
Since
a
3-head
system
is
used
in
this
unit,
the
recorded
signal
can
be
played
back
immediately
after
it
has
been
recorded.
TAPE:
Sounds
recorded
on
the
tape
can
be
monitored
as
playback
sound
via
the
amp.
*Be
sure
to
set
the
switch
to
‘’TAPE”’
for
playback.
When
it
is
set
to
‘“SOURCE”’,
no
sound
will
be
heard.
SOURCE:
The
source
sound
can
be
monitored.
RECORDING
LEVEL
CONTROLS
(RECORD)
These knobs
adjust
the
recording
levels
of
the
left/right
channels
of
the
source
to
be
recorded.
MIC:
For
recording
from
the
microphones
jacks
(MIC)
or
DIN
(REC/PLAY)
jack.
LINE:
For
recording
from
the
input
jacks
(LINE
IN).
OUTPUT
LEVEL
CONTROL
(OUTPUT)
This
is
used
to
adjust
the
output
levels
of
the
output
jacks
(LINE
OUT)
and
the
headphones.
For
convenience,
use
this
control
to
set
the
output
to
the
same
level
as
that
of
the
tuner,
etc.;
thereafter
control
the
output
volume
with
the
amplifier’s
controls.

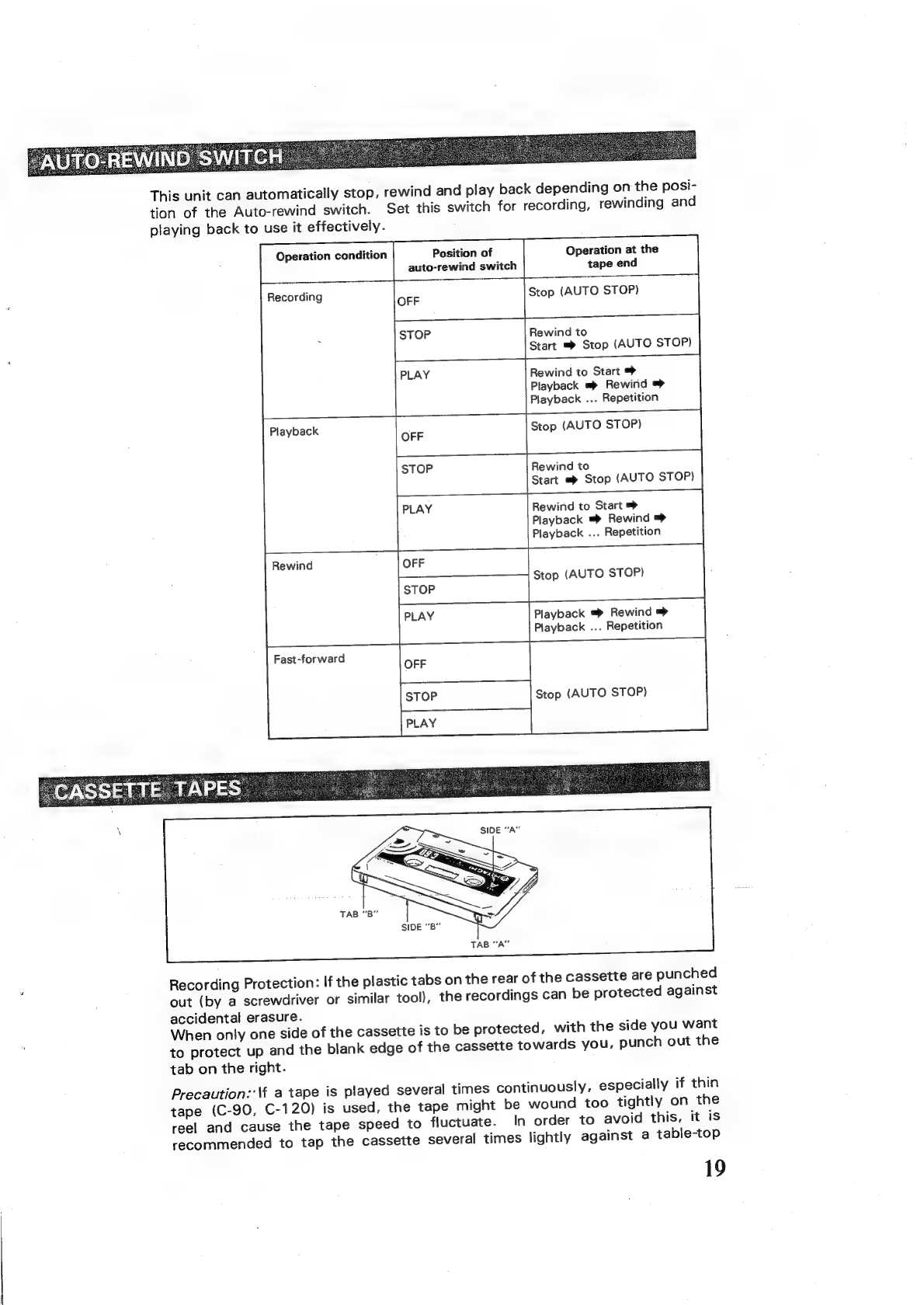

AUTO-REWIND
SWITCH
(AUTO
REWIND)
This
switch
is
used
to
select
the
operation
at
end
of
tape.
STOP:
The
tape
is
automatically
rewound
to
the
tape
start
and
the
deck
enters
the
stop
mode.
OFF:
The
deck
enters
the
stop
mode.
PLAY:
The
tape
is
automatically
rewound
to
the
tape
start
and
the
deck
enters
the
playback
mode
when
rewind
is
completed.
MEMORY
SWITCH
(MEMORY)
Press
the
reset
button
of
tape
counter
®)
to
set
it
to
‘‘O000”’
when
starting
the
recording.
When
the
tape
is
rewound
with
this
switch
set
to
“ON”,
the
tape
automatically
stops
when
the
counter
reaches
‘’999’’.
TEST
START
BUTTON
(TEST
START)
Press
this
button
for
testing
using
the
ATRS.
TEST
INDICATORS
: ;
In
testing,
as
test
progresses
the
|
kHz,
7
kHz
and
15
kHz
indicators
light
in
sequence.

BATTERY
INDICATOR
(BATT)
This
flashes
when
the
memory
back-up
batteries
are
exhausted.
TEST
MEMORY
BUTTON
Press
this
to
recall
the
data
for
the
last
tape
tested.
TAPE
SELECT
MEMORY
BUTTON
Press
this
to
use
the
tape
select
memory.
TAPE
SELECT
BUTTONS
Press
the
button
corresponding
to
the
tape
being
used
for
recording
and
playback.
MEMORY
BACK-UP
BATTERY
COMPARTMENT
(BOTTOM
PANEL)
When
the
battery
indicator
starts
flashing,
the
2
silver
oxide
batteries
should
be
replaced.
TIMER
SWITCH
(TIMER)
Set
the
switch
to
OFF
when
using
the
unit
normally.
Set
this
switch
to
REC
or
PLAY
for
recording
when
you
are
absent
or
for
timer
PLAY.
To
Set
Power
(Mains)
Voltage:
:
1.
This
unit
can
be
used
with
a
power
(mains)
voltage
of
100
to
110V,
115
to
127V,
200
to
220V
or
230
to
250V.
Before
operating,
be
sure
to
check
your
local
power
(mains)
voltage.
The
Voltage
selector
has
been
set
to
230
—
250V
when
the
set
is
shipped
from
the
factory.
:
2.
Turn
the
Voltage
selector
to
your
local
power
(mains)
voltage
with
a
screwdriver
until
the
selector
clicks.
:
Notes:
1.
Before
turning
the
selector,
disconnect
the
AC
power
(mains)
lead
from
the
AC
outlet
with
this
unit
in
the
stop
mode.
2.
Be
sure
not
to
turn
the
selector
with
a
thin
screwdriver,
etc.
by
force.
The
selector
may
be
broken
and
the
deck
will
not
operate.
3.
When
inserting
the
mains
plug
into
the
AC
outlet
supplying
100
—
110/115
~
127V,
insert
the
plug
with
a
Siemens
adaptor
connected
to
it.

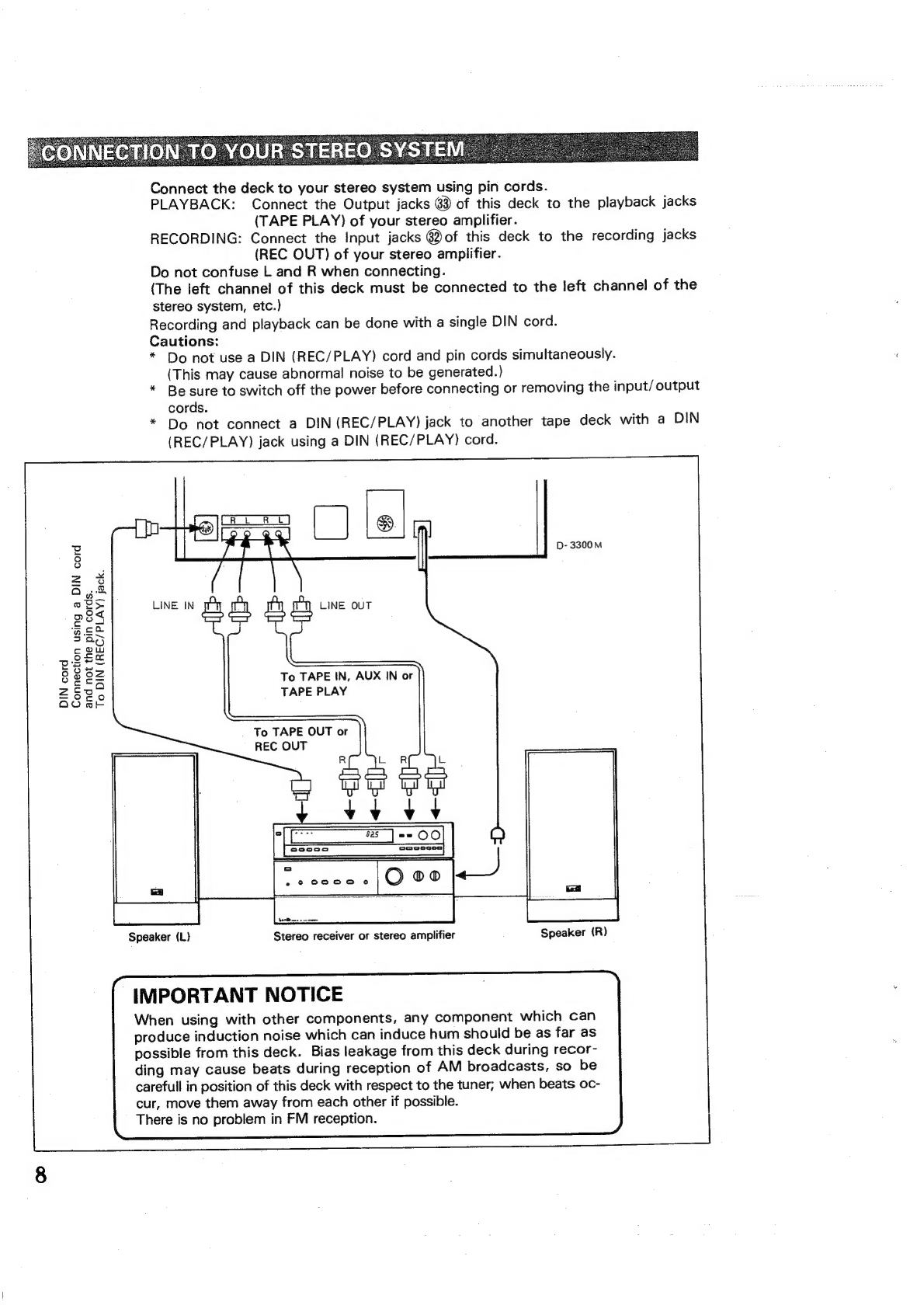

Connect
the
deck
to
your
stereo
system
using
pin
cords.
PLAYBACK:
Connect
the
Output
jacks
83)
of
this
deck
to
the
playback
jacks
(TAPE
PLAY)
of
your
stereo
amplifier.
RECORDING:
Connect
the
Input
jacks
@2of
this
deck
to
the
recording
jacks
(REC
OUT)
of
your
stereo
amplifier.
Do
not
confuse
L
and
R
when
connecting.
(The
left
channel
of
this
deck
must
be
connected
to
the
left
channel
of
the
stereo
system,
etc.)
Recording
and
playback
can
be
done
with
a
single
DIN
cord.
Cautions:
*
Do
not
use
a
DIN
(REC/PLAY)
cord
and
pin
cords
simultaneously.
(This
may
cause
abnormal
noise
to
be
generated.)
*
Be
sure
to
switch
off
the
power
before
connecting
or
removing
the
input/output
cords.
*
Do
not
connect
a
DIN
(REC/PLAY)
jack
to
another
tape
deck
with
a
DIN
(REC/PLAY)
jack
using
a
DIN
(REC/PLAY)
cord.
LINE
IN
LINE
OUT
To
TAPE
IN,
AUX
IN
or
TAPE
PLAY
Connection
using
a
DIN
cord
and
not
the
pin
cords.
To
DIN
(REC/PLAY)
jack.
DIN
cord
To
TAPE
OUT
or
REC
OUT
Speaker
(L)
Stereo
receiver
or
stereo
amplifier
Speaker
(R)
IMPORTANT
NOTICE
When
using
with
other
components,
any
component
which
can
produce
induction
noise
which
can
induce
hum
should
be
as
far
as
possible
from
this
deck.
Bias
leakage
from
this
deck
during
recor-
ding
may
cause
beats
during
reception
of
AM
broadcasts,
so
be
carefull
in
position
of
this
deck
with
respect
to
the
tuner,
when
beats
oc-
cur,
move
them
away
from
each
other
if
possible.
There
is
no
problem
in
FM
reception.

When
the
Eject
button
45
is
pressed,
the
cassette
holder
gently
comes
out.
In-
sert
the
cassette
tape
into
the
cassette
holder
with
the
edge
where
the
tape
is
visible
down
as
shown
by
arrow
@
and
press
it
in
the
direction
of
arrow
@
until
it
is
locks
with
a
click
and
then
close
the
cassette
lid.
Caution:
Close
the
cassette
lid
carefully
and
correctly
after
loading
the
tape.
Be
gentle
when
inserting
the
cassette
tape;
do
not
close
the
lid
too
quickly.
HOW
TO
TAKE
OUT
THE
CASSETTE
TAPE
When
the
Eject
button
@
is
pressed
in
the
stop
mode,
the
cassette
tape
holder
comes
out
and
the
cassette
tape
can
be
taken
out.
Caution:
To
protect
the
mechanism,
do
not
press
the
Eject
button
qd)
during
operation.
For
loading
and
unloading
the
cassette
tape,
press
the
Stop
button
first
to
enter
the
stop
mode
before
pressing
the
Eject
button
(5)
.
2
silver
oxide
batteries
(G-13)
are
used
for
this
unit
to
back-up
the
memory
of
the
microprocessor.
Be
careful
of
the
following
when
replacing
batteries.
1.
Be
sure
to
replace
batteries
with
the
power
switch
set
to
ON
and
the
power
cord
connected.
2.
The
unit
may
not
operate
normally
if
the
batteries
are
replaced
with
the
power
switch
set
to
OFF.
lf
this
happens,
pull
out
the
batteries
with
the
power
switch
set
to
OFF
and
insert
the
batteries
once
more
with
the
power
switch
set
to
ON.
3.
When
replacing
batteries,
insert
them
without
con-
fusing
polarity
((+)
and
(—)).
S
&
ee
Bottom
side

10
Recording
from
a
stereo
system
1.
Connect
this
unit
and
the
stereo
system
using
US-pin
type
cords.
2.
Set
the
Power
switch
@)
to
ON,
insert
the
cassette
with
the
side
to
be
recorded
toward
you
and
close
the
cassette
holder.
3.
Change
over
the
Dolby
noise
reduction/
MPX
filter
switch
(2
to
match
the
source
to
be
recorded.
(Set
to
“ON”
for
FM
stereo
recording
and
to
“ON/MPX
OFF”
otherwise.
Set
to
OFF”
to
record
without
using
the
DOLBY
NR
circuit).
4.
Set
the
Auto-rewind
switch
(3)
to
the
desired
position
(Refer
to
‘’Auto-
rewind
switch’
on
Page
19)
and
press
the
reset
button
of
Tape
counter
®)so
that
the
reading
is
‘000’.
.
Set
the
Monitor
switch
@)
to
“SOURCE”.
.
Change
over
the
Tape
select
buttons
61)
to
match
the
tape.
.
Set
the
unit
to
the
recording
stand-by
mode
by
pressing
simultaneously
the
Record
button
(8
and
the
Pause
button
(7).
Adjust
the
Recording
level
controls
so
that
the
indicator
of
the
Digital
peak
meter
©
do
not
exceed
+3
dB
at
maximum
input.
8.
Start
recording
by
pressing
the
Playback
button
@).
NO
_
9.
When
it
is
desired
to
stop
recording
temporarily,
press
the
Pause
button
(?).
Press
the
Playback
button
@i)
to
continue
recording.
10.
Press
the
REC.
MUTE
button
4
to
cut
the
sound
being
recorded.
The
input
is
cut
while
the
button
is
pressed
and
restarts
when
the
button
is
released.
(Use
the
Pause
button
(7)
when
the
narration
is
too
long,
etc.).
11.
Press
the
Stop
button
(9
when
the
recording
is
completed.
When
the
recording
is
done
up
to
the
end
of
tape,
operation
is
according
to
the
position
of
the
Auto-rewind
switch
@
.
Caution:
Do
not
push
the
Power
switch
@))
ON/OFF
abruptly
during
record-
ing
as
it
may
cause
mis-operation.
To
record
using
ATRS
Refer
to
the
section
on
ATRS
on
page
11.
Adjusting
the
recording
level
Adjust
the
recording
levels
of
the
two
channels
independently:
the
outer
knob
controls
the
right
channel
and
the
inner
knob
controls
the
left
channel.
Adjust
the
recording
level
while
watching
the
peak
level
meter.
When
recording
sound
with
a
fairly
constant
level
such
as
a
narration,
adjust
so
“Q"'is
not
exceeded.
When
recording
sound
such
as
music
where
instant-
aneous
peaks
occur,
adjust
so
that
the
level
does
not
exceed
“
+
3°”.
=
|
MAD
OoACoo
er
iti
MOOOSOAG.

The
D-3300M
incorporates
the
innovative
ATRS
using
a
microprocessor
which
makes
it
possible
to
achieve
the
best
possible
performance
from
any
tape.
The
optimum
bias,
equalization
and
recording
sensitivity
of
any
particular
tape
are
detected
so
that
recording
and
playback
with
any
tape
has
optimum
frequency
response,
minimum
distortion
and
the
most
stable
output
level
possible.
ATRS
is
not
used
in
the
play
mode.
.
¢
ATRS
operation
2]
@
Turn
ON
Power
switch
@5).
@
Press
the
Eject
button
(5
and
sec,
insert
a
cassette
tape.
Tiamowmmagoagaa]
||}
(
—
);
©
Press
the
Tape
select
button
6)
(UntuianiitentMCcrccict
—
corresponding
to
the
tape.
@
Press
the
Record
button
8
and
the
Playback
button
@)
to
set
the
==
at
deck
to
the
recording
mode.
ODD
O10
}s6
@
Press
the
Test
start
button
@8).
een
oct
(To
obtain
precise
data
for
any
—
tape,
do
not
test
at
the
beginning
or
end
but
use
the
middle
of
the
8
3)
tape.)
.
Now
ATRS
operation
starts.
It
takes
about
10
seconds
for
ATRS
to
test
the
tape,
after
which
the
tape
is
rewound
to
the
position
at
which
the
test
started,
and
the
deck
enters
the
stop
mode
with
the
test
data
stored
in
memory.
.
Adjust
the
level
with
the
Recording
level
controls
@)
then
press
the
Record
but-
ton
(8)
and
Playback
button
@)
simultaneously
to
start
recording
with
optimum
bias
and
equalization.
¢
ATRS
cautions!
The
Tape
select
buttons
61)
are
inoperative
once
the
test
has
started.
Be
sure
to
press
the
correct
one
before
the
test.
Use
the
middle
of
the
tape
for
optimum
ATRS
testing.
Be
careful
not
to
use
the
leader
tape
for
testing.
If
the
leader
tape
or
bad
(worn,
non-standard)
tape
is
us-
ed
for
ATRS
testing,
precise
data
cannot
be
obtained
so
that
ATRS’s
operation
is
automatically
stopped,
the
TEST
START
lamp
starts
flashing
to
indicate
an
error
and
the
deck
enters
the
stop
mode.
When
the
operation
button
is
pressed
during
ATRS
testing,
ATRS
circuit
releases
and
the
mechanism
operation
has
priority.
11

12
e
ATRS
test
data
ATRS
AUTOMATIC
TAPE
RESPONSE
SYSTEM
BATT
TEST
FREQUENCY
TEST
MEMORY
oe
UD-ER
——
FeCr
—
METAL
START
TEST TAPE
SELECT
{CrO2)___
(NOR)
idit
Lia.
Ati.
18
kis
‘Test
indicators
It
takes
ATRS
about
10
seconds
to
detect
the
optimum
bias
and
equalization;
while
it
is
progressing
the
Test
indicator
lights
successively.
After
testing,
the
ATRS
test
data
is
stored
in
memory
corresponding
to
the
type
of
tape.
Data
can
be
stored
for
one
type
of
CrO2
(UD—EX)
tape,
one
type
of
normal
(UD-ER)
tape,
one
type
of
ferrichrome
(FeCr)
tape
and
one
type
of
Metal
Tape.
When
testing
is
performed
for
any
type
of
tape,
the
data
already
held
in
memory
for
that
type
of
tape
is
over-
writen.
To
use
the
data
obtained
by
ATRS
immediately
after
it
has
been
used,
press
the
Test
memory
button
@9.
To
use
data
obtained
previously
held
in
memory,
press
the
Tape
select
button
corresponding
to
the
type
of
tape
being
used.
Whena
Tape
select
button
is
pressed,
the
indicator
corresponding
to
the
button
lights
so
that
it
can
be
checked
that
data
is
being
used.
If
a
Tape
select
button
is
pressed
and
no
data
is
held
in
the
corresponding
memory,
indicator
of
Tape
select
memory
button
flashes
to
warn
that
ATRS
testing
must
be
performed.
e
Storing
test
data
ATRS
AUTOMATIC
TAPE
RESPONSE
SYSTEM
BATT
TEST
FREQUENCY
TEST
MEMORY
_J—
UO-EX
—
UD-ER
——
FeCr
—~METAL
|
I
I
I
START
TEST
TAPE
SELECT
(CrO2)__
{NOR}
Lite
7
Ree
15
kl
area
fe.
Jo"
fe
te
Dy
OG
To
store
ATRS
test
data
in
the
tape
select
memory:
1.
Press
the
Tape
select
memory
button
60
while
pressing
the
Test
memory
button
2.
Release
the
Test
memory
button
@9.
3.
Release
the
Tape
select
memory
button
60.
;
This
operation
can
be
performed
for
each
of
the
four
types
of
tape.
When
it
is
done
again
for
a
previously
tested
type
of
tape,
the
data
in
memory
is
overwritten
by
the
new
data.
A
fifth
set
of
data
obtained
from
ATRS
testing
can
be
held
in
the
test
memory
without
performing
the
operation
given
above.
¢
Accessing
test
data
To
use
the
data
stored
in
test
memory
for
recording:
Press
the
same
Tape
select
button
61)
used
in
testing,
then
press
the
Test
memory
button
@9.
The
Test
memory
indicator
lights
to
indicate
that
data
has
been
output.
To
use
the
data
stored
in
the
Tape
select
memory
for
recording:
Press
the
Tape
select
button
61
corresponding
to
the
type
of
tape
used.
Check
that
the
Tape
select
memory
button
@0
indicator
lights.
When
Test
memory
button
@9
indicator
lights,
press
the
Tape
select
memory
but-
ton
@0.

Notes:
1.
When
the
Tape
select
memory
indica
stored
for
the
type
of
tape
being
use
performed.
2.
Be
careful;
the
Tape
select
mem
data
in
the
Tape
select
memory.
ATRS
operation
buttons
and
indicators
*
flashing
oe
lit
AUTOMATIC
TAPE
RESPONSE
SYSTEM
BATT
TEST
FREQUENCY
TEST
MEMORY
nn
UD-EX
—~
UD-ER
———
FeCr
——
METAL
e
I
|
|
START
TEST
TAPE
SELECT
(CrO2)
{NOR}
BATT
TEST
FREQUENCY
IkHz
7
kHz
15
kHz
TEST
START
AUTOMATIC
TAPE
RESPONSE
SYSTEM
MEMORY
fifes
UD-EX
—
UD-ER
——
FeCr
——
METAL
TEST TAPE
SELECT
{CrO2)
{NOR}
BATT
TEST
FREQUENCY
I
kHz
7
kHz
15
kHz
BATT
TEST
FREQUENCY
TEST
START
a
TEST
AUTOMATIC
TAPE
RESPONSE
SYSTEM
MEMORY
ST
UD-EX
——
UD-ER
——
FeCr
——
METAL
TEST
TAPE
SELECT
{CrO2)
(NOR)
AUTOMATIC
TAPE
RESPONSE
SYSTEM
MEMORY
r
UD-EX
—
UD-ER
——
FeCr
——
METAL
*
|
| I
START
TEST
TAPE
SELECT
(CrO2)
{NOR}
I
kHe
7
kH2_18
kHz
[fe
fo
fo
fo
ATRS
AUTOMATIC
TAPE
RESPONSE
SYSTEM
BATT
TEST
FREQUENCY
TEST
MEMORY
UD-EX
—
UD-ER
——
FeCr
——~
METAL
START
TEST
TAPE
SELECT
{CrO2)
{NOR}
*
Tid
ee
i
Le
eo
dl
BATT
TEST
FREQUENCY
IkHz2°
7
kHz
15
kHz
TEST
START
oe)
fo
Je
fo
jo
J
AUTOMATIC
TAPE
RESPONSE
SYSTEM
MEMORY
ol
ae
UD-EX
—
UD-ER
——
FeCr
——
METAL
TEST
TAPE
SELECT
{CrO2}
(NOR)
tor
flashes,
it
shows
that
no
data
is
d
and
that
ATRS
testing
must
be
if
the
Test
memory
button
is
pressed
by
mistake
instead
of
ory
button,
the
test
memory
data
overwrites
the
Test
error
indication
ATRS
test
is
per-
formed
with
leader
tape.
=»
Test
using
the
middle
of
the
tape.
Data
for
CrO2
(UD-
EX)
tape
select
memory
output
ATRS
testing
of
CrO2
(UD-EX)
tape
is
completed
and
the
resulting
data
is
out-
put.
Memory
back
up
batteries
exhausted
(with
data)
=»
Replace
bat-
‘
teries
Memory
back
up
batteries
exhausted
(without
data)
=»
Mechanism
will
not.
operate.
=»
Replace
bat-
treries.
No
test
data
stored
for
normal
(UD-ER}
tape
=»
Perform
ATRS
testing
and
store
data
for
normal!
tape.
13

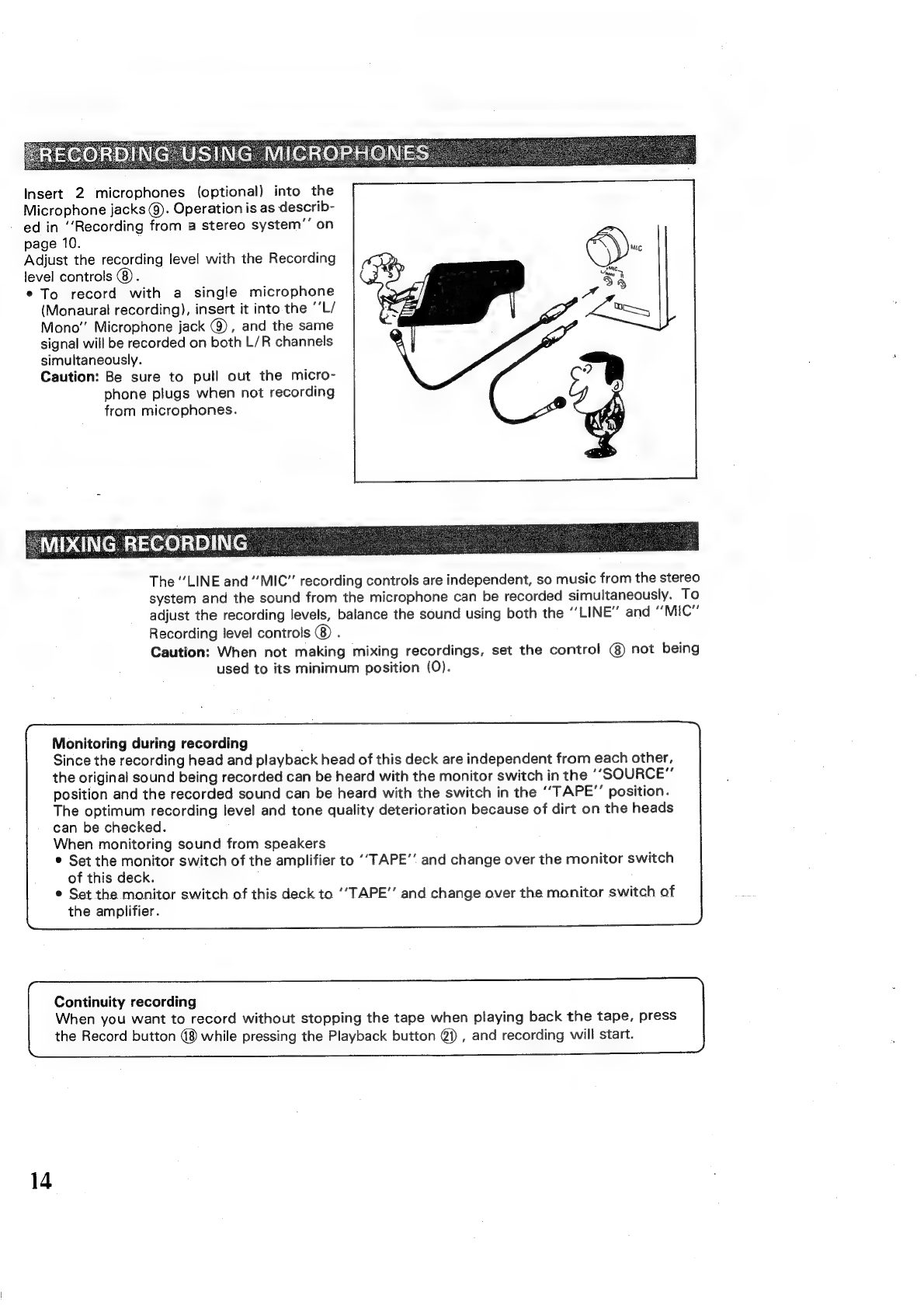

Insert
2
microphones
(optional)
into
the
Microphone
jacks
@).
Operation
is
as
describ-
-
ed
in
“‘Recording
from
a
stereo
system’’
on
page
10.
Adjust
the
recording
level
with
the
Recording
level
controls
@).
®
To
record
with
a
single
microphone
(Monaural
recording),
insert
it
into
the
‘’L/
Mono”
Microphone
jack
@),
and
the
same
signal
will
be
recorded
on
both
L/R
channels
simultaneously.
Caution:
Be
sure
to
pull
out
the
micro-
phone
plugs
when
not
recording
from
microphones.
MIXING
RECORDING
The
“LINE
and
“MIC”
recording
controls
are
independent,
so
music
from
the
stereo
system
and
the
sound
from
the
microphone
can
be
recorded
simultaneously.
To
adjust
the
recording
levels,
balance
the
sound
using
both
the
‘‘LINE”
and
“MIC”
Recording
level
controls
@)
.
Caution:
When
not
making
mixing
recordings,
set
the
control
not
being
used
to
its
minimum
position
(0).
Monitoring
during
recording
;
Since
the
recording
head
and
playback
head
of
this
deck
are
independent
from
each
other,
the
original
sound
being
recorded
can
be
heard
with
the
monitor
switch
in
the
*‘SOURCE”’
position
and
the
recorded
sound
can
be
heard
with
the
switch
in
the
“TAPE”
position.
The
optimum
recording
level
and
tone
quality
deterioration
because
of
dirt
on
the
heads
can
be
checked.
When
monitoring
sound
from
speakers
©
Set
the
monitor
switch
of
the
amplifier
to
‘‘TAPE’’
and
change
over
the
monitor
switch
of
this
deck.
¢
Set
the
monitor
switch
of
this
deck
to
‘‘TAPE’’
and
change
over
the
monitor
switch
of
the
amplifier.
Continuity
recording
When
you
want
to
record
without
stopping
the
tape
when
playing
back
the
tape,
press
the
Record
button
(8)
while
pressing
the
Playback
button
@})
,
and
recording
will
start.
14

_
Turn
the
Power
switch
@5)
ON
and
insert
the
tape
to
be
played
back.
.
Set
the
Monitor
switch
()
to
TAPE.
.
Set
the
Dolby
noise
reduction/MPx
filter
switch
(2
to
“ON/MPX
OFF”
or
“OFF”
depending
on
whether
or
not
the
tape
was
recorded
with
Dolby
NR
system.
.
Set
the
Auto-rewind
switch
(3
to
the
desired
position.
.
Change
over
the
Tape
select
buttons
61)
matching
the
tape.
.
Press
the
Playback
button
@i)
to
start
playback.
Adjust
volume,
tone
and
balance
with
the
stereo
amplifier
controls.
7.
When
it
is
desired
to
stop
the
tape
during
playback,
press
the
Pause
button
(7)
.
Press
the
Playback
button
@1)
to
start
playing
again.
8.
Press
the
Stop
button
(9
when
playing
is
completed.
When
the
tape
is
played
up
to
the
end,
operations
will
depend
on
the
position
of
the
Auto-rewind
switch
(3
.
OUTPUT
LEVEL
CONTROL.
Set
the
volume
control
of
the
stereo
amplifier
to
the
position
used
when
listening
to
broadcasts
or
records
and
then
operate
the
deck
and
adjust
this
output
level
control
to
obtain
the
same
sound
level.
Caution:
Sound
does
not
come
out
when
this
Output
level
contro!
(0
is
in
its
mini-
mum
position.
Sound
may
not
come
out
when
the
stereo
system
is
operated
incorrectly,
so
read
this
manual
together
with
the
instruction
manual
of
the
stereo
system.
WN
—-
our
Fast-forward
Press
the
Fast-forward
button
@0
,
and
the
tape
is
wound
up
quickly.
Press
the
Stop
button
(9
to
stop
the
tape.
In
the
case
of
fast-forward,
when
the
tape
reaches
its
end,
the
deck
enters
the
stop
mode
automatically
.regardiess
of
the
position
of
the
Auto-rewind
switch
(3.
Rewind
Press
the
Rewind
button
@2
,
and
the
tape
is
rewound
quickly.
Press
the
Stop
button
to
stop
the
tape.
In
the
case
of
rewind,
when
the
Auto-rewind
switch
is
set
to
“PLAY”,
the
unit
enters
the
play
mode
automatically
after
the
tape
is
re-
wound.
When
the
Auto-rewind
switch
@3
is
set
to
“STOP”
or
“OFF,
the
deck.
automatically
stops.
15

16
HOW
TO
USE
THE
COUNTER
MEMORY
SWITCH
Press
the
reset
button
of
the
Tape
counter
@)
at
the
start
of
the
desired
sec-
tion,
to
set
to
000’...
Turn
the
Memory
switch
ON,
and
press
the
Rewind
button
@
after
recording
or
playback
is
complete,
then
the
deck
stops
automatically
when
the
tape
counter
reaches
around
‘’999"".
USE
IN
CONJUNCTION
WITH
THE
AUTO-REWIND
SWITCH
When
you
record
from
the
middle
of
the
tape
and
want
to
play
back
the
tape
to
listen
to
what
you
have
recorded,
or
when
you
want
to
listen
to
the
tape
from
midway
to
the
end
repeatedly,
use
the
Auto-rewind
switch
(3
together
with
the
memory
switch.
Press
the
reset
button
of-
the
Tape
counter
©)
to
set
it
to’’000’’and
set
the
Memory
switch
(4
to’’ON”,
and
the
Auto-rewind
switch
(3)
,
to
“PLAY”
before
recording
or
playing.
Caution:
¢
When
the
tape
is
rewound,
the
tape
stops
a
little
before
the
tape
coun-
ter
reaches
000”
(around
‘’999’’);
this
is
so
that
the
beginning
of
the
program
is
not
missed.
°
Press
the
Rewind
button
@
once
more
when
you
want
to
rewind
the
tape
further
than
the
position
‘‘O00”’.
e
If
the
Rewind
button
@
is
kept
depressed
when
the
tape
counter
reaches
999",
the
memory
switch
will
not
operate.
This
is
because
the
unit
is
in
the
rewind
mode
after
‘‘999”’
is
passed.
When
a
new
recording
is
made
onto
a
recorded
tape,
the
signal
previously
recorded
is
erased
automatically.
When
it
is
desired
to
erase
a
previous
record-
ing
before
making
a
new
recording,
the
following
procedure
is
necessary.
1.
Insert
the
cassette
tape
with
the
side
you
want
to
erase
towards
you.
2
Match
the
Tape
select
button
61)
to
the
tape
to
be
erased.
3.
Set
the
MIC
and
LINE
Recording
level
controls
to
“‘0’’.
4.
Press
the
Playback
button
@1)
while
pressing
the
Record
button
q8).
Now,
eras-
ing
starts.
5.
When
the
tape
is
completely
wound,
the
auto-stop
mechanism
stops
it
auto-
matically.
Press
the
Stop
button
(9
when
it
is
desired
to
stop
the
tape
midway.
|
ame
|
HHT
OG
OOGGOB-
"
in
iimuluMMNOOOSCIS
When
erasing
is
performed
with
the
Recording
level
controls
set
to
minimum
,there
is
generally
no
problem;
when
you
want
to
erase
with
less
noise,
remove
the
input
cords,
etc.
before
erasing.
*Erasing
both
sides
of
the
tape
simultaneously
can
be
done
easily
using
a
cassette
demagnetizer.

When
this
tape
deck
is
used
with
an
external
audio
timer,
timer
recording
or
playback
at
the
desired
time
is
possible.
TIMER
RECORDING
OF
RADIO
BROADCASTS
1.
Insert
the
power
cord
of
this
unit into
the
socket
of
the
amplifier.
(Insert
the
power
cord
of
the
amplifier
into
the
socket
of
the
timer.)
2.
Set
the
timer
to
the
desired
time.
(Refer
to
the
instruction
manual
of
the
timer
for
setting
the
time.)
3.
Turn
the
power
for
the
amplifier
and
tuner
ON.
4.
Operate
as
described
in
items
1
—
7
in
“RECORDING”.
5.
Set
the
Auto-rewind
switch
(3
to
OFF
or
STOP.
Note:
Do
not
set
the
Auto-rewind
switch
4
to
“PLAY”
during
timer
recording.
6.
Set
the
Timer
switch
@4
to
“REC”.
Note:
If
this
switch
@
is
set
to
’“PLAY’’
and
the
timer
functions,
the
deck
enters
the
playback
mode,
so
recording
cannot
be
done.
when
it
is
set
to
“OFF”,
the
deck
does
not
operate
at
the
set
time.
(Now,
preparation
is
complete)
7.
Recording
starts
automatically
at
the
set
time,
the
timer
operates
and
the
power
is
switched
on.
TIMER
PLAY
1.
Insert
the
tape
you
desire
to
playback,
adjust
the
volume
knob
of
the
amplifier
to
determine
the
level
and
press
the
Stop
button
q@.
2.
Connect
the
timer
in
the
same
way
as
in
‘Timer
recording
of
radio
broadcasts”
and
set
the
timer
to
the
desired
time.
3.
With
the
Timer
switch
@
set
to
“PLAY”,
Playback
starts
automatically
at
the
set
time.
CAUTIONS
e
Do
not
use
a
cassette
with
its
erasure
prevention
tabs
snapped.
When
a
cassette
with
its
tabs
snapped
is
used,
the
unit
operates
in
the
PLAY
mode
when
the
timer
operates.
Be
careful
because
the
chance
to
make
a
unique
recording
might
be
missed.
©
Be
sure
to
set
the
Timer
switch
(TIMER)
to
‘’OFF”
except
for
TIMER
recording/
playback.
When
the
timer
switch
(TIMER)
is
set
to
REC
or
PLAY,
recording
or
play
starts
automatically
a
few
second
after
the
power
switch
is
turned
ON.
Be
careful
when
the
erasure
prevention
tabs
are
present
the
previously
recorded
tape
will
be
erased.
Do
not
open/close
the
cassette
lid
for
several
seconds
after
the
power
is
switched
ON
to
protect
the
mechanism.
CAUTION
ON
USE
OF
TIMER
Do
not
use
timer
recording
or
playback
when
you
are
absent
for
a
long
time.
17

18
Refer
to
the
following
table
for
setting
for
different
types
of
tape.
Since
this
deck
has
been
adjusted
using
HITACHI
tapes,
it
is
recommended
that
these
are
used
to
display
the
deck’s
full
performance
capabilities.
TAPE
SELECT
BUTTON
UD-ER
|
UD-EX
FeCr
|
(Nor)
|
(CrO2)
|
D
e
TAPE
SELECT
BUTTON
TAPE
NAME
FeC
UD-ER
|
UD-EX
eer
|}
NOR)
|
(CrO2),
DBL
[uD
it
TAPE
NAME
AD
e
UD-ER
TOK
|
ED
ie
3
UD-EX
SA
(Improved)
|
e.
4s
1a
ME
MA-R
e
[ue
MASTER
I
e
UD
High
Energy
e
MAXELL
|
XL-T
Dyna
range
e
|
XL-I
High
lander
eo
MASTER
I
MASTER
IL
METAFINE
Mx
BHF
AHF
or
ee
ie
eed
e
|_DUAD
DX-3
e
|
JHF
DX-5
el
[
|
METALIC._|
fero
Super
LHI
e
|
EXT
a
fero
Super
LH
eo
|
FL
ferrochrom
e
FX-D
Chrom
Ox.
super
|
MPX3
OXIDE
METAL
TAPE
Metal
tape
is
coated
with
a
magnetic
material
whose
main
components
are
malleable
iron
particles
(Fe)
on
polyester
base
material.
With
its
superb
magnetic
characteristics,
the
frequency
response
of
cassette
decks
is
improved
(especially,
the
dynamic
range
at
high
frequencies
is
widened),
the
maximum
recording
level
is
boosted
and
distortion
is
reduced.
Magnetization
Curve
of
Tape
(Hysteresis
Curve)
B
Magnetic
induction’
Br:
Residual
magnetic
flux
density
Magnetic
force
remaining
on
tape
(The
stronger
is
it,
the
higher
the
signal
level
that
can
be
recorded.)
Magnetizing
He:
Coercitive
force
Values
of
H
necessary
for
values
of
B
to
become
zero
(The
higher
they
are,
the
wider
the
dynamic
range
at
high
frequencies,
but
the
more
difficult
erasing
the
signal
becomes-}
Cautions
on
the
use
of
metal
tape:
1.
The
coating
of
magnetic
powder
is
not
even
with
some
Metal
Tape
causing
level
variation.
It
is
recommended
to
carefully
clean
the
heads,
capstans
and
pressure
rollers
using
a
cotton
bud
moistened
with
alcohol
after
the
unit
has
been
used
for
several
hours.
Especially
be
careful
when
the
ATRS
testing
is
performed.
(Be
careful;
when
excessive
force
is
applied
to
the
head,
it
may
cause
deteriora-
tion
of
the
high
frequency
response.)
2.
Metal
Tapes
recorded
using
this
deck
can
be
played
by
other
decks
which
do
not
have
a
Metal
Tape
switch
position.
Play
back
with
the
tape
selector
position
set
to
Chrome
(CrO2)
or
FeCr
at
that
time.
Clean
the
tape
running
surface
as
in
Item
1.

This
unit
can
automatically
stop,
rewind
and
play
back
depending
on
the
posi-
tion
of
the
Auto-rewind
switch.
Set
this
switch
for
recording,
rewinding
and
playing
back
to
use
it
effectively.
Operation
condition
Position
of
Operation
at
the
ie
auto-rewind
switch
tape
end
Recording
OFF
Stop
(AUTO
STOP)
.
Hoe
Rewind
to
Start
=
Stop
(AUTO
STOP)
ere
“T
Rewind
to
Start
»
Playback
=»
Rewind
»
Playback
...
Repetition
Playback
OFF
Stop
(AUTO
STOP)
ml
STOP
Rewind
to
Start
=
Stop
(AUTO
STOP)
PLAY
Rewind
to
Start
>
Playback
=
Rewind
»>
Playback
...
Repetition
Rewind
OFF
Stop
(AUTO
STOP)
STOP
PLAY
Playback
=>
Rewind
»
Playback
...
Repetition
Fast-forward
Stop
(AUTO
STOP)
Recording
Protection:
If
the
plastic
tabs
on
the
rear
of
the
cassette
are
punched
out
(by
a
screwdriver
or
similar
tool),
the
recordings
can
be
protected
against
accidental
erasure.
When
only
one
side
of
the
cassette
is
to
be
protected,
with
the
side
you
want
to
protect
up
and
the
blank
edge
of
the
cassette
towards
you,
punch
out
the
tab
on
the
right.
Precaution:
\f
a
tape
is
played
several
times
continuously,
especially
if
thin
tape
(C-90,
C-120)
is
used,
the
tape
might
be
wound
too
tightly
on
the
reel
and
cause
the
tape
speed
to
fluctuate.
In
order
to
avoid
this,
it
is
recommended
to
tap
the
cassette
several
times
lightly
against
a
table-top
19

which
will
loosen
the
tape
on
the
reel.
The
tape
should
not
be
too
loose.
Especially
after
fast
forwarding
or
rewinding
a
C-90
or
C-120
cassette,
the
slack
should
be
taken
up
by
inserting
a
pencil
or
other
object
in
the
spindle
hole
and
the
tape
tightened
to
prevent
looping.
4-Track
Record/Playback:
After
recording
or
playing
back
one
side
of
the
cassette,
remove
the
tape
by
depressing
the
Eject
button
5),
turn
the
cassette
over
and
insert
it
again.
Then,
the
tape
can
be
used
again
for
the
same
time
as
the
first
side.
Due
to
the
slow
speed
of
cassette
decks,
tape
hiss
occurs.
This
is
not
audible
at
maximum
output
level
but
considerably
degrades
the
playback
quality
of
low
level
passages
of
recorded
material.
By
using
the
Dolby
NR
system
(named
after
the
inventor),
it
is
now
possible
to
substantially
reduce
tape
hiss
so
that
it
is
practically
inaudible
during
playback.
With
the
Dolby
NR
system,
during
recording,
the
level
of
the
low
passages
is
increased
considerably;
during
playback
these
passages
are
reduced
to
their
original
level.
Therefore,
the
tape
hiss
is
also
reducted
by
the
same
amount
and
is
not
audible
during
playback.
Before
playback
of
a
cassette,
it
should
be
ascertained
if
the
Dolby
NR
switch
@)
is
set
in
the
proper
position:
*
Cassettes
recorded
through
the
Dolby
NR
circuit
must
be
played
back
in
the
Dolby
NR
mode
(if
played
back
with
normal
playback
equalization,
the
sound
seems
too
sharp.)
*
Normal
recordings
should
not
be
played
back
through
the
Dolby
NR
system
(if
played
back
with
the
Dolby
NR
equalization,
the
sound
will
seem
‘“‘muddy”’).
Generally,
the
optimum
adjustment
of
the
recording
and
playback
calibration
is
im-
portant
for
satisfactory
functioning
of
the
Dolby
NR
system.
This
adjust-
ment
is
done
at
the
factory
prior
to
shipment
using
calibrated
test
tape
and
special
equipment.
;
Making
an
ordinary
recording
Making
Dolbyized
recording
1.
Music
1.
What
the
Dolby
System
does
first
Music
is
composed
of
sounds
of
different.
loudness
separated
by
intervals
of
silence.
Loud
and
soft
sounds
are
here
shown
as
long
and
short
lines.
The
music
shown
in
this
diagram
starts
loud
and
gradually
becomes
very
quiet.
2
Noise
Any
recording
tape,
even
of
the
best
kind,
makes
a
constant
hissing
noise
when
played.
At
the
very
slow
speeds
and
narrow
track
widths
used
in
cassette
tapes,
tape
noise
is
much
more
noticeable
than
it
is
in
professional
tape
recordings,
although
even
there
it
is
a
problem.
3.
Music
and
Noise
When
a
tape
recording
is
played,
noise
from
the
tape
obscures
the
quietest
musical
sounds
and
fills
the
silence
when
no
sound
should
be
heard
at
all.
Only
when
the
music
is
loud
the
noise
is
not
usually
heard;
however,
tape
noise
is
so
different
from
music
that
it
sometimes
can
be
heard
even
then.
20
Before
the
recording
is
made,
the
Dolby
System
“‘listens”
to
the
music
to
find
the
places
where
a
listener
might
later
be
disturbed
by
hiss
from
the
tape.
This
happens
mainly
during
the
quietest
parts
of
the
music.
When
it
finds
such
a
passage,
the
system
auto-
matically
increases
the
volume
so
that
music
is
recorded
at
a
higher
level
than
it
would
be
normally.
2.
The
Recording
In
a
Dolby
System
recording
the
parts
of
the
music
which
have
been
made
louder
stand
out
clearly
from
the
noise.
Thus
recordings
sound
brilliant
and
unusually
clear
even
when
played
back
without
the
special
Dolby
System
circuit.
3.
What
the
Dolby
System
does
during
playback
When
tapes
are
played
on
a
high-fidelity
tape
deck
equipped
with
the
Dolby
System
circuit,
the
loudness
is
automatically
reduced
in
all
of
the
places
at
which
it
was
increaseed
before
recording.
This
restores
the
music
to
its
original
level
again.
At
the
same
time,
the
noise
which
has
been
mixed
with
the
music
is
reduced
in
level
and
this
is
by
the
same
amount
usually
enough
to
make
it
inaudible.
